HYPERLITE TOP Series User manual

TOP series
LED AREA LIGHT
USER MANUAL

LED AREA LIGHT
TOP Series
5YEARS
WARRANTY
Model
CES-LS-FT-100W
CES-LS-FT-150W
Lumens
15000LM
22500LM
Wattage
100W
150W
Model
CES-LS-FT-200W
CES-LS-FT-300W
Lumens
30000LM
45000LM
Wattage
200W
300W
Efficacy
135LM/W
CCT
5000K
CRI
>70
Beam Angle
Type III
Lifespan
>60,000hours
Mounting
Adjustable Pole Mount, Slip Fitter Mount, Trunnion Mount
Sensor
Photocell
Vibration Test
1.5G per ANSI 361 C1366.31
Input Voltage
AC100V-277V
Power factor
>0.9
Operating Temperature
-40°F to 104°F
Listings
cUL / DLC
IP Rating
IP 65, Suitable for wet location
Warranty
5 Years
With innovative low profile, one-piece housing, the Hyperlite Top series supports superior
thermal management and self-cleaning capability from rain, snow, bird droppings etc.
The contractor-friendly design includes two buckles and a hinged swing wiring box for
extremely easy installation. The environmentally friendly powder coatings are formulated
for high durability and long-lasting color. (The light pole is just for reference, not included)
FEATURES & SPECIFICATIONS
- 1 -

DIMENSIONS
CES-LS-FT-100W/150W
CES-LS-FT-200W CES-LS-FT-300W
Adjustable Pole Mount
(APM)
Slip Fitter Mount
(SFM)
Trunnion Mount
(TM)
544mm
[21.4"]
294mm
[11.6"]
101mm
[4.0"]
599mm
[23.6"]
344mm
[13.5"]
101mm
[4.0"]
654mm
[25.7"]
379mm
[14.9"] 120mm
[4.7"]
Model
Wattage
Net Weight
Gross Weight
Bracket/Extra Weight
CTN Size
CES-LS-FT-100W
100W
11.2 lbs
13.2 lbs
28.9 * 13.2 * 5.7"
CES-LS-FT-150W
150W
11.9 lbs
15.4 lbs
APM: 3.20 lbs
28.9 * 13.2 * 5.7"
CES-LS-FT-200W
200W
14.3 lbs
17.6 lbs
SFM: 3.46 lbs
31.7 * 15.7 * 5.7"
CES-LS-FT-300W
300W
22.3 lbs
27.6 lbs
34.1 * 17.1 * 7.1"
- 2 -

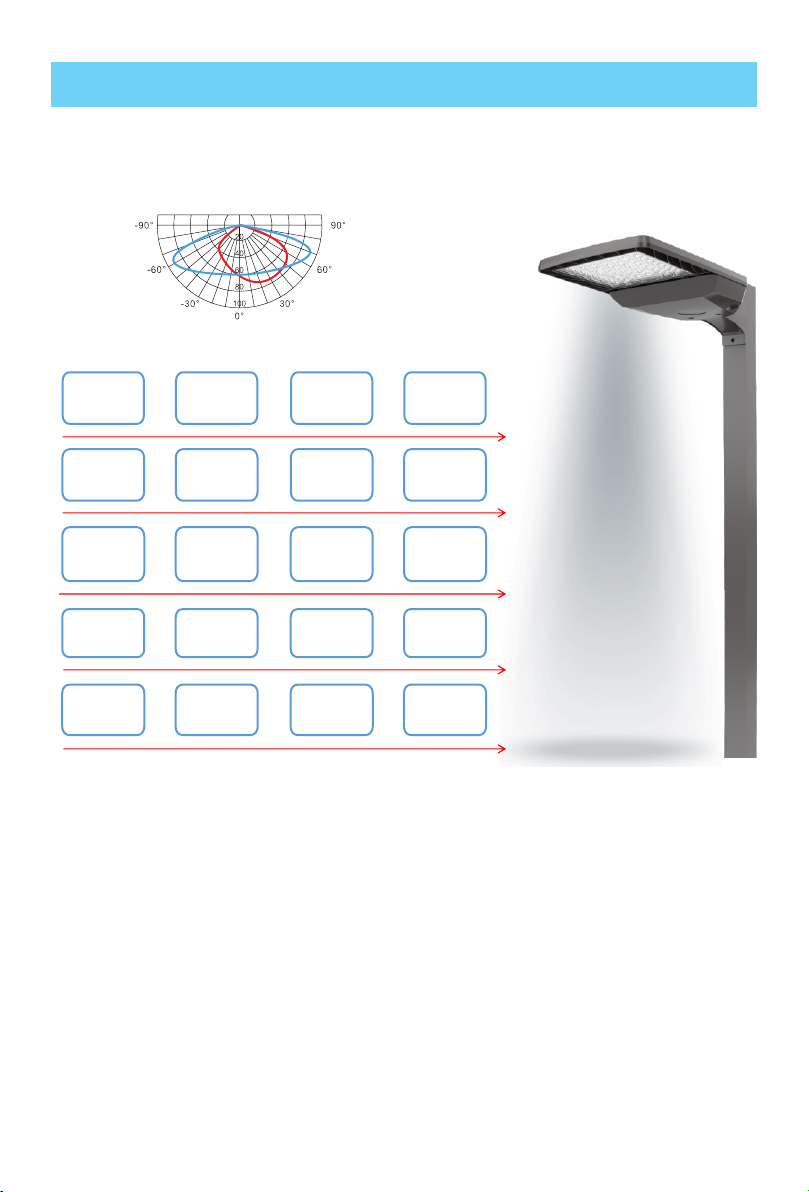

TYPE III DISTRIBUTION
Type III
PHOTOMETRY
READ THOROUGHLY BEFORE INSTALATION
WARNING! FIXTURES MUST BE GROUNDED and installed in accordance with the National Electrical
Code and all local codes. Failure to do so may increase the RISK OF PERSONAL INJURY, PROPERTY
DAMAGE, FIRE AND DEATH.
Dangerous voltage exist within the unit and all precautions usually observed in handling WARNING!
high voltage equipment should be observed when replacing light engine or otherwise servicing
luminares. Disregarding this warning could result in electrical shock and possible injury to the
individual installing or servicing this equipment. Installation, service and maintenance of luminaires
should be done by a qualified licensed electrician.
To reduce the risk of death, personal injury or property damage from fire, electric shock, CAUTION!
falling parts, cuts/abrasions, and other hazards please read all warnings and instructions included
with and on the fixture box and all fixture labels.
- 3 -
32ft
26ft
20ft
14ft
10ft
100W/15000lm 150W/22500lm 200W/30000lm 300W/45000lm
36.5 fc
20.5 fc
9.1 fc
5.2 fc
3.3 fc
52.0 fc
29.3 fc
13.0 fc
7.3 fc
4.6 fc
76.1 fc
42.8 fc
19.0 fc
10.7 fc
6.8 fc
103.4 fc
58.1 fc
25.8 fc
14.5 fc
9.3 fc

INSTALLATION INSTRUCTIONS
Adjustable Pole Mount (APM)
Angle adjustment
- 4 -
LIGHT MUST BE GROUNDED
N
L
GND
N
L
GND
Black Wire - Line Voltage
Green Wire - Ground
White Wire - Neutral
1.Remove the center bolt to separate the flange from
the pole mount.
2.Run wiring through the flange while fixing it to
the light, then route wiring through mount base
and reattach it to the flange.
3. Make appropriate mounting and wiring holes
in pole/post and attach mount to pole/post.
Connect wiring.
NOTE!
- This equipment is only for professional installation. Non-professional personnel shall not remove or
install the equipment.
- To avoid damage,falling,electric shock or fire, please do not modify the lamp or replace accessories
without confirming with the supplier.
- Maintenance/installation and replacement the lamps , please confirm to cut off the power supply, and
the lamps have set up a cooling. Please make sure the lamps properly installed before processing
power.
- Ensure the accurate and reliable connection.
- Ensure that the product around the vent, the lamp cannot violate any fire prevention regulations when
using.
Carefully read these instructions before installing product and keep it for future reference. If you do not
understand these instructions, before starting any work, contact [e-mail] or [phone].

INSTALLATION INSTRUCTIONS
Slip Fitter Mount (SFM)
TRUNNION Mount (TM)
Roof/Wall
- 5 -
LIGHT MUST BE GROUNDED
N
L
GND
N
L
GND
Black Wire - Line Voltage
Green Wire - Ground
White Wire - Neutral
LIGHT MUST BE GROUNDED
N
L
GND
N
L
GND
Black Wire - Line Voltage
Green Wire - Ground
White Wire - Neutral
3.Connect wiring, slide slip-fitter over pole/post.
Tighten the retaining bolts.
1.Remove the center bolt to separate the
flange from the slip-fitter mount.
2.Run wiring through the flange while fixing it to
the light, then route wiring through slip-fitter and
reattach it to the flange.
1.Secure the trunnion mount bracket on the
wall/surface by two bolts
2.Insert the light fixture into the arm Trunnion
and fix the lamp with two M6 screws
3.Make wiring connection.Inspect installation to ensure fixture is secure. Loosen and adjust the adjusting bolts
to the right angle, and the maximum is 60°

Installation
Disconnect power; Wire the receptacle according to the diagram in right hand. Push the photo controller on and twist it
clockwise ti lock it into the receptacle.
Install the photo controller with the Photocell facing the NORTH direction as indicated on the top of the photo controller.
Adjust the receptacle position if necessary.
/
Photocell / Shorting cap
Rated Voltage
110-277VAC
Applicable Voltage Range
105-305VAC
Rated Frequency
50/60Hz
Rated Loading
1000W Tungsten, 1800VA Ballast
Power Consumption
1.5VA
On / Off Level
6 Lux - On
50 Lux - Off
Ambient Temp
-40°F ~ +158°F
Related Humidity
99%
Overall Size
84(Dia.) * 2.6"
Weight Approx
85 grs
Pre-assemble photocell and convenient knock-out for optional motion sensor
Shorting cap is available when no need photocell, easy installation
Photocell available
Socket
PHOTOCELL
- 6 -

Certificate Number: E483348
Report Reference: E483348
Issue Date: 2019-OCTOBER-14
Only those products bearing the UL Certification Mark should be considered as being covered by UL's ▲
Certification and Follow-Up Service.
Look for the UL Certification Mark on the product▲
Additional Information:
www.ul.com/databaseSee the UL Online Certifications Directory at for additional information
NAMING RULES
UL CERTIFICATION
How to search the DLC and Get rebate
1. Visit official website: , and input 'CES-LS-FT', you would get all results.www.designlights.org
2. Comparing the search result to the lights you bought, you would get some important data, such as Report Data,
Zonal Lumen and so on. Our lights are all listed in DLC organization.
3. Contact local energy sector, you provide the necessary information to them, then you would get rebate.
CES-LS-FT-100WXYZ-RMSC Example: CES-LS-FT-100W30SBT3-R8UPMS1BZ
Base
X
Y
Z
R
Series
Power
CCT
Driver
Optics
CRI
LS-FT
100W
150W
200W
300W
50 5000K
SA
Sosen Non-
dimmable
SB
Sosen
Dimmable
T2 Type 2
T3 Type 3
T4 Type 4
T5 Type 5
L6 Lens 60°
L9 Lens 90°
L12 Lens 120°
R8 Ra>80
R9 Ra>90
Blank Ra>70
Accessory and options
M
S
C
Mounting
Sensor
Color
UPM
Universal Pole
Mount
APM
Adjustable Pole
Mount
SFM
Slip Fitter
Mount
TM
Trunnion
Mount
Blank
No Mount
S1
Photocell
S2
Motion Sensor
S3
PIR Senor
S4
Shorting cap
Blank
No Sensors
BZ
Bronze
BL
Black
WH
White
SL
Sliver
OT
Other
CERTIFICATE OF COMPLIANCE
- 7 -

www.hi-hyperlite.com
Use hyperlite LED area light
enjoy brighter life now
If you need more information about our lights,
please email us or call us
Email: [e-mail]
Toll-free number: [phone]
