HYTECON HYPRO WATER User manual

User manual
HYPRO WATER
EN | 05.2021

HYPRO WATER – 05.2021
2
Document information
Safety notes
DWARNING!
Information marked with the word
WARNING warns of a dangerous situation
that can lead to death or serious injury.
DCAUTION!
Information marked with the word
CAUTION warns of a dangerous situation
that can lead to minor or moderate injury.
DATTENTION!
Information marked with the word
ATTENTION warns of a situation that
can lead to damage to property or the
environment.

3
HYPRO WATER – 05.2021 3
Table of contents
1. Safety information .............4
1.1 Intended use . . . . . . . . . . . 4
1.2 User . . . . . . . . . . . . . . . .4
1.3 General safety notes . . . . . . . 5
2. Product information............7
2.1 Function principle . . . . . . . . . 7
2.2 Product overview . . . . . . . . . 7
2.3 Scope of supply . . . . . . . . . .9
2.4 Technical data . . . . . . . . . . 10
2.5 HYPRO WATER app . . . . . . . 10
3. Installation ...................11
3.1 Requirements applicable to
the installation site . . . . . . . . 11
3.2 Unpacking the device . . . . . . .12
3.3 Preparing for installation. . . . . .13
3.4 Installation variants . . . . . . . 14
3.5 Mounting the wall bracket. . . . .15
3.6 Hose connections . . . . . . . . 16
3.7 Executing installation variant 1 . . .17
3.8 Executing installation variant 2. . .21
3.9 Executing installation variant 3. . 26
3.10 Executing installation variant 4 . .31
3.11 Inserting the filter . . . . . . . . 35
3.12 Completing installation . . . . . 37
4. Use ........................39
5. Cleaning ....................40
6. Maintenance................. 41
6.1 Changing the filter . . . . . . . 41
6.2 Check . . . . . . . . . . . . . . 42
7. Troubleshooting ..............43
8. Disassembly .................45
9. Disposal. . . . . . . . . . . . . . . . . . . . . 46
9.1 Disposing of the packaging . . . 46
9.2 Disposing of used filters. . . . . 46
9.3 Disposing of the device . . . . . 46
10. Annex ......................47
10.1 Customer service centre
contact details . . . . . . . . . . 47
10.2 Privacy policy . . . . . . . . . . 47
10.3 Patents . . . . . . . . . . . . . 47
10.4 TÜV certificate. . . . . . . . . . 47
10.5 Spare parts . . . . . . . . . . . 47
10.6 General information . . . . . . . 48
10.7 NSF/ANSI . . . . . . . . . . . . 48
10.8 NSF performance data . . . . . 49
10.9 CE Declaration of Conformity . . 50
10.10 FCC/ISED . . . . . . . . . . . . .51

HYPRO WATER – 05.2021
4
1. Safety information
1.1 Intended use
The device is intended for:
– Filtering and disinfecting drinking water.
– Use with cold water.
➡“2.4 Technical data” (page10).
– Private use or minor commercial use.
– Installation in one of the four
installation variants.
➡“3.4 Installation variants”
(page14).
The device is not intended for:
– Water inflowing from rainwater cisterns,
ponds, etc. Inflowing water must
originate from a public supply.
➡“10.6 General information”
(page48).
– The device is not intended for
continuous operation.
– The device must not lie horizontal or at
an angle.
Use of the device is only permitted:
– After reading and observing this user
manual.
– In a technically faultless and
unmodified condition.
– With the use of new original
accessories.
– After correct installation and checks.
– In enclosed rooms.
Any other use is non-intended use.
1.2 User
Requirements applicable to the user:
– Knowledge of this user manual.
– Experience of using mechanical tools.
Special requirements apply to the following
users:
– Children from 8 years.
– Persons with impaired physical, sensory
or mental abilities.
– Persons who lack knowledge and
experience.
These users shall only use the device as
described in the chapter “Use”.
➡“4. Use” (page39).
Special requirements:
– Users are supervised.
– Users are instructed on safe use of the
device.
– Users understand the dangers
associated with the device.
– Children must not play with the device.
– Children must not undertake cleaning
or maintenance unsupervised.

5
HYPRO WATER – 05.2021 5
1.3 General safety notes
DWARNING!
Danger due to a failure to observe the
user manual!
This user manual contains important
information for safe use of the device.
Possible dangers are specifically
highlighted. A failure to observe these can
lead to injuries.
yRead the user manual carefully.
yStore the user manual in an accessible
location.
yObserve the safety notes in this user
manual.
yStore the film and other parts of
the packaging such that they are
inaccessible to children.
yMake sure that installation complies
with the local laws and regulations.
yTighten the connections with a max.
torque of 3Nm an.
The device is powered by electricity. This
results in a risk of electric shock.
yMake sure that the electrical connection
is protected with an RCD (max. 30mA).
yNever submerge the device in water or
other liquids.
yNever take hold of the power plug with
wet hands.
yAlways hold the power plug by the plug
enclosure.
yDo not pull on the mains cable.
yNever carry the device by the mains
cable.
yDo not bend the cable.
yDo not crush the cable.
yMake sure that the cable does not come
into contact with heat.
yMake sure that the cable does not come
into contact with sharp edges.
yMake sure that the cable does not pose
a risk of tripping.
The device generates UV radiation internally,
which can cause damage in direct contact
with the eyes or skin.
yNever open the enclosure.
yDo not look into the UV LEDs. Only
check that the UV LEDs are working
indirectly, by means of the status LEDs
on the device and the HYPRO app.

HYPRO WATER – 05.2021
6
The components in the device (e.g. UV
LEDs or battery) must be replaced by the
manufacturer exclusively.
Used hoses must not be reused.
Used filters must not be regenerated or
reused.
Use of the device is prohibited in the
following cases:
– If the device or individual components
are damaged.
– In case of unauthorised modifications
or changes to the device.
– If the device is malfunctioning.
The manufacturer accepts no liability for
damages in the following cases:
– With a failure to observe this user
manual.
– In case of non-intended use.
– In case of incorrect handling.
– With use of non-original accessories.
Made in Germany.
The device and its installation are subject
to the regulations of the Federal Republic
of Germany.

7
HYPRO WATER – 05.2021 7
2. Product information
2.1 Function principle
The device filters and disinfects tap
water. An activated carbon filter reduces
hazardous substances. The UVC light from
the UV LEDs destroys pathogens. The
device disinfects itself regularly by briefly
switching on the UV LEDs.
The device cleanses water of:*
– Bacteria, viruses and parasites
– Medications and hormones
– Pesticides and herbicides
– Heavy metals
– Chlorine, chloramines and
trihalomethanes
– Volatile organic compounds
– Per- and polyfluoroalkyl compounds
(e. g. PFOA and PFOS)
– Odorants and flavourings
* Tested and verified by independent
laboratories.

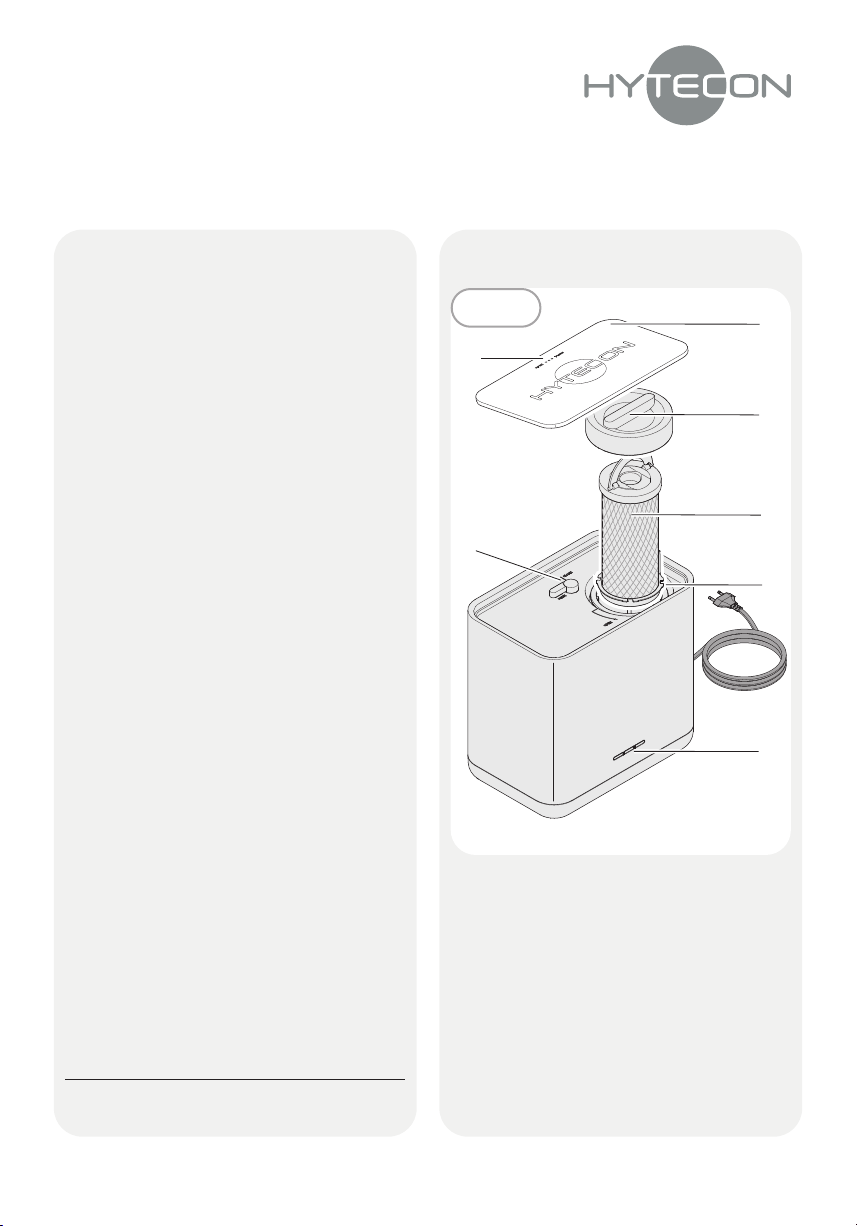

2.2 Product overview
5
3
4
6
2.2 / 1
2
7
1
1 Device cover
2 Pressure point of the device cover
3 Screw cap for the filter chamber
4 Filter
5 Shut-off valve
6 Filter chamber
7 LED indicator

HYPRO WATER – 05.2021
8
8
9
11 1210
2.2 / 2

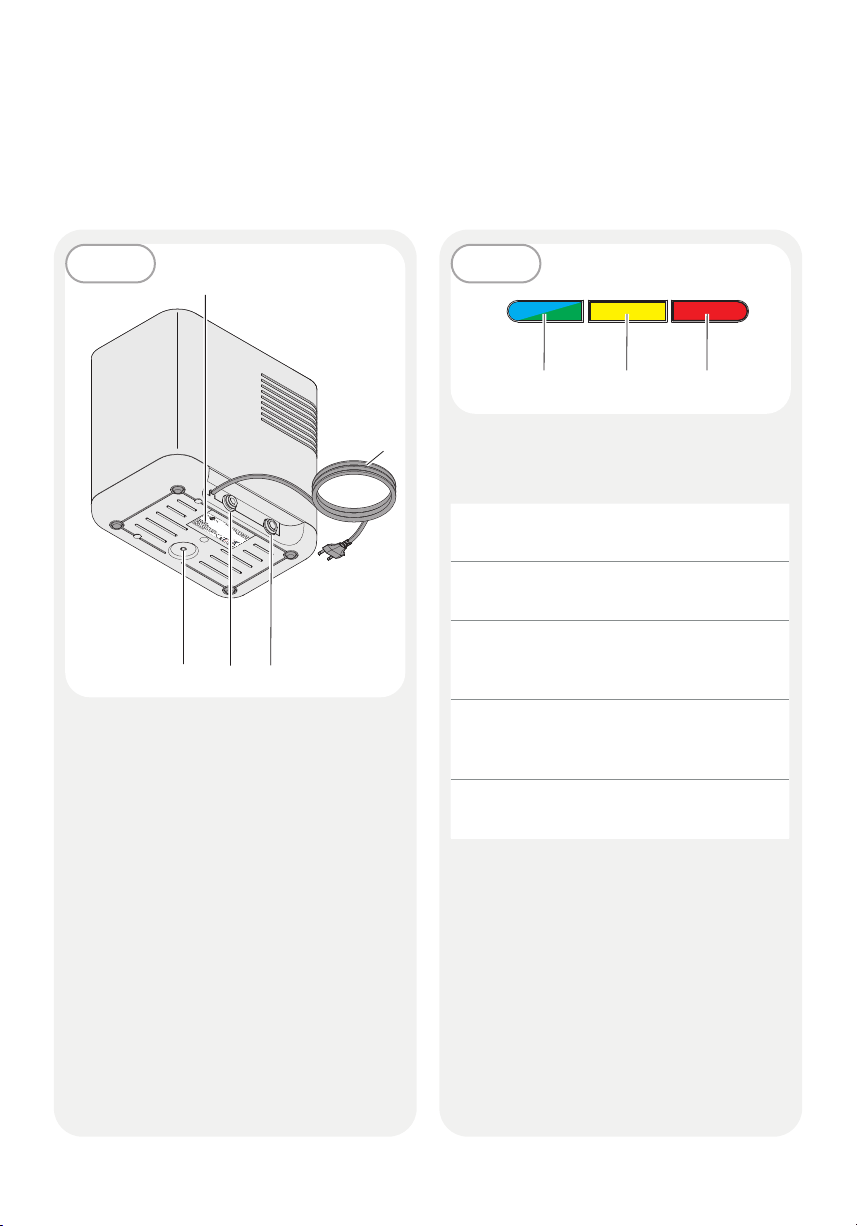

8 Data plate
9 Mains cable with power plug
10 Thread for mounting on the wall
bracket
11 Water inlet
12 Water outlet
71
2.2 / 3
7273
The LED indicator signals the operating
statuses of the device to the user.
71
LED lights up green:
The device is ready.
71
LED lights up blue:
The device is disinfecting.
72
LED flashes yellow:
The device is ready for a WLAN
connection.
72
LED lights up yellow continuously:
The device is connected with the
WLAN.
73
LED lights up or flashes red:
Fault or filter change.

9
HYPRO WATER – 05.2021 9

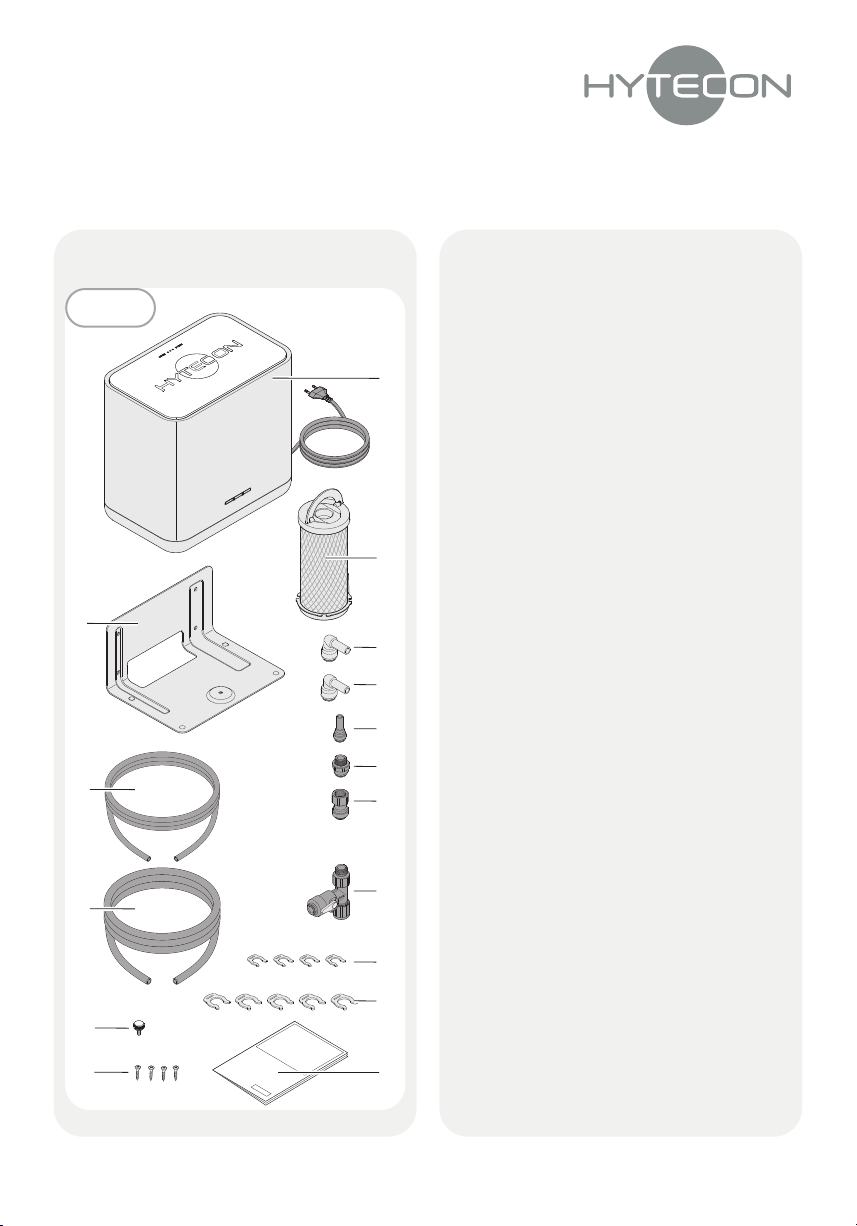

2.3 Scope of supply
C
I
A
K
B
L
D
J
F
G
H
M
N
P
E
2.3 / 1
O
A HYPRO WATER device
B Filter
C Wall bracket
D Angle piece (⁄")
E Angle piece (⁄")
F Reducer piece
G Connection piece (outside thread ⁄")
H Connection piece (inside thread ⁄")
I Water inlet hose (⁄")
J Water discharge hose (⁄")
K T-piece including shut-off valve
L 4 safety clips (⁄")
M 5 safety clips (⁄")
N Knurled screw
O 4 screws for mounting on chipboard
P User manual

HYPRO WATER – 05.2021
10
2.4 Technical data
Supply voltage
110 - 240VAC/
41  W/
50 - 60Hz
Flow rate*2.87l/min
Water temperature min.5 °C/
max.30°C
Ambient
temperature
min.5 °C/
max.35°C
Operating pressure max.4bar/400kPa
Ingress protection IPx1
Width 249.5mm
Depth 161mm
Height 235mm
Empty weight 3.6kg
Weight with water 4.5kg
Filter capacity 2000l
Filter change 4 months
WLAN WLAN802.11b/g/n
* Varies depending on the filter type and
operating pressure used.
2.5 HYPRO WATER app
The HYPRO app must be downloaded
from an app store, in order to connect the
device to a smartphone or tablet.
System requirements:
– Smartphone or tablet (Android version
5.0 or more recent).
– Smartphone or tablet (iOS version 8.0
or more recent).
Android iOS
You can find the app in the respective
app store under the name “HYPRO WATER
App”.
The following information is presented in
the app:
– Water consumption
– Device status
– Filter status
– Error messages
It may take a few minutes for the
connection to be established and the
device to be recognised by the app.

11
HYPRO WATER – 05.2021 11
3. Installation
3.1 Requirements applicable to the
installation site
– The installation site must be clean and
dry.
– A suitable socket must be available at
the installation site. The socket must
have been installed and set up by
a qualified electrician. The electrical
connections must comply with the local
regulations. The mains voltage must
concur with the voltage specifications
on the data plate.
➡“2.4 Technical data” (page10).
– Installation above the worktop requires
a suitable recess in or behind the
worktop through which the mains cable
and hoses are routed.
– If the wall bracket is used: Select the
installation site such that 10 cm remains
clear beneath the device for mounting
on the wall bracket.
– Select the installation site such that 20
cm remains clear above the device to
facilitate a filter change.
– If the device is used with the HYPRO
app: A WLAN connection to the
internet must be available at the
installation site.
– If a boiler is used, this must have been
professionally installed.
– The tap at the installation site must
have been professionally installed.
Examples:
a 3-way tap
b 2-way tap
c Supplementary tap
3.1 / 1
ab c
yObserve the documentation for your
water tap.
Water tap documentation.

HYPRO WATER – 05.2021
12
3.2 Unpacking the device
DATTENTION!
Risk of damage due to incorrect handling!
The device and its surfaces may be
damaged during unpacking or transport.
yDo not cut into the protective
cardboard packaging.
yObjects that may cause scratches must
be held at a distance.
yUnpack the device and all enclosed
parts with care.
yCheck the device and all enclosed
parts for damage.
yCheck the scope of supply for
completeness.
➡“2.3 Scope of supply” (page9).
If parts are damaged or missing:
yContact your customer service centre.
➡“10.1 Customer service centre
contact details” (page47).
yRemove the packaging materials.
➡“9.1 Disposing of the packaging”
(page46).
In individual cases a small amount of water
may be present in the device and may
leak out due to the manufacturer's quality
controlling. This does not impair the quality
or function of the device.

13
HYPRO WATER – 05.2021 13
3.3 Preparing for installation
yBefore starting installation, make sure
the power supply is and remains
disconnected.
yFamiliarise yourself with the installation
situation and the associated
documents.
– User manual.
– Accessories and their instructions.
yOnly use new original accessories.
The user manual presents four possible
installation variants of the device.
yChoose the installation variant
appropriate in your application case.
➡“3.4 Installation variants”
(page14).
yInstall the HYPRO app.
3.3 / 1

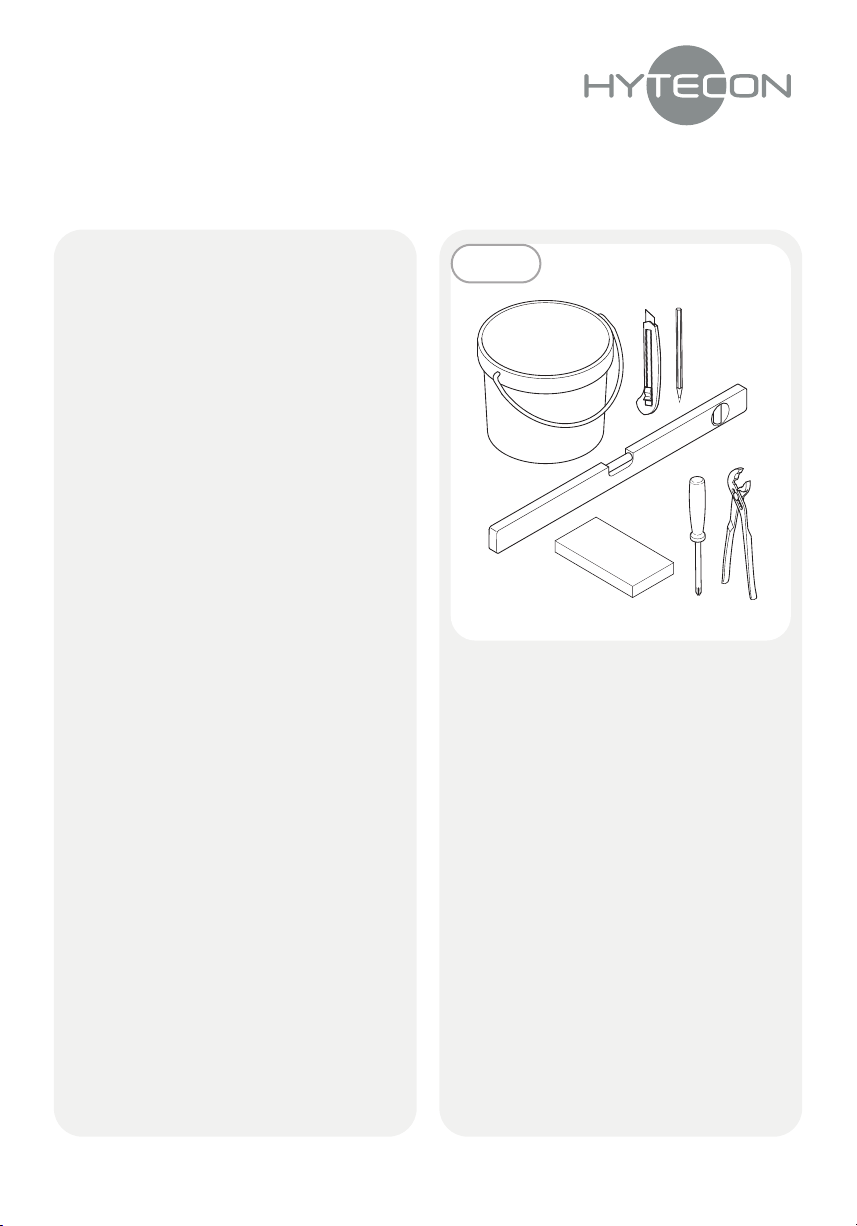

yAssemble the required tools and
materials:
– Bucket
– Cutter blade
– Pen
– Spirit level
– Screwdriver
– Pipe wrench
– Cut-resistant underlay
Angle pieces are only required if you
mount the device on the wall bracket or
on the worktop. The hoses can also be
secured in the device without angle pieces.

HYPRO WATER – 05.2021
14
3.4 Installation variants
Installation variant 1:
3.4 / 1
Connection to a 3-way tap.
➡“3.7 Executing installation variant 1”
(page17).
Installation variant 2:
3.4 / 2
Connection to an auxiliary tap and use of
a 2-way tap.
➡“3.8 Executing installation variant 2”
(page21).
Installation variant 3:
3.4 / 3
Connection to a 2-way tap.
➡“3.9 Executing installation variant 3”
(page26).
Installation variant 4:
3.4 / 4
Connection to a 2-way tap and use of a
boiler.
➡“3.10 Executing installation variant 4”
(page31).

15
HYPRO WATER – 05.2021 15

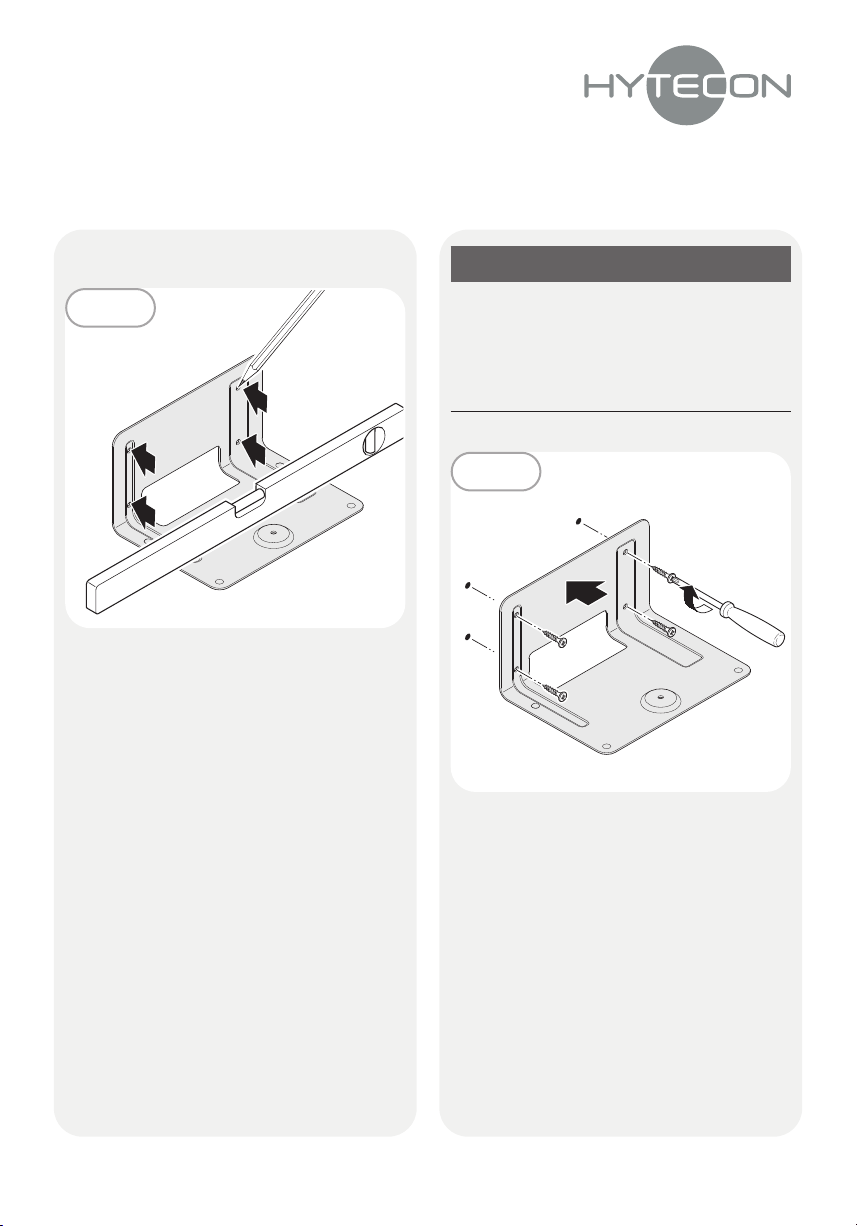

3.5 Mounting the wall bracket
3.5 / 1
yChoose a suitable position for the wall
bracket (C).
➡“3.1 Requirements applicable to the
installation site” (page11).
yLevel the wall bracket (C) with the spirit
level.
yMark the four fastening points.
Use fastening materials that are suitable for
the installation.
DWARNING!
Danger due to explosion or electric shock!
Drilling into gas, water or electrical lines
can result in dangerous situations.
yMake sure no lines are present in the
wall at the fastening points.
3.5 / 2
yScrew on the wall bracket (C) with the
four screws (O).

HYPRO WATER – 05.2021
16
3.6 Hose connections
3.6 / 1

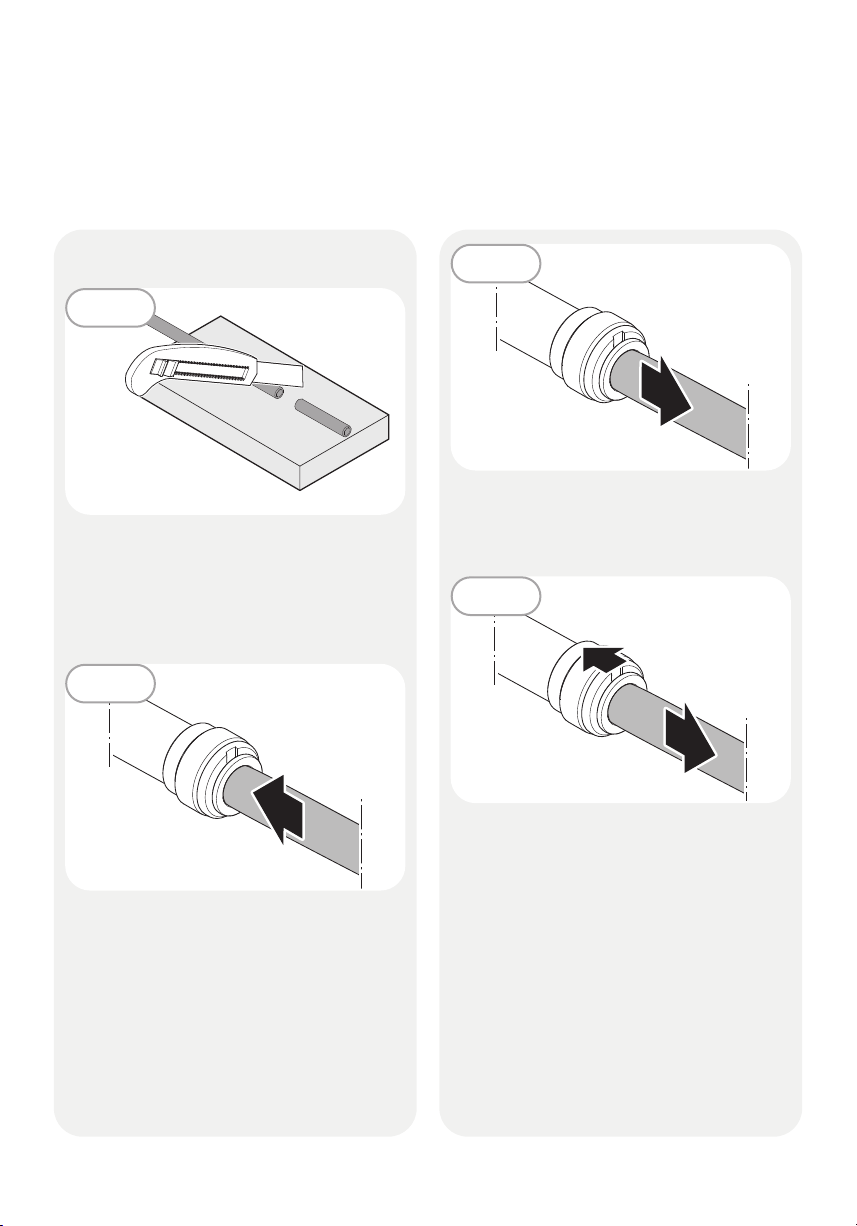

Shorten the hose:
yWhen trimming to size, use a suitable
cut-resistant underlay.
yCut the hose at a right angle, free of
burrs.
3.6 / 2
Insert the hose:
yInsert the hose until the endpoint is
reached. The retainer element secures
the hose. Make sure you do not deform
the hose.
3.6 / 3
Check the connection:
yCheck the connection by pulling
against it.
3.6 / 4
Release the connection:
yCheck that the system is pressure-free.
yPush back the retaining element with
the fingers or with a release aid and
hold it firmly.
yRemove the inserted hose.

17
HYPRO WATER – 05.2021 17
3.7 Executing installation variant 1
3.7 / 1
20cm
10cm
C
I
A
K
B
L
D
J
G
H
M
E
3.7 / 2
N
O
yAssemble the required parts.
– If installing without the wall bracket
then C,D,E,N and O are omitted.
– Connection pieces G and H
alternatively, depending on the tap
used.

HYPRO WATER – 05.2021
18
3.7 / 3
yTurn the angle valve on the cold water
pipe to close it.
3.7 / 4
yPlace a bucket beneath the angle valve
on the cold water pipe.
yUnscrew the cold water connection of
the tap from the angle valve.
3.7 / 5
yScrew the T-piece (K) onto the angle
valve of the cold water pipe.
yScrew the opposite side of the
T-piece(K) to the cold water connection
of the tap.
yMake sure that the valve of the
T-piece(K) is closed.
yRemove the bucket.
3.7 / 6
yInsert the angle piece (D) in the water
inlet (left) until the endpoint is reached.
ySecure the angle piece (D) with the
safety clip (L).

19
HYPRO WATER – 05.2021 19
3.7 / 7
yInsert the hose (I) in the angle
piece(D) until the endpoint is reached.
ySecure the hose (I) with the safety
clip(L).
3.7 / 8
yInsert the angle piece (E) in the water
outlet (right) until the endpoint is
reached.
ySecure the angle piece (E) with the
safety clip (M).
3.7 / 9
yInsert the hose (J) in the angle
piece(E) until the endpoint is reached.
ySecure the hose (J) with the safety
clip(M).
3.7 / 10
yGuide the mains cable and hoses from
above through the cut-out in the wall
bracket (C).
yPlace the device on the wall
bracket(C).

HYPRO WATER – 05.2021
20
3.7 / 13
yGuide both hoses from the device
to the connection piece (H) and
T-piece(K) respectively.
yMark the respective hose length
required.
yShorten both hoses to the required
lengths. Make sure the hoses are
trimmed straight.

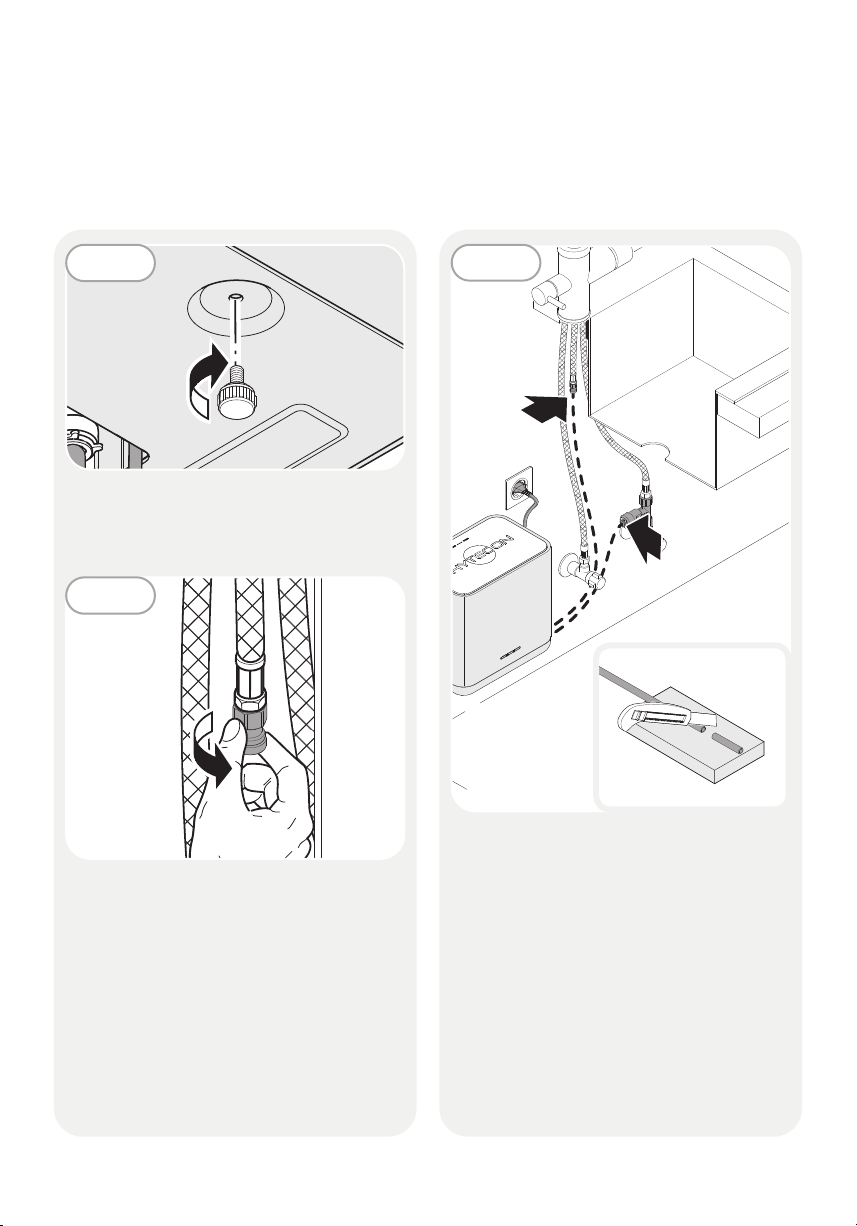

3.7 / 11
yScrew the knurled screw (N) through
the wall bracket (C) into the device
from below.
3.7 / 12
yScrew the connection piece (H) or (G)
onto the tap for disinfected water by
hand.
