Hyundai power products HG3000I User manual

WARNING: Read thoroughly the instruction manual before use.
GENERATOR PETROL INVERTER
HG3000I

2
CONTENT
1. Warnings for safety operation················································3
2. Quick Start ······································································7
3. Safety Precautions label position············································9
4. Parts Identification·······························································10
5. Pre flight checks··································································11
6. Start the engine··································································14
7. Use of the generator····························································16
8. Switch off the engine····························································22
9. Maintenance ······································································23
10. Transportation/Warehousing·················································30
11. Troubleshooting·································································31
12. Specifications····································································33
13. CE declaration………………………......……………………….…….34
14. WARRNTY ……………………......………………………….….…… 35
15. PRODUCT FAILURE ……......………………………….....….…….36
16. WARRANTY EXCLUSIONS…………………………….…….…….37

3
1. Warnings for safety operation
General security instructions
•The operator must know the principles of functioning and the structure of the
generator and the motor. He must know how to stop the motor in case of urgency
and how to manipulate the controls.
•Never let children use this device.
•Never let people who do not know these instructions use this device. Local
regulations may impose restrictions on the age of the user.
•Please do not use this device when people, especially children, or pets are nearby.
Direct them away from the working area.
•The operator or the user are responsible for possible accidents or damage to other
persons or to their property.
•Do not wear loose clothing or jewellery as this can get caught in the machinery as it
runs.
•Use safety equipment. Wear protective gear such as an anti-dust mask, non-slip
safety sures, a helmet or hearing protection.
•Stay vigilant, watch what you are doing and show good sense when you use the
generator. Do not use if you are tired or under the influence of drugs, alcohol or
medicines.
•Install the generator in a place that is well ventilated and make sure that there is at
least 1.5 metres between the generator and the walls of the building or other
equipment. Do not place flammable liquids or gases near the generator.
•Do not run the generator in an enclosed or badly-ventilated space. The exhaust gas
from the motor contains carbon monoxide which is toxic and may lead to a loss of
consciousness or death.
•Run the generator in respect of the power indicated in the user’s manual. Do not run
the generator with an overload or at excessive speed.
•The silencer of the generator becomes extremely hot when the motor runs or even
for a time after it has stopped. Do not touch it as it will burn you.
•Do not transport or move the generator until it has cooled down.
•Perform periodic maintenance and resolve problems that appear immediately. Do not
run the generator before correcting any fault detected.
•The generator uses a system of air-cooling, and it is necessary to clean its
components regularly, including the grilles, the cover of the fan and the fan itself so
as to ensure cooling.
•Keep the fuel filter clean, and change the oil of the motor regularly.

4
•Periodically check the installation of the connections and the tightness of the
fixations, re-tightening them if necessary.
•Clean the components of the air filter periodically, and replace the air filter when
necessary.
•Remove any electrical equipment that is plugged in before starting or stopping the
generator.
•Before transporting the generator, you must empty the fuel tank.
•Maintenance and repair of the generator must be carried out by a qualified technician
from an authorised after-sales service centre.
Warning: when you start the generator with the cord, watch out for sudden changes in the
rotation of the motor!!! Risk of wounding!!! Never cover the generator when it is running. The
cut-out mounted on the generator has the aime of reducing the risk of electric shock. If it
needs to be replaced with another cut-out, the latter must correspond to the technical
specifications of the generator. Due to important mechanical constraints, it is necessary to
use a flexible sheathed cable with a strong rubber protective layer (conforming to IEC 245-4)
or a similar cable. If using an electrical extension cable, the total length of the extension must
not exceed 60m when the section of the wire is 1.5mm2 and must not exceed 100m when the
section of the wire is 2.5mm2.
Security measures when filling the fuel tank
•The fuel is extremely flammable and poisonous.
•This generator only uses petrol (gasoline); any other kind of fuel will damage the
motor.
•Do not overfill the tank with petrol to avoid spilling. If you notice a spill, it must be
wiped up completely with a dry cloth before starting the motor.
•If you swallow fuel by mistake, if you inhale fuel vapours or if you get drops of fuel in
your eyes, see a doctor immediately. If a certain quantity of fuel is spilt on your skin
or clothing, wash or change your clothes.
•Always stop the motor of the generator when filling it with fuel.
•Never fill the fuel tank while smoking or near a naked flame.
•Make sure you don’t spill fuel on the motor and the exhaust grille of the generator
during filling with fuel.
•Keep the fuel in an appropriate recipient and sheltered from any sources of fire.

5
•Carry out filling in a safe place, and slowly open the fuel cap to release the pressure
which has built up inside the tank. Wipe up any drops of petrol that have spilled
before starting the motor.
•To prevent fire, move the generator at least 4 metres away from the area for filling
with fuel.
•Make sure that the fuel cap is tightly closed before starting.
•Do not keep petrol in the tank for a long time.
•While using or transporting the generator, make sure you keep the generator upright,
otherwise the fuel may escape from the carburettor or the fuel tank.
Electrical safety
Before each use ensure that the load to be connected does not exceed the power of
the current produced by the generator.
To avoid electric shock, you must follow the following instructions:
•Do not touch the generator with wet hands.
•Do not run the generator under rain or snow.
•Do not run the generator near water.
•Connect the generator to earth. Use a sufficiently thick conductor for the earth wire.
•Do not operate the generator in parallel with another generator.
•If using electrical extensions, make sure that they are sufficiently thick to transport
the current and that they are used correctly.
The connection of a generator used for auxiliary power to the electrical installation of a
building must be performed by a qualified electrician, and in conformity to the provisions
of the applicable laws and norms in the field of electricity. Incorrect connections will
cause leakage of the current from the generator into the lines of the public electricity
company. Such leakage could electrocute the workers of the public electricity company
working on the network or other persons in contact with the line during a power cut.
Also, when the public power supply is re-established, the generator can explode, catch
fire or generate fires in the building’s electrical installation.
Before connecting electrical devices to the generator, make sure that their voltage
specifications and frequency of functioning correspond to the technical characteristics
of the generator. There may be damage if the device connected is not designed to
function with a voltage tolerance of +/- 10% or a frequency tolerance of +/- 3 %
compared with those of the generator.

6
Protection of the environment
•You must periodically check the silencer (Before doing this, switch off the generator
and let it cool completely). A damaged silencer increases noise.
•Do not throw motor oil into the drains but deposit it at a collection point set up for that
purpose.
•The fuel for this machine is combustible and explosive. After stopping the machine,
you must handle the remaining fuel correctly and meet local environmental
requirements.
Warning symbols explanation
This is the safety alert symbol. It is used to warn you of a risk of injury and material damage.
Observe all safety messages following this symbol to avoid possible injury or even death or
damage to the equipment.
To reduce the risk of personal injury and property damage, the user must read and
understand this manual before using this product.
It is forbidden to run the generator in an enclosed room because exhaust emissions can
lead humans or animals to coma to death.
This symbol indicates the surface is very hot and not touching
Keep away from the machine
Exhaust emissions are harmful to health of body
No naked fire near the machine!
Do not connect with the electricity system.
Do not dispose of old appliances with household waste.
Complies with the corresponding Europe safety standards.
Declaration sound power level according to directive 2000/14/EC
Risk of electric shock

7
2. Quick start
Warning
◆Only active outdoors. Generator of toxic carbon monoxide, a colorless, odorless gas that can
cause death or serious injury.
◆To ensure that the generator is placed horizontally.
◆Can not work in the rain, snow or other humid environments.
◆Refuel away from cigarettes, sparks to avoid fire or explosion.
Checks before start
1. Remove the oil access door, unscrew the dipstick to check the oil. If oil level is below the
bottom of the dipstick, add the recommended oil (oil capacity: 0.45L). Use a strong detergency,
four-stroke engine oil and choose proper viscosity of the oil according to your area's average
temperature.
2. Install side access panel.
3. Unscrew the fuel tank cap to add gasoline to the fuel tank. Please use unleaded

8
petrol or above 87 # gasoline. Not add too fast, so as not to spill gasoline. And to prevent dirt, dust
or water into the tank. Tighten the fuel tank cap after the addition was complete.
Be careful
◆Do not use two-stroke gasoline or dirty gasoline.
Start the generator
4. In the following way to start the generator.
A．Recoil start:
i. Open the fuel switch.
ii. Turn The fuel cap and ventilate knob to the "ON" position
iii. Turn on the start switch.
iv. Gently pull the lever to start to feel resistance, then quickly pulled the handle to start,
start the generator.
5. When the output indicator lights on the control panel, the generator can
be used. Before connecting any load, the generator should be grounded. Please use a thick
cable to the ground terminal on the generator control panel is connected to an external
ground source.
6. Make sure all equipment is turned off and the switch in order to ensure that the equipment is
intact, confirm the use of electrical appliances does not exceed the total power rating of the
generator.
7. Connect your device to a suitable outlet generator control panel.
Turn off Generator
Note
◆In any case, turn off the start switch on the control panel, the generator will stop immediately.
1. Turn off the generator in the following manner.
i. Turn off the connected device switch, unplug it.
ii. Turn off start switch.
iii. Close fuel switch.
iv. Turn The fuel cap and ventilate knob to the "OFF" position

9
3．Safety Precautions label position
These decals tips you may cause serious injury accidents.
Please read this manual mentioned decals, safety and caution carefully.
Fire ban labels
Parameter labels
Noise stickers
Anti-hot stickers
Oil switch stickers

10
4．Parts Identification
Top access panel
Start handle
control panel
Fuel tank cap
Fuel switch
Side access panel
Outlet cover

11
Control panel
5．Pre flight checks
Be careful
◆Be sure to check whether the generator level place, whether the engine is turned off.
1. Check the oil level
Be careful
◆Use non-detergency oil or 2-stroke engine oil could shorten the engine life.
◆Use a strong detergency, high-quality 4-stroke engine oil, which must meet or exceed US
automobile manufacturer's requirements of the American Petroleum Institute
classification SG, SF levels.

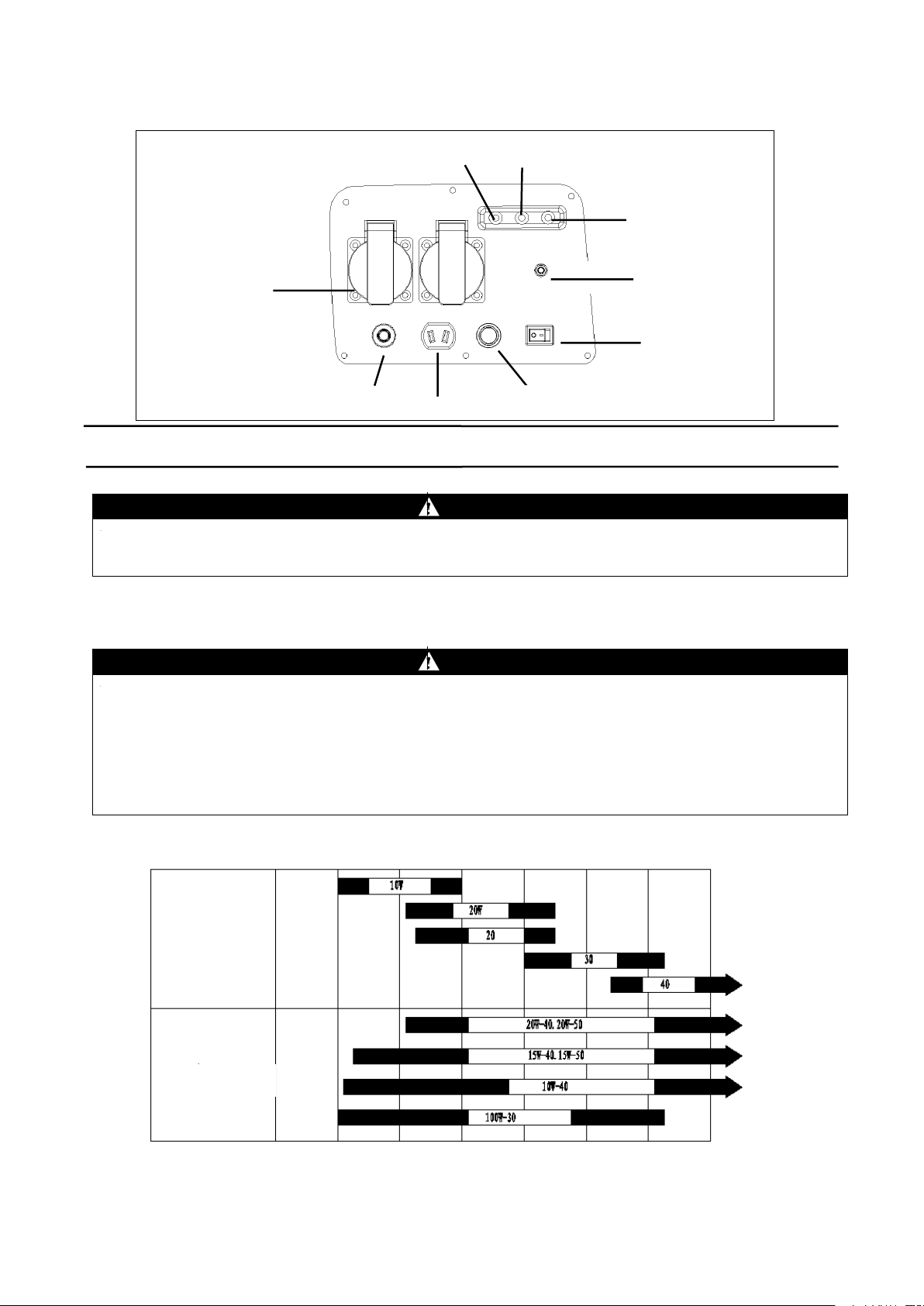

◆Select the appropriate viscosity of the oil according to the average temperature in your area.
SEA viscosity grade as follows:

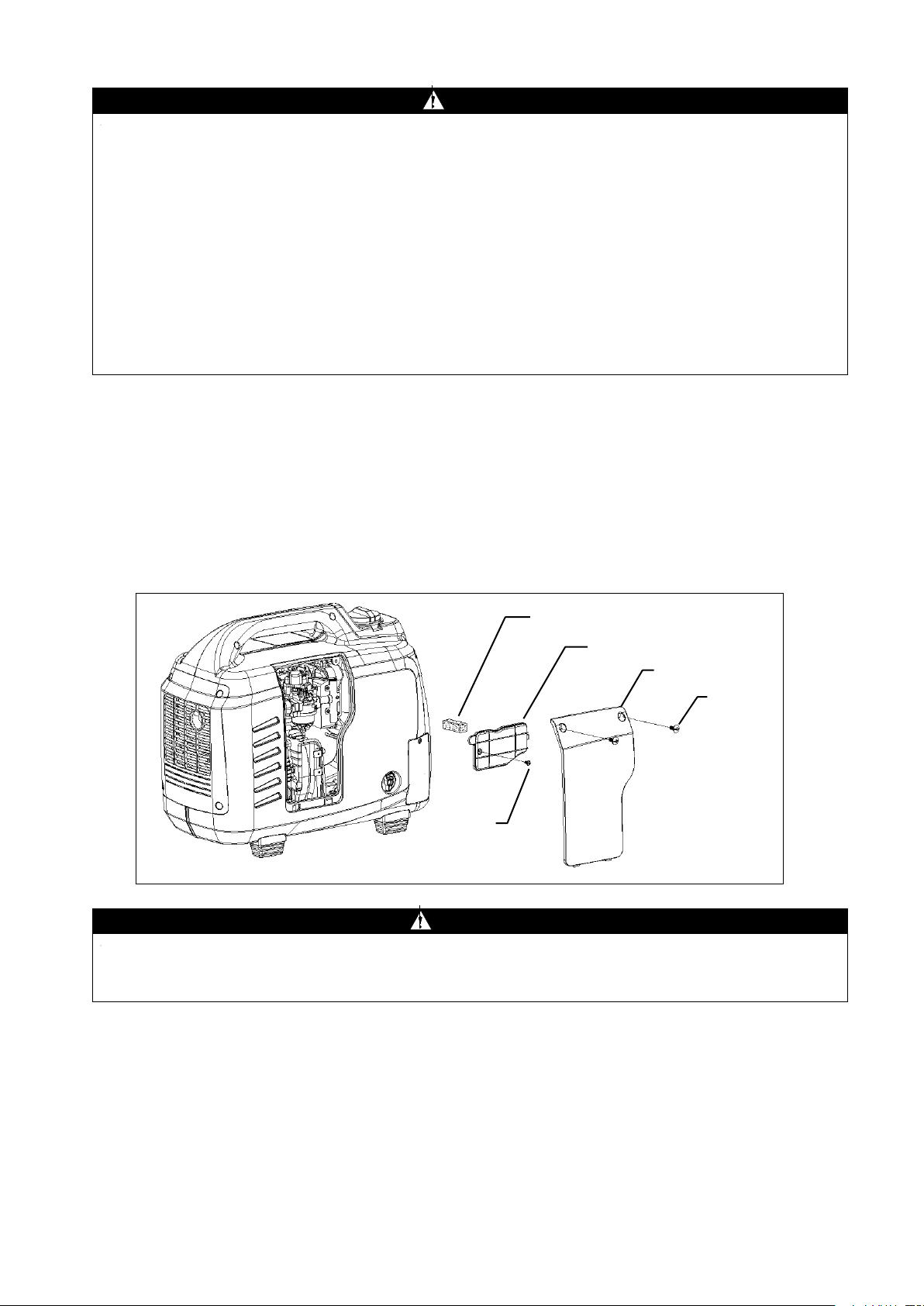

Loosen the screws of the side access panel to remove the cover.
Oil alarm
DC socket
Output
DC protector
Overload
AC socket
Ground
Engine switch
Single Viscosity
Multi-viscosity
Reset

12
Remove the dipstick with a clean rag to wipe the oil dipstick, without tightening the dipstick and insert
it into the oil port to check the oil level.
If the oil level is below the bottom of the dipstick, add the recommended oil.
Be careful
◆Operating the engine when the oil shortage may seriously damage the engine.
◆Oil alert system will shut down the engine automatically before oil level falls under the safety
line. But in order to avoid inconveniences caused by unexpected halt, we recommend you
check the oil level regularly.
2. Check the fuel level
Use automotive gasoline (preferably unleaded or low-lead gasoline to reduce coke combustion and
reduce environmental pollution).
When the fuel level is too low, add fuel to a predetermined level.
Do not use a mixture of oil and gasoline or dirty gasoline.
Prevent dirty, water into the tank.
After the completion of refueling tighten fuel cap.
Fuel tank cap
Dipstick
Oil injection port
Top line
Bottom line

13
Warning
◆Gasoline explosive under certain conditions.
◆Please ventilation refueling, turn off the engine when refueling. Gasoline generator fuel
storage area and the area is strictly prohibited fireworks.
◆Never add fuel when the generator is running, that’s very dangerous.
◆Do not spill (there should be no fuel above the neck). After the completion of refueling tighten
fuel tank cap.
◆Be careful not to spill fuel when refueling, due to fuel spills or mist may ignite. If there is an
overflow of fuel, shall ensure that the area of fuel has evaporated before starting the engine.
◆Avoid prolonged, repeated exposure to gasoline or inhale mist. Do not let the reach of
children.
3. Check the air filter
Check the air filter core, make sure it is clean and performance is normal.
a. Split out the side access panel screws and open the side access panel.
b. Remove the three captive screws on the air filter cartridge.
c. As shown in the following diagram arrow and pull out the air filter drawer.
d. Pull out the air filter drawer, check the air filter, clean or replace the filter if necessary.
e. Clean or replace the filter before the reverse operation of installing air filtration devices.
Be careful
◆No filter does not allow the engine run, otherwise dirty will go into the engine through
carburetor cause rapid wear of engine.
Empty cartridges lower part have a little amount of oil, which is a normal phenomenon, just wipe the oil
off after stop.
Air filter sponge
Air filter drawer
Side access
panel
Screw
s
Screw
s

14
6．Start the engine
Before starting the engine, disconnect the load on AC and DC socket.
1. Open the fuel switch
2. Press The start switch to the "ON" position
3. Pull the starter handle until you feel resistance, then pull the handle as the direction of the arrow in
FIG quickly, start the generator.
Be careful
◆It does not allow the starting handle to rebound, should slowly back into it.
◆When pulling the starter cable, hold on the generator tightly to prevent generators
lift overturned.

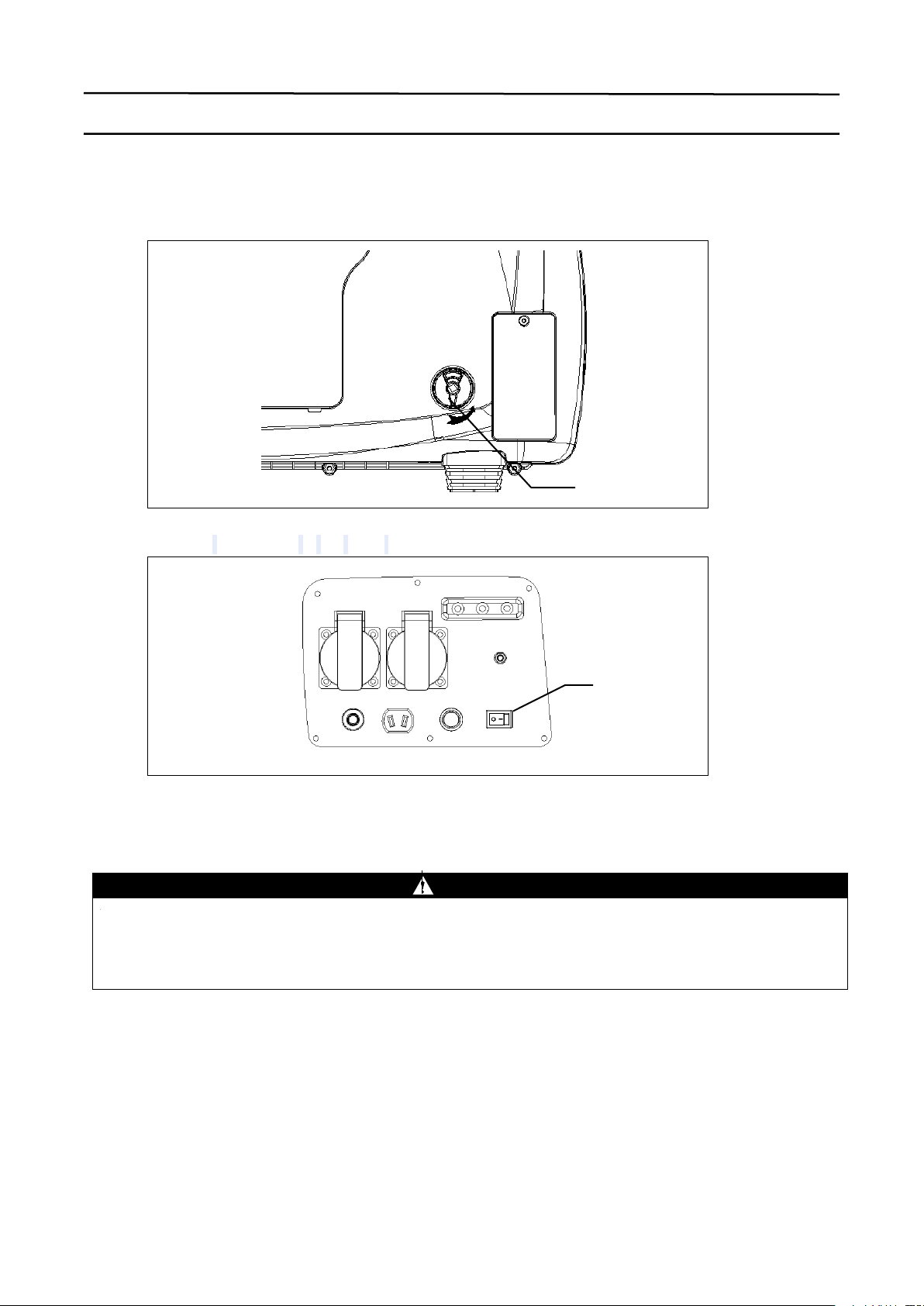

Open
Engine switch

15
Operation at high altitudes
At high altitudes the standard carburetor air-fuel mixture more concentrated, reducing engine operating
performance, and fuel consumption increases. Then you can place the carburetor main jet with a small
one, and adjust the mixing ratio of the screw, you can change the engine performance in high altitude
areas. If you always use the engine at an altitude of 1500 meters above area, please let authorized
dealers to make changes to the carburetor.
Even use a suitable nozzle, engine horsepower will decrease by 3.5% as altitude increase
every 305 meters. If you do not do these adjustments, the impact of altitude on power will be greater.
Be careful
◆If the carburetor nozzles are designed for the high altitude, but operate at lower altitudes may
cause decreased output power, overheating and even the air-fuel mixture is too thin and
severe damage to the engine.
Recoil start handle
Handle

16
7. Use of the generator
Warning
◆In order to prevent improper use of electric shock, the generator should be
grounded. Between the ground terminal and an external ground source generator is
connected by a thick cable.
◆When the generator is used as backup power to a building. It should be connected by a
qualified electrician, and ,must comply with relevant laws and electrical codes. Other
wise, generator electricity maybe back to the power line, it will electrocute utility
workers or other people come into contact with the wire, and due to the impact of
electricity, the generator may explode, burn or cause power system building on fire.
Be careful
◆When the generator continuous operation, do not exceed the rated power. If other cases, you
should consider the total power of the connected device.
◆Do not exceed the rated current of the socket.
◆Do not take it for generator use can not be achieved, please observe the following additional
requirements:
➢Do not paralleled generator
➢Do not lengthen the exhaust pipe
◆If an extension cable, use a rubber sleeve flexible cable (the cable should meet
the requirements of IEC245).
◆Extension cable length limitation 2mm 2cable length 60 m; 100 mcable length of 3mm 2.
◆Generators should be away from other wires, cables, such as: distribution network
Note
◆When using AC power, DC power can be used. If you want to use both AC and DC power
supply, pay attention, do not exceed the sum of the power of the DC generator rated power.

17
AC power applications
1. Connect the ground terminal
2. According to "start engine" requirement starts.
3. Ensure that the required device connected to the switch is turned off, and then plug in the machine
at the generator outlet.
Be careful
◆If the connected device before the connection is ON, it will suddenly start, causing injury.
4. When the output indicator (green) lights up, turn on the load.
If the internal overload operation or equipment failure, output indicator (green) will go out, the overload
indicator light (red) will light up, and there is no power output, and the generator will not stop, you must
press the engine start switch to "off" position to turn off the engine.

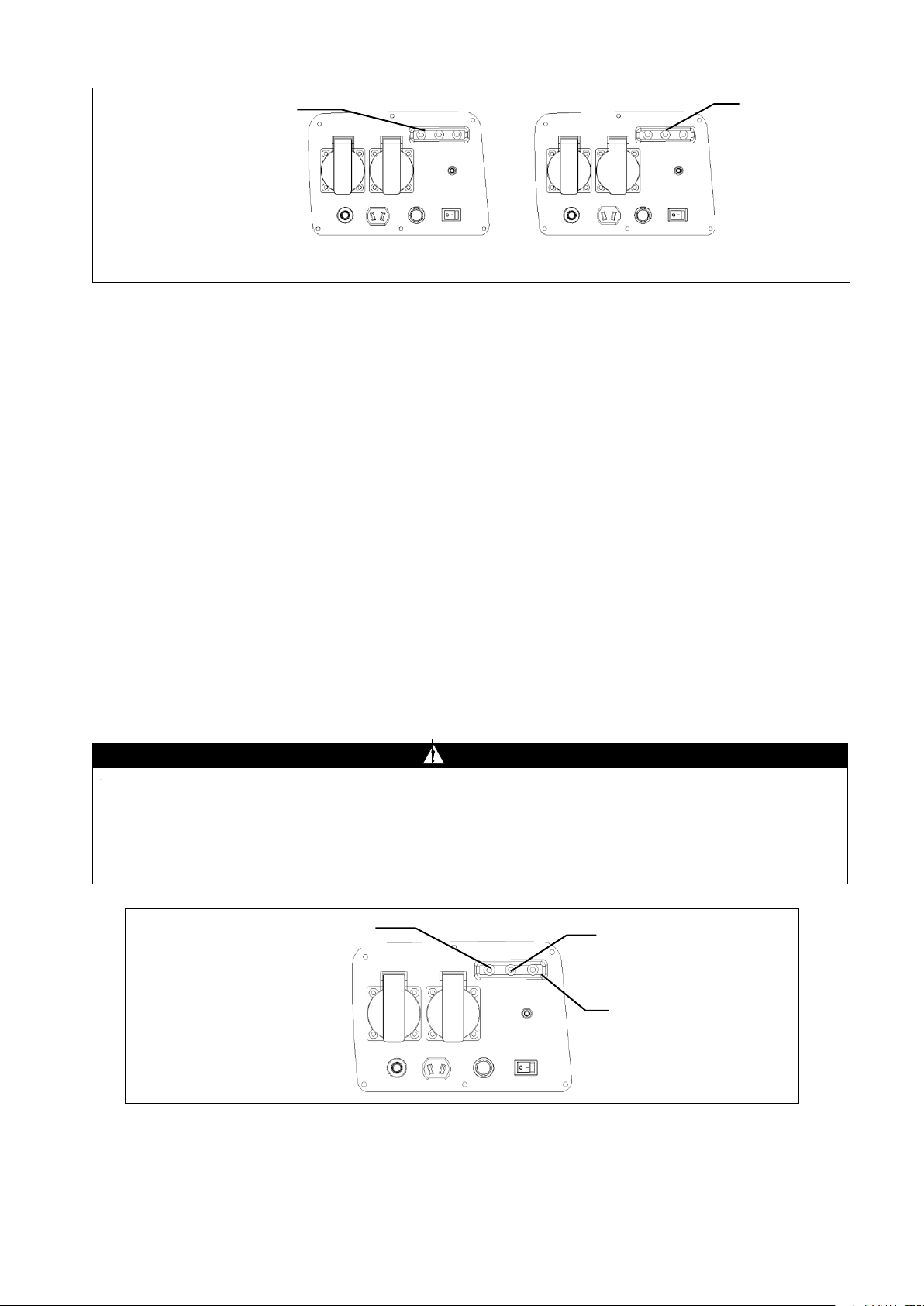

Overload indicator (red)
Output indicator (green)
Plug
Ground mark

18
Output, overload indicator, oil warning light:
Under normal operating conditions, the output indicator light (green) will be lit.
If the generator is overloaded, an internal short circuit or connected equipment, the output indicator light
(green) is off, and overload indicator (red) lights up. There is no output.
If the overload indicator light, first disconnect the device from the generator, check whether the device is
faulty, whether there are problems with the connection line, turn off the power to the device, confirm that
the reason why device overload, confirm and verify the reasons overload has been resolved, press reset
switch on the panel, three seconds after the generator indicator will turn red to green, the generator begins
normal output power.
If you press the reset switch, wait three seconds and the generator lights did not turn from red to green,
then turn off the engine, then please contact an authorized dealer.
If the oil alarm lamp is lit, the engine will automatically shut down, then check to see if the oil should be
added.
Note
◆Before connect the device to the generator, check whether the device is in good condition,
whether the required power exceeds the generator capacity, then connect the cable and start
the generator.
◆Make sure that the connected devices power switch is on “OFF” position.
Pure inductive load with the machine with a pure inductive load, the machine can not be rated power with
the same power, the machine rated power with only 40% to 75% pure inductive load.
Overload
indicator (red)
on overload or
short circuit
Output indicator (green)
Overload indicator (red)
Oil warning light (red)
Normal output
Output indicator
(green)

19
Generator rated output
Altitude: 0mAmbient temperature: 25 ℃Relative Humidity: 30%
Only under specified ambient temperature and cooling, generator sets can be loaded to the rated
power. If the working conditions do not meet the standards, as well as generators or poor engine
cooling (run in a limited area), it should be appropriate to reduce the generator power.
Ambient Temperature Coefficient: C(30% RH)
Altitude(m)
Ambient Temperature(℃)
25
30
35
40
45
0
1
0.98
0.96
0.93
0.90
500
0.93
0.88
0.83
0.78
0.73
1000
0.87
0.82
0.77
0.72
0.67
2000
0.75
0.70
0.65
0.60
0.55
3000
0.64
0.59
0.54
0.49
0.44
4000
0.54
0.49
0.44
0.39
0.34
Note: When the relative humidity is 60%, the ambient temperature is improved coefficient of C-0.01
When the relative humidity is 80%, the ambient temperature is improved coefficient of C-0.02
When the relative humidity is 90%, the ambient temperature improved coefficient of C-0.03
When the relative humidity is 100%, the ambient temperature improved coefficient of C-0.04
Algorithms Example:
When the generator power rating PN = 2.0 KW, altitude is 1000m, the ambient temperature
is 35 ℃,relative humidity is 80%, and in this environment the generator rated output of P=PN×(C-
0.02)=2.3×(0.77-0.02)=1.5KW
DC use:
DC output is for 12V automatic battery charging only.
Note
◆When the DC socket charge for battery, must be present to monitor the battery voltage, if the
battery voltage exceeds 16V, then you must immediately stop punching power. Otherwise may
cause battery overcharge fire or explosion.

20
1．The charging cable is connected to the generator DC socket, and then connect to the battery
terminals.
Warning
◆Charging first charging cable is connected to the battery, and then connected to the generator
and remove the generator shall commence from the end, then to the battery which prevents
sparks.
◆When the charging cable is connected to a battery mounted on the car, disconnect the battery
ground cable. After completion of the charging cable to remove the battery and then connect
the ground wire, so even in case l the battery terminals and car frame contact can prevent a
short circuit or spark
Warning
◆Do not start the car when the generator connect to battery, otherwise it will damage the
generator
◆Battery charge cable and wiring polarity should be correct, otherwise it will damage the
generator or battery
Charging wire
