Hyundai power products HBC12V2A User manual

1
CORDLESS IMPACT WRENCH
HBC12V2A
ORIGINAL INSTRUCTIONS
WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USING THIS MACHINE.
1

CONTENTS
1. INTENDED USE 3
2. SAFETY INSTRUCTIONS 3
3. EXPLANATION OF SYMBOLS 7
4. YOUR PRODUCT 8
5. TECHNICAL DETAILS 9
6. OPERATION 10
7. MAINTENANCE 11
8. DISPOSAL 12
9. DECLARATION OF CONFORMITY 12
10. WARRANTY 13
11. PRODUCT FAILURE 14
12. WARRANTY EXCLUSIONS 15

1. INTENDED USE
The cordless impact wrench is designed to driving or removes nuts by using couplers which are not
provided with this tool. You can buy 3/8 square coupler to use with this tool.
2. SAFETY INSTRUCTIONS
2.1 GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings, instructions, illustrations and specifications provided with
this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce
risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a
dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
3

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from
the power tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs
may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may
exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or
temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the
temperature range specified in the instructions. Charging improperly or at temperatures outside the
specified range may damage the battery and increase the risk of fire.
4

6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the
manufacturer or authorized service providers.
2.2 SAFETY INSTRUCTIONS FOR ALL OPERATIONS
a) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting
accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed
metal parts of the power tool "live" and could give the operator an electric shock.
2.3 ADDITIONAL INSTRUCTIONS
Before removing the impact wrench, make sure that all moving parts have stopped.
Avoid stalling frequently when wrenching as this may damage the batteries.
Load the battery of the impact wrench only with the appropriate charger.
The charger and impact wrench must be protected against moisture!
In order to protect the batteries from damage, never expose them to temperatures above 50ºC.
WARNING: Do not short-circuit the battery or charger.
2.4 SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGER
Batteries
Never attempt to open for any reason.
Do not store in locations where the temperature may exceed 50°C.
Charge only at ambient temperatures between 5°C and 50°C
Charge only using the charger provided with the tool.
Store your batteries in a cool dry place (5°C-20°C/41°F-68°F). Never store batteries in discharged
state.
It is better for Li-ion batteries to discharge and reload them regularly (at least 4 times a year). The
ideal charge for long-term storage of your Li-ion battery is 40% of capacity.
When disposing of batteries, follow the instructions given in the section “Protecting the environment”.
Do not cause short circuits. If connection is made between the positive (+) and negative (-)
terminal directly or via accidental contact with metallic objects, the battery is short circuited and an
intense current will flow causing heat generation which may lead to casing rupture or fire.
Do not heat. If batteries are heated to above 100°C (212°F), sealing and insulating separators and
other polymer components may be damaged resulting in electrolyte leakage and/or internal short
circuiting leading to heat generation causing rupture or file. Moreover, do not dispose of the
batteries in fire, explosion and/or intense burning may result.
Under extreme conditions, battery leakage may occur. When you notice liquid on the battery,
proceed as follows:
Carefully wipe the liquid off using a cloth. Avoid skin contact.
In case of skin or eye contact, follow the instructions below:
•Immediately rinse with water. Neutralize with a mild acid such as lemon juice or
vinegar.
•In case of eye contact, rinse abundantly with clean water for at least 10 minutes.
Consult a physician.
Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate
the battery.
5

Charger
Use the charger provided with the tool only to charge
the battery.
Never attempt to charge non-rechargeable batteries.
Have defective cords replaced immediately.
Do not expose to water.
Do not open the charger.
Do not probe the charger.
The charger is intended for indoor use only.
This charger can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
CAUTION: Do not recharge non-rechargeable
batteries.
6

3. EXPLANATION OF SYMBOLS
To reduce the risk of injury, the user must read and understand this manual before
using this product.
Conforms to relevant safety standards
Do not expose batteries to temperatures exceeding 40 degrees.
Do not dispose of batteries in fire. They could explode and cause injury
Do not dispose of batteries in water.
Class II, double isolation(only for charger)
Use the battery and charger Indoor use only.
Fuse
Do not dispose of old appliances with domestic rubbish
7

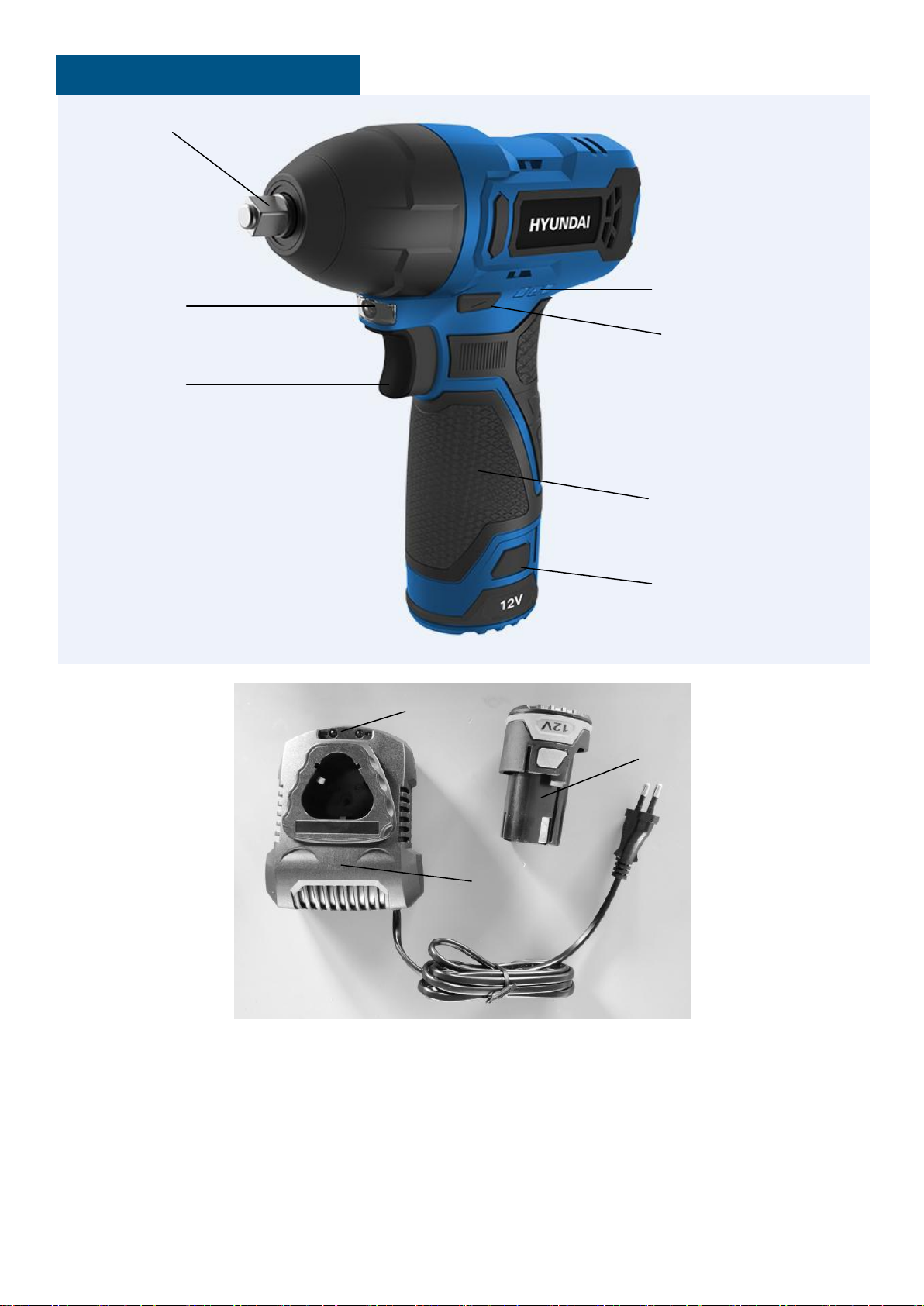

4. YOUR PRODUCT
1. 3/8“anvil
2. LED light
3. On/Off trigger switch
4. Battery release button
5. Hand grip
6. Forward/Reverse switch
7. Battery capacity indicator
8. Charger
9. Li-ion battery pack
10.Charger indicator light
1
6
3
5
4
2
7
8
9
10
8

5. TECHNICAL DETAILS
Voltage.......................... 12V d.c.
Torque ...........................120Nm
Coupler .........................3/8”(9.525mm)
Speed............................0-2700/min
Impact frequency………0-40500BPM
Battery Pack……………DC033, 12V d.c. 2000mAh, 24Wh Li-ion battery
Charger………………...DC122400, input 220-240V~, 50-60Hz, 50W, output 12V d.c., 2.4A
Sound power level LPA.........73.2dB(A), K= 3dB(A)
Sound pressure level LWA ....84.2dB(A) K= 3dB(A)
Vibration........................ 0.571m/s², K=1.5m/s²
Information:
The declared vibration total value has been measured in accordance with a standard test
method and may be used for comparing one tool with another;
The declared vibration total value may also be used in a preliminary assessment of exposure.
Warning:
that the vibration emission during actual use of the power tool can differ from the declared total value
depending on the ways in which the tool is used; and the need to identify safety measures to protect the
operator that are based on an estimation of exposure in the actual conditions of use (taking account of all
parts of the operating cycle such as the times when the tool is switched off and when it is running idle in
addition to the trigger time).
Wear hearing protection.
9

6. OPERATION
6.1 CHARGING
IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge
them, thoroughly read all of the safety instructions.
1) To assure that the charger (8) you use are applicable to the battery pack (9).
2) Insert the charger into 220-240V~, 50-60Hz outlet. The indicator light (10) become to green light to
show the power is connected.
3) Insert the battery (9) into the slot of charger (8). Make sure the contact with the charger is correct.
4) The indicator light of charger (10) become to red when charging.
5) When fully charged The indicator light (10) become to green light.
6) Frequently monitor the charger and battery pack while connected.
7) Unplug the charger and disconnect it from the battery pack when finished.
8) Allow the battery pack to cool completely before using it.
9) Store the charger and battery pack indoors, out of reach of children.
NOTE: If the battery does not fit properly, disconnect it and confirm that the battery pack is the correct
model for this charger as shown on the specification chart. Do not charge any other battery pack or any
battery pack that does not securely fit the charger.
NOTE: If battery is hot after continuous use in the tool, allow it to cool down to room temperature before
charging. This will extend the life of your batteries.
6.2 INSTALLING THE BATTERY PACK
Warning! Always remove battery pack from your tool when you are assembling parts, making adjustments,
cleaning, carrying, transporting or when not in use. Removing battery pack will prevent accidental starting
that could cause serious personal injury.
NOTE: To avoid serious personal injury, always remove the battery pack and keep hands clear of the lock-
out button when carrying or transporting the tool.
Insert the battery pack into the tool base, make sure the battery pack snaps into place and that battery pack
is secured in the tool before beginning operation. Improper installation of the battery pack can cause
damage to internal components.
6.3 BATTERY CAPACITY INDICATOR
There are battery capacity indicators (7) on the tool; you can check the capacity status of the battery if you
press the trigger switch (3). Before using the machine, please press switch trigger to check if the battery is
full enough for properly working. Those 3 LED might show the status of the capacity level of the battery
6.4 REMOVING THE BATTERY PACK
Locate the battery release button (4) on the battery and press downwards, while holding down the battery
release catch take the battery pack away from the tool.
6.5 VARIABLE SPEED CONTROL
Simply apply light pressure to the trigger to start the wrench on a slow speed. Increasing the pressure on
the switch will increase the speed of the wrench.
Note: You might hear a high pitched noise from the switch during use. Do not be concerned; this is a
normal part of the switch function.
6.6 FORWARD & REVERSE SWITCH
This feature is selected via a slide switch located above the trigger. To select direction of the wrench
rotation simply push the button fully in on the left side for reverse rotation. To change to forward rotation
push the button fully in on the right side of the handle.
Note: As a safety precaution from accidental engagement while being carried pushing the forward/reverse
button into the middle or neutral position will render the wrench inoperative.
10

Caution: To prevent gear damage, always allow the anvil to come to a complete stop before changing the
direction of rotation,
Note: The wrench will not run unless the direction of rotation selector is pushed fully to the left or
right.Avoid running the wrench at low speeds for extended periods of time. Running at low speeds under
constant usage may cause the wrench to become overheated. If this occurs, cool the wrench by running it
without a load and at full speed.
6.7 INSTALLING AND REMOVING SOCKETS
Use only sockets designed for impact wrenches, always select the correct size impact socket for nuts and
bolts. Using the wrong size socket may damage the nut or bolt and cause the fastening torque to be
inaccurate or inconsistent.
Remove the battery pack.
Push the socket onto the anvil until the detent pin locks it into place.
To remove the socket, pull it away from the anvil.
6.8 OPERATING THE IMPACT WRENCH
Proper fastening torque may be determined by the kind of bolt, the size of the bolt or the material or the
workpiece. It is helpful to perform a test operation to determine the proper fastening time for the nut or bolt
you are using. While performing the test, make note of the speed selection.
Hold the tool pointed straight at the nut or bolt.
Depress the switch and fasten for the proper fastening time.
After fastening, always check the torque with a torque wrench.
NOTE: Do not use this tool to install lug nuts on wheels without a torque limiting device. Doing so could
result in galled or broken lugs.
6.9 IMPACT TIME
Many variables exist that will cause the available torque of the fastener to vary considerably. The optimum
impact time is approximately 6 seconds.
NOTE: Using a universal joint or extension bar may reduce the fastening force of the impact wrench and
require longer fastening time.
7. MAINTENANCE
WARNING! Always remove battery pack from your tool when you are assembling parts, making
adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could
cause serious personal injury.
This power tool normally requires no maintenance; from time to time the ventilation slots on the motor
casing should be cleaned out. If the unit should become defective, repair should be performed by an
authorized service agent for electric tools.
Tightening Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from
various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt,
dust, oil, grease. etc.
WARNING! Do not at any time let brake fluids, gasoline. petroleum based products, penetrating oils, etc.,
come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in
serious personal injury.
Store the tool in a dry place and protected from freezing, the ambient temperature should not exceed 50◦c.
Put it out of the reach of children.
11

8. DISPOSAL
Electrical products should not be discarded with household products. According to the
European Directive 2012/19/EU on waste electrical and electronic equipment and its
implementation into national law, electrical products used must be collected separately
and disposed of at collection points provided for this purpose. Talk with your local
authorities or dealer for advice on recycling.
This product contains a Li-ion battery. To conserve natural resources, please recycle or dispose
of batteries properly. Local, state, or federal laws may prohibit the disposal of Li-ion batteries with
ordinary waste. Consult your local waste handling authority for information on available recycling
and / or disposal options.
9. CE DECLARATION OF CONFORMITY
BUILDER SAS
ZI, 32, rue Aristide Bergès- 31270 Cugnaux-France
Tel: + 33 (0) 5.34.502.502 Fax: + 33 (0) 5.34.502.503
Declares that the machinery designated below:
Cordless impact Wrench
HBC12V2A
Serial number: 20210635543-20210636842
Complies with the provisions of the Directive «machinery»2006/42/CE and national laws
transposing it:
Also complies with the following European directives:
EMC DIRECTIVE 2014/30/EU
RoHS DIRECTIVE 2011/65/UE+2015/863/EU
Also complies with the following standards:
EN 62841-1 :2015
EN 62841-2-2 :2014
EN55014-1 :2017
EN55014-2 :2015
EN 60335-1 :2012/A13 :2017
EN 60335-2-29: 2004+A11:2018
EN 62233:2008
Responsible for the technical file: M. Olivier Patriarca
Cugnaux, 14/05/2021
Philippe Marie/PDG
12

WARRANTY
The manufacturer guarantees the product against defects in material and workmanship for a period of 2
years from the date of the original purchase. The warranty only applies if the product is for household use.
The warranty does not cover breakdowns due to normal wear and tear.
The manufacturer agrees to replace parts identied as defective by the designated distributor. The
manufacturer does not accept responsibility for the replacement of the machine, in whole or in part , and/or
ensuing damage.
The warranty does not cover breakdowns due to:
• insu󰀩cient maintenance.
• abnormal assembly, adjustment or operations of the product.
• parts subject to normal wear and tear.
The warranty does not extend to:
• shipping and packaging costs.
• using the tool for a purpose other than that for which it was designed.
• the use and maintenance of the machine done in a manner not described in the user manual.
Due to our policy of continuous product improvement, we reserve the right to alter or change specications
without notice. Consequently, the product may be di󰀨erent from the information contained therein, but a
modication will be undertaken without notice if it is recognized as an improvement of the preceding
characteristic.
READ THE MANUAL CAREFULLY BEFORE USING THE MACHINE.
When ordering spare parts, please indicate the part number or code, you can nd this in the spare parts list
in this manual. Keep the purchase receipt; without it, the warranty is invalid. To help you with your product,
we invite you to contact us by phone or via our website:
• +33 (0)9.70.75.30.30
• https://services.swap-europe.com/contact
You must create a "ticket" via the web platform.
• Register or create your account.
• Indicate the reference of the tool.
• Choose the subject of your request.
• Describe your problem.
• Attach these les: invoice or sales receipt, photo
of the identication plate (serial number), photo
of the part you need (for example: pins on the
transformer plug which are broken).
10. WARRANTY
13

WHAT TO DO IF MY MACHINE BREAKS DOWN?
the repairer will refuse the machine.
Go to the store with the complete machine and with the receipt or invoice.
the repairer will refuse the machine.
c) Create a SWAP-Europe service ticket on the site: https://services.swap-europe.com When making the
request on SWAP-Europe, you must attach the invoice and the photo of the nameplate (serial number).
d) Contact the repair station to make sure it is available before dropping o󰀨 the machine.
Go to the repair station with the complete machine packed, accompanied by the purchase invoice and the
station support sheet downloadable after the service request is completed on the SWAP-Europe site
For machines with engine failure from manufacturers BRIGGS & STRATTON, HONDA and RATO, please
refer to the following instructions.
Repairs will be done by approved engine manufacturers of these manufacturers, see their site:
• http://www.briggsandstratton.com/eu/fr
• http://www.honda-engines-eu.com/fr/service-network-page;jsessionid=5EE8456CF39CD572AA2AEEDFD
290CDAE
• https://www.rato-europe.com/it/service-network
Please keep your original packaging to allow for after-sales service returns or pack your machine
with a similar cardboard box of the same dimensions.
For any question concerning our after-sales service you can make a request on our website https://
services.swap-europe.com
Our hotline remains available at [phone].
If you bought your product in a store:
a) Empty the fuel tank if your product has one.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
If you bought your product on a website:
a) Empty the fuel tank if your product has one..
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
11. PRODUCT FAILURE
14

THE WARRANTY DOES NOT COVER:
• Start-up and setting up of the product.
• Damage resulting from normal wear and tear of the product.
• Damage resulting from improper use of the product.
• Damage resulting from assembly or start-up not in accordance with the user manual.
• Breakdowns related to carburetion beyond 90 days and fouling of carburetors.
• Periodic and standard maintenance events.
• Actions of modication and dismantling that directly void the warranty.
• Products whose original authentication marking (brand, serial number) has been degraded, altered or
withdrawn.
• Replacement of consumables.
• The use of non-original parts.
• Breakage of parts following impacts or projections.
• Accessories breakdowns.
• Defects and their consequences linked to any external cause.
• Loss of components and loss due to insu󰀩cient screwing.
• Cutting components and any damage related to the loosening of parts.
• Overload or overheating.
• Poor power supply quality: faulty voltage, voltage error, etc.
• Damages resulting from the deprivation of enjoyment of the product during the time necessary for repairs
and more generally the costs related to the immobilization of the product.
• The costs of a second opinion established by a third party following an estimate by a SWAP-Europe repair
station
• The use of a product which would show a defect or a breakage which was not the subject of an immediate
report and/or repair with the services of SWAP-Europe.
• Deterioration linked to transport and storage*.
• Launchers beyond 90 days.
• Oil, petrol, grease.
• Damages related to the use of non-compliant fuels or lubricants.
* In accordance with transport legislation, damage related to transport must be declared to carriers within 48
hours maximum after observation by registered letter with acknowledgement of receipt.
This document is a supplement to your notice, a non-exhaustive list.
Attention: all orders must be checked in the presence of the delivery person. In case of refusal by the
delivery person, it you must simply refuse the delivery and notify your refusal.
Reminder: the reserves do not exclude the notication by registered letter with acknowledgement within 72
hours.
Information:
Thermal devices must be wintered each season (service available on the SWAP-Europe site). Batteries must
be charged before being stored.
12. WARRANTY EXCLUSIONS
15

13
