Hyundai HYU-559 User manual

VIDEO INTERCOM
INDOOR STATION
(HYU-559)
Quick Start Guide

Video Intercom Indoor Station·Quick Start Guide
i
Quick Start Guide
This quick start guide is intended for users of the indoor station.
It includes instructions on how to use the Product. The software embodied in the
Product is governed by the user license agreement covering that Product.
Disclaimer
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY
AT YOUR OWN RISKS. OUR COMPANY SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL
OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER
ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, OUR COMPANY
WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR
JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS
THE APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS
USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.
Support
Should you have any questions, please do not hesitate to contact your local dealer.

Video Intercom Indoor Station·Quick Start Guide
ii
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are
marked with "CE" and comply therefore with the applicable harmonized
European standards listed under the EMC Directive 2014/30/EU, the
RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot
be disposed of as unsorted municipal waste in the European Union. For
proper recycling, return this product to your local supplier upon the
purchase of equivalent new equipment, or dispose of it at designated
collection points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that
cannot be disposed of as unsorted municipal waste in the European
Union. See the product documentation for specific battery information.
The battery is marked with this symbol, which may include lettering to
indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling,
return the battery to your supplier or to a designated collection point.
For more information see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Video Intercom Indoor Station·Quick Start Guide
iii
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to
avoid danger or property loss.
The precaution measure is divided into Warnings and Cautions:
Warnings: Neglecting any of the warnings may cause serious injury or death.
Cautions: Neglecting any of the cautions may cause injury or equipment damage.
Warnings
zThe working temperature of the device is from -10º C to 55º C.
zAll the electronic operation should be strictly compliance with the electrical safety
regulations, fire prevention regulations and other related regulations in your local
region.
zPlease use the power adapter, which is provided by normal company. The power
consumption cannot be less than the required value.
zDo not connect several devices to one power adapter as adapter overload may cause
over-heat or fire hazard.
zPlease make sure that the power has been disconnected before you wire, install or
dismantle the device.
zWhen the product is installed on wall or ceiling, the device shall be firmly fixed.
zIf smoke, odors or noise rise from the device, turn off the power at once and unplug
the power cable, and then please contact the service center.
zIf the product does not work properly, please contact your dealer or the nearest
service center. Never attempt to disassemble the device yourself. (We shall not
assume any responsibility for problems caused by unauthorized repair or
maintenance.)
Cautions
zDo not drop the device or subject it to physical shock, and do not expose it to high
electromagnetism radiation. Avoid the equipment installation on vibrations surface
or places subject to shock (ignorance can cause equipment damage).
zDo not place the device in extremely hot (refer to the specification of the device for
the detailed operating temperature), cold, dusty or damp locations, and do not
expose it to high electromagnetic radiation.
zThe device cover for indoor use shall be kept from rain and moisture.
Warnings Follow
these safeguards to
prevent serious
injury or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.

Video Intercom Indoor Station·Quick Start Guide
iv
zExposing the equipment to direct sun light, low ventilation or heat source such as
heater or radiator is forbidden (ignorance can cause fire danger).
zDo not aim the device at the sun or extra bright places. A blooming or smear may
occur otherwise (which is not a malfunction however), and affecting the endurance
of sensor at the same time.
zPlease use the provided glove when open up the device cover, avoid direct contact
with the device cover, because the acidic sweat of the fingers may erode the surface
coating of the device c o v er.
zPlease use a soft and dry cloth when clean inside and outside surfaces of the device
cover, do not use alkaline detergents.
zPlease keep all wrappers after unpack them for future use. In case of any failure
occurred, you need to return the device to the factory with the original wrapper.
Transportation without the original wrapper may result in damage on the device and
lead to additional costs.
zImproper use or replacement of the battery may result in hazard of explosion.
Replace with the same or equivalent type only. Dispose of used batteries according
to the instructions provided by the battery manufacturer.

Video Intercom Indoor Station·Quick Start Guide
v
Table of Contents
1 Appearance .................................................................................................. 1
1.1 Appearance of 8-Series Indoor Station ..................................................................................... 1
1.2 Appearance of Type I 6-Series Indoor Station........................................................................... 2
1.3 Appearance of Type II and Type III 6-Series Indoor Station....................................................... 3
2 Terminals and Wiring ...................................................................................5
2.1 Terminal Description ................................................................................................................ 5
2.1.1 Terminals and Interfaces of 8-Series Indoor Station .......................................................... 5
2.1.2 Terminals and Interfaces of Type I 6-Series Indoor Station ................................................ 6
2.1.3 Terminals and Interfaces of Type II and Type III 6-Series Indoor Station ............................ 7
2.2 Wiring Description ................................................................................................................... 7
2.2.1 Wiring of 8-Series Indoor Station ...................................................................................... 7
2.2.2 Wiring of Type I 6-Series Indoor Station ............................................................................ 8
2.2.3 Wiring of Type II and Type III 6-Series Indoor Station ........................................................ 9
3 Installation ................................................................................................. 10
3.1 Installation Accessory Description .......................................................................................... 10
3.2 Wall Mounting with Junction Box........................................................................................... 10
4 Getting Started........................................................................................... 12
4.1 Activate Indoor Station........................................................................................................... 12
4.2 Set SIP Sever........................................................................................................................... 13
4.2.1 Set Private SIP.................................................................................................................. 13
4.2.2 Set Standard SIP .............................................................................................................. 14
4.3 Set Network............................................................................................................................ 16
4.3.1 Set Indoor Station Network Parameters .......................................................................... 16
4.3.2 Set Linked Device IP......................................................................................................... 17
4.4 Set Indoor Station No. ............................................................................................................ 19
5 Appendix.................................................................................................... 22
5.1 Installation Notice .................................................................................................................. 22
5.2 Wiring Cables ......................................................................................................................... 22

Video Intercom Indoor Station·Quick Start Guide
1
1Appearance
1.1 Appearance of 8-Series Indoor Station
Figure 1-1 Front Panel
Table 1-1 Components Description
No. Description
1 Built-in Camera
2
Power Supply Indicator
3 Information Indicator
4 Alarm Indicator
5 SOS Touch Key
6
Unlock Touch Key
7 Live View Touch Key
8 Management Center Touch Key
9 LCD Display Screen
10
Microphone
Figure 1-2 Rear Panel
Table 1-2 Components Description
No. Description
11
TF Card Slot
12 Serial Port
13 Mechanical Switch
14 Power Supply Indicator
15
Network Interface
16 Loudspeaker
zHold the SOS touch key to trigger a SOS alarm and upload the alarm message to the
management center (the client software or the master station).
zThe Unlock key ( ) is valid only when does the indoor station speak with the door
station or open the live view of the door station.

Video Intercom Indoor Station·Quick Start Guide
2

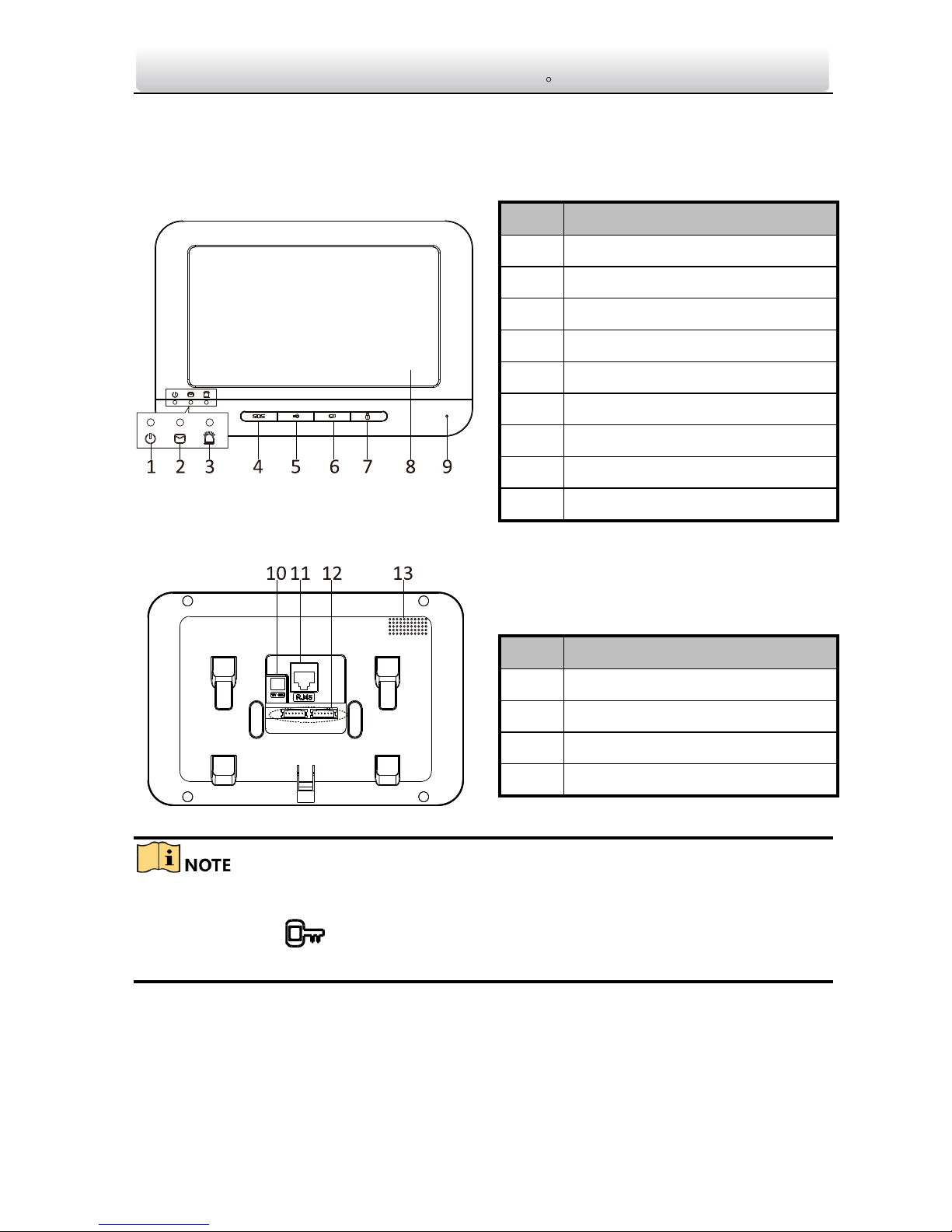

1.2 Appearance of Type I 6-Series Indoor Station
Figure 1-3 Front Panel
Table 1-3 Components Description
No.
Description
1 Power Supply Indicator
2 Information Indicator
3 Alarm Indicator
4
SOS Key
5 Unlock Key
6 Live View Key
7 Management Center Key
8 LCD Display Screen
9 Microphone
Figure 1-4 Rear Panel
Table 1-4 Components Description
No. Description
10
Power Supply Interface
11 Network Interface
12 Terminals
13 Loudspeaker
zHold the SOS touch key to trigger a SOS alarm and upload the alarm message to the
management center (the client software or the master station).
zThe Unlock key ( ) is valid only when does the indoor station speak with the door
station or open the live view of the door station.

Video Intercom Indoor Station·Quick Start Guide
3
1.3 Appearance of Type II and Type III 6-Series Indoor
Station
Figure 1-5 Front Panel
Table 1-5 Components Description
No.
Description
1
Power Supply Indicator
2 Information Indicator
3 Alarm Indicator
4 SOS Key
5 Unlock Key
6 Live View Key
7 Management Center Key
8 LCD Display Screen
9
Microphone
Figure 1-6 Rear Panel
Table 1-6 Components Description
No.
Description
10 Power Supply
11 Network Interface
12 Terminals
13
Loudspeaker
zHold the SOS touch key to trigger a SOS alarm and upload the alarm message to the
management center (the client software or the master station).
zThe Unlock key ( ) is valid only when does the indoor station speak with the door
station or open the live view of the door station.
zFor type III 6-series indoor station, there are different meanings when you press or
hold the four mechanical keys.

Video Intercom Indoor Station·Quick Start Guide
4

Keys
Hold
Press
SOS Key Return Key
Direction KeysŸandŻ/Unlock Key
Live View Key Alarm Direction KeysźandŹ
Management Center Key Confirm Key

Video Intercom Indoor Station·Quick Start Guide
5
2Terminals and Wiring
2.1 Terminal Description
2.1.1 Terminals and Interfaces of 8-Series Indoor Station

Figure 2-1 Terminals of 8-Series Indoor Station
Table 2-1 Descriptions of Terminals and Interfaces
Name No. Interface Description
485
Communication
Port
A1 RS485B+
RS-485 Communication Interfaces
A2 RS485B-
A3 RS485A+
A4 RS485A-
Grounding
A5
GND
Grounding
A6 GND Grounding
ALARM OUT
(Alarm Output)
A7 COM1 Alarm Relay Output Terminal 1 (Dry Contact)
A8 NO1
A9 COM2 Alarm Relay Output Terminal 2 (Dry Contact)
A10 NO2
ALARM IN
(Zone Input)
B1
JIN8
Zone Detector Input Terminal 8
B2 JIN7 Zone Detector Input Terminal 7
B3 JIN6 Zone Detector Input Terminal 6
B4 JIN5 Zone Detector Input Terminal 5
B5
GND
Grounding
B6 GND Grounding

Video Intercom Indoor Station·Quick Start Guide
6
Name
No.
Interface
Description
B7 JIN4 Zone Detector Input Terminal 4
B8
JIN3
Zone Detector Input Terminal 3
B9 JIN2 Zone Detector Input Terminal 2
B10
JIN1
Zone Detector Input Terminal 1
2.1.2 Terminals and Interfaces of Type I 6-Series Indoor Station

Figure 2-2 terminals of Type I 6-Series Indoor Station
Table 2-2 Descriptions of Terminals and Interfaces
Name
No.
Interface
Description
Terminals
A1 RS485- RS-485 Communication Interfaces
A2 RS485+
A3 AIN1 Zone Detector Input Terminal 1
A4 AIN2 Zone Detector Input Terminal 2
A5 AIN3 Zone Detector Input Terminal 3
A6 AIN4 Zone Detector Input Terminal 4
B1 AIN5 Zone Detector Input Terminal 5
B2 AIN6 Zone Detector Input Terminal 6
B3 AIN7 Zone Detector Input Terminal 7
B4 AIN8 Zone Detector Input Terminal 8
B5 AOUT Alarm Relay Output
B6 GND Grounding

Video Intercom Indoor Station·Quick Start Guide
7
2.1.3 Terminals and Interfaces of Type II and Type III 6-Series Indoor
Station

Figure 2-3 Terminals of Type II and Type III 6-Series Indoor Station
Table 2-3 Terminals Description
Name
No.
Interface
Description
Terminals
A1 AIN1 Zone Detector Input Terminal 1
A2 AIN2 Zone Detector Input Terminal 2
A3 GND Grounding
2.2 Wiring Description
2.2.1 Wiring of 8-Series Indoor Station
There are 20 pins in the terminal on the rear panel of the indoor station: 4 RS-485 pins,
4 GND pins, 4 alarm output pins, and 8 alarm input pins.
To access the alarm input device, refer to Figure 2-4.
To access the alarm output device, refer to Figure 2-5.
Figure 2-4 Wiring Description (Alarm Input Device)

Video Intercom Indoor Station·Quick Start Guide
8
Figure 2-5 Wiring Description (Alarm Output Device)
2.2.2 Wiring of Type I 6-Series Indoor Station
There are 12 pins in the terminal on the rear panel of the indoor station: 2 RS-485 pins,
1 GND pin, 1 alarm output pin, and 8 alarm input pins.
To access the alarm input device, refer to Figure 2-6.
To access the alarm output device, refer to Figure 2-7.
Figure 2-6 Wiring Description (Alarm Input Device)

Video Intercom Indoor Station·Quick Start Guide
9
Figure 2-7 Wiring Description (Alarm Output Device)
2.2.3 Wiring of Type II and Type III 6-Series Indoor Station
There are 3 available pins in the terminal on the rear panel of the indoor station: 2 alarm
input pins and 1 GND pin.
To access the alarm input device, refer to Figure 2-8.
Figure 2-8 Wiring Description (Alarm Input Device)

Video Intercom Indoor Station·Quick Start Guide
10
3Installation
3.1 Installation Accessory Description
The wall mounting plate and the junction box are required to install the indoor station
onto the wall.
Junction boxes for 8-series and 6-series indoor stations are the same.
The dimension of junction box should be 75 mm (width) × 75 mm (length) × 50 mm
(depth).
The dimension of wall mounting plate is shown in Figure 3-1.
Figure 3-1 Wall Mounting Plate
3.2 Wall Mounting with Junction Box
Wall mounting installations are the same for the 6-series indoor stations and the
8-series indoor stations. Here we take the wall mounting of 6-series indoor station as an
example.
Before you start:
zMake sure the device in the package is in good condition and all the assembly parts
are included.
zThe power supply the indoor station supports is 12 VDC. Please make sure your
power supply matches your indoor station.
zMake sure all the related equipment is power-off during the installation.
zCheck the product specification for the installation environment.

Video Intercom Indoor Station·Quick Start Guide
11
Steps:
1. Chisel a hole in the wall. The size of the hole should be 76 mm (width) × 76 mm
(length) × 50 mm (depth).
2. Insert the junction box to the hole chiseled on the wall.
3. Fix the wall mounting plate to the junction box with 2 screws.
Screws
Wall Mounting
Plate
Junction Box
Figure 3-2 Install the Plate
4. Hook the indoor station to the wall mounting plate tightly by inserting the plate hooks
into the slots on the rear panel of the indoor station, during which the lock catch will
be locked automatically.
Hooks
Slot Slot
Lock Catch
Figure 3-3 Hook the Indoor Station to the Plate.

Video Intercom Indoor Station·Quick Start Guide
12
4Getting Started
zHere the local operation of indoor stations with touch screen is taken as example.
zThe type III 6-series indoor station should be operated with physical keys. The SOS
key works as a return key; the Unlock key works as direction keys ŸandŻto turn up
and left; the Live View key works as direction keys źandŹto turn down and right;
and the Management Center key works as a confirm key.
4.1 Activate Indoor Station
You can configure and operate the indoor station only when you activate it. You must
create a password to activate the indoor station for your first time usage and when it is
not activated.
Steps:
1. Power on the device to enter the activation interface automatically.
Figure 4-1 Activation Interface
2. Create a password and confirm it.
3. Tap OK to activate the indoor station.

Video Intercom Indoor Station·Quick Start Guide
13
STRONG PASSWORD RECOMMENDED– We highly recommend you to create a strong
password of your own choosing (using a minimum of 8 characters, including
at least three kinds of following categories: upper case letters, lower case
letters, numbers, and special characters) in order to increase the security of
your product. And we recommend you reset your password regularly,
especially in the high security system, resetting the password monthly or weekly can
better protect your product.
4.2 Set SIP Sever
A SIP server connection is required and necessary for the indoor station to guarantee
the connection between the indoor station and the management center (master station)
in the same video intercom system.
2 types of SIP protocol are available for the indoor station: Private Protocol, and
Standard Protocol.
zRebooting the indoor station is required when you switch the SIP protocol between
the private SIP protocol and the standard SIP protocol.
zAll linked device IP should be configured again after you change the SIP protocol type.
zThe indoor extension does not support SIP sever settings.
4.2.1 Set Private SIP
The SIP server IP is required for you to set when you select Private Protocol, and the
SIP IP must be in the same network segment with the intercom devices in the system.
Steps:
1. Go to SIP Settings page to select SIP protocol type: Settings -> Configuration -> SIP
Settings.
2. Select Private Protocol.
zDefault admin password is 888999.
zThe default SIP protocol is private protocol.

Video Intercom Indoor Station·Quick Start Guide
14

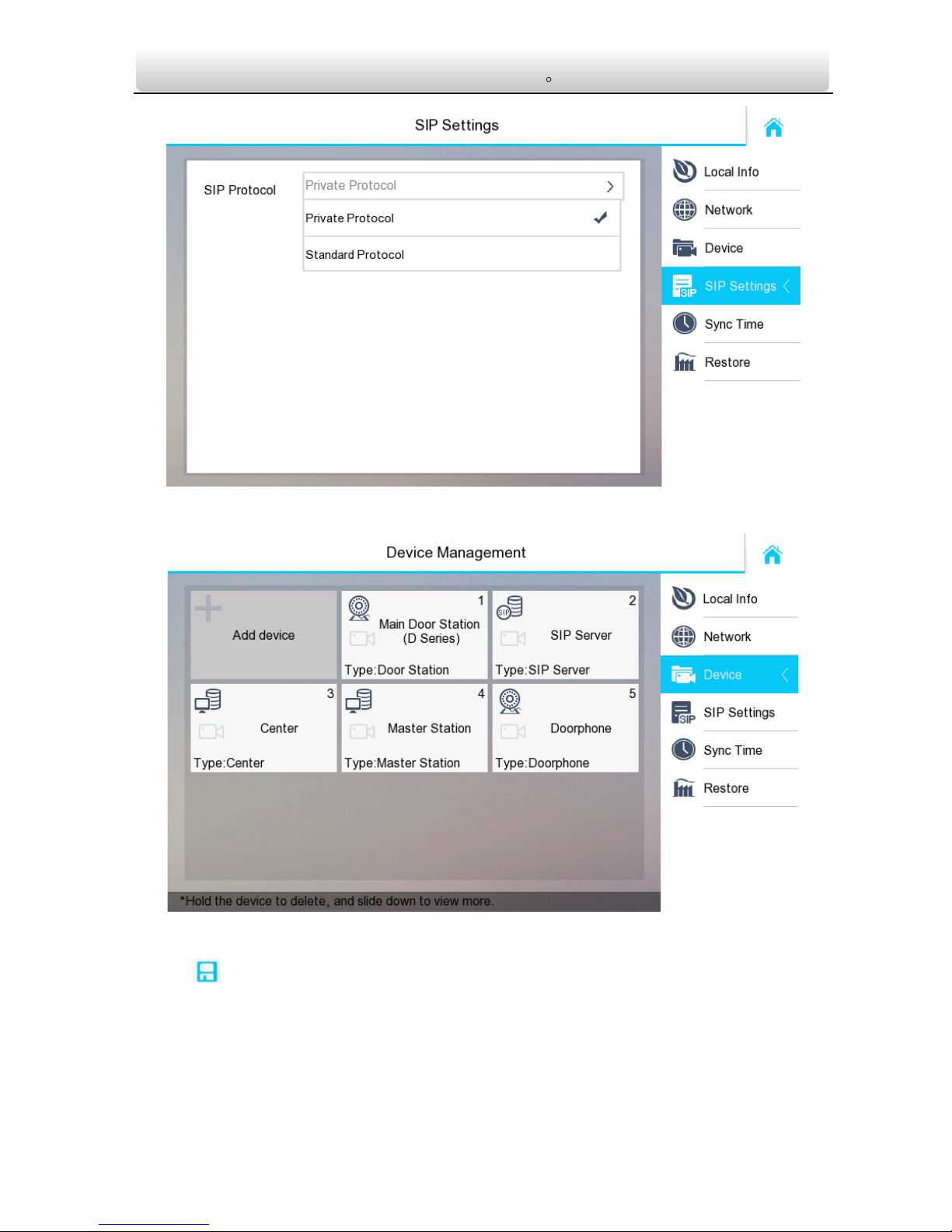

Figure 4-2 SIP Protocol Selection
3. Tap Device to go to the device management page.
Figure 4-3 Device Management
4. Tap SIP Sever, and enter the IP address of the SIP server.
5. Tap to save the SIP server added.
4.2.2 Set Standard SIP
With the standard SIP, your indoor station can connect to any intercom device, software
client, and phones which also support the standard SIP.
Before you Start:
