Hyundai HY2200P User manual

HY2200P
Manual

1
HYUNDAI
The engine exhaust from this product contains chemicals known
to cause cancer, birth defects or other reproductive harm.
©2022 Hyundai Power Equipment. All Rights Reserved.
Licensed by Hyundai Corporation Holdings, Korea.
HY2200P_Manual_EN_2022-09-30
HY2200P

2HY2200P
This product is supported by Midland Power. Contact us
directly for assistance and warranty help. Do not return this
product to store.
You must register online for your warranty to be valid.
It only takes a minute, do it now while you still have your
purchase receipt.
Support for your product is available online, including
parts, service center locations, and live expert advice.
Or call us anytime at 1-877-528-3772.
Register Your Product Online
www.hyundaipower.ca/register-warranty
Visit us Online at
www.hyundaipower.ca

3
HYUNDAI
THIS PRODUCT MEETS ALL CERTIFICATION REQUIREMENTS FROM:
READ THIS ENTIRE GUIDE BEFORE USING THIS
PRODUCT AND SAVE FOR LATER USE.
This user guide contains important instructions including
safety, setup, operation, and maintenance that must be
followed. All information in this guide is based on information
available at the time of print. This guide or revised editions
can be found on our website for download. No part of this
publication may be reproduced without written permission.
Thanks for choosing the HY2200P!
You're excited to get started, we'll keep this brief.

TABLE OF CONTENTS
1. Safety 5
1.1 Operator Safety 5
1.2 AC Safety 6
1.3 Maintenance Safety 7
1.4 Running Generators in Parallel 7
1.5 Other Safety Tips 8
2. Learn About Your Generator 9
2.1 Component Identification 9
2.2 Control Panel 10
2.3 Control Functions 11
2.4 Make Sure You Have Everything 12
3. Pre-Operation Check 13
4. Starting the Engine 17
4.1 Starting Your Generator 18
5. Generator Use 21
5.1 Output, Overload, and Oil Alert Indicator 21
5.2 AC Applications 22
5.3 AC Parallel Operation 23
6. Stopping the Engine 24
7. Maintenance 24
7.1 Maintenance Schedule 25
7.2 Emission Control System 26
7.3 Changing the Oil 28
7.4 Cleaning The Air-Filter 30
7.5 Spark Plug Service 31
7.6 Spark Arrester Maintenance 32
7.7 Fuel Filter Maintenance 32
8. Transportation & Storage 33
9. Troubleshooting 35
10. Technical Specifications 37
11. Wiring Diagram 38
12. Appendix 39
13. Limited Warranty 40

1. SAFETY
DANGER!
Using a generator indoors can kill you in minutes.
Generator exhaust contains carbon monoxide. This is a poison
that you cannot see or smell.
NEVER use inside a home or garage.
The engine exhaust from this product contains chemicals known
to cause cancer, birth defects or other reproductive harm.
Warning!
This product can expose you to chemicals including carbon
monoxide, which is known to the State of California to cause
cancer and birth defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov
1.1 OPERATOR SAFETY
Warning!
Always perform an oil, fuel and air lter check before starting the engine.
Properly clean and maintain the equipment.
Operate the generator according to instructions for safe and dependable
service.
Before operating the generator, read the user guide carefully. Otherwise,
it may result in personal injuries or equipment damage.
Never run the generator in an enclosed area to avoid harm from exhaust
emissions of a poisonous carbon monoxide gas.
Pay attention to the warning labels. The engine exhaust system will
become heated during operation and remain hot immediately after the
engine is stopped.
TOXIC FUMES HAZARD. Running engines give off
carbon monoxide, an odourless poisonous gas
that can cause nausea, fainting, or death. Do
not start engine indoors or in an enclosed area,
even if the windows and doors are open.
DANGER TOXIQUE. Faire fonctionner un moteur dégage de
l’oxyde de carbone, un gaz inodore toxique qui peut
provoquer la nausée, évanouissement ou la mort. Ne
démarrer pas le moteur à l’intérieur ou dans une espace clos,
meme si les fenêtres et les portes sont ouvertes.
5
HYUNDAI

Gasoline is a highly ammable and explosive liquid. Refuel in a well
ventilated area with the engine stopped.
Use of gasoline with an ethanol content greater than 10% can damage
the engine and fuel system and will void the manufacturer’s warranty.
When refueling the generator, keep it away from cigarettes, open ames,
smoke and/or sparks.
Place the generator at least 3 feet away from buildings or other
equipment during operation.
Run the generator on a level surface. Tilting the generator may result in
fuel spills.
Know how to stop the generator quickly and understand operation of
all the controls. Never permit anyone to operate the generator without
proper instructions.
Keep children, pets and machinery with rotating parts away during
operation.
Do not operate the generator in rain or snow.
Do not allow any moisture to come in contact with the generator.
Do not touch the spark plug while the engine is operating or shortly after
the engine has been shut down.
1.2 AC SAFETY
Warning!
Before connecting the generator to an electrical device or power cord:
Make sure that everything is in proper working order. Faulty devices or
power cords can lead to an electrical shock.
Turn off the generator immediately if the device begins to operate
abnormally. Then disconnect the device and investigate the problem.
Make sure that the electrical rating of the device does not exceed that of
the generator. If the power level of the device is between the maximum
output power and the running power of the generator, the generator
should not be used for more than 30 minutes.
Connections for standby power to a building’s electrical system must be
done by a qualied electrician and must comply with all applicable laws
and electrical codes. Improper connections may cause serious injuries to
electrical workers during a power outage, and when the utility power is
restored, the generator may explode or cause res. The generator shall
be connected through transfer equipment that switches all conductors
other than the equipment grounding conductor. The frame of the
generator shall be connected to an approved grounding electrode.
6HY2200P

For power outages, permanently installed stationary generators are
better suited for providing backup power to the home. Even a properly
connected portable generator can become overloaded. This may result in
overheating or stressing the generator components, possibly leading to a
generator failure.
This unit is oating neutral. The generator (stator winding) is isolated from
the frame and from the AC receptacle ground pin.
Electrical devices that require a grounded receptacle pin connection will
not function if the receptacle ground pin is not functional.
1.3 MAINTENANCE SAFETY
Warning!
After any maintenance is performed, wash immediately using soap and
clean water because repeated exposure to lubricant may cause skin
irritation.
Do not clean the lter element with ammable liquids like gasoline
because an explosion may occur.
Turn off the engine before performing any maintenance. Failure to do so
can cause severe personal injury or death.
Allow the generator set to cool down before performing any maintenance.
Always wear safety glasses when cleaning the generator set with air.
Do not clean the generator set with a pressure washer because it can
damage the generator set.
When working with batteries, ventilate the area, use safety glasses, do
not smoke. Always disconnect the negative rst and reconnect it last.
Use rubber gloves when coming into contact with engine oil.
Always stop the generator set before removing the oil ller cap.
Only qualied maintenance personnel with knowledge of fuels, electricity,
and machinery hazards should perform maintenance procedures.
Lubricate all exposed metal parts regularly. See chapter 7.1 for
maintenance schedule.
1.4 RUNNING GENERATORS IN PARALLEL
Warning!
Only connect in parallel with a Hyundai parallel model with the approved
parallel kit (sold separately). Attempting to connect other brands or non-
parallel Hyundai models will void your warranty and could cause bodily
injury.
7
HYUNDAI

1.5 OTHER SAFETY TIPS
Warning!
To avoid breathing in poisonous carbon monoxide from the exhaust
gases, adequate ventilation should be provided if the generator set is
running in a partially enclosed space.
If the generator set is stored outdoors, check all the electrical
components on the control panel before each use. Moisture can damage
the generator and can lead to an electric shock.
Generators vibrate in normal use. During and after the use of the
generator, inspect the generator as well as extension cords and power
supply cords connected to it for damage resulting from vibration. Have
damaged items repaired or replaced as necessary. Do not use plugs or
cords that show signs of damage such as broken or cracked insulation or
damaged blades.
If you start to feel sick, dizzy, or weak after the generator has been
running, move to fresh air RIGHT AWAY. See a doctor. You could have
carbon monoxide poisoning.
TOXIC FUMES HAZARD. Running engines give off
carbon monoxide, an odourless poisonous gas
that can cause nausea, fainting, or death. Do
not start engine indoors or in an enclosed area,
even if the windows and doors are open.
DANGER TOXIQUE. Faire fonctionner un moteur dégage de
l’oxyde de carbone, un gaz inodore toxique qui peut
provoquer la nausée, évanouissement ou la mort. Ne
démarrer pas le moteur à l’intérieur ou dans une espace clos,
meme si les fenêtres et les portes sont ouvertes.
8HY2200P

2. LEARN ABOUT YOUR GENERATOR
This section will show you how to identify key parts of your generator. Going over the
terminology below will make sure we’re on the same page.

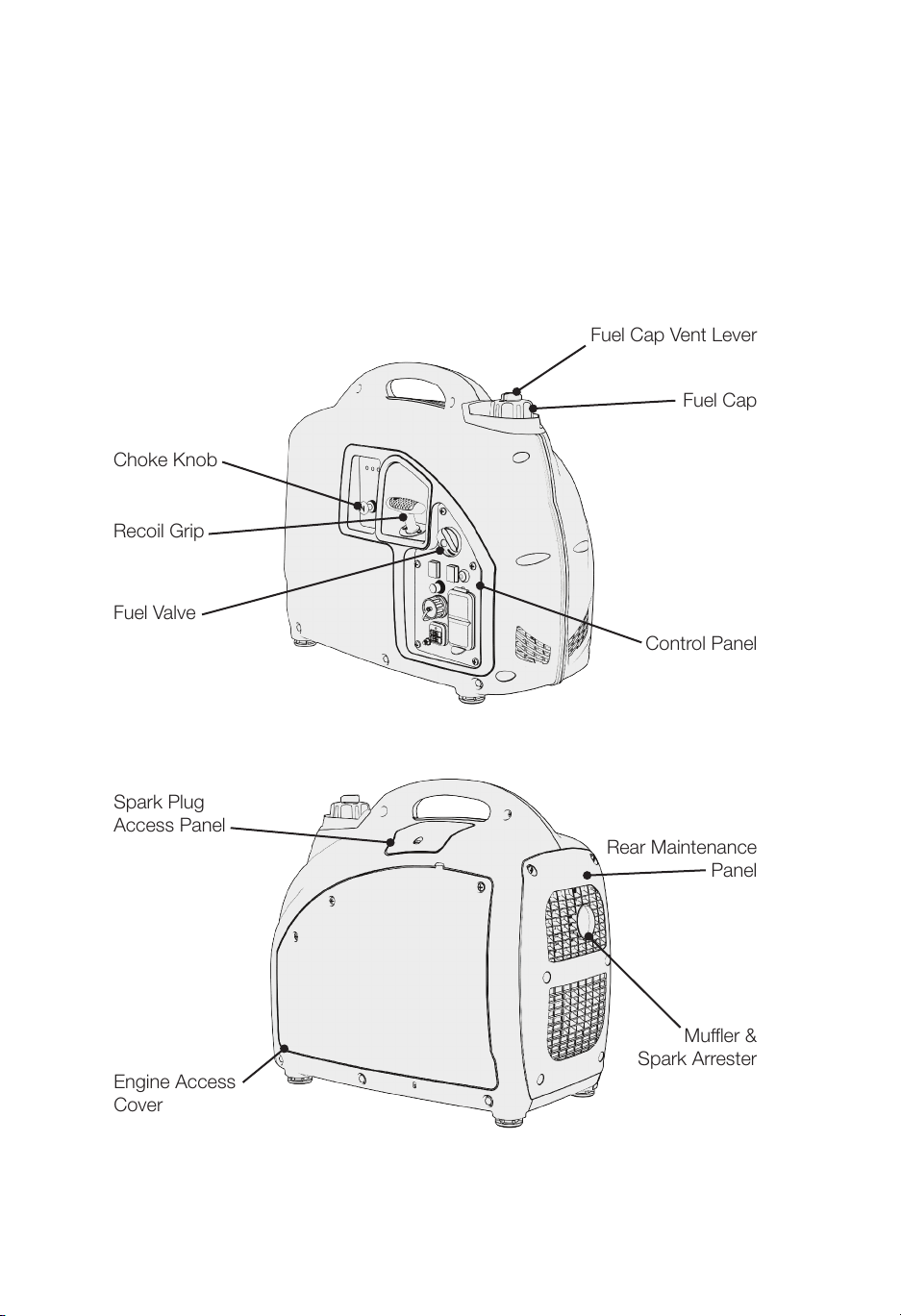

2.1 COMPONENT IDENTIFICATION
Fuel Cap Vent Lever
Fuel Cap
Control Panel
Fuel Valve
Spark Plug
Access Panel
Engine Access
Cover
Muffler &
Spark Arrester
Rear Maintenance
Panel
Recoil Grip
Choke Knob
9
HYUNDAI

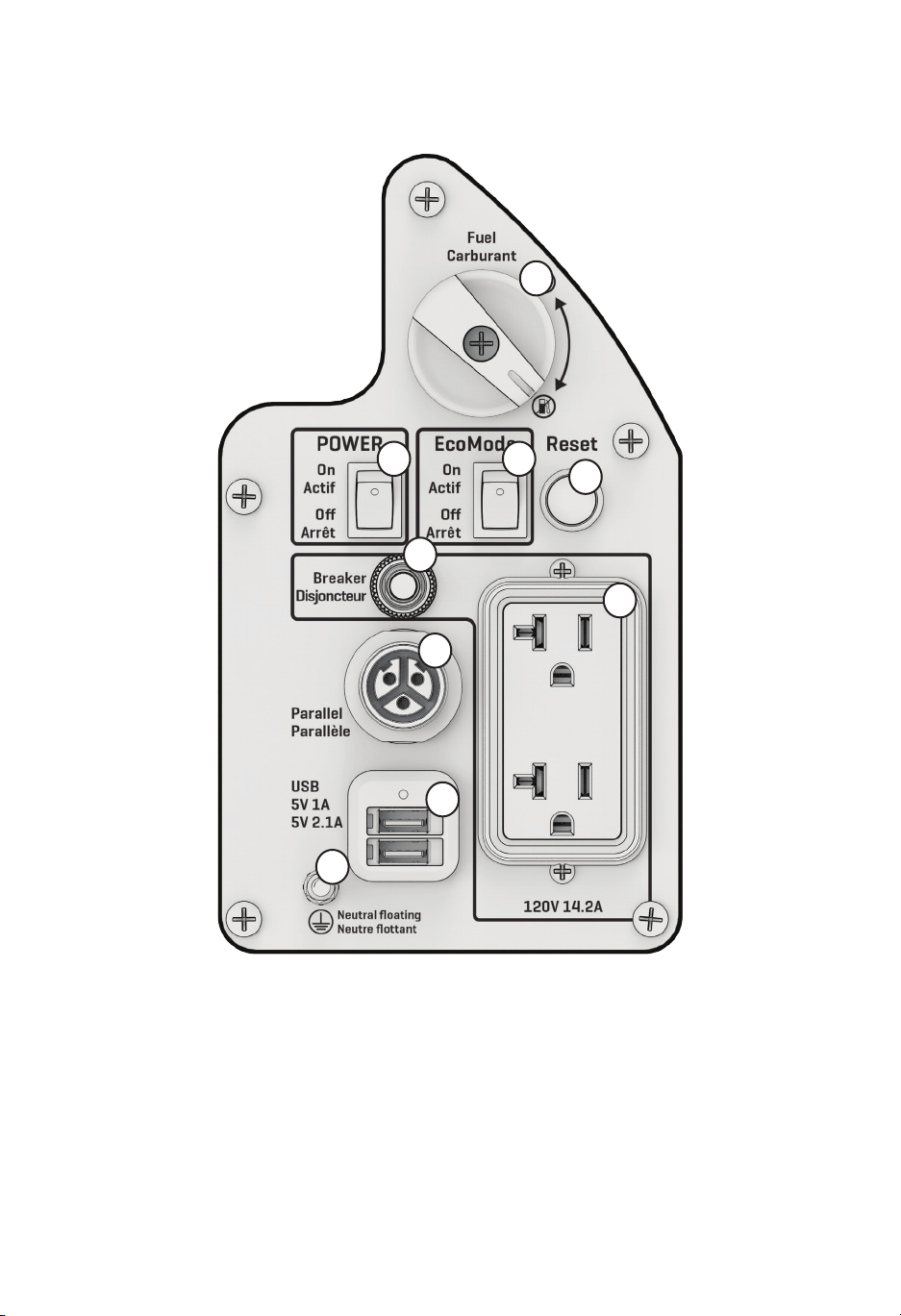

2.2 CONTROL PANEL
1. Fuel Valve
2. Power Switch
3. EcoMode
4. AC Breaker
5. Parallel Port
6. USB
7. Ground Terminal
8. Reset Button
9. 120V 20A 5-20R Outlet
1
2 3
4
5
6
7
8
9
10 HY2200P

2.3 CONTROL FUNCTIONS
EcoMode (Economy Control Switch)
Turn EcoMode ON to minimize fuel consumption. In this mode the
engine will dynamically meet the demand of the electrical load and will
automatically go into an idle state if all loads are disconnected.
Before connecting or removing a high load device to the generator, turn
EcoMode OFF until that device has reached running power.
When EcoMode is OFF, the engine runs at full speed.
Reset Button
If the red overload indicator light is on, press and hold the reset button
for 1 second until the overload indicator light turns off and the green
output indicator light turns on. This will recover generator output without
shutting down the engine.
If the generator is running normally, the RESET button will have no effect.
NOTE
The RESET button is available a maximum of 5 times for every full start
of the generator. Shut down the generator and restart using the power
switch to refresh available resets.
Output and Overload Indicator
In normal operation, the green output indicator light (READY) will remain
on.
If the generator is overloaded (producing more than 1600W) or a
connected appliance has short-circuited, the output indicator light will
turn off and the overload indicator light will turn on.
USB Ports
A total of 3.1A is available at 5.0V. A single port can draw the full 3.1A or
it will be distributed as needed. For example, a 1A device will only draw
1A.
11
HYUNDAI

AC Circuit Breaker
While the generator is running, the breakers should be in the ON position.
If the current has exceeded its limits the breaker will automatically pop
out to the OFF position. Reduce the electrical load on the generator and
push the button back to the ON position.
Low Oil Indicator Light
The oil alert system is designed to prevent engine damage caused by
an insufcient amount of oil in the crankcase. Before the oil level in the
crankcase reaches an unsafe limit, the oil alert system will automatically
shut down the engine (the power switch remains in the ON position).
If the oil alert system shuts down the engine, the low oil indicator light
(red) will turn on. Check the engine oil level.
2.4 MAKE SURE YOU HAVE EVERYTHING
Make sure your generator has everything listed in the table below.
Part Name Quantity
Inverter Generator 1
User Guide 1
Spark Plug Wrench - Sleeve 1
Spark Plug Wrench - Bar 1
Multi Screwdriver 1
Oil Transfer Tool 1
12 HY2200P

3. PRE-OPERATION CHECK
Set the generator on a level surface and the power switch to OFF.
3.1 PREPARE THE AIR CLEANER
Clean and oil the air lter before your rst use. Check the maintenance schedule for a
complete cleaning guide.
1. Loosen three screws and use the tab to loosen the top of the panel then
work your way around the panel. This may require some force.
2. Unscrew the air lter cover and remove the lter.
3. Clean the air lter with soap and water or solvent and squeeze dry.
4. Soak in clean engine oil.
5. Squeeze out all excess oil and reinstall. Replace the lter if it is damaged.
NOTE
Running the engine without the air lter will quickly degrade the engine
1 2
Air Filter
13
HYUNDAI

3.2 ADD ENGINE OIL
1. Place the generator on a level surface.
2. Unscrew and remove the engine access panel. Start at the tab and work
around the panel. This may require some force to loosen the snapts.
3. Unscrew the oil cap and clean the dipstick.
4. Add 12 . oz / 0.35L of fresh engine oil then reinsert the oil cap without
threading it in. Remove the cap and examine the oil level on the dipstick.
5. Add additional oil up to the maximum mark.
6. Reinsert the oil cap and tighten securely. Replace the engine access panel
and screws.
NOTE
SAE 10W-30 or SAE synthetic 5W-30 is recommended for general use.
Use of synthetic oil does not change maintenance intervals.
Oil Capacity: 12 .oz / 0.35L
DO NOT OVERFILL.
Max Oil Level
Min Oil Level
Oil Capacity
12 . Oz / 0.35L
Oil Transfer Tool Oil Cap & Dipstick
0°C 10 20 30 40 50-10-20-30
20 32°F 40 60 80 100 120
°C
°F0-20
15W-50
10W-30
Synthetic 5W-30
5W-30
Effective Viscosity Range of Engine Oils
Max Oil Level
Min Oil Level
Oil Capacity
12 . Oz / 0.35L
Oil Transfer Tool Oil Cap & Dipstick
0°C 10 20 30 40 50-10-20-30
20 32°F 40 60 80 100 120
°C
°F0-20
15W-50
10W-30
Synthetic 5W-30
5W-30
Effective Viscosity Range of Engine Oils
14 HY2200P

NOTE
Do not tilt the generator when adding engine oil. This could result in
overlling and damage to the engine.
Use high quality 4-stroke engine oil, certied to meet or exceed API
standard SG, SF, SAE ratings with strong detergents. Using non-
detergent or 2-stroke oil could shorten the engine’s working life.
Do not mix different engine oils.
Handle and store the engine oil with care, avoid getting dirt or dust into
the engine oil.
If the oil falls below a safe level, the low oil alert system will automatically
shut off the engine. The low oil light will turn on.
To avoid the inconvenience of unexpected engine shutoff, check the
engine oil level as often as possible.
Max Oil Level
Min Oil Level
Oil Capacity
12 . Oz / 0.35L
Oil Transfer Tool Oil Cap & Dipstick
0°C 10 20 30 40 50-10-20-30
20 32°F 40 60 80 100 120
°C
°F0-20
15W-50
10W-30
Synthetic 5W-30
5W-30
Effective Viscosity Range of Engine Oils
15
HYUNDAI

3.3 ADD FUEL
Warning!
Gasoline is highly flammable and explosive under certain
conditions.
Refuel in a well-ventilated area with the engine stopped. Do
not smoke or allow open flames or sparks in the area where the
generator is being refueled or where gasoline is stored. Do not
overfill the tank. Be careful not to spill fuel when refueling. Wipe
up any spilled gasoline and let the area dry before starting the
engine.
Gasoline substitutes such as gasohol are not recommended. They
may be harmful to the fuel system components.
NOTE
Use of gasoline with an ethanol content greater than 10% can damage
the engine and the fuel system and will void the manufacturer’s warranty.
Only use unleaded gasoline (85 Octane or higher).
Never use stale or contaminated gasoline, or an oil/gasoline mixture.
Avoid getting dirt or water into the fuel tank.
Do not use a mixture of gasoline containing methanol. This will cause
serious damage to the engine.
Upper Limit
Mark (Red)Fuel Cap
OPEN
Fuel Capacity: 0.9 Gal / 3.4 L
Avoid other generator hazards
READ MANUAL BEFORE USE.
Using a generator indoors can KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide.
This is poison that you cannot see or smell.
NEVER use inside a home
or garage. EVEN if doors
and windows are open.
Only use OUTSIDE and
far away from windows,
doors, and vents.
TOXIC FUMES HAZARD. Running engines give off
carbon monoxide, an odourless poisonous gas
that can cause nausea, fainting, or death. Do
not start engine indoors or in an enclosed area,
even if the windows and doors are open.
DANGER TOXIQUE. Faire fonctionner un moteur dégage de
l’oxyde de carbone, un gaz inodore toxique qui peut
provoquer la nausée, évanouissement ou la mort. Ne
démarrer pas le moteur à l’intérieur ou dans une espace clos,
meme si les fenêtres et les portes sont ouvertes.
16 HY2200P

4. STARTING THE ENGINE
DANGER!
Using a generator indoors WILL KILL YOU IN MINUTES.
Generator exhaust contains high levels of carbon monoxide (CO),
a poisonous gas you cannot see or smell. If you can smell the
generator exhaust you are breathing CO. Even if you cannot smell
the exhaust, you could be breathing CO.
NEVER use a generator inside a home, garage, crawlspace, or
other partly enclosed area, deadly levels of carbon monoxide can
build up in these areas. Using a fan or opening windows and doors
will NOT supply enough fresh air.
ONLY use a generator outdoors and far away from open windows,
doors, and vents. These openings can pull in generator exhaust.
Even when you use a generator correctly, CO may leak into the
home. ALWAYS use a CO alarm in your home.
If you start to feel sick, dizzy, or weak after the generator has
been running, move to fresh air RIGHT AWAY and seek medical
attention. You could have carbon monoxide poisoning. Never
run the generator in an enclosed or even partially enclosed area
where people may be present.
TOXIC FUMES HAZARD. Running engines give off
carbon monoxide, an odourless poisonous gas
that can cause nausea, fainting, or death. Do
not start engine indoors or in an enclosed area,
even if the windows and doors are open.
DANGER TOXIQUE. Faire fonctionner un moteur dégage de
l’oxyde de carbone, un gaz inodore toxique qui peut
provoquer la nausée, évanouissement ou la mort. Ne
démarrer pas le moteur à l’intérieur ou dans une espace clos,
meme si les fenêtres et les portes sont ouvertes.
17
HYUNDAI

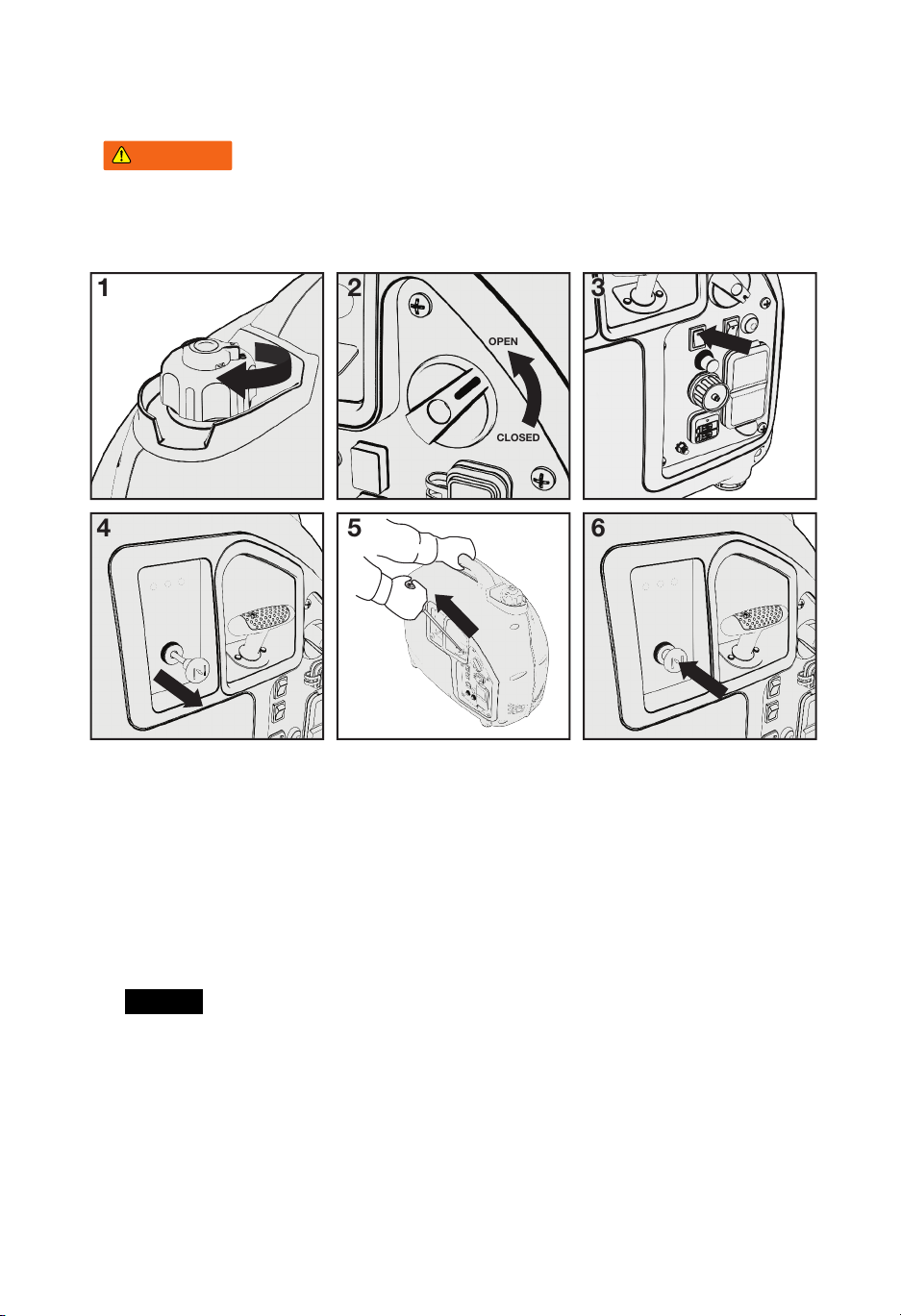

4.1 STARTING YOUR GENERATOR
Warning!
Before using the generator, consult a local electrician and local
electrical codes to determine grounding requirements for your
intended use. This generator is floating neutral.
1. Rotate the fuel cap vent lever to ON.
2. Rotate the fuel valve to the OPEN position.
3. Turn the power switch to the ON position.
4. If the engine is cold pull the choke lever fully out.
5. Pull the starter slowly until you feel it engage then pull quickly. Repeat until
the generator starts.
6. When the engine warms up push the choke fully in. The choke is used to
provide the proper air-fuel mixture when the engine is cold.
NOTE
Before starting the engine disconnect all devices from the outlets on the
front panel.
Return the starter grip slowly by hand, do not let it snap back.
Do not pull out the choke knob when the engine is hot or ambient air
temperature is high
OPEN
CLOSED
12 3
4 5 6
18 HY2200P

Carburetor Modification for High Altitude Operation (Above 2000 feet)
NOTE
This engine is equipped to run at altitudes below 2,000-ft.
A high-altitude Main Jet is recommended when operated at 2,000 to
7,000-ft above sea level.
At elevations above 7,000-ft the engine may experience decreased
performance even with a high-altitude Main Jet.
At high altitudes the carburetor’s air/fuel mixture becomes too rich, resulting in higher
fuel consumption, lower performance, and carbon build-up on the spark plug. On
the other hand, if the carburetor has been modied for high altitude operation and is
operated below 2000-ft, the air/fuel mixture will then be too lean for low altitude use.
Always use the correct Main Jet for your altitude.
The engine’s carburetor, governor (if so equipped), and any other parts that control
the air/fuel ratio will need to be adjusted by a qualied mechanic to allow efcient
high-altitude use, and to prevent damage to the engine and any other devices used
with this product. The fuel system on this engine may be inuenced by operation at
higher altitudes.
Carburetor bowl may have gas in it which will leak upon removing the
bolt.
The mixing tube is held in place by the Main Jet and might fall out when
it is removed. If it falls out, replace it in the same orientation before
replacing the Main Jet.
The Fuel Cup Seal and Bolt Seal may be damaged during removal and
should be replaced with the new ones.
Carburetor
Assembly
Main Jet
Fuel Cup Seal
Mixing Tube
(might remain
inside carburetor)
Fuel Cup
Bolt Seal
Bolt
Drain Bolt
Washer
19
HYUNDAI
