Hyundai HY2000SI User manual

USER GUIDE

The engine exhaust from this product contains chemicals known
to cause cancer, birth defects or other reproductive harm.
©2017 Hyundai Power Equipment. All Rights Reserved.
Licensed by Hyundai Corporation, Korea.
HY2000SI_UG_EN_2017-10-30

Thanks for choosing the HY Series!
You're excited to power up, so we'll keep this brief. Let's get started!

THIS PRODUCT MEETS ALL CERTIFICATION REQUIREMENTS FROM:
263521

WE'VE GOT YOU COVERED!
Contact us by phone at 1-877-528-3772,
email us at [e-mail], or visit us online
at www.hyundaipower.ca if you have any questions.
SAVE THESE INSTRUCTIONS
This user guide contains important instructions for your
product, that should be followed during installation and
maintenance of the generator.
This user guide covers the safety, operation and
maintenance procedures for the HY2000Si.
All information in this publication is based on the latest
product information available at the time of print.
Visit www.hyundaipower.ca for user guide
updates and operation notices.
No part of this publication may be reproduced
without written permission.

WARRANTY INFORMATION
YOU CAN REGISTER EASILY USING OUR ONLINE FORM:
www.hyundaipower.ca/warranty.php
See ‘Limited Warranty’ for more information.
Product registration will allow you to request warranty support in
the future. Product registration is required for all product support
and warranty coverage.
Warranty support, operation assistance and product support
is provided by Midland Power Inc., a licensed manufacturer of
Hyundai Power Equipment. Please contact us directly for any
warranty service questions.
1-877-528-3772
[e-mail]
www.hyundaipower.ca

HY SERIES
TABLE OF CONTENTS
1. Safety 1
Operator Safety 1
AC Safety 2
Maintenance Safety 2
Other Safety Tips 3
2. Learn About Your Generator 4
Component Identification 4
Control Panel 5
Control Functions 6
Make Sure You Have Everything 7
3. Pre-Operation Check 8
4. Starting the Engine 12
Starting Your Generator 13
5. Generator Use 15
Output, Overload, and Oil Alert Indicator 15
DC Applications 16
AC Applications 17
6. Stopping the Engine 18
7. Maintenance 18
Maintenance Schedule 19
Emission Control System 20
Changing the Oil 21
Cleaning The Air-Filter 23
Spark Plug Service 24
Spark Arrester Maintenance 25
Fuel Filter Maintenance 25
8. Transportation & Storage 26
9. Troubleshooting 28
10. Technical Specifications 30
11. Wiring Diagram 31
12. Appendix 32
13. Limited Warranty 33

1
1. SAFETY
DANGER!
USING A GENERATOR INDOORS CAN KILL YOU IN MINUTES.
THE ENGINE EXHAUST FROM THIS PRODUCT CONTAINS CHEMICALS
KNOWN TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE
HARM.
1.1 OPERATOR SAFETY
WARNING!
Always perform an oil, fuel and air lter check before starting the engine.
Properly clean and maintain the equipment.
Operate the generator according to instructions for safe and
dependable service.
Before operating the generator, read the user guide carefully. Otherwise,
it may result in personal injuries or equipment damage.
Never run the generator in an enclosed area to avoid harm from exhaust
emissions of a poisonous carbon monoxide gas.
Pay attention to the warning labels. The engine exhaust system will
become heated during operation and remain hot immediately after the
engine is stopped.
Gasoline is a highly ammable and explosive liquid. Refuel in a well
ventilated area with the engine stopped.
Use of gasoline with an ethanol content greater than 10% can damage
the engine and fuel system and will void the manufacturer’s warranty.
When refueling the generator, keep it away from cigarettes, open
ames, smoke and/or sparks.
Place the generator at least 3 feet away from buildings or other
equipment during operation.
Run the generator on a level surface. Tilting the generator may result in
fuel spills.
Know how to stop the generator quickly and understand operation of
all the controls. Never permit anyone to operate the generator without
proper instructions.
Keep children, pets and machinery with rotating parts away during
operation.
Do not operate the generator in rain or snow.
Do not allow any moisture to come in contact with the generator.

2
Do not touch the spark plug while the engine is operating or shortly after
the engine has been shut down.
1.2 AC SAFETY
WARNING!
Before connecting the generator to an electrical device or power cord:
Make sure that everything is in proper working order. Faulty devices or
power cords can lead to an electrical shock.
Turn off the generator immediately if the device begins to operate
abnormally. Then disconnect the device and investigate the problem.
Make sure that the electrical rating of the device does not exceed
that of the generator. If the power level of the device is between the
maximum output power and the running power of the generator, the
generator should not be used for more than 30 minutes.
Connections for standby power to a building’s electrical system must
be done by a qualied electrician and must comply with all applicable
laws and electrical codes. Improper connections may cause serious
injuries to electrical workers during a power outage, and when the
utility power is restored, the generator may explode or cause res. The
generator shall be connected through transfer equipment that switches
all conductors other than the equipment grounding conductor. The
frame of the generator shall be connected to an approved grounding
electrode.
For power outages, permanently installed stationary generators are
better suited for providing backup power to the home. Even a properly
connected portable generator can become overloaded. This may result
in overheating or stressing the generator components, possibly leading
to a generator failure.
1.3 MAINTENANCE SAFETY
WARNING!
After any maintenance is performed, wash immediately using soap and
clean water because repeated exposure to lubricant may cause skin
irritation.
Do not clean the lter element with ammable liquids like gasoline
because an explosion may occur.
Turn off the engine before performing any maintenance. Failure to do so
can cause severe personal injury or death.
Allow the generator set to cool down before performing any
HY SERIES

3
maintenance.
Always wear safety glasses when cleaning the generator set with air.
Do not clean the generator set with a pressure washer because it can
damage the generator set.
When working with batteries, ventilate the area, use safety glasses, do
not smoke. Always disconnect the negative rst and reconnect it last.
Use rubber gloves when coming into contact with engine oil.
Always stop the generator set before removing the oil ller cap.
Only qualied maintenance personnel with knowledge of fuels,
electricity, and machinery hazards should perform maintenance
procedures.
Lubricate all exposed metal parts regularly. See chapter 7.1 for
maintenance schedule.
1.4 OTHER SAFETY TIPS
WARNING!
To avoid breathing in poisonous carbon monoxide from the exhaust
gases, adequate ventilation should be provided if the generator set is
running in a partially enclosed space.
If the generator set is stored outdoors, check all the electrical
components on the control panel before each use. Moisture can
damage the generator and can lead to an electric shock.
Generators vibrate in normal use. During and after the use of the
generator, inspect the generator as well as extension cords and power
supply cords connected to it for damage resulting from vibration. Have
damaged items repaired or replaced as necessary. Do not use plugs or
cords that show signs of damage such as broken or cracked insulation
or damaged blades.
If you start to feel sick, dizzy, or weak after the generator has been
running, move to fresh air RIGHT AWAY. See a doctor. You could have
carbon monoxide poisoning.

4
2. LEARN ABOUT YOUR GENERATOR
This section will show you how to identify key parts of your generator. Going over
the terminology below will make sure we’re on the same page.

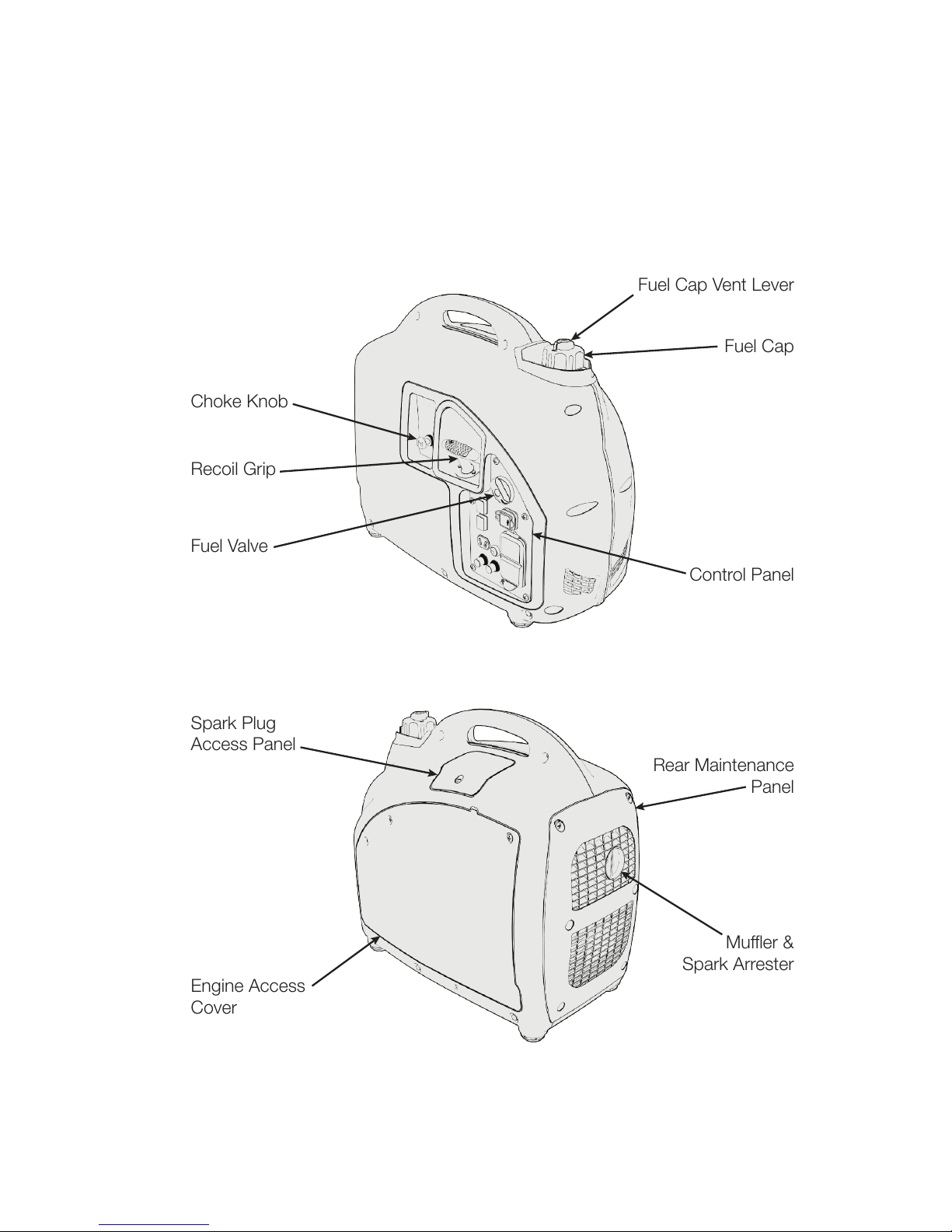

2.1 COMPONENT IDENTIFICATION
Fuel Cap Vent Lever
Fuel Cap
Control Panel
Fuel Valve
Spark Plug
Access Panel
Engine Access
Cover
Muffler &
Spark Arrester
Rear Maintenance
Panel
Recoil Grip
Choke Knob
HY SERIES

5
2.2 CONTROL PANEL
Reset
Ground AC Outlets
AC Breaker
PowerChoke
Fuel Shutoff
DC Outlet
USB
Low Oil Indicator
Overload Indicator
Output Indicator
DC Breaker
EcoMode
Recoil Starter

6
2.3 CONTROL FUNCTIONS
EcoMode (Economy Control Switch)
Turn EcoMode ON to minimize fuel consumption. In this mode the
engine will dynamically meet the demand of the electrical load and will
automatically go into an idle state if all loads are disconnected.
Before connecting or removing a high load device to the generator, turn
EcoMode OFF until that device has reached running power.
When EcoMode is OFF, the engine runs at full speed.
Reset Button
If the red overload indicator light is on, press and hold the reset button
for 1 second until the overload indicator light turns off and the green
output indicator light turns on. This will recover generator output without
shutting down the engine.
If the generator is running normally, the RESET button will have no
effect.
NOTE
The RESET button is available a maximum of 5 times for every full start
of the generator. Shut down the generator and restart using the power
switch to refresh available resets.
Output and Overload Indicator
In normal operation, the green output indicator light (READY) will remain
on.
If the generator is overloaded (producing more than 1600W) or a
connected appliance has short-circuited, the output indicator light will
turn off and the overload indicator light will turn on.
USB Ports
A total of 3.1A is available at 5.0V. A single port can draw the full 3.1A or
it will be distributed as needed. For example, a 1A device will only draw
1A.
HY SERIES

7
AC Circuit Breaker
While the generator is running, the breakers should be in the ON
position.
If the current has exceeded its limits the breaker will automatically pop
out to the OFF position. Reduce the electrical load on the generator and
push the button back to the ON position.
DC Circuit Breaker
The DC Circuit breaker automatically shuts off when the charging circuit
is overloaded.
If the current has exceeded its limits the breaker will automatically pop
out to the OFF position. Reduce the electrical load on the generator and
push the button back to the ON position.
Low Oil Indicator Light
The oil alert system is designed to prevent engine damage caused by
an insufcient amount of oil in the crankcase. Before the oil level in the
crankcase reaches an unsafe limit, the oil alert system will automatically
shut down the engine (the power switch remains in the ON position).
If the oil alert system shuts down the engine, the low oil indicator light
(red) will turn on. Check the engine oil level.
2.4 MAKE SURE YOU HAVE EVERYTHING
Make sure your generator has everything listed in the table below.
Part Name Quantity
Inverter Generator 1
User Guide 1
Spark Plug Wrench - Sleeve 1
Spark Plug Wrench - Bar 1
Multi Screwdriver 1
DC Charging Cable 1
Oil Transfer Tool 1

8
3. PRE-OPERATION CHECK
Set the generator on a level surface and the power switch to OFF.
3.1 PREPARE THE AIR CLEANER
Clean and oil the air lter before your rst use. Check the maintenance schedule for
a complete cleaning guide.
1. Loosen three screws and use the tab to loosen the top of the panel then
work your way around the panel. This may require some force.
2. Unscrew the air lter cover and remove the lter.
3. Clean the air lter with soap and water or solvent and squeeze dry.
4. Soak in clean engine oil.
5. Squeeze out all excess oil and reinstall. Replace the lter if it is damaged.
NOTE
Running the engine without the air lter will quickly degrade the engine
1 2
Air Filter
HY SERIES

9
3.2 ADD ENGINE OIL
1. Place the generator on a level surface.
2. Unscrew and remove the engine access panel. Start at the tab and work
around the panel. This may require some force to loosen the snapts.
3. Unscrew the oil cap and clean the dipstick.
4. Add 0.35L / 0.09 Gal of fresh engine oil then reinsert the oil cap without
threading it in. Remove the cap and examine the oil level on the dipstick.
5. Add additional oil up to the maximum mark. DO NOT OVERFILL.
6. Reinsert the oil cap and tighten securely. Replace the engine access panel
and screws.
NOTE
SAE 10W-30 is recommended for general use.
Oil Capacity: 0.35L / 0.09 Gal.
DO NOT OVERFILL.

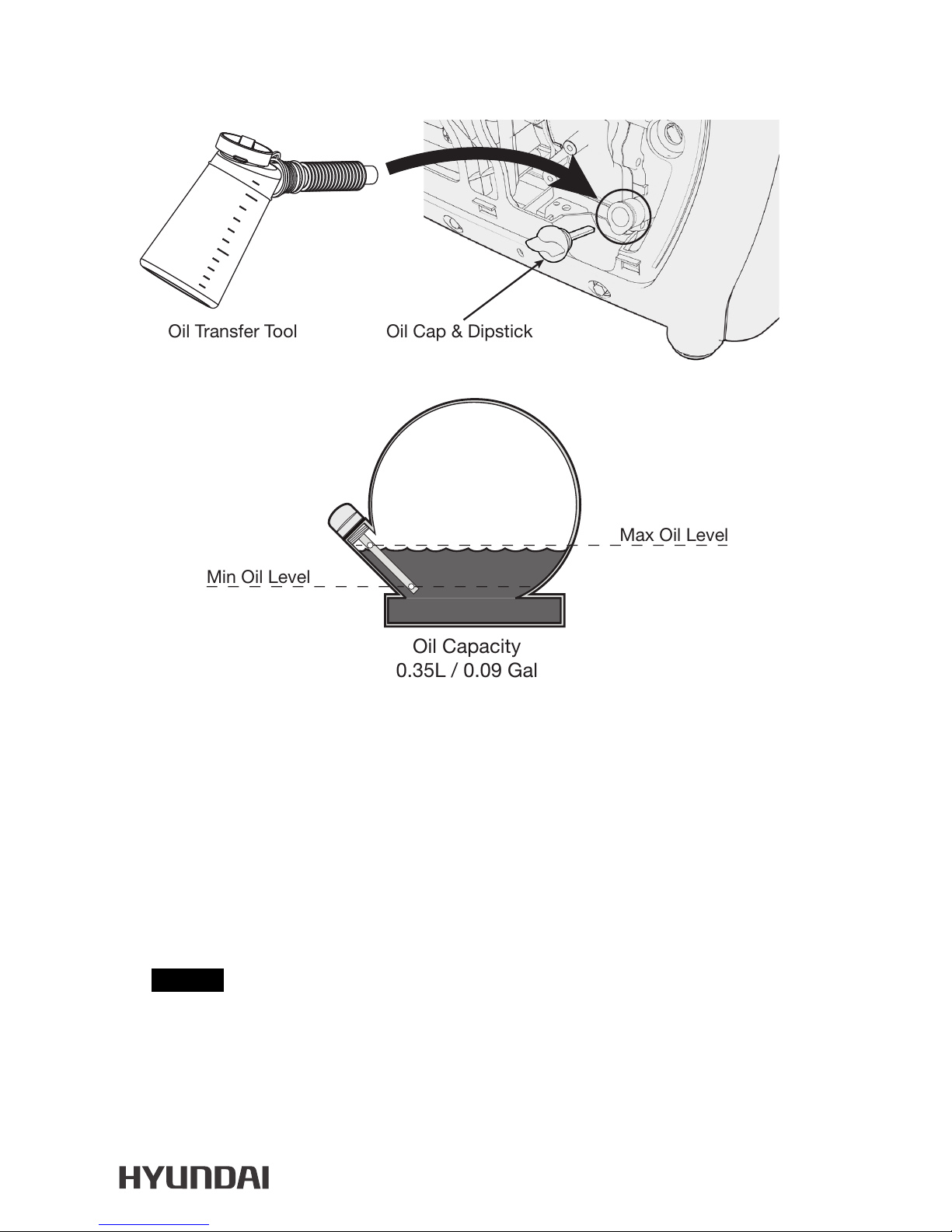

Max Oil Level
Min Oil Level
Oil Capacity
0.35L / 0.09 Gal
Oil Transfer Tool Oil Cap & Dipstick
0 10 20 30 40 50-10-20-30
20 40 60 80 100 120
°C
°F0-20
15W-50
10W-40
10W-30
5W-30

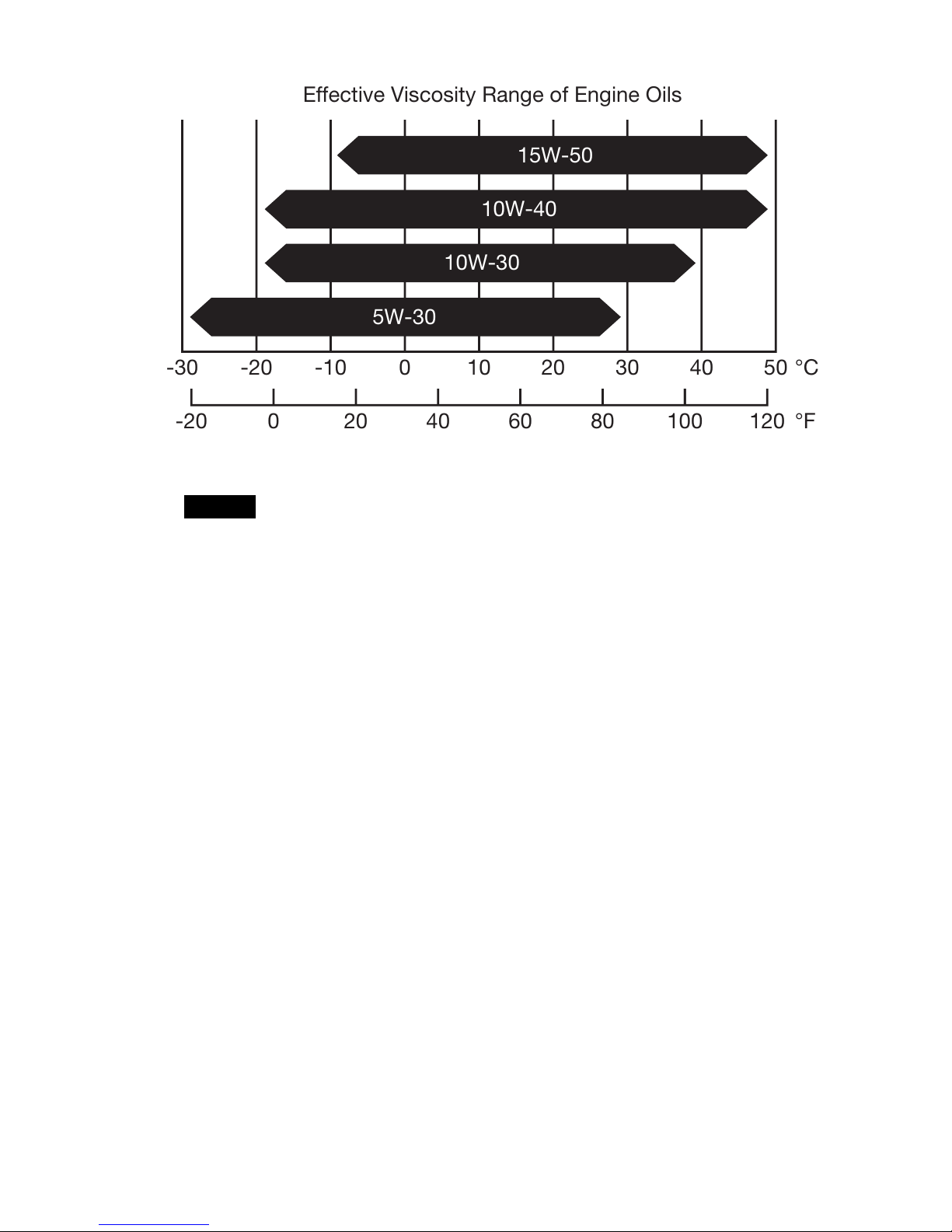

Effective Viscosity Range of Engine Oils
Max Oil Level
Min Oil Level
Oil Capacity
0.35L / 0.09 Gal
Oil Transfer Tool Oil Cap & Dipstick
0 10 20 30 40 50-10-20-30
20 40 60 80 100 120
°C
°F0-20
15W-50
10W-40
10W-30
5W-30
Effective Viscosity Range of Engine Oils

10
NOTE
Do not tilt the generator when adding engine oil. This could result in
overlling and damage to the engine.
Use high quality 4-stroke engine oil, certied to meet or exceed API
standard SG, SF, SAE ratings with strong detergents. Using non-
detergent or 2-stroke oil could shorten the engine’s working life.
Do not mix different engine oils.
Handle and store the engine oil with care, avoid getting dirt or dust into
the engine oil.
If the oil falls below a safe level, the low oil alert system will
automatically shut off the engine. The low oil light will turn on.
To avoid the inconvenience of unexpected engine shutoff, check the
engine oil level as often as possible.
Max Oil Level
Min Oil Level
Oil Capacity
0.35L / 0.09 Gal
Oil Transfer Tool Oil Cap & Dipstick
0 10 20 30 40 50-10-20-30
20 40 60 80 100 120
°C
°F0-20
15W-50
10W-40
10W-30
5W-30
Effective Viscosity Range of Engine Oils
HY SERIES

11
3.3 ADD FUEL
WARNING!
GASOLINE IS HIGHLY FLAMMABLE AND EXPLOSIVE UNDER CERTAIN
CONDITIONS.
REFUEL IN A WELL-VENTILATED AREA WITH THE ENGINE STOPPED. DO
NOT SMOKE OR ALLOW OPEN FLAMES OR SPARKS IN THE AREA WHERE
THE GENERATOR IS BEING REFUELED OR WHERE GASOLINE IS STORED.
DO NOT OVERFILL THE TANK. BE CAREFUL NOT TO SPILL FUEL WHEN
REFUELING. WIPE UP ANY SPILLED GASOLINE AND LET THE AREA DRY
BEFORE STARTING THE ENGINE.
GASOLINE SUBSTITUTES SUCH AS GASOHOL ARE NOT RECOMMENDED.
THEY MAY BE HARMFUL TO THE FUEL SYSTEM COMPONENTS.
NOTE
Use of gasoline with an ethanol content greater than 10% can damage
the engine and the fuel system and will void the manufacturer’s
warranty.
Only use unleaded gasoline (Pump Octane 91 or higher).
Never use stale or contaminated gasoline, or an oil/gasoline mixture.
Avoid getting dirt or water into the fuel tank.
Do not use a mixture of gasoline containing methanol. This will cause
serious damage to the engine.
Upper Limit
Mark (Red)Fuel Cap
OPEN
Fuel Capacity: 3.4L
(0.9 US Gal)

12
4. STARTING THE ENGINE
DANGER! CARBON MONOXIDE
USING A GENERATOR INDOORS WILL KILL YOU IN MINUTES.
GENERATOR EXHAUST CONTAINS HIGH LEVELS OF CARBON MONOXIDE
(CO), A POISONOUS GAS YOU CANNOT SEE OR SMELL. IF YOU CAN
SMELL THE GENERATOR EXHAUST YOU ARE BREATHING CO. EVEN IF
YOU CANNOT SMELL THE EXHAUST, YOU COULD BE BREATHING CO.
NEVER USE A GENERATOR INSIDE A HOME, GARAGE, CRAWLSPACE,
OR OTHER PARTLY ENCLOSED AREA, DEADLY LEVELS OF CARBON
MONOXIDE CAN BUILD UP IN THESE AREAS. USING A FAN OR OPENING
WINDOWS AND DOORS WILL NOT SUPPLY ENOUGH FRESH AIR.
ONLY USE A GENERATOR OUTDOORS AND FAR AWAY FROM OPEN
WINDOWS, DOORS, AND VENTS. THESE OPENINGS CAN PULL IN
GENERATOR EXHAUST. EVEN WHEN YOU USE A GENERATOR CORRECTLY,
CO MAY LEAK INTO THE HOME. ALWAYS USE A CO ALARM IN YOUR
HOME.
IF YOU START TO FEEL SICK, DIZZY, OR WEAK AFTER THE GENERATOR
HAS BEEN RUNNING, MOVE TO FRESH AIR RIGHT AWAY AND SEEK
MEDICAL ATTENTION. YOU COULD HAVE CARBON MONOXIDE
POISONING. NEVER RUN THE GENERATOR IN AN ENCLOSED OR EVEN
PARTIALLY ENCLOSED AREA WHERE PEOPLE MAY BE PRESENT.
HY SERIES

13
4.1 STARTING YOUR GENERATOR
WARNING!
BEFORE USING THE GENERATOR, A GROUND WIRE MUST BE CONNECTED
TO THE GROUND TERMINAL. THE GROUND TERMINAL IS LOCATED ON
THE FRONT PANEL. BEFORE USING THE GROUND TERMINAL CONSULT A
QUALIFIED ELECTRICIAN.
NOTE
Before starting the engine disconnect all devices from the outlets on the
front panel.
Return the starter grip slowly by hand, do not let it snap back.
Do not pull out the choke knob when the engine is hot or ambient air
temperature is high

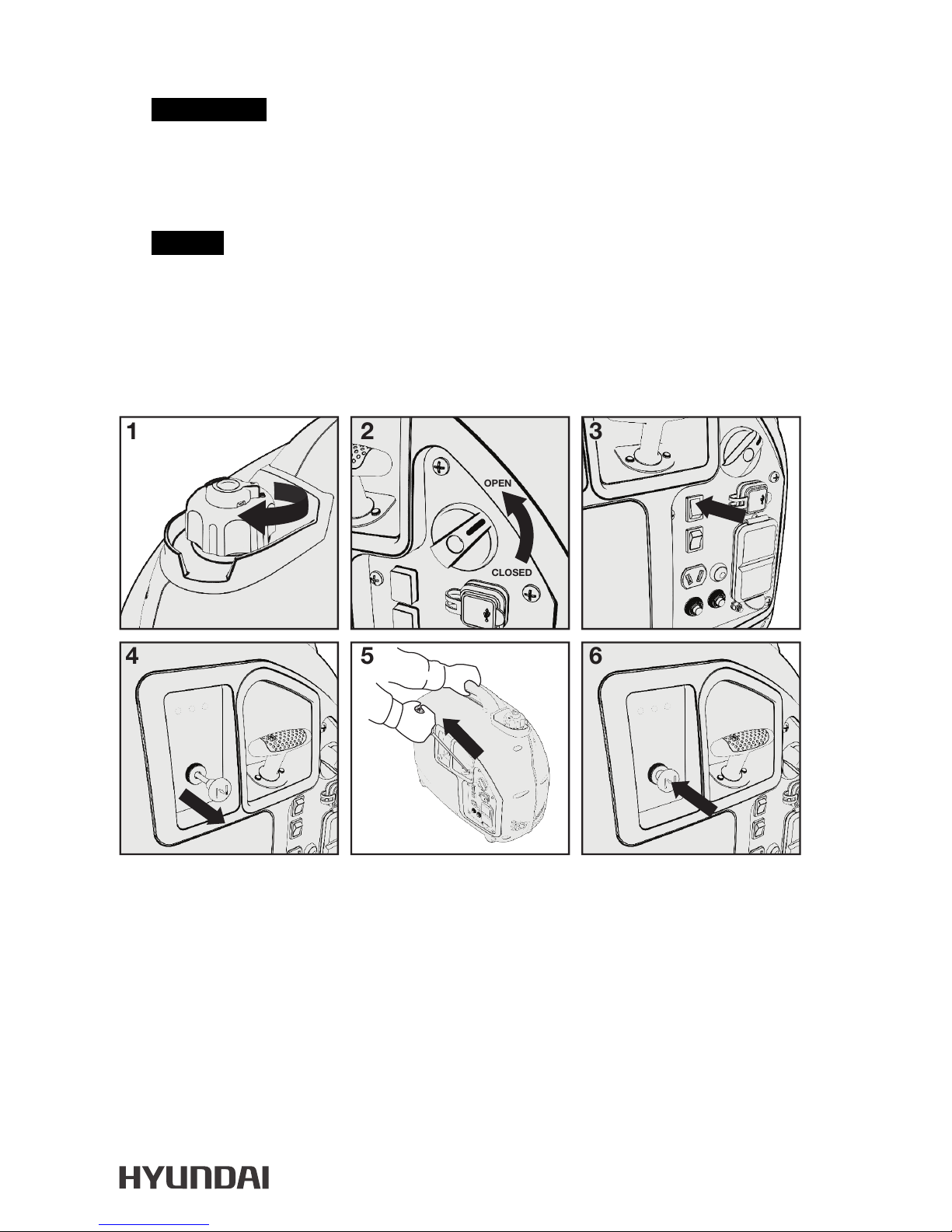

1. Rotate the fuel cap vent lever to ON.
2. Rotate the fuel valve to the OPEN position.
3. Turn the power switch to the ON position.
4. If the engine is cold pull the choke lever fully out.
5. Pull the starter slowly until you feel it engage then pull quickly. Repeat until
the generator starts.
6. When the engine warms up push the choke fully in. The choke is used to
provide the proper air-fuel mixture when the engine is cold.
OPEN
CLOSED
12 3
4 5 6
