Hyundai HCBE350 User manual

ELECTRIC GRASS TRIMMER
INSTRUCTION MANUAL TRANSLATION
REF:HCBE350
HYUNDAI
32, rue Aristide Bergès - ZI 31270 Cugnaux - France
Licensed by Hyundai Corporation, Korea
MADE IN PRC 2018

CAUTION! Before using this electric tool, carefully read and observe the
safety rules and instructions listed below. Before starting work , make
sure that you know how to stop the machine in case of an emergency,
the incorrect use of this machine could cause serious injure. Keep these
instructions in a safe place and on hand so that they can be consulted
when required.
CAUTION! The grass trimmer should only be used for cutting lawns and
along the borders of flower beds. Other uses of the trimmer, not included
in these instructions. Could damage the trimmer or seriously injure the
operator.
GRAPHIC WARNINGS
Because a trimmer is a high-speed, fast cutting power tool, special safety
precaution must be observed to reduce the risk of personal injury.
Explanations for warning label:
Read operator’s
manual and follow
all warnings and
safety instructions
Keep bystanders
away”
wear eye and hearing
protection
Do not expose to
rain

Disconnect the
mains plug if the
cord becomes
damaged or
entangled
Be ware of thrown
or flying objects to
bystanders.
Keep bystanders
a safe distance
away from the
machine.
Be ware of thrown or
flying objects
GUARANTEE
SOUND POWER
LEVEL
Preparation
a) Before use check the supply and extension cord for signs of damage or aging. If the cord
becomes damaged during use, disconnect the cord from the supply immediately. DO NOT
TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the machine
if the cord is damaged or worn.
b) Before use, always visually inspect the machine for damaged, missing or misplaced
guards or shields.
c) Never operate the machine while people, especially children, or pets are nearby.
GENERAL Safety Rules
⚫The grass trimmer must not be used by anyone under the age of 16.
Never allow children or people unfamiliar with these instructions to
use the machine. Local regulations can restrict the age of the
operator.
⚫Always check the good working order of the trimmer which, if not
adequate, could endanger the user.
⚫Before connecting the trimmer to the mains, make sure that the
rotating parts are not damaged and the wire-holding spool is

inserted correctly and securely.
⚫Do not use the trimmer if the cutting device is not secured properly
or is damaged.
⚫Before starting the trimmer, make sure that the nylon wire is not
touching stones or debris.
⚫Always wear suitable clothing when using the trimmer to prevent
head, hand or feet injuries. Use a helmet, glasses (or visor). High
boots (or sturdy shoes and trousers) and work gloves.
⚫When the trimmer is in operation , keep the cutting section away
from all parts of the body.
⚫Do not start the trimmer when it is upside down or when not in
working position.
⚫Turn the trimmer off and disconnect the plug when :the trimmer is
not being used, it is left attended it is being examined because it is
not working correctly, the power supply cable is damaged, the spool
is being removed or changed or when the trimmer is being moved
from one place to another.
⚫Keep children, other people and pets away from the trimmer; the
grass which is cut and dispersed may contain stones and debris.
⚫Do not let other people or animals come within 5 meters of the
trimmer when in use.
⚫Remain in a stable and secure position while operating the trimmer.
⚫Keep the area being cut free from wires, stones and debris.
⚫Do not cut against hard objects. This could cause injury or damage
the trimmer.
⚫Use the edge of the guard to keep the trimmer away from walls,
surfaces, miscellaneous things and delicate objects.
⚫Never use the trimmer without the guard.CAUTION! The guard is
vital for your and other peoples’safety and for the good working
order of the trimmer. The failure to observe these safety regulations
are not only dangerous but also annuls the guarantee terms.
⚫Be careful of the wire-cutting blade, which can give deep cuts.

⚫Do not try to stop the cutting device (nylon wire) with your hands.
Always let it come to a stop by itself.
CAUTION! After stitching off, the nylon wire will continue to rotate
for a few more seconds.
⚫Only use the original type of nylon wire. Under no circumstances use
metal wire instead of nylon.
⚫Do not use the trimmer to cut grass which is not in contact with the
ground; for example do not cut grass which is not walls or rocks etc.
⚫Do not stitch the grass trimmer on in enclosed or poorly ventilated
spaces or in the presence of inflammable and/or explosive
substances such an liquids,gas and powders.
⚫The user of the grass trimmer is responsible for any damage
sustained by third parties which has been caused by the grass
trimmer within the working area.
⚫Only cut during broad daylight or with corresponding artificial light.
⚫Do not cross roads or gravel paths with the trimmer still running .
⚫When the trimmer is not in use, store it in a dry place and out of the
reach of children.
⚫The trimmer should be used in compliance with these instructions
and only in a position which is vertical in relation to the ground . Any
other position is dangerous.
⚫Check regularly that the screws are properly secured.
⚫Before using the machine and after any impart, shark for signs of
wear or damage and repair as necessary.
⚫Take care against injury form any device fitted for trimming the
filament line length.After extending new cutter line always return the
machine to its normal operating position before switching on.
⚫never use replacement parts or accessories not provided or
recommended by the manufacturer.
⚫always ensure that ventilation openings are kept clear of debris.
⚫Never to replace the non-metallic cutting means with metallic cutting
means

⚫Never overreach and keep the balance at all times, always be sure of
the footing on slopes and to walk, never run
⚫Never touch moving hazardous parts before the machine is
disconnected from the mains and the moving hazardous parts have
come to a complete stop
⚫There is remain residual risks despite the inherent safe design
measures, safeguarding and complementary protective measures
adopted.
⚫remove the plug from the mains before clearing a blockage, before
checking, cleaning or working on the machine
⚫remove the plug from the mains after striking a foreign object to
inspect the machine for damage, if the machine starts to vibrate
abnormally, for immediately check
⚫When the power extension cord is damaged or ageing, should be
replaced by manufacturer, service agent or qualified persons.
⚫Never to operate the machine with defective guards or shields, or
without safety devices, or if the cord is damaged or worn
⚫Never to connect a damaged cord to the supply or touch a damaged
cord before it is disconnected from the supply for the reason that
damaged cords can lead to contact with live parts
⚫keep extension cords away from moving hazardous parts to avoid
damages to the cords which can lead to contact with live parts
⚫Keep in mind that the operator or user is responsible for accidents or
hazards occurring to other people or their property.
⚫If the electrical cable is damaged, please immediately switch off the
power supply.
⚫Never use the machine in bad weather conditions especially when
there is a risk of lightning
⚫If the supply cord is damaged, must be replaced by a special cord or
assembly available from the manufacturer or service agent.

Electrical Safety Rules
⚫The mains voltage must correspond to the one marked on the
technical data plate (230V～50Hz).Do not use other sources of
power.
⚫Appliance should be supplied via a residual current device (RCD) with
a tripping current of not more than 30 mA.
⚫Never pass the grass trimmer over the extension cable which the
grass trimmer is working as this could cut the cable .Mark sure you
always know where the cable is.
⚫Use the special cable holder for the connection of the extension
cable .
⚫Never use the trimmer when it is raining , Try to prevent it from
getting wet or being exposed to humidity, Do not leave it outside
overnight. Do not cut damp or wet grass.
⚫The power supply cable should be checked regularly and before suing
in each time make sure the cable is not damaged or old out. If the
cable is not in good condition , do not use the trimmer. Take it to an
authorized service center instead.
⚫Only use an extension cable which is suitable for outdoor work Keep
it away from the cutting area,from damp,wet or oily surfaces or with
sharp edges and away from heat and fuels.
⚫The mobile socket of the extension cable should be splash proof in
compliance with DIN 57282 and DIN VDE 0282 regulations; the
cross-section of the wire (max. length 75m) should be at least 1.5mm
².Use H07RN-F harmonized cable.
⚫This grass trimmer has been built with dual insulation in compliance
with EEC 20 regulations. Dual insulation is electrically safer and
therefore the trimmer need not earthing.
⚫Be familiar with the controls and proper use of the equipment;
⚫–Before use check the supply and extension cord for signs of damage
or ageing,
⚫–If the cord becomes damaged during use, disconnect the cord from
the supply immediately.

⚫NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY,
⚫This appliance is not intended for use by persons (including children)
with reduced physical,
⚫sensory or mental capabilities, or lack of experience and knowledge,
unless they have been
⚫given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Residual risks
Even if you use this power tool correctly, there are always residual risks.
The following hazards may arise in connection with the structure and
manufacture of this power tool:
1. Hearing impairment if no suitable hearing protection is worn.
2. Cuts if no suitable protective clothing is worn.
3. Health damage resulting from vibration in the hands and arms if the
device is used for a long period of time or is not handled and maintained
properly.
Intended use
This machine can be used with the cutting wire as a trimmer for cutting
grass and weeds of small thickness and in small quantity and with the
cutting blade as a brush cutter for cutting denser vegetation. This machine
must not be used for cutting or other cutting operations where the cutting
tool must be lifted above the ground. This machine is only authorized for
private use. Any other use or modification of this machine is prohibited
and involves high risks.

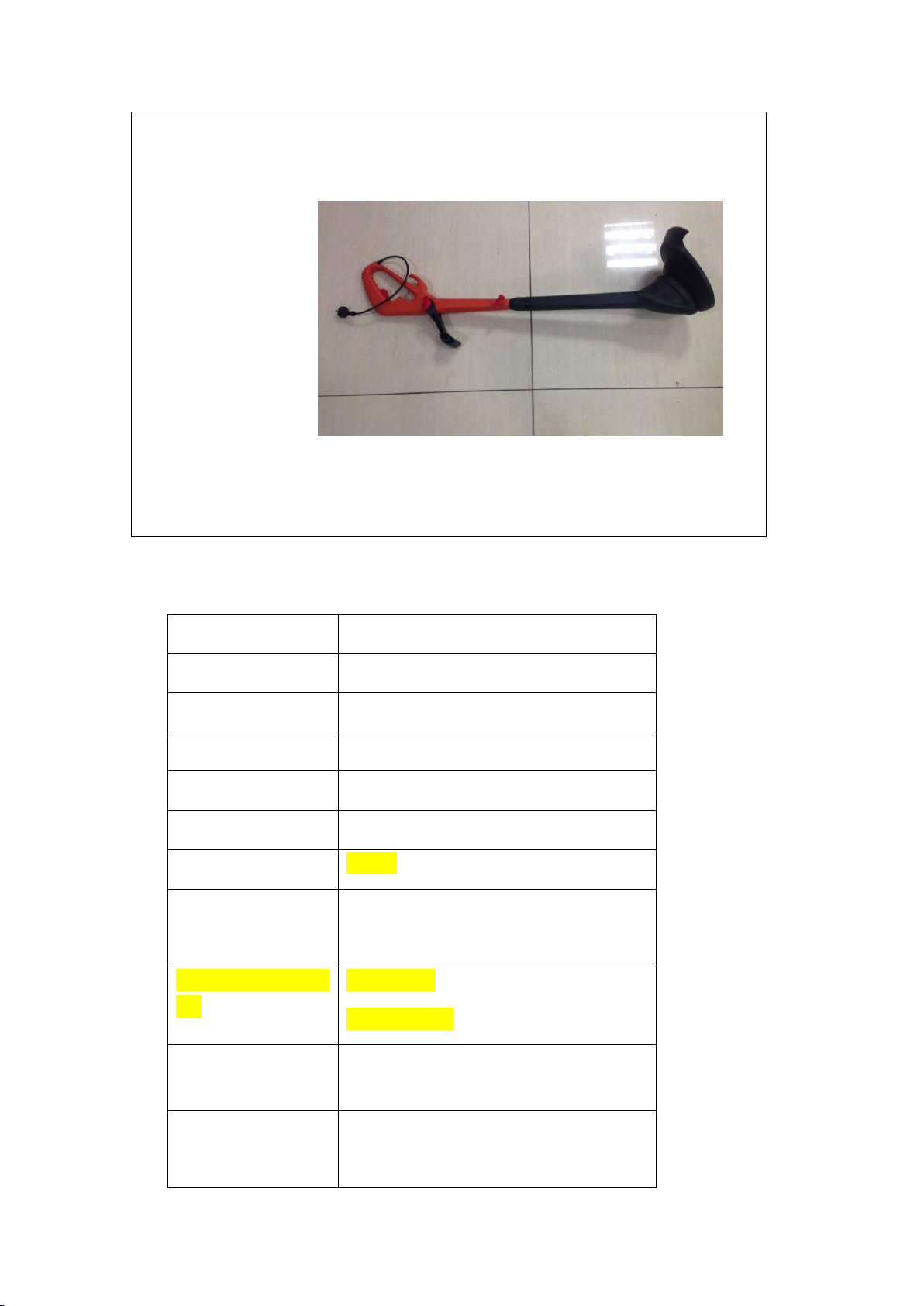

ASSEMBLY INSTRUCTION
When you open the color box, the handle and the protect cover is not assembled.
Before using, you should assembly the protect cover and handle by yourself.
A
The handle and protect cover are not assembled when you open the color box,
you can assemble them according to below instruction.
B

C
D

Product specification
Type
HCBE350
Voltage
230-240V~
Frequency
50 Hz
Power
350 W
Speed
10000 /min
Cutting width
250 mm
Weight
1.86kg
Sound pressure
level LpA
84.2 dB(A)
KpA:3,0dB(A)
Sound power level
LWA
92.8 dB(A)
KWA:2.04dB(A)
Guaranteed sound
power level
96 dB(A)
Vibration
2,63m/s2
K=1,5 m/s2

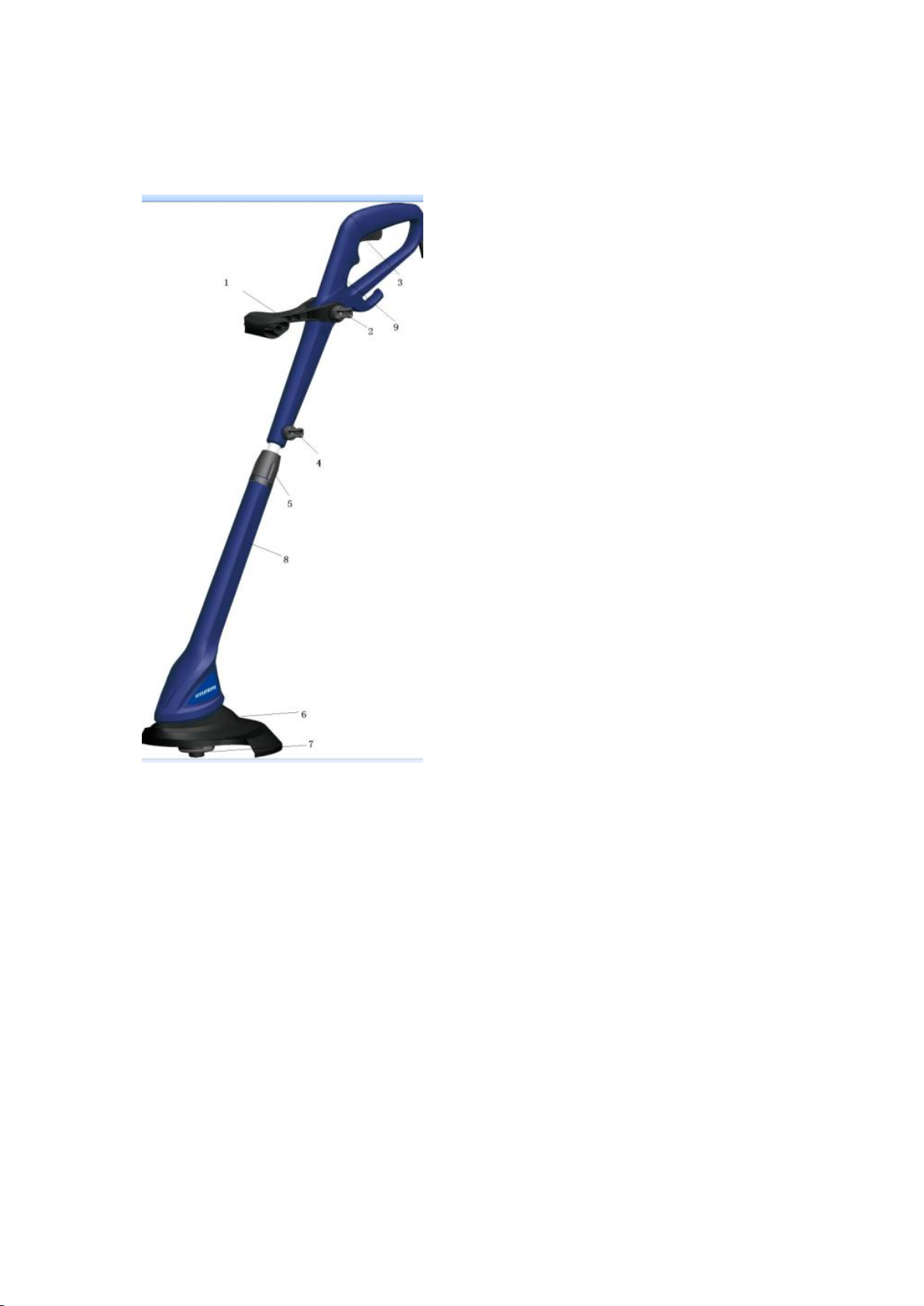

KNOW YOUR PRODUCT
1. Auxiliary handle
2. Knob
3. Switch
4. Knob
5. Telescopic Adjustment Lock
6. Tree Guard
7. Spool
8. Housing
9. Handle
PACKING CONTENT

1. Grass trimmer
2. Tree Guard
3. Screw
4. Instruction manual
5. Line spool(fitted)
6. Blade
FUNCTION DESCRIPTION
Manually operated and portable electric grass trimmer driven by electro motor 230 V
50 Hz．
As the cutting device it has a double sp001 with tap automatic and metal cutting
blade, which
can be optionally installed. In the process of cutting, two synthetic Iines or knife with
three blades rotate around the axis vertically to the cutting plane．To protect the use
5 device is equipped with safety guard which covers the cutting device．Function of
the service parts is described below．
ASSEMBLY INSTRUCTION
Before performing any work on the device，disconnect device from the power
supply．
Use only original parts and be care full when assembling line cutter．Risk of injury!
Before operation, you must mount safety guard to the cutting device and
two-part tube handles．
Firstly,unpack the tool and make sure it is complete.
TWO-PIECE TUBULAR HANDLES ASSEMBLY(FIG．2)
1. Push both parts of the tubular shaft together(hole in the top of the lower tubular
shaft up)
You will hear a click(A)

2. Fold the protective plate(B)and tighten the screw cap to the right direction
3. Before each starting of the machine check, if the Lower tubular shaft firmly and
securely seated.
Before starting machine make sure that the Iower tube spindle firmly and securely
fits and that
it is in the correct position．
Disassemble
For removal the screw cap on the left side
Lift the protective plate，pressing unlock the locking latch and slide the lower tubular
shaft.
ASSEMBLY 0F HANDLE(PIC．3)
1. Loose the Allen screws on the handle．
2. Into of handle grip on the upper tube insert the multifunctional handle and
fasten-it with a bracket and 4 Allen screws(as shown)．
3. Screw to tight．
ASSEMBLY OF PROTECTIVE COVER(PIC.4)
Remove the Allen screws from the protective cover．Replace the protective cover on
the pipe shaft ．Screw the socket head screws (A) as shown.
Instructions for Use

After reading the safety rules carefully. Follow the instructions below
attentively in order to get the most out of your grass trimmer.
Start off slowly, when you have gained experience. you will be able to
use the grass trimmer to its full potential.
Start the grass trimmer before getting close to the grass to be cut.

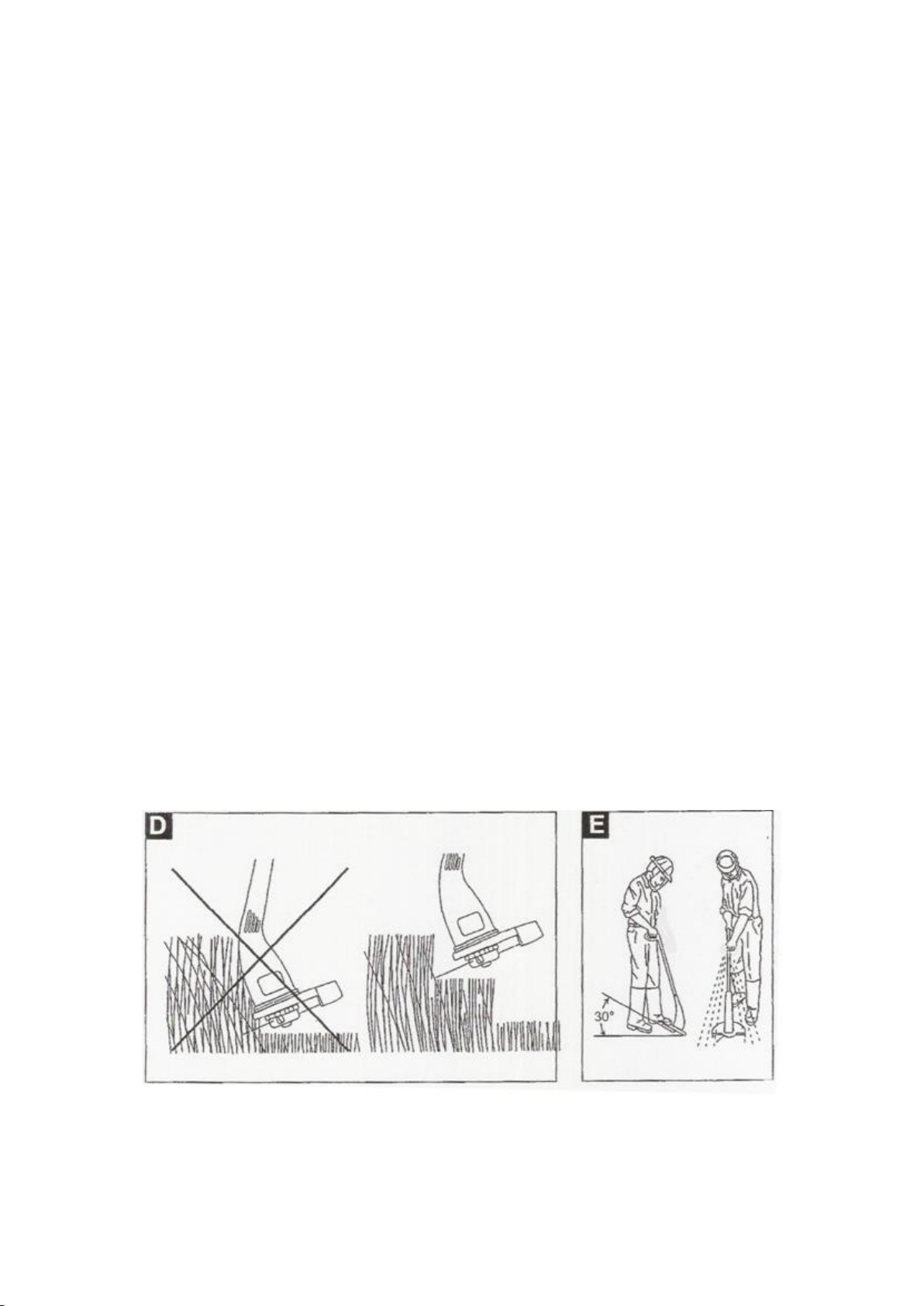

⚫Cut the grass by moving the grass trimmer from right to left and
proceed slowly keeping the trimmer inclined by about 30º(Fig. E ).
⚫High grass should be cut in layers , always beginning from the top.
The cuts should be short (Fig.D)
⚫Do not cut damp or wet grass. Dry grass will give excellent results.
⚫Always let the nylon wire rotate at top speed; do not work in such a
way as to overload the trimmer.
⚫Caution! Do not use the Grass Trimmer without the guard.
⚫Never pass the grass trimmer over the extension cable while the
grass trimmer is running; make sure it is always in a safe position
behind your back.
⚫Before starting work, make sure that the area to be cut is free of
stones, debris, wires and any other objects.
Maintenance
Before carrying out any maintenance operations,cut off the electric
power supply by disconnecting the plug from the extension cable.
⚫Regular cleaning and maintenance of you grass trimmer will ensure
efficiency and prolong the life of your machine.
⚫After each cutting operation, take apart and clean out the grass and
soil from; the spool and its slot, the whole trimmer and in particular
the guard.
⚫During operation, keep the air solts clean and free of grass.
⚫Only use a cloth soaked with hot water and a soft brush to clean the
grass trimmer.

⚫Never change any part before machine totally stopped, or it may
cause danger to users.
⚫Do not spray or wet the appliance with water.
⚫Do not use detergents or solvents as these could ruin the trimmer.
The parts in plastic can easily be damaged by chemical agents.
⚫If the wire cutting blade no longer cuts or breaks, have this replaced
by contacting an authorized service center.
CAUTION! The blade can give deep cuts.
⚫For repairs which have not been explained in these instructions,
contact an authorized service center.
Trouble-Shooting
CAUTION! Before every operation disconnect the electric power supply!
⚫If the grass trimmer vibrates: remove the spool and clean its slot
carefully removing any grass and so forth. If vibration persists after
reassembly, replace the spool with a new one . In the even of the
problem not disappearing , have the trimmer checked at an
authorized service center.
⚫If the grass trimmer does not start: check all the electrical
connections; make sure the safety circuit-breaker has not been
activated; check that no fuse has blown in your electric system. If
after the above checks, the grass trimmer still dose not start, have it
checked at an authorized service center.
Storage
Follow these recommendations for storing the grass trimmer.
⚫Carry out general cleaning of all the grass trimmer and its ancillary
parts (see maintenance paragraph), the prevents mould from
forming.
⚫Store it out of the reach of children , in a stable and safe position and
in a dry place where the temperature is not too hot or too cold.

⚫Store the trimmer away from direct sunlight. If possible in a dark or
barely lit place.
⚫Do not store the grass trimmer resting on the floor. Hang it by the
upper handgrip instead, so that the guard does not touch anything.
The resting of the guard on a surface could alter its shape and
therefore its dimensions and safety characteristics would be
modified.
WEEE

HYUNDAI
ZI, 32 RUE ARISTIDE BERGES –312070 CUGNAUX –FRANCE
Tel : [phone] Fax : [phone]
CE Declaration of conformity
HYUNDAI
ZI, 32 RUE ARISTIDE BERGES –312070 CUGNAUX –FRANCE
Declares that the machinery designated below :
GRASS TRIMMER 350W
Modle : HCBE350
Serial number : 20180203730-20180204229
Complies with the provisions of the Directive « machinery » 2006/42/EG and national
laws transposing it :
Also complies with the following European directives :

EMC Directive 2014/30/EU
ROHS Directive 2011/65/EU
Noise directive 2000/14/CE Annex VI + 2005/88/CE
Sound pressure level LpA: 84.2 dB(A) ;KpA:3,0dB(A)
Sound power level LWA 92.8 dB(A) ;KWA:2.04dB(A)
Guaranteed sound power level:96dB(A)
Also complies with European standards, with national standards and the following
technical provisions :
EN 60335-1:2012/A11:2014 ; EN 50636-2-91:2014
EN 62233:2008 ; EN 55014-1:2017
EN 55014-2:2015 ; EN 61000-3-2:2014 ; EN 61000-3-3:2013
Notify body of CE/GS certificate :
TÜV SÜD Industrie Service GmbH,
Westendstraße 199
80686 MÜNCHEN (Germany NB 0036)
Done at Cugnaux, 09/01/2018
Philippe MARIE / PDG
