Hyundai HYMT264-4 User manual

Page 2
Rev 4
CONTENTS
Section Description Page No/No’s
I. SAFETY 3 - 5
2. THE UNIT 6 - 7
3. ASSEMBLY & INITIAL OPERATION 8 - 9
4. OPERATION 9 - 12
5. INSPECTION & MAINTENANCE 12 - 13
6 TRANSPORTATION 14
7. TECHNICAL DATA 14
8. TROUBLESHOOTING 15

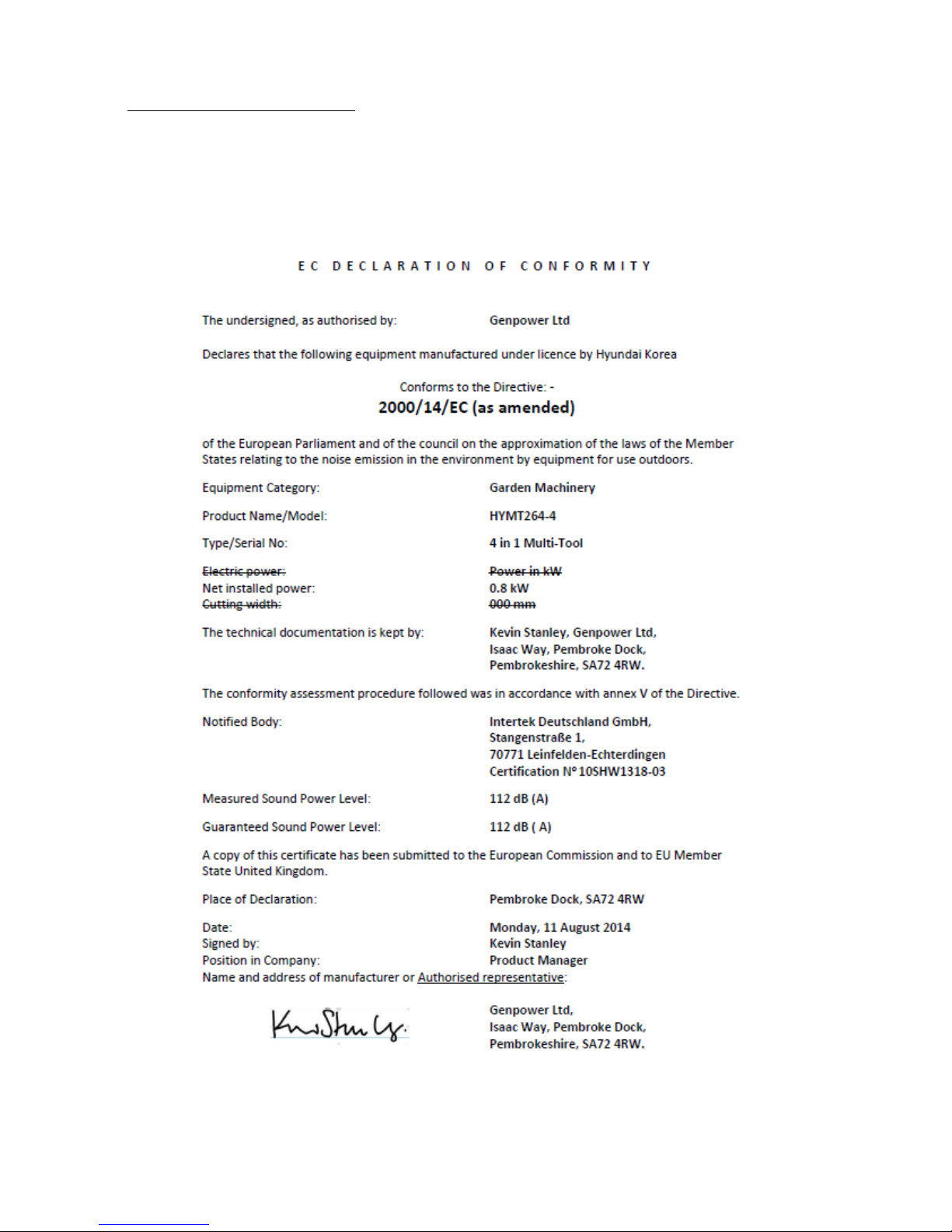

9. DELCARATION OF CONFORMITY 16

Page 3
Rev 4
1. SAFETY.
1.1. The operator of the machine is responsible for and has a duty of care in making sure that
the machine is operated safely and in accordance with the instructions in this user manual.
Please note the following safety points
1.1.2. The machine should never be left it in a condition which would allow
an untrained or unauthorised person/s to operate this machine.
1.1.3. All due care and diligence should be taken by the operator for the safety of and
with regard to those around whilst using the machine

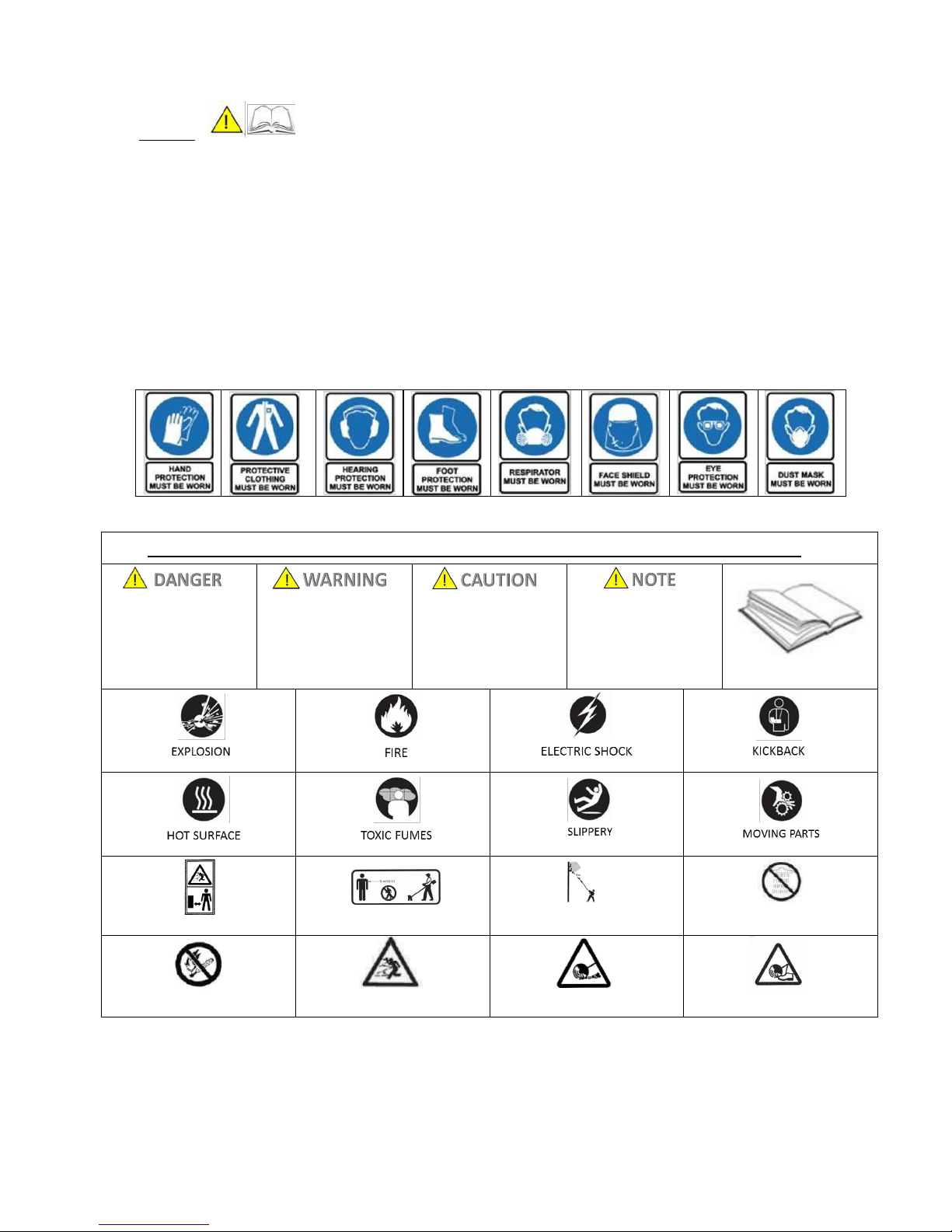

1.2. Some or all of the following PPE, Warning Signs and symbols may appear throughout this
manual and you must adhere to their warning/s. Failure to do so may result in personal
injury.
Warning Signs and Symbols –FOLLOW safety messages to avoid or reduce risk of injury or death.
DANGER - indicates a
hazard which if not
avoided could result in
serious injury or death.
WARNING - indicates a
hazard which if not
avoided could result in
serious injury or death.
CAUTION - indicates a
hazard which if not
avoided might result
in minor or moderate
injury.
NOTE - indicates a
situation that could
easily result in
equipment damage.
READ MANUAL
KEEP BYSTANDERS AWAY
KEEP BYSTANDERS 15 m AWAY
TAKE CARE OF OVERHEAD
POWER LINES
PROTECT FROM DRAIN & DAMP
KEEP NAKED FLAMES AWAY
FROM FUEL
BE AWARE OF THROWN
OBJECTS
TAKE CARE OF THROWN
OBJECTS
ROTATING CUTTING
BLADES

Page 4
Rev 4
1.3. Carbon monoxide.
1.3.1. Carbon monoxide is a colourless and odourless gas. Inhaling this gas can
cause death as well as serious long term health problems such as brain damage.
1.3.2. The symptoms of Carbon monoxide poisoning can include but not limited to the following;
1.3.2.1. Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.
1.3.2.2. Carbon monoxide symptoms are similar to flu, food poisoning, viral infections and
simply tiredness. It is quite common for people to mistake this very dangerous poisoning
for something else.
1.3.3. To avoid Carbon monoxide poisoning DO NOT Use Petrol/Diesel powered equipment inside
a home, garage, tent, camper van, mobile home, caravan or boat. The list is not exhaustive if
you are in any doubt contact your dealer.
1.3.4. If you think you or someone around you has been affected by carbon monoxide poisoning;
1.3.4.1. Get fresh air immediately, by opening doors and windows, turning off the machine
and leaving the affected area.
1.3.4.2. See your doctor immediately or go to hospital - let them know that you suspect
carbon monoxide poisoning.
1.3.5. DO NOT use in an enclosed area or a moving vehicle.
1.4. General fuel safety.
1.4.1. Fuel Safety additional information can be obtained from the Health and Safety Executive.
1.4.2. All fuels are flammable.
1.4.3. Keep away from all ignition sources i.e. heaters, lamps, sparks from grinding or welding.
1.4.4. Hot work on tanks that have contained fuel is extremely dangerous and should not be
carried out.
1.4.5. Keep work area clean and tidy.
1.4.6. Clean up all spills promptly using correct methods i.e. absorbent granules and a lidded bin.
1.4.7. Dispose of waste fuels correctly.

Page 5
Rev 4
1.4.7. Dispose of waste fuels correctly.
1.4.8. Petrol safety.
1.4.8.1. Always fuel and defuel in well-ventilated area.
1.4.8.2. Always wear correct, suitable and fit for purpose Personal Protective
Equipment (PPE), suggested items are as follows, but are not limited too.
1.4.8.3.
1.4.8.4.
1.4.8.5. Respiratory protective equipment should be used when in an
unventilated area.
1.4.8.6. When defueling always use a propriety fuel retriever.
1.4.8.7. Always carry fuel in the correct and clearly marked container.
1.5. Additional Safetyy guide-lines
1.5.1. To prevent fire.
1.5.1.1. Never add fuel to the fuel tank whilst the engine is running. Wipe away any
spilt fuel or oil with a clean cloth before operating. Keep explosives and any other
flammable products away from the machine at all times.
1.5.1.2. To prevent fire and to provide adequate ventilation, keep the generator at
least one metre away from buildings and other equipment during operation.
1.5.1.3. Operate the generator on level ground. - Do not place the generator indoors
whilst the engine is still hot.
1.5.2. To prevent inhaling exhaust fumes.
1.5.2.1. Exhaust gas contains poisonous carbon monoxide which is harmful to health
and can kill.
1.5.2.2. For this reason, never use the generator in a closed area or areas with poor
ventilation.
1.5.3. To prevent burns.
1.5.3.1. The muffler and the engine body becomes very hot whilst the engine is
running or just after running.
1.5.3.2. To prevent any burns, do not touch these parts during these times.
1.5.4. Electric Shocks, Short Circuits.
1.5.4.1. To avoid electric shocks or short circuits, do not touch the generator if your
hands are wet.
1.5.4.2. This generator is not waterproof and should not be used in an area which is
exposed to rain, snow or water sprays.

Page 6
Rev 4
2. THE UNIT
2.1 Power Unit
2.1 The unit is a universal combination set enabling perfect care of the garden and
hedges and lop trees.
1. Start handle
2. Air Filter
2.2 Extension
1. Extension locking hole
3. Throttle lockout
4. Stop switch
5. Front handle
6. Unit locking screw
7. Throttle lock
8. Throttle trigger
9. Fuel tank
10. Choke lever
11. Primer Bulb
12. Exhaust
13. Fuel tank cap
14. Spark plug
2. Extension pole
3. Incorporated tools screwed connection

Page 7
Rev 4

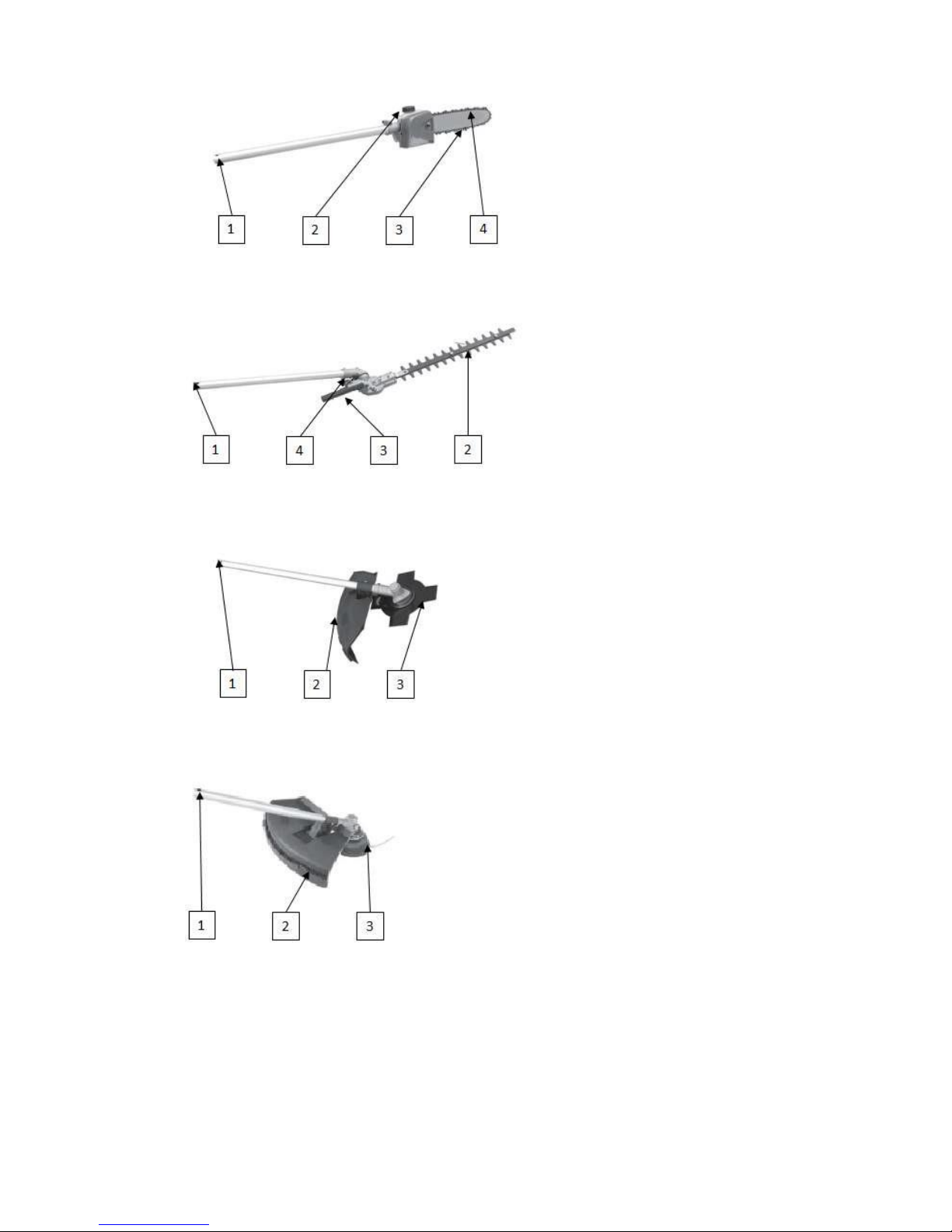

2.3 Pruner
1. Pruner locking hole
2. Automatic oil pump
2.4 Articulating hedge trimmer
3. Pruner chain
4. Pruner chain bar
1. Locking hole
2. Cutting unit
2.5 Brush cutter
3. Adjusting lever lock
4. Cutting unit adjusting lever - 135°
1. Locking hole
2. Guard
2.6 Grass trimmer
3. Cutting blade
1. Locking hole
2. Guard
3. Cutting string

Page 8
Rev 4
3. ASSEMBLY & INITIAL OPERATION
3.1 Power unit

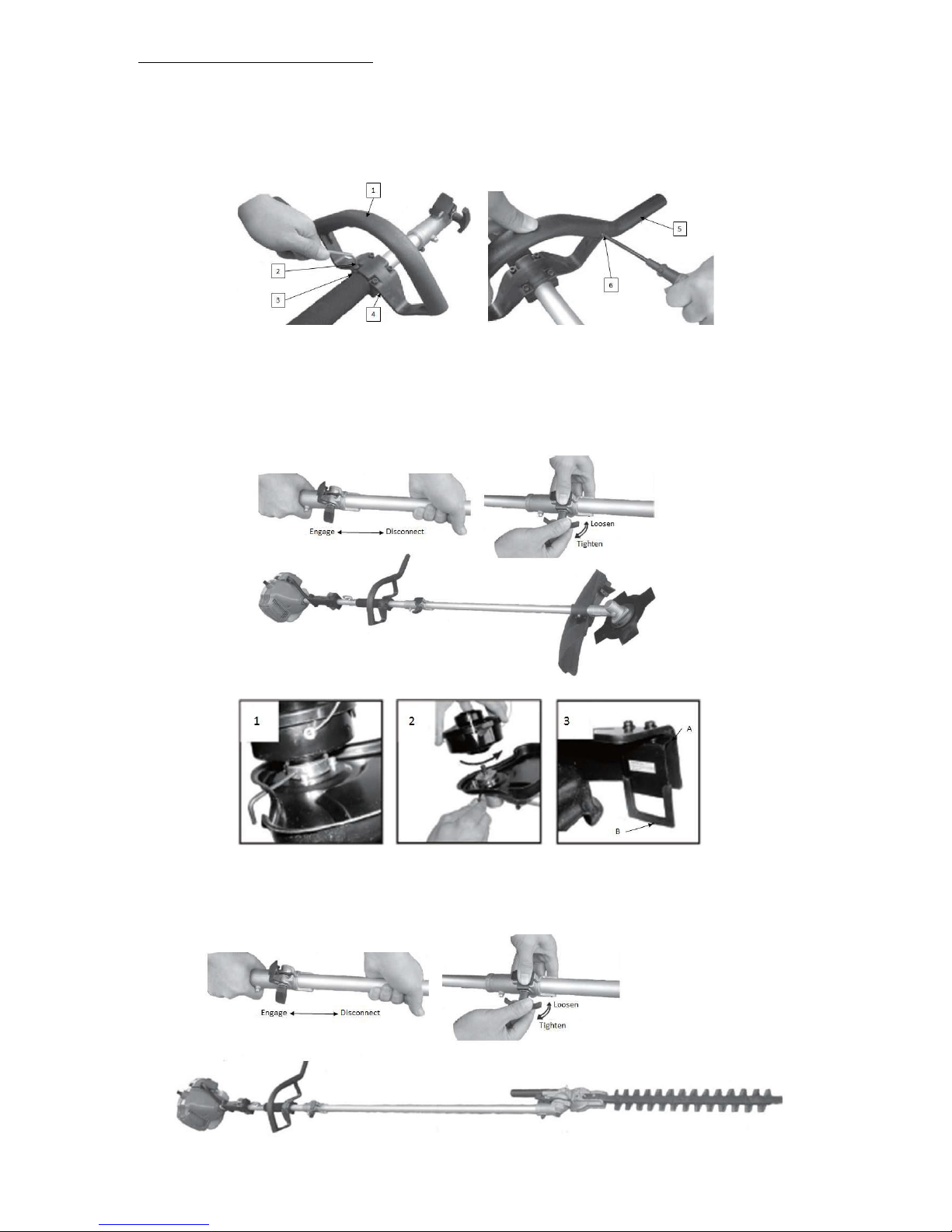

3.1.1 Install the front handle as shown in the diagrams. Do not tighten the screws
until you have set the perfect working position with the carrying strap. The
front handle should be aligned as show in “Power Unit” diagram.
1.
Front handle
1
4.
Cover
1
2.
Screw 5 x 35
4
5.
Front handle bar
1
3.
Nut 5
1
6.
Screw 4.2 x 9.5
1
3.2 Brush cutter and trimmer
3.3 Hedge trimmer

Page 9
Rev 4
Put
3.4 Pruner
3.5 Fuel information
3.5.1 Refuelling - For air-cooled 2-stroke engines, mix unleaded petrol well with
branded oil at a ratio of 40:1. Meaning that 0.2 litre oil has to be added in 8 litres of
petrol.
Tip: Always prepare 1 litre of the mix at a time because the mix turns unusable after
prolonged storage. Take care of fire hazards petrol is highly flammable take the f
following precautions;
3.5.2 Store fuel in containers specifically designed for this purpose.
3.5.3 Refuel outdoors only, do not smoke or allow naked flames or sources of ignition
in the area of refuelling while refuelling.
3.5.4 Add fuel before starting the engine. Never remove the cap of the fuel tank or add
petrol while the engine is running or when the engine is hot.
3.5.5 Avoid spillages - if petrol is spilled, do not attempt to start the engine but move
the machine away from the area of spillage and avoid all sources of ignition until
petrol vapours have gone.
3.5.6 Tighten all fuel tank and container caps securely.
4. OPERATION
4.1 Starting the tools.

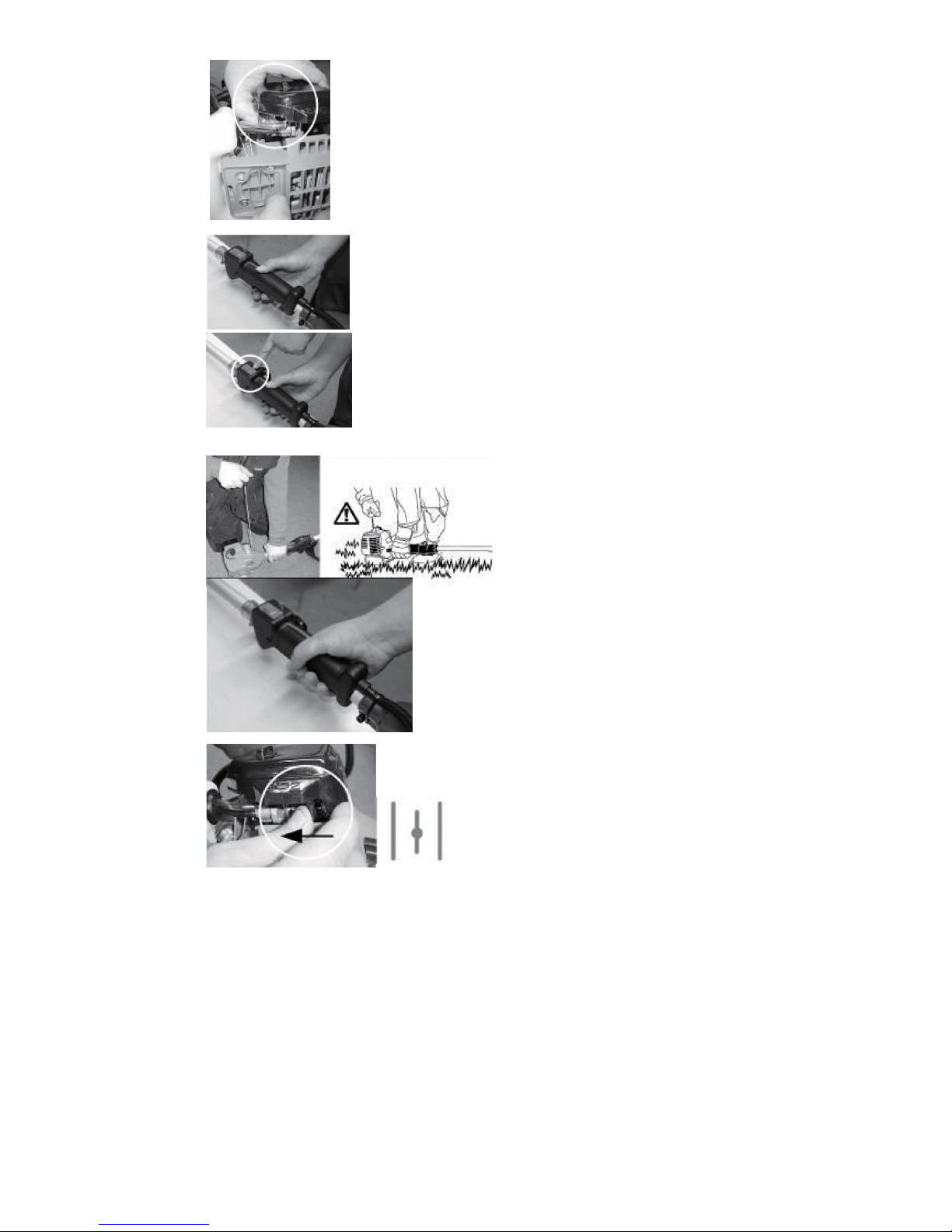

4.1.1 Start the set of tools only after an integrated piece has been well connected! Lock the
brush cutter blade in a torque of 20NM and grass trimmer cutting head for 15 NM.
Put the operating switch at position "I"
Put the starting choke lever in the "Start"
position

Page 10
Rev 4
Push the primer bulb 3 - 5 times
Push the unlocking knob and accelerate
Push the throttle lock in at this position (cold)
Start the machine by carefully pulling
the starter cable.
Do this whilst holding the machine
against the ground.
Now, control the throttle so that the
machine runs evenly for it to reach full
speed.
As soon as the engine is running
smoothly, the choke may be returned to
its normal position.

Page 11
Rev 4

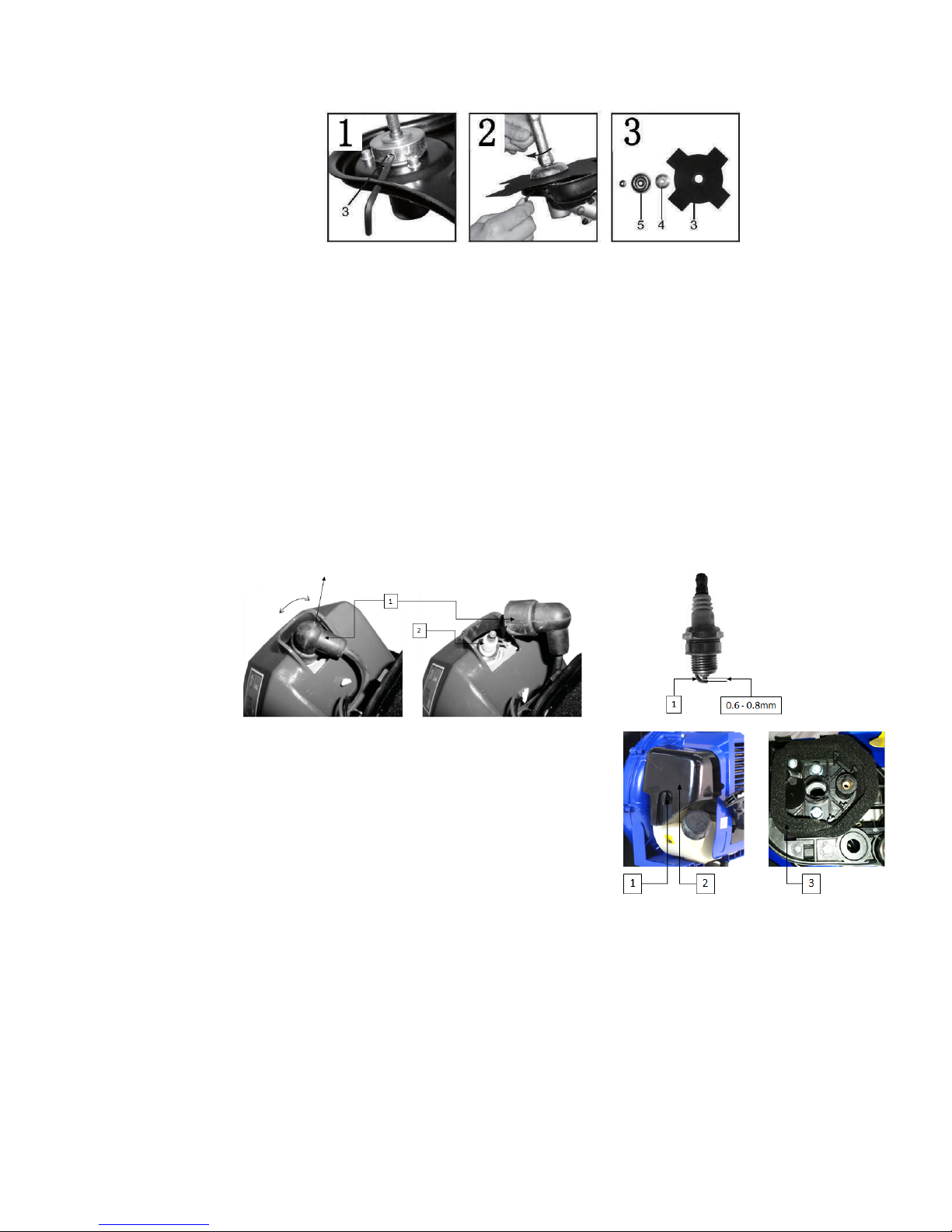

4.2 Blade removal.
4.2.1 When the machine is supplied the blade is fitted. Follow the steps below to
remove it.
4.2.2 Line up the hole in the carrier plate (Fig 1: 3) with the notch beneath it
and lock the carrier plate with the size 4 Allen Key.
4.2.3 Remove the securing nut for the blade using the supplied spark plug wrench
(Fig. 2) Important: Left-handed thread!
4.2.4 Remove the pressure plate cover (Fig. 3: 5) and the pressure plate (Fig.3: 4).
4.2.5 The blade (Fig. 3: 3) can now be removed.
4.2.6 To assemble, proceed in reverse order. Please note that the side of the
pressure plate with recess must point towards the blade.
4.3 Spark plug adjustment or replacement.
4.3.1 Pull the spark plug cover(1) off, unscrew the spark plug using the plug
wrench.
4.3.2 Adjust new spark plug as shown and refit.
4.3.2.1 Stop machine and wait for it to cool down.
4.3.2.2 Clean spark plug and adjust spark plug electrode (1) gap to between
0.6 mm to 0.8 mm.
4.4 Operation safety instructions.
4.4.1 Grass Trimmer & Brush Cutter Operation Instructions.
4.4.1.1 To turn the machine off, the switch has to be in “STOP” position.
4.4.1.2 When trimming and cutting make sure you follow any bylaws in
force in your area.
4.4.1.3 Do not mow at night.
4.4.1.4 Before starting work remove any hard objects such as stones,
metal parts etc. –have to be removed. They could be thrown and cause
personal or material damage.
4.4.1.5 Working in high shrubs or bushes, the minimum working height
must be above 150 mm so that you do not expose animals, such as
hedgehogs, to any risk.
4.3a Air filter - clean or replace.
4.3.1 Stop machine and wait for it to cool down.
4.3.2 Undo cover screw (1) remove cover (2) and
remove sponge filter (3).
4.3.3 Wash sponge in soapy water rinse in fresh
water, Dry completely then reinsert.
4.3.4 If filter is beyond cleaning the replace with a
new one.

4.4.2 Grass cutting.
4.4.2.1 Working on grass areas, hold the scythe at an angle of ca 30°and
make semicircle turns to the left and right.
4.4.2.2 The best results are achieved with grass 150 mm high. If the grass is
higher, it is recommended to repeat mowing several times.
When the machine is running never put the mowing head on the ground.
4.4.2.3 If the mowing output decreases, hold the running machine over the
grass and knock the ground several times with the strimmer head until
enough new cord is released.
4.4.2.4 The protection shield has a built in cutter which will cut any extra
cord to the correct length.
The remnant of cut cord can fly off and cause injury.
4.4.3 Pruner operation instructions.
4.4.3.1 Avoid kickback. Kickback may cause severe injuries.
4.4.3.2 Do not use the pruning saw standing on a ladder or another aid in
unstable position.
4.4.3.3 You may lose control over the saw and suffer severe injuries.
Beware of falling branches.
Always attach extension and make sure it is fully secured.

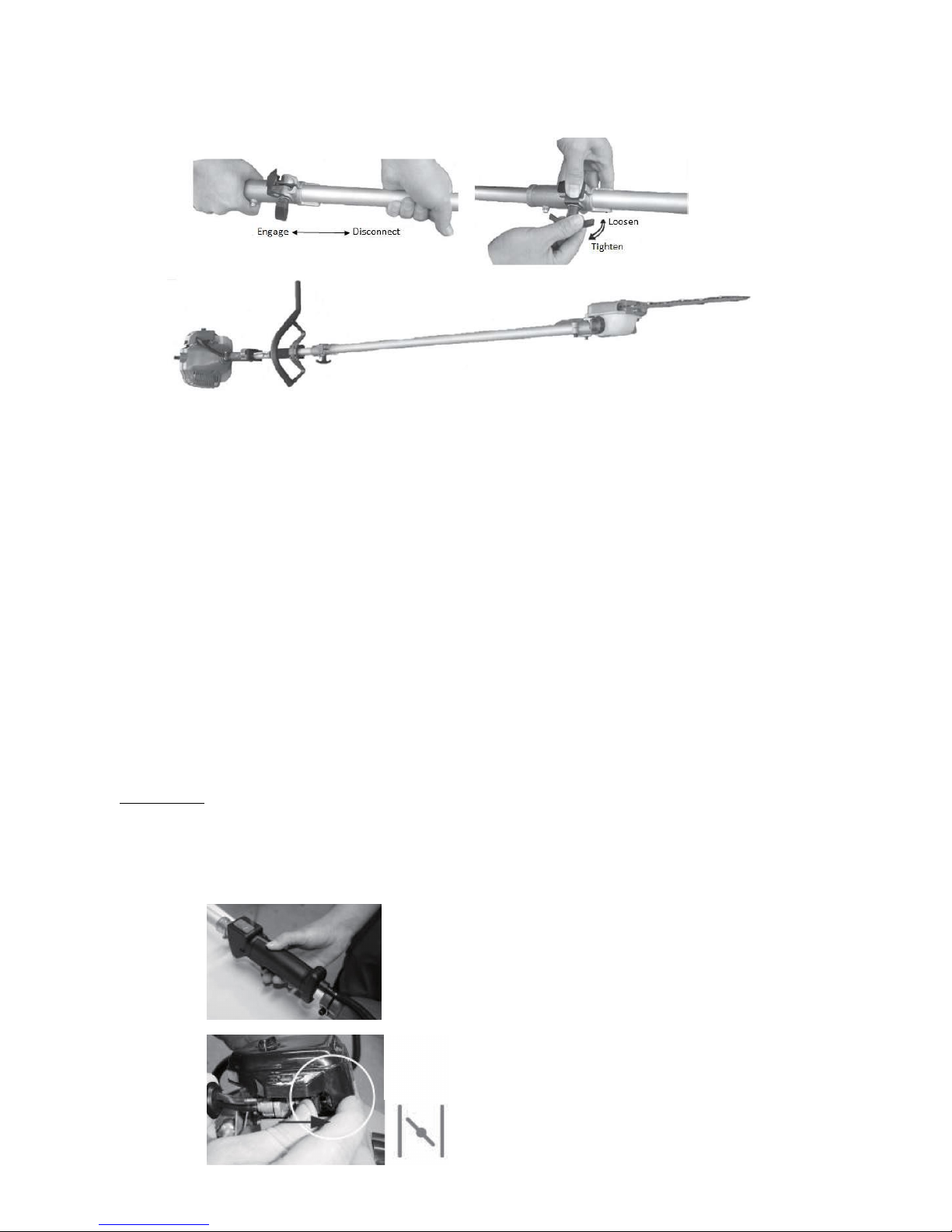

4.4.4 Hedge trimmer operation instructions.
4.4.4.1 Only use the unit only after you have carefully read and fully
understood the instruction manual.
4.4.4.2 Observe all the safety instructions contained in the manual.
4.4.4.3 Hedge trimmers may be used not only on hedges but also to cut
shrubs.
Always attach extension and make sure it is fully secured.

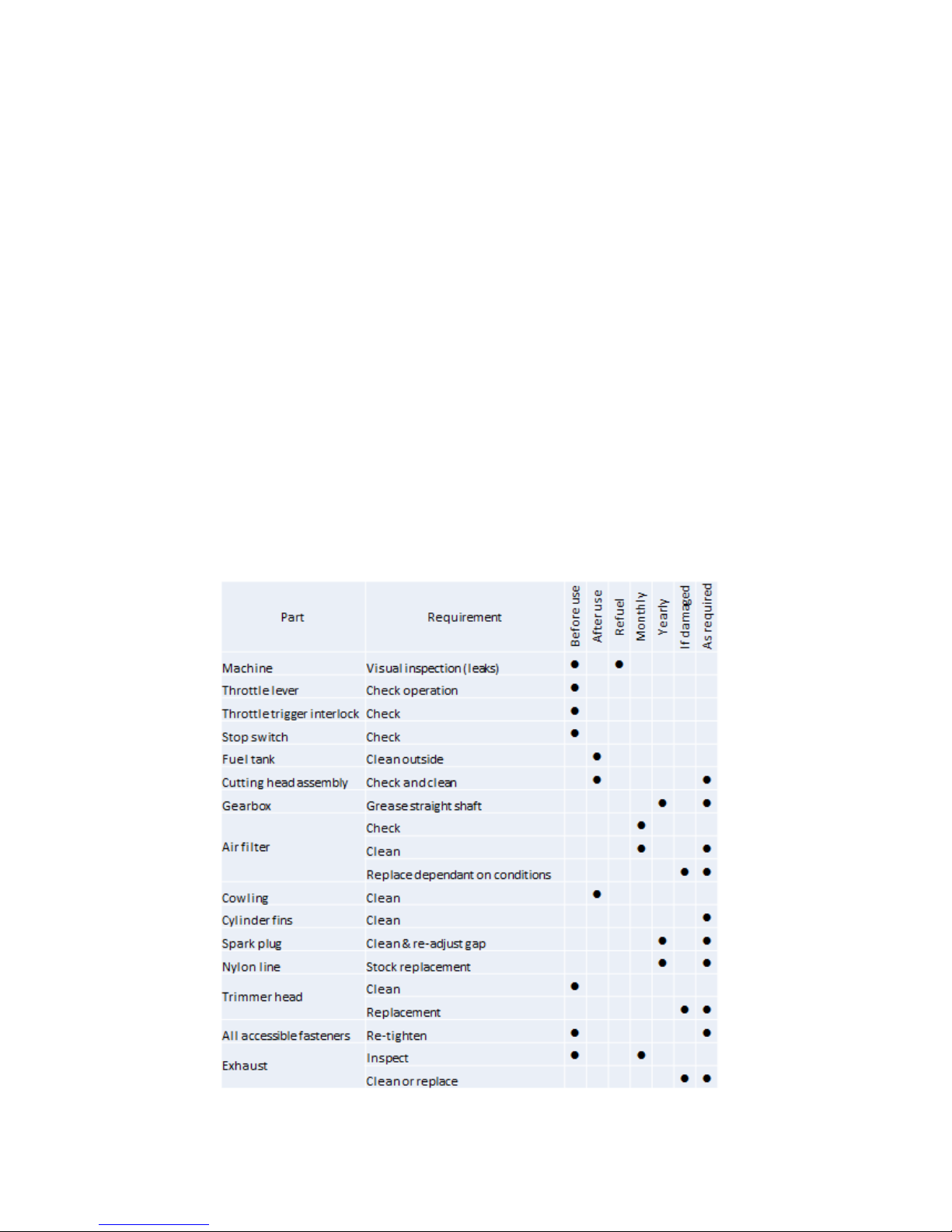

5. INSPECTION & MAINTENANCE
Always switch the power unit off when doing maintenance or a repair.
The following instructions shall apply to regular conditions of use. In
severe conditions and longer periods of work, it is necessary to shorten the
intervals as appropriate.
5.1 After finishing work, check over the entire machine for damage and any loose parts and
clean machine.
5.2 Regular checks and treatment:
5.2.1 Check the ignition plug and replace if necessary.
5.2.2 Check the function and quantity of the plastic cord on the reel, replenish as
required.
5.3 Inspection and maintenance safety instructions.
5.3.1 Only a unit maintained and cared for on a regular basis may be considered as a
safe to use machine. Insufficient maintenance and care may result in emergencies
and unforeseen accidents.
5.3.2 Only authorised servicing agents may do repairs requiring special professional
knowledge.
Page 12 Rev 4

Page 13
Rev 4
5.3.3 Follow these precautions:
5.3.3.1 Keep all nuts, bolts and screws tight to be sure the equipment works
as intended.
5.3.3.2 Do not store with petrol in the tank.
5.3.3.3 Always allow engine to cool before storing.
5.3.3.4 Always keep hot engine parts away from grass, leaves and excess
grease.
5.3.3.5 Always replace worn or damaged parts.
5.3.3.6 If petrol tank needs draining, always do it outdoors.
5.3.3.7 Do not attempt to repair the machine unless you are competent to do
so.
5.3.3.8 Use only genuine Hyundai parts and accessories.
5.4 Maintenance chart
5.4.1 Refer to the following table for routine maintenance.
5.4.2 Always stop the engine before any maintenance is done on the unit.
5.4.3 When all parts have stopped moving, remove the spark plug lead to begin
maintenance work.
5.4.4 Never repair cutting attachments by welding, straightening or changing the
shape. This may result in serious injury.
5.4.5 Never attempt maintenance that is not outlined in this manual. All repair work
must be carried out by a Hyundai authorised service centre.

Page 14
Rev 4
6. TRANSPORTATION & STORAGE
6.1.1 If the set of 4-in-1 tools is to be out of operation for a long period of time (over 1
month), take action as follows:
6.1.1.2 Drain the oil and fuel tanks.
6.1.1.3 Remove and clean the string coils and blade.
6.1.1.4 Wipe the string coils and the blade dry.
6.1.1.5 Wipe the external parts of the machine with a damp soapy cloth.
6.1.1.6 Store in a dry place.
6.1.1.7 Store all machine parts in an elevated and locked place out of the reach of
children.
6.1.1.8 All blades of chainsaw, hedge trimmer, brush cutter should be packed to
prevent cuts.
7. TECHNICAL DATA
Guaranteed sound power level (LwA)
112 dB(A)
Guaranteed sound pressure level (LpA)
102 dB(A)
Guaranteed vibration at racing speed
7.5m/s²
Guaranteed vibration at idling speed
5m/s²
Engine:
HedgeTrimmer:
Brush Cutter and Grass Trimmer:
Multi-tool Extension:
Length
705 mm
Weight
0.5 kg
Pruner:
Nett Weight
5.9 kg
Oil Tank Volume
120 cm³
Chain Pitch
9.525 mm
Chain Gauge
1.278 mm
Cutting Length
254 mm
Nett Weight
6.4 kg
CuttingLength
375 mm
CuttingSpeed
1400 rpm
Engine Speed with Trimmer running
8500 rpm
L x W x H
3.2m x 0.35m x 0.25m
Chain Pitch
9.525 mm
Chain Gauge
1.27 mm
Sprocket
7 x 9.525
Chain Type
Oregon91P039X
Chain Guide Type
Oregon 100SDEA318
Engine Speed with Pruner running
8500 rpm
L x W x H
3m x 0.35m x 0.25m
Type of the engine
Hyundai
Engine Displacement
26cc
Engine Speed
8500 rpm
Fuel Tank Volume
0.45L
Starting System
Recoil Start
Engine Idling Speed
3200 rpm
Engine Speed with Cutter running
4000 rpm
582 g/kWh
Fuel Consumption
0.49 kg/h
Carburettor
Ruixing H119
Spark Plug
CHAMPION RCJ6Y
Fuel Ratio
40 : 1
Nett Weight (No Attachment)
5.4 kg
Nett Weight (With Attachment)
6.2 kg
Gross Weight (With Attachment)
6.5 kg
CuttingDiameter
230 - 255mm / 410mm
CuttingThickness
1.4mm / 2.0mm
# of Cutting Teeth
Single piece / 2
Blade centre hole diameter
25.4 mm
Engine Speed with Attachment running
6400 rpm / 5600 rpm
Gear Ratio
20:15
Rotation Direction (From Above)
Anti-clockwise
L x W x H
1.7m x 0.35m x 0.25m

Page 15
Rev 4
8. TROUBLE SHOOTING
Fault
Cause
Remedy
The machine does
not start
Correct starting
procedure not
followed
Follow the
instructions for
starting
Sooted or damp
spark plug
Clean the spark plug or
replace it with a new
one
Incorrect carburetor
setting
Contact an authorised
customer service
outlet
The machine start
but does not
develop its full
output
Incorrect choke lever
setting
Set choke lever to
open
Dirty air filter
Clean the air filter
Incorrect carburetor
setting
Contact an authorized
customer service
outlet
The engine does
not run smoothly
Incorrect electrode
gap on the spark
plug
Clean the spark plug
and adjust the
electrode gap or fit a
new spark plug
Incorrect carburetor
setting
Contact an authorized
customer service
outlet
Engine smokes
excessively
Incorrect fuel mix
Use the correct fuel
mix (see fuel mixing
table)
Incorrect carburetor
setting
Contact an authorised
customer service
outlet

Page 16
Rev 4
9. DECLARATION OF CONFORMITY
Genpower Ltd confirms that this HYUNDAI product conforms to the following CE directives:
•2006/42/EC Machinery directive
•2004/108/EC EMC directive
•2000/14/EC Noise emissions directive
•97/68/EC NRMM Emissions directive

Page 17
Rev 4

www.hyundaipowerequipment.co.uk
GENPOWER LTD
Isaac Way, London Road
Pembroke Dock, UNITED KINGDOM, SA72 4RW
T: [phone] F: [phone]
[e-mail]
