Hyundai HYTR33 User manual

GRASS TRIMMER
Model HYTR33
User Manual

CONTENTS
1. SAFETY 3 - 6
2. MACHINE COMPONENT LOCATIONS 6
3. ASSEMBLY AND INITIAL OPERATION 6 - 8
4. OPERATION 8 -10
5. INSPECTION AND MAINTENANCE 11 - 12
6. TRANSPORATION AND STORAGE 12
7. SPECIFICATION 13
8. TROUBLESHOOTING 14
9. DECLARATION OF CONFORMITY 15
Page 2
Rev 2

1. SAFETY.
1.1. The operator of the machine;
1.1.1. Is responsible for and has a duty of care in making sure that the machine is operated safely
and in accordance with the instructions in this user manual.
1.1.2. Should never leave it in a condition which would allow an untrained or unauthorised
person/s to operate this machine.
1.1.3. Should take care and show due diligence for the safety of and with regard to those around
whilst using the machine, to include but not limited to;
1.1.3.1. Elderly, children, pets, livestock and property.

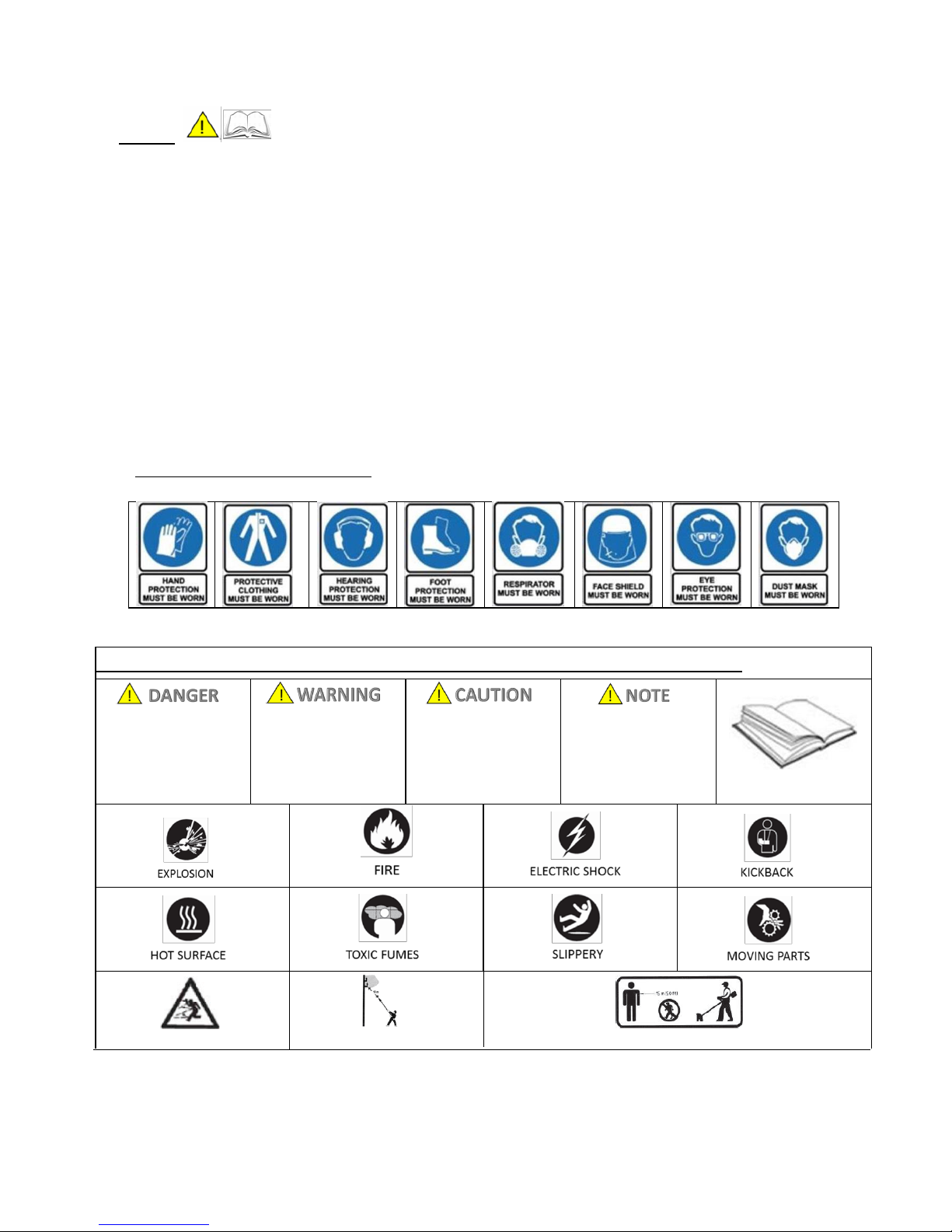

1.2. Some or all of the following PPE, Warning Signs and symbols may appear throughout this manual
and you must adhere to their warning/s. Failure to do so may result in personal injury.
Personal Protective clothing (PPE)
Warning Signs and Symbols –FOLLOW safety messages to avoid or reduce risk of injury or death.
DANGER - indicates a
hazard which if not
avoided could result in
serious injury or death.
WARNING - indicates a
hazard which if not
avoided could result in
serious injury or death.
CAUTION - indicates a
hazard which if not
avoided might result in
minor or moderate injury.
NOTE - indicates a
situation that could
easily result in
equipment damage.
READ MANUAL
BEWARE OF THROWN OBJECTS BEWARE OF POWER LINES KEEP BYSTANDER 15ft AWAY FROM WORKING AREA
Page 3
Rev 2

1.3. Carbon Monoxide
1.3.1. Carbon monoxide is a colourless and odourless gas, inhaling this gas can cause death as well as
serious long term health problems such as brain damage.
1.3.2. The symptoms of Carbon monoxide poisoning can include the following;
1.3.2.1. Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.
1.3.2.2. Carbon monoxide symptoms are similar to flu, food poisoning, viral infections and
simply tiredness. That’s why it’s quite common for people to mistake this very dangerous
poisoning for something else.
1.3.3. To avoid Carbon monoxide poisoning DO NOT Use Petrol/Diesel powered equipment inside
a home or garage even if doors and windows are open.
1.3.4. If you think you or someone around you has been affected by carbon monoxide poisoning;
1.3.4.1. Get fresh air immediately.
1.3.4.2. Open doors and windows, turn off machine and leave the affected area.
1.3.4.3. See your doctor immediately or go to hospital - let them know that you suspect
carbon monoxide poisoning.
1.3.5. DO NOT use in an enclosed area or a moving vehicle.
1.4. General fuel safety.
1.4.1. Fuel Safety additional information can be obtained from the Health and Safety Executive
(HSE) document SR16.
1.4.2. All fuels are Flammable.
1.4.3. Keep away from all ignition sources i.e. Heaters, Lamps, sparks from Grinding or welding.
1.4.4. Hot work on tanks that have contained fuel is extremely dangerous and should not be
carried out.
1.4.5. Keep work area clean and tidy.
1.4.6. Clean up all spills promptly using correct methods i.e. absorbent granules and a lidded bin.
Page 4
Rev 2

1.4.7. Dispose of waste fuels correctly.
1.5. Petrol safety.
1.5.1.1. Always fuel and defuel in well-ventilated area.
1.5.1.2. Always wear correct, suitable and fit for purpose Personal Protective Equipment
(PPE), suggested items are as follows, but are not limited too.
1.5.1.3. Hand protection.
1.5.1.4. Protective clothing.
1.5.1.5. Respiratory protective equipment should be used when in an unventilated
area.
1.5.1.6. When defueling always use a propriety fuel retriever.
1.5.1.7. Always carry fuel in the correct and clearly marked container.
1.6. Tool safety
Risk of finger severing
DO NOT modify unit in any way
Only use the tool for job for which it is intended
Always remove the HT lead from the spark plug when checking the
machine or changing parts
1.6.1. DO NOT operate closer than 6 metres (20 feet) to electric hazards (electric cables).
1.6.2. Keep all bystanders at least 4.5 metres (15 feet) away from working area.
1.6.3. Beware of falling objects.
1.6.4. If machine becomes clogged/blocked/obstructed –STOP machine remove HT lead from
spark plug, remove obstruction.
1.6.5. Inspect tool before each use, and replace any damaged parts before operation. Check for
fuel leaks and make sure all fasteners are secure and in place. Make sure the safety guard,
handles and safety features are all in good working order.
Page 5
Rev 2

1.6.6. Replace parts that are dull, cracked, chipped or damaged in any way before using the tool.
Make sure the safety guard is properly attached.
1.6.7. Use only recommended accessories and parts, approved by the manufacturer. Non
approved attachments may cause damage to the machine or harm to the user, and will also
void your machine’s warranty.
1.6.8. Always use certified replacement sourced from the manufacturer. Only use genuine
Hyundai spare parts.
1.6.9. Under no circumstances should you ever take the product apart or alter it in any way even if
the item is faulty. You may damage or cause further harm by taking the product apart and you
will void your warranty in doing so.
1.6.10. This grass trimmer is designed exclusively for cutting grass edges in garden areas and ina
private domestic setting. Using it for any other purpose other than those intended qualify as
improper use. The operator is solely responsible for assuming all risks.
1.6.11. Do not overload the machine. It will safer and better when operated within its specified
performance range.
1.6.12. Keep others away from machine when making carburettor adjustments’.
Page 6
Rev 2

2. MACHINE COMPONENT LOCATIONS
2.1 Power unit.
1 Start handle 2. Air filter 3. Throttle lockout 4. Stop switch 5. Front handle
6. Unit locking screw 7. Throttle lock 8. Throttle trigger 9. Fuel tank 10. Choke lever
11. Primer Bulb 12. Exhaust 13. Fuel tank cap 14. Spark plug
2.1 Grass trimmer.
1 Locking hole 2. Guard 3. Cutting string (cord)
3. ASSEMBLY AND INITIAL OPERATION
3.1 Power unit handle.
1 Front handle (1) 2. Screw 5mm x 35mm (4) 3. Nut 5mm (4) 4. Cover (1)
5. Front handle bar (1) 6. Screw 4,2mm x 9.5mm (1)
3.1.1 Assemble the front handle as shown in the diagrams. Do not over tighten the screws
until you have set the perfect working position with the carrying strap. The front handle
should be aligned as show in “Power Unit” diagram.
Page 7
Rev 2

3.2 Grass trimmer.
3.3 Fuel information.
3.3.1 Refuelling:
3.3.1.1 For air-cooled 2-stroke engines, mix unleaded petrol thoroughly with
synthetic 2-stroke oil at 40:1 ratio or mineral 2-stroke oil at 25:1 ratio.
3.3.2 TIP - Always prepare 1 litre of the mix at a time because the mix turns unusable
after prolonged storage. Take care of fire.
Petrol is highly flammable. Take the following precautions:
3.3.3 Store fuel in containers specifically designed for this purpose.
3.3.4 Refuel outdoors only and do not smoke while refuelling.
3.3.5 Add fuel before starting the engine. Never remove the cap of the fuel tank or
add petrol while the engine is running or when the engine is hot.
3.3.6 Avoid spillage:
3.3.6.1 If petrol is spilled, do not attempt to start the engine but move the
machine away from the area of spillage and avoid creating any source of
ignition until petrol vapours have dissipated.
3.3.7 Tighten all fuel tank and container caps securely.
4. OPERATION
4.1 Starting the tool.
4.1.1 Start the tool only after the integrated piece has been correctly connected.
4.1.2 Put the operating switch at position “I”.
4.1.3 Put the starting choke lever in position “Start”.
Page 8
Rev 2

4.1.4 Push the primer bulb 3-5 times.
4.1.5 Push throttle lock and throttle trigger to accelerate.
4.1.6 Push the throttle lock in at this position (cold).
4.1.7 Start the machine by carefully pulling the starter cable. Do this whilst holding
the machine against the ground.
4.1.8 Now, control the throttle so that the machine runs evenly for it to reach full
speed.
4.1.9 As soon as the engine is running smoothly, the choke may be returned to its
normal position.
Page 9
Rev 2

4.2 Spark plug check or replacement.
4.2.1 Pull the spark plug cover off, unscrew the plug using the plug wrench and
replace it.
4.2.2 If you are checking the spark plug remember to clean it and check that it is
correctly adjusted.
4.2.3 If you are replacing the spark plug remember to check that it is correctly
adjusted.
4.3 Operation safety instructions.
4.3.1 To turn the machine off, the switch has to be in “STOP” position.
4.3.1.1 When trimming, check local regulations for restrictions on use at
certain times especially in communal living areas.
4.3.1.2 DO NOT mow at night.
4.3.1.3 Any hard objects – stones, metal parts etc. – have to be removed.
They could be thrown out and cause personal or material damage.
4.3.1.4 When working in shrubs or bushes, the working height must be 15 cm
as a minimum not to expose animals, such as hedgehogs, at any risk.
4.3.2 Grass trimming.
4.3.1 When trimming on grass areas, hold the machine at an angle of 30°
and make semi-circular turns to the left and right.
4.3.2 The best results are achieved with grass 15 cm high. If it is higher, it is
recommended to repeat mowing several times.
When the machine is running never put the mowing head on the ground.
4.3.3 If the cutting decreases, then the cord has become too short
4.3.3.1 Hold the running machine over the grass and knock the ground
several times with the mowing head the cord will become longer.
4.3.3.2 The cutter enclosed in the protection shield will cut any excess cord to
the required length.
The cutting cord remnants may be thrown off and cause an injury.
Page 10
Rev 2

5. INSPECTION AND MAINTENANCE
The instructions below shall apply to regular conditions of use. In severe
conditions and longer periods of work, it is necessary to shorten the of
maintenance intervals as appropriate.
After finishing the job, always check the entire machine for general
condition, damage and carry out cleaning.
Regular check and treatment:
Check the air filter (clean it up if necessary)
Check the spark plug (replace if necessary)
The function and quantity of the plastic cord.
Always switch the power unit off when doing maintenance or a repair.
5.1 Inspection, maintenance and safety Instructions.
5.1.1 A machine that is maintained and cared for on a regular basis may be
considered a serviceable aid. Insufficient maintenance and care may result in
emergencies and unforeseen accidents.
5.1.2 Only authorised servicing agents may do repairs requiring special professional
knowledge.
5.1.3 Follow these precautions:
5.1.3.1 Make sure all nuts, bolts and screws are kept tight so the equipment
works as intended. If any parts are loose or missing DO NOT use the machine
until repair work has taken place.
5.1.3.2 DO NOT store with petrol in the tank.
5.1.3.3 Allow the engine to cool before storing.
5.1.3.4 Keep hot engine parts away from grass, leaves and excess grease.
5.1.3.5 Always replace worn or damaged parts.
5.1.3.6 If petrol tank needs draining, do it outdoors.
5.1.3.7 Do not attempt to repair the machine unless you are competent to do
so.
5.1.3.8 Use only genuine Hyundai parts and accessories.
5.2 Maintenance chart.
5.2.1 Always stop the engine before carrying out any maintenance on the machine.
5.2.2 When all parts have stopped moving, remove the spark plug lead to begin
maintenance work.
5.2.3 Never repair cutting attachments this may result in serious injury.
5.2.4 Never attempt maintenance that is not outlined in this manual. All repair
work must be carried out by a Hyundai Authorised Service Centre.
5.2.5 Refer to the following table for routine maintenance.
Page 11
Rev 2

5.2 Continued - Maintenance chart.
6. TRANSPORTATION AND STORAGE
6.1 When transporting the machine take the following actions:
6.1.1 Stop the machine and drain the fuel tank before transporting.
6.1.2 If transporting in a vehicle secure the machine to prevent damage whilst the
vehicle is in motion.
6.1.3 If transporting by hand use carrying handle and avoid bumping machine into
people of other objects.
6.2 If the grass trimmer is to be out of operation for a long period of time (over 1
month), take the following actions:
6.2.1 Drain the fuel tank.
6.2.2 Wipe the external part of the case with a soft cloth soaked in fine suds.
6.2.3 Store the set at an elevated locked place outside the reach of children.
6.2.4 Store the set at a dry place.
6.2.5 The grass trimmer should be packed well to prevent damage.
Page 12
Rev 2

7. SPECIFICATION
Page 13
Rev 2

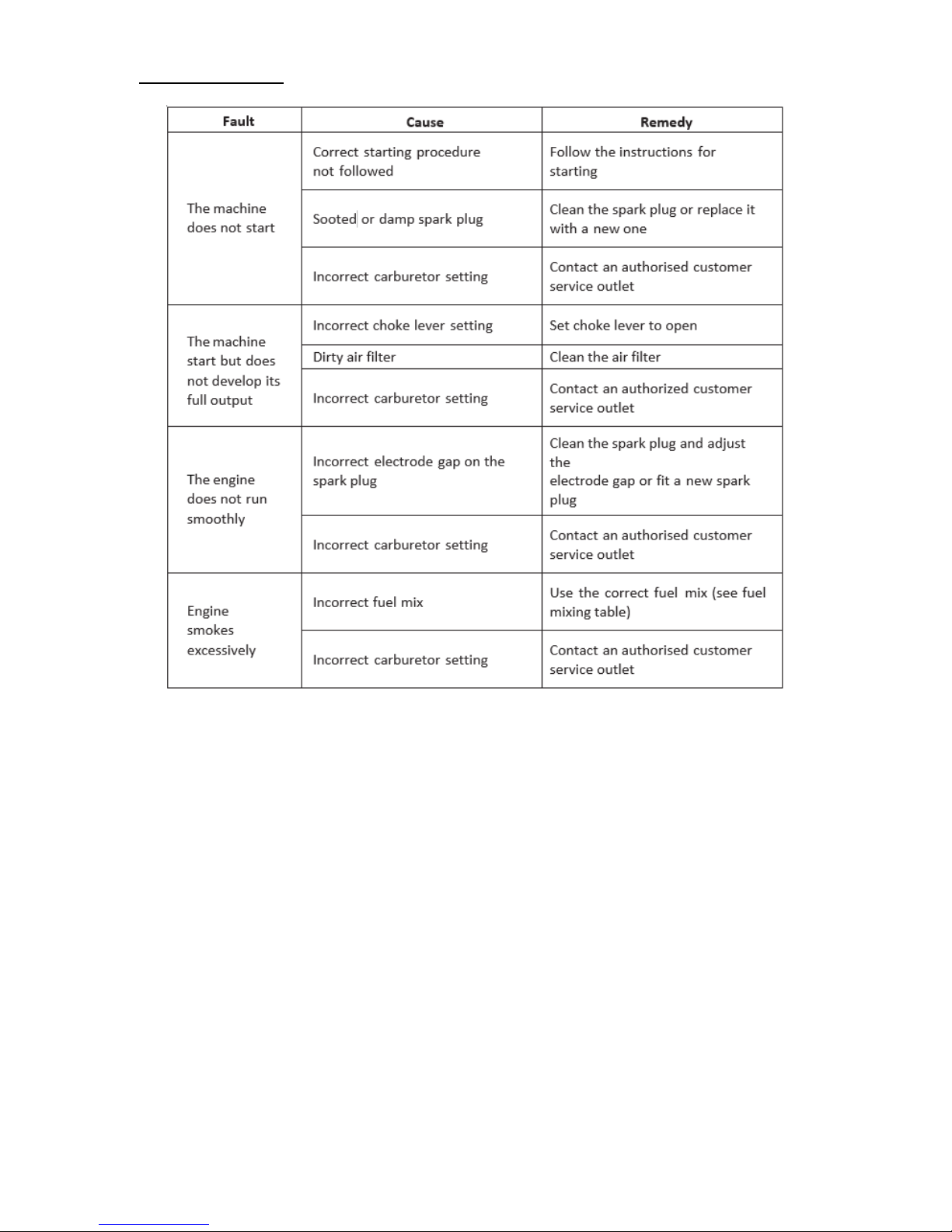

8. TROUBLESHOOTING
Page 14
Rev 2

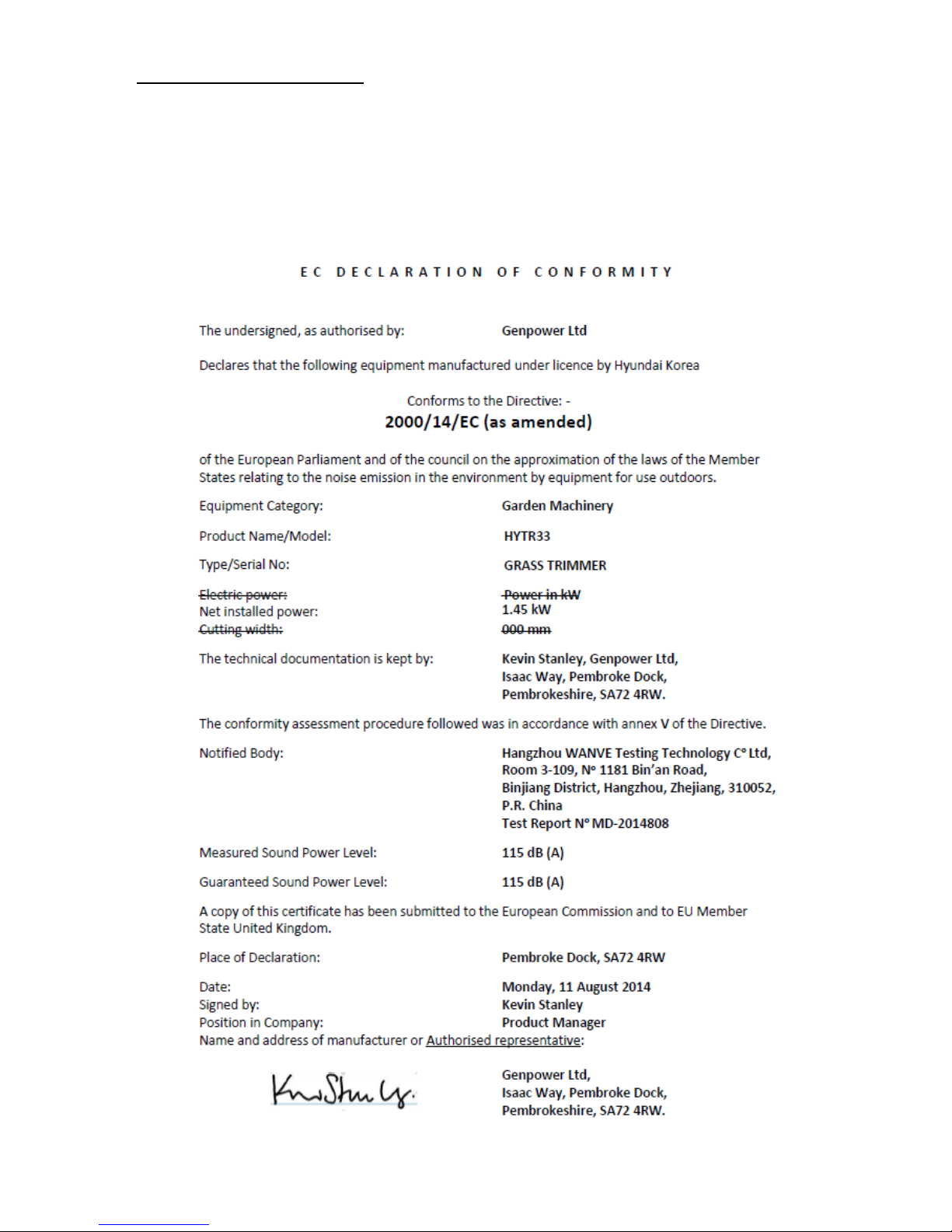

9. DECLARATION OF CONFORMITY
Genpower Ltd confirms that this Hyundai product conforms to the following CE directives:
2006/42/EC Machinery directive
2004/108/EC EMC directive
2000/14/EC Noise emissions directive
97/68/EC NRMM Emissions directive
Page 15
Rev 2

www.hyundaipowerequipment.co.uk
GENPOWER LTD
Isaac Way, London Road
Pembroke Dock, UNITED KINGDOM, SA72 4RW
T: [phone] F: [phone]
E: [email protected]
