i-team i-vac 30UR User manual
3
Preface
Thank you for purchasing the i-vac 30UR® vacuum cleaner: the powerful and easy to use professional
vacuum cleaner for dry surfaces. The i-vac 30UR can operate completely flat, so you can reach all of
these hard-to-reach spots such as under furniture, desks and equipment. The i-vac 30UR also has a
telescopic wand to easily reach high areas.
The i-vac 30UR is easy to use when you follow the instructions. Please read the user manual
carefully. Become familiar with the correct operation and maintenance procedures. Store the manual
in a safe place. The manual is an essential part of the i-vac 30UR and must be handed over to the
new owner upon resale or exchange. Each i-vac 30UR has a unique identification number that can be
found at the back of the main body. Your i-team partner needs this number when you order parts.
When this manual refers to “the manufacturer” this means: i-team Professional in Eindhoven, the
Netherlands. When this manual mentions “the partner” your local i-team sales and support service
partner is referred to.
Purpose of the user manual
The purpose of the user manual is to provide the user with information during the life of the i-vac
30UR in such a way that the i-vac 30UR is used correctly, efficiently and safely, even in the event of
reasonably foreseeable misuse.
The user manual contains instructions regarding:
•personal operator safety;
•intended and non-intended use of the i-vac 30UR;
•instructions for daily use;
•maintenance instructions;
•storage conditions;
•disposal of the i-vac 30UR.
These instructions must be considered to avoid risks that could lead to physical and/or material
damage.
Target audience
This user manual is intended for operators of the i-vac 30UR and their supervisors, as well as dealers
and importers.
Operators of the i-vac 30UR
The i-vac 30UR may only be operated by a person who:
•has correctly read and understood the instructions in this manual;
•is trained by an experienced operator who has read and understood the instructions in this
manual.
4
Reading guide
The following symbols and terms are used throughout this manual to alert the reader to
safety issues and important information:
Symbol
Term
Explanation
WARNING
Indicates a hazardous situation which, if the safety
instructions are not followed, can lead to injuries of the
operator or bystanders, light and/or moderate damage
to the product or the environment.
CAUTION
Indicates a hazardous situation which, if the safety
instructions are not followed, can lead to light and / or
moderate damage to the product or the environment.
ATTENTION
Indicates a liability situation, where the manufacturer
or its partners and affiliates cannot be held accountable
for damages caused by non-compliance.
5
Content
Preface .................................................................................................................................................................... 3
Purpose of the user manual.................................................................................................................................... 3
Target audience ...................................................................................................................................................... 3
Operators of the i-vac 30UR.................................................................................................................................... 3
Reading guide.......................................................................................................................................................... 4
1Introduction.................................................................................................................................................... 7
1.1 Intended use of the product.................................................................................................................. 7
1.2 Non-intended use of the product.......................................................................................................... 8
1.3 Modifications......................................................................................................................................... 8
1.4 Specifications......................................................................................................................................... 9
1.5 Warranty.............................................................................................................................................. 10
1.6 Identification ....................................................................................................................................... 10
2Description ................................................................................................................................................... 11
3Safety............................................................................................................................................................ 12
3.1 General Safety Instructions ................................................................................................................. 12
3.2 Risks during operation......................................................................................................................... 12
4Transport and storage.................................................................................................................................. 13
5Assembly and installation............................................................................................................................. 14
5.1 Unboxing.............................................................................................................................................. 14
5.2 Assembly.............................................................................................................................................. 15
5.2.1 Installing the handle........................................................................................................................ 15
5.2.2 Installing the upper body to brush unit........................................................................................... 16
5.2.3 Installing the hose and telescopic wand ......................................................................................... 17
5.2.4 Installing the main power cable ...................................................................................................... 18
5.2.5 Replacing the dust bag .................................................................................................................... 19
6Operation ..................................................................................................................................................... 21
6.1 Adjustments......................................................................................................................................... 21
6.1.1 Adjusting the handle length ............................................................................................................ 21
6.1.2 Adjusting the angle of the main body ............................................................................................. 21
6.1.3 Adjusting the height of the rotating brush...................................................................................... 22
6.1.4 Adjusting the wand length .............................................................................................................. 22
6.2 Before you start................................................................................................................................... 23
6.3 Start ..................................................................................................................................................... 23
6.4 After operation .................................................................................................................................... 24
7Maintenance ................................................................................................................................................ 25
7.1 Cleaning ............................................................................................................................................... 25
6
7.1.1 Clean the machine........................................................................................................................... 25
7.1.2 Clean the hose and wand ................................................................................................................ 25
7.2 Replacing parts .................................................................................................................................... 26
7.2.1 Replacing the cassette filter............................................................................................................ 26
7.2.2 Replacing the felt air outlet of the rotating brush .......................................................................... 27
7.2.3 Replacing the rotating brush........................................................................................................... 28
7.3 Brush condition.................................................................................................................................... 30
7.4 Damaged or worn parts....................................................................................................................... 30
7.5 Maintenance frequency ...................................................................................................................... 30
7.6 Storage................................................................................................................................................. 30
8Trouble shooting .......................................................................................................................................... 31
9Decommissioning and disposal .................................................................................................................... 32
10 Attachments................................................................................................................................................. 33
10.1 CE Certificate ....................................................................................................................................... 33
7
1Introduction
The i-vac 30UR® is an easy and safe machine to use. Because the i-vac 30UR is equipped with an
internal rotating brush the cleaning is very efficient. You will be surprised how fast and effective the
i-vac 30UR is. It also comes with several different accessories for vacuuming on different surfaces.
Safety is guaranteed by the patented Whizzo indicator which makes a loud high tone when the bag is
full or the vacuum is clogged. This manual helps you get started and explains the operation and
maintenance procedure.
This manual is intended for those who work with the i-vac 30UR and perform maintenance. The
manual must be read in full before the first actions. This manual describes the correct method of use,
safety measures, maintenance and transport. And finally, the manual contains information about the
consumables: the rotating brush, cassette filters and dust bags.
i-team Professional continuously improves all their products based on user experience and feedback.
Any deviations between the texts and/or images from the manual and your i-vac 30UR can therefore
arise from the difference in model or from possible changes due to continuous development and
innovation.
1.1 Intended use of the product
ONLY use original attachments, consumables and brushes that are provided with the i-vac 30UR.
The i-vac 30UR is intended for indoor use for the collection of dry materials only, see Figure 1 below.
Figure 1
The i-vac 30UR is optimized for commercial use, for example in hotels, schools, hospitals, factories,
shops and offices.
8
For optimal cleaning of floors, the i-vac 30UR® is equipped with a rotating brush on the underside of
the machine.
In order to use the i-vac 30UR on different types of surfaces, different tools are provided. These tools
are easy to replace. Select the right tool for each job, see Figure 2.

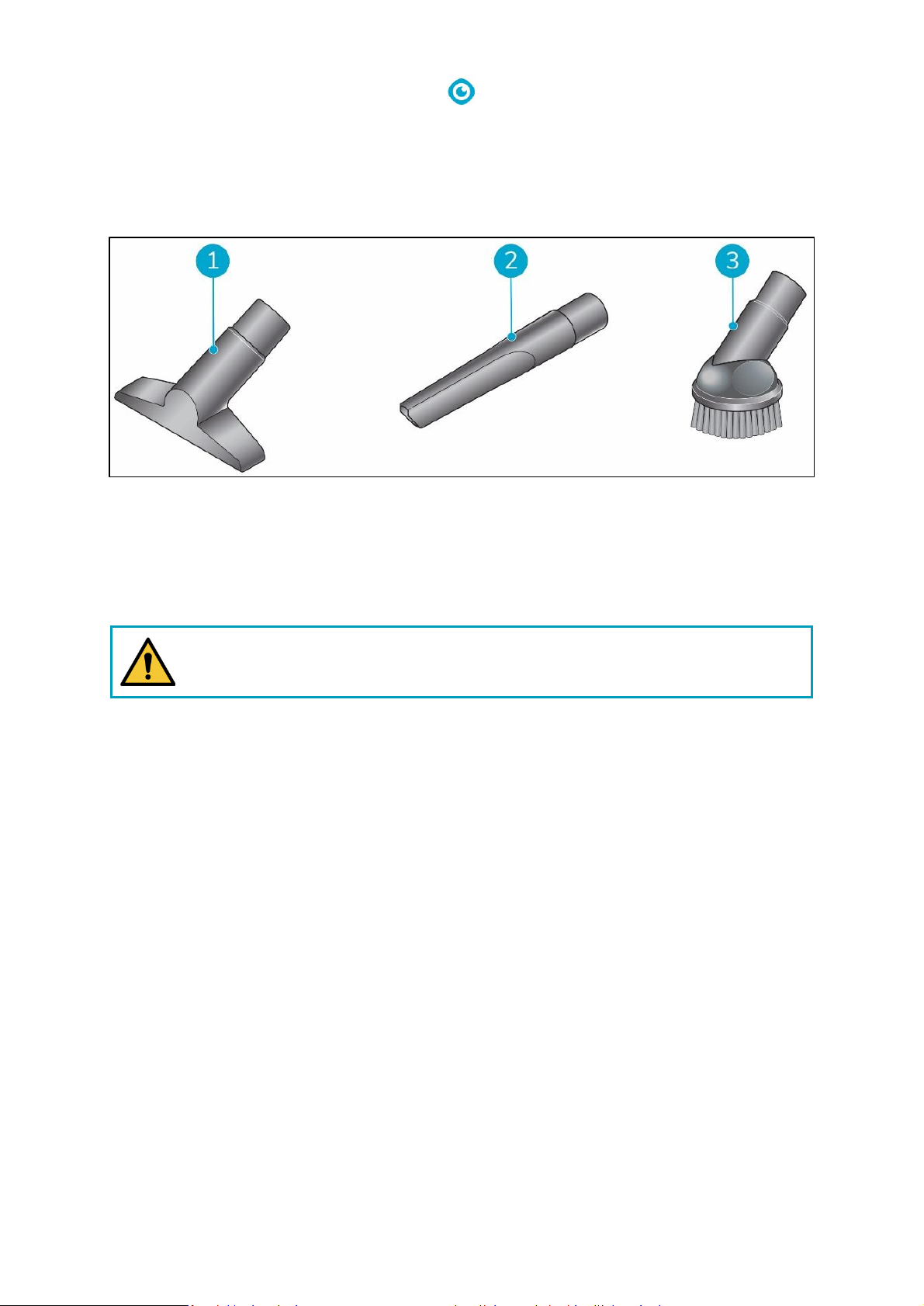

Figure 2
1.
An upholstery tool.
2.
A crevice tool.
3.
A round brush.
1.2 Non-intended use of the product
WARNING
Non-intended use can have consequences for the safety of operators and bystanders,
may cause damage to the product and will void the warranty of the product.
Do not use the i-vac 30UR outdoors or in wet environments.
Do not use non original attachments, consumables or brushes. The use of other devices may impair
safety.
Do not use the i-vac 30UR to remove anything else than dry materials. The i-vac 30UR is not suitable
for the collection of:
•wet materials or water;
•hot ashes or lighted cigarette ends;
•hazardous or explosive dusts;
•biological hazards;
•particulate matter.
1.3 Modifications
It is not permitted to make modifications to the design of the i-vac 30UR without consultation and
permission from the manufacturer. This affects the warranty, see 1.5.
9
1.4 Specifications
Figure 3
Product size (body unit):
340 x 310 x 700 mm
Diameter accessories:
35 mm
Cable length:
1200 cm
Hose length:
220 cm
Weight:
8.3 kg
Capacity (dust bag):
6 liter
Voltage:
230-240 V
Motor power:
1000 W
Water lift/suction:
2000 mm
Air flow:
32 L/s
Brush speed:
3000 rpm
10
Cleaning path:
300 mm
Sound level:
69 dB(A)
Material:
ABS/PC
Application:
Indoor, dry
1.5 Warranty
The i-vac 30UR® should only be operated with the materials supplied. Using alternative supplies may
cause damage to the i-vac 30UR and may cause a risk to the operator. The use of alternative supplies
or not following the advised maintenance schedule voids manufacturer's warranty. The warranty
period Is 1 year.
1.6 Identification
Each i-vac 30UR has a unique identification number that can be found on the identification plate at
the bottom of the brush unit and at the back side of the upper body. Your i-team partner needs this
number when you order parts or consumables.
Explanation type plate:
Product type: i-vac 30UR
Production code: SM.I-V.1110C
Model: SM
Serial number:
Distributer:
i-team Professional
Hoppenkuil 27 b
NL-5626 DD Eindhoven
Figure 4
11
2Description
The i-vac 30UR® has an ergonomic handle for comfortable use and an inspection hatch for blockages.
The telescopic wand makes it easy to reach high spots. It can be combined with different tools to use
the i-vac 30UR on different surfaces.
The i-vac 30UR consists of:
Legend
1.
A handle.
11.
A rotating brush.
2.
A power cable storage hook.
12.
A round brush.
3.
A lighted ON/OFF switch.
13.
A handle height adjustment latch.
4.
A main power cable.
14.
A wand.
5.
A crevice tool.
15.
A carrying handle.
6.
A front cover release handle.
16.
A position switch.
7.
A front cover.
17.
The wheels.
8.
An upholstery tool.
18.
A Whizzo indicator.
9.
An upper body release switch.
19.
A wand handle.
10.
A brush height adjustment knob.
20.
A hose.
Figure 5
12
3Safety
Safety comes first, therefore please take time to read and understand these safety instructions.
Improper use can cause harm or void the manufacturer’s warranty.
3.1 General Safety Instructions
Please keep the following safety instructions in mind:
•do not remove the power plug from the socket by pulling at the main power cable;
•remove pins, paperclips and other small objects from the surface before cleaning with the i-vac
30UR®. Failure to do so may cause damage the i-vac 30UR.
3.2 Risks during operation
WARNING
DO NOT not put your hands or any object into the rotating brush. This may cause
serious injury and/or damage to the product.
WARNING
DO NOT use the i-vac 30UR without a dust bag or cassette filter. This will cause damage
to the i-vac 30UR .
WARNING
DO NOT use the i-vac 30UR on damp or wet surfaces. This will cause damage to the i-
vac 30UR and it is dangerous to the user. The damage caused by the use on a wet
surface is not covered under the warranty.
WARNING
Stop immediately if the i-vac 30UR does not pick up something properly or makes an
unusual noise. Service the i-vac 30UR before you continue the operation.
WARNING
DO NOT vacuum explosive, dangerous substances or hot ashes.
•do not run the i-vac 30UR over the main power cable;
•do not remove the power plug from the socket by pulling at the main power cable;
•be careful when vacuuming over area rug edges and fringe.
13
4Transport and storage
•do not store the i-vac 30UR® outside;
•store the i-vac 30UR in a dry place;
•store the i-vac 30UR with the upper body in an upright position;
•store the main power cable on the cable storage hooks during transport and storage;
•store the wand in its holder during transport and storage.
14
5Assembly and installation
The i-vac 30UR® does not require much assembly. The machine comes with 3 additional tools for
vacuuming different surfaces.
5.1 Unboxing
The i-vac 30UR and all the components and accessories are packed in 1 box.
Figure 6
Legend
1.
1x i-vac 30UR main body
5.
1x main power cable
2.
1x upholstery tool
6.
1x hose and wand
3.
1x crevice tool
7.
1x this user manual
4.
1x round brush
8.
1x handle
15
5.2 Assembly
5.2.1 Installing the handle
1. Remove the thumb screw (Figure 7, pos 3).
2. Keep the cable strain relief (Figure 7, pos 4) at hand.
3. Release the latch (Figure 7, pos 2).
4. Place the handle (Figure 7, pos 1) into the handle intake (Figure 7, pos 5).
5. Insert the thumb screw (Figure 7, pos 3) into the cable strain relief (Figure 7, pos 4).
6. Tighten the thumb screw (Figure 7, pos 3).
7. Fasten the latch (Figure 7, pos 2).
Figure 7
16
5.2.2 Installing the upper body to brush unit
1. Adjust the swivel nick shaft to align its yellow mark with the yellow mark on the motor side cover
(Figure 8, pos 2).
2. Adjust the steel support bracket with the yellow mark on the right side of the motor cover
(Figure 8, pos 1).
3. Lift the upper body (Figure 8, pos 3) and insert it into the bottom brush unit.
4. Push the upper body until it is locked by the brush unit hooks (Figure 8, pos 4).
Figure 8
17
5.2.3 Installing the hose and telescopic wand
1. Connect one side of the hose (Figure 9, pos 1) to the broad side of the telescopic wand (Figure
9, pos 3) while depressing the clip (Figure 9, pos 2).
2. Connect the other side of the hose to the upper body (Figure 9, pos 4) while pressing the clip
(Figure 9, pos 2).
3. Place the narrow side of the telescopic wand into the round opening (Figure 9, pos 5) in the
lower body.
4. Lock the wand in place with the clamp.
Figure 9
18
5.2.4 Installing the main power cable
1. Open the cover (Figure 10, pos 5).
2. Place the main power cable connector into the slot (Figure 10, pos 6).
3. Close the cover (Figure 10, pos 5).
4. Insert the main power cable into the cable strain relief (Figure 10, pos 4) and secure the main
power cable.
5. Turn the yellow clip (Figure 10, pos 1) aside to open the power cable duct (Figure 10, pos 2).
6. Insert the main power cable into the power cable duct (Figure 10, pos 2).
7. Secure the main power cable with the yellow clip (Figure 10, pos 1).
8. Turn the yellow power cable hook (Figure 10, pos 3) into the upright position.
9. Wind the main power cable over the hook and the back handle.
Figure 10
19
5.2.5 Replacing the dust bag
•this needs to be done when the red light in the main switch flashes or when the Whizzo makes a
whistling sound;
•unplug the main power cable before replacing the dust bag filter;
•only use original i-team dust bags as these enhance the performance of the i-vac 30UR® and
keep it clean.
1. Pull the front cover release handle (Figure
11, pos 1).
2. Remove the front cover (Figure 11, pos 2).
Figure 11
3. Pull out the handle (Figure 12, pos 1) until it
blocks.
4. Turn the small handle sideways (Figure
12, pos 4) to push the dust bag outwards.
5. Pull the cardboard tag (Figure 12, pos 3) to
seal the dust bag.
6. Remove the old dust bag (Figure 12, pos 2).
Figure 12
Table of contents
Other i-team Vacuum Cleaner manuals
