i-team i-vac 9B User manual
3
Preface
Thank you for purchasing the i-vac 9B®. The high powered motor reaches about 80% (indication) of
the suction power of that from cable operated vacuums, without the strain of being tied down to
one place. Also the i-vac 9B has a two-slot battery system for a flexible runtime up to 80 minutes,
depending on the type i-power® batteries you use. The i-charge® 9 battery charger guarantees a
short charging time. If you need more suction power you can connect the i-brush® to the i-vac 9B.
The i-vac 9B is easy to use when you follow the instructions. Please read the user manual carefully.
Become familiar with the correct operation and maintenance procedures. Store the manual in a safe
place. The manual is an essential part of the i-vac 9B and must be handed over to the new owner
upon resale or exchange. Each i-vac 9B has a unique identification number that can be found at the
bottom of the can. Your i-team partner needs this number when you order parts.
When this manual refers to “the manufacturer” this means: Future Cleaning Technologies B.V.,an
affiliate company of i-team in Eindhoven, the Netherlands. When this manual mentions “the partner”
your local i-team resell and support service partner is referred to.
Purpose of the user manual
The purpose of the user manual is to provide the user with information during the life of the i-vac 9B
in such a way that the i-vac 9B is used correctly, efficiently and safely, even in the event of
reasonably foreseeable misuse.
The user manual contains instructions regarding:
•personal operator safety;
•intended and non-intended use of the i-vac 9B;
•instructions for daily use;
•maintenance instructions;
•storage conditions;
•disposal of the i-vac 9B.
These instructions must be considered to avoid risks that could lead to physical and / or material
damage.
Target audience
This user manual is intended for end users, operators of the i-vac 9B and their supervisors, as well as
partners and importers.
Operators of the i-vac 9B
The i-vac 9B may only be operated by a person who:
•has correctly read and understood the instructions in this manual;
•is trained by an experienced operator who has read and understood the instructions in this
manual.
4
Reading guide
The following symbols and terms are used throughout this manual to alert the reader to
safety issues and important information:

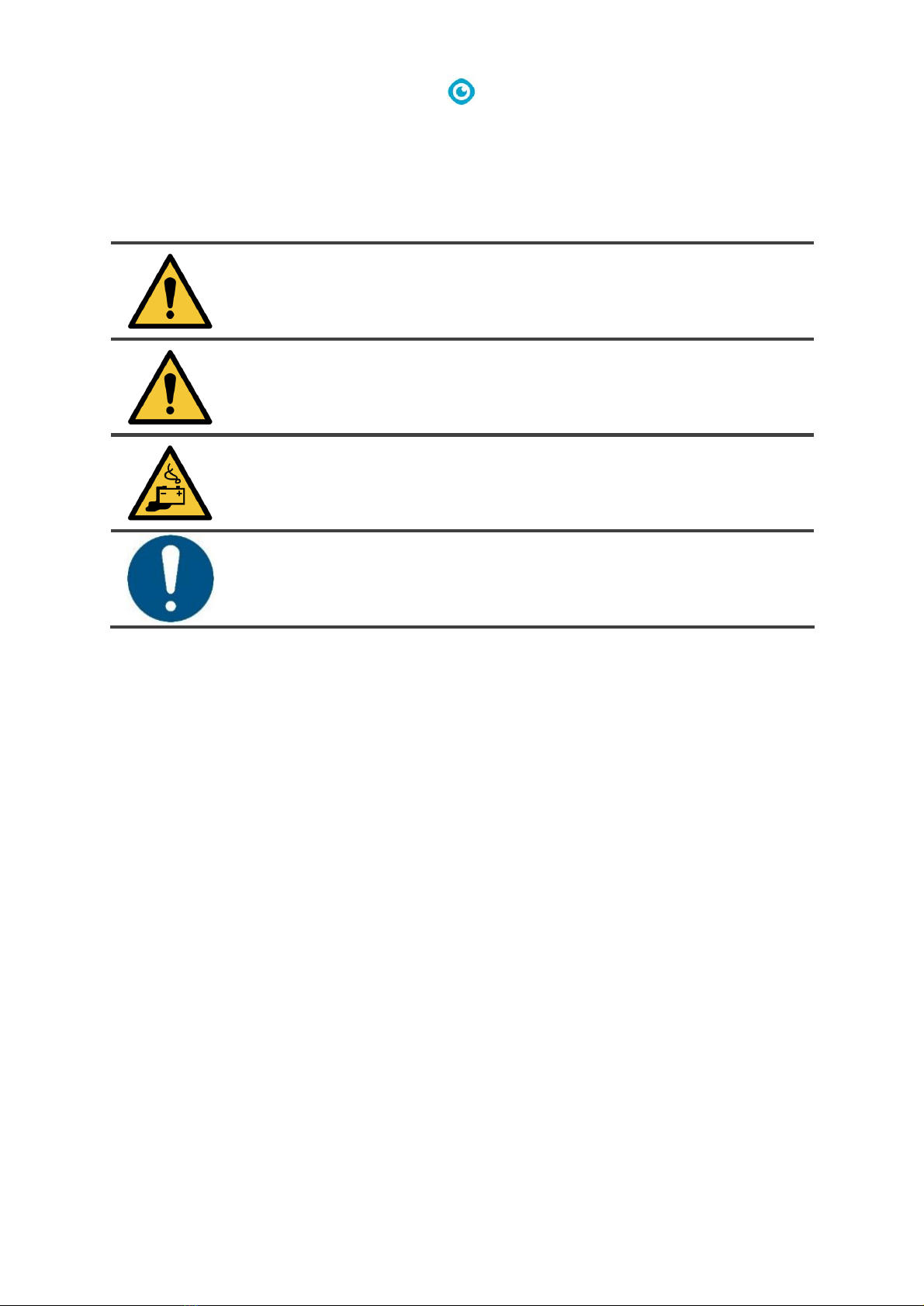

Symbol
Term
Explanation
WARNING
Indicates a hazardous situation which, if the safety
instructions are not followed, can lead to injuries of the
operator or bystanders, light and/or moderate damage
to the product or the environment.
CAUTION
Indicates a hazardous situation which, if the safety
instructions are not followed, can lead to light and / or
moderate damage to the product or the environment.
BATTERIES
Indicates a battery-operated machine, batteries must
be charged according to the instructions in the separate
i-charge® 9 user manual. Batteries must be disposed of
according to your local laws and regulations.
ATTENTION
Indicates a liability situation, where the manufacturer
or its partners and affiliates cannot be held accountable
for damages caused by non-compliance.
5
Content
Preface .................................................................................................................................................................... 3
Purpose of the user manual.................................................................................................................................... 3
Target audience ...................................................................................................................................................... 3
Operators of the i-vac 9B ........................................................................................................................................ 3
Reading guide.......................................................................................................................................................... 4
1Introduction.................................................................................................................................................... 7
1.1 Intended use of the product.................................................................................................................. 7
1.2 Non-intended use of the product.......................................................................................................... 8
1.3 Lifespan.................................................................................................................................................. 9
1.4 Modifications......................................................................................................................................... 9
1.5 Specifications....................................................................................................................................... 10
1.6 Warranty.............................................................................................................................................. 11
1.7 Identification ....................................................................................................................................... 11
2Description ................................................................................................................................................... 12
2.1 Explanation LED indicators .................................................................................................................. 13
3Safety............................................................................................................................................................ 14
3.1 Batteries .............................................................................................................................................. 14
3.2 Risks during operation......................................................................................................................... 14
4Transport and storage.................................................................................................................................. 15
5Assembly and installation............................................................................................................................. 16
5.1 Unboxing.............................................................................................................................................. 16
5.2 Assembly.............................................................................................................................................. 17
5.3 Replacing the dust bag ........................................................................................................................ 18
6Operation ..................................................................................................................................................... 21
6.1 Before you start................................................................................................................................... 21
6.1.1 Height adjustment........................................................................................................................... 21
6.1.2 Insert and check the batteries......................................................................................................... 22
6.2 Normal operation ................................................................................................................................ 23
6.2.1 After normal operation ................................................................................................................... 23
6.2.2 Remove the batteries...................................................................................................................... 24
6.3 Operation with i-brush...................................................................................................................... 25
6.3.1 After operation with i-brush ........................................................................................................... 25
6.3.2 Remove the batteries...................................................................................................................... 26
7Maintenance ................................................................................................................................................ 27
7.1 Cleaning ............................................................................................................................................... 27
6
7.1.1 Clean the machine........................................................................................................................... 27
7.1.2 Clean the hose and wand ................................................................................................................ 27
7.2 Replacing the filters............................................................................................................................. 28
7.2.1 Replacing the cassette filter............................................................................................................ 28
7.2.2 Replacing the motor filter ............................................................................................................... 29
7.3 Brush and tool condition ..................................................................................................................... 30
7.4 Damaged or worn parts....................................................................................................................... 30
7.5 Maintenance frequency ...................................................................................................................... 31
7.6 Storage................................................................................................................................................. 31
8Trouble shooting .......................................................................................................................................... 32
9Decommissioning and disposal .................................................................................................................... 33
10 Attachments................................................................................................................................................. 34
10.1 CE Certificate ....................................................................................................................................... 34
7
1Introduction
The i-vac 9B® is an easy and safe machine to use. This manual helps you get started and explains the
operation and maintenance procedure.
The i-vac 9B is battery-operated. The batteries used in the i-vac 9B are the same as in a variety of
other battery powered i-team products. The batteries must be fully charged before use. Please refer
to the user manual of the i-charge® for the correct procedure.
This manual is intended for those who work with the i-vac 9B and perform daily maintenance. The
manual must be read in full before the first actions. This manual describes the correct method of use,
safety measures, maintenance and transport.
i-team continuously improves all their products based on user experience and feedback. Any
deviations between the texts and / or images from the manual and your i-vac 9B can therefore arise
from the difference in model or from possible changes due to continuous development and
innovation.
1.1 Intended use of the product

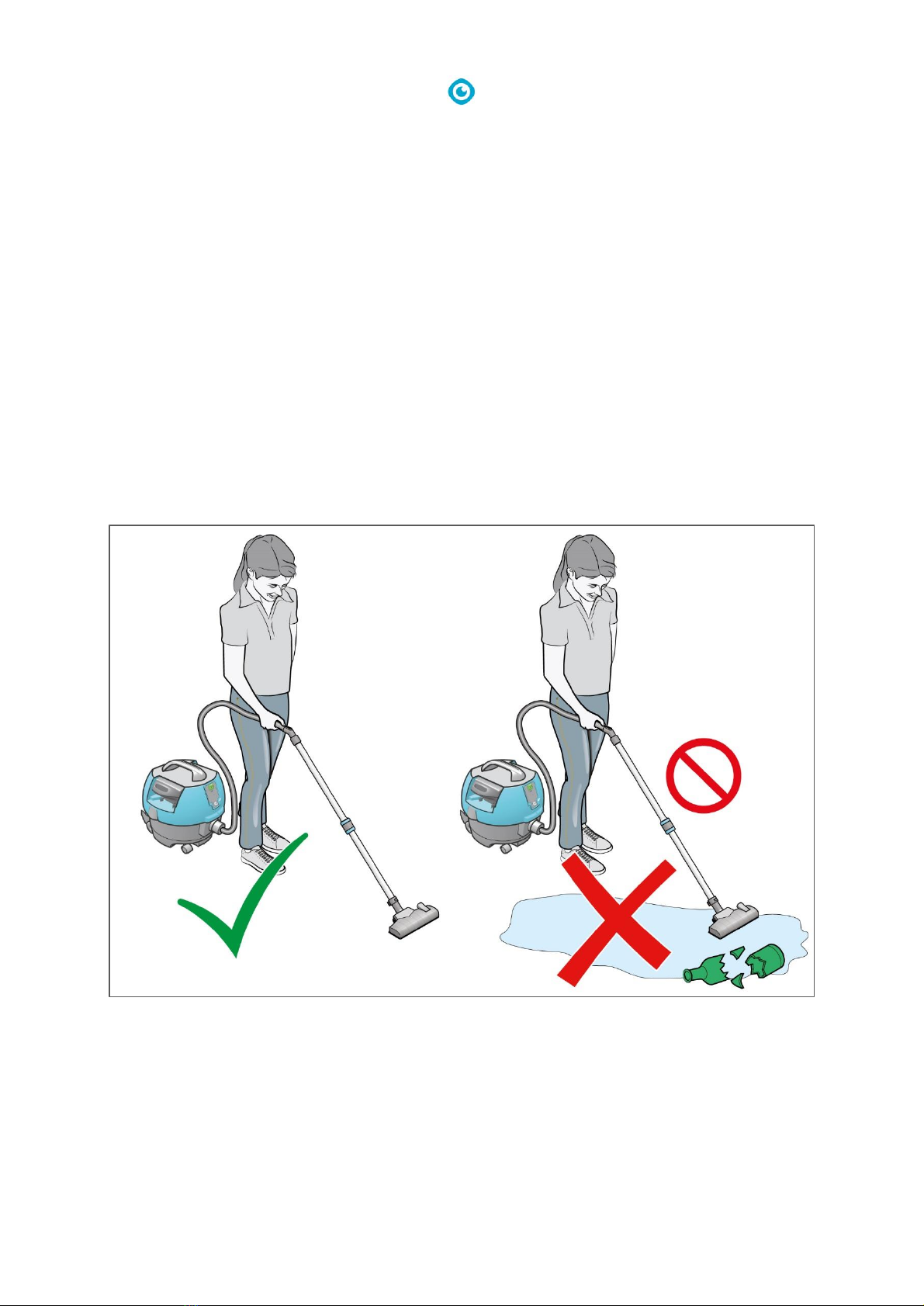

Figure 1
The i-vac 9B is intended for indoor use and for the collection of dry materials only.
The i-vac 9B is suitable for commercial use. For example: in hotels, schools, hospitals, factories,
shops, cleaning companies, holiday parks and offices.
8
Make sure that the i-vac 9B® is maintained as described in section 7 Maintenance. Not following the
recommended maintenance may lead to hazardous situations and i-team Professional may NOT give
warranty.
Check the filters, dust bag and hose regularly for pollution or damage. Replace damaged parts. For
more information on how to order i-vac 9B parts, please see section 7.4.
ONLY USE original i-team Professional parts. i-team Professional does NOT give warranty in case non
original parts are used.
The i-vac 9B may only be operated by a person who:
•has correctly read and understood the instructions in this manual;
•is trained by an experienced operator who has read and understood the instructions in this
manual.
Keep the i-vac 9B and the accessories clean.
In order to use the i-vac 9B on different types of surfaces, extra tools are provided. These tools are
easy to replace. Select the right tool for each job, see Figure 2.
Figure 2
Legend
1.
Upholstery tool.
2.
Crevice tool.
3.
Round brush tool.
1.2 Non-intended use of the product
WARNING
Non-intended use can have consequences for the safety of operators and bystanders
and will void the warranty on the product.
The i-vac 9B is not intended to clean anything else than dry materials.
9
The i-vac 9B® is not suitable for the collection of:
•wet materials or water;
•hot ashes or lighted cigarette ends;
•hazardous or explosive substances;
•biological hazards;
•particulate matter;
•big pieces of glass, plastic or wood.
1.3 Lifespan
For a proper functioning and a long lifespan of the i-vac 9B, it is important to follow the
recommended maintenance frequency mentioned in this manual, see section 7.5.
1.4 Modifications
It is not permitted to make modifications to the design of the i-vac 9B without consultation and
permission from the manufacturer. This affects the warranty, see section 1.6.
10
1.5 Specifications

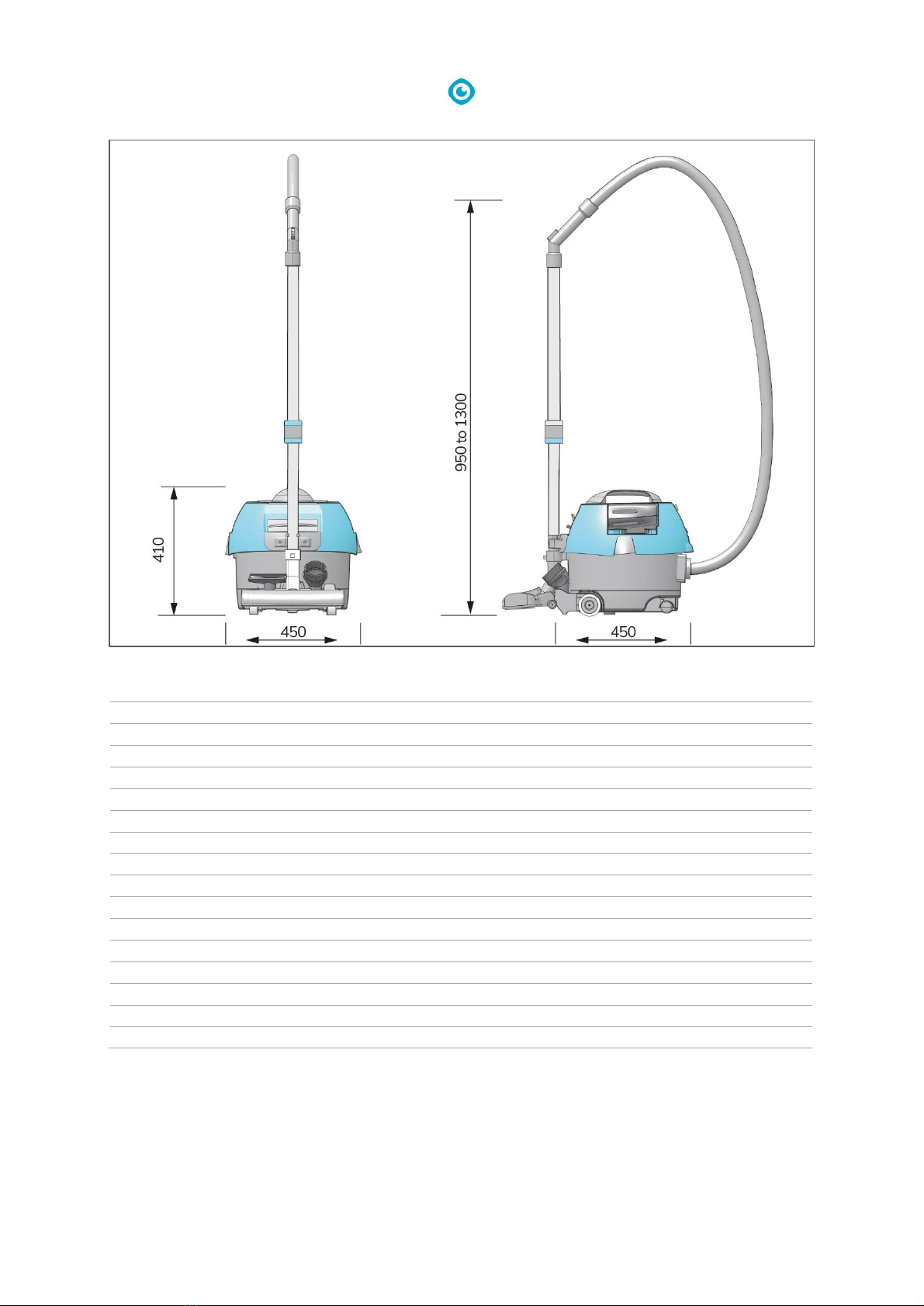

Figure 3
Body size:
450 x 450 x 410 mm
Carrying weight:
7 kg
Hose length:
250 cm
Capacity:
9 L
Noise level:
58 dB(A)
Diameter of tools:
32 mm
Water lift / suction:
1300 mm
Air flow:
24,7 L / sec
Application:
Indoor, dry
Battery slot capacity:
2 batteries
Power source:
i-power 9 or 14 batteries
Battery spec i-power 9 / i-power 14:
25.2 V 8.8 Ah / 25.2 V 14 Ah
Run time i-power 9: 1 battery / 2 batteries:
30 minutes / 60 minutes
Run time i-power 14: 1 battery / 2 batteries:
40 minutes / 80 minutes
Charger type:
Off-board
Charger:
110-240 V, 50 / 60 Hz
Material machine:
PP
11
1.6 Warranty
The i-vac 9B® should only be operated with the materials supplied. Using alternative supplies may
cause damage to the i-vac 9B and may cause a risk to the operator. The use of alternative supplies or
not following the instructions in this manual voids the manufacturer's warranty. The warranty period
is 1 year.
1.7 Identification
Each i-vac 9B has a unique serial number that can be found on the bottom of the can. Your i-team
partner needs this number when you order parts.

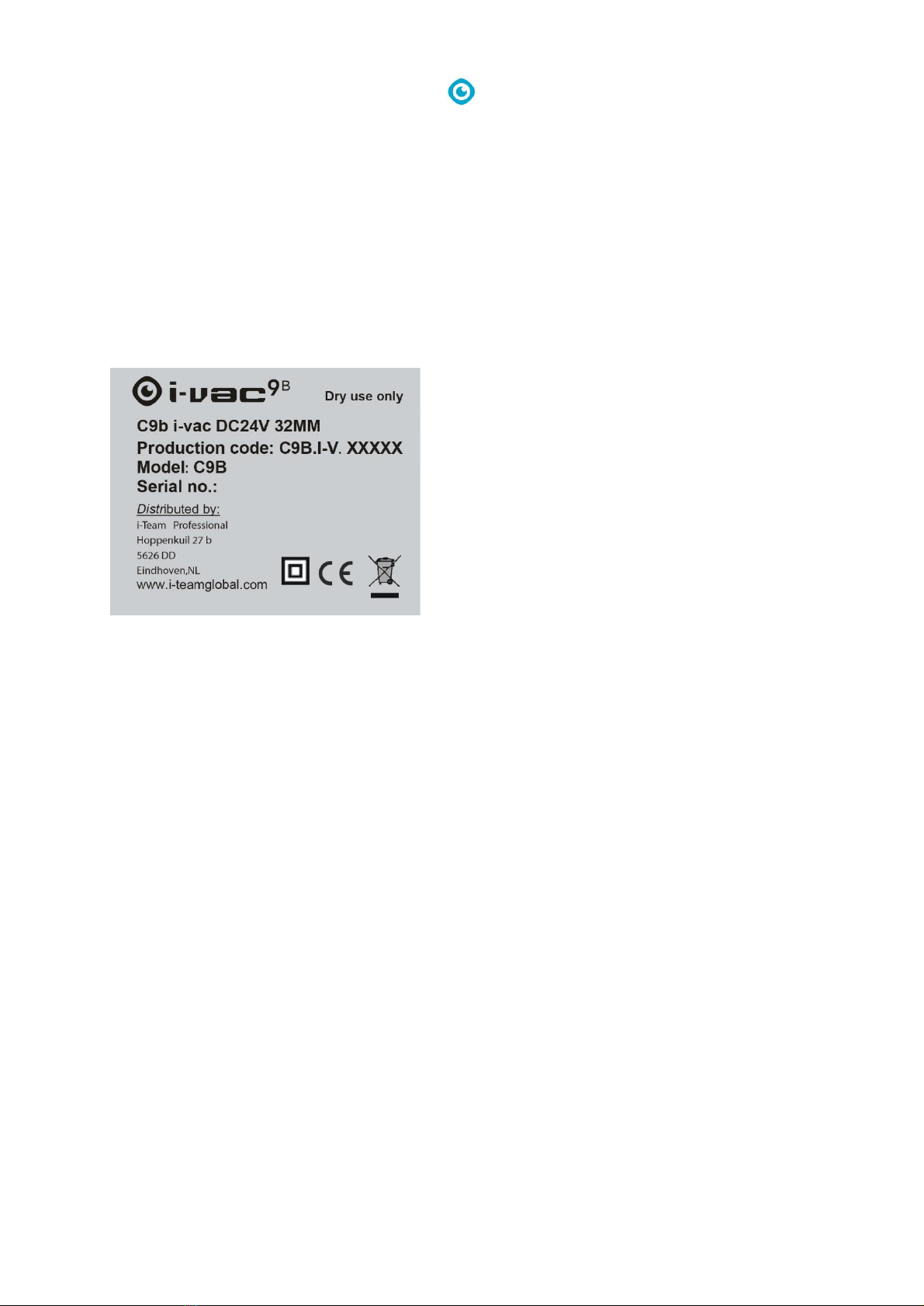

Explanation type plate:
Product type: i-vac 9B
Production code: C9B.I-V.0000B
Model: C9B
Serial number:
Distributer: i-team Professional
Hoppenkuil 27 b
NL-5626 DD Eindhoven
Figure 4
12
2Description
The body of the i-vac 9B® is made of durable and impact resistant material. The hose is extra long so
you can reach out to difficult spots. The i-vac 9B can be combined with an optional i-brush®. This
extra floor tool simultaneously agitates the carpet and removes dirt and dust. The i-vac 9B is
powered by two i-power® batteries.

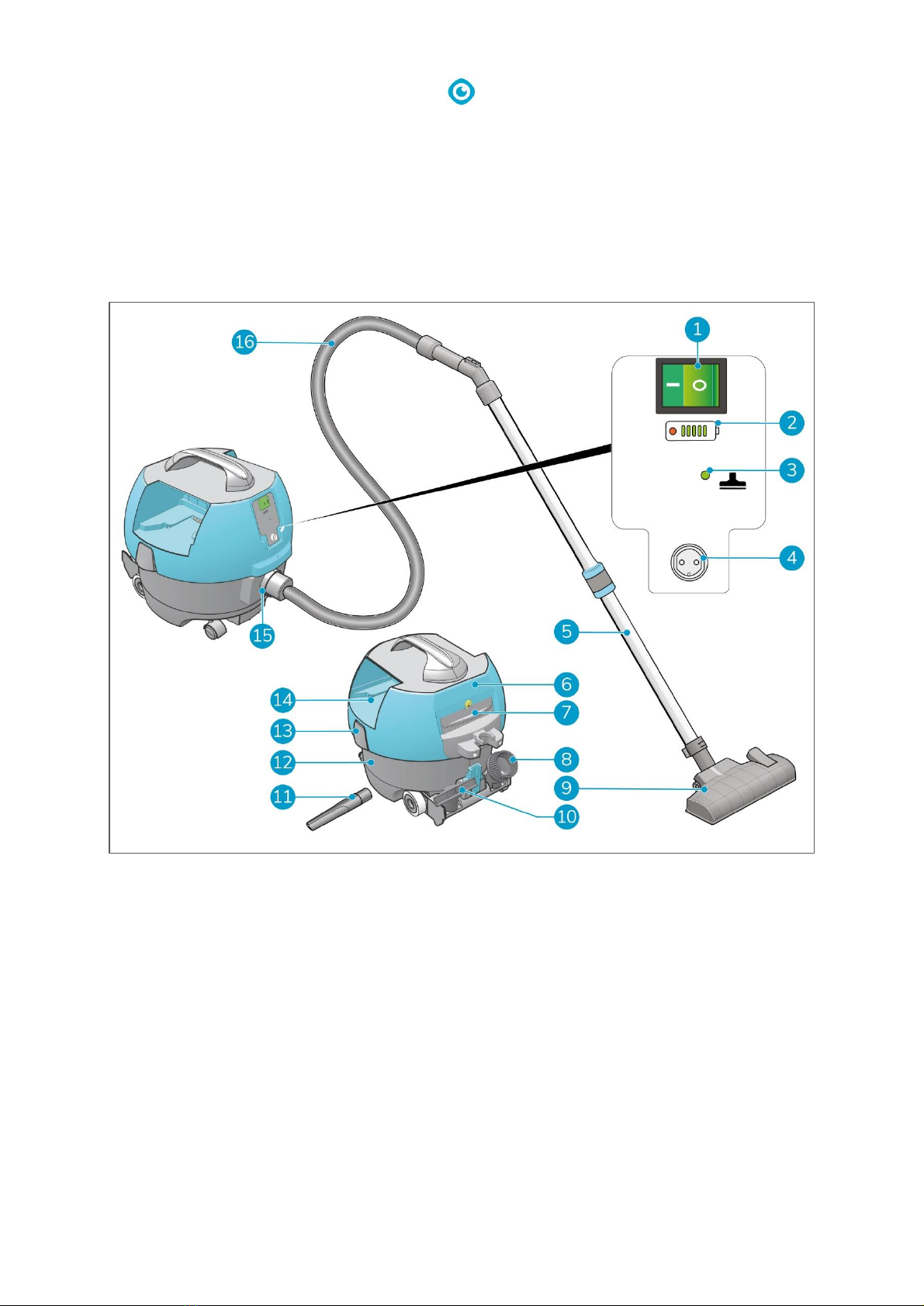

The i-vac 9B consists of:
Figure 5
Legend
1.
An ON/OFF switch.
9.
A standard floor tool.
2.
A battery power status display.
10.
An upholstery tool.
3.
A vacuum function LED.
11.
A crevice tool.
4.
An i-brush connector.
12.
A can.
5.
A telescopic wand.
13.
A latch to open the head.
6.
A head.
14.
Two battery holders.
7.
A cassette filter.
15
A hose connector.
8.
A round brush.
16.
A hose.
13

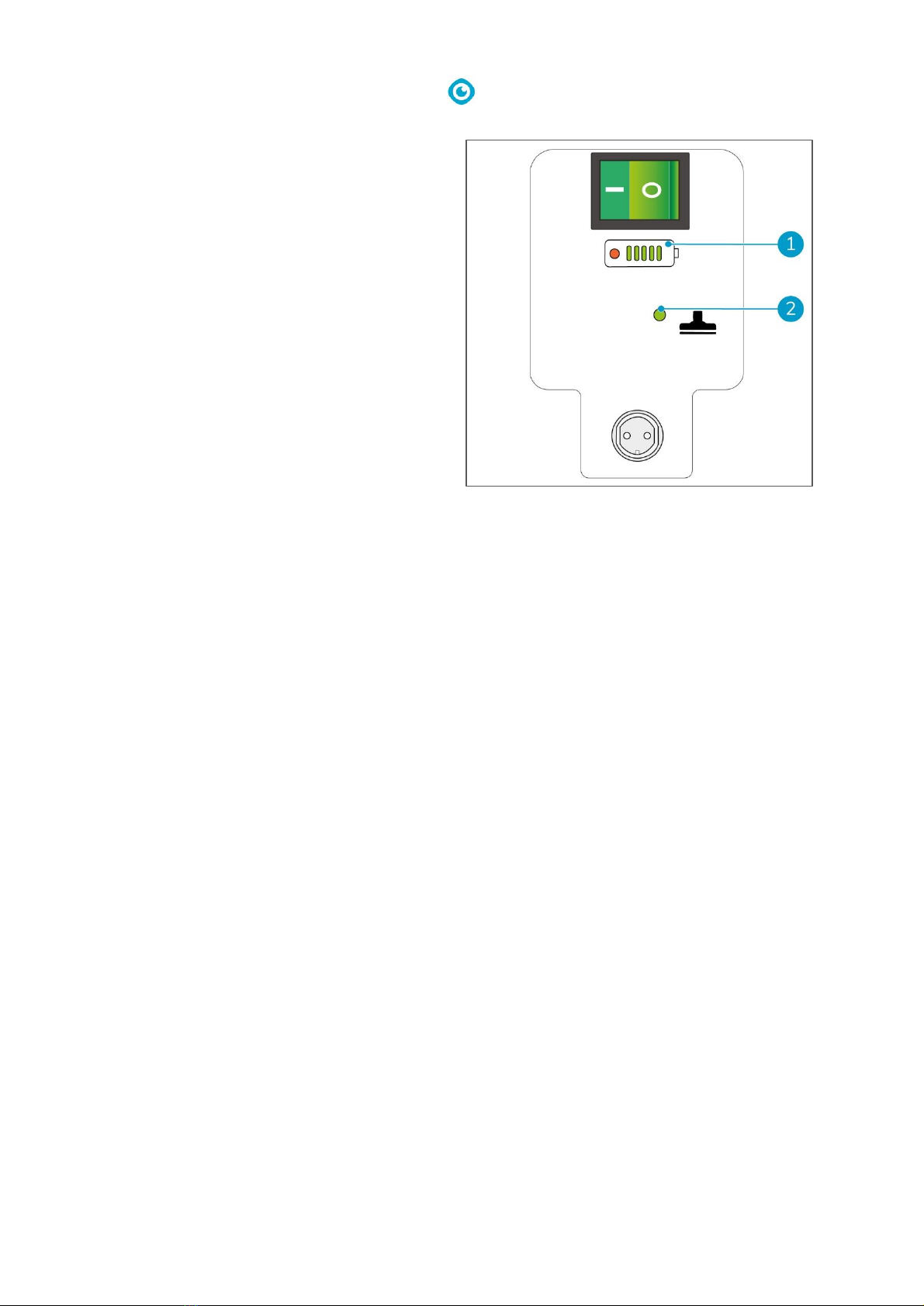

2.1 Explanation LED indicators
1. Battery power status display. The green
battery power status LEDs are always on
during normal use. When the batteries are
full all green LEDs are on, when the
batteries get empty the green LEDs will go
off one by one. The red low battery power
LED turns on when you start the machine,
after a few seconds it turns off. This is to
check if the LED works. The red LED will also
light up when the batteries are almost
empty.
2. A vacuum function LED. The vacuum
function LED flashes when the ON/OFF
button is turned on. When the i-vac 9B® is
on full power it is permanent on.
Figure 6
14
3Safety
Safety comes first, therefore please take time to read and understand these safety instructions.
Improper use can cause harm or void the manufacturer’s warranty.
3.1 Batteries
CAUTION
During normal operation the 24 V batteries cause no safety hazard on their own. Please
keep in mind the following safety instructions:
•do not crush, pierce or damage in any way;
•do not heat or incinerate;
•do not short-circuit;
•do not dismantle;
•keep the batteries dry;
•only charge between 5 °C ~ 40 °C / 41 °F ~ 104 °F;
•only use between 5 °C ~ 45 °C / 41 °F ~ 113 °F.
3.2 Risks during operation
WARNING
STOP OPERATION IMMEDIATELY if the i-vac 9B® does not perform properly or makes
unusual noise. Service the i-vac 9B before you continue the operation.
WARNING
DO NOT use the i-vac 9B on damp or wet surfaces. This will cause damage to the
i-vac 9B and is dangerous to the user. The damage caused by the use on a wet surface is
not covered under the warranty.
WARNING
DO NOT operate the i-vac 9B without a filter dust bag.
15
4Transport and storage
•do not store the i-vac 9B® outdoors;
•store the i-vac 9B in a dry place;
•in case the i-vac 9B is stored for a longer period, remove the batteries. See section 6.2.2;
•before you transport the i-vac 9B, remove the batteries. See section 6.2.2;
•before you use the i-vac 9B again, make sure the batteries are loaded, see the user manual of the
i-charge 9®.
16
5Assembly and installation
The i-vac 9B® does not require much assembly. The machine comes with 3 additional tools for
vacuuming different types of surfaces.

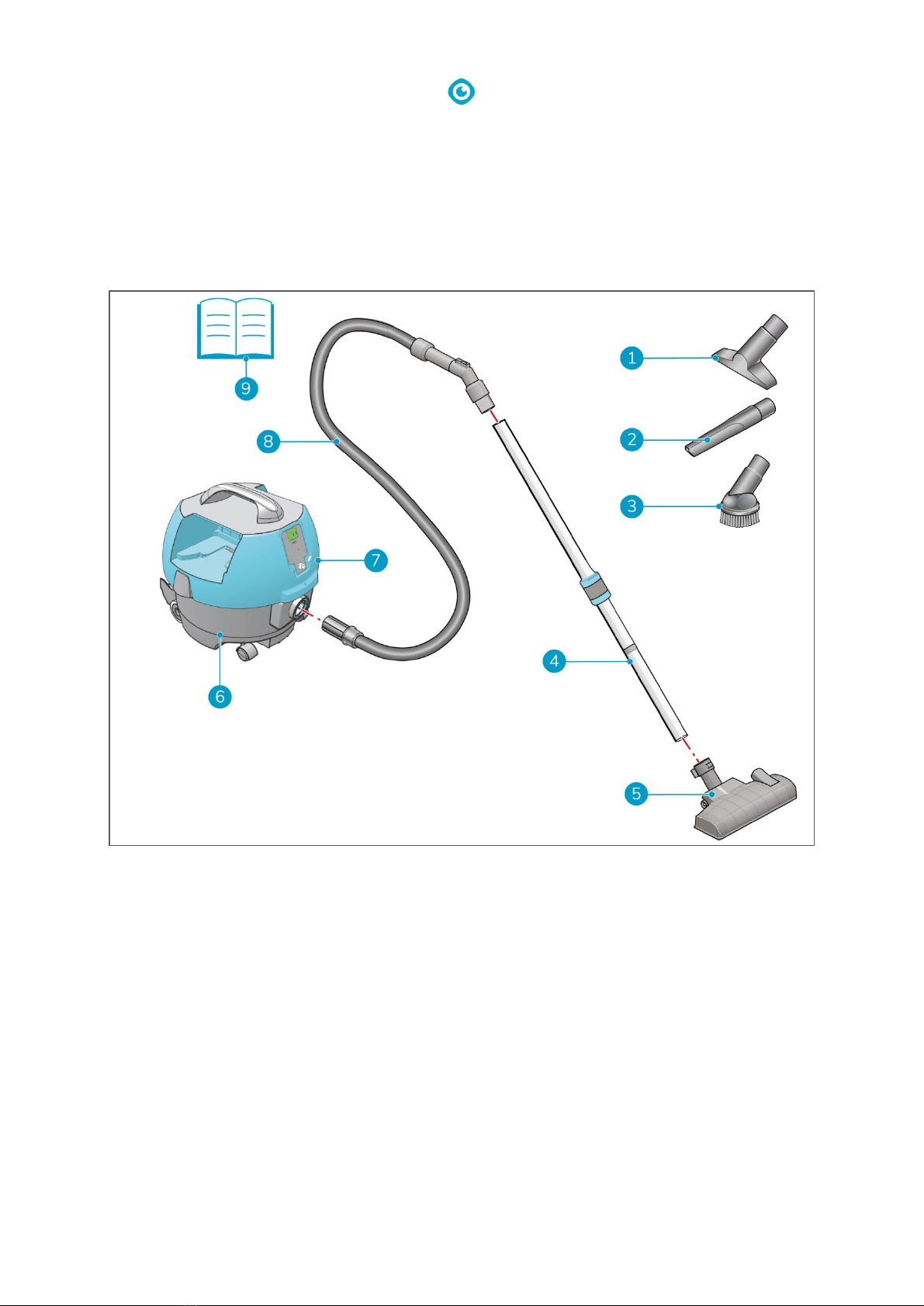

5.1 Unboxing
The i-vac 9B is packed in 1 box. The batteries and the battery charger must be ordered separately.
Figure 7
Legend
1.
1x upholstery tool
6.
1x i-vac 9B can
2.
1x crevice tool
7.
1x i-vac 9B head
3.
1x round brush
8.
1x hose
4.
1x telescopic wand
9.
1x this user manual
5.
1x standard floor tool
17

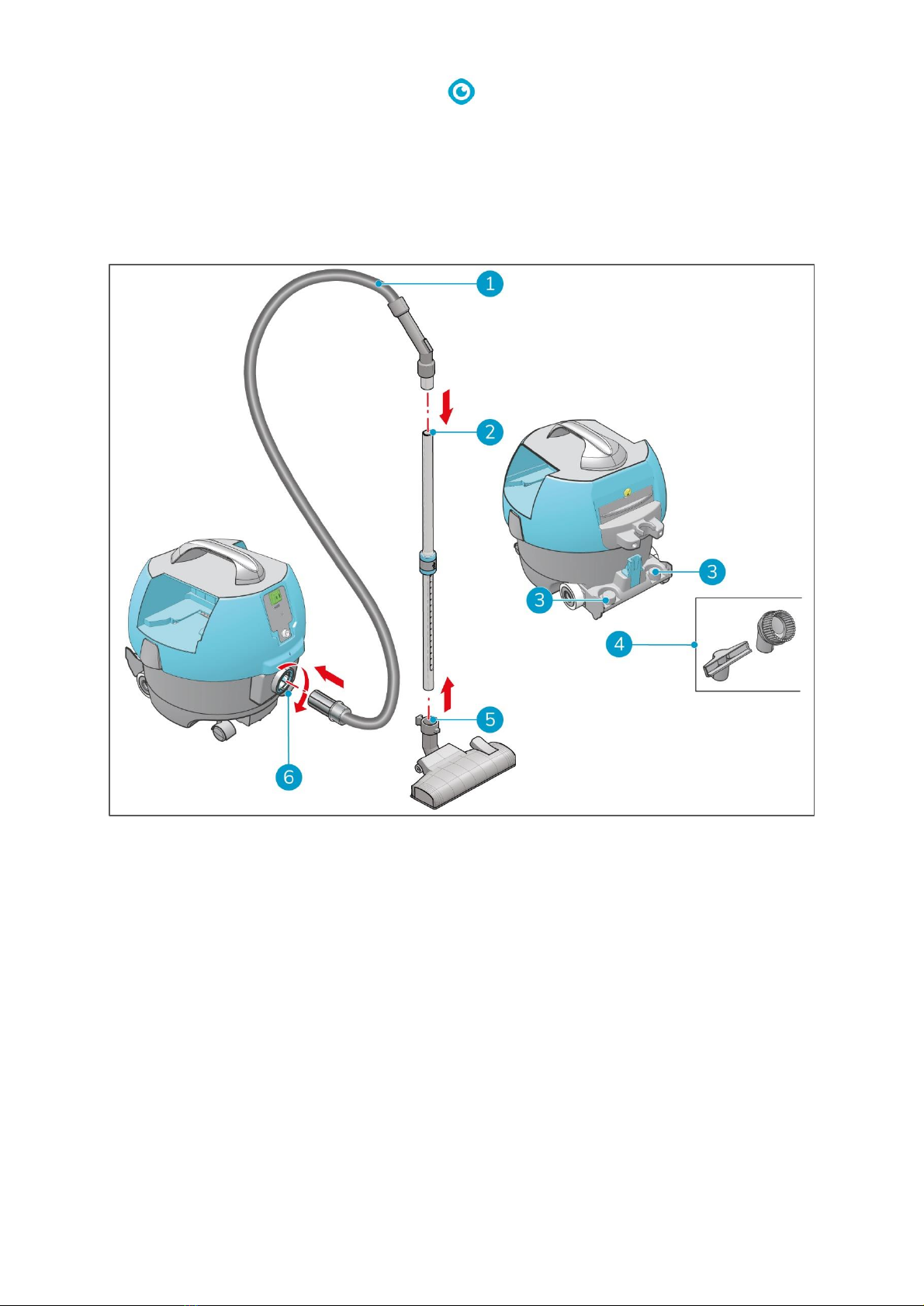

5.2 Assembly
1. Insert the hose (Figure 8, pos 1) into the hose connector (Figure 8, pos 6).
2. Turn the hose clockwise to lock it into place.
3. Insert the hose into the wand (Figure 8, pos 2).
4. Attach the standard floor tool (Figure 8, pos 5) on the wide end of the wand.
5. Place the upholstery tool and the round brush (Figure 8, pos 4) on the brackets (Figure 8, pos 3).
Figure 8
18
5.3 Replacing the dust bag
Check the dust bag every week and replace it if it is full. Only use original i-team dust bags.
Make sure that the hose is removed from the i-vac 9B®before removing the dust bag. You cannot
remove the dust bag with the hose in place.

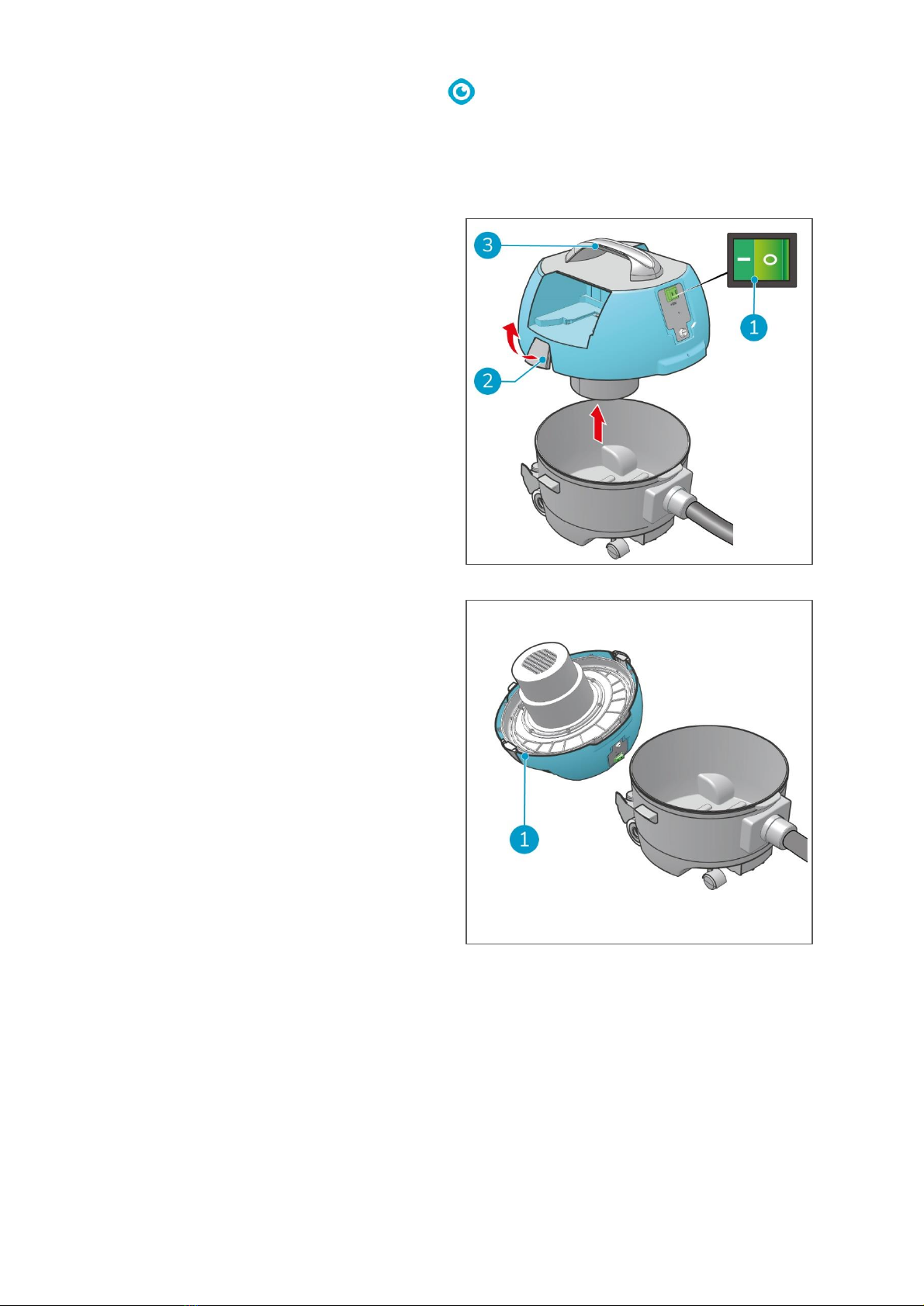

1. Turn off the i-vac 9B with the ON/OFF
switch (Figure 9, pos 1).
2. Remove the batteries. See section 6.2.2.
3. Release the latches (Figure 9, pos 2) that are
placed on both sides of the i-vac 9B®.
4. Lift the head by the handle (Figure 9, pos 3).
5. Place the head on a level surface (Figure 10,
pos 1).
Figure 9
Figure 10
19
6. Turn the hose (Figure 11, pos 4)
counterclockwise and remove it from the
hose connector.
7. Pull the cardboard tag (Figure 11, pos 2) to
seal the dust bag.
8. Fold the ends of the dust bag (Figure 11,
pos 1) towards each other.
9. Remove the old dust bag (Figure 11, pos 3).
10. Slide the cardboard collar of the new dust
bag (Figure 12, pos 1) fully into the slots to
insert the dust bag.
11. Unfold the dust bag (Figure 12, pos 2).
Figure 11
Figure 12
20
12. Place the hose (Figure 13, pos 1) into the
hose connector (Figure 13, pos 2) turn it
clockwise to lock it.
13. Place the head (Figure 14, pos 1) onto the
can.
14. Fasten the latches (Figure 14, pos 2).
15. Replace the batteries. See section 6.1.2.
Figure 13
Figure 14
ATTENTION
Make sure that the head is correctly placed on the can, otherwise false air may be sucked
in and this affects the performance of the i-vac 9B®.
This manual suits for next models
2
Table of contents
Other i-team Vacuum Cleaner manuals
