Preface
Thank you for purchasing the i-vac® 6 vacuum cleaner. The i-vac® 6 has been developed using the
feedback form users with years of experience, as a result the i-vac® 6 has some clever innovations.
The body for example, is made from durable and impact resistant material, and parts can easily be
replaced, its extended lifetime making it greener than other vacuum cleaners. The cassette filter
prevents tiny harmful particles like dust, bacteria and dust mites from being reintroduced back into
the environment, resulting in cleaner and improved air quality. To prevent overheating a thermo
sensor is added to automatically cut of the power supply. i-team Professional has developed the
Whizzo which makes a whistling sound when a blockage occurs and the pressure inside the i-vac® 6
gets too high. During office hours you can lower the sound level of the i-va®c 6 by running it in
"LOW" power mode. The flat nose tool, with its low profile is designed to adjust on different surfaces
and can reach underneath most difficult areas. Finally, the i-vac® 6 has a fragrance cassette to
disperse fresh air during operation.
The i-vac® 6 is easy to use when you follow the instructions. Please read the user manual carefully.
Become familiar with the correct operation and maintenance procedures. Store the manual in a safe
place. The manual is an essential part of the i-vac® 6 and must be handed over to the new owner
upon resale or exchange. Each i-vac® 6 has a unique identification number that can be found
underneath the can. Your i-team partner needs this number when you order parts.
When this manual refers to “the manufacturer” this means: Future Cleaning Technologies B.V., an
affiliate company of i-team in Eindhoven, the Netherlands. When this manual mentions “partner”
your local i-team resell and support service partner is referred to.
Purpose of the user manual
The purpose of the user manual is to provide the user with information during the life of the i-vac® 6
in such a way that the i-vac® 6 is used correctly, efficiently and safely, even in the event of
reasonably foreseeable misuse.
The user manual contains instructions regarding:
 personal operator safety;
 intended and non-intended use of the i-vac® 6;
 instructions for daily use;
 maintenance instructions;
 storage conditions;
 disposal of the i-vac® 6.
These instructions must be considered to avoid risks that could lead to physical and/or material
damage.
Target audience
This user manual is intended for operators of the i-vac 6® and their supervisors, as well as partners
and importers.

4
Operators of the i-vac 6
The i-vac 6® may only be operated by a person that:
 has correctly read and understood the instructions in this manual;
 is trained by an experienced operator who has read and understood the instructions in this
manual.
Reading guide
The following symbols and terms are used throughout this manual to alert the reader to
safety issues and important information:
Symbol
Term
Explanation
WARNING
Indicates a hazardous situation which, if the safety
instructions are not followed, can lead to injuries of the
operator or bystanders, light and/or moderate damage
to the product or the environment.
CAUTION
Indicates a hazardous situation which, if the safety
instructions are not followed, can lead to light and/or
moderate damage to the product or the environment.
ATTENTION
Indicates a liability situation, where the manufacturer
or its partners and affiliates cannot be held accountable
for damages caused by non-compliance.

5
Content
Preface .................................................................................................................................................................... 3
Purpose of the user manual .................................................................................................................................... 3
Target audience ...................................................................................................................................................... 3
Operators of the i-vac 6 ......................................................................................................................................... 4
Reading guide .......................................................................................................................................................... 4
1 Introduction .................................................................................................................................................... 7
1.1 Intended use of the product .................................................................................................................. 7
1.2 Non-intended use of the product .......................................................................................................... 8
1.3 Lifespan .................................................................................................................................................. 8
1.4 Modifications ......................................................................................................................................... 9
1.5 Specifications ......................................................................................................................................... 9
1.6 Warranty .............................................................................................................................................. 10
1.7 Identification ....................................................................................................................................... 10
2 Description ................................................................................................................................................... 11
3 Safety ............................................................................................................................................................ 12
3.1 General Safety Instructions ................................................................................................................. 12
3.2 Safety during operation ....................................................................................................................... 12
3.3 Risks during operation ......................................................................................................................... 13
4 Transport and storage .................................................................................................................................. 13
5 Assembly and installation ............................................................................................................................. 14
5.1 Unboxing .............................................................................................................................................. 14
5.2 Assembly .............................................................................................................................................. 15
5.3 Replacing the dust bag ........................................................................................................................ 16
6 Operation ..................................................................................................................................................... 20
6.1 Before you start ................................................................................................................................... 20
6.2 Start ..................................................................................................................................................... 21
6.2.1 Adjust speed .................................................................................................................................... 22
6.2.2 Height adjustment ........................................................................................................................... 22
6.2.3 Working on stairs or uneven surfaces ............................................................................................. 22
6.2.4 Check the dust bag .......................................................................................................................... 22
6.2.5 After operation ................................................................................................................................ 23
7 Maintenance ................................................................................................................................................ 24
7.1 Cleaning ............................................................................................................................................... 24
7.1.1 Clean the machine ........................................................................................................................... 24
7.1.2 Clean the hose and wand ................................................................................................................ 24

6
7.2 Replacing the filters and the fragrance tablet ..................................................................................... 25
7.2.1 Replacing the cassette filter ............................................................................................................ 25
7.2.2 Replacing the motor filter ............................................................................................................... 26
7.2.3 Replacing the silencer on top of the motor .................................................................................... 27
7.2.4 Replacing the fragrance tablet ........................................................................................................ 28
7.3 Tool condition ...................................................................................................................................... 28
7.4 Damaged or worn parts ....................................................................................................................... 28
7.5 Maintenance frequency ...................................................................................................................... 28
7.6 Storage ................................................................................................................................................. 28
8 Trouble shooting .......................................................................................................................................... 29
9 Decommissioning and disposal .................................................................................................................... 30
10 Attachments ................................................................................................................................................. 31
10.1 CE Certificate ....................................................................................................................................... 31

7
1 Introduction
The i-vac 6® is an easy and safe machine to use. It is equipped with several different accessories for
vacuuming different surfaces and safety equipment like the Whizzo. This manual helps you get
started and explains the operation and maintenance procedure.
This manual is intended for those who work with the i-vac 6® and perform daily maintenance (see
also "Target Audience"). The manual must be read in full before the first actions. This manual
describes the correct method of use, safety measures, maintenance and transport. And finally, the
manual contains information about the accessories: the tools and brush.
i-team Professional continuously improves all their products based on user experience and feedback.
Any deviations between the texts and/or images from the manual and your i-vac 6® can therefore
arise from the difference in model or from possible changes due to continuous development and
innovation.
1.1 Intended use of the product
The i-vac 6® is intended for indoor use for the collection of dry materials only.
Figure 1
The i-vac 6® is suitable for commercial use. For example: in hotels, schools, hospitals, factories, shops
and offices.
In order to use the i-vac 6® on different types of surfaces, four tools are provided. These tools are
easy to replace. Select the right tool for each job, see Figure 2.

8

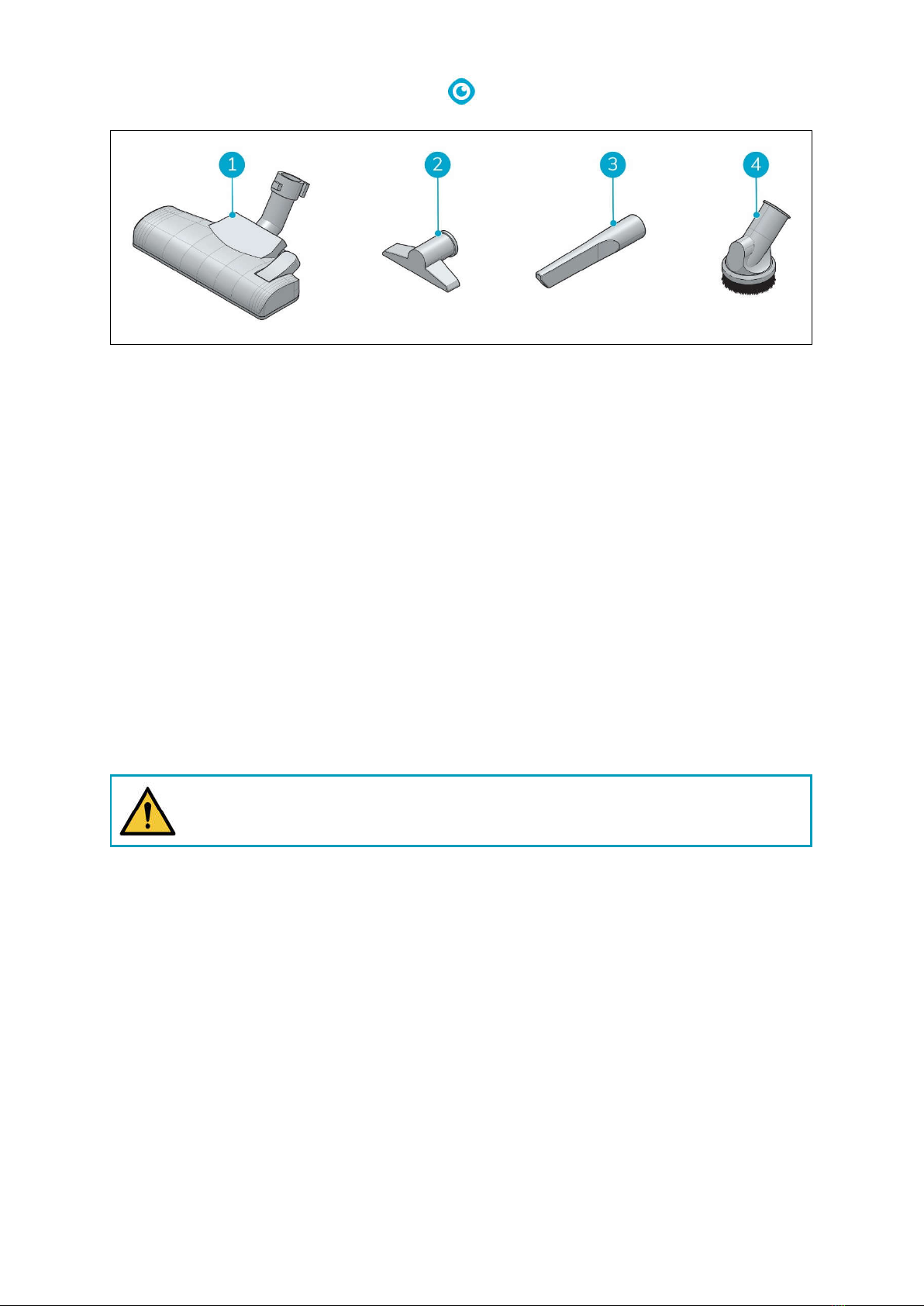

Figure 2
1. Floor tool.
2. Upholstery tool.
3. Crevice tool.
4. Round brush.
Check the filters, dust bag, main power cable and hose regularly for pollution or damage. Replace
damaged parts. For more information on how to order i-vac 6® parts, please see section 7.4.
ONLY USE original i-team Professional parts! i-team Professional does NOT give warranty in case non
original parts are used. This is especially important in case of the dust bag as this has a fleece lining
which prevents the filter from becoming wet when you vacuum an absorbent doormat.
Make sure that the i-vac 6® Is maintained as described in section 7 Maintenance. Not following the
recommended maintenance may lead to hazardous situations and i-team Professional may NOT give
warranty.
Keep the i-vac 6® and the accessories clean.
1.2 Non-intended use of the product
WARNING
Non-intended use can have consequences for the safety of operators and bystanders
and will void the warranty on the product.
The i-vac 6® is not intended to clean anything else than dry materials.
The i-vac 6® is not suitable for the collection of:
 wet materials or water;
 hot ashes or lighted cigarette ends;
 hazardous or explosive substances;
 biological hazards;
 particulate matter.
1.3 Lifespan
For a proper functioning and a long lifespan of the i-vac 6®, it is important to follow the
recommended maintenance intervals mentioned in this manual.

9
1.4 Modifications
It is not permitted to make modifications to the design of the i-vac 6® without consultation and
permission from the manufacturer. This affects the warranty, see section 1.6.
1.5 Specifications
Figure 3
Product size (body unit):
400*380*360 mm
Diameter accessories
32 mm
Cable length:
1500 cm
Hose length:
250 cm
Weight:
6.8 kg
Weight with cable:
7.8 kg
Net weight incl. packaging
10.8 kg
Capacity (filter bag):
6 L
Voltage:
230-240 V
Power (motor):
850/1100 W
Water lift/suction:
2200 mm
Air flow:
29 L/sec l 52 L/sec
Sound Level:
58 dB l 62 dB
Wet/dry
Dry
Detachable main power cable
Yes
Material
PP

10
1.6 Warranty
The i-vac 6® should only be operated with the materials supplied. Using alternative supplies may
cause damage to the i-vac 6® and may cause a risk to the operator. The use of alternative supplies
voids manufacturer's warranty. The warranty period Is 1 year.
1.7 Identification

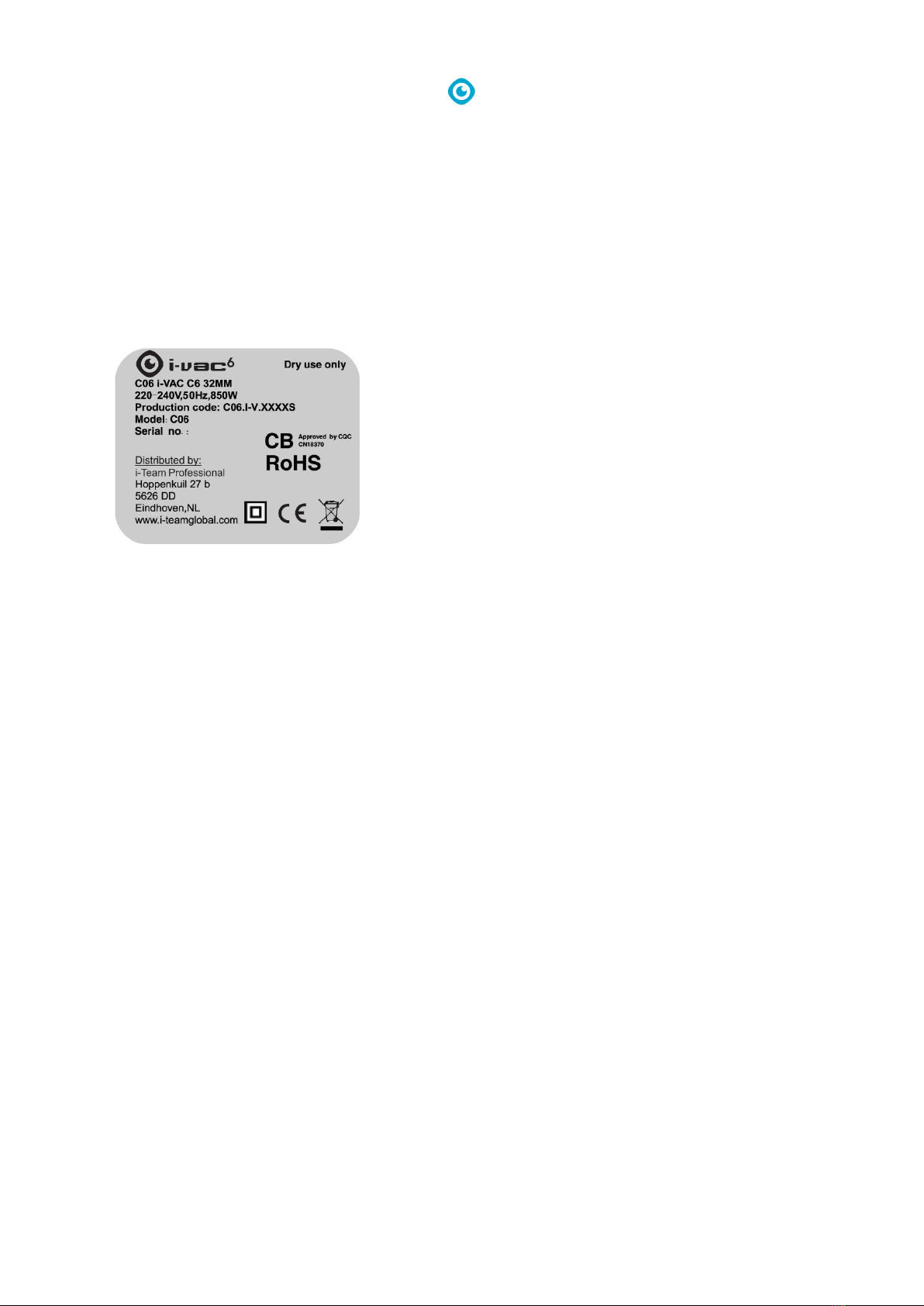

Each i-vac 6® has a unique serial number (see figure 4) that can be found underneath the can. Your i-
team partner needs this number when you order parts.
Explanation type plate:
Product type: i-vac 6®
Production code: C06.I-V.XXXXS
Model: C06
Serial number:
Distributor: i-team Professional
Figure 4

11
2 Description
The body of the i-vac 6® is made of non-breakable material and the hose has an extra strong middle
section for high endurance. The length of the wand is easy adjustable and can be combined with 4
different tools to use the i-vac 6® on different surfaces.
The i-vac 6® consists of:

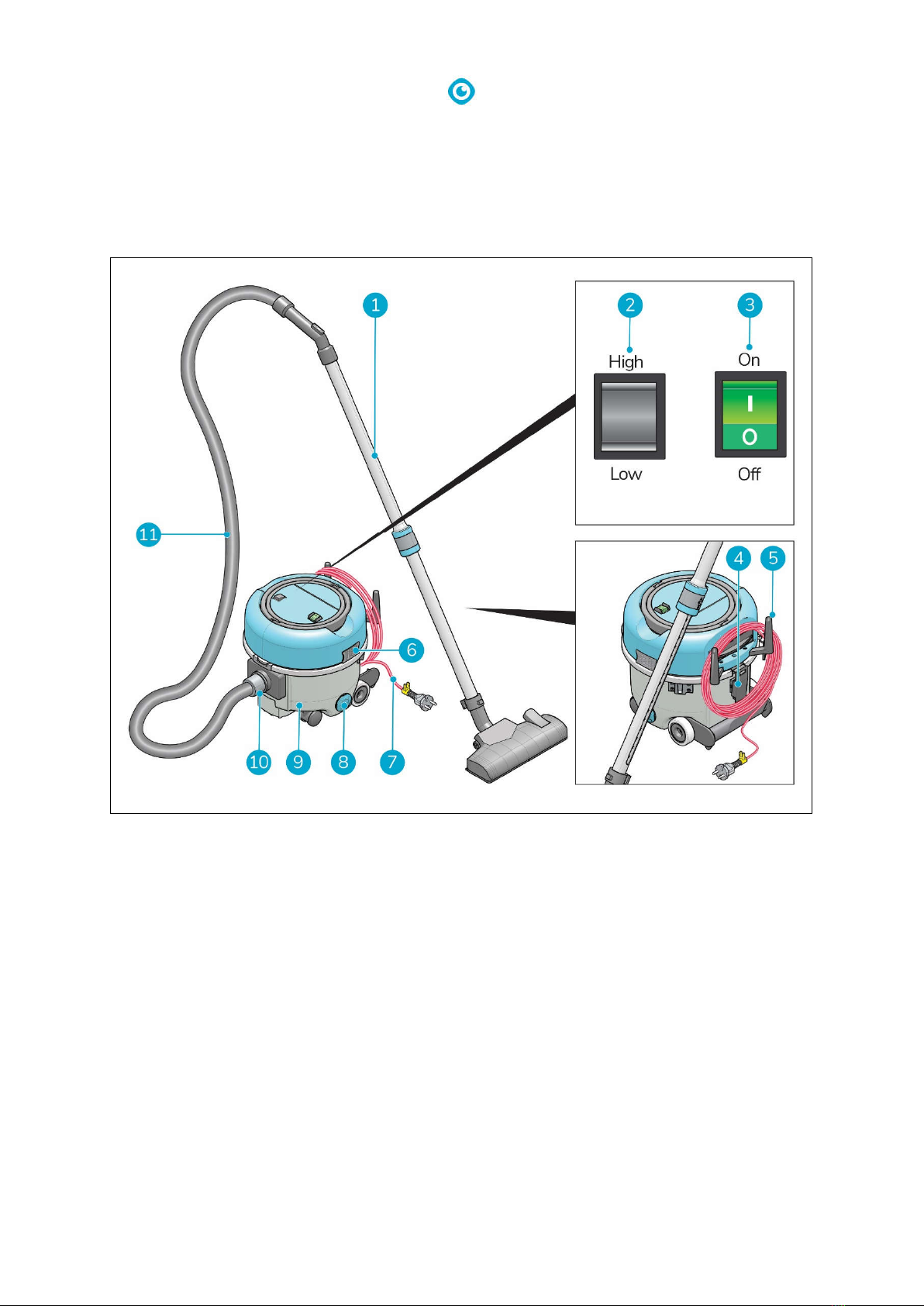

Figure 5
Legend
1.
The wand.
7.
The main power cable.
2.
The high/low switch.
8.
The Whizzo warning signal system.
3.
The main ON/OFF switch.
9.
The can.
4.
The latch to open the can.
10.
The hose connector.
5.
The main power cable storage bracket.
11.
The hose.
6.
The fragrance tablet holder.

12
3 Safety
Safety comes first, therefore please take time to read and understand these safety instructions.
Improper use can cause harm or void the manufacturer’s warranty.
3.1 General Safety Instructions

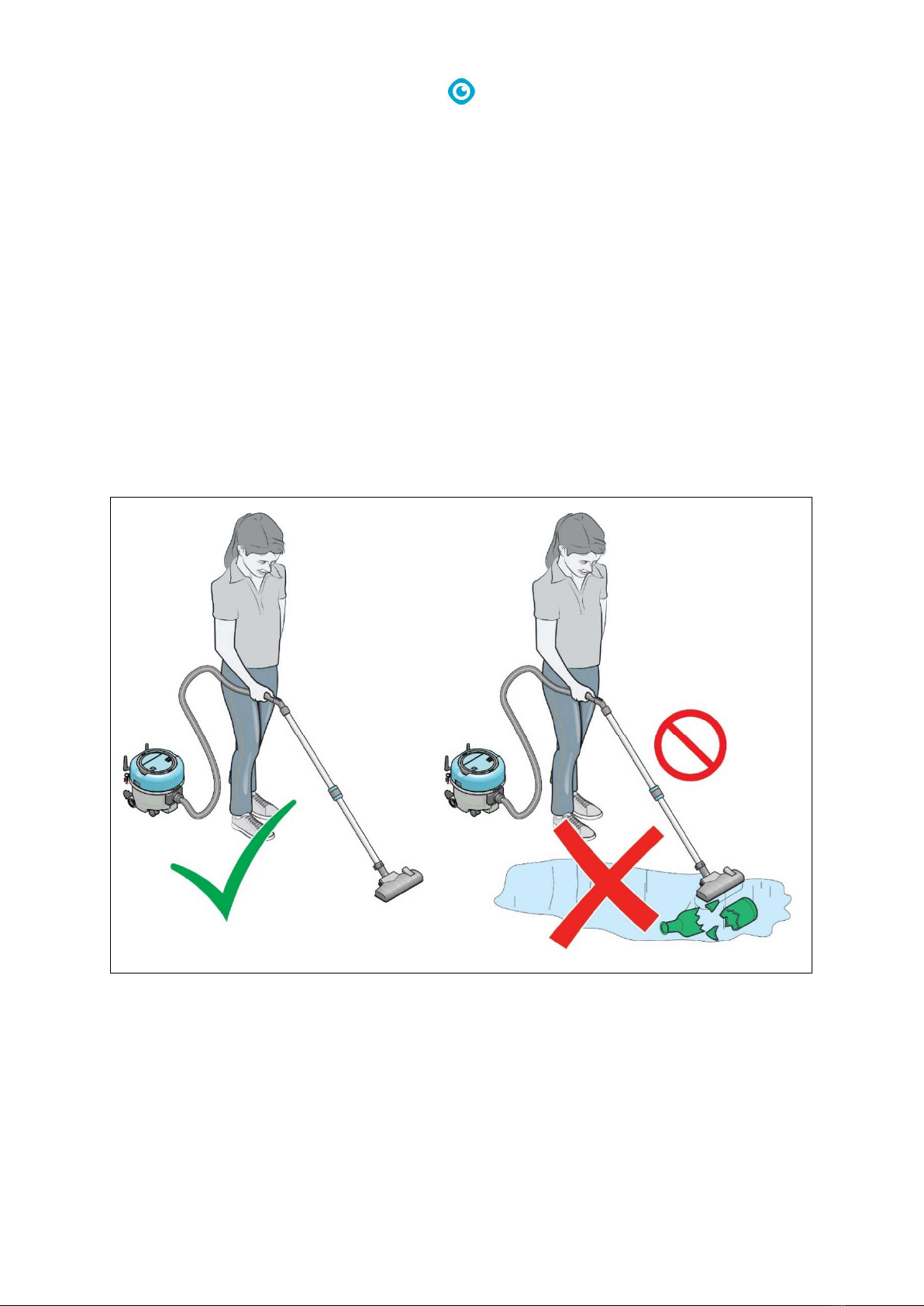

o Make sure that the main power cable is fully unwound before using the i-vac 6®.
o Remove small object such as paper clips and pins from the floor before using the i vac® 6. They
might damage the unit.
3.2 Safety during operation
WARNING
STOP OPERATION IMMEDIATELY if the i-vac 6® does not perform properly or makes
unusual noise. Service the i-vac 6® before you continue the operation.
WARNING
DO NOT use the i-vac 6® on damp or wet surfaces. This will cause damage to the
i-vac 6® and is dangerous to the user. The damage caused by the use on a wet surface is
not covered under the warranty.
WARNING
DO NOT run the i-vac 6® over the main power cable.
o Be careful when vacuuming over area rug edges and fringe.
o In case you hear a whistling noise, coming from the Whizzo, please see section 8 "Trouble
shooting".
o Do not remove the power plug from the socket by pulling at the main power cable.
WARNING
DO NOT operate the i-vac 6® without a filter dust bag.

13
3.3 Risks during operation
When you vacuum on stairs or on an uneven surface, place the i-vac 6® on the two brackets for the
cable storage. This way the i-vac 6® cannot roll or slide away (figure 6).
Figure 6
4 Transport and storage
 DO NOT store the i-vac 6® outside.
 Store the i-vac 6® in a dry place.

14
5 Assembly and installation
The i-vac 6® is easy to assemble. The machine comes with 3 additional tools for vacuuming different
surfaces.
5.1 Unboxing

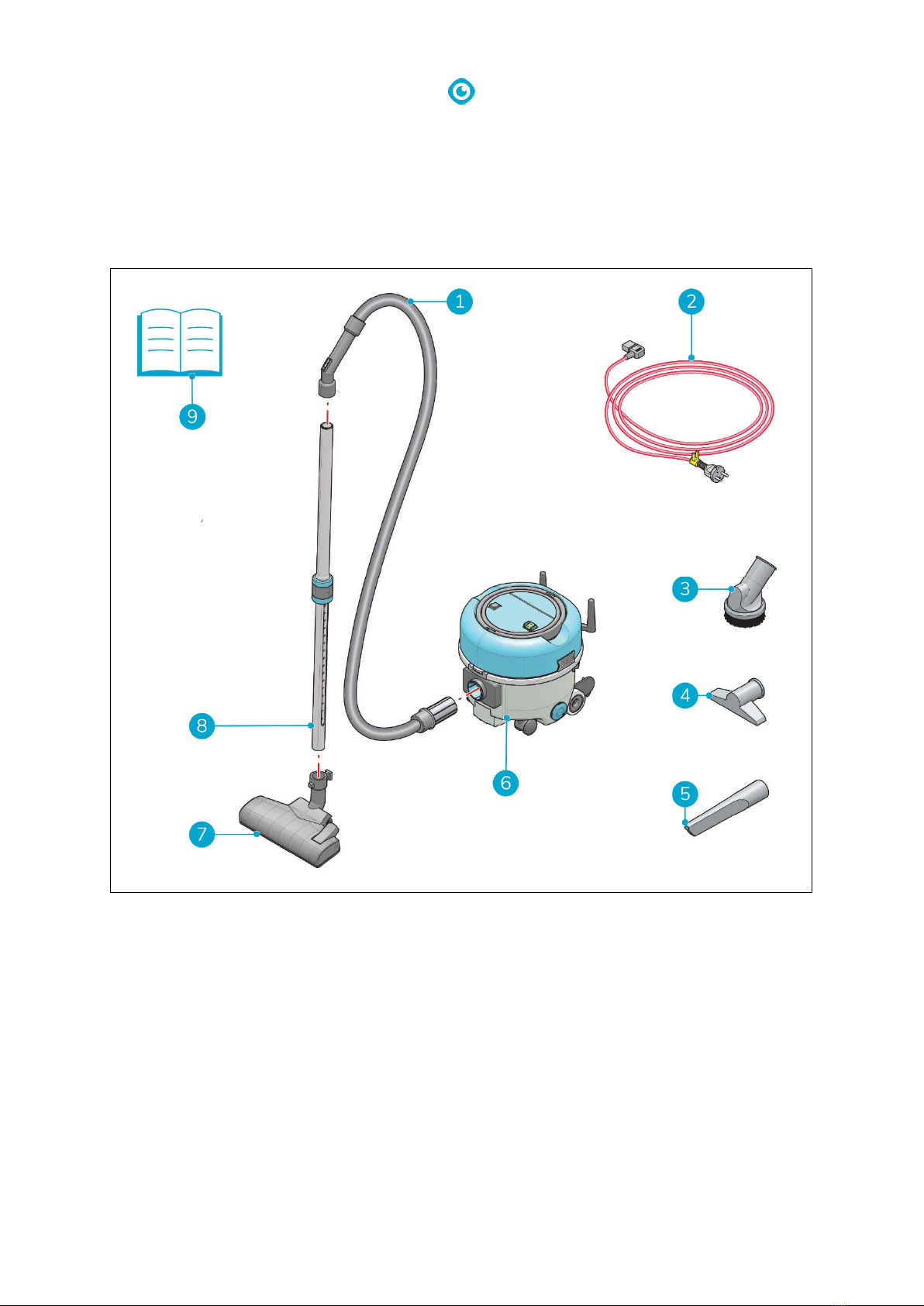

The i-vac 6® and all the components and accessories are packed in 1 box.
Figure 7
Legend
1.
1x hose
6.
1x i-vac 6® can
2.
1x main power cable
7.
1x floor tool
3.
1x Round brush
8.
1x wand
4.
1x Upholstery tool
9.
This User Manual
5.
1x Crevice tool

15
5.2 Assembly
1. Place the main power cable in the cable strain relief (fig 8, pos 2), at a cable length of
approximately 10 to 12 centimeters from the machine.
2. Place the main power cable plug (fig 8, pos 3) into the slot.
3. Insert the hose (fig 8, pos 1) into the hose connector (fig 8, pos 5).
4. Turn the hose clockwise to lock it into place.
5. Insert the hose into the wand (fig 8, pos 6).
6. Attach the desired tool (fig 8, pos 4) on wide end of the wand.
Figure 8

16
5.3 Replacing the dust bag
 Unplug the main power cable before replacing the dust bag.
 Only use original i-team dust bags.
 Make sure that the hose is removed from the i-vac 6® before removing the dust bag. This
may cause damage to the dust bag and is potentially bad for your health as a result of dust.
1.
Turn off the i vac® 6 with the main power
switch (fig 9, pos 1).
2. Release the latch (fig 9, pos 3).
3. Lift the head (fig 9, pos 2) under the grey
rim, on the side of the latch.
Figure 9
4.
Pull the head (fig 10, pos 1) towards the
side of the hose entrance and lift it up.
Figure 10

17

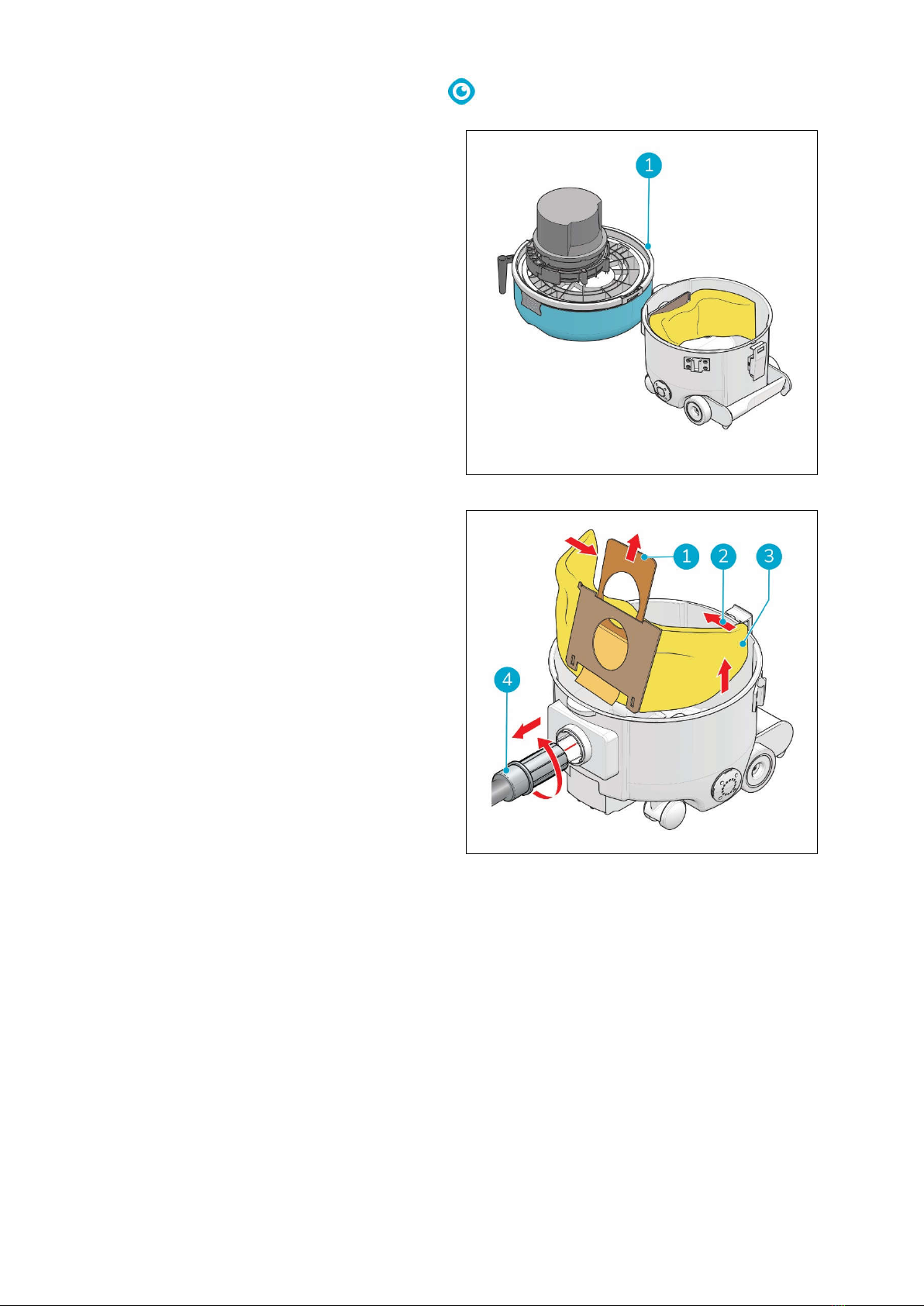

5.
Place the head upside down, on an
even surface (fig 11, pos 1).
Figure 11
6.
Turn the hose (fig 12, pos 4) anti clockwise
and remove it from the hose connector.
7. Pull the cardboard tag (fig 12, pos 1) to seal
the dust bag.
8. Fold the ends of the dust bag (fig 12, pos 2)
towards each other.
9. Remove the old dust bag (fig 12, pos 3).
Figure 12

18

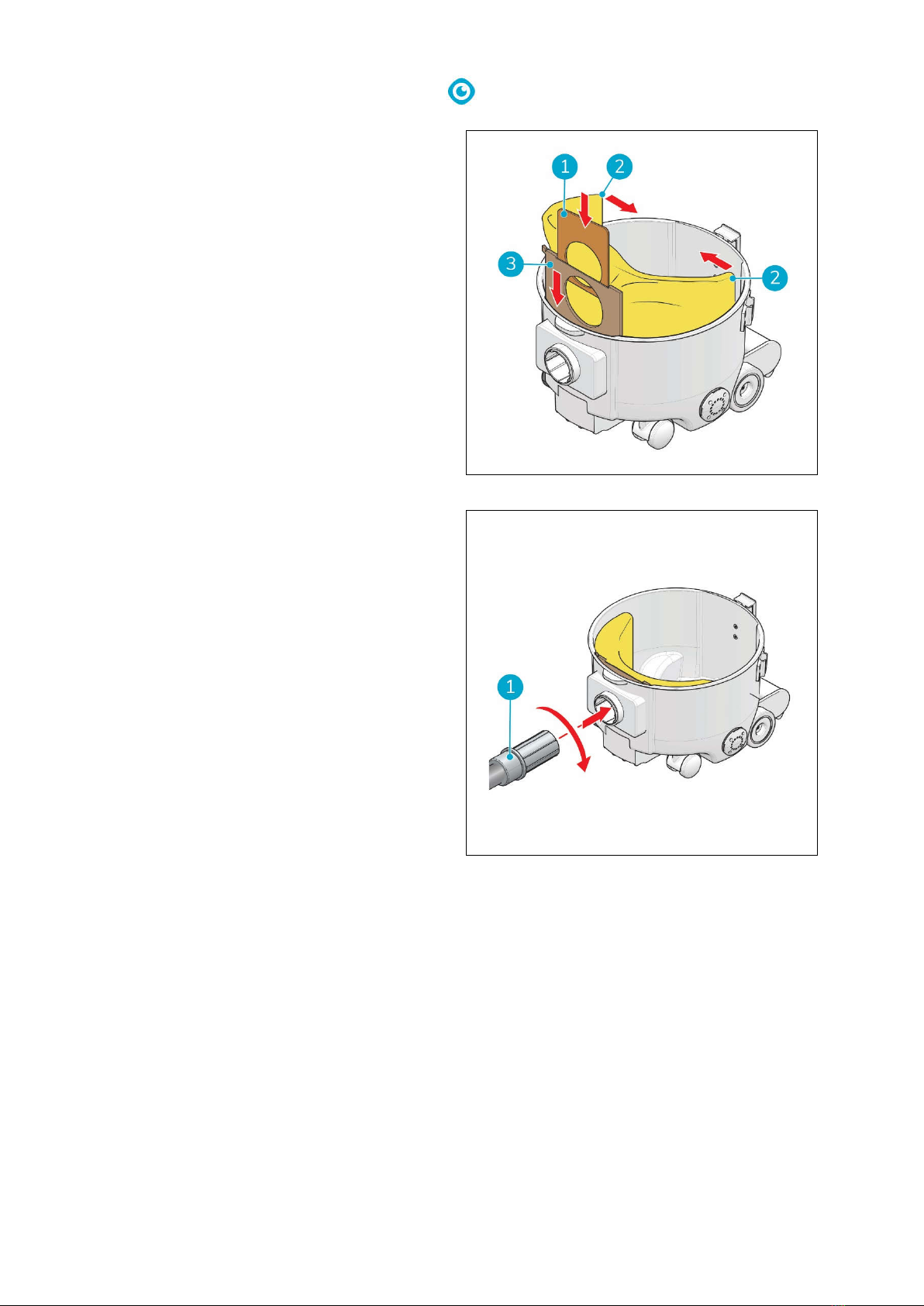

10.
Slide the cardboard collar of the new filter
bag (fig 13, pos 3) into the slots to fully
insert the dust bag.
11. Push the cardboard tag (fig 13, pos 1) down
to open the bag.
12. Unfold the dust bag (fig 13, pos 2).
Figure 13
13.
Place the hose (fig 14, pos 1) into the hose
connector, turn it clockwise to lock it.
Figure 14

19

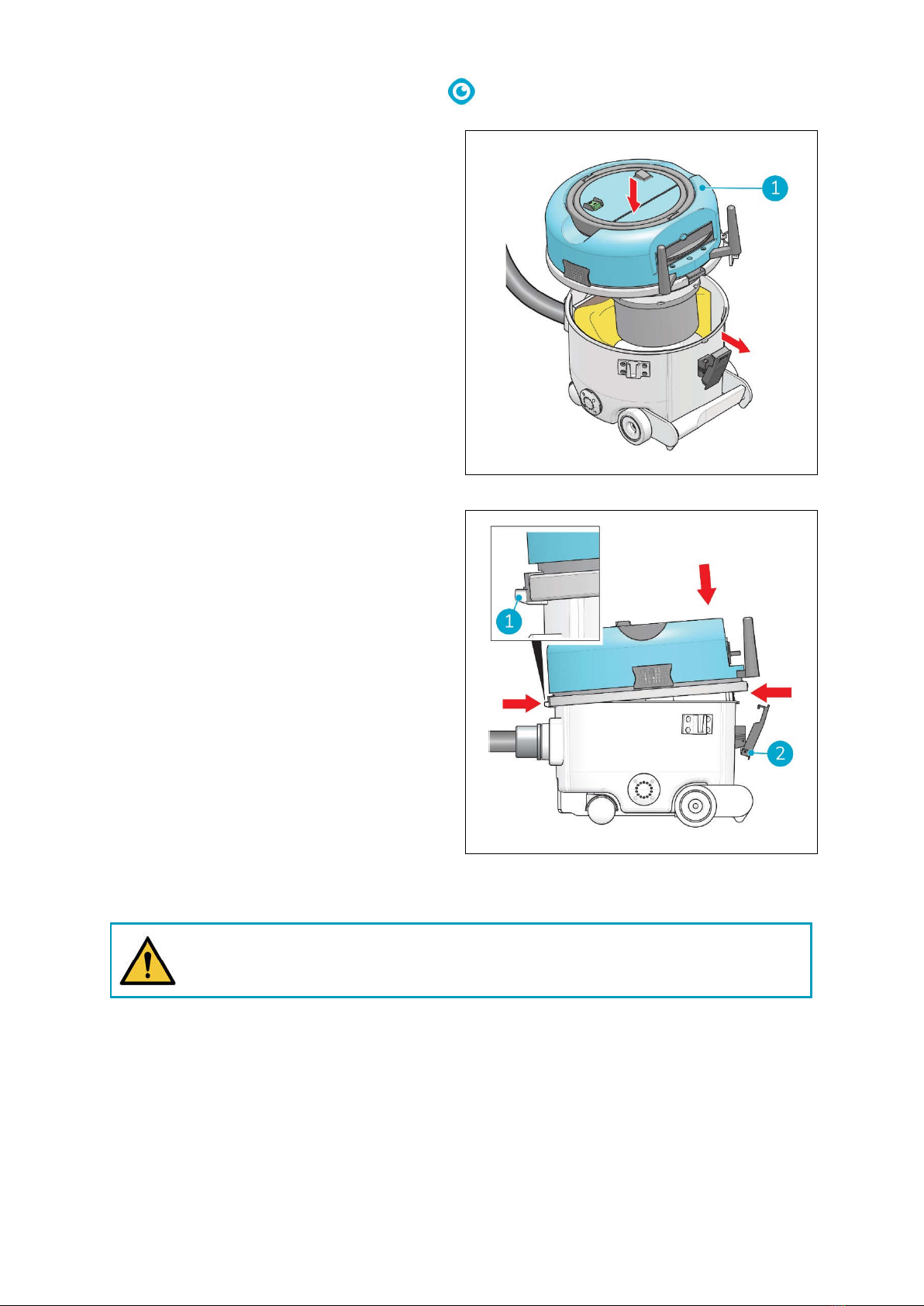

14.
Place the head (fig 15, pos 1) onto the can.
Figure 15
14.
Make sure that the opening in the head fits
around the nock on the can (fig 16, pos 1).
15. Fasten the latch (fig 16, pos 2).
Figure 16
ATTENTION
Make sure that the head is correctly placed on the can, otherwise it can suck in false air
and this affects the performance of the i-vac 6®.

20
6 Operation
6.1 Before you start
1.
Check that the main power cable is placed
in the cable strain relief (fig 17, pos 1).
2. Check that the main power cable is not
damaged. Pull it through a fiber cloth.
3. Check that the dust bag is placed in the
i vac® 6. See also section 5.3.
4. Make sure you have the correct tool for the
intended purpose. See also section 1.1.,
figure 2.
5. Check the brush from the tool for wear and
tear. See also section 6.3.4.
6. Check all filters. See also section 7.2.
Figure 17
