IBA PQU-S User manual

Manual
Issue 1.0
1
ibaPQU-S
Power Quality Measurement Unit
according to IEC61000-4-30 Ed. 3 Class A
Manual
Issue 1.3

Manual
ibaPQU-S
Manufacturer
iba AG
Königswarterstr. 44
90762 Fürth
Germany
Contacts
Head office [phone]
Fax [phone]
Support [phone]
Technology [phone]
E-mail: [e-mail]
Web: www.iba-ag.com
This manual must not be circulated or copied, or its contents utilized and disseminated, without
our express written permission. Any breach or infringement of this provision will result in liability
for damages.
© iba AG 2019, all rights reserved.
The content of this publication has been checked for compliance with the described hardware and
software. Nevertheless, deviations cannot be excluded completely so that the full compliance is
not guaranteed. However, the information in this publication is updated regularly. Required cor-
rections are contained in the following regulations or can be downloaded on the Internet.
The current version is available for download on our web site www.iba-ag.com.
Copyright notice
Windows®is a label and registered trademark of the Microsoft Corporation. Other product and
company names mentioned in this manual can be labels or registered trademarks of the corre-
sponding owners.
Certification
The product is certified according to the European standards and directives. This product meets
the general safety and health requirements.
Further international customary standards and directives have been observed.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pur-
suant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harm-
ful interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in residential
area is likely to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Issue
Date
Revisions
Chapter
Author
Version HW/FW
1.3
06-2019
Note Harmonic voltage/Spectrum submodule
13.3.6,
13.3.12
mk

Manual
Issue 1.3
3
Table of Contents
1About this manual...........................................................................................6
1.1 Target group..................................................................................................7
1.2 Notations.......................................................................................................7
1.3 Used symbols................................................................................................8
2Introduction .....................................................................................................9
2.1 Modular concept.......................................................................................... 10
2.2 Measurements according to EN50160..........................................................11
3Scope of delivery...........................................................................................11
4Safety instructions........................................................................................12
4.1 Proper use .................................................................................................. 12
4.2 Special safety instructions........................................................................... 12
5System requirements....................................................................................13
5.1 Hardware ....................................................................................................13
5.2 Software......................................................................................................13
6Mounting, connecting, dismounting............................................................14
6.1 Mounting..................................................................................................... 14
6.2 Connecting.................................................................................................. 15
6.3 Dismounting................................................................................................15
7Device description ........................................................................................16
7.1 Views ..........................................................................................................16
7.2 Display elements......................................................................................... 17
7.2.1 Operating state L1…L4 ............................................................................... 17
7.2.2 LEDs L5…L8...............................................................................................17
7.2.3 Status of digital inputs L10…L17................................................................. 18
7.3 Operating elements.....................................................................................18
7.3.1 ON/OFF switch S11..................................................................................... 18
7.3.2 Rotary switches S1 and S2 ......................................................................... 18
7.4Communication interfaces...........................................................................19
7.4.1 FO cable connections X10 and X11.............................................................19
7.4.2 Network connection X22 ............................................................................. 19
7.5 Digital inputs X5.......................................................................................... 19
7.5.1 Connection diagram / pin assignment..........................................................19
7.5.2 Debounce filter............................................................................................ 20
7.6 Voltage supply............................................................................................. 22
7.6.1 Voltage supply X14......................................................................................22
7.6.2 Backup voltage X30 ....................................................................................22
8Measurement principles and measured quantities....................................23
8.1 Grid types.................................................................................................... 23
8.2 Signals and calculated characteristic values ...............................................24
8.3 System integration.......................................................................................26
8.4 Time synchronization...................................................................................26

Manual
ibaPQU-S
4
Issue 1.3
8.5 Signal processing........................................................................................ 26
8.5.1 Sampling rate.............................................................................................. 26
8.5.2 Signal filtering ............................................................................................. 27
8.5.3 Automatic range switching .......................................................................... 27
9Updates..........................................................................................................29
9.1 Update via ibaPDA...................................................................................... 29
9.2 Updating the modules................................................................................. 29
10 Configuration with ibaPDA...........................................................................31
10.1 First steps ................................................................................................... 31
10.1.1 Overview of the modules in ibaPDA............................................................ 38
10.2 Basic modules in I/O Manager .................................................................... 39
10.2.1 PQU-S –“General” tab................................................................................ 39
10.2.2 PQU-S –“Analog” tab ................................................................................. 41
10.2.3 PQU-S –“Digital” tab .................................................................................. 41
10.2.4 PQU-S –“Diagnostics” tab.......................................................................... 42
10.2.5 ibaPQU-S –“General” tab........................................................................... 43
10.2.6 ibaPQU-S –“Digital” tab.............................................................................. 44
10.2.7 ibaPQU-S –“Status” tab.............................................................................. 45
10.2.8 Diagnose - “General” tab............................................................................. 46
10.2.9 Diagnose - “Digital” tab ............................................................................... 47
10.3 Submodules to calculate characteristic values............................................ 48
10.3.1 Grid module ................................................................................................ 48
10.3.2 EN50160 submodule: Power frequency...................................................... 52
10.3.3 Submodule EN50160: Supply voltage variation........................................... 54
10.3.4 EN50160 submodule: Flicker severity......................................................... 55
10.3.5 EN50160 submodule: Supply voltage unbalance........................................ 57
10.3.6 EN50160 submodule: Harmonic voltage..................................................... 59
10.3.7 EN50160 submodule: Mains signalling voltage........................................... 61
10.3.8 EN50160 submodule: Voltage events.......................................................... 63
10.3.9 Basic submodule......................................................................................... 64
10.3.10 Phasor submodule...................................................................................... 66
10.3.11 Power submodule ....................................................................................... 69
10.3.12 Spectrum submodule.................................................................................. 71
10.3.13 Unbalance submodule ................................................................................ 74
10.3.14 Flicker severity submodule.......................................................................... 77
10.3.15 Aggregation submodule .............................................................................. 79
10.3.16 Commutation notches submodule............................................................... 84
10.3.17 Events submodule....................................................................................... 85
11 Technical data ...............................................................................................88
11.1 Main data.................................................................................................... 88
11.2 Interfaces.................................................................................................... 89
11.3 Digital inputs ............................................................................................... 89
11.4 Grid characteristics ..................................................................................... 89
11.5 Dimensions................................................................................................. 91

Manual
Issue 1.3
5
11.6 Connection diagram....................................................................................97
11.6.1 Pin assignment voltage supply X14.............................................................97
11.6.2 Pin assignment digital inputs X5.................................................................. 97
12 Accessories and related products...............................................................98
13 Appendix......................................................................................................102
13.1 Calculating characteristic values ............................................................... 102
13.1.1 RMS (Root Mean Square)......................................................................... 102
13.1.2 Rectified value........................................................................................... 102
13.1.3 Peak value ................................................................................................ 102
13.1.4 Form factor................................................................................................ 102
13.1.5 Crest factor ............................................................................................... 102
13.1.6 Frequency................................................................................................. 102
13.1.7 Harmonics, interharmonics, phase angle................................................... 102
13.1.8 THD (Total Harmonic Distorsion)............................................................... 102
13.1.9 Flicker ....................................................................................................... 103
13.1.10 Power / Energy.......................................................................................... 103
13.1.11 Voltage balance / Unbalance..................................................................... 106
13.1.12 Interference factor..................................................................................... 107
13.1.13 Commutation notches ............................................................................... 108
13.1.14 Events....................................................................................................... 109
13.2 Connection examples.................................................................................111
13.2.1 1-phase......................................................................................................111
13.2.2 Star connection..........................................................................................111
13.2.3 Delta connection ........................................................................................112
13.2.4 Connection with instrument transformers ...................................................112
14 Index.............................................................................................................114
15 Certificate.....................................................................................................115
16 Support and contact ...................................................................................116

Manual
ibaPQU-S
6
Issue 1.3
1 About this manual
This manual describes the design, use and operation of the ibaPQU-S. For information
on the design, use and operation of the I/O modules, please refer to the dedicated man-
uals.
Note
The documentation of the ibaPQU-S system is included on the DVD that is part of the
delivery.
The documentation of the ibaPQU-S system consists of the following manuals:
ibaPQU-S central unit
The manual contains the following information:
Scope of delivery
System requirements
Device description
Installation/Removal
Start-up
Configuration
Technical data
Accessories
Modules
The manuals of the single modules contain specific information about the module.
For example:
Brief description
Scope of delivery
Product characteristics
Configuration
Description of the functions
Technical data
Connection diagram

Manual
Issue 1.3
7
1.1 Target group
This manual addresses in particular thequalified professionals who are familiar with han-
dling electrical andelectronic modules as well as communication andmeasurement tech-
nology. A person is regarded to as professional if he/she is capable of assessing safety
and recognizing possible consequences and risks on the basis of his/her specialist train-
ing, knowledge and experience and knowledge of the standard regulations.
1.2 Notations
The following designations are used in this manual:
Action
Notations
Menu command
Menu „Logic diagram“
Call of menu command
„Step 1 – Step 2 –Step 3 –Step x”
Example:
Select menu „Logic diagram – Add –New logic
diagram”.
Keys
<Key name>
Example:
Example: <Alt>; <F1>
Press keys simultaneously
<Key name> + <Key name>
Example:
<Alt> + <Ctrl>
Buttons
<Key name>
Example:
<OK>; <Cancel>
File names, Paths
„File name“
„Test.doc“

Manual
ibaPQU-S
8
Issue 1.3
1.3 Used symbols
If safety instructions or other notes are used in this manual, they mean:
Danger by an electric shock!
The non-observance of this safety information may result in an imminent risk of death or
severe injury: By an electric shock!
Danger!
The non-observance of this safety information may result in an imminent risk of death or
severe injury!
Warning!
The non-observance of this safety information may result in a potential risk of death or
severe injury!
Caution!
The non-observance of this safety information may result in a potential risk of injury or
material damage!
Note
A note specifies special requirements or actions to be observed.
Important note
Note if some special features must be observed, for example exceptions from the rule.
Tip
Tip or example as a helpful note or insider tip to make the work a little bit easier.
Other documentation
Reference to additional documentation or further reading.

Manual
Issue 1.3
9
2 Introduction
ibaPQU-S is a modular system to measure power quality parameters using ibaPQU-S
as central unit.
ibaPQU-S measures raw values such as current and voltage in sync with the grid and
calculates the characteristic values according to IEC 61000-4-30 Ed. 3 Class A. Charac-
teristic values include:
Frequency
RMS and maximum value, rectified value, form factor, crest factor
FFT (harmonics, interharmonics up to 50th order)
THD (Total Harmonic Distorsion)
Phase values (U/I phase angle to the reference voltage)
Power values (active power, apparent power, reactive power, cos θ, electric energy,
power factor for individual lines and for the total grid)
Symmetrical components (positive, negative and zero sequence component) and
supply voltage unbalance
Flicker (according to IEC 61000-4-15, short-term, long-term)
Event detection (voltage dip, voltage swell, voltage cutoff, rapid voltage changes,
mains signalling voltage)
In addition, ibaPQU-S calculated the following values:
Commutation notches
Flicker for currents
Symmetrical components (positive, negative and zero sequence component) and
supply voltage unbalance
ibaPQU-S is suitable for the following grids:
DC
50 Hz
60 Hz
user-defined grids ranging between 10 Hz and 80 Hz frequency

Manual
ibaPQU-S
10
Issue 1.3
2.1 Modular concept
The modular concept of the ibaPQU-S system is based on a backplane capable of ac-
commodating the central unit plus up to 4 input/output modules (I/O). ibaPQU-S operates
as a central unit with integratedmeasurement and calculation algorithms and additionally
features 8 digital inputs. The central unit can be expanded by up to 4 current and voltage
measurement modules.
The following I/O modules support the measurement and calculation of power quality
parameters:
Voltage measurement modules
ibaMS4xAI-380VAC (4 analog inputs for 380 VAC)
ibaMS8xAI-110VAC (8 analog inputs for 110 V AC)
ibaMS16xAI-24V (16 analog inputs for ±24 V)
ibaMS16xAI-24V-HI (16 analog inputs for ±24 V, high impedance)
ibaMS16xAI-10V (16 analog inputs for ±10 V)
ibaMS16xAI-10V-HI (16 analog inputs for ±10 V, high impedance)
Current measurement modules
ibaMS3xAI-1/100A (3 analog inputs for 1 AAC/100 A DC)
ibaMS3xAI-5A (3 analog inputs for 5 AAC)
ibaMS3xAI-1A (3 analog inputs for 1 AAC)
ibaMS16xAI-20mA (16 analog inputs for ±20 mA)
Combination module
ibaMS4xADIO (combination module with 4 analog inputs/outputs and 4 digital in-
puts/outputs respectively; the 4 analog inputs are supported for the ibaPQU-S func-
tion, voltage or current measurement configurable)
All other I/O modules of the iba modular system are equally supported; however the
signals are transmitted as raw values only.
The raw signals and internally calculated characteristic values are sent to the ibaPDA
data acquisition system via a bidirectional fiber optic connection for visualization and
recording. Signal configuration and characteristic value selection are performed in
ibaPDA. Additionally, ibaPDA allows advanced calculations, configuring event-based
measurements based on triggers or displaying faults using an alarm function.

Manual
Issue 1.3
11
2.2 Measurements according to EN50160
The DIN EN 50160 standard specifies the voltage quality in public supply grids. It defines
features and characteristic values for the supply voltage quality and limit values. The
optional “EN50160” mode in ibaPDA captures all characteristic voltage values defined in
the standard. Beyond the requirements of DIN EN 50160, currents can optionally be
configured for evaluation.
The ibaAnalyzer software is used for measurement evaluation and generation of reports.
Moreover, it is possible to create long-term trending and clearly structured reports that
can be used e.g. to prove compliance with the DIN EN 50160 standard.
3 Scope of delivery
After unpacking, check the delivery for completeness and possible damages.
The scope of delivery comprises:
ibaPQU-S unit
Cover caps for FO cables, USB and Ethernet
16-pin connector with spring terminals (digital input channels)
2-pin connector with spring terminals (voltage supply)
DVD (iba Software & Manuals)

Manual
ibaPQU-S
12
Issue 1.3
4 Safety instructions
4.1 Proper use
The device is an electrical apparatus. It is only allowed to usethe device for the following
applications:
measurement data acquisition of voltage and current signals in energy grids
applications with ibaPDA
The device must only be used as described in chapter 11.
The current and voltage range is specified by the I/O modules used.
4.2 Special safety instructions
ATTENTION!
Observe the safety measures for the I/O modules used!
Strictly observe the operating voltage range!
Never supply the device with a voltage other than 24 V DC ±10%!
Excess voltage may destroy the device!
ATTENTION!
Never insert or remove modules and the CPU at the backplane under live conditions!
Switch off ibaPQU-S or disconnect the power supply before inserting or removing
modules.
Important note
Do not open the device! Opening the device will void the warranty!
Caution!
Make sure that the cooling fins have sufficient ventilation!
Note
Clean the device only on the outside with a dry or slightly damp and statically dis-
charged cloth.

Manual
Issue 1.3
13
5 System requirements
5.1 Hardware
For operation
Power supply 24 V DC± 10 %, 3 A (fully equipped)
Backplane unit, e.g. ibaPADU-B4S (see chap.12, “Technical data”)
For device parameterization and measurements:
Computer at least equipped with:
one free PCI slot, or
one free PCI Express slot, or
one ExpressCard(54/34) slot (notebook).
For a list of suitable computer systems with desktop and industrial housings, please go
to the iba homepage http://www.iba-ag.com.
One FO input card type ibaFOB-D (firmware version D4 or higher):
ibaFOB-io-D / ibaFOB-io-Dexp
ibaFOB-2io-D / ibaFOB-2io-Dexp
ibaFOB-2i-D / ibaFOB-2i-Dexp with ibaFOB-4o-D add-on module
ibaFOB-4i-D / ibaFOB-4i-Dexp with ibaFOB-4o-D add-on module
ibaFOB-io-ExpressCard (for notebooks)
FO cable, bidirectional
5.2 Software
ibaPDA version 6.34.4 or higher

Manual
ibaPQU-S
14
Issue 1.3
6 Mounting, connecting, dismounting
Caution!
Only work on the device when it is de-energized!
6.1 Mounting
1. Mount the backplane on an appropriate construction.
2. Connect the ground terminal.
3. Attach the device into the left slot.
Make sure that the guiding bolts on the rear side of the device are inserted into the
corresponding holes on the backplane.
4. Press the device firmly against the backplane and secure it with the fixing screws.
5. Remove the covers of the backplane slots in which you want to plug I/O modules.
6. Install one or more I/O modules to the right of the central unit (slots X2 through X5,
freely selectable).
7. Firmly plug the module into the backplane.
8. Screw the module to the backplane using the upper and lower fastening screws.
Important note
Always screw tight the device and the modules. Otherwise, you might damage the unit
when inserting or removing the input/output connectors.

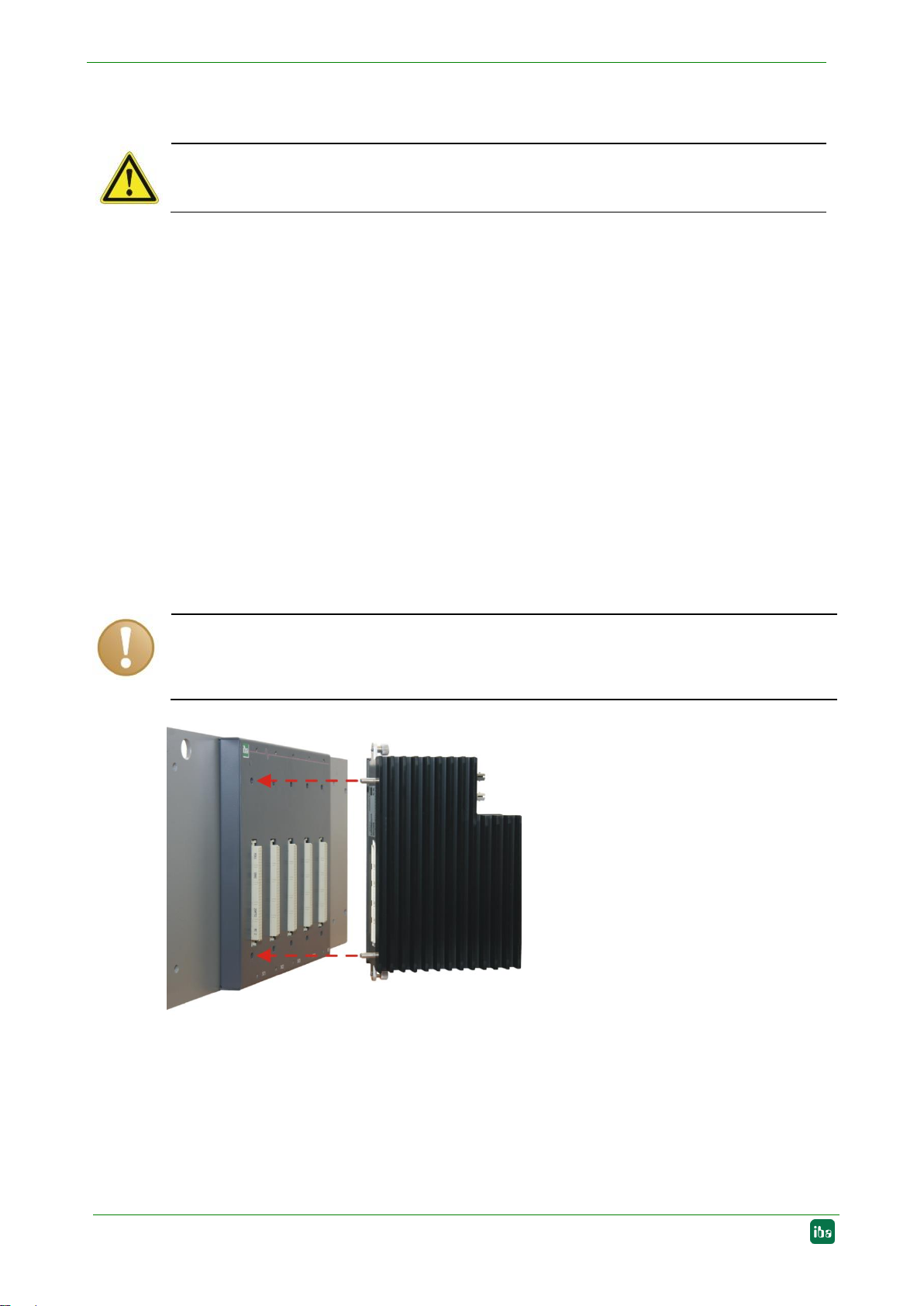

Figure 1: Mounting the central unit

Manual
Issue 1.3
15
6.2 Connecting
1. Connect the measuring lines connected to the measuring objects to the I/O module
inputs. Chapter Accessories and related products describes the connection princi-
ples.
2. Use an ibaNet FO patch cable (duplex) to connect the device to the ibaPDA com-
puter:
the RX input (X11) of the device with the TX interface of the ibaFOB-D card in the
ibaPDA computer,
the TX output (X10) of the device with the RX interface of the ibaFOB-D card in
the ibaPDA computer.
3. Once all required cables have been connected, restore the central unit's power sup-
ply connection.
4. Switch on the voltage supply of the central unit.
6.3 Dismounting
1. Switch off the device.
2. Remove all cables.
3. Hold tight the device and remove the upper and lower fixing screw.
4. Pull the device or the I/O modules off the backplane.

Manual
ibaPQU-S
16
Issue 1.3
7 Device description

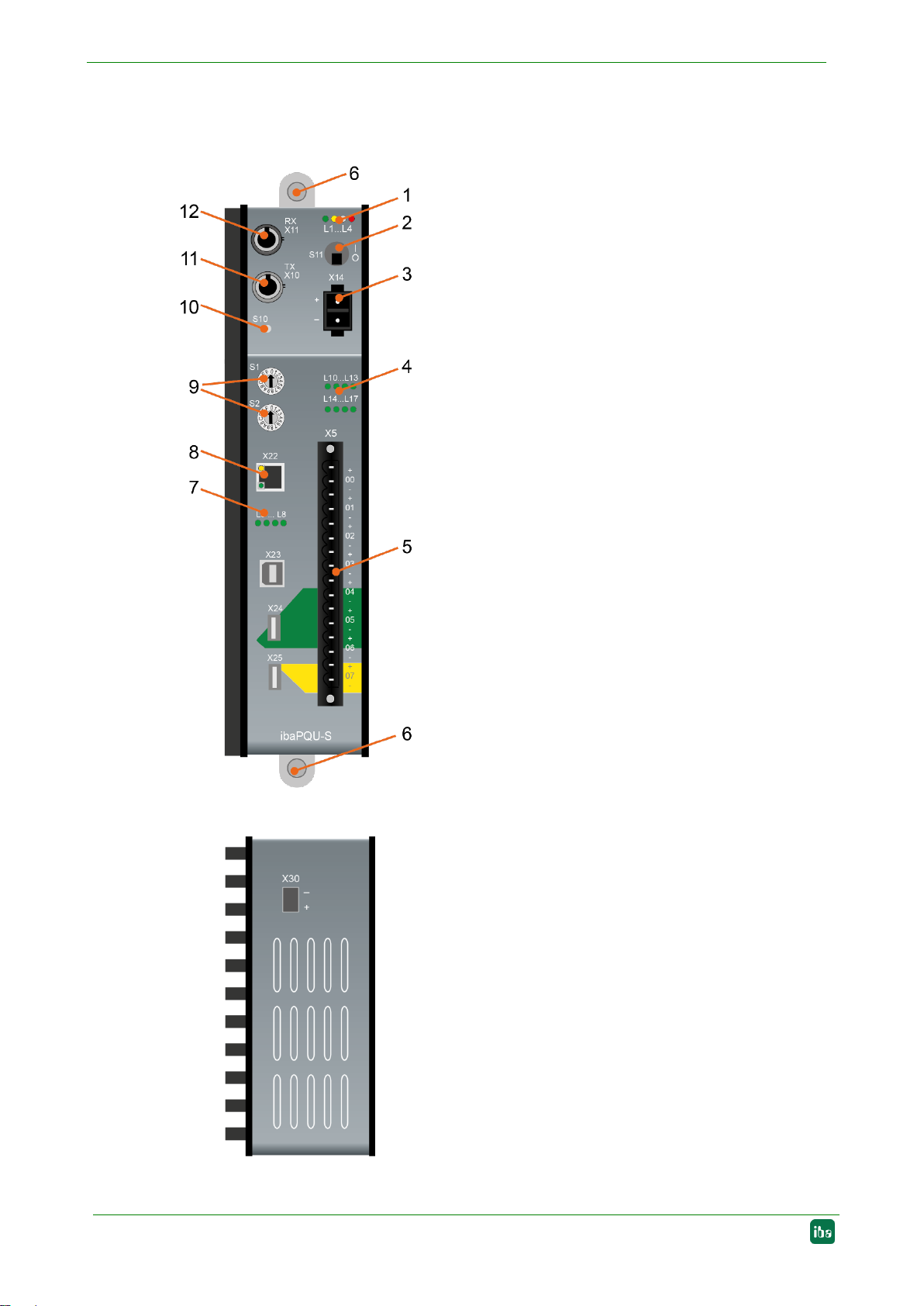

7.1 Views
1
2
3
4
5
6
7
8
9
10
11
12
Operating state display L1...L4
ON/OFF switch S11
Connector for 24 V power supply X14
Display of digital inputs L10...L17
Connector for digital inputs X5
Fixing screws
Displays L5...L8
Network interface X22 (no function)
Rotary switches S1, S2
System function pushbutton S10 (no function)
FO output socket (TX) X10
FO input socket (RX) X11
X23 for service purposes only
X24, X25 USB host interfaces for future func-
tions
Figure 2: Front view
X30 backup voltage connection 6...60 V DC
Figure 3: Bottom view

Manual
Issue 1.3
17
7.2 Display elements
7.2.1 Operating state L1…L4
The operating state of the device is indicated by colored LEDs.
LED
Status
Description
L1
Green
Off
Device down, no power supply
Hardware error
Flashing
(0.5 Hz / 2 s)
Ready
Variations in the flashing interval are indicative of overload or
device booting. Booting can take up to 100 s.
Flashing (fast)
(approx. 10 Hz /
0.1 s)
System programming mode
Firmware update active
On
Controller overloaded
L2
Yellow
Off
No calculation
Flashing
Calculation running
L3
White
Off
No FO signal detected
Flashing
FO signal detected, configuration error, the received ibaNet
protocol does not match the protocol configured in the device
On
FO signal detected
L4
Red
Off
No error
Flashing
Malfunction, internal device applications not running
On
Hardware error
Important note
When the LED L4 indicates an error, please contact the iba Support.
7.2.2 LEDs L5…L8
The LEDs L5 through L8 show status and progress when installing an update, see chap-
ter 9 “Updates”.

Manual
ibaPQU-S
18
Issue 1.3

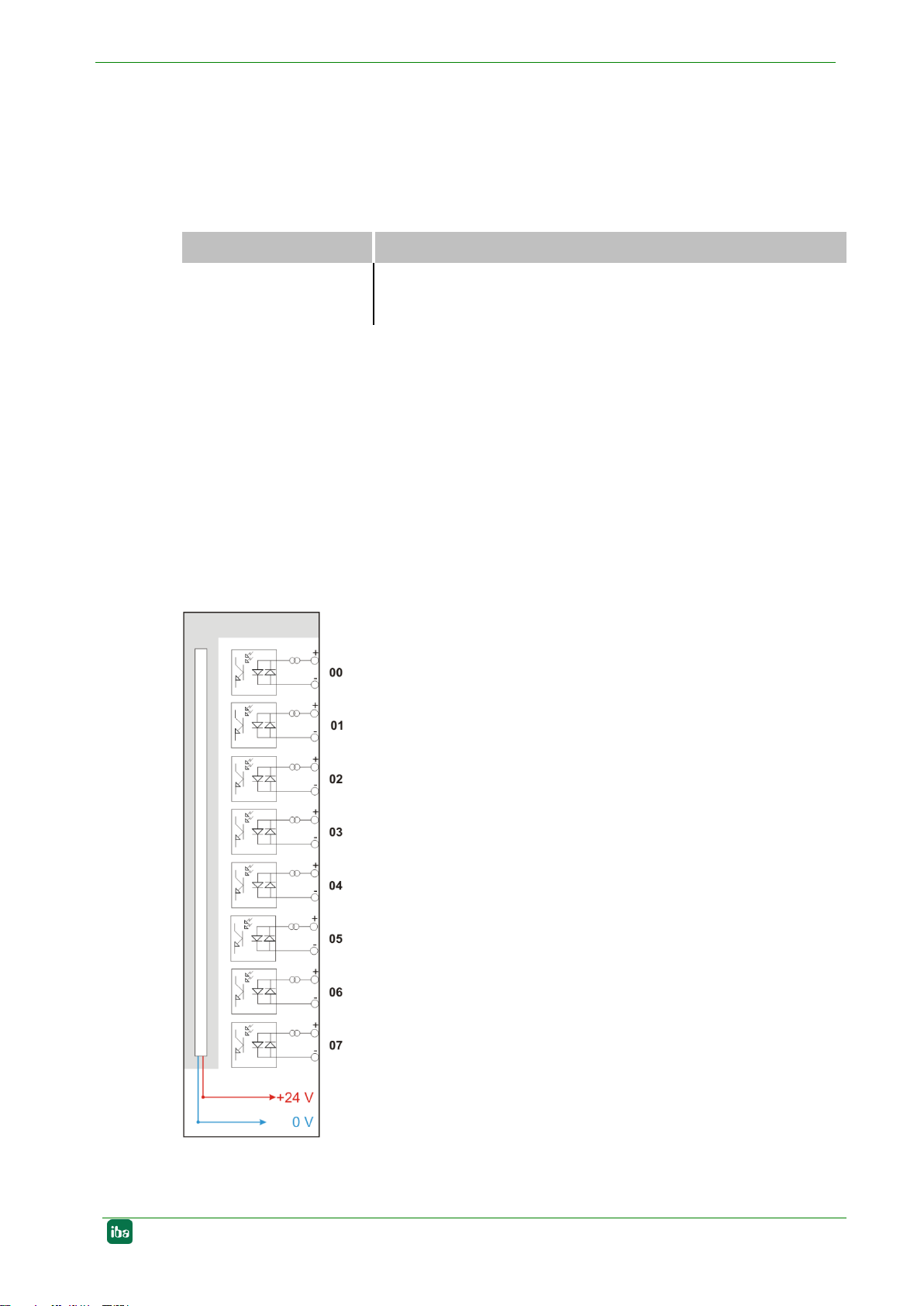

7.2.3 Status of digital inputs L10…L17
The green LEDs indicate whether a digital input is active or not.
LED
Status
Description
L10…L17
On
Off
Signal active, logical 1
No signal, logical 0
For more information, see chapter 7.5 ”Digital inputs X5”
7.3 Operating elements
7.3.1 ON/OFF switch S11
Position
Status
Description
I
0
On
Off
Device switched on
Device switched off
By switching the device off and back on, the supply voltage is disconnected/connected
and the device reboots.
7.3.2 Rotary switches S1 and S2
The rotary switch S1 is used to set the device address. Two devices can be con-
nected to a ring using the 32Mbit Flex protocol.
Device number in the
ring structure
Position of rotary switch S1
Not allowed
0
1. Device
1
2. Device
2
S2 is not used (should be zero).
Important note
Unlike other iba devices that support the 32Mbit Flex protocol, it is allowed to operate
only two ibaPQU-S systems in cascade configuration at one free 32Mbit Flex link of an
ibaFOB card because of the high sampling rate of 10 - 40 kHz and the high data volume
in the network channel of the Flex protocol.
Important note
When starting up the device for the first time, check the status signals of ibaPQU-S
(data loss etc.). If multiple signals occur, the time base of the system has to be ex-
tended.

Manual
Issue 1.3
19
7.4 Communication interfaces
7.4.1 FO cable connections X10 and X11
The FO cables transmit the process data between the device and the connected iba
systems. The 32Mbit Flex transfer protocol also allows configuration data to be trans-
ferred via FO cable.
Connection
Description
X10 output (TX)
FO send interface
X11 input (RX)
FO receive interface
7.4.2 Network connection X22
Ethernet interface 10/100 Mbit/s, no function.
7.5 Digital inputs X5
7.5.1 Connection diagram / pin assignment
You can connect eight input signals (0…7) here, each bipolar and electrically isolated.
Each channel is connected using twin leads. Due to the reverse polarity protection, the
measuring signal is indicated logically correct even if the connection is polarity-reversed.
See chapter 11 ”Technical data”
Figure 4: Connection diagram for digital inputs X5

Manual
ibaPQU-S
20
Issue 1.3
7.5.2 Debounce filter
There are four debouncefilters for each digital input.They can be chosen and configured
independently of each other for each signal. The following filters are available:
“Off” (no filter)
“Stretch rising edge”
“Stretch falling edge”
“Stretch both edges”
“Delay both edges”
For each filter, a debounce time ranging between [1µs…65535µs] has to be defined in
µs.
“Off”
The measured input signal is forwarded directly without filtering.
“Stretch rising edge”
The first rising edge sets the output signal (red) to logical 1 and it remains logical 1 for
the set debounce time. Subsequently, the channel is transparent again and waits for the
next rising edge.

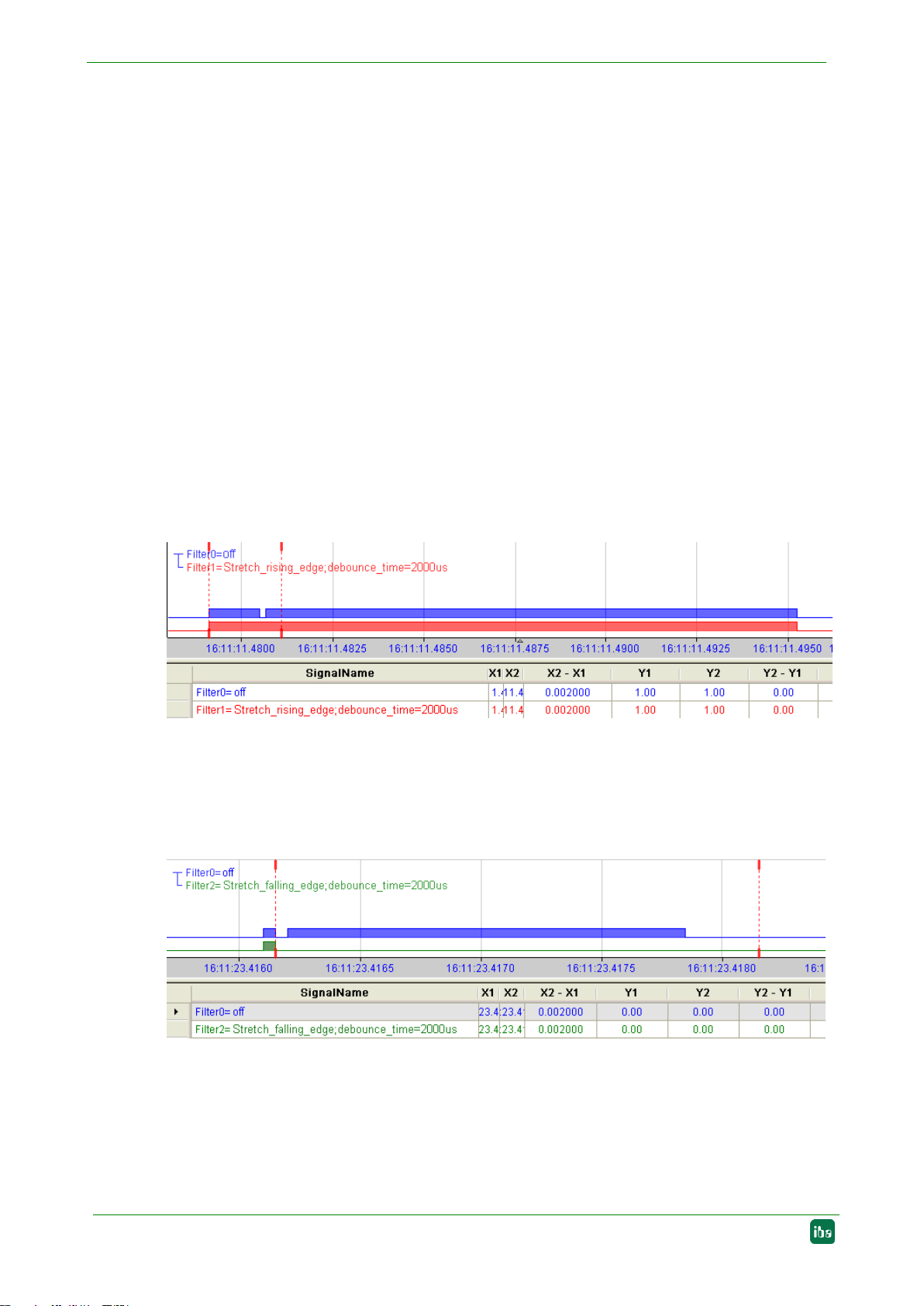

Figure 5: Debounce filter: “Stretch rising edge”
“Stretch falling edge”
The first falling edge sets the output signal (green) to logical 0 and it remains logical 0
for the set debounce time. Subsequently, the channel is transparent again and waits for
the next falling edge.
Figure 6: Debounce filter: “Stretch falling edge”
