iBaby Air A1 User manual

iBaby Air/Air Sense
Model: Air A1/D1/L1
User Manual

2
2
Index
1Introduction ........................................................................................................................................3
1.1 Package Contents...................................................................................................................3
1.2 Product Features ....................................................................................................................3
1.3 Product Specifications ...........................................................................................................4
2 Appearance and Interface...................................................................................................................5
2.1 Appearance ............................................................................................................................5
2.2 Back of the iBaby Air ............................................................................................................6
3 Setup and Installation .........................................................................................................................6
3.1 Installing Your iBaby Air ......................................................................................................6
3.2 Installation Indicators ............................................................................................................7
3.3 Introduction to main interface ……………………………………………………………7
4 Returns and Exchanges ......................................................................................................................8
4.1 What is Your Return Policy? .................................................................................................8
4.2 Can I Exchange an Item? .........................................................................................................8
5 FCC Caution.....................................................................................................................................8

3
3
1 Introduction
Air A1 works with your iPhone, iPad or android phones, so you can listen the audio feed anytime and
anywhere as long as you are connected to the Internet (including Wi-Fi, 3G/4G network, etc.). From
your free app, you can set up:
Audio alerts
Voc, T&H Real-Time Status alert
voc/ T&H History Status report
Alarm Clock
Air Purifier for clear air
Night light and the color indicates the change of air
Music play
This product is meant for providing convenience for air monitoring. The manufacturer is not
responsible for any legal liability caused by negligence.
1.1 Package Contents
ü1 Air A1 Monitor
ü1 Power Adapter
ü1 Quick Installation Guide
1.2 Product Features
üSupports 802.11 b/g/n protocol for wireless monitoring.
üIt works on TCP/IP network protocols.
üUsers can listen audio with an iPhone, iPad, as well as Android devices.
üTwo ways the real-time audio.
üHigh performance P2P technology for high reliable connectivity.
üSupports UPNP, P2P, and port forwarding automatically on the router.
üAudio alerts
üVoc, T&H Real-Time Status alert
üvoc/ T&H History Status report
üAlarm Clock
üAir Purifier for clear air
üNight light and the color indicates the change of air
üMusic play

4
4
1.3 Product Specifications
Model: Air A1(Air Sense D1,L1)
Features
P2P
Support P2P
installation
Smart configuration one-click installation
CPU
OS
Embedded Linux OS
CPU
32Bit RSIC Embedded Processor
Audio
Compression
G711
Audio In
One way input / internal microphone
Audio Out
One way output / internal speaker
User Access
Support 8-10 users at the same time
Protocol
TCP/IP, HTTP, UDP, DHCP, UPNP,NTP,P2P
IP address
DHCP IP address
Wi-Fi
Protocol
Support 802.11 b/g/n
WIFI module
Support 2.4G WIFI Hz
Encryption
Support WPA/WPA2 encryption
Other
Shape material
Plastic
Work
Environment
Indoors
Power
DC5V 2A
Product Power
Daytime 2.5W, night 3W
Operating
Environment
Temperature：0~40 °C，humidity：≤75% at 30℃
Storage
environment
Temperature：-40℃～55℃，humidity：≤90% at 40℃
Size
Monitor size: 135mm(L)*69.7mm(W)*133mm(H)
Package size: 165mm(L)*95mm(W)*165mm(H)
Weight
Weight: 180g
Package contents
Power adapter, Quick Start guide
Software
Software
iOS8.0 or later, Android4.0 or later
Certification
Certification
FCC, CE, ROSH, RCM

5
5

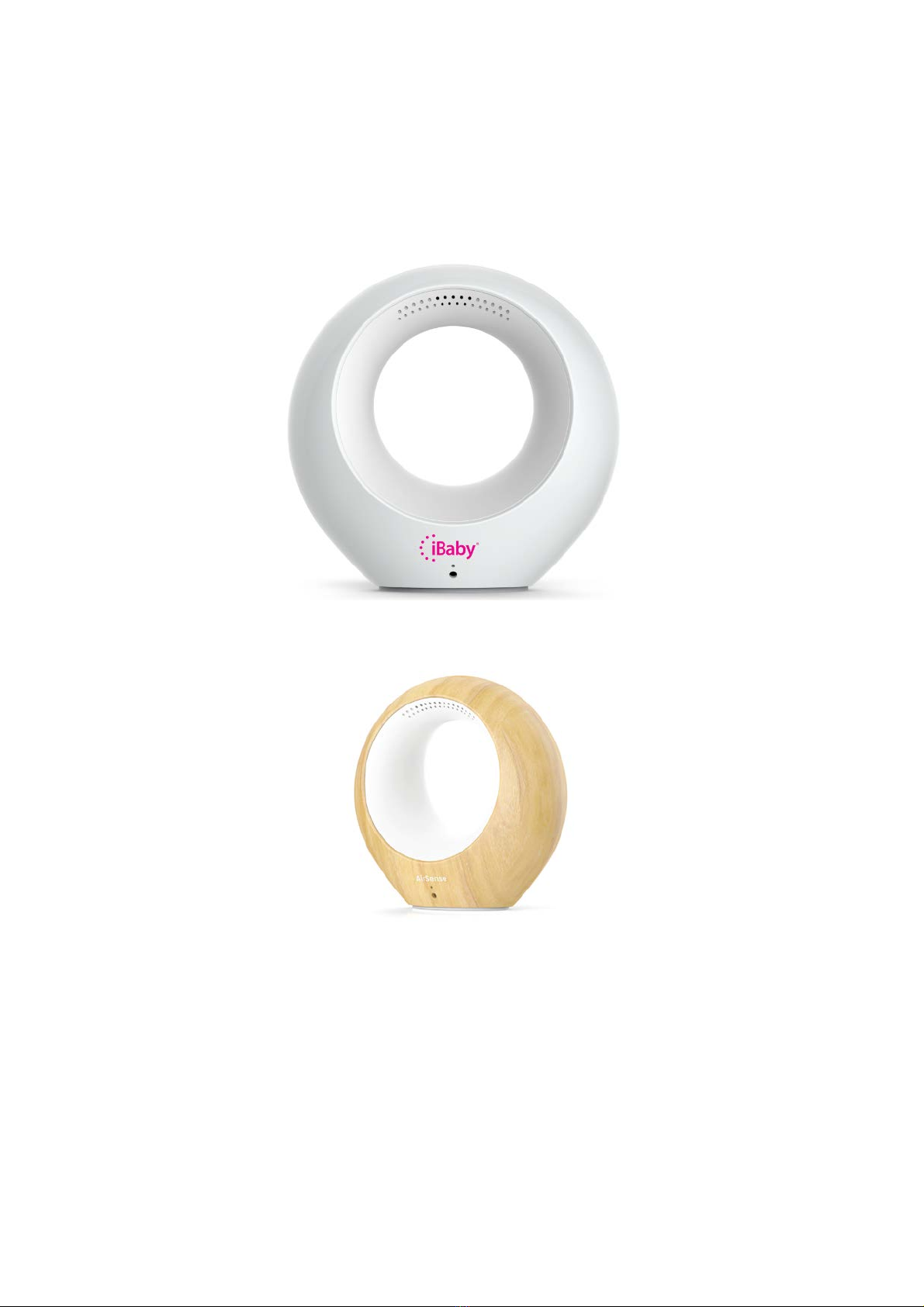

2 Appearance and Interface
2.1 Appearance

6
6

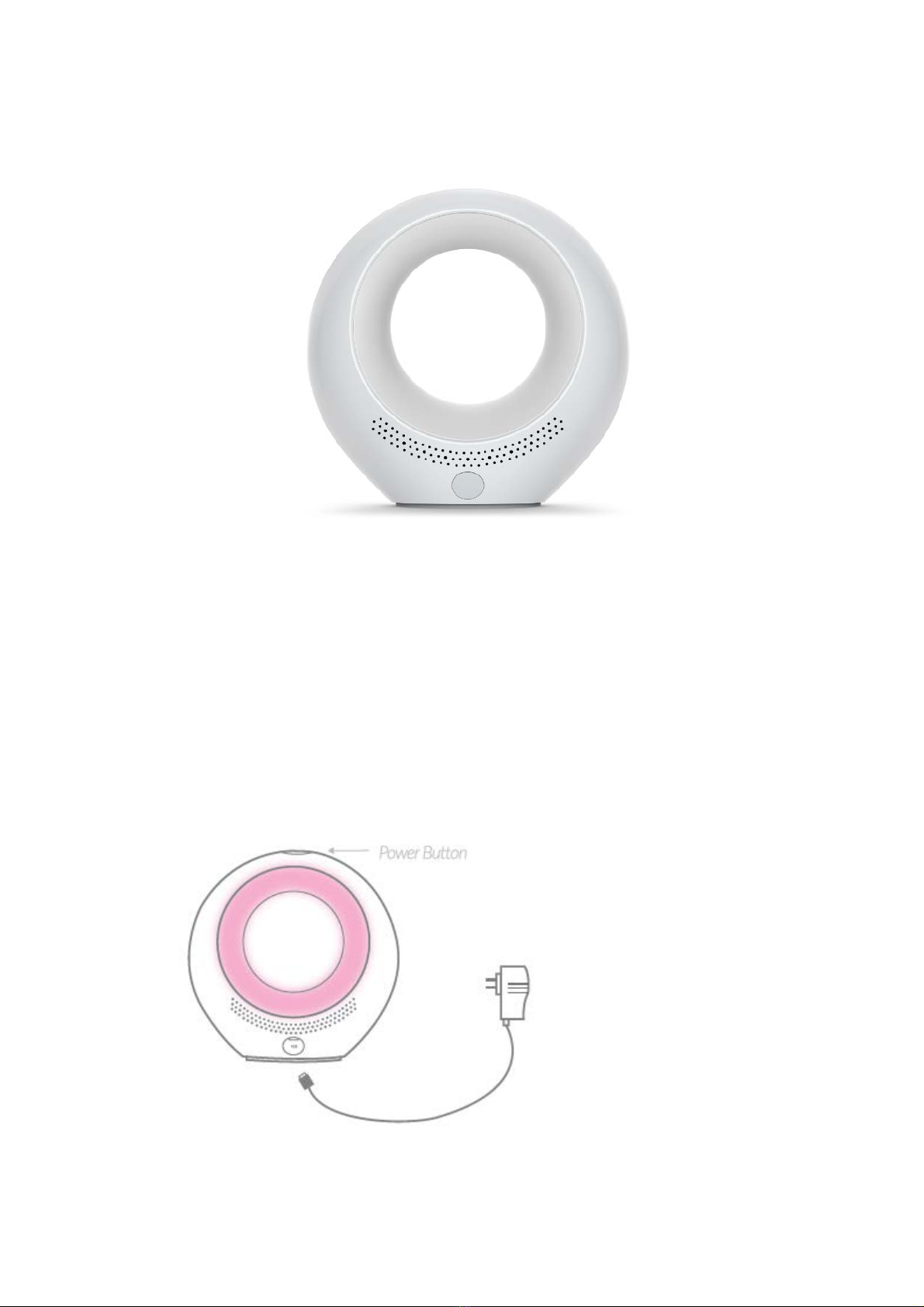

2.2 Back of the iBaby Air
Power Input Socket: Micro-soft USB, The adapter‘s output is 5V and2A.
3 Set-up and Installation
3.1 Installing Your iBaby Air
1) Verify that your smart device is connected to a Wi-Fi network. Your router must provide Wi-Fi
connection for Internet access.
2) Connect the power adapter to the back of your iBaby Air, and press the power button on the top.
You will see a soft PINK light flashing.
3) Wait for a BLUE light to start flashing.

7
7
Note: if you do not wait for the light change, the installation might be unsuccessful.
4) From the App Store or Google Play, download iBaby Care App onto your supported device and
launch the app
5) Open the app and follow the instructions to install your iBaby Air successfully.

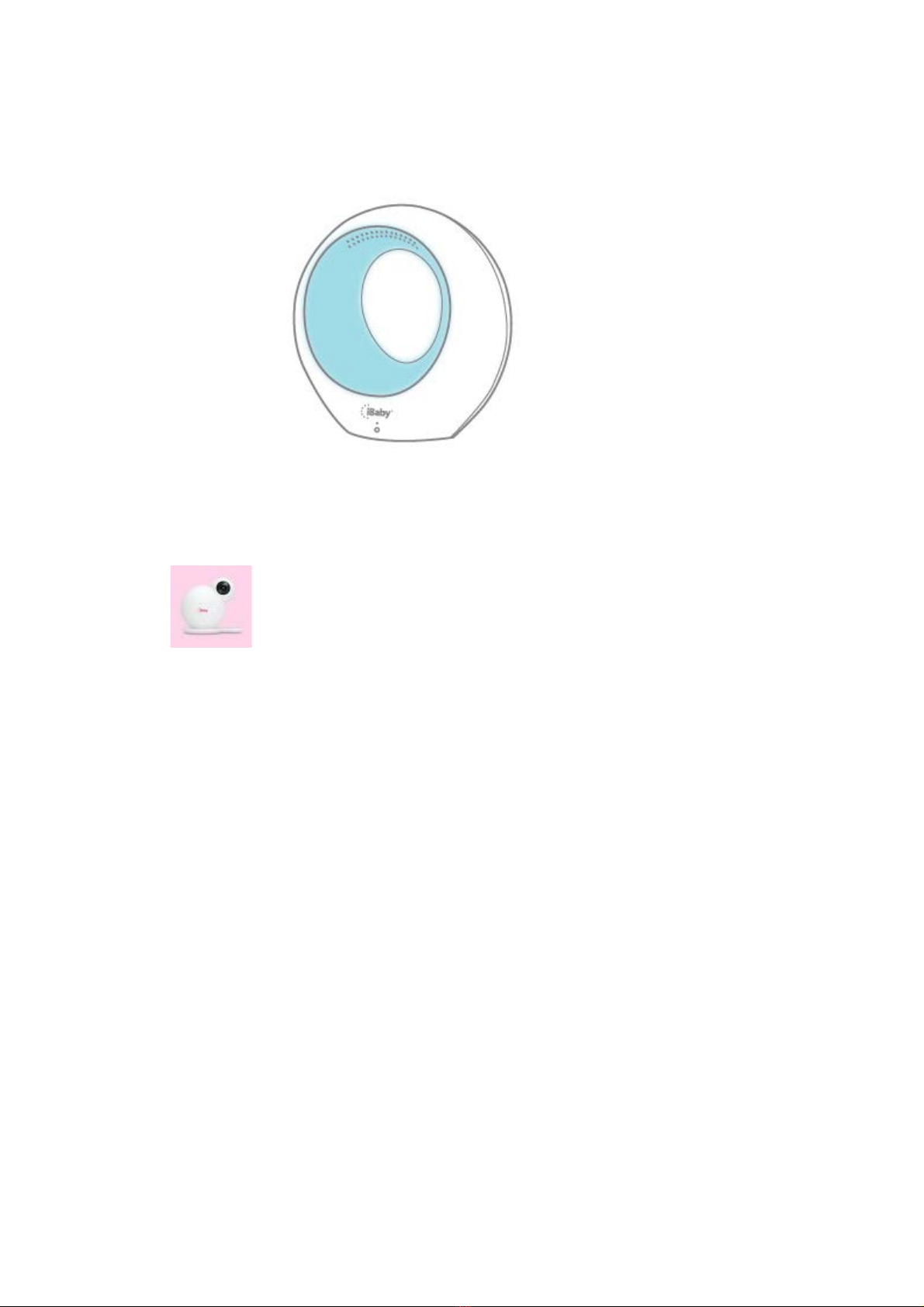

3.2 Installation Indicators
1) If the installation fails, you will see an ORANGE light flashing to alert you. Check your
WIFI.
2) If the iBaby Air is ready for installation, a BLUE light will start rotating.
3) Once the installation is completed, your iBaby Air will turn to a default air indicator light:
Super (0-25) Poor (25-50)
Oops (50-75) Alert (75-100)

8
8
3.3 Introduction to main interface
4 Returns and Exchanges
4.1 What is Your Return Policy?
Defective merchandise may be returned to us within 30 days from the date merchandise was received.
Item(s) must be returned in the condition received; otherwise we will not be able to accept your return.
We will credit your refund to the original credit card, with shipping and handling charges deducted
from the refund amount.
4.2 Can I Exchange an Item?
Exchanges are only allowed within a year of purchase date when the merchandise is defective or
damaged upon receipt.
5FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

9
9
FCC Radiation Exposure Statement:
This equipment complies with the FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 8
inches between the radiator and your body.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
