IBASE Technology IB730 User manual

IB730
Full-Size Socket 370 CPU Card
With Optional VGA/LAN/SCSI
USER’S MANUAL
Version 1.0

ii IB730 User’s Manual
Acknowledgments
Award is a registered trademark of Award Software International,
Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Celeron are registered trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.

IB730 User’s Manual iii
Table of Contents
Introduction...............................................................1
Product Description..........................................................1
Checklist...........................................................................2
Specifications....................................................................3
Board Dimensions.............................................................4
Installations ..............................................................5
Installing the CPU.............................................................6
Installing the Memory (DIMM) .........................................7
Setting the Jumpers...........................................................8
Connectors on IB730 ......................................................14
Watchdog Timer Configuration.......................................28
BIOS Setup..............................................................29
VGA Drivers Installation ........................................52
Installing the Drivers for Windows 95/98...........................53
Installing the Drivers for Windows NT 4.0 .........................54
LAN Drivers Installation.........................................55
Introduction...........................................................................56
Making Floppy Disks for NetWare and Windows Installation56
Installing LAN Drivers for Windows 95..............................57
Installing LAN Drivers for Windows 98..............................57
Installing LAN Drivers for Windows NT.............................58
Appendix.................................................................59
A. POST Codes......................................................................60
B. I/O Port Address Map.......................................................64
C. Interrupt Request Lines (IRQ) .........................................65
D. Memory Mapping.............................................................66

iv IB730 User’s Manual
This page was intentionally left blank.

INTRODUCTION
IB730 User’s Manual 1
Introduction
Product Description
IB730 is a high-performance flexible CPU card that comes optional
VGA, Ethernet (LAN) and SCSI It is based on the Intel 440BX AGPset
and features a Socket 370 architecture that supports Intel Celeron and
Coppermine processors using 66MHz and 100MHz front side bus
respectively.
System memory is provided by three DIMM sockets that accommodate up
to 768MB SDRAM. The Award BIOS facilitates easy system
configuration and peripheral setup. Other advanced features include
DiskOnChip flash disk support, watchdog timer, USB and IrDA
interface.
DiskOnChip flash disks are storage devices that has no moving parts and
emulates FDD/HDD with Flash/RAM/ROM offering reliable
data/program storage and long life span. They are reliable and suitable for
industrial or other harsh environments characterized by motion, shock,
vibration, adverse temperature, dust and humidity. Other features include
faster data access, longer MTBF, lower power consumption, cost
effective for small capacity and small form factor.

INTRODUCTION
2IB730 User’s Manual
Checklist
Your IB730 package should include the items listed below.
•The IB730 Industrial CPU Card
•This User’s Manual
•1 IDE Ribbon Cable
•1 Floppy Ribbon Connector
•2 Serial Port Ribbon Cable and 1 Parallel Port Attached to a
Mounting Bracket
•1 CD containing the following:
•Intel PCI IDE Driver and Flash Memory Utility
•CHIPS C&T 69000 VGA Drivers
•Ethernet Drivers
•Initio Inic1060 Ultra2 SCSI Drivers

INTRODUCTION
IB730 User’s Manual 3
Specifications
Processor
Supported Socket 370 support Intel Celeron / Coppermine,
300MHz~850MHz, 66MHz/100MHz Bus Speed
Chipset Intel 440BX AGPset
BIOS Award BIOS
Supports ACPI, DMI, PnP
System Memory 3x DIMM sockets support up to 768MB capacity
ECC supported
Multi I/O Chipset
Winbond W83977EF (keyboard controller is built-in)
I/O Features 1x FDD (up to 2.88MB, 3 Mode, LS120)
1x Parallel Port (EPP, ECP Port)
2x Serial Ports (1x RS232 and 1x RS232/422/485)
1x IrDA TX/RX Headers
Bus Master IDE 2x IDE interfaces for up to 4 devices; supports PIO
Mode 3/4 or Ultra DMA/33 IDE HDD, and ATAPI
CD-ROM
VGA (option)
C&T 69000 (2MB embedded memory) or C&T 69030
(4MB Embedded memory) PCI VGA accelerator
CRT & LCD panel support
Ethernet (option)
Intel 82559 Fast Ethernet controller
10/100Mbps data transfer speeds
SCSI (option) Initio Inic1060 Ultra 2 SCSI controller
Built-in Ultra2 SCSI connector
Hardware
Monitoring Winbond W83781D IC
Monitors CPU/system temperature and voltages
SSD Interface Support M-Systems 2MB~144MB DiskOnChip flash disk
Other Features Watchdog timer, ISA high drive, PICMG compliance
Form Factor Full Size
Dimensions 338mm x 122mm (13.3” x 4.8”)
Power
Requirements +5V : 12A (max)
+/-12V : 200mA (max)
Operating
Temperature 0°C to 60°C
Storage
Temperature -20°C to 80°C
Relative
Humidity 10% to 90% (non-condensing)

INTRODUCTION
4IB730 User’s Manual
Board Dimensions

INSTALLATIONS
IB730 User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectors on the IB730 in order to set up a workable system. The topics
covered are:
Installing the CPU.............................................................6
Installing the Memory (DIMM) .........................................7
Setting the Jumpers...........................................................8
Connectors on IB730 ......................................................14
Watchdog Timer Configuration.......................................28

INSTALLATIONS
6IB730 User’s Manual
Installing the CPU
The IB730 CPU Card supports a Socket 370 processor socket for Intel
Celeron/Coppermine processors.
The Socket 370 processor socket comes with a lever to secure the
processor. Raise this lever to about a 90°angle to allow the insertion of
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, return the lever
to the lock position.
After you have installed the processor into the socket, check if the
jumpers for the CPU type and speed are correct.
NOTE:
Ensure that the CPU heat sink and the CPU top surface are in
total
contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.

INSTALLATIONS
IB730 User’s Manual 7
Installing the Memory (DIMM)
The IB730 CPU Card supports three 168-pin DIMM socket for a
maximum total memory of 768MB in SDRAM type. The memory
module capacities supported are 32MB, 64MB, 128MB and 256MB.
Installing and Removing DIMMs
To install the DIMM, locate the memory slot on the CPU card and
perform the following steps:
1.Hold the DIMM so that the two keys of the DIMM align with those on
the memory slot.
2.Gently push the DIMM in an upright position until the clips of the slot
close to hold the DIMM in place when the DIMM touches the bottom
of the slot.
3.To remove the DIMM, press the clips with both hands.

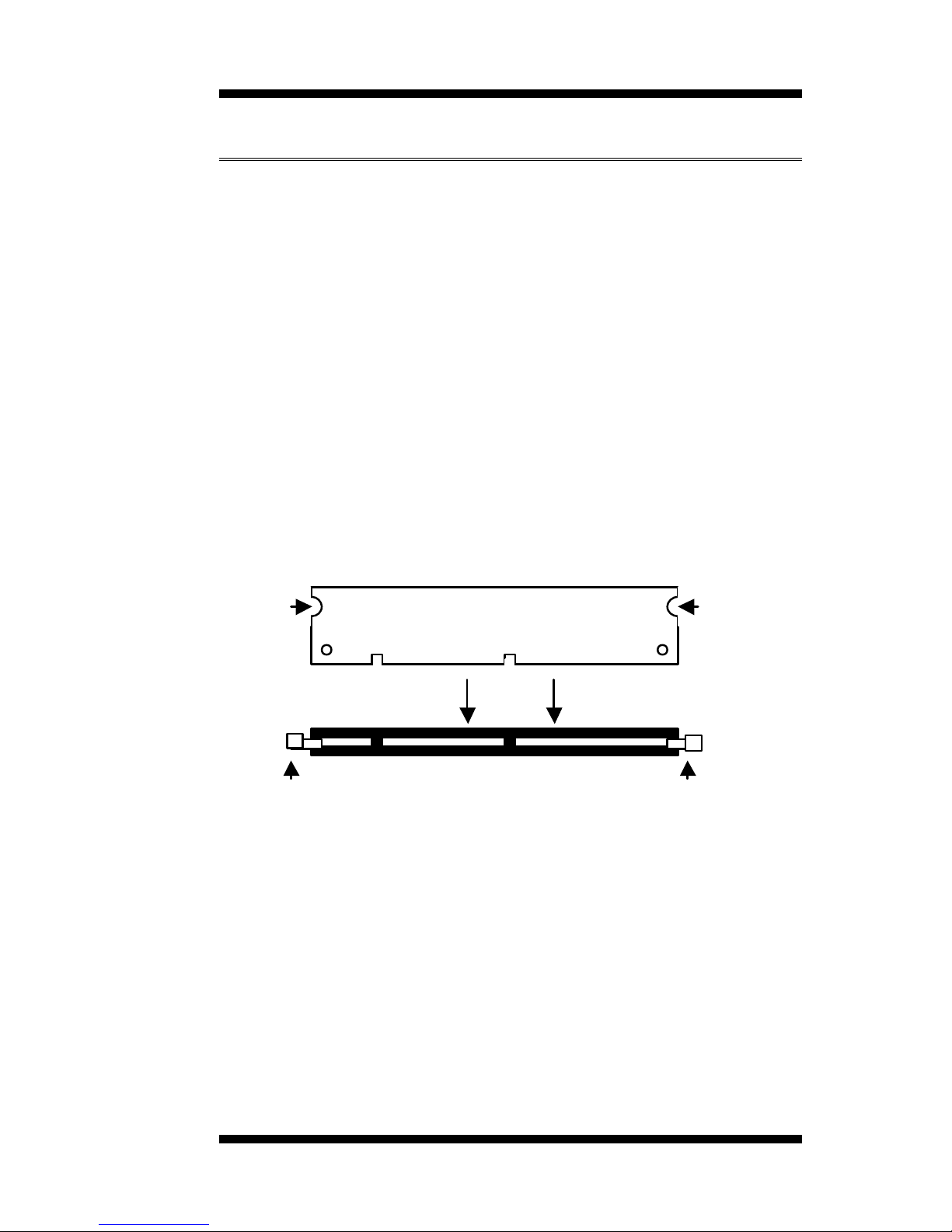

Top View of DIMM Socket
DIMM
Lock
Lock
Lock
Lock

INSTALLATIONS
8IB730 User’s Manual
Setting the Jumpers
Jumpers are used on IB730 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on IB730 and their respective functions.
Jumper Locations on IB730 .............................................................. 9
SW1 (3): CPU Bus Speed Selector..................................................10
SW1 (5-8): CPU Frequency Selector..............................................10
JP1, JP2, J3: Manufacturing Test Use Only....................................11
JP3: LCD Power Setting..................................................................11
JP5: Onboard SCSI Enable/Disable.................................................11
JP6: Onboard LAN Enable/Disable.................................................11
JP8: Onboard VGA Enable/Disable ................................................12
JP10: Clear CMOS Content.............................................................12
JP11: DiskOnChip Address Select...................................................12
JP14: Watchdog Select.....................................................................12
J21: RS232/422/485 (COM2) Selection........................................13
The following conventions are used in this section:
off off on on
↓↓↑↑
Pin 1-2
Short/Closed

INSTALLATIONS
IB730 User’s Manual 9

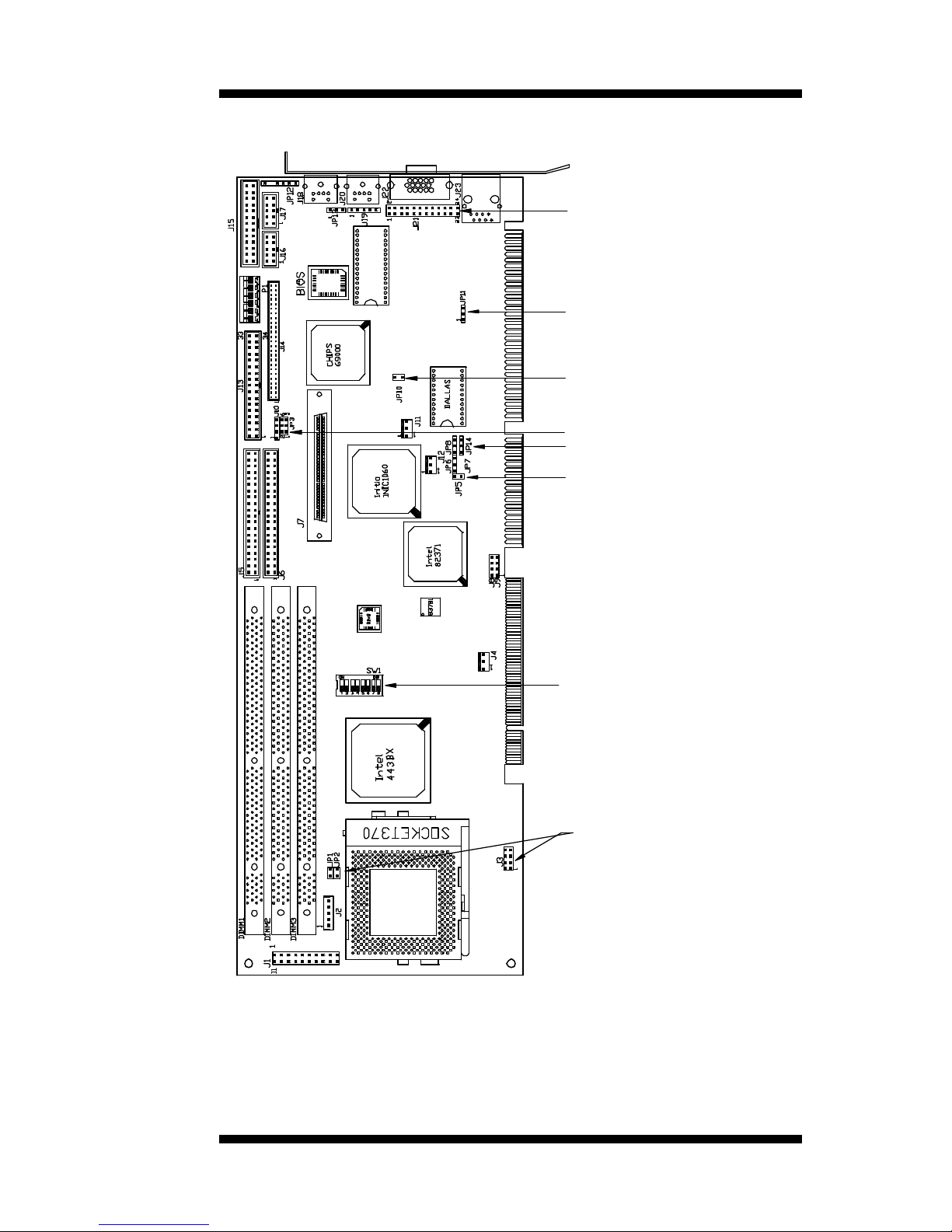

Jumper Locations on IB730
DISK ON CHIP
JP10: Clear CMOS Content
JP1, JP2, J3: Manufacturing
Test Use Only
SW1 (3): CPU Bus Speed Selector
SW1 (5-8): CPU Frequency Selector
JP5: Onboard SCSI Enable/Disable
JP6: Onboard LAN Enable/Disable
JP8: Onboard VGA Enable/Disable
JP11: DiskOnChip Address Select
JP3: LCD Power Setting
JP14: Watchdog Selection
J21: RS232/422/485 (COM2)
Selection

INSTALLATIONS
10 IB730 User’s Manual

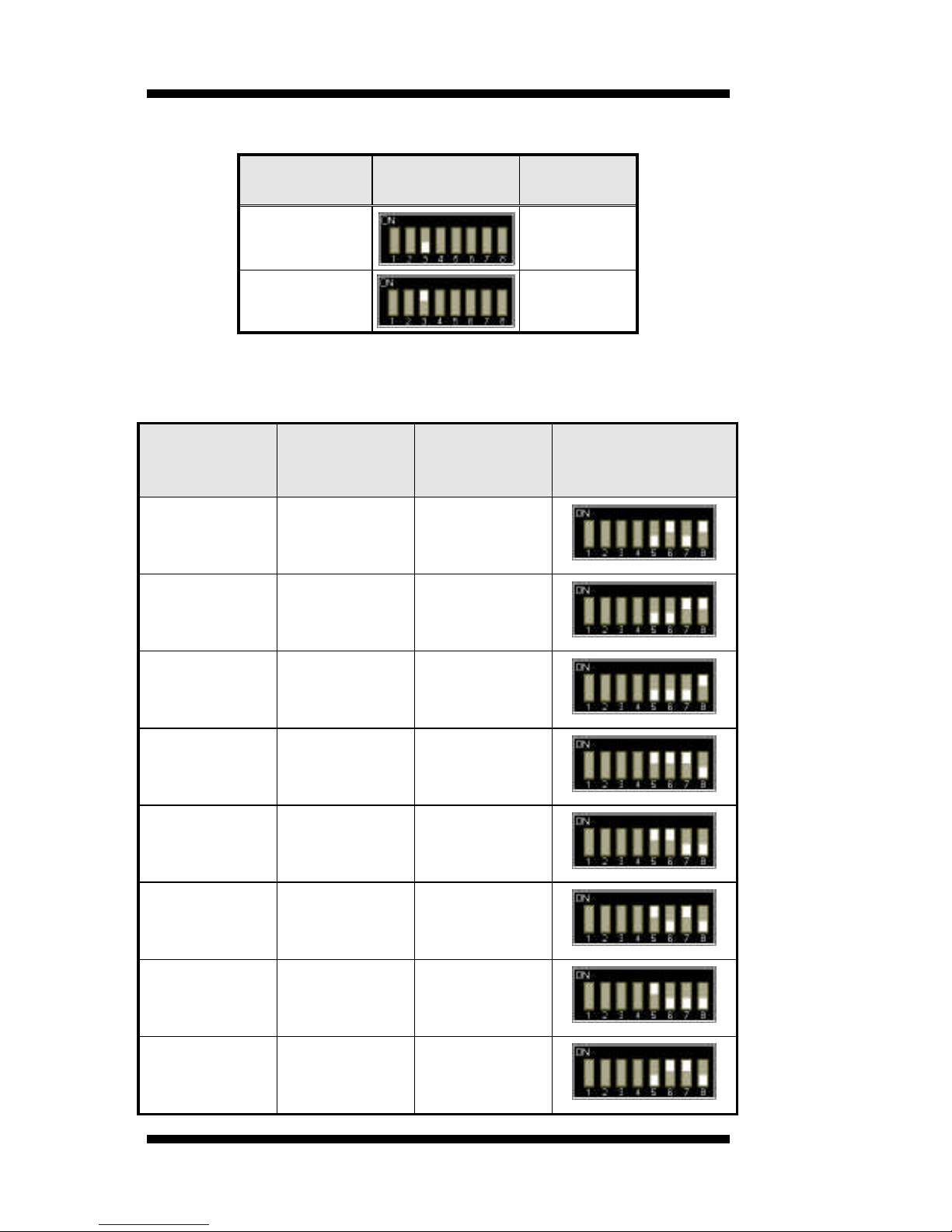

SW1 (3): CPU Bus Speed Selector
Bus Speed SW1 (3) Switch
Setting
100MHz
off
66MHz
on
SW1 (5-8): CPU Frequency Selector
The table below shows the correct setting to match the CPU frequency.
Frequency
Multiplier
CPU
Frequency
(66MHz)
CPU
Frequency
(100MHz)
SW1(5-8)
4.5X 300MHz 450MHz
xx xx xx xx off on off on
5X 333MHz 500MHz
xx xx xx xx off off on on
5.5X 366MHz 550MHz
xx xx xx xx off off off on
6X 400MHz 600MHz
xx xx xx xx on on on off
6.5X 433MHz 650MHz
xx xx xx xx on on off off
7X 466MHz 700MHz
xx xx xx xx on off on off
7.5X 500MHz 750MHz
xx xx xx xx on off off off
8X 533MHz 800MHz
xx xx xx xx off on on off

INSTALLATIONS
IB730 User’s Manual 11
JP1, JP2, J3: Manufacturing Test Use Only

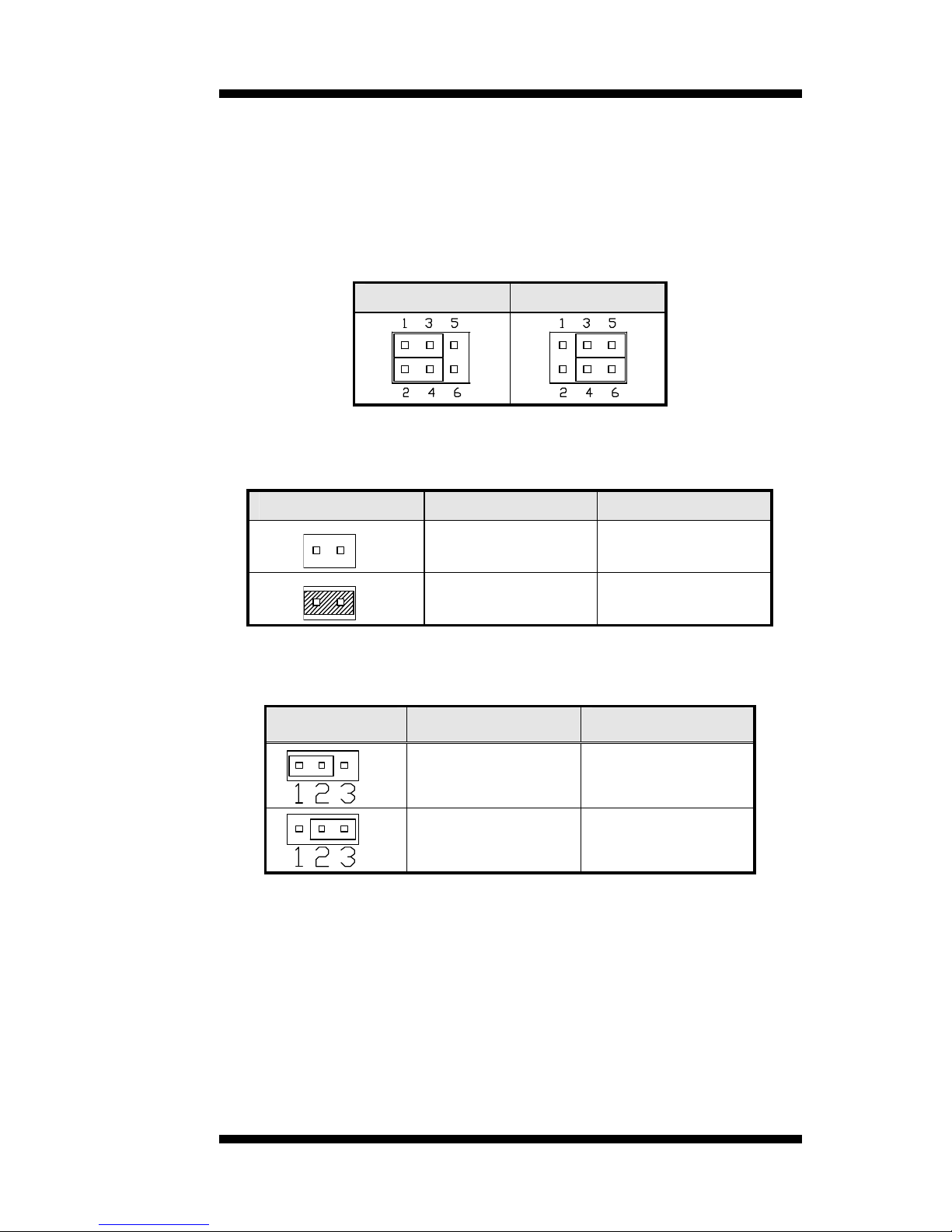

JP3: LCD Power Setting
The C&T VGA controller supports 5V and 3.3V power. Use JP3 to select
the power setting.
3.3V Setting 5V Setting
JP5: Onboard SCSI Enable/Disable
JP5 Setting Function
Open Disabled
Short/Closed Enabled
JP6: Onboard LAN Enable/Disable
JP3 Setting LAN Function
Pin 1-2
Short/Closed Enabled
Pin 2-3
Short/Closed Disabled

INSTALLATIONS
12 IB730 User’s Manual
JP8: Onboard VGA Enable/Disable
JP8 Setting VGA Function
Pin 1-2
Short/Closed Enabled
Pin 2-3
Short/Closed Disablec
JP10: Clear CMOS Content
JP10 Setting Function
Open Normal Operation
Short/Closed Clear CMOS Content
JP11: DiskOnChip Address Select
JP11 Address
D0000-D7FFF
D8000-DFFFF (default)
JP14: Watchdog Select
JP14 Function
Reset
NMI

INSTALLATIONS
IB730 User’s Manual 13
J21: RS232/422/485 (COM2) Selection
While COM1 is set for RS-232 used, COM2 can be set for RS232,
RS-422 or RS-485. Refer to the table below to select the function.
COM2
Function RS-232 RS-422 RS-485
Jumper
Setting
All
Jumpers
Open
Pins closed
1-2
3-4
5-6
7-8
11-12
15-16
17-18
19-20
23-24
Pins closed
1-2
3-4
5-6
7-8
9-10
11-12
13-14
15-16
17-18
19-20
21-22
Jumper
Illustration
[

INSTALLATIONS
14 IB730 User’s Manual
Connectors on IB730
The connectors on IB730 allows you to connect external devices such as
keyboard, floppy disk drives, hard disk drives, printers, etc. The following
table lists the connectors on IB730 and their respective functions.
Connector Locations on IB730........................................................15
J1: System Function Connector.......................................................16
P1: P8 AT Power Connector ...........................................................18
J2: External Keyboard Connector....................................................18
J4: CPU Fan Power Connector........................................................18
J5, J6: EIDE Connectors..................................................................19
J7: Ultra2 SCSI Connector...............................................................20
J8, J9: USB Connectors ...................................................................21
J11: System Fan Power Connector..................................................21
J12: External ATX Power Connector..............................................21
JP12: IrDA Connector......................................................................21
JP13: Wake On LAN Connector......................................................22
J13: Floppy Drive Connector...........................................................22
J14: LCD Panel Connector..............................................................23
Flat Panel Display Interface Pin Descriptions.................................24
J15: Parallel Port Connector............................................................25
J16, J17: COM1, COM2 Serial Port...............................................25
J18: PS/2 Keyboard Connector........................................................26
J19: PS/2 Mouse External Connector.............................................26
J20: PS/2 Mouse Connector............................................................26
J22: VGA CRT Connector...............................................................27
J23: RJ45 Connector........................................................................27

INSTALLATIONS
IB730 User’s Manual 15
Connector Locations on IB730
J23: RJ45 Connector
J22: VGA CRT Connector
J20: PS/2 Mouse Connector
J19: PS/2 Mouse External
Connector
J18: PS/2 Keyboard Connector
JP13: Wake On LAN Connector
JP12: IrDA Connector
J16, J17: COM1, COM2 Serial
Port
J15: Parallel Port Connector
P1: P8 AT Power Connector
J11: System Fan Power
Connector
J12: External ATX Power
Connector
J8, J9: USB Connectors
J14: LCD Panel Connector
J13: Floppy Drive Connector
J4: CPU Fan Power Connector
J7: Ultra2 SCSI Connector
J5, J6: EIDE Connectors
J2: External Keyboard Connector
J1: System Function Connector
DISK ON CHIP

INSTALLATIONS
16 IB730 User’s Manual

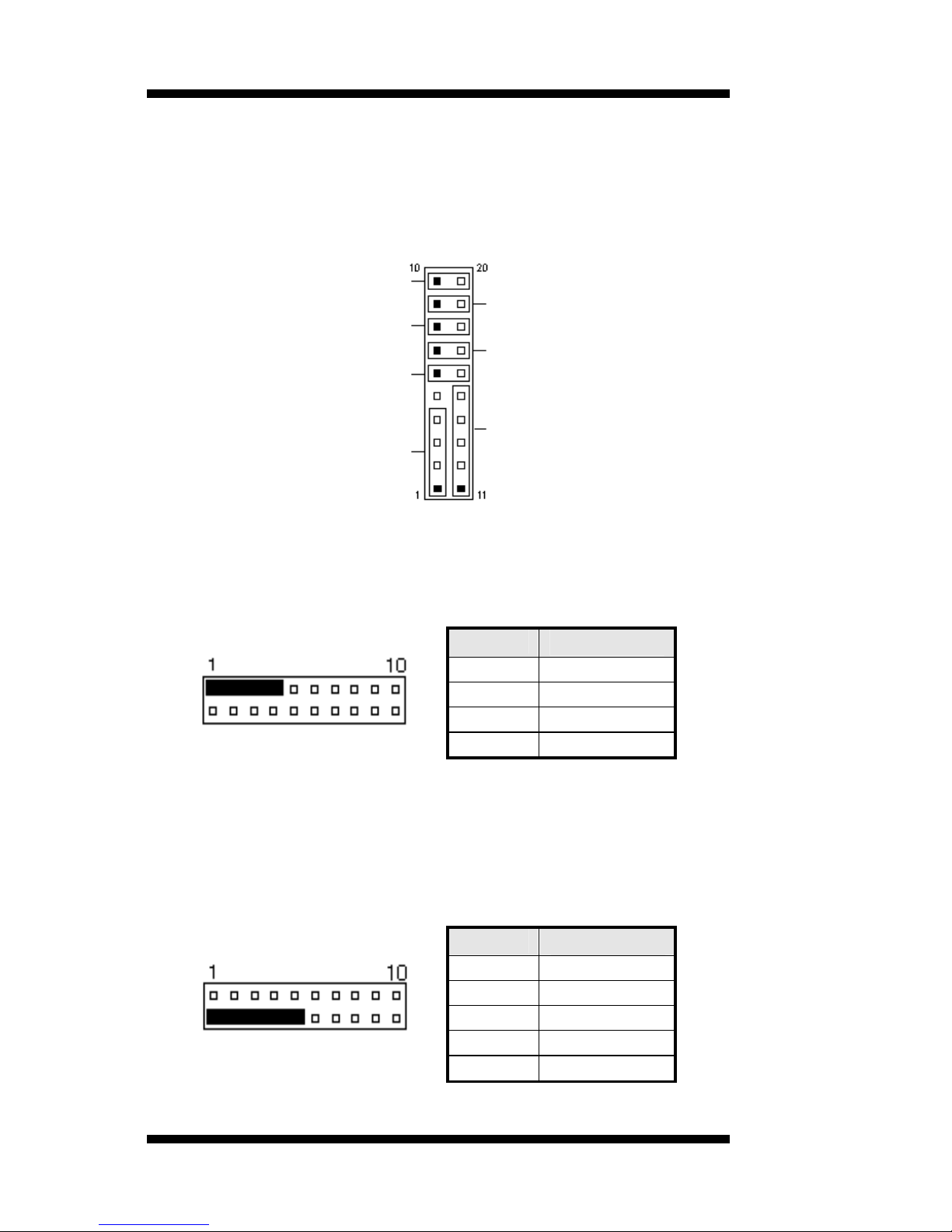

J1: System Function Connector
J1 provides connectors for system indicators that provides light
indication of the computer activities and switches to change the computer
status. J1 is a 20-pin header that provides interfaces for the following
functions.
Hard Disk Drive LED
Reset Switch
Turbo LED Connector
ATX Power On Switch
SMI / Hardware Switch
Power LED and Keylock
Speaker
Speaker: Pins 1 -4
This connector provides an interface to a speaker for audio
tone generation. An 8-ohm speaker is recommended.
Pin # Signal Name
1Speaker out
2No connect
3Ground 4+5V
Power LED and Keylock: Pins 11 -15
The power LED indicates the status of the main power
switch. The keylock switch, when closed, will disable the
keyboard function.
Pin # Signal Name
11 Power LED
12 No connect
13 Ground
14 Keylock
15 Ground
