iCES IMO-23L10B User manual

MICROWAVE OVEN
Model: IMO-23L10B
INSTRUCTION MANUAL
Please read this booklet carefully before fixing and using, and
keep it for future reference
www.ices-electronics.com

IMPORTANT SAFEGUARDS
INSTALLATION OF MICROWAVE OVEN
UTENSILS GUIDELINE
FOR THE FIRST USE
PRODUCT DESCRIPTION
OPERATION OF CONTROL PANEL
OPERATION
DEFROST TIPS
COOKING TIPS
CLEANING & MAINTENANCE
SERVICING
SERVICE AND SUPPORT
2
6
6
6
7
8
9
9
10
10
11
12
1

IMPORTANT SAFEGUARDS
The following basic precautions should always be followed when
using electrical appliance :
1. Read all instructions before using.
2. Make sure the voltage in your living area corresponding to the
one shown on the rating label of the appliance . And the wall
socket is properly grounded.
3. TO reduce the risk of fire in the oven cavity :
a. DO not overcook the food.
b. Remove wire twist -ties from paper or plastic bags before
placing bags in the oven.
c. Do not heat oil or fat for deep drying as the temperature of oil
cannot be controlled.
d. After use wipe the waveguide cover with a damp cloth,
followed by dry cloth to remove any food splashes and grease.
Built -up grease may overheat and begin to cause smoke or
catch fire.
e. If materials inside the oven should smoke or ignite,keep oven
door closed, turn oven off and disconnect the power supply.
f. Close supervision is necessary when using disposable
containers made from plastic,paper or other combustible
material .
4. TO reduce the risk of explosion and sudden boiling :
a. Do not place sealed containers in the oven . Baby bottles
fitted with a screw cap or teat are considered to be sealed
containers .
b. When boiling liquid in the oven , use the wide -mouthed
container and stand about 20 seconds at the end of cooking
to avoid delayed eruptive boiling of liquids .
c. Potatoes ,sausage and chestnut should be peeled or pierced
before cooking . Eggs in their shell , whole hard -boiled eggs
should not be heated in microwave ovens since they may
explode , even after microwave heating has ended .
2

d. The cooked liquid should not be removed out immediately .
Several moments should be waited before removing. In order
to avoid possible hazards caused by delayed eruptive boiling
of 1iquids .
e. The contents of feeding bottles and baby food jars are to be
stirred or shaken and the temperature is to be checked
before consumption , in order to avoid burns .
5. Never operate the oven further if the door or door seals is
damaged or the oven is malfunctioned or supply cord is
damaged . Return the appliance to the nearest authorised
service center for repair and maintenance . Never try to adjust
or repair the oven yourself .
6. If the supply cord is damaged ,it must be replaced by the
manufacturer or its service agent or a qualified technician in
order to avoid a shock hazard .
7. After cooking , the container is very hot . Using gloves to take
out the food and avoid steam burns by directing steam away
from the face and hands .
8. Slowly lift the furthest edge of dishes cover and microwave
plastic wrap and carefully open popcorn and oven cooking bags
away from the face .
9. TO prevent the turntable from breaking :
a. Let the turntable cool down before cleaning .
b. Do not place hot foods or utensils on the cold turntable .
c. Do not place frozen foods or utensils on the hot turntable .
10. Make sure the utensils do not touch the interior walls during
cooking .
11. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation .
12. Only use utensils that are suitable for use in microwave ovens .
13. Do not store food or any other things inside the oven .
14. Do not operate the oven without any liquid or food inside the
3

oven . This would do damage the oven .
15. This appliance can be used by children aged from 8 olds and
above and persons with reduced physical, sensory or metal
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
16. When the appliance is operated in the combination mode ,
children should only use the oven under adult supervision due
to the temperatures generated .
17. Any accessories not recommended by the manufacturer may
cause injuries to persons .
18. Do not use outdoors .
19. Save these instructions .
20 . WARNING : If the door or door seals are damaged , the oven
must not be operated until it has been repaired by a competent
person ;
21. WARNING : It is hazardous for anyone other than a competent
person to carry out any service or repair operation that involves
the removal of a cover which gives protection against exposure
to microwave energy ;
22. WARNING:Liquids and other foods must not be heated sealed
container since they are liable to explode;
23. WARNING: Only allow children to use the oven without
supervision when adequate instructions have been given so
that the child is able to use the oven in a safe way and
understands the hazards of improper use ;
24. Only use utensils that are suitable for use in microwave ovens ;
25. When heating food in plastic or paper containers , keep an eye
on the oven due to the possibility of ignition ;
26. If smoke is observed , switch off or unplug the appliance and
keep the door closed in order to stifle any flames ;
27. Microwave heating of beverages can result in delayed eruptive
boiling , therefore care must be taken when handling the
4

container ;
28. The contents of feeding bottles and baby food jars shall be
stirred or shaken and the temperature checked before
consumption , in order to avoid burns ;
29. Eggs in their shell and whole hard -boiled eggs should not be
heated in microwave ovens since they may explode , even
after microwave heating has ended ;
30. The oven should be cleaned regularly and any food deposits
removed ;
31. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation ;
32. During use the appliance becomes hot . Care should be taken
to avoid touching heating elements inside the oven .
33. WARNING : Accessible parts may become hot during use .
Young children should be kept away .
34. Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass since they can scratch the surface ,
which may result in shattering of the glass .
35. Cleaning and user maintenance should not be made by
children without supervision.
36. Children should not play with the appliance.
37. The appliances are not intended to be operated by means of
an external timer or separate remote -control system .
38. The temperature of accessible surfaces may be high when the
39. Please read carefully all these instructions.
40. This appliance is not intended to be put in operation using an
external timer or an external remote control system.
41. This appliance is not aimed to be used by persons (including
children) whose physical, sensitive or mental abilities are
reduced, or who don’t have knowledge or experience of its use,
appliance is operating .
• •

unless they have been previously instructed about the use
of this appliance, or are under surveillance of someone
responsible for their safety.
42.This appliance can be used by children from 8 years old and
the people with little experience or knowledge or whose
physical, sensorial or mental abilities are reduced, if they have
been trained and supervised regarding the safe use of this
appliance and are aware of the risks. Children should not play
with this appliance. The cleaning and maintenance by the user
should not be made by children unless they are over 8 years
old and under supervision.
43. Keep this appliance and the power cord away from children
under 8 years old.
44. Your appliance was intended for domestic use only. It was not
designed to be used in the following cases which are not
covered by the warranty: -
a. In kitchen spaces for the staff in shops, offices and other work
environment,
b. In farm houses
c. By the guests in hotels, motels and other residential type
environments,
d. In environments such as Bed & Breakfasts.
45. If the power cable is damaged, it must be replaced by the
producer, its support service center or persons with similar
qualification so as to prevent any risk.
CAUTION: HOT SURFACE
Only for Household use

INSTALLATION OF MICROWAVE OVEN
1. The microwave oven shall not be placed in a cabinet
2. The minimum height of free space necessary above the top surface of the oven. Space on the
sides of the oven must be at least 10 cm and must be at least 20 cm above the oven
3. Do not place any objects on the top of microwave oven
4. The position of the oven shall be such that it is far from the TV, Radio or antenna, as picture
disturbance or noise may occur
5. Select a flat surface providing sufficient space for proper operation:
a: Do not remove the feet at the bottom of the oven
b: The glass tray and rotating ring assembly must always be placed in the oven during use
6. The back of the oven must be placed against a wall during installation
7. The microwave oven must be operated with the door closed.
UTENSILS GUIDELINE
FOR THE FIRST USE
It is strongly recommended to use the container
Due to the possible presence of manufacturing residue or oil in the oven cavity or heating
element, it usually would smell the odor, even a slight smoke, It is normal case and would not
occur after several times use .keep the door or window open to ensure good ventilation. So it
is strongly recommended to place a cup of water in the turntable, setting at high power and
operate for several times.
s which are suitable and safe for microwave
cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or
plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking
and combination cooking as spark is likely to occur. You can take the reference of below table.
Material of
container setoNevaworciM
Heat-resistant
ceramic Yes Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant
plastic Yes Can not be used for long time microwave cooking
Heat-resistant glass Yes
Plastic film Yes
It should not be used when cooking meat or chops
as the over-temperature may do damage to the
film
Metal containerNo It should not be used in microwave
oven .Microwave can not penetrate through metal.
lacquer No Poor heat-resistant. can not be used for
High-temperature cooking
Bamboo,wood and
paper container No Poor heat-resistant. can not be used for High-temperature cooking
6

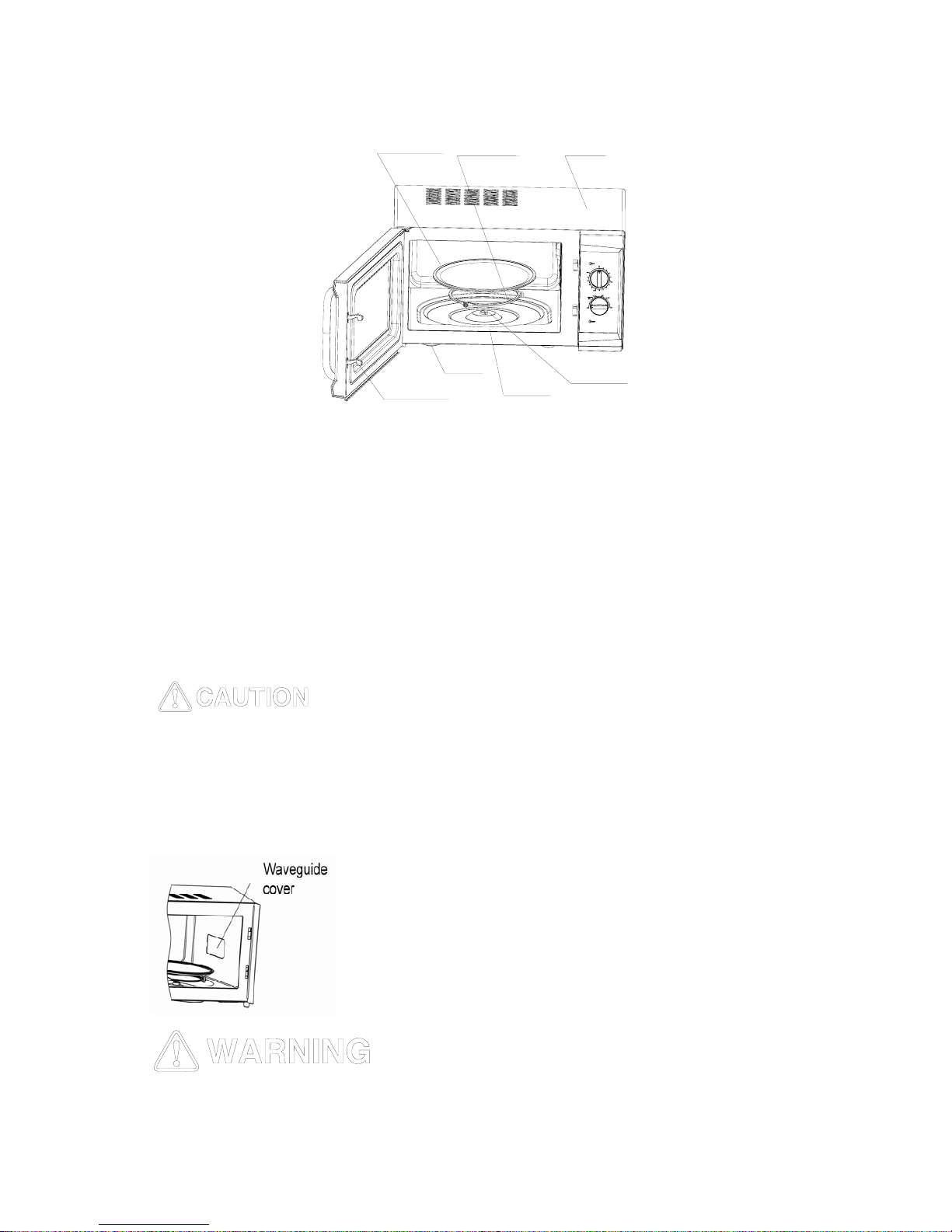

Product description
door interlock
rotating ring
rotating axis
glass turntable
oven cavity
housing
oven foot
1) Door lock
Microwave oven door must be properly closed in order for it to operate
2) Viewing window
Allow user to see the cooking status
3) Rotating axis
The glass turntable sits on the axis, the motor underneath it drives the turntable to rotate
4) Rotating ring
The glass turntable sits on its wheels, it supports the turntable and helps it to balance when
rotating
5) Turntable
The food sits on the turntable, its rotation during operation helps to cook food evenly
- Place the rotating ring first, and then
- Fit the turntable onto the rotating axis and make sure that it is geared in properly
6) Control panel
See below in details (the control panel is subject to change without prior notice)
7) Waveguide cover
It is inside the microwave oven, next to the wall of control panel, please see figure below
Never remove the waveguide cover
7

OPERATION OF CONTROL PANEL
1) Timer
- The max cooking time length that can be set is 30 minutes
- Each setting is 2 minutes
- A bell ring will be heard when the timer times out and returns to Zero position
2) Function / Power knob
There are 6 power levels:
The following table provides a reference defrost time length for various food:
Max 100% power output (Quick cooking)
High 85% power output (Normal cooking)
Medium 66% power output (Slow cooking)
Low 40% power output (Drinks or soup)
Defrost 37% power output (Defrost)
Mini 17% power output (Keep warm)
8
