iCES IMO-23L20B User manual

MICROWAVE OVEN
Model: IMO-23L20B
INSTRUCTION MANUAL
Please read this booklet carefully before fixing and using, and
keep it for future reference





INSTALLATION OF MICROWAVE OVEN
UTENSILS GUIDELINE
FOR THE FIRST USE
IMPORTANT SAFEGUARDS
PRODUCT INTRODUCTION
appearance and structure diagram
control panel
LED instruction and display
FUNCTION AND OPERATION METHOD
auto reminder
clock setting
microwave cooking
express
defrost
auto cooking
automatic starting (delayed function)
multi-sequence cooking
child lock function
cooking tips
CLEANING AND MAINTENANCE
TIPS FOR CLEANING
SERVICING
SERVICING SAFEGUARDS
SERVICE AND SUPPORT
2
2
3
3
5
5
6
7
7
7
7
8
9
10
11
12
14
14
15
16
17
17
18
20


INSTALLATION OF MICROWAVE OVEN
1. Remove the packaging and take out the distance limiter from accessory in
microwave oven (some models have been installed already), unlock the power
cord, according to the specific shape of distance limiter, install by following the
given instruction. The purpose of the distance limiter is to make the microwave
oven to keep a certain distance from the wall.
2. Take out all the packing. Carefully check whether there is damage to the
microwave oven. Such as:
a. the oven cavity is impacted or pressured.
b. the door is not flat; the switch is not smooth and flexible.
c. the metal Insulated mesh on the door is bended or deformed.
d. the power cord is loose.
IF IT IS FOUND ABOVE, CONTACT YOUR NEAREST SERVICE CENTER
APPROVED.
3. Microwave ovens must be placed under dry and non-corrosiveness environments,
kept away from heat and humidity, such as gas burner or water tank.
4. To ensure sufficient ventilation, the distance of the back of microwave to the wall
should be at least 10 cm, the side to the wall should be at least 5 cm, the free
distance above the top surface at least 20 cm.
5. The position of the oven shall be far from the TV, Radio or antenna to avoid
disturbance, the distance at least more than 5 m.
6. The appliance must be positioned so that the plug is accessible, and must ensure
a good grounding in case leakage, ground loop can be formed to avoid electric
shock.
7. The microwave oven shall not be placed in a cabinet.
8. The back of the oven must be placed against a wall.
9. As there is manufacturing residue or oil remained on the oven cavity or heat
element, it usually would smell the odor, even a slight smoke, It is normal case and
would not occur after several times use, keep the door or window open to ensure
good ventilation. So it is strongly recommended to place a cup of water in the
turntable, setting at high Power and operate for several times.
UTENSILS GUIDELINE
It is strongly recommended to use the containers which are suitable and safe for
microwave cooking. Generally speaking, the containers which are made of heat-resistant
ceramic, glass or plastic are suitable for microwave cooking. Never use the metal
containers for microwave cooking and combination cooking as spark is likely to occur. You
can take the reference of below table.
Material of
container Microwave Notes
Heat-resistant
ceramic Yes Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant
plastic Yes Can not be used for long time microwave cooking
Heat-resistant glass Yes
Plastic film Yes
It should not be used when cooking meat or
chops as the over-temperature may do
damage to the film



Metal container No
It should not be used in microwave
oven .Microwave can not penetrate through
metal.
lacquer No
Poor heat-resistant. Can not be used for
High-temperature cooking
Bamboo,wood and
paper container No Poor heat-resistant. Can not be used for High-temperature cooking
FOR THE FIRST USE
Due to the possible presence of manufacturing residue or oil in the oven cavity or heating
element, it usually would smell the odor, even a slight smoke; It is normal case and would
not occur after several times use .keep the door or window open to ensure good ventilation.
So it is strongly recommended to place a cup of water in the turntable, setting at high
power and operate for several times.
IMPORTANT SAFEGUARDS
The following basic precautions should always be followed when using electrical
appliance :
1 . Read all instructions before using .
2 . Make sure the voltage in your living area corresponding to the one shown on the
rating label of the appliance . And the wall socket is properly grounded .
3 . TO reduce the risk of fire in the oven cavity :
a . DO not overcook the food .
b . Remove wire twist -ties from paper or plastic bags before placing bags in the
oven .
c . Do not heat oil or fat for deep drying as the temperature of oil cannot be
controlled .
d . After use wipe the waveguide cover with a damp cloth , followed by dry cloth to
remove any food splashes and grease . Built -up grease may overheat and
begin to cause smoke or catch fire .
e . If materials inside the oven should smoke or ignite , keep oven door closed,
turn oven off and disconnect the power supply .
f .Close supervision is necessary when using disposable containers made from
plastic, paper or other combustible material .
4 . TO reduce the risk of explosion and sudden boiling :
a . Do not place sealed containers in the oven . Baby bottles fitted with a screw
cap or teat are considered to be sealed containers .
b . When boiling liquid in the oven , use the wide -mouthed container and stand
about 20 seconds at the end of cooking to avoid delayed eruptive boiling of
liquids .
c . Potatoes ,sausage and chestnut should be peeled or pierced before cooking .
Eggs in their shell , whole hard -boiled eggs should not be heated in microwave
ovens since they may explode , even after microwave heating has ended .
d . The cooked liquid should not be removed out immediately . Several moments
should be waited before removing. In order to avoid possible hazards caused
by delayed eruptive boiling of 1iquids .
e . The contents of feeding bottles and baby food jars are to be stirred or shaken
and the temperature is to be checked before consumption , in order to avoid
burns .



5 . Never operate the oven further if the door or door seals is damaged or the oven is
malfunctioned or supply cord is damaged . Return the appliance to the nearest
authorised service center for repair and maintenance . Never try to adjust or
repair the oven yourself .
6 . If the supply cord is damaged ,it must be replaced by the manufacturer or its
service agent or a qualified technician in order to avoid a shock hazard .
7 . After cooking , the container is very hot . Using gloves to take out the food and
avoid steam burns by directing steam away from the face and hands .
8 . Slowly lift the furthest edge of dishes cover and microwave plastic wrap and
carefully open popcorn and oven cooking bags away from the face .
9 . TO prevent the turntable from breaking :
a . Let the turntable cool down before cleaning .
b . Do not place hot foods or utensils on the cold turntable .
c . Do not place frozen foods or utensils on the hot turntable .
10. Make sure the utensils do not touch the interior walls during cooking .
11. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life of the appliance
and possibly result in a hazardous situation .
12 . Only use utensils that are suitable for use in microwave ovens .
13 . Do not store food or any other things inside the oven .
14 . Do not operate the oven without any liquid or food inside the oven . This would
do damage the oven .
15 .This appliance can be used by children aged from 8 olds and above and persons
with reduced physical, sensory or metal capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.
16 . When the appliance is operated in the combination mode , children should only
use the oven under adult supervision due to the temperatures generated .
17 . Any accessories not recommended by the manufacturer may cause injuries to
persons .
18 . Do not use outdoors .
19 . Save these instructions .
20 . WARNING : If the door or door seals are damaged , the oven must not be
operated until it has been repaired by a competent person ;
21 . WARNING : It is hazardous for anyone other than a competent person to carry
out any service or repair operation that involves the removal of a cover which
gives protection against exposure to microwave energy ;
22. WARNING:Liquids and other foods must not be heated sealed container since
they are liable to explode;
23. WARNING: Only allow children to use the oven without supervision when
adequate instructions have been given so that the child is able to use the oven in
a safe way and understands the hazards of improper use ;
24 . Only use utensils that are suitable for use in microwave ovens ;
25 . When heating food in plastic or paper containers , keep an eye on the oven due
to the possibility of ignition ;
26 . If smoke is observed , switch off or unplug the appliance and keep the door
closed in order to stifle any flames ;
27 . Microwave heating of beverages can result in delayed eruptive boiling , therefore
care must be taken when handling the container ;
28 . The contents of feeding bottles and baby food jars shall be stirred or shaken and
the temperature checked before consumption , in order to avoid burns ;
29 . Eggs in their shell and whole hard -boiled eggs should not be heated in
microwave ovens since they may explode , even after microwave heating has
ended ;



30 . The oven should be cleaned regularly and any food deposits removed ;
31 . Failure to maintain the oven in a clean condition could lead to deterioration of
the surface that could adversely affect the life of the appliance and possibly
result in a hazardous situation ;
32 . During use the appliance becomes hot . Care should be taken to avoid touching
heating elements inside the oven .
33 . WARNING : Accessible parts may become hot during use . Young children
should be kept away .
34. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven
door glass since they can scratch the surface , which may result in shattering of
the glass .
35. Cleaning and user maintenance should not be made by children without
supervision.
36 . Children should not play with the appliance.
37 . The appliances are not intended to be operated by means of an external timer or
separate remote -control system .
38. The temperature of accessible surfaces may be high when the appliance is
operating .
Household use only
PRODUCT INTRODUCTION

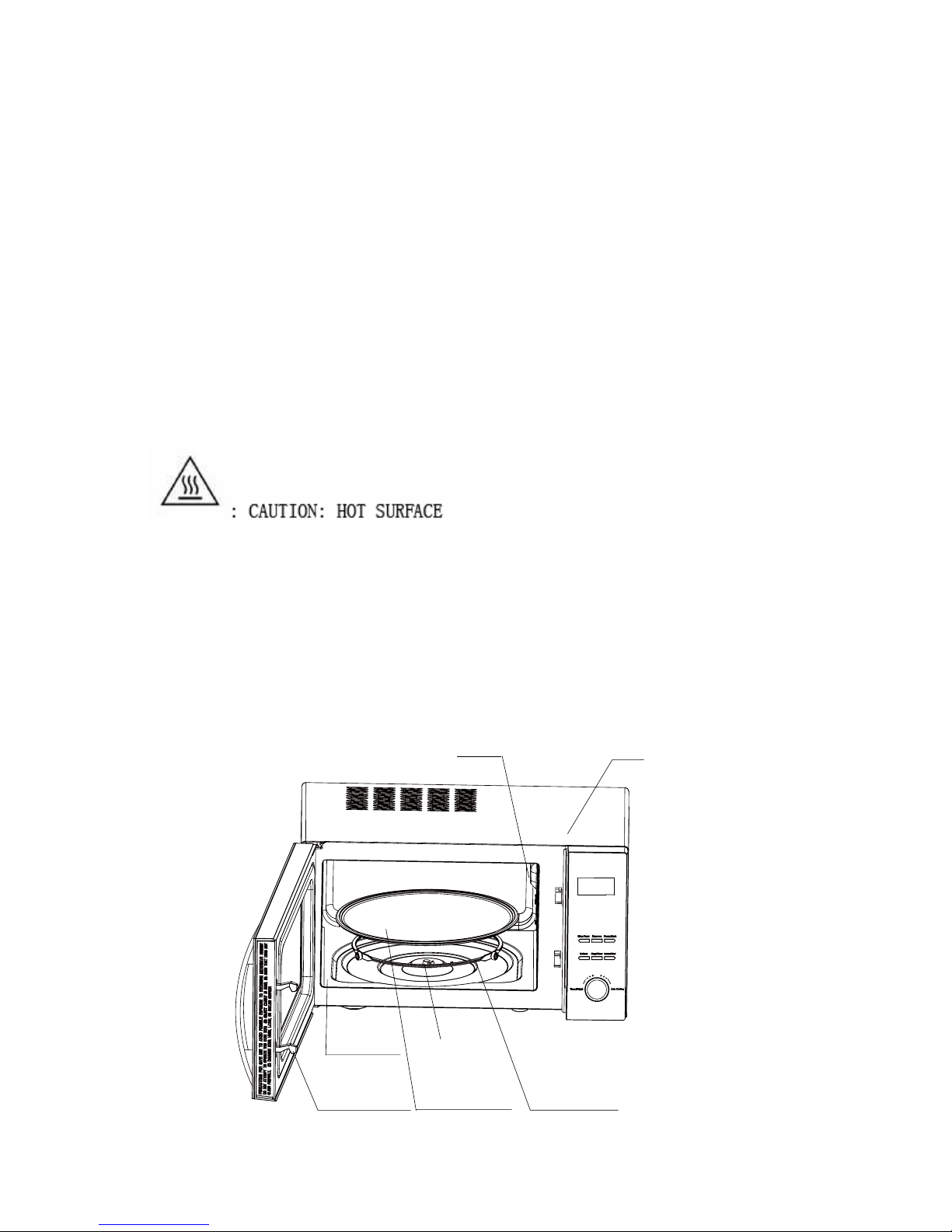

1. Appearance and structure diagram
door interlock
oven cavity
housing
rotating axis
glass turntable rotating ring
waveguide cover



a. Do not remove the Waveguide cover during cleaning.
b. Make sure the Waveguide cover installation right and no damage during cooking.

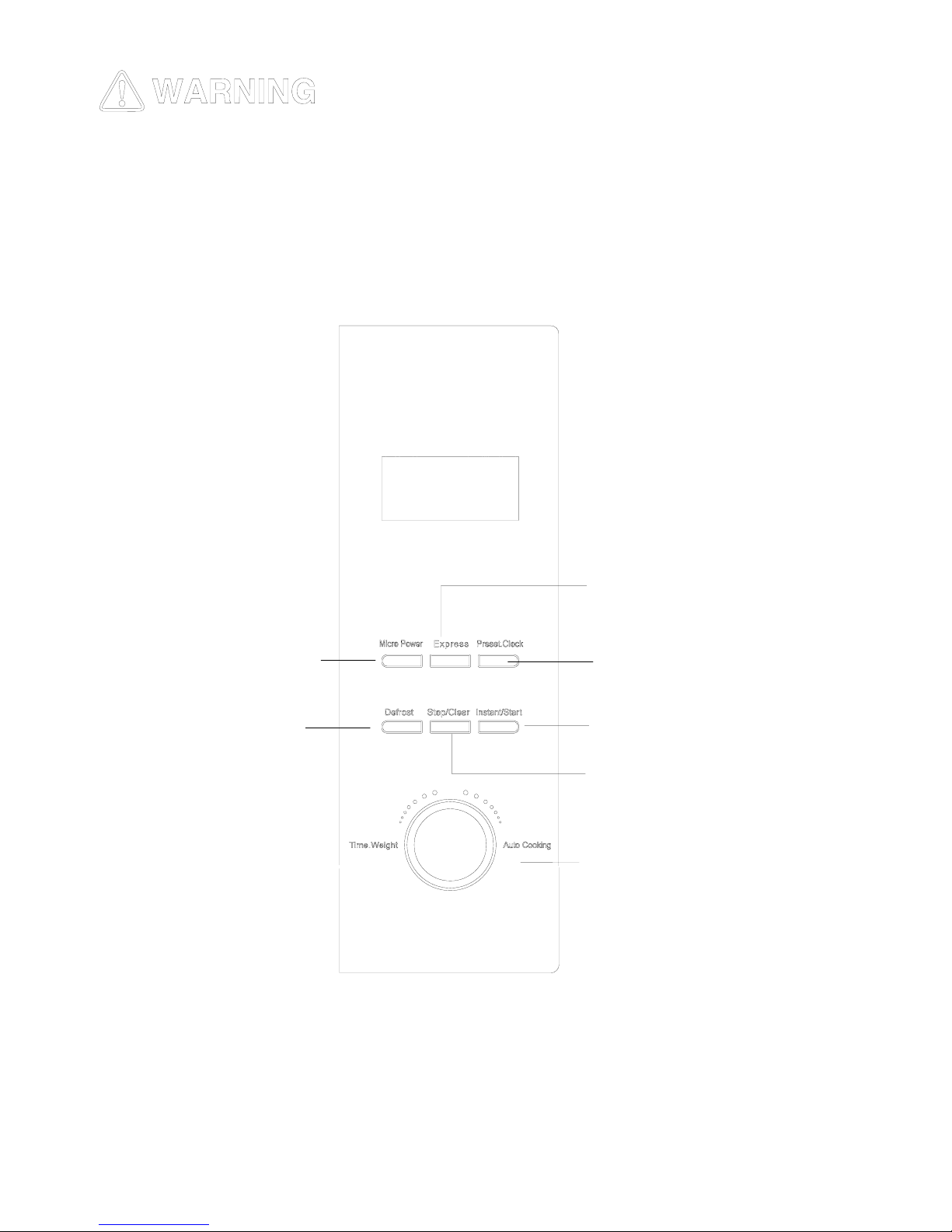

2. Control panel
Select cooking time or weight
during cooking
Select Auto cooking menu
Set clock
Start procedure you setting
In standby state,press this
button,the oven start cooking
with high power one minute
Press once Stop cooking
Press twice clear setting
Select Auto defrost menu
Set power level
Select EXPRESS cooking menu



3
ǃ
LED instruction and display
0' $872
/
.J
00+ +
88:88
When the defrosting
meat is begin
set or used
When the Auto cooking menu
is begin set or used
When the low power is
begin set or used
When the power level
is begin set
' '
0/
When the defrosting
poultry is begin
set or used
When the defrosting
seafood is begin
set or used
When the medium low power is
begin set or used
When the medium power is
begin set or used
When the medium high power is
begin set or used
When the high power is
begin set or used
Function and Operation method
The LED flashes 3 times when plugged in power supply. Then it flashes “:”,
prompting you to input the cooking menu and time.
1. Auto reminder
When your preset cooking procedure have finished, the LED Display will show
End and three beeps sound will be heard to prompt you to take out food. If you
do not press Stop/Clear button once or open the door the beep will be sounded at
an interval of 3 minutes.
2. Clock setting
Clock button make it available for you to input current or preset time when “:”
flashes onto LED display after plugged in, or try to skip it over to continue if
unnecessary.



For example: to set 12:30
Depress Display
1After power-up, the colon flashes
˖
2Press Preset .Clock button once 00:00
3Turn Auto Cooking/ Time .Weight knob to set exact
hours. 12:00
4Press Preset. Clock button once again. 12:00
5Turn Auto Cooking/ Time .Weight knob to set exact
minutes. 12:30
6Press Preset. Clock button once again or wait for 5
seconds, and the numbers will go steadily.
3. Microwave cooking
This function use for cooking and heating food. Press Micro Power button, LED
cycles to show 100P—80P—60P—40P—20P
High power 100% microwave power. Applicable for quick and thorough
cooking
Medium
High power 80% microwave power. Applicable for medium express cooking
Medium power 60% microwave power. Applicable for steaming food
Medium
Low power 40% microwave power. Applicable for defrosting food
Low power 20% microwave power. Applicable for keeping warm



a. The max time which can be set is 60minutes
b. Never operate the oven empty.
c. If you turn the food during operation, press the Instant/Start button once and
the preset cooking procedure will continue.
d. If you intend to remove the food before the preset time, you must press
Stop/Clear button once to clear the preset procedure to avoid unintended
operation of next time use.
Example: To cook at P80 for 10 minutes.
Depress Display
1After power-up, the colon flashes
˖
2Select the desired microwave power by depressing
Micro Power button consecutively 80P
3Set cooking time by turning Auto Cooking/
Time .Weight knob 10:00
4Press Instant/Start button to start, and LED will count
down to show running time.
You may change the cooking time during cooking. And it is recommended
turning the food halfway, after you turn the food. Press Instant/Start button once
to continue.
4. Express
Press Express button LED Display will cycle to show 0:30, 1:00, 1:30.
This function will allow you to heat a cup of water or beverage conveniently,
omitting the steps of setting time. Choose the proper time depending on the
beverage capacity.
Example: To cook with express for 1 minute
Depress Display
1After Power-up, the colon flashes
˖
2Depress Express button consecutively to select
desired menu 1:00
3Start cooking by pressing Instant/Start button



5. Defrost
This function use for Defrost food
ˈ
Press the Auto Defrost button and the LED
display will cycle to show d.1 d.2 d.3.
d.1 For defrosting meat, the weight range from 0.1 to 2.0 kg.
d.2 For defrosting poultry, the weight range from 0.2 to 3.0kg.
d.3 For defrosting seafood, the weight range from 0.1 to 0.9kg.
a. It is necessary to turn over the food during operation to obtain uniform effect.
b. Usually defrosting will need longer time than that of cooking the food.
c. If the food can be cut by knife, the defrosting process can be considered
completed.
d. Microwave penetrates around 4cm into most food.
e. Defrosted food should be consumed as soon as possible, it is not advised to
put back to fridge and freeze again.
Example: To defrost 0.4kg poultry
Depress Display
1After power-up, the colon flashes
˖
2Press Defrost button to set the food kind. d.2
Turn Auto Cooking/ Time .Weight knob to set the
defrost weight
0.4
Start cooking by pressing Instant/Start

In half way during defrosting 3 beep sound will be
heard two times to prompt you turn over the food.
Open the door and turn over the food and shield the
warm portion. Then close the door. Press Instant/start
button again to continue defrosting



6. Auto cooking
The oven has default cooking menu for simple operation. When the LED flash
colon, press the Auto Cook button and LED will cycle to show A.1,A.2 …… A.8
Choose the appropriate menu according to the food type and weight and strictly
observe the directions in below table, otherwise the cooking effect will be largely
influenced.
Display Kind Method
A.1 Popcorn
Suitable for popping a bag of corn, which is available in
the market, weighted 85g. Popcorn prior to completing, if
the popping speed has been decreased to 1 time per 1-2
seconds you should press Stop/Clear button to stop the
popping process
A.2 Popcorn Same as A.1 except 100g weight
A.3 Pizza Warm a piece of chilled pizza of 0.15Kg
A.4 Beverage
Heating a cup of 250 ml liquid. The liquid temperature is
about
5-10Ԩ. Use a big mouth cup and do not seal
A.5 Beverage
Heating a cup of 500 ml liquid. The liquid temperature is
about
5-10Ԩ. Use a big mouth cup and do not seal
A.6 Potato
Cooking the potato strips, cut into 5mm width and height,
length. Total weight is about 0.45kg. Place the strips on a
large dish and cover the dish with a thin film to prevent
water loss
A.7 Potato Same as A.6 except the weight of potato strips is about
0.65Kg
A.8 Fish
Suitable for steaming a fish of 0.45Kg. After the fish
washed and scales removed, make a slits on the skin of
fish .Put the fish on a shallow dish of 22-27cm diameter
sprinkle lightly with some ingredient and cover the dish
with a thin film to prevent water loss. After cooking, stand
for 2 minutes.



a. The temperature of food before cooking would be 20-25
Ԩ
. Higher or lower
temperature of the food before cooking would require increase or decrease of
cooking time.
b. The temperature, weight and shape of food will largely influence the cooking
effect. If any deviation has been found to the factor noted on above menu, you
can adjust the cooking time for best result.
Example: Steam 0.45kg fish
Depress Display
1. After power-up, the colon flashes
˖
2. Turn Auto Cooking/ Time .Weight knob to set the cooking
menu A.8
3. Start cooking by pressing Instant/Start button, and LED will
count down to show running time. 6:30
7. Automatic starting (delayed function)
If you do not want the menu be started immediately, you can preset the cooking
menu and time and the preset menu will be automatically started at your set time.
The setting will consist of 2 steps:
1. Setting the current clock;
2. Setting the cooking menu and time.



Example: Now it is 12:30 clock, if you hope that the microwave
oven will automatically start cooking with 100P microwave power
for 9 minutes and 30 seconds at 14:20
Depress Display
1After power-up, the colon flashes
˖
1.1 Depress Preset .Clock button 00:00
1.2 Set hours by turning Auto Cooking/
Time .Weight knob 12:00
1.3 Depress Preset.Clock button again to
confirm hours 12:00
1.4 Set minutes by turning Auto Cooking/
Time .Weight knob 12:30
1.5
Depress Preset. Clock button once or
waiting for 5 seconds, and the numbers will go
steady.
12:30
2Set the cooking menu and time
2.1 Select cooking power by pressing Micro Power
button 100P
2.2 Turn Auto Cooking/ Time .Weight knob to set
cooking time 9:30
2.3 Press and hold Clock button for 3 seconds to
return to current clock.
3Set the time you expect to start.Repeat the
steps of 1.2, 1.3, 1.4
4
Depress Clock button to confirm the delayed
menu. Now the program has been activated.
And the menu will be started at 14:20.
5You may check the preset starting time by
depressing Clock button.



8. Multi-sequence cooking
To obtain best cooking result, some recipes call for different cook mode and time.
You may program your personalized menu as follow:
Example: You want cook food with 100P microwave for 3 minutes
then 20P for 9 minutes. This is 2 sequence setting.
Depress Display
1100P microwave for 3min
1.1 Press Micro Power button to select power level. 100P
1.2 Turn Auto Cooking/ Time .Weight knob to set
cooking time. 3:00
220P for 9min
2.1 Press Micro Power button to select desired power
level 20P
2.2
Turn Auto Cooking/ Time .Weight knob to set
cooking time. 9:00
3Start cooking by pressing Instant/Start
a. When microwave 100 power cooking is finished, microwave oven will begin
next operation automatically.
b. Max 4 sequences can be set per time, repeat the steps
9. Child lock function
Use this feature to lock the control panel when you are cleaning or so that
children can not use the oven unsupervised. All the buttons are rendered
inoperable in this mode



Depress Display
set lock Depress and hold Stop/Clear button about
3 seconds OFF
cancel lock Depress and hold Stop/Clear button about
3 seconds
˖
10. Cooking Tips
The following factors may affect the cooking result:
Food arrangement
Place thicker areas towards outside of dish, the thinner part towards the
centre and spread it evenly. Do not overlap if possible.
Cooking time length
Start cooking with a short time setting, evaluate it after it times out and
extend it according to the actual need. Over cooking may result in smoke
and burns.
Cooking food evenly
Food such as chicken, hamburger or steak should be turned once during
cooking.
Depending on the type of food, if applicable, stir it from outside to centre of
dish once or twice during cooking
Allow standing time
After cooking times out, leave the food in the oven for a adequate length of
time, this allows it to complete its cooking cycle and cooling it down in a
gradual manner
Whether the food is done
- Color and hardness of food help to determine if it is done, these include:
- Steam coming out from all parts of food, not just the edge
- Joints of poultry can be moved easily
- Pork or poultry shows no signs of blood
- Fish is opaque and can be sliced easily with a fork



Browning dish
When using a browning dish or self-heating container, always place a
heat-resistant insulator such as a porcelain plate under it to prevent damage
to the turntable and rotating ring.
Microwave safe plastic wrap
When cooking food with high fat content, do not allow the plastic wrap
come into contact with food as it may melt
Microwave safe plastic cookware
Some microwave safe plastic cookware might not be suitable for cooking
foods with high fat and sugar content. Also, the preheating time specified in
the dish instruction manual must not be exceeded
CLEANING and MAINTENANCE
Microwave oven care
The oven should be cleaned regularly and any food deposits removed.
1. It is hazardous for anyone other than a competent person to carry out any
service or repair operation that involves the removal of a cover which gives
protection against exposure to microwave energy
2. Remove the power cord from the wall outlet before cleaning
3. Failure to maintain the oven in a clean condition could lead to deterioration of
the surface that could adversely affect the life of the appliance and possibly
result in a hazardous situation
4. The oven should be cleaned regularly and any food deposits removed
5. Details for cleaning door seals, cavities and adjacent parts.
6. Never use hard detergent, gasoline, abrasive powder or metal brush to clean
any part of the appliance
7. Do not remove the waveguide cover
8. When the microwave oven has been used for a long time, there may be some
strange odors exist in oven, Following 3 methods can get rid of them:



a. Place several lemon slices in a cup, then heat with high power for 2-3 min.
b. Place a cup of red tea in oven, then heat with high power.
c. Put some orange peel into oven, and then heat them with high power for 1
minute.
TIPS for cleaning
Exterior:
Wipe the enclosure with a dampened soft cloth
Door:
Using a dampened soft cloth, wipe clean the door and window
Wipe the door seals and adjacent parts to remove any spill or spatter
Wipe the control panel with a slightly dampened soft cloth
Interior walls:
Wipe clean the interior surfaces with a dampened soft cloth
Wipe clean the waveguide cover to remove any food splashed
Turntable / Rotation ring / Rotation axis:
Wash with mild soap water
Rinse with clean water and allow drying thoroughly
Servicing
Please check the following before calling for services.
a. Place one cup of water (approx.150ml)in a glass measure in the oven and close
the door securely. Oven lamp should go off if the door is closed properly. Let
the oven work for 1 min.
b. Does the oven lamp light?
c. Does the cooling fan work?
(Put your hand over the rear ventilation openings.)
d. Does the turntable rotate?
(The turntable can rotate clockwise or counterclockwise. This is quite normal.)
e. Is the water inside the oven hot?



If “NO” is the answer to any of the above questions, please check your wall
socket and the fuse in your meter box.
If both the wall socket and the fuse are functioning properly, CONTACT YOUR
NEAREST SERVICE CENTER APPROVED.
SERVICING SAFEGUARDS
MICROWAVE RADIATION
ʽ
It is hazardous for anyone, other than a qualified service technician, to carry out any
service for repairing operation which involves removal of any cover which gives
protection against exposure to microwave energy.
The temperature of accessible surfaces may be high when the appliance is operating
The high voltage capacitor remains charge after disconnection; short the negative
terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before
touching.

