Icom MR-570R User manual

T
1.296NM O:01
O:01
0.566NM
S0672˚
EBL/VRM1
EBL/VRM2
R
R
S0162˚
3
(1)
NM
2530 ˚
TM
Heading indicator
Mode indicator*5
Cross line cursor
EBL1/2
VRM1/2
MOB symbol
Fixed range rings*1
Fixed ring range readout*1
EBL1/VRM1, EBL2/VRM2
readouts*4
Tuning level indicator
Screen range readout
Heading line
Alarm zone*2
Own ship vector indicator
Waypoint marker*3
■Display information
MR-570R OPERATING GUIDE
*1Appears when the “RING” of the FUNCTION menu is
turned ON.
*2Appears when the alarm function is in use.
*3Appears when the “WPT” of the FUNCTION menu is
turned ON. To display the waypoint marker, bearing data
and NMEA data with 0183 format is necessary.
*4This area may differ depending on DATA DISP selection in
the FUNCTION menu. Nautical miles (NM) and kilometres
(KM) can be selected in the INT.SETTING menu as the dis-
tance unit.
*5North-up (N UP) and Course-up (C UP) screens require ex-
ternal bearing data. True Motion (TM) screen requires bear-
ing data and LOG or position data.
■BRILL menu
Push [BRILL] to select the brilliance adjustment menu.
■ADJ (Adjust) menu
Push [ADJ] to select the adjustment menu.
■Function menu
Push [MENU] to select the function menu.
RING
D.RANGE
ZONE ALARM
EBL/PI
DATA DISP
L/L DISP
WPT
OWN VECT
TRAIL TIME
SAVE TIME
FUNCTION
OFF ON
NAR. MID. WIDE
IN OUT
TRUE 360RPT/SB
OFF CURS SHIP WPT
OFF ON
OFF ON
OFF ON
6MIN
15MIN
TUNE GAIN SEA RAIN IR ES PULSE
ON ON LP
OFF
OFF SP
A
U
T
O
A
U
T
O
BRILL. CONTR. DISP.
POSI
NEGA

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan
Count on us!
A-6014H-2EX Printed in Japan
© 2001 Icom Inc.
■Control functions
[TX (SAVE)]
Toggles between the TX mode and the standby
mode. Turns the power save function ON when
pushed and held.
[HL OFF]
Push [ADJ] and [MENU] simultaneously to turn
off all indications except the PPI (Plan Position
Indicator) screen, temporarily.
[ADJ]
Push to show the adjust menu.
[UP] [DOWN] [RIGHT] [LEFT]
Set the cross line cursor, alarm area, EPA tar-
get, etc. according to the switch pushed.
[+] [–]
Push to increase or decrease the screen
range.
[MOB]
Push to mark the man overboard point on the
screen.
[ALM]
Toggles the alarm function ON and OFF. En-
ters the alarm area setting condition when
pushed and held.
[EBL1 (VRM1)]
Displays the electronic bearing line 1 (EBL1)
and the variable range marker 1 (VRM1) on
the cross line cursor position from own ship.
[POWER]
Turns power ON and OFF.
[BRILL]
Turns the brilliance adjustment menu ON or OFF.
[MENU]
Toggles the FUNCTION and EPA menu. Push
[ ]/[ ] keys to select the items and push
[ ]/[ ] keys to change the setting.
[ZOOM]
Push [MOB] and [TRAILS] simultaneously to
toggle the ZOOM function ON and OFF.
[TRAILS]
Toggles the trail function ON and OFF.
[OFF CENT]
Push [ALM] and [MODE] simultaneously to
turn the OFF CENTER function ON or OFF.
[MODE]
Push to select one of Head-up (H UP), Course-
up (C UP), North-up (N UP) or True motion
(TM) screens.
[PI]
Push [EBL1] and [EBL2] simultaneously to turn
the parallel index line ON.
•Push [EBL1] or [EBL2] to turn the line OFF.
[EBL2 (VRM2)]
Push to display the electronic bearing line 2
(EBL2) and the variable range marker 2
(VRM2) while EBL1 and VRM1 are displayed
on the screen.
[EPA]
Push to enter the EPA position data.
Push [EPA] for 0.5 sec. to toggle the EPA dis-
play and navigation display.
■EPA menu
Push [MENU] twice to select the EPA menu.
■INT. SETTING menu
Push [MENU] twice to select the EPA menu. Push [ ] 6
times to select the INT. SETTING menu. Push [ ] to enter.
BEEP
DIST UNIT
BRG
MAG VER
BRG INPUT
SPD INPUT
TX INH START
TX INH ANGLE
SERVICE MAN
INT.SETTING
OFF ON
NM KM WI
TRUE MAG
AUTO MANU.
!! 0.0 E
NMEA N+1 AUX
GPS LOGOF
0
0
EPA
VECT
No.DISP
ALARM
CPA LIMIT
TCPA LIMIT
INT.SETTING
EPA MENU
OFF ON
TRUE REL
OFF SEL ALL
OFF ON
1.0NM
10MIN

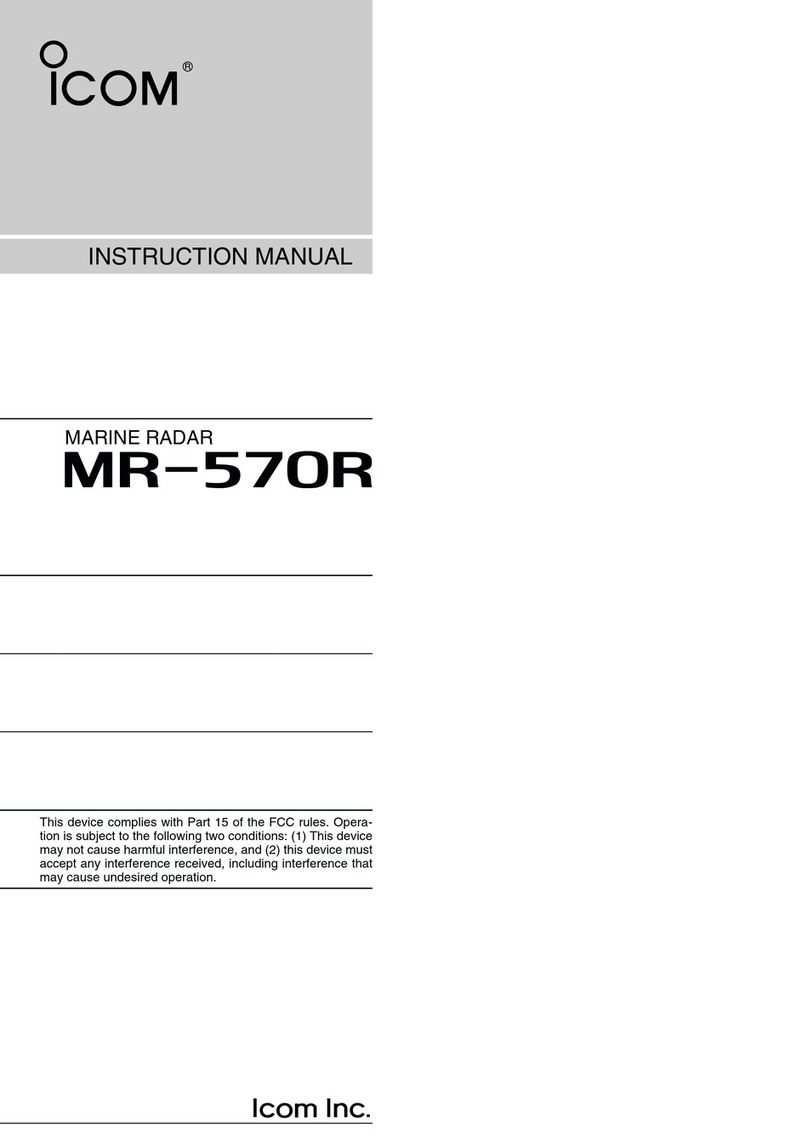

INSTRUCTION MANUAL
MARINE RADAR
MR-570R

i
SYSTEM COMPONENTS
MODEL NAME
SX-2464
DISPLAY UNIT
EX-2473 (5.7 inch LCD)
SCANNER UNIT
EX-2474 (Radome type)
•EX-2473 (5.7 inch LCD display unit) Qty.
qNMEA connector (NS1007 7P)............................. 2
wSpare fuse (FGB 10 A) ........................................ 1
eSpare fuse (FGB 5A: for over 24 V power supply ) ..... 1
rDC power cable (OPC-928).................................. 1
tNMEA connector cover......................................... 2
ySelf-tapping screws (5 x 30)................................. 4
uSpring washers (M5) ........................................... 4
iFlat washers (M5) ................................................ 4
oMounting spacer................................................... 4
!0 Mounting rubbers ................................................. 4
•EX-2474 (Scanner unit) Qty.
qSystem cable (OPC-1075: 10 m).......................... 1
wInstallation bolts (M10 x 50) ................................. 4
eInstallation bolts (M10 x 25) ................................. 4
rInstallation nuts (M10) ......................................... 4
tFlat washers (M10) .............................................. 4
ySpring washers (M10) ......................................... 4
SUPPLIED ACCESSORIES
and Icom Inc. are registered trademarks of Icom Incorporated (Japan) in the United States and/or other
countries.

ii
IMPORTANT
READ ALL INSTRUCTIONS carefully and com-
pletely before attempting to operate the marine radar.
SAVE THIS INSTRUCTION MANUAL. This
manual contains important safety and operating in-
structions for the MR-570R.
RNEVER let metal, wire or other objects touch any
internal part of the radar.
RNEVER place the radar within the reach of chil-
dren.
RNEVER expose the display unit to rain, salt water
or any other liquids.
NEVER connect the radar to AC or more than 42 V
DC. This will damage the radar.
AVOID placing the display unit in excessively dusty en-
vironments or in direct sunlight.
AVOID placing the display unit near heating equipment
or in direct sunlight or where hot or cold air blows di-
rectly onto it.
AVOID using the scanner unit in areas where the tem-
perature is below –25˚C (–13˚F) or above +70˚C
(+158˚F). AVOID using the display unit in areas where
the temperature is below –15˚C (+5˚F) or above +55˚C
(+131˚F).
AVOID using strong solvents such as benzene or al-
cohol for cleaning the radar, as they may damage the
surfaces.
PRECAUTIONS
FOREWORD
Thank you for purchasing ICOM’s MR-570R MARINE
RADAR.
The radar is designed especially for fishing boats. It
has powerful transmission power, a 5.7 inch LCD dis-
play and many other advanced features.
If you have any questions regarding the operation of
the radar, contact your nearest authorized Icom Inc.
dealer.
EXPLICIT DEFINITIONS
The following explicit definitions apply to this instruc-
tion manual.
WORD
RWARNING
RCAUTION
NOTE
DEFINITION
Personal injury, fire hazard or elec-
trical shock may occur.
Equipment damage may occur.
If disregarded, inconvenience only.
personal injury, fire hazard or elec-
trical shock will not occur.
CAUTION!
SART signal may not be detected and may
not be displayed on the screen depending
on the SEA, RAIN or IR settings.
Follow the following settings to detect the
SART signal on the screen.
1. Select the screen range between 6 NM
to 12 NM.
2. Set the [GAIN]* as high as possible.
3. Set the [SEA]* to minimum.
4. Set the [RAIN]* to minimum.
5. Turn the [IR]* OFF.
6. Turn the [ES]* OFF.
*See the [ADJ] menu on p. 6.

TABLE OF CONTENTS
iii
SYSTEM COMPONENTS...........................................i
SUPPLIED ACCESSORIES........................................i
IMPORTANT ............................................................. ii
PRECAUTIONS ........................................................ ii
FOREWORD ............................................................ ii
EXPLICIT DEFINITIONS .......................................... ii
TABLE OF CONTENTS ............................................iii
1 CAUTION ............................................................. 1
DANGER! HIGH VOLTAGE .................................. 1
RADIATION HAZARD ........................................... 1
2 PANEL DESCRIPTION ................................... 2 –5
■Front panel ........................................................ 2
■Screen ............................................................... 4
3 MENU .............................................................. 6 –9
■BRILL MENU ..................................................... 6
■ADJ (Adjust menu)............................................. 6
■FUNCTION MENU............................................. 7
■EPA..................................................................... 8
■INT. SETTING .................................................... 9
4 BASIC OPERATION .................................... 10–13
■Checking the installation ................................. 10
■Turning power ON/OFF.................................... 10
■Basic operation ................................................ 11
■RAIN function................................................... 12
■SEA function..................................................... 12
■OFF CENTER function..................................... 12
■IR function ....................................................... 13
■ECHO STRETCH function .............................. 13
■ZOOM function ................................................ 13
■TRAILS function .............................................. 14
■Power save function ........................................ 14
■Ship speed indication ...................................... 15
■Position indication ........................................... 15
■Way point indication ......................................... 15
■Long pulse function.......................................... 15
■Bearing setting ................................................ 15
5 DISTANCE AND DIRECTION
MEASUREMENTS ...................................... 16–18
■Distance measurement ................................... 16
■Bearing and Distance measurement ............... 17
■Advanced measurement ................................. 18
6 ALARM FUNCTION ........................................... 17
■Alarm zone setting ........................................... 19
■Zone alarm setting ........................................... 19
7 EPA (Electronic Plotting Aid) .................... 20–22
■EPA (Electronic Plotting Aid) ............................ 20
■EPA menu setting ............................................ 20
■EPA operation .................................................. 21
■Correct the target ............................................ 21
■Clear the target ................................................ 22
■Plotting marks .................................................. 22
■Course and speed vector ................................ 22
■Plots ................................................................ 22
8 BASIC RADAR THEORY ............................ 23–25
■Side-lobe echoes ............................................. 23
■Indirect echoes ................................................ 23
■Multiple echoes ............................................... 24
■Minimum range ................................................ 24
■Blind and Shadow sectors ............................... 25
■Target resolution............................................... 25
9 INSTALLATION AND CONNECTIONS ........ 26–30
■Connecting the units ........................................ 26
■Power source requirement .............................. 26
■Ground connection............................................26
■Installing the EX-2373 display unit .................. 27
■Mounting the EX-2374 scanner unit ............... 28
■Wiring the system cable .................................. 29
10 SERVICE MAN MENU .............................. 31–34
■Service man menu .......................................... 31
■SPD adjustment ............................................... 32
■HDG adjustment............................................... 32
■TIMING adjustment ......................................... 33
■MBS adjustment .............................................. 33
■RANGE selection ............................................. 34
■Tuning adjustment............................................ 34
■Auto gain adjustment........................................ 34
11 ERROR MESSAGE ......................................... 35
■Error message list ........................................... 35
12 MAINTENANCE ............................................... 36
■Periodic maintenance ...................................... 36
■Scanner unit maintenance ............................... 36
■Display unit maintenance ................................ 36
■Options ............................................................ 36
13 SPECIFICATIONS ........................................... 37
14 EXTERNAL DATA LIST ................................... 38
15 TEMPLATE..................................................39–41
■Template for the display unit
•EX-2473 (LCD Display)....................................39
■Template for the scanner unit
•EX-2474 (RADOME) ........................................41

1
CAUTION
1
The MR-570R is supplemental aids to navigation and are not intended to be a substitute for
accurate and current nautical charts.
DANGER! HIGH VOLTAGE
• NEVER OPEN THE UNIT
This product contains high voltage that could be FATAL. This product has no user-servicable
parts inside.All repairs and adjustments MUST be made by a qualified electronics technician
at your Marine Navigation Dealer.
• HIGH VOLTAGE
High voltages of up to 3,500 volts are used in this equipment.Although prudent measures for
safety have been adopted, sufficient care must be taken in the operation, maintenance and
adjustment of the equipment.
Electric shock of 1,000 volts or more may cause electrocution and death; even an electric
shock of only 100 volts may be fatal.
• PREVENTION OF ELECTRIC SHOCK
(FOR QUALIFIED ELECTRONIC TECHNICIANS ONLY)
To prevent such accidents, turn OFF the power source and do not reach inside the unit until
you have:
q Discharged the capacitors by disconnecting the power cable from the power source for 5
min.;
w Checked that no electric charges remain inside the device.
Also, it is safest to wear dry insulated rubber gloves. NEVER use both hands simultaneously;
keep one hand in your pocket.
RADIATION HAZARD
• Radiation emitted from the scanner unit can be harmful, particularly to the eyes. To avoid harm-
ful radiation, ensure the radar power is in the OFF position before beginning work on the scan-
ner unit.
•The maximum distances from the antenna at which radio frequency radiation levels of 100
W/m2and 10 W/m2as follows.

PANEL DESCRIPTION
2
2
■Front panel
MARINE RADAR
qPOWER SWITCH [POWER] (p. 10)
Turns power ON and OFF.
•The standby screen appears for 90 sec. while warming
up the magnetron.
•The initial screen appears with a beep after the power
has been turned ON.
wEBL1 (VRM1) SWITCH [EBL1 (VRM1)] (pgs. 16–18)
Push to display the electronic bearing line 1 (EBL1)
and the variable range marker 1 (VRM1) on the
cross line cursor position from own ship.
•EBL1 bearing and VRM1 distance are displayed, in the
bottom window.
•When EBL1 and VRM1 are displayed, the beginning of
EBL2 appears at own ship or the intersection point of
EBL1 and VRM1.
eALARM SWITCH [ALM] (p. 19)
Push [ALM] to toggle the alarm function ON and
OFF.
Push and hold [ALM] for 0.5 sec. to enter the alarm
area setting condition.
•Push []/[]/[]/[ ] key to move the cross cursor to
the zone starting point, then push [ALM] for 0.5 sec.The
starting ring of the zone is created. Then push []/[]/
[]/[ ]to fix the finish point, the desired alarm zone
will automatically form.
rMAN OVERBOARD [MOB]
Push to mark the man overboard point on the
screen. In the case of when a crew member falls
overboard, push [MOB] to display the MOB marker
( ) on the screen.
•MOB readout shows the bearing, distance and esti-
mated time to the MOB point with current speed.
•Push and hold [MOB] for 0.5 sec. to cancel the function.
•Position and bearing data are necessary.
•External data is required for screen display information.
(p.38).
tRANGE UP/ DOWN SWITCH [+/ –] (p. 16)
Push [+] to increase the screen range.
Push [–] to decrease the screen range.
yUP, DOWN, LEFT, RIGHT KEY
[UP][DOWN][RIGHT][LEFT]
Set the cross line cursor, alarm area, EPA target,
etc. according to the switch pushed.
Use the []/[]key to select menu item and [
]/[ ]key to set the item.
Using the []-[]/[ ]or []-[]/[ ]key combina-
tion allows you to move the cross line cursor to the
upper (or lower) left or right.
uADJUST MENU [ADJ] (p. 6)
Push [ADJ] to show the adjust menu on the display.
•Adjustable items; TUNE, GAIN, SEA, RAIN, IR, ES,
PULSE length.
!8
!1
!7
!5
!3
o
i
t
r
e
w
q
u
y
!0
!2
!4
!6
Control panel

3
2
PANEL DESCRIPTION
iTRANSMIT/SAVE SWITCH [TX (SAVE)] (p. 11)
Push to toggle between the TX mode and the
standby mode.
Push and hold for 0.5 sec. to turn the power save
function ON. The radar for TX interval scan is fixed
at 10 revolutions. (p. 14)
•Select the save time in FUNCTION menu.
oDISPLAY BRILLIANCE SWITCH [BRILL] (p. 6)
Push [BRILL] to turn the brilliance adjustment menu
ON or OFF.
•The brilliance and contrast of the symbol, character and
illumination can be adjusted in [BRILL.] and [CONTR.]
of the [BRILL] menu independently.
•Positive or Negative selection is available in [DISP.]
menu.
•Pushing and holding [BRILL] for 1 sec. to turn the con-
trast and brilliance to the default setting.
!0 HEADING LINE OFF FUNCTION [HL OFF] (p. 11)
Push [ADJ] and [MENU] simultaneously to turn off
all indication except the PPI (Plan Position Indica-
tor) screen, temporarily.
!1 MENU SWITCH [MENU] (pgs. 7–9)
Push [MENU] to toggle the FUNCTION and EPA
menu. Push []/[]keys to select the items and
push []/[ ]keys to change the setting.
•Enter the “INT. SETTING”from the “EPA”menu.
•Enter the “SERVICE MAN”menu from the “INT SET-
TING MENU”.
!2 ZOOM FUNCTION [ZOOM] (p. 13)
Push [MOB] and [TRAILS] simultaneously to toggle
the ZOOM function ON and OFF. ZOOM function
expands the target to 2 times normal.
•Move the cursor to the target, then turn the function ON.
•The screen zooms around the middle of the cursor and
own ship.
•This function is not available at 1/8, 3/4and 32 NMor
above ranges.
!3 TRAILS SWITCH [TRAILS] (p. 14)
Push to toggle the trail function ON and OFF. This is
useful for watching other ship’s tracks, approx. rela-
tive speed etc.
•Trail Time can be set in FUNCTION menu.
!4 OFF CENTER FUNCTION [OFF CENT] (p. 12)
Push [ALM] and [MODE] simultaneously to turn
the OFF CENTER function ON or OFF.
•This function is not available at 32 NM or above ranges.
!5 MODE SWITCH [MODE]
Push to select one of Head-up (H UP), Course-up
(C UP), North-up (N UP) or True motion (TM)
screens.
•The North-up, Course-up and TM screens require ‘Ex-
ternal data’(p. 38).
•TM screen is not available at 32 NM or above ranges.
!6 PARALLEL INDEX LINE FUNCTION [PI]
Push [EBL1] and [EBL2] simultaneously to turn the
parallel index line ON.
Push [EBL1] or [EBL2] to turn the line OFF.
•Push []/[ ]keys to rotate the lines, and push []/[]
keys to adjust the line spaces.
!7 EBL2 (VRM2) SWITCH [EBL2 (VRM2)] (pgs. 16–18)
Push to display the Electronic Bearing Line 2
(EBL2) and the Variable Range Marker 2 (VRM2)
while EBL1 and VRM1 are displayed on the screen.
•Push [EBL2/VRM2] to toggle the center of VRM2 as fol-
lows.
Own ship ➔Intersection of the EBL1 and VRM1 ➔OFF.
!8 EPA SWITCH [EPA] (pgs.20–22)
Push to enter the EPA position data.
Push the [EPA] for 0.5 sec. to toggle the EPA dis-
play and navigation display.
•Push []/[]/[]/[ ]key to move the cross cursor on
the echo which you want to plot on the screen before
turning the function ON.
•Select “EPA”function ON in the “EPA”menu, set the ap-
propriate VECT, No. DISP, ALARM, CPA LIMIT and
TCPA LIMIT setting.
•External data is required for screen display information.
(p.38).

4
2
!9 TUNING LEVEL INDICATOR
Shows the receiver tuning level.
@0 SCREEN RANGE READOUT (p. 16)
Shows the maximum range of the displayed screen.
•The range indicated is nautical miles (NM).
@1 FIXED RING RANGE READOUT (p. 16)
Shows the interval range of the fixed ring.
•This readout appears when the “RING”of the FUNC-
TION menu is turned ON.
@2 HEADING LINE (p. 11)
Heading line indicates the ships bow.
@3 ALARM ZONE (p. 19)
Shows the alarm zone.
•Appears when the alarm function is in use.
•External data is required for screen display information.
(p.38).
@4 OWN SHIP VECTOR INDICATOR
Shows the vector of your own ship.
@5 WAYPOINT MARKER (p. 15)
Shows the waypoint received from navigation
equipment.
•This marker appears when the “WPT”of the FUNCTION
menu is turned ON.
•External data is required for screen display information.
(p.38).
@6 EBL1/VRM1,EBL2/VRM2 READOUTS (pgs. 16-
18)
Shows the bearing of the displayed Electronic Bear-
ing Lines (EBL) and the distance of the displayed
Variable Range Markers (VRM).
•Nautical miles (NM) and kilometres (KM) can be se-
lected in the INT.SETTING menu as the distance unit.
@7 HEADING INDICATOR
Shows the heading bearing readout.
•The HDG readout indicates the bow of the ship’s bearing
in a clockwise direction from north.
•External data is required for screen display information.
(p.38).
@88 MODE INDICATOR
Head-up, Course-up (CUP), North-up (NUP) and
True Motion (TM) screens are available.
•External data is required for screen display information.
(p.38).
@9 CROSS LINE CURSOR
Used for measuring the bearing and distance, set-
ting the alarm zone, selecting the EPA targets, etc.
•Push []/[]/[]/[ ] several times to move the cur-
sor.
PANEL DESCRIPTION
■Screen
S0672˚
EBL/VRM1
EBL/VRM2
R
R
S0162˚
3
(1)
NM
2530 ˚
TM
T
1.296NM O:01
O:01
0.566NM
@7
@8
@9
#0
#1
#2
#3
@2
@3
!9
@0
@1
@4
@5
@6
NOTE:
DATA display area may differ de-
pending on DATA DISP selection in
the FUNCTION menu.

2
PANEL DESCRIPTION
5
#0 EBL1/2 (pgs. 16-18)
Used for bearing measurement. When a target is
selected, the EBL readout #6 shows the bearing.
#1 VRM1/2 (pgs. 16-18)
Used for distance measurement. When a target is
selected, the VRM2 readout @8 shows the distance.
#2 MOB SYMBOL
Push [MOB] to mark the [MOB] marker on the
screen.
•External data is required for screen display information.
(p.38).
#3 FIXED RANGE RINGS (p. 16)
Shows the distance in fixed intervals.
•These rings appear when the “RING”of the FUNCTION
is turned ON.
DATA DISPLAY
Data readout may differ depending on “DATA DISP”
setting of the function menu.
•When “OFF” is selected;
#4 ALARM INDICATOR (p. 19)
Appears when the alarm function is in use.
#5 TRAILS INDICATOR (p. 14)
Shows the trail time.
•Echo remains with gradation during the trail time period
on the screen. (Except for the trail time; ∞)
•Progressing time counter starts to count the time until
the timer reaches the trail time.
#6 VECTOR INDICATOR (pgs. 20-22)
Shows the EPA and OWN vector type.
•Tv: True vector
•Rv: Relative vector
•External data is required for screen display information.
(p.38).
#7 SHIP SPEED READOUT (p. 15)
Shows the ship speed.
•SOG: When GPS is selected in the INT. SETTING menu.
•STW: When LOG is selected in the INT. SETTING menu.
•External data is required for screen display information.
(p.38).
•When “CURS” or “SHIP” is selected;
#8 POSITION/CURSOR READOUT (p. 15)
Shows your own ship or cursor latitude and longi-
tude readout when external NMEA data with 0183
format is connected.
•Select ‘CURS’or ‘SHIP’in the FUNCTION menu.
•External data is required for screen display information.
(p.38).
•When “WPT” is selected;
#9 WAYPOINT READOUTS (p. 15)
Shows the bearing and distance to the waypoint re-
ceived from navigation equipment.
•This readout appears when the “WPT”of the FUNC-
TION menu is selected.
•External data is required for screen display information.
(p.38).
$0 TIME INDICATOR
Shows the estimated time to the waypoint with cur-
rent speed.
•External data is required for screen display information.
(p.38).
MOB
$1 MOB READOUTS
Shows the bearing and distance to the MOB (Man
Over Board) event marker.
•Push and hold [MOB] for 0.5 sec. to cancel the readout
and the symbol.
•When [MOB] function is activated, [MOB] readout is prior
to displayed except [EBL/VRM] readouts.
•External data is required for screen display information.
(p.38).
POSN
34º38637N
SOG
Tv
135 º33.209E
WPT
34˚42.000N
SOG
Tv
135˚29.000E
MOB
R
3087˚
SOG
Tv
O:04
4.365NM
SOG
Tv
AL
TR
0’08
#4
#5
#6
#7
17.7KT
CURS
R
0398º
SOG
Tv
O:09
2.068NM
(CURS readout)
(SHIP readout)
NOTE:
When L/L DISP function in the [FUNCTION] menu is
turned ON, [CURS], [WPT] and [MOB] readouts will
be displayed as Latitude/Longitude.
When L/L DISP function in the [FUNCTION] menu is
turned OFF, [CURS], [WPT] and [MOB] readouts will
be displayed as bearing and distance.

3
6
MENU
Push [BRILL] to turn the [BRILL] menu ON or OFF.
■BRILL. (Brilliance)
•Push []/[ ] to select [BRILL.], then push []/[] to
change the setting.
■CONTR. (Contrast)
•Push []/[ ] to select [CONTR.], then push []/[] to
change the setting.
■DISP. (Display type)
•Push []/[ ] to select [DISP.], then push []/[] to se-
lect the “Positive display”or “Negative display”.
NOTE:
Pushing and holding [BRILL] for 1 sec, returns the brilliance
and contrast setting to the default setting.
BRILL. CONTR. DISP.
POSI
NEGA
■BRILL MENU ■ADJ(Adjust menu)
TUNE GAIN SEA RAIN IR ES PULSE
ON ON LP
OFF
OFF SP
A
U
T
O
A
U
T
O
Push [ADJ] to turn the ADJ. menu ON or OFF.
•Push []/[ ] to select the item and push [UP] or [DOWN]
to change the setting.
[TUNE], [GAIN], [SEA] control
•While selecting each item, push and hold [ADJ] for
0.5 sec. to turn the “AUTO function”ON and OFF.
■TUNE
•“AUTO.TUNE”appears for approx. 5 sec. instead of the
screen display, when first transmitting after turning the
power on. The unit also re-tunes in some cases.
•When activating the manual tuning slider, push []/[
]to adjust desired tuning level.
■GAIN CONTROL [GAIN] (p. 11)
Adjusts the receiver amplifier gain.
•Increased gain may increase screen noise.
■SEA CLUTTER CONTROL [SEA] (p. 12)
•This function serves to eliminate echoes from the
waves at close range.
•Reduces the receiver gain for close objects within a
radius of 8 miles to eliminate sea clutter.
•Under normal conditions set the SEA to a minimum or
AUTO.
•Use this control with caution when the sea is rough.
■RAIN CLUTTER CONTROL [RAIN] (p. 12)
This function eliminates reflection echoes from rain,
snow, fog, etc.
■IR (p. 13)
•OFF : Turn the Interference Reduction function OFF.
•ON : Turn the Interference Reduction function ON.
■ECHO STRETCH [ES] (p. 13)
•OFF : Turn the echo stretch function OFF.
•ON : Turn the echo stretch function ON.
■PULSE
•LP:Select the long pulse. LP indicator appears on the
screen.
•SP:Select the short pulse.

3
MENU
7
Push [MENU] to turn the [FUNCTION] menu ON.
•Push []/[] to select the item and push []/[ ] to
change the setting.
■RING
•OFF : Turn the fixed range ring display OFF.
•ON : Turn the fixed range ring display ON.
■D.RANGE
Select the dynamic range of the PPI (Plan Position In-
dicator).
•NAR. : Narrow dynamic range. Even weak reflec-
tions are displayed as strong reflections.
•MID. : Mid dynamic range.
•WIDE : Wide dynamic range. You can distinguish
between weak reflections and strong reflec-
tions easily. It’s easy to overlook a quiet
weak reflection.
■ZONE ALARM
•IN :Alarm is emitted when the target comes into
the zone.
•OUT :Alarm is emitted when the target goes out of
the zone.
■EBL/PI (except HDG and CSE) (p. 17)
•TRUE* : True or magnetic direction.
•360°R : Relative direction
•PT/SB : Bow direction
■DATA DISP* (See left)
•OFF : No information displays on the screen.
•CURS : Display the cursor position.
•SHIP: : Display your own ship’s position.
•WPT : Display the Way Point.
■L/L DISP* (See bottom left)
•OFF :Display the bearing, distance and time on the
screen.
•ON :Display the Latitude and Longitude on the
screen. [CURS], [WPT] AND [MOB]
■WPT*
•OFF :For not displaying the way point mark on the
screen.
•ON :To display the way point mark on the screen.
■OWN VECT*
•OFF :For not displaying the own ship vector.
•ON :To display your own ship’s vector.
■TRAIL TIME
•15S, 30S, 1M, 3M, 6M, 15M, 30M or ∞:
Select the plot interval and vector time.
■SAVE TIME
•1M, 6M, 15M or 30M : Select the stand by time dur-
ing save mode.
* The radar for TX interval scan is fixed at 10 revolutions.
RING
D.RANGE
ZONE ALARM
EBL/PI
DATA DISP
L/L DISP
WPT
OWN VECT
TRAIL TIME
SAVE TIME
FUNCTION
OFF ON
NAR. MID. WIDE
IN OUT
TRUE 360RPT/SB
OFF CURS SHIP WPT
OFF ON
OFF ON
OFF ON
6MIN
15MIN
■FUNCTION MENU
CURS
R
0398º O:09
2.068NM
POSN
34º38637N
135 º33.209E
WPT
R
002.8˚O:14
5.628NM
WPT
R
002.8˚O:14
5.628NM
•DATA DISPLAY: CURS (Cursor)
•DATA DISPLAY: SHIP (Position)
•DATA DISPLAY: WPT (Way Point)
•L/L DISP OFF
WPT
34˚42.000N
SOG
135˚29.000E
•L/L DISP ON
AL
TR
0’08
TRAIL indicator
Trail interval
•DATA DISPLAY: OFF
Sample;
*NOTE: External data is required for screen display infor-
mation. (p.38).

8
3MENU
Push [MENU] several times to turn the [EPA] menu ON
or OFF.
•Push []/[] to select the item and push []/[ ] to
change the setting.
■EPA
•OFF :Turn the EPA function OFF.
•ON :Turn the EPA function ON.
■VECT
•TRUE :Select the true vector mode.
•REL :Select the relative vector mode.
■No.DISP
•OFF :For not displaying any mark number.
•Sel :Display the selected mark number only.
•ALL :Display all mark numbers.
■ALARM (CPA/TCPA)
•OFF :Turn the alarm function OFF.
•ON :Turn the alarm function ON.
■CPA* LIMIT
•0.1 to 50.0 NM:Set the CPA (Closest Point of Ap-
proach) limit with []/[ ]keys.
■TCPA* LIMIT
•1 to 60 MIN. :Set the TCPA (Time to CPA) limit time
with []/[ ]keys.
*CPA/TCPA: Closest Point ofApproach and Time to Clos-
est Point of Approach limit is defined by the observer to
give a warning when a target or targets are close to
within those limits from your own ship.
■INT. SETTING
•Push []to open the INT. SETTING menu. (see
right)
EPA
VECT
No.DISP
ALARM
CPA LIMIT
TCPA LIMIT
INT.SETTING
EPA MENU
OFF ON
TRUE REL
OFF SEL ALL
OFF ON
1.0NM
10MIN
■EPA(Electronic Plotting Aid)
*NOTE:External data is required for screen display infor-
mation. (p.38).

9
3
MENU
Push [MENU] several times to turn the EPA menu ON.
•Push [] to select the [INT.SETTING] and push [] to
open the [INT.SETTING] menu.
■BEEP
•OFF :Turn the beep tone OFF*.
•ON :Turn the beep tone ON.
* Except alarm function.
■DIST UNIT
•NM :Display the distance unit as NM.
•KM :Display the distance unit as KM.
■BRG
Select the displayed bearing type, no relation with the
bearing data format (NMEA, N+1 or AUX).
•TRUE :Select the true bearing.
•MAG :Select the magnetic bearing.
■MAG VAR
•AUTO* :Revise magnetic variation automatically.
*NOTE: NMEA data is required. NEVER select
“AUTO”without NMEAdata, incorrect variation
data may entered. (p. 38)
•MANUAL :Revise magnetic variation manually.
•Push []to select [MANUAL],then push
[]. Set the revised value with []/[ ].
Push []or [MENU] key to abort the
menu.
■BRG INPUT
•NMEA :NMEA0183 bearing data format.
•N+1 :N+1 data format.
•AUX :Other format.
■SPD INPUT
•GPS :Use the GPS NMEA speed data.
•LOG :Use the speed sensor data.
■TX INH START
•0 to 359°:Push []/[ ]key to enter the start point
of the TX inhibit area.
■TX INH ANGLE
•0 to 90°:Push []/[ ]key to enter the TX inhibit
area.
■SERVICE MAN
•Push []to open the SERVICE MAN menu.
NOTE: This menu exists for service or maintenance
purposes only.
BEEP
DIST UNIT
BRG
MAG VER
BRG INPUT
SPD INPUT
TX INH START
TX INH ANGLE
SERVICE MAN
INT.SETTING
OFF ON
NM KM WI
TRUE MAG
AUTO MANU.
!! 0.0 E
NMEA N+1 AUX
GPS LOGOF
0
0
■INT. SETTING

4
10
BASIC OPERATION
Before turning the power ON, be sure all the connec-
tions are complete. The checklist at right may be help-
ful for necessary confirmation.
•Checklist
qThe 4 bolts securing the scanner unit must be firmly
tightened.
wCabling must be securely attached to a mast or
mounting material, and must not interfere with the
rigging.
eBe sure waterproofing procedures are completed
on the system cable.
rThe power connections to the battery must be of the
correct polarity.
tBe sure that the plugs at the rear of the display unit
have been connected correctly and securely.
(See p. 26 for details.)
■Checking the installation
■Turning power ON/OFF
qPush [POWER] to turn the power ON.
•The initial screen appears and warming up time is
counted down on the screen.
•The magnetron inside the scanner unit warms up for 90
sec.
•The firmware’s revision number appears.
•[POWER] does not function for 2 sec. after the power is
turned OFF.
wWhen the countdown is completed, the Standby
screen appears.
ePush [TX] to start scanning and select the Plan Po-
sition Indicator (PPI) screen.
•Targets and heading marker appear.
•The screen appears approx. 5 sec. after turning the
power on, when ‘AUTO’is selected in the “TUNE”of the
FUNCTION menu.
rPush [POWER] to turn the power OFF.
NOTE:
Push [BRILL] for 1 sec. to turn the [BRILL] setting to
default, when the “Brilliance”or “Contrast”was miss
adjusted.
0672˚
WPT
POSN
R
34°37.003N 135°33.986E
8
NM
STANDBY
HDG 301.6°
COG 298.6°
SOG 17.2KT
1:29
REV 1.0
ROM OK
RAM OK
NUP
T
T
5.842NM O:17
MOB
0672˚
WPT
POSN
R
8
NM
STANDBY
HDG 323.4°
5.842NM O:15
MOB
34°37.003N 135°33.986E
COG 323.4°
SOG 28.6KT
CAUTION: Connect the scanner unit before
turning the power ON. Otherwise the magnetron
inside the scanner unit might be damaged.
➨
Firmware
revision
number.

11
4
BASIC OPERATION
•Heading Line marker
The heading marker is a line that shows your ship’s
bow direction. (This marker will appear in the center of
the screen when the Head-up screen H UP is se-
lected.) The heading marker can be hidden when the
desired target is located under the heading marker.
•Push and hold [ADJ] and [MENU] simultaneously to hide
the heading marker.
qTurn the power ON.
wPush [TX] after the countdown disappears from the
screen.
•See “Turning power ON/OFF”on page at left.
ePush [+] or [–] key one or more times to select the
display range.
•The screen range readout shows the maximum range of
the screen.
rPush [ADJ] then adjust the [GAIN]* to be on the
threshold of max. screen range.
•Increases the gain.
•Increased gain may increase screen noise.
tSelect [SEA]*, then set the [SEA]* to minimum.
yPush [MODE] to select one of HUP (Head-up), CUP
(Course-up), NUP (North-up) or True motion TM
screens.
C UP, NUP or TM can be selected only when bear-
ing, position or speed data are connected.
(See p. 26 for details)
*Select each item ,then push [ADJ] for 0.5 sec. to
use auto setting mode.
■Basic operation
y
w
e
q
r
• Brilliance adjustment
The intensity of the screen can be adjusted. When you
require continuous operation, but not constant viewing,
a lower setting can increase the life of the backlight.
• Key illumination
The backlighting of the keys can be adjusted for con-
venient operation. (p. 6)
•Key illumination corresponds with [BRILL] control.
NOTE: High intensity will shorten the life of the back
light.
•Fixed range rings
The fixed range rings can be used for rough distance
measurement. (p. 14)
Push [MENU] to open the FUNCTION menu, then
push []to select RING. Push []to turn the ring ON.
CAUTION: When setting the [SEA] control to MAX posi-
tion, close targets are blanked.

12
4BASIC OPERATION
The followings are typical basic operation examples,
which may hinder radar reception (sea clutter, precip-
itation interference and echoes from other radar).
■SEA function
This function serves to eliminate echoes from waves
at close range. Reduce the receiver gain for close ob-
jects within a radius of 8 miles to eliminate sea clutter.
•Push and hold [ADJ] for 0.5 sec. to activate the automatic
control function.
■RAIN function
This function eliminates reflection echoes from rain,
snow, fog etc.
•Adjust the lowest level to deactivate the control function.
•NOTE: DO NOT reduce the reflection echoes too much,
otherwise you may miss weaker targets.
WARNING: The [SEA] control reduces the re-
ceiver sensitivity of objects within 8 miles. Therefore,
caution and careful adjustment are necessary when
using the [SEA] control.
Small objects may not be displayed on the screen
when strong echoes from the rain or the island within
1 NM while automatic SEA function is activating.
Adjust SEA control
Echos from sea waves
Adjust RAIN control
Small echos
■OFF CENTER function
The scanning area can be shifted in a desired direc-
tion and can be enlarged partially. This is useful when
the Head-up* is selected and you want to enlarge the
bow direction display, or, the center of the screen
shifts in the direction of the intersection.
•This function is available within, and up to a 24 NM range.
*This function is not available in the TM screen.
qPush []/[]/[]/[ ]key to move the cursor
where you want to shift the center of the screen.
•Max. offsetting is up to 56% of the screen.
wPush [ALM] and [MODE] simultaneously to shift
the screen.
ePush [ALM] and [MODE] simultaneously again to
return to the normal screen.
With OFF CENTER on
Normal screen

13
4
BASIC OPERATION
■IR function
Radar interference may appear when another ship’s
radar is operating on the same frequency band in
close proximity. The IR function can eliminate this type
of interference. (p. 6)
qPush [ADJ] to call up “ADJUST”menu.
wPush []/[ ]until the “IR”section becomes high-
lighted.
ePush []/[]to select IR function ON or OFF.
With IR function on
Radar interference
■ECHO STRETCH function
The blips can be magnified electronically for easier
viewing of small targets. (p. 6)
qPush [ADJ] to open the ADJUST menu.
wPush []/[ ]to select “STRETCH”. Push []/[]
to turn the function ON or OFF.
■ZOOM function
The ZOOM function expands the target to two times
normal size.
•This function is available within, and up to a 24 NM range.
(except for 1/8and 3/4NM.)
qPush []/[]/[]/[ ]to move the cursor to the de-
sired target.
wPush [MOB] and [TRAILS] simultaneously to toggle
the “ZOOM”function ON and OFF.
With STRETCH on
Normal screen
With ZOOM function on
Normal screen
NOTE: Turn OFF this function during normal opera-
tion.

14
4BASIC OPERATION
■TRAILS function
The trails function memorizes echoes continuously or
at constant intervals. This is useful for watching other
ships’tracks, approx. relative speed, etc.
•Setting the trail interval time
qPush [MENU] to call up the FUNCTION menu.
•Push [] several times until the “TRAIL TIME”section
becomes highlighted.
wPush []/[ ]to select trail interval time.
•15 sec., 30 sec., 1 min., 3 min., 6 min., 15 min., 30 min.
and ∞(continuous) are available.
ePush [MENU] several times to exit the menu.
•Using the TRAILS function
qPush [TRAILS] to turn the trail function ON.
•“TRAILS”and trail interval time appears in the lower left
of the screen.
wAll displayed echoes at the plotted time are memo-
rized and displayed with a gradually fading inten-
sity together with the current echoes.
•Echos are displayed with minimum intensity when “∞”is
selected.
ePush [TRAILS] to cancel the trail function and
erase the plotted echoes.
•“TRAILS”and trail interval time disappears.
Trail time
AL
TR
0’08
TRAIL indicator
Trail interval
counter
■Power save function
The power save function conserves the boat’s battery
power by pausing the transmission. The standby
(pausing) times are selectable (*rotation number is
fixed on 10 rotations).
For example, when 1 min. is selected, the scanner ro-
tates 10 revolutions; then stops for 1 min., and then re-
peats this sequence while the power save function is
activated.
•Setting the scanning standby time
qPush [MENU] to call up the “FUNCTION”menu.
wPush [DOWN] until the “SAVE TIME”section be-
comes highlighted.
ePush []/[ ]to select standby time.
•1, 6, 15, and 30 min. are available.
rPush [MENU] twice to exit the menu display.
•Using the “POWER SAVE” function
qPush and hold [TX (SAVE)] for 0.5 sec. to turn the
power save function ON.
•The save indicator appears in the top of the screen.
wAfter the scanning rotations are finished, transmis-
sion and rotation are suspended until the selected
standby time elapses.
•The display shows the last scanned echoes until the
scanning restarts.
•“SAVE”appears in the top of the screen.
eAfter the selected standby time elapses, transmis-
sion and rotation restart.
rPush [TX (SAVE)] to cancel the power save func-
tion.
•The save indicator turns OFF.
NOTE: When you use the power save function to-
gether with the alarm function, the LCD display is
turned OFF until an object enters the programmed
alarm zone, therefore, more power saving is possi-
ble. (p. 00)
S0672˚
EBL/VRM1
EBL/VRM2
R
R
S0162˚
3
(1)
NM
2530 ˚
TM
SAVE
T
1.296NM O:01
O:01
0.566NM
SAVE
S0672˚
EBL/VRM1
EBL/VRM2
R
R
S0162˚
3
(1)
NM
2530 ˚
TM
T
1.296NM O:01
O:01
0.566NM
Scan and standby alternates.
