Icom MR-570R User manual

INSTRUCTION MANUAL
MARINE RADAR
MR-570R
This device complies with Part 15 of the FCC rules. Opera-
tion is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
MR-570R_US.qxd 02.10.9 13:25 Page 1

i
SYSTEM COMPONENTS
MODEL NAME
SX-2464
DISPLAY UNIT
EX-2473 (5.7 inch LCD)
SCANNER UNIT
EX-2474 (Radome type)
•EX-2473 (5.7 inch LCD display unit)
Qty.
qNMEA connector (NS1007 7P)............................. 2
wSpare fuse (FGB 10 A) ........................................ 1
eSpare fuse (FGB 5 A: for over 24 V power supply ) ..... 1
rDC power cable (OPC-928).................................. 1
tNMEA connector cover......................................... 2
ySelf-tapping screws (5 x 30) ................................. 4
uSpring washers (M5) ........................................... 4
iFlat washers (M5) ................................................ 4
oMounting spacer ................................................... 4
!0 Mounting rubbers ................................................. 4
•EX-2474 (Scanner unit)
Qty.
qSystem cable (OPC-1075: 10 m).......................... 1
wInstallation bolts (M10 x 50) ................................. 4
eInstallation bolts (M10 x 25) ................................. 4
rInstallation nuts (M10) ......................................... 4
tFlat washers (M10) .............................................. 4
ySpring washers (M10) ......................................... 4
SUPPLIED ACCESSORIES
Icom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United states, the
United Kingdom, Germany, France, Spain, Russia and/or other countries.
MR-570R_US.qxd 02.10.9 13:25 Page 2

ii
IMPORTANT
READ ALL INSTRUCTIONS carefully and com-
pletely before attempting to operate the marine radar.
SAVE THIS INSTRUCTION MANUAL. This
manual contains important safety and operating in-
structions for the MR-570R.
RNEVER let metal, wire or other objects touch any
internal part of the radar.
RNEVER place the radar within the reach of chil-
dren.
RNEVER expose the display unit to rain, salt water
or any other liquids.
NEVER connect the radar to AC or more than 42 V
DC. This will damage the radar.
AVOID placing the display unit in excessively dusty en-
vironments or in direct sunlight.
AVOID placing the display unit near heating equipment
or in direct sunlight or where hot or cold air blows di-
rectly onto it.
AVOID using the scanner unit in areas where the tem-
perature is below –25˚C (–13˚F) or above +70˚C
(+158˚F). AVOID using the display unit in areas where
the temperature is below –15˚C (+5˚F) or above +55˚C
(+131˚F).
AVOID using strong solvents such as benzene or al-
cohol for cleaning the radar, as they may damage the
surfaces.
PRECAUTIONS
FOREWORD
Thank you for purchasing ICOM’s MR-570R MARINE
RADAR.
The radar is designed especially for fishing boats. It
has powerful transmission power, a 5.7 inch LCD dis-
play and many other advanced features.
If you have any questions regarding the operation of
the radar, contact your nearest authorized Icom Inc.
dealer.
EXPLICIT DEFINITIONS
The following explicit definitions apply to this instruc-
tion manual.
WORD
RWARNING
RCAUTION
NOTE
DEFINITION
Personal injury, fire hazard or elec-
trical shock may occur.
Equipment damage may occur.
If disregarded, inconvenience only.
personal injury, fire hazard or elec-
trical shock will not occur.
CAUTION!
SART signal may not be detected and may
not be displayed on the screen depending
on the SEA, RAIN or IR settings.
Follow the following settings to detect the
SART signal on the screen.
1. Select the screen range between 6 NM
to 12 NM.
2. Set the [GAIN]* as high as possible.
3. Set the [SEA]* to minimum.
4. Set the [RAIN]* to minimum.
5. Turn the [IR]* OFF.
6. Turn the [ES]* OFF.
*See the [ADJ] menu on p. 6.
MR-570R_US.qxd 02.10.9 13:25 Page 3

TABLE OF CONTENTS
iii
SYSTEM COMPONENTS...........................................i
SUPPLIED ACCESSORIES........................................i
IMPORTANT ............................................................. ii
PRECAUTIONS ........................................................ ii
FOREWORD ............................................................ ii
EXPLICIT DEFINITIONS .......................................... ii
TABLE OF CONTENTS ............................................iii
1 CAUTION ............................................................. 1
DANGER! HIGH VOLTAGE .................................. 1
RADIATION HAZARD ........................................... 1
2 PANEL DESCRIPTION ................................... 2 –5
■Front panel ........................................................ 2
■Screen ............................................................... 4
3 MENU .............................................................. 6 –9
■BRILL MENU ..................................................... 6
■ADJ (Adjust menu) ............................................. 6
■FUNCTION MENU ............................................. 7
■EPA..................................................................... 8
■INT. SETTING .................................................... 9
4 BASIC OPERATION .................................... 10–13
■Checking the installation ................................. 10
■Turning power ON/OFF .................................... 10
■Basic operation ................................................ 11
■RAIN function ................................................... 12
■SEA function..................................................... 12
■OFF CENTER function..................................... 12
■IR function ....................................................... 13
■ECHO STRETCH function .............................. 13
■ZOOM function ................................................ 13
■TRAILS function .............................................. 14
■Power save function ........................................ 14
■Ship speed indication ...................................... 15
■Position indication ........................................... 15
■Way point indication ......................................... 15
■Long pulse function .......................................... 15
■Bearing setting ................................................ 15
5 DISTANCE AND DIRECTION
MEASUREMENTS ...................................... 16 – 18
■Distance measurement ................................... 16
■Bearing and Distance measurement ............... 17
■Advanced measurement ................................. 18
6 ALARM FUNCTION ........................................... 17
■Alarm zone setting ........................................... 19
■Zone alarm setting ........................................... 19
7 EPA (Electronic Plotting Aid) .................... 20 –22
■EPA (Electronic Plotting Aid) ............................ 20
■EPA menu setting ............................................ 20
■EPA operation .................................................. 21
■Correct the target ............................................ 21
■Clear the target ................................................ 22
■Plotting marks .................................................. 22
■Course and speed vector ................................ 22
■Plots ................................................................ 22
8 BASIC RADAR THEORY ............................ 23 – 25
■Side-lobe echoes ............................................. 23
■Indirect echoes ................................................ 23
■Multiple echoes ............................................... 24
■Minimum range ................................................ 24
■Blind and Shadow sectors ............................... 25
■Target resolution............................................... 25
9 INSTALLATION AND CONNECTIONS ........ 26–30
■Connecting the units ........................................ 26
■Power source requirement .............................. 26
■Ground connection ............................................26
■Installing the EX-2473 display unit .................. 27
■Mounting the EX-2474 scanner unit ............... 28
■Wiring the system cable .................................. 29
10 SERVICE MAN MENU .............................. 31–34
■Service man menu .......................................... 31
■Select the language ......................................... 31
■SPD adjustment ............................................... 32
■HDG adjustment............................................... 32
■TIMING adjustment ......................................... 33
■MBS adjustment .............................................. 33
■RANGE selection ............................................. 34
■Tuning adjustment ............................................ 34
■Auto gain adjustment........................................ 34
11 ERROR MESSAGE ......................................... 35
■Error message list ........................................... 35
12 MAINTENANCE ............................................... 36
■Periodic maintenance ...................................... 36
■Scanner unit maintenance ............................... 36
■Display unit maintenance ................................ 36
■Options ............................................................ 36
13 SPECIFICATIONS ........................................... 37
14 EXTERNAL DATA LIST ................................... 38
15 TEMPLATE ..................................................39–41
■Template for the display unit
• EX-2473 (LCD Display)....................................39
■Template for the scanner unit
• EX-2474 (RADOME) ........................................41
MR-570R_US.qxd 02.10.9 13:25 Page 4

1
CAUTION
1
The MR-570R is supplemental aids to navigation and are not intended to be a substitute for
accurate and current nautical charts.
DANGER! HIGH VOLTAGE
• NEVER OPEN THE UNIT
This product contains high voltage that could be FATAL. This product has no user-servicable
parts inside. All repairs and adjustments MUST be made by a qualified electronics technician
at your Marine Navigation Dealer.
• HIGH VOLTAGE
High voltages of up to 3,500 volts are used in this equipment. Although prudent measures for
safety have been adopted, sufficient care must be taken in the operation, maintenance and
adjustment of the equipment.
Electric shock of 1,000 volts or more may cause electrocution and death; even an electric
shock of only 100 volts may be fatal.
• PREVENTION OF ELECTRIC SHOCK
(FOR QUALIFIED ELECTRONIC TECHNICIANS ONLY)
To prevent such accidents, turn OFF the power source and do not reach inside the unit until
you have:
q Discharged the capacitors by disconnecting the power cable from the power source for 5
min.;
w Checked that no electric charges remain inside the device.
Also, it is safest to wear dry insulated rubber gloves. NEVER use both hands simultaneously;
keep one hand in your pocket.
RADIATION HAZARD
• Radiation emitted from the scanner unit can be harmful, particularly to the eyes. To avoid harm-
ful radiation, ensure the radar power is in the OFF position before beginning work on the scan-
ner unit.
•The maximum distances from the antenna at which radio frequency radiation levels of 100
W/m2and 10 W/m2as follows.
MR-570R_US.qxd 02.10.9 13:25 Page 5

PANEL DESCRIPTION
2
2
■Front panel
MARINE RADAR
qPOWER SWITCH [POWER] (p. 10)
Turns power ON and OFF.
•The standby screen appears for 90 sec. while warming
up the magnetron.
•The initial screen appears with a beep after the power
has been turned ON.
wEBL1 (VRM1) SWITCH [EBL1 (VRM1)] (pgs. 16–18)
Push to display the electronic bearing line 1 (EBL1)
and the variable range marker 1 (VRM1) on the
cross line cursor position from own ship.
•EBL1 bearing and VRM1 distance are displayed, in the
bottom window.
•When EBL1 and VRM1 are displayed, the beginning of
EBL2 appears at own ship or the intersection point of
EBL1 and VRM1.
eALARM SWITCH [ALM] (p. 19)
Push [ALM] to toggle the alarm function ON and
OFF.
Push and hold [ALM] for 0.5 sec. to enter the alarm
area setting condition.
•Push []/[]/[]/[ ] key to move the cross cursor to
the zone starting point, then push [ALM] for 0.5 sec. The
starting ring of the zone is created. Then push []/[]/
[]/[ ]to fix the finish point, the desired alarm zone
will automatically form.
rMAN OVERBOARD [MOB]
Push to mark the man overboard point on the
screen. In the case of when a crew member falls
overboard, push [MOB] to display the MOB marker
( ) on the screen.
•MOB readout shows the bearing, distance and esti-
mated time to the MOB point with current speed.
•Push and hold [MOB] for 0.5 sec. to cancel the function.
•Position and bearing data are necessary.
•External data is required for screen display information.
(p.38).
tRANGE UP/ DOWN SWITCH [+/ –] (p. 16)
Push [+] to increase the screen range.
Push [–] to decrease the screen range.
yUP, DOWN, LEFT, RIGHT KEY
[UP][DOWN][RIGHT][LEFT]
Set the cross line cursor, alarm area, EPA target,
etc. according to the switch pushed.
Use the []/[]key to select menu item and [
]/[ ]key to set the item.
Using the []-[]/[ ]or []-[]/[ ]key combina-
tion allows you to move the cross line cursor to the
upper (or lower) left or right.
uADJUST MENU [ADJ] (p. 6)
Push [ADJ] to show the adjust menu on the display.
•Adjustable items; TUNE, GAIN, SEA, RAIN, IR, ES,
PULSE length.
!8
!1
!7
!5
!3
o
i
t
r
e
w
q
u
y
!0
!2
!4
!6
Control panel
MR-570R_US.qxd 02.10.9 13:25 Page 6

3
2
PANEL DESCRIPTION
iTRANSMIT/SAVE SWITCH [TX (SAVE)] (p. 11)
Push to toggle between the TX mode and the
standby mode.
Push and hold for 0.5 sec. to turn the power save
function ON. The radar for TX interval scan is fixed
at 10 revolutions. (p. 14)
•Select the save time in FUNCTION menu.
oDISPLAY BRILLIANCE SWITCH [BRILL] (p. 6)
Push [BRILL] to turn the brilliance adjustment menu
ON or OFF.
•The brilliance and contrast of the symbol, character and
illumination can be adjusted in [BRILL.] and [CONTR.]
of the [BRILL] menu independently.
•Positive or Negative selection is available in [DISP.]
menu.
•Pushing and holding [BRILL] for 1 sec. to turn the con-
trast and brilliance to the default setting.
!0 HEADING LINE OFF FUNCTION [HL OFF] (p. 11)
Push [ADJ] and [MENU] simultaneously to turn off
all indication except the PPI (Plan Position Indica-
tor) screen, temporarily.
!1 MENU SWITCH [MENU] (pgs. 7–9)
Push [MENU] to toggle the FUNCTION and EPA
menu. Push []/[]keys to select the items and
push []/[ ]keys to change the setting.
•Enter the “INT. SETTING”from the “EPA”menu.
•Enter the “SERVICE MAN”menu from the “INT SET-
TING MENU”.
!2 ZOOM FUNCTION [ZOOM] (p. 13)
Push [MOB] and [TRAILS] simultaneously to toggle
the ZOOM function ON and OFF. ZOOM function
expands the target to 2 times normal.
•Move the cursor to the target, then turn the function ON.
•The screen zooms around the middle of the cursor and
own ship.
•This function is not available at 1/8, 3/4and 32 NM or
above ranges.
!3 TRAILS SWITCH [TRAILS] (p. 14)
Push to toggle the trail function ON and OFF. This is
useful for watching other ship’s tracks, approx. rela-
tive speed etc.
•Trail Time can be set in FUNCTION menu.
!4 OFF CENTER FUNCTION [OFF CENT] (p. 12)
Push [ALM] and [MODE] simultaneously to turn
the OFF CENTER function ON or OFF.
•This function is not available at 32 NM or above ranges.
!5 MODE SWITCH [MODE]
Push to select one of Head-up (H UP), Course-up
(C UP), North-up (N UP) or True motion (TM)
screens.
•The North-up, Course-up and TM screens require ‘Ex-
ternal data’(p. 38).
•TM screen is not available at 32 NM or above ranges.
!6 PARALLEL INDEX LINE FUNCTION [PI]
Push [EBL1] and [EBL2] simultaneously to turn the
parallel index line ON.
Push [EBL1] or [EBL2] to turn the line OFF.
•Push []/[ ]keys to rotate the lines, and push []/[]
keys to adjust the line spaces.
!7 EBL2 (VRM2) SWITCH [EBL2 (VRM2)] (pgs. 16–18)
Push to display the Electronic Bearing Line 2
(EBL2) and the Variable Range Marker 2 (VRM2)
while EBL1 and VRM1 are displayed on the screen.
•Push [EBL2/VRM2] to toggle the center of VRM2 as fol-
lows.
Own ship ➔Intersection of the EBL1 and VRM1 ➔OFF.
!8 EPA SWITCH [EPA] (pgs.20–22)
Push to enter the EPA position data.
Push the [EPA] for 0.5 sec. to toggle the EPA dis-
play and navigation display.
•Push []/[]/[]/[ ]key to move the cross cursor on
the echo which you want to plot on the screen before
turning the function ON.
•Select “EPA”function ON in the “EPA”menu, set the ap-
propriate VECT, No. DISP, ALARM, CPA LIMIT and
TCPA LIMIT setting.
•External data is required for screen display information.
(p.38).
MR-570R_US.qxd 02.10.9 13:25 Page 7

4
2
!9 TUNING LEVEL INDICATOR
Shows the receiver tuning level.
@0 SCREEN RANGE READOUT (p. 16)
Shows the maximum range of the displayed screen.
•The range indicated is nautical miles (NM).
@1 FIXED RING RANGE READOUT (p. 16)
Shows the interval range of the fixed ring.
•This readout appears when the “RING”of the FUNC-
TION menu is turned ON.
@2 HEADING LINE (p. 11)
Heading line indicates the ships bow.
@3 ALARM ZONE (p. 19)
Shows the alarm zone.
•Appears when the alarm function is in use.
•External data is required for screen display information.
(p.38).
@4 OWN SHIP VECTOR INDICATOR
Shows the vector of your own ship.
@5 WAYPOINT MARKER (p. 15)
Shows the waypoint received from navigation
equipment.
•This marker appears when the “WPT”of the FUNCTION
menu is turned ON.
•External data is required for screen display information.
(p.38).
@6 EBL1/VRM1,EBL2/VRM2 READOUTS (pgs. 16-
18)
Shows the bearing of the displayed Electronic Bear-
ing Lines (EBL) and the distance of the displayed
Variable Range Markers (VRM).
•Nautical miles (NM) and kilometres (KM) can be se-
lected in the INT.SETTING menu as the distance unit.
@7 HEADING INDICATOR
Shows the heading bearing readout.
•The HDG readout indicates the bow of the ship’s bearing
in a clockwise direction from north.
•External data is required for screen display information.
(p.38).
@88 MODE INDICATOR
Head-up, Course-up (CUP), North-up (NUP) and
True Motion (TM) screens are available.
•External data is required for screen display information.
(p.38).
@9 CROSS LINE CURSOR
Used for measuring the bearing and distance, set-
ting the alarm zone, selecting the EPA targets, etc.
•Push []/[]/[]/[ ] several times to move the cur-
sor.
PANEL DESCRIPTION
■Screen
S0672˚
EBL/VRM1
EBL/VRM2
R
R
S0162˚
3
(1)
NM
2530 ˚
TM
T
1.296NM O:01
O:01
0.566NM
@7
@8
@9
#0
#1
#2
#3
@2
@3
!9
@0
@1
@4
@5
@6
NOTE:
DATA display area may differ de-
pending on DATA DISP selection in
the FUNCTION menu.
MR-570R_US.qxd 02.10.9 13:25 Page 8

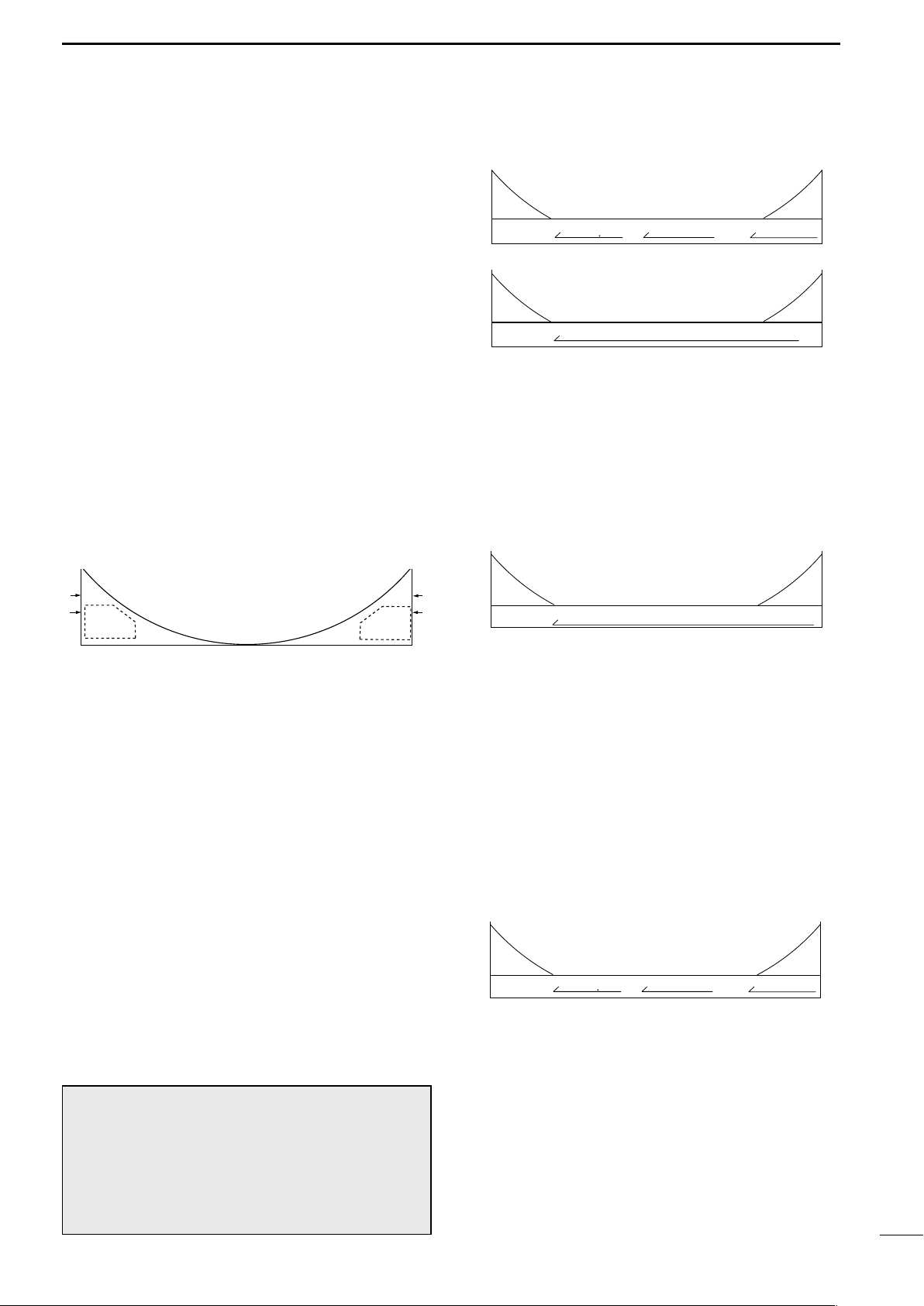

2
PANEL DESCRIPTION
5
#0 EBL1/2 (pgs. 16-18)
Used for bearing measurement. When a target is
selected, the EBL readout #6 shows the bearing.
#1 VRM1/2 (pgs. 16-18)
Used for distance measurement. When a target is
selected, the VRM2 readout @8 shows the distance.
#2 MOB SYMBOL
Push [MOB] to mark the [MOB] marker on the
screen.
•External data is required for screen display information.
(p.38).
#3 FIXED RANGE RINGS (p. 16)
Shows the distance in fixed intervals.
•These rings appear when the “RING”of the FUNCTION
is turned ON.
DATA DISPLAY
Data readout may differ depending on “DATA DISP”
setting of the function menu.
• When “OFF” is selected;
#4 ALARM INDICATOR (p. 19)
Appears when the alarm function is in use.
#5 TRAILS INDICATOR (p. 14)
Shows the trail time.
•Echo remains with gradation during the trail time period
on the screen. (Except for the trail time; ∞)
•Progressing time counter starts to count the time until
the timer reaches the trail time.
#6 VECTOR INDICATOR (pgs. 20-22)
Shows the EPA and OWN vector type.
•Tv: True vector
•Rv: Relative vector
•External data is required for screen display information.
(p.38).
#7 SHIP SPEED READOUT (p. 15)
Shows the ship speed.
•SOG: When GPS is selected in the INT. SETTING menu.
•STW: When LOG is selected in the INT. SETTING menu.
•External data is required for screen display information.
(p.38).
• When “CURS” or “SHIP” is selected;
#8 POSITION/CURSOR READOUT (p. 15)
Shows your own ship or cursor latitude and longi-
tude readout when external NMEA data with 0183
format is connected.
•Select ‘CURS’or ‘SHIP’in the FUNCTION menu.
•External data is required for screen display information.
(p.38).
• When “WPT” is selected;
#9 WAYPOINT READOUTS (p. 15)
Shows the bearing and distance to the waypoint re-
ceived from navigation equipment.
•This readout appears when the “WPT”of the FUNC-
TION menu is selected.
•External data is required for screen display information.
(p.38).
$0 TIME INDICATOR
Shows the estimated time to the waypoint with cur-
rent speed.
•External data is required for screen display information.
(p.38).
MOB
$1 MOB READOUTS
Shows the bearing and distance to the MOB (Man
Over Board) event marker.
•Push and hold [MOB] for 0.5 sec. to cancel the readout
and the symbol.
•When [MOB] function is activated, [MOB] readout is prior
to displayed except [EBL/VRM] readouts.
•External data is required for screen display information.
(p.38).
POSN
34º38637N
SOG
Tv
135 º33.209E
PT
34˚42.000N
SOG
Tv
135˚29.000E
MOB
R
3087˚
SOG
Tv
O:04
4.365NM
SOG
Tv
AL
TR
0’08
#4
#5
#6
#7
17.7KT
CURS
R
0398º
SOG
Tv
O:09
2.068NM
(CURS readout)
(SHIP readout)
NOTE:
When L/L DISP function in the [FUNCTION] menu is
turned ON, [CURS], [WPT] and [MOB] readouts will
be displayed as Latitude/Longitude.
When L/L DISP function in the [FUNCTION] menu is
turned OFF, [CURS], [WPT] and [MOB] readouts will
be displayed as bearing and distance.
MR-570R_US.qxd 02.10.9 13:25 Page 9

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan
A-6074H-1US-q
Printed in Japan
© 2001, 2002 Icom Inc.
US
MR-570R_US.qxd 02.10.9 13:25 Page 47
