Icom IC-R30 User manual

SERVICE
MANUAL
COMMUNICATIONS RECEIVER
|R30
S-15501XZ-C1
June 2018

INTRODUCTION
This service manual describes the latest technical
information for the IC-R30 COMMUNICATIONS
RECEIVER at the time of publication.
MODEL VERSION VERSION
NUMBER
FREQUENCY
COVERAGE of A-Band
(MHz)
IC-R30
EUR-01 #12 0.100000~3304.999990
USA-01 #16
0.100000~ 821.999990
851.000000~ 866.999990
896.000000~3304.999990
USA-02 #20 0.100000~3304.999990
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
SERVICE CAUTION
NEVER connect the receiver to a DC power supply
that uses more than the specified voltage. This will
ruin the receiver.
DO NOT expose the receiver to rain, snow or liquids.
DO NOT reverse the polarities of the power supply
when connecting the receiver.
ORDERING PARTS
Be sure to include the following four points when
ordering replacement parts:
1. 10-digit Icom part number
2. Component name
3. Equipment model name and unit name
4. Quantity required
<ORDER EXAMPLE>
1110009630 NJG1108HA8-TE1 IC-R30 MAIN UNIT 5 pieces
8930084870 3384 REAR SHEET IC-R30 CHASSIS 1 piece
Addresses are provided on the inside back cover for
your convenience.
REPAIR NOTES
1. Make sure that the problem is internal before
disassembling the receiver.
2. DO NOT open the receiver until you have
disconnected it from its power source.
3. DO NOT force any of the variable components.
Turn them slowly and smoothly.
4. DO NOT short any circuits or electronic parts.
An insulated tuning tool MUST be used for all
adjustments.
5. DO NOT keep power ON for a long time when the
receiver is defective.
6. READ the instructions of the test equipment
thoroughly before connecting it to the receiver.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.

TABLE OF CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 DISASSEMBLY INSTRUCTIONS
SECTION 4 ADJUSTMENT PROCEDURE
4 -1 PREPAR ATION ……………………………………………………………………………………… 4-1
4-2 ADJUSTMENT ……………………………………………………………………………………… 4-3
SECTION 5 PARTS LIST
SECTION 6 MECANICAL PARTS
SECTION 7 BOARD LAYOUTS
SECTION 8 BLOCK DIAGRAM
SECTION 9 VOLTAGE DIAGRAM
DISTRIBUTORS ADDRESS

SECTION 1 SPECIFICATIONS
1-1
MGeneral
• Frequency coverage:
[EUR-01], [USA-02]
A-Band
B-Band
0.100000 ~ 3304.999990 MHz
108.000000 ~ 520.000000 MHz
[USA-01] A-Band
B-Band
0.100000 ~ 821.999990 MHz
851.000000 ~ 866.999990 MHz
896.000000 ~ 3304.999990 MHz
108.000000 ~ 520.000000 MHz
• Usable temperature range: −20ºC~+60ºC (−4ºF~+140ºF)
• Frequency stability: Less than ±2.5 ppm (−20ºC~+60ºC)
• Antenna impedance: 50 Ω (nominal: at unbalance)
• Number of memory channels:
2000 (in 100 groups)
+400 (Scan edges: 100 (50 pairs), Auto Memory Write: 200, and Scan Skip: 100)
• Power supply requirement: 3.6 V DC (BC-287)
5.0 V DC ±5% (External DC power supply/USB)
• Polarity: Negative ground
• Selectable tuning setps: 0.01/0.1/1/3.125/5/6.25/8.33*1/9*2/10/12.5/15/20/25/30/50/100/125/ 200 (kHz)
*1 : Air Band only
*2: AM Radio Band only
• Receiving modes:
A-Band (Below 1300 MHz bands)
FM/FM-N/WFM/AM/AM-N/LSB/USB/CW/CW-R/D-STAR (DV)/P25/dPMR/
NXDN-VN/NXDN-N/DCR
A-Band (Above 1300 MHz bands)
FM/FM-N/WFM/AM/AM-N
B-Band FM/FM-N/AM/AM-N/D-STAR (DV)/P25/dPMR/NXDN-VN/NXDN-N/DCR
• Current consumption (FM mode/Single display/Recording OFF/GPS OFF/Backlight OFF at 3.6 V DC):
Rated power 330 mA typical
Receive stanby 200 mA typical
Power save 100 mA typical
• Dimensions (projections not included):
58 (W)×143 (H)×30.5 (D) mm (2.3 (W)×5.6 (H)×1.2 (D) inches)
• Weight (approximately):200 g (7.1 oz)

1-2
MReceiver
• Receiver system: Tripple superheterodyne+Down converter (A-Band except WFM)
Double superheterodyne (B-Band/WFM)
• Intermediate frequencies:
A-Band 1st
2nd
3rd
266.65/266.7/266.75 MHz
58.0500 MHz (Other than WFM), 10.7000 MHz (WFM)
450 kHz (Other than WFM)
B-Band 1st
2nd
46.3500 MHz
450 kHz
• Selectivity: SSB/CW More than 1.8 kHz/−6 dB
AM/FM More than 12 kHz/−6 dB
Less than 30 kHz/−60 dB (Below 1305 MHz bands)
Less than 30 kHz/−40 dB (Above 1305 MHz bands)
WFM More than 150 kHz/−6 dB
• Audio output power (at 10% distortion/3.6 V DC):
Internal speaker More than 200 mW into the 16 Ω load
Extarnal speaker More than 400 mW into an 8 Ω load
• Sensitivity
[The frequency band coverage and selectable receive modes in B-Band are limited to a subset of those in A-Band.]:
SSB/CW (10 dB S/N) 0.495000 ~ 1.899990 MHz Less than 0.4 µV
1.900000 ~ 29.999990 MHz Less than 0.25 µV
50.000000 ~ 53.999990 MHz Less than 0.25 µV
144.000000 ~ 147.999990 MHz Less than 0.25 µV
430.000000 ~ 449.999990 MHz Less than 0.32 µV
AM (10 dB S/N) 0.495000 ~ 1.899990 MHz Less than 2.24 µV
1.900000 ~ 29.999990 MHz Less than 1.41 µV
118.000000 ~ 136.999990 MHz Less than 1.41 µV
FM (1kHz/3.5 kHz Dev.; 12 dB SINAD)
28.000000 ~ 221.999990 MHz Less than 0.4 µV
222.000000 ~ 1299.999990 MHz Less than 0.56 µV
1300.000000 ~ 2699.999990 MHz Less than 1.78 µV
2700.000000 ~ 3304.999990 MHz Less than 17.78 µV
WFM (1kHz/52.5 kHz Dev.; 12 dB SINAD)
76.000000 ~ 107.999990 MHz Less than 1.78 µV
D-STAR (1% BER) 28.000000 ~ 29.999990 MHz Less than 0.71 µV
50.000000 ~ 53.999990 MHz Less than 0.71 µV
144.000000 ~ 147.999990 MHz Less than 0.71 µV
430.000000 ~ 449.999990 MHz Less than 1.0 µV
1260.000000 ~ 1299.999990 MHz Less than 1.0 µV
NXDN, dPMR, and DCR (1% BER)
136.000000 ~ 173.999990 MHz Less than 0.71 µV
350.000000 ~ 511.999990 MHz Less than 1.0 µV
P25 (5% BER) 136.000000 ~ 173.999990 MHz Less than 0.4 µV
400.000000 ~ 469.999990 MHz Less than 0.56 µV
763.000000 ~ 869.999990 MHz Less than 0.71 µV
• Squelch Sensitivity (threshold)
[The frequency band coverage and selectable receive modes in B-Band are limited to a subset of those in A-Band.]:
AM 0.495000 ~ 1.899990 MHz Less than 2.24 µV
1.900000 ~ 29.999990 MHz Less than 1.41 µV
118.000000 ~ 136.999990 MHz Less than 1.41 µV
FM 28.000000 ~ 221.999990 MHz Less than 0.4 µV
222.000000 ~ 1299.999990 MHz Less than 0.56 µV
1300.000000 ~ 2699.999990 MHz Less than 1.78 µV
2700.000000 ~ 3304.999990 MHz Less than 17.78 µV
WFM 76.000000 ~ 107.999990 MHz Less than 5.62 µV
All stated specications are typical and subject to change without notice or obligation.

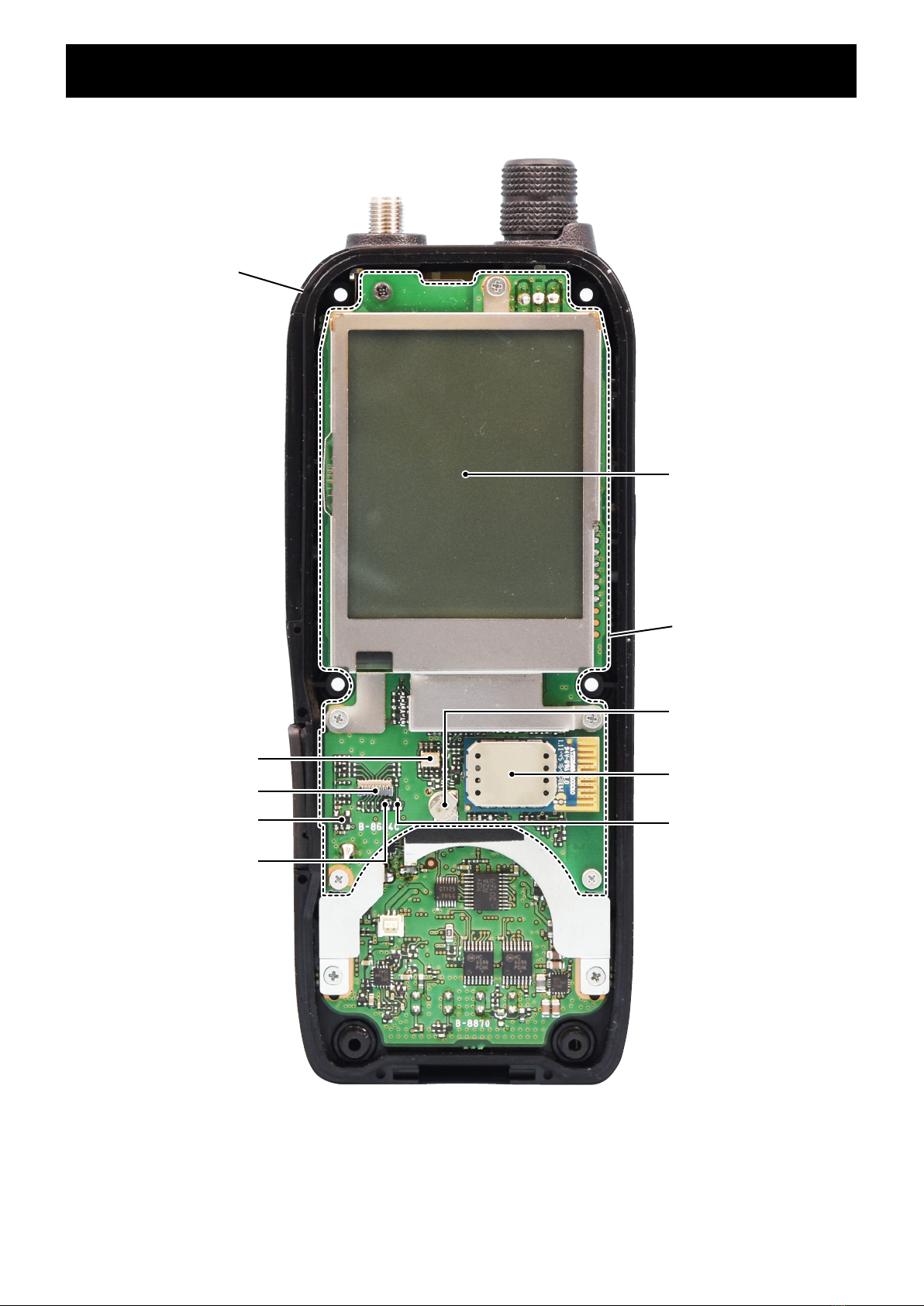

SECTION 2 INSIDE VIEWS
2-1
+3 V REGULETOR
(IC2)
KEY BACKLIGHT SWITCH
(Q15)
REALTIME CLOCK
BACKUP BATTERY
(BT1)
REALTIME CLOCK IC
(IC10)
J6
BLUETOOTH MODULE
(IC21)
KEY BACKLIGHT SWITCH
(Q16)
LCD
(DS4)
LOGIC/-1 UNIT
REAR PANEL
• LOGIC/-1 UNIT (TOP VIEW)

2-2
+3 V REGULETOR
(IC24)
+3 V REGULETOR
(IC14)
+3 V REGULETOR
(IC20)
J4
DC-DC CONVERTER
(IC206)
SRAM
(IC9)
J3
• LOGIC/-1 UNIT (BOTTOM VIEW)
GPS RECEIVER MODULE
(IC16)
Inside the shielded case.
DSP
(IC200)
Inside the shielded case.
+3 V REGULETOR
(IC205)
RESET
(IC1)
EEPROM
(IC5)
EEPROM
(IC6)
CLONE
(IC3)
BATTERY GAUGE
(IC12)
USB DET
(IC25)
CPU
(IC4)
LEVEL CONVERTER
(IC15)
FLASH ROM
(IC202)
24 MHz SPRED SPECTRUM
OSCILLATOR
(X1)
LPF
(IC209)
I/O PORT
(IC17)
I/O PORT
(IC18)
I/O PORT
(IC19)
J2 [SD CARD SLOT]
SHIELD PLATE

2-3
CHARGE CONTROL
(IC1013)
+5 V REGULETOR
(IC1015)
D/A CONVERTER 1
(IC1005)
RF AMPLIFIER
: for 1305~3305 MHz
(IC2)
RF AMPLIFIER
: for B-Band 380~550 MHz
(Q30)
D/A CONVERTER 2
(IC1006)
+5.3 V DC/DC CONVERTER
(IC1014)
I/O PORT
(IC1007)
I/O PORT
(IC1010)
J1001
RF AMPLIFIER
: for A-Band 174~380 MHz
(Q26)
RF AMPLIFIER
: for B-Band 108~174 MHz
(Q10)
RF AMPLIFIER
: for 30~108 MHz
(Q24)
RF AMPLIFIER
: for 108~174 MHz
(Q5)
RF AMPLIFIER
: for A-Band 108~174 MHz
(Q9)
BUFFER AMPLIFIER
: for A-Band
(IC3)
GVCO CIRCUIT: for A-Band
(Q550, D533)
Inside the shielded case.
1st VCO CIRCUIT: for A-Band
(IC509/IC508/Q532)
Inside the shielded case.
10.7 MHz BPF: for A-Band
(FI501)
58.05 MHz BPF: for A-Band
(FI500)
BPF 46.35 MHz: for B-Band
(FI3)
1st MIXER: for B-Band
(Q39)
1st VCO CIRCUIT: for B-Band
(Q530, Q531, Q537, D518, D519,
D521~D523)
Inside the shielded case.
J1002
2nd VCO CIRCUIT: for A-Band
(Q547, D535, D536)
Inside the shielded case.
AGC DET: for A-Band
(IC505)
AGC DET: for B-Band
(IC501)
SHIELD PLATE
D/A CONVERTER 2
(IC1002)
57.6 MHz CRYSTAL OSCILLATOR
(X501)
Inside the shielded case.
15.3 MHz CRYSTAL OSCILLATOR
(X500)
Inside the shielded case.
MAIN UNIT
REAR PANEL
• MAIN UNIT (TOP VIEW)
SHIELD PLATE

2-4
RF AMPLIFIER
: for 380~550 MHz
(Q28)
RF AMPLIFIER
: for A-Band 550~833 MHz
(Q29)
RF AMPLIFIER
: for A-Band 380~550 MHz
(Q31)
GVCO PLL IC: for A-Band
(IC510)
IF AMPLIFIER: for A-Band
(Q507)
WFM DET
(IC502)
IF AMPLIFIER: for A-Band
(IC506)
IF IC: for A-Band
(IC504)
AUTOMATIC NOISE LIMITER
: for A-Band
(Q513)
AM DETR: for B-Band
(Q506)
AUTMATIC NOISE LIMITTER
: for B-Band
(Q508)
[SQL] (S1002)
[UP] (S1001)
[DOWN] (S1000)
[POWER] (S1003)
MODE SWITCH: for A-Band
(Q2)
RF AMPLIFIER
: 174~380 MHz
(Q21)
RF AMPLIFIER
: for B-Band 174~380 MHz
(Q25)
RF AMPLIFIER: for A-Band
(Q11)
RF AMPLIFIER: for A-Band
(IC4)
1st MIXER: for A-Band
(IC6)
[MICRO USB] (J1000)
IF IC: for B-Band
(IC500)
I/O PORT
(IC1008)
I/O PORT
(IC1009)
266.7 MHz BPF: for A-Band
(FI2)
2nd MIXER: for A-Band
(Q502)
RSSI: for A-Band
(IC503)
J1003
AM DET: for A-Band
(Q511)
I/O PORT
(IC1004)
NOISE BRANKER SWITCH
: for A-Band
(Q519)
• MAIN UNIT (BOTTOM VIEW)

2-5
+3 V REGULETOR
(IC22)
+2.5 V REGULETOR
(IC23)
+2.5 V REGULETOR
(IC24)
ELECTRONIC VOLUME
(IC8)
BUFF AMPLIFIER
(IC9)
AF POWER AMPLIFIER
(IC10)
J2 [EXT SP]
FM HPF
(IC2)
+3 V REGULETOR
(IC20)
+3 V REGULETOR
(IC20)
+3 V REGULETOR
(IC19)
+2.5 V REGULETOR
(IC16)
FM LPF
(IC3)
W1
MODE SWITCH
(IC5)
MODE SWITCH
(IC6)
WFM/AM LPF
(IC1)
AF UNIT
REAR PANEL
• AF UNIT (TOP VIEW)

2-6
+4.2 V REGURATOR
(IC17)
MODE SWITCH: A-Band
(IC17)
MODE SWITCH: A-Band
(IC4)
+3 V REGURATOR
(IC15)
I/O PORT
(IC12)
I/O PORT
(IC11)
J1
• AF UNIT (BOTTOM VIEW)
SHIELD PLATE

2-7

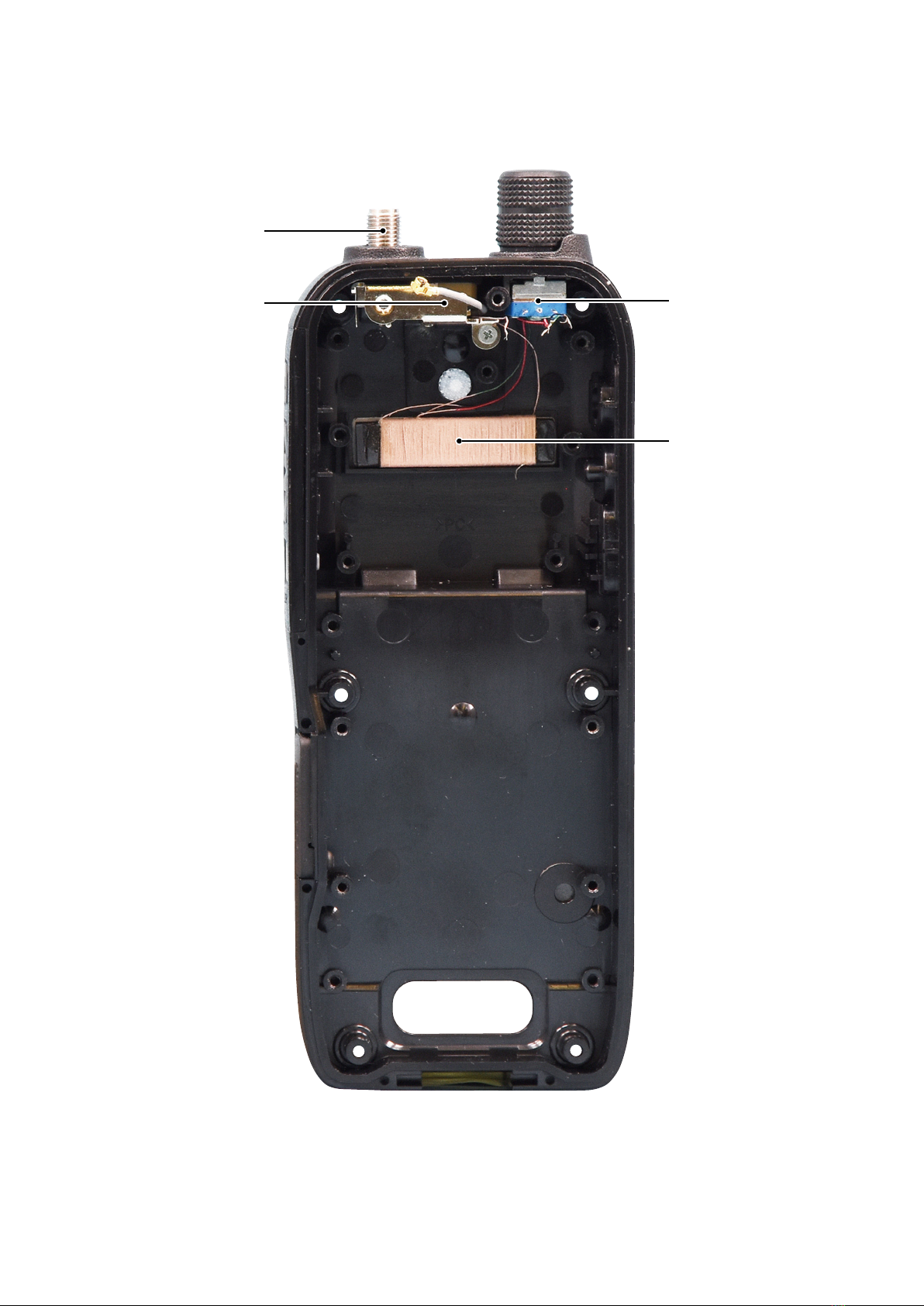

BAR ANTENNA
(EP1: MAIN UNIT)
ENCODERAR
(S1: LOGIC/-1 UNIT)
ANTENNA CONECTOR
(J1: CHASSIS UNIT)
• REAR PANEL (INSIDE VIEW)
GPS ANTENNA
(EP1: CHASSIS UNIT)
Below the antenna plate.

SECTION 3 DISASSEMBLY INSTRUCTIONS
3-1
1. REMOVING THE FRONT PANEL
1) Remove the 6 screws from the rear panel.
2. REMOVING THE LOGIC/-1 UNIT
1) Unsolder 3 points at the encoder and a point at the
shield plate.
2) Separate the front panel from the rear panel,and then
disconnect the flat cable from the LOGIC/-1 UNIT and
the speaker cable from the MAIN UNIT.
BE CAREFUL about the flat and speaker cable when
separating the front panel from the rear panel.
2) Remove the 6 screws from the LOGIC/-1 UNIT, and then
remove the LCD holder and the LCD sheet from the
LOGIC/-1 UNIT.
BE CAREFUL the LCD sheet has conductive and
insulating surfaces. When installing the LCD sheet, make
sure that the conductive surface contacts the LCD holder.
Screws ×6
Shield plate
Encoder
LOGIC/-1 UNIT
LCD sheet
LCD holder
Screws ×6
Speaker cable
Flat cable
Front panel
J1001
J6
FLAT CABLE
Lift up
flat cable
UNSOLDER
Solder
remover
Rear panel
LOGIC/-1 UNIT
LOGIC/-1 UNIT
MAIN UNIT
Rear panel
Rear panel
Screws ×6
Shield plate
Encoder
LOGIC/-1 UNIT
LCD sheet
LCD holder
Screws ×6
Speaker cable
Flat cable
Front panel
J1001
J6
FLAT CABLE
Lift up
flat cable
UNSOLDER
Solder
remover
Rear panel
LOGIC/-1 UNIT
LOGIC/-1 UNIT
MAIN UNIT
Rear panel
Rear panel
Screws ×6
Shield plate
Encoder
LOGIC/-1 UNIT
LCD sheet
LCD holder
Screws ×6
Speaker cable
Flat cable
Front panel
J1001
J6
FLAT CABLE
Lift up
flat cable
UNSOLDER
Solder
remover
Rear panel
LOGIC/-1 UNIT
LOGIC/-1 UNIT
MAIN UNIT
Rear panel
Rear panel
Screws ×6
Shield plate
Encoder
LOGIC/-1 UNIT
LCD sheet
LCD holder
Screws ×6
Speaker cable
Flat cable
Front panel
J1001
J6
FLAT CABLE
Lift up
flat cable
UNSOLDER
Solder
remover
Rear panel
LOGIC/-1 UNIT
LOGIC/-1 UNIT
MAIN UNIT
Rear panel
Rear panel
Before disassembling:
REMOVE the microSD card if inserted. Otherwise the
rear panel and LOGIC/-1 UNIT cannot be separated.
See the IC-R30 BASIC MANUAL for removal details.

3-2
3) Separate the LOGIC/-1 UNIT from the MAIN UNIT, and
then disconnect the coaxial cable from the LOGIC/-1
UNIT.
BE CAREFUL about the coaxial cable when separating
the LOGIC/-1 UNIT from the MAIN UNIT.
J3
J1003
Screws ×6
Rear panel
Rear panel
LOGIC/-1 UNIT
Rear panel
Coaxial cable
MAIN UNIT
MAIN UNIT
Antenna plate Bar antenna wires
Earth plates
UNSOLDER
Solder
remover
Jumper wire
Antenna connector
MAIN UNIT
MAIN UNIT
FLAT CABLE
Lift up
flat cable
Flat cable
J3
J1003
Screws ×6
Rear panel
Rear panel
LOGIC/-1 UNIT
Rear panel
Coaxial cable
MAIN UNIT
MAIN UNIT
Antenna plate Bar antenna wires
Earth plates
UNSOLDER
Solder
remover
Jumper wire
Antenna connector
MAIN UNIT
MAIN UNIT
FLAT CABLE
Lift up
flat cable
Flat cable
3. REMOVING THE MAIN UNIT
1) Unsolder 3 points at the earth plate, a point at jumper
wire, a point at antenna connector, a point at antenna
plate and 4 points at the bar antenna wires.
3) Separate the MAIN UNIT from the rear panel, and then
disconnect the flat cable from the MAIN UNIT.
BE CAREFUL about the flat cable when separating the
MAIN UNIT from the rear panel.
J3
J1003
Screws ×6
Rear panel
Rear panel
LOGIC/-1 UNIT
Rear panel
Coaxial cable
MAIN UNIT
MAIN UNIT
Antenna plate Bar antenna wires
Earth plates
UNSOLDER
Solder
remover
Jumper wire
Antenna connector
MAIN UNIT
MAIN UNIT
FLAT CABLE
Lift up
flat cable
Flat cable
J3
J1003
Screws ×6
Rear panel
Rear panel
LOGIC/-1 UNIT
Rear panel
Coaxial cable
MAIN UNIT
MAIN UNIT
Antenna plate Bar antenna wires
Earth plates
UNSOLDER
Solder
remover
Jumper wire
Antenna connector
MAIN UNIT
MAIN UNIT
FLAT CABLE
Lift up
flat cable
Flat cable
2) Remove the 6 screws from the MAIN UNIT.

3-3
Screws ×5
AF UNIT
AF UNIT
Rear panel
Rear panel
Earth plates
4. REMOVING THE AF UNIT
1) Remove the 5 screws from the AF UNIT, and then
remove the earth plates from the AF UNIT.
2) Remove the AF UNIT from the rear panel.
Screws ×5
AF UNIT
AF UNIT
Rear panel
Rear panel
Earth plates

SECTION 4 ADJUSTMENT PROCEDURE
4-1
SECTION 4 ADJUSTMENT PROCEDURE

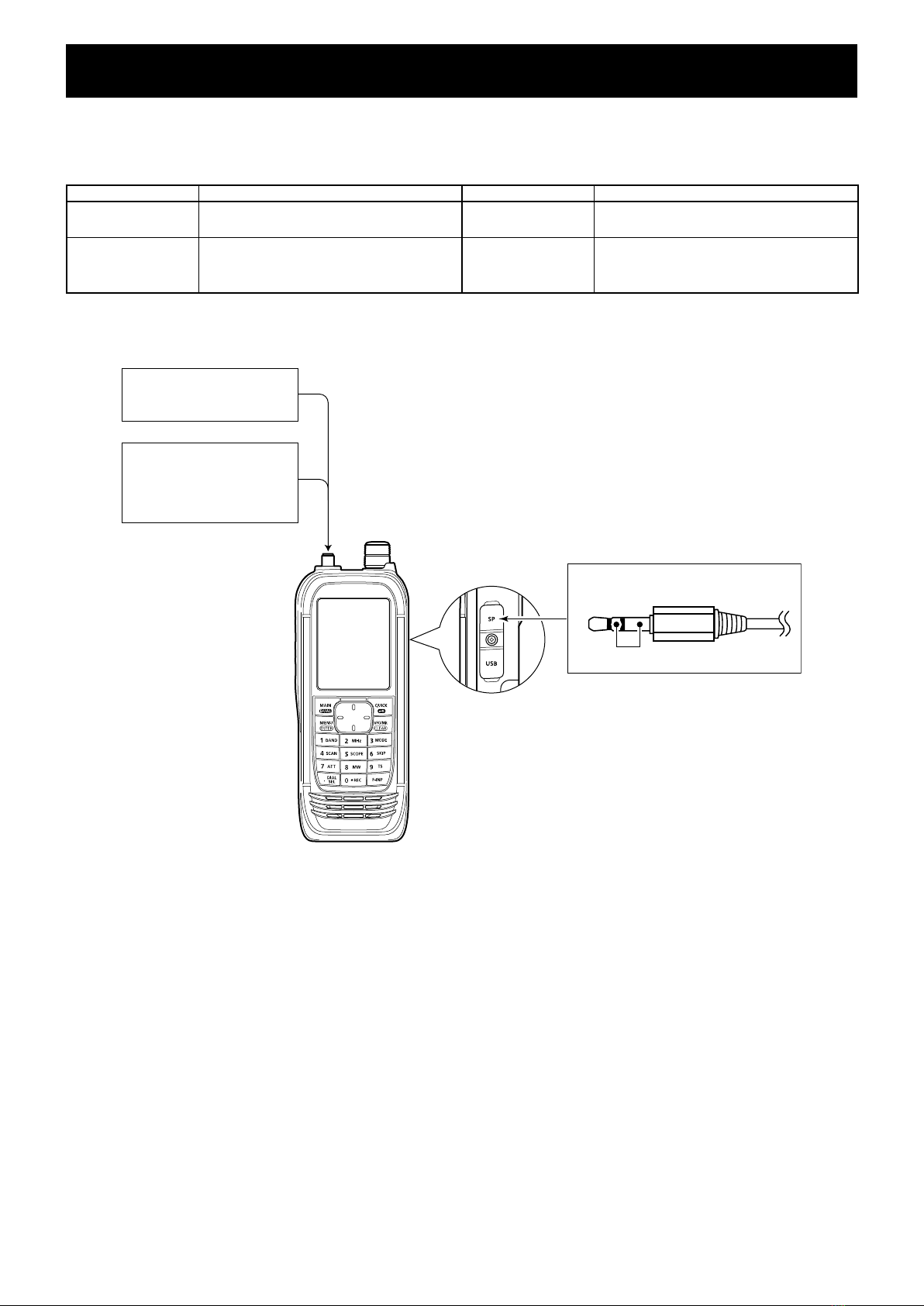

■REQUIRED EQUIPMENT
EQUIPMENT SPECIFICATIONS EQUIPMENT SPECIFICATIONS
DC power supply Fully charged BP-287 Shunt plug Modified 3.5 mm (⅛ inch) stereo plug.
(See below)
Spectrum analyzer Frequency range: 0.1~2000 MHz
Resolution: 10~30 Hz
Accuracy: 0.1 ppm or better
Standard signal
generator (SSG)
Frequency range: 0.1~3000 MHz
Output level: −26 dBμ to 94 dBμ
(−133 to −13 dBm)
■CONNECTIONS
Standard Signal Generator
0.1~3000 MHz
–26 dBµ to 94 dBµ
(–133 dBm to –13 dBm)
Spectrum Analyzer
0.1~2000 MHz
• Shunt plug
3-conductor 3.5 (d) mm plug
(Shunt)
4-1 PREPARATION

4-2
■ENTERING THE ADJUST MODE
1. Turn OFF the power.
2. Insert the shunt plug into the [SP] jack. (See page 1.)
3. While holding down [MENU], [QUICK], and [SQL], turn
ON the power to enter the adjust mode.
[ ]
[SQL]
[MENU]
[QUICK]
4. The adjust mode screen is displayed.
■EXITING THE ADJUST MODE
1. Turn OFF the power.
2. Remove the shunt plug from the [SP] jack, then turn ON
the power.
■KEY ASSIGNMENTS FOR THE ADJUST
MODE
• Push [↑] to select the next adjustment item, push [↓] to
select the previous adjustment item.
• Rotate [DIAL] to adjust its level or value.
• Push [ENTER] to store the adjusted value or start
automatic adjustment.
[ENTER]
Stores the adjusted
value, or starts the
audomatic adjustment.
[ ↓ ]
Selects the previous
adjustment item.
[ ↑ ]
Selects the next
adjustment item.
[DIAL]
Adjusts the level or
value.
■ADJUST MODE SCREEN
Adjustment display
frequency
SUB frequency
Adjustment item name

4-3
4-2 ADJUSTMENT
ADJUSTMENT ADJUSTMENT DISPLAY SETTING CONDITION VALUE
ITEM FREQUENCY MODE SUB
Reference
frequency
0 A REF1 1304.490 FM – Connect the spectrum analyzer to the antenna
connector and set it to:
Span: 1 kHz
RBW: 30 Hz
VBW: 30 Hz
1038.25 MHz
±50 Hz
1 A REF2 1304.490 FM –
WFM S
curve
2 A WFM 1304.900 WFM – Connect the standard signal generator to the
antenna connector and set it to:
Frequency: 1304.900 MHz
Modulation: Non
Level: +60 dBµ (–47 dBm)
Push
[ENTER].
(Automatic
adjustment)
AFC 3 A AFC1 1304.900 FM –
4 B AFC2 519.900 FM – Set the standard signal generator to:
Frequency: 519.900 MHz
BPF 5 B BPFL 108.020 FM – Set the standard signal generator to:
Frequency: The same as the displayed
frequency.
6 B BPFM 144.020 FM –
7 B BPFH 173.980 FM –
8 B BPFL 174.020 FM –
9 B BPFM 217.000 FM –
10 BBPFH 259.980 FM –
11 BBPFL 260.020 FM –
12 BBPFM 320.020 FM –
13 BBPFH 379.980 FM –
14 BBPFL 380.020 FM –
15 BBPFM 450.020 FM –
16 BBPFH 519.980 FM –
S-meter
curve
17 ASC0 145.100 FM 145.100 Set the standard signal generator to:
Frequency: 145.100 MHz
Level: –10 dBµ (–117 dBm)
18 BSC0 145.100 FM 145.100
19 ASC3 145.10 0 FM 145.10 0 Set the standard signal generator to:
Level: –6 dBµ (–113 dBm)
20 BSC3 145.10 0 FM 145.10 0
21 ASCF 14 5.10 0 FM 145.10 0 Set the standard signal generator to:
Level: +5 dBµ (–102 dBm)
22 BSCF 14 5.10 0 FM 145.10 0
23 ASC0 145.100 WFM 145.10 0 Set the standard signal generator to:
Level: +7 dBµ (–100 dBm)
24 ASC3 145.10 0 WFM 14 5.10 0 Set the standard signal generator to:
Level: +11 dBµ (–96 dBm)
25 ASCF 14 5.10 0 WFM 14 5.10 0 Set the standard signal generator to:
Level: +25 dBµ (–82 dBm)
26 ASC0 145.100 LSB 145.10 0 Set the standard signal generator to:
Frequency: 145.0985 MHz
Level: –10 dBµ (–117 dBm)
27 A SC3 145.10 0 LSB 145.10 0 Set the standard signal generator to:
Level: –6 dBµ (–113 dBm)
28 ASCF 14 5.10 0 LSB 14 5.10 0 Set the standard signal generator to:
Level: +5 dBµ (–102 dBm)
S-meter
(S3)
29 AS3 22.500 FM 145.10 0 Set the standard signal generator to:
Frequency: The same as the displayed
frequency on the MAIN band.
Level: –6 dBµ (–113 dBm)
30 AS3 40.10 0 FM 145.10 0
31 AS3 63.100 FM 6 3.10 0
32 AS3 92.100 FM 145.100
33 AS3 217.10 0 FM 217.10 0
34 BS3 217.10 0 FM 217.10 0
35 AS3 320.10 0 FM 320.100
36 BS3 320.10 0 FM 320.100
37 AS3 470.10 0 FM 470.100
38 BS3 470.10 0 FM 470.100
39 AS3 650.100 FM 145.100
40 AS3 116 7. 50 0 FM 14 5.10 0
41 AS3 2341.10 0 FM 145.10 0 Set the standard signal generator to:
Level: +2 dBµ (–105 dBm)

4-4
ADJUSTMENT ADJUSTMENT DISPLAY SETTING CONDITION VALUE
ITEM FREQUENCY MODE SUB
Noise
squelch
42 ANSQL 22.500 FM 145.100 Set the standard signal generator to:
Frequency: The same as the displayed
frequency on the MAIN band.
Modulation: 1 kHz
Deviation: ±3.5 kHz
Level: –26 dBµ (–133 dBm)
Push
[ENTER].
(Automatic
adjustment)
43 ANSQL 40.10 0 FM 145.10 0
44 ANSQL 6 3.10 0 FM 145.10 0
45 ANSQL 92.10 0 FM 145.100
46 ANSQL 145.100 FM 145.100
47 BNSQL 145.100 FM 145.100
48 ANSQL 217.10 0 FM 217.10 0
49 BNSQL 217.10 0 FM 217.10 0
50 ANSQL 320.10 0 FM 320.100
51 BNSQL 320.10 0 FM 320.100
52 ANSQL 470.100 FM 470.100
53 BNSQL 470.100 FM 470.100
54 ANSQL 6 5 0.100 FM 145.100
55 ANSQL 116 7.5 0 0 FM 145.100
56 ANSQL 23 41.10 0 FM 145.10 0 Set the standard signal generator to:
Level: –22 dBµ (–129 dBm)
4-2 ADJUSTMENT (CONTINUED)

5-1
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
REF
NO.
PART
NO. DESCRIPTION M. H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M. H/V
LOCATION
R14 7030016110 S.RES RMC1/16S-473JTH (47K) T 90.1/2.7
R15 7030016110 S.RES RMC1/16S-473JTH (47K) T 89.0/2.7
R16 7030015970 S.RES RMC1/16S-103JTH (10K) B 52.2/45.6
R17 7030015970 S.RES RMC1/16S-103JTH (10K) B 46.8/45.6
R18 7030016110 S.RES RMC1/16S-473JTH (47K) T 86.8/2.7
R19 7030015970 S.RES RMC1/16S-103JTH (10K) B 51.3/45.6
R20 7030016110 S.RES RMC1/16S-473JTH (47K) T 84.6/2.7
R21 7030016110 S.RES RMC1/16S-473JTH (47K) T 83.5/2.7
R22 7030016110 S.RES RMC1/16S-473JTH (47K) T 82.4/2.7
R26 7030016560 S.RES RMC1/16SJPTH T 90.1/4.3
R27 7030016560 S.RES RMC1/16SJPTH T 89.0/4.3
R28 7030016560 S.RES RMC1/16SJPTH T 86.8/4.3
R29 7030016560 S.RES RMC1/16SJPTH T 85.5/3.4
R30 7030016560 S.RES RMC1/16SJPTH T 83.9/3.9
R31 7030016560 S.RES RMC1/16SJPTH T 82.4/4.3
R37 7030016020 S.RES RMC1/16S-104JTH (100K) B 50.2/41.7
R38 7030016020 S.RES RMC1/16S-104JTH (100K) B 52.5/39.6
R40 7030016050 S.RES RMC1/16S-102JTH (1K) B 53.8/10.0
R41 7030016050 S.RES RMC1/16S-102JTH (1K) B 57.8/21.7
R42 7030016090 S.RES RMC1/16S-223JTH (22K) B 49.5/7.2
R43 7030016090 S.RES RMC1/16S-223JTH (22K) B 57.5/23.5
R44 7030016050 S.RES RMC1/16S-102JTH (1K) B 54.8/5.5
R45 7030016050 S.RES RMC1/16S-102JTH (1K) B 56.3/23.2
R47 7030016110 S.RES RMC1/16S-473JTH (47K) B 52.4/44.3
R48 7030015970 S.RES RMC1/16S-103JTH (10K) B 54.3/42.1
R50 7030016380 S.RES RMC1/16S-183JTH (18K) B 54.3/41.2
R51 7030016020 S.RES RMC1/16S-104JTH (100K) B 51.1/26.8
R52 7030016110 S.RES RMC1/16S-473JTH (47K) B 46.1/36.1
R53 7030016050 S.RES RMC1/16S-102JTH (1K) B 47.6/27.4
R54 7030016360 S.RES RMC1/16S-123JTH (12K) B 50.9/39.6
R55 7030016110 S.RES RMC1/16S-473JTH (47K) B 52.8/27.7
R56 7030016110 S.RES RMC1/16S-473JTH (47K) B 46.1/37.0
R57 7030016110 S.RES RMC1/16S-473JTH (47K) B 52.8/25.9
R58 7030016020 S.RES RMC1/16S-104JTH (100K) B 55.9/38.7
R59 7030016020 S.RES RMC1/16S-104JTH (100K) B 54.3/38.7
R60 7030016110 S.RES RMC1/16S-473JTH (47K) B 47.8/37.0
R61 7030016290 S.RES RMC1/16S-222JTH (2.2K) B 47.8/36.1
R62 7030016020 S.RES RMC1/16S-104JTH (100K) B 61.4/38.7
R63 7030016050 S.RES RMC1/16S-102JTH (1K) B 45.5/22.0
R64 7030016050 S.RES RMC1/16S-102JTH (1K) B 61.0/20.8
R65 7030016050 S.RES RMC1/16S-102JTH (1K) B 52.8/25.0
R66 7030016050 S.RES RMC1/16S-102JTH (1K) B 45.5/25.2
R67 7030016050 S.RES RMC1/16S-102JTH (1K) B 67.8/33.8
R68 7030016050 S.RES RMC1/16S-102JTH (1K) B 67.8/28.1
R69 7030016050 S.RES RMC1/16S-102JTH (1K) B 67.8/29.2
R71 7030016060 S.RES RMC1/16S-105JTH (1M) B 67.8/30.1
R73 7410001140 S.ARR EXB28V104JX B 80.4/26.9
R74 7410001140 S.ARR EXB28V104JX B 80.4/29.8
R75 7030016050 S.RES RMC1/16S-102JTH (1K) B 67.8/31.9
R76 7030016050 S.RES RMC1/16S-102JTH (1K) B 67.8/32.8
R77 7030016110 S.RES RMC1/16S-473JTH (47K) T 80.4/19.9
R78 7030016290 S.RES RMC1/16S-222JTH (2.2K) T 85.2/18.7
R79 7510001770 S.THE NTCG10 4LH 473JT B 51.5/22.3
R80 7030016020 S.RES RMC1/16S-104JTH (100K) B 51.0/23.5
R81 7030016110 S.RES RMC1/16S-473JTH (47K) T 85.2/17.8
R82 7030015970 S.RES RMC1/16S-103JTH (10K) B 59.4/42.7
R83 7030016020 S.RES RMC1/16S-104JTH (100K) B 51.4/20.8
R84 7030015970 S.RES RMC1/16S-103JTH (10K) B 61.1/45.5
R85 7030016380 S.RES RMC1/16S-183JTH (18K) B 59.5/45.5
R86 7410001140 S.ARR EXB28V104JX B 70.7/26.9
R87 7030016560 S.RES RMC1/16SJPTH B 55.9/44.4
R88 7030016020 S.RES RMC1/16S-104JTH (100K) B 47.6/26.3
R89 7030016020 S.RES RMC1/16S-104JTH (100K) T 85.2/16.7
R90 7410001140 S.ARR EXB28V104JX B 70.7/30.6
R91 7030016290 S.RES RMC1/16S-222JTH (2.2K) B 59.4/44.3
R92 7030016020 S.RES RMC1/16S-104JTH (100K) B 29.6/7.0
R95 7030016020 S.RES RMC1/16S-104JTH (100K) B 31.4/7.0
R96 7030016110 S.RES RMC1/16S-473JTH (47K) B 26.9/3.8
R98 7030016020 S.RES RMC1/16S-104JTH (100K) B 19.8/3.2
R99 7030016020 S.RES RMC1/16S-104JTH (100K) B 76.0/20.2
R101 7030015970 S.RES RMC1/16S-103JTH (10K) B 19.8/4.2
R102 7030016020 S.RES RMC1/16S-104JTH (100K) T 77.7/41.3
R103 7030016020 S.RES RMC1/16S-104JTH (100K) T 97.3/40.3
R104 7030016020 S.RES RMC1/16S-104JTH (100K) B 67.5/36.7
R105 7030016110 S.RES RMC1/16S-473JTH (47K) T 75.7/40.4
R106 7030016110 S.RES RMC1/16S-473JTH (47K) T 75.7/41.3
R107 7030016110 S.RES RMC1/16S-473JTH (47K) T 77.9/36.6
R108 7030016110 S.RES RMC1/16S-473JTH (47K) T 77.9/35.7
R109 7030016110 S.RES RMC1/16S-473JTH (47K) B 72.2/38.5
R110 7030016560 S.RES RMC1/16SJPTH B 78.9/34.7
R111 7030016560 S.RES RMC1/16SJPTH B 78.0/34.7
R114 7030015910 S.RES RMC1/16S-101JTH (100) T 92.9/35.8
R115 7030015970 S.RES RMC1/16S-103JTH (10K) T 92.9/34.0
R116 7030016290 S.RES RMC1/16S-222JTH (2.2K) T 92.7/27.8
R117 7030015970 S.RES RMC1/16S-103JTH (10K) T 83.4/23.0
R120 7030016090 S.RES RMC1/16S-223JTH (22K) T 92.7/29.6
R121 7030015970 S.RES RMC1/16S-103JTH (10K) T 95.4/38.1
R123 7030016020 S.RES RMC1/16S-104JTH (100K) B 89.8/37.7
R124 7030016110 S.RES RMC1/16S-473JTH (47K) T 70.5/13.5
R125 7030016280 S.RES RMC1/16S-331JTH (330) T 86.8/12.8
R126 7030016560 S.RES RMC1/16SJPTH B 13.6/8.3
R127 7030016050 S.RES RMC1/16S-102JTH (1K) B 44.2/44.2
R128 7030016560 S.RES RMC1/16SJPTH T 78.0/23.7
R129 7030016560 S.RES RMC1/16SJPTH T 70.5/31.4
R130 7030016560 S.RES RMC1/16SJPTH T 70.5/29.6
R131 7030016560 S.RES RMC1/16SJPTH T 85.2/19.6
R132 7030015900 S.RES RMC1/16S-470JTH (47) T 70.5/33.2
R133 7030015900 S.RES RMC1/16S-470JTH (47) T 70.5/32.3
IC1 1110007780 S.IC NJU7704F3-28A-TE1-#ZZZH B 41.9/45.1
IC2 1180005080 S.REG LP5907MFX-3.0/NOPB T 93.1/3.4
IC3 1130014260 S.IC SN74LVC2GU04DCKR B 52.0/41.4
IC4 1140017920 S.IC R5F564MLDDBG B 60.3/30.7
IC5 1140017190 S.IC GT24C1024-2CLI-TR B 52.3/33.4
IC6 1140017190 S.IC GT24C1024-2CLI-TR B 52.3/36.1
IC9 1130017182 S.IC RMLV0416EGBG-4S2 B 75.5/28.5
IC10 1130018740 S.IC RX8130CE T 82.8/18.5
IC11 1130015760 S.IC TC74VHC4066AFK (EK) B 48.3/23.1
IC12 1130014260 S.IC SN74LVC2GU04DCKR B 57.6/43.4
IC13 1110009520 S.IC TMP303BDRLR Only [#12] T 86.9/21.5
IC14 1180005080 S.REG LP5907MFX-3.0/NOPB B 93.8/38.0
IC15 1130015820 S.IC SN74AUP1T17DCKR B 30.5/4.3
IC16 1190004620 S.IC GSU-141A-098A (CXD5431-06) B 19.8/8.8
IC17 1130017400 S.IC MC74HC4094ADTR2G B 63.1/15.3
IC18 1130017400 S.IC MC74HC4094ADTR2G B 68.7/15.3
IC19 1130017400 S.IC MC74HC4094ADTR2G B 74.3/15.3
IC20 1180004380 S.REG TLV70030DCKR B 90.7/35.7
IC21 1190004711 S.IC HRM1016-010021 (EX3873A1) T 85.3/35.7
IC22 1130007021 S.IC TC7S66FU (TE85LF) T 93.5/37.6
IC23 1130018860 S.IC SN74AC00PWR B 41.1/41.1
IC24 1180004380 S.REG TLV70030DCKR B 90.6/39.9
IC25 1190004530 S.IC MAX14656EWE+T B 57.9/39.4
IC200 1140016370 S.IC TMS320C5517AZCHA20 B 26.0/26.6
IC201 1130016670 S.IC IS61WV12816DBLL-10BLI B 36.0/25.6
IC202 1130017750 S.IC EN25Q40A-104XIP B 39.0/11.5
IC203 1130018150 S.IC SN74AUP1T04DCKR B 32.0/34.3
IC204 1130018620 S.IC AK4555VT5P-E2/P B 16.4/27.9
IC205 1180004380 S.REG TLV70030DCKR B 36.7/44.9
IC206 6910022370 S.DC TPS62400DRCR B 87.7/26.5
IC208 1110008940 S.IC NJU7057RB1-TE2-#ZMZH B 29.0/41.9
IC209 1110008830 S.IC NJU7058V-TE2-#ZMZH B 55.6/15.3
IC210 1130009981 S.IC TC7W53FK (TE85LF) B 46.6/13.0
Q1 1560002190 S.FET RUM002N02T2L B 60.3/8.2
Q2 1590004690 S.TRA LDTC143ZET1G B 60.3/10.2
Q3 1510001100 S.TRA 2SA1832-GR (TE85RF) B 54.3/43.6
Q4 1590004070 S.TRA LDTC144EET1G B 47.0/39.4
Q5 1530003990 S.TRA 2SC4738-BL (TE85LF) B 49.1/39.6
Q6 1510001100 S.TRA 2SA1832-GR (TE85RF) B 60.9/43.9
Q7 1590004070 S.TRA LDTC144EET1G B 49.4/26.9
Q8 1560002190 S.FET RUM002N02T2L B 54.6/45.5
Q9 1590004070 S.TRA LDTC144EET1G B 21.8/3.8
Q10 1510001100 S.TRA 2SA1832-GR (TE85RF) B 17.9/3.8
Q11 1590004070 S.TRA LDTC144EET1G T 77.7/39.8
Q12 1590004070 S.TRA LDTC144EET1G T 95.8/40.6
Q13 1590004070 S.TRA LDTC144EET1G T 93.3/40.8
Q14 1590004070 S.TRA LDTC144EET1G T 84.9/22.9
Q15 1590004070 S.TRA LDTC144EET1G T 90.4/10.9
Q16 1590004040 S.TRA LDTA123YET1G T 90.4/12.9
Q17 1550000400 S.FET SSM3J15FS (TE85LF) Only [#12] T 86.9/19.1
Q200 1590004070 S.TRA LDTC144EET1G B 35.7/31.6
Q201 1590004070 S.TRA LDTC144EET1G B 46.5/30.7
Q202 1510001100 S.TRA 2SA1832-GR (TE85RF) B 47.1/33.6
D1 1790001960 S.VAR VC060303A100RP B 64.4/10.0
D4 1750001810 S.DIO L1SS400T1G B 54.8/40.2
D6 1750001810 S.DIO L1SS400T1G B 57.4/45.5
D7 1750001810 S.DIO L1SS400T1G T 82.8/21.0
D14 1750001810 S.DIO L1SS400T1G Only [#20] B 73.1/8.2
D15 1750001810 S.DIO L1SS400T1G Only [#20] B 73.1/7.0
D17 1750001810 S.DIO L1SS400T1G Only [#20] B 73.1/9.4
D19 1750001810 S.DIO L1SS400T1G B 73.1/10.6
D21 1750001810 S.DIO L1SS400T1G B 75.6/10.6
D22 1750001810 S.DIO L1SS400T1G B 75.6/9.4
D23 1750001810 S.DIO L1SS400T1G B 75.6/7.0
D24 1750001810 S.DIO L1SS400T1G B 75.6/8.2
D25 1750001810 S.DIO L1SS400T1G T 75.5/14.8
D26 1750001810 S.DIO L1SS400T1G T 75.5/16.0
D27 1750001810 S.DIO L1SS400T1G T 73.0/14.8
D36 1750002540 S.DIO LRB520G-30T1G B 47.5/42.7
X1 6090000060 S.E.O SIT9005AIL21-30DH24.000000E B 50.1/30.1
X200 6050013981 S.XTA CR-997A (12.288 MHz) B 37.7/33.7
L1 6200013850 S.COI MLK1005S15NJT T 92.7/28.7
L200 6200014260 S.COI LQM2MPN2R2NG0L B 90.5/24.0
L201 6200014260 S.COI LQM2MPN2R2NG0L B 84.9/24.0
L202 6200014260 S.COI LQM2MPN2R2NG0L B 84.2/30.3
R1 7030016160 S.RES RMC1/16S-820JTH (82) T 64.4/10.7
R2 7030016160 S.RES RMC1/16S-820JTH (82) T 64.4/21.7
R3 7030016160 S.RES RMC1/16S-820JTH (82) T 64.4/32.7
R4 7030016460 S.RES RMC1/16S-181JTH (180) B 61.8/9.6
R5 7030016270 S.RES RMC1/16S-151JTH (150) B 62.7/9.6
R6 7030016020 S.RES RMC1/16S-104JTH (100K) B 60.3/6.8
R7 7030015970 S.RES RMC1/16S-103JTH (10K) B 50.4/45.6
R8 7030015970 S.RES RMC1/16S-103JTH (10K) B 49.5/45.6
R9 7030015970 S.RES RMC1/16S-103JTH (10K) B 48.6/45.6
R10 7030015970 S.RES RMC1/16S-103JTH (10K) B 47.7/45.6
R11 7030016110 S.RES RMC1/16S-473JTH (47K) B 93.5/10.6
R12 7030015970 S.RES RMC1/16S-103JTH (10K) B 47.7/44.0
R13 7030015970 S.RES RMC1/16S-103JTH (10K) B 48.6/44.0
SECTION 5 PARTS LIST
[LOGIC UNIT] (for #12 and #20) [LOGIC UNIT] (for #12 and #20)
