Icom IC-41PRO Installation guide

BASIC MANUAL
i41PRO
UHF TRANSCEIVER

i
IMPORTANT
READ ALL INSTRUCTIONS carefully before using
the IC-41PRO UHF transceiver.
KEEP THIS BASIC MANUAL, as it contains impor-
tant operating information that may be useful in the future.
You can download the ADVANCED MANUAL for more infor-
mation from the Icom website.
(http://www.icom.co.jp/world/support/download/manual/index.php)
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-
porated (Japan) in Japan, the United States, the United Kingdom, Germany,
France, Spain, Russia, Australia, New Zealand and/or other countries.
i. The use of the citizen band radio service is licenced in
Australia by the ACMA Radiocommunications (Citizens
Band Radio Stations) Class Licence and in New Zealand
by the Ministry of Economic Development (MED) General
User Radio Licence for Citizen Band Radio and operation
is subject to conditions contained within these licences.
ii. Always listen on a channel (or observe the channel busy
indicator) to ensure it is not already being used before
transmitting.
iii. In Australia, channel 11 is the customary calling channel
for establishing communication. Channel 40 is the cus-
tomary road vehicle channel.
iv. In Australia, except in an emergency, a CB transmitter shall
not be operated on UHF emergency channels 5 and 35.
v. No voice transmissions are permitted on data channels 22
and 23 (voice operation is inhibited on these channels).
vi. The user of this UHF CB communications device shall
not transmit Selcall tones for longer than 3 seconds dur-
ing any 60 second period.
vii.UHF CB repeaters extend the operational range of your
radio. Repeaters operate utilising two channels (repeater
input/repeater output). It is important to avoid operation
on locally used repeater input channels (in the channel
range of 31 to 38 and 71 to 78) or locally used repeater
output channels (in the channel range of 1 to 8 and 41 to
48), unless long distance communication via the repeater
is specifically required. See the section on repeater op-
eration (ADVANCED MANUAL) for more information.
viii. Please be aware that the UHF CB network may experi-
ence possible operational issues during the changeover
to narrowband. This transceiver operates on 12.5 kHz
channel spacing. During the changeover period from
25 kHz to 12.5 kHz spacing, there may be some loss of
quality when 12.5 kHz (narrowband, 2.5 kHz deviation)
transmissions are received on 25 kHz (wide band, 5.0
kHz deviation) equipment, and vice-versa. There may
also be interference due to older equipment being oper-
ated on channels adjacent to new narrowband chan-
nels, as the channel setting on these may cause some
‘overlap’. A list of currently authorised channels can be
found on the ACMA website (Australia) and on the MED
website in New Zealand.
GENERAL INFORMATION

ii
PRECAUTIONS
RWARNING! NEVER hold the transceiver so that the
antenna is very close to, or touching exposed parts of the
body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 5 to 10 cm
away from lips and the transceiver is vertical.
RWARNING! NEVER operate the transceiver with a
headset or other audio accessories at high volume levels.
The continuous high volume operation may cause a ringing
in your ears. If you experience the ringing, reduce the vol-
ume level or discontinue use.
RWARNING! NEVER operate the transceiver while driv-
ing a vehicle. Safe driving requires your full attention—any-
thing less may result in an accident.
CAUTION: MAKE SURE the flexible antenna, battery
pack and jack cover are securely attached to the transceiver,
and that the antenna and battery pack are dry before attach-
ment. Exposing the inside of the transceiver to dust or water
will result in serious damage to the transceiver.
DO NOT operate the transceiver near unshielded electrical
blasting caps or in an explosive atmosphere.
DO NOT push [PTT] unless you actually intend to transmit.
DO NOT operate or place the transceiver in direct sunlight
or in areas with temperatures below –30°C or above +60°C.
DO NOT use harsh solvents such as benzine or alcohol
when cleaning. They will damage the transceiver surfaces.
RDANGER! NEVER short the terminals of the battery
pack. Also, current may flow into nearby metal objects such
as a key, so be careful when placing the battery packs (or
the transceiver) in handbags, etc. Simply carrying with or
placing near metal objects such as a key, etc. may cause
shorting. This may damage not only the battery pack, but
also the transceiver.
RDANGER! Use and charge only specified Icom bat-
tery packs with Icom transceivers or Icom chargers. Only
Icom battery packs are tested and approved for use with
Icom transceivers or charged with Icom chargers. Using
third-party or counterfeit battery packs or chargers may
cause smoke, fire, or cause the battery to burst.
EXPLICIT DEFINITIONS
WORD DEFINITION
RDANGER! Personal death, serious injury or an
explosion may occur.
RWARNING! Personal injury, fire hazard or electric
shock may occur.
CAUTION Equipment damage may occur.
NOTE
If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.

iii
DO NOT modify the transceiver. The specifications may
change and then not comply with the requirements of a cor-
responding regulation. The transceiver warranty does not cover
any problems caused by unauthorized modification.
BE CAREFUL! The transceiver will become hot when
operating it continuously for long periods of time.
BE CAREFUL! The transceiver meets IP67* requirements
for dust-tight and waterproof protection. However, once the
transceiver has been dropped, or the waterproof seal is
cracked or damaged, dust-tight and waterproof protection
cannot be guaranteed because of possible damage to the
transceiver’s case or the waterproof seal.
* Only when the jack cover or the optional HM-168LWP,
HS-94LWP or HS-95LWP is attached.
If the transceiver is exposed to saltwater, BE SURE TO
CLEAN IT THOROUGHLY WITH FRESH WATER
when the transceiver's waterproof protection is effective.
Otherwise, the keys and switches may become inoperable
due to salt crystallization.
Even when the transceiver power is turned OFF, a slight cur-
rent still flows in the circuits. Remove the battery pack or bat-
teries from the transceiver when not using it for a long time.
Otherwise, the attached battery pack or batteries will be-
come exhausted, and will need to be recharged or replaced.
PRECAUTIONS (Continued)
This device complies with Standard Australia
Specification No. AS/NZS 4365-2011.
MAKE SURE to turn OFF the transceiver before connect-
ing the supplied/optional equipment.

iv
TABLE OF CONTENTS
IMPORTANT.......................................................................... i
GENERAL INFORMATION.................................................... i
EXPLICIT DEFINITIONS...................................................... ii
PRECAUTIONS.................................................................... ii
SUPPLIED ACCESSORIES................................................ iv
TABLE OF CONTENTS....................................................... iv
1. PANEL DESCRIPTION ................................................1–4
■Panel description..........................................................1
■Display .........................................................................3
2. BASIC OPERATION.........................................................5
■Turning the transceiver ON ..........................................5
■Receiving and Transmitting ..........................................5
3. BATTERY CHARGING.................................................6–9
■Caution.........................................................................6
■Rapid charging with the BC-213 ..................................8
4. OPTIONS .................................................................10–11
■Optional HM-168LWP description..............................10
5. TROUBLESHOOTING....................................................12
6. WARRANTY AND REGISTRATION.........................13–15
INDEX...........................................................................16–17
SUPPLIED ACCESSORIES
qwe
rt
qBattery pack
wBattery charger (BC-213)
eBelt clip (MB-133)
rPower adapter (for the battery charger)
tStubby antenna

1
1PANEL DESCRIPTION
■Panel description
Microphone
Speaker
[ROTARY SELECTOR]
[VOL]
[TOP]
Speaker-microphone jac
k
Function Display
[Side 2]
[Side 1]
[PTT]
STATUS INDICATOR
Antenna
connector
[ROTARY SELECTOR]
• Rotate to change the channel or setting value.
[VOL]
• Rotate to turn the transceiver ON or OFF.
• Rotate to adjust the volume level.
[TOP]
• Push to change between Normal mode and Function mode.
Normal mode
• Hold down for 2 seconds to enter the Set mode.
Function mode
• When a receive channel is selected, hold down for 2 seconds to
enter the RX VFO (receive frequency select) mode.
NOTE : In the Function mode, after 30 seconds with no operation,
the transceiver returns to the Normal mode.
Normal mode
• Push to start or stop a scan.
• Hold down for 2 seconds to tag or untag the displayed channel.
The tagged channels will be scanned.
Function mode
• Push to enter the Selcall code channel selection mode.
• Hold down for 2 seconds to transmit the selected Selcall code,
when a CB channel is selected.
Normal mode
• Push to select an Open , Group , and Priority scan.
• Hold down for 2 seconds to start or stop a Repeater scan.
Function mode
• Push to turn the Selcall Quiet mode ON or OFF.
• Hold down for 2 seconds to display the history of received ID codes.
Normal mode
• Push to display the Priority channel, if set.
• Hold down for 2 seconds to set the displayed channel as the Prior-
ity channel.
Function mode
• Push to transmit a Smart-ring signal.
• Hold down for 2 seconds to clear the Priority channel setting.

2
1
PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Normal mode
• Push to set the transmit output power level to “HIGH (5W)” or “LOW
(1W).”
• Hold down for 2 seconds to electronically lock [ROTARY SELECTOR]
and all keys except [PTT], [Side 1], [TOP], (when in Function
mode) and .
• Hold down for 2 seconds again to unlock all keys.
Function mode
• Push to select the Duplex (repeater access) and Simplex (no
repeater access) mode.
• Hold down for 2 seconds to enter the zone selection mode.
[Side 1]
• Push to turn the Monitor (open squelch) function ON or OFF.
• Hold down for 2 seconds to set the items in the list below.
TSQL
(Tone squelch)
Only receives calls with the same tone
squelch code.
TSQL
ë
(Pocket beep) Informs that you have missed a call.
TSQL
ë
(No tone operation) “TSQL
ë ” disappears.
[Side 2]
• Push to enter or exit the squelch setting mode.
While in the squelch setting mode, rotate [ROTARY SELECTOR] to
adjust the squelch level.
• Hold down for 2 seconds to turn the ATS (Automatic Transponder
System) function ON or OFF.
[PTT]
• Hold down to transmit. Release to receive. (p. 5)
• A PTT Hold function can also be used.
(Push to start transmitting, push again to stop transmitting)
See ADVANCED MANUAL for more information.
STATUS INDICATOR
• Lights red while transmitting.
• Lights green while receiving a signal, or when the squelch is open.
• Lights or blinks orange when a matched Selcall is received.
• Blinks green slowly when you should charge the battery.
• Blinks green quickly when you must charge the battery.
About the external speaker-microphone jack:
• Connect an optional external device.
• Make sure the power is OFF before connecting.

3
1PANEL DESCRIPTION
■Display
qw r o
i
uy
e
!0
!1 !4 !5 !6
!3
!2
t
q SIGNAL STRENGTH INDICATOR
• “ ” displays the relative signal strength level.
• “ ” blinks when ATS is used.
w TONE
• “T” is displayed while the subaudible tone encoder is used.
• “TSQL” is displayed while using the Tone squelch mode.
e BELL ICON
• Displayed when using the Pocket beep function.
• Blinks when the transceiver has received a specified Sel-
call or Smart ring call.
r QUIET MODE ICON
Displayed when the Selcall Quiet mode is ON.
t PRIORITY CHANNEL ICON
Displayed when the Priority channel is set.
y SCRAMBLER ICON
Displayed when the Voice scrambler function is ON.
u DUPLEX ICON
Displayed when a Duplex channel is selected.
i KEY LOCK ICON
Displayed when the Keylock function is ON.
o BATTERY ICON
Displays the battery current capacity, or blinks when the
capacity decreases below a specific level.
!0 CHANNEL READOUT
Displays the operating channel number, channel name,
Set mode items, and so on.
!1 FUNCTION ICON
Displayed when the Function mode is ON which enables
you to access the functions in the secondary menu.

4
1
PANEL DESCRIPTION
2
1
!2 LOW POWER ICON
• Displayed when low output power is selected.
• When the battery power decreases below a specific
level, the transceiver automatically switches to low out-
put power.
!3 OPEN SCAN ICON
Displayed when Open scan is selected.
!4 GROUP SCAN ICON
Displayed when Group scan is selected.
!5 PRIORITY SCAN ICON
Displayed when Priority scan is selected.
!6 SCAN CHANNEL ICON
• Displayed when the displayed channel is a tagged chan-
nel be scanned.
• Blinks while scanning.
Information
“N/A (Not Applicable)” is
displayed when you push
a key that has no setting
or function.

5
2BASIC OPERATION
■Turning the transceiver ON
Before using the transceiver for the first time, you must
charge the battery for optimum life and use.
➥Rotate [VOL] to turn the transceiver ON.
■Receiving and Transmitting
NOTE: Transmitting without an antenna may damage the
transceiver.
DReceiving
If “TSQL” or “TSQL ë” is displayed, you can only receive
calls from others with the same tone squelch code.
qSelect the desired operating channel.
wPush [Side 1] to turn the Monitor function ON or OFF.
DTransmitting
qCheck for a clear channel, or wait until a conversation is
completed before transmitting.
wWhile holding down [PTT], speak into the microphone at
your normal voice level.
Information
To maximise the clarity of the signal:
• Pause briefly after pushing [PTT]. This ensures that the first part of
your message is transmitted.
• Hold the microphone about 5 to 10 cm from your mouth.
Transmit inhibit function
The transceiver will not transmit under the following condi-
tions.
• The channel is busy.
• The displayed channel is a receive only channel.
(Example: CB22, CB23)
Output power level
Depending on the operating environment, it is useful to
reduce/increase the transceiver output power level of the
transceiver.
➥Push to change from “HIGH (5W)” to “LOW (1W).”
• Select “LOW” to conserve battery power, or HIGH for longer dis-
tance communications.
• “LO” is displayed when low output power is selected.

6
3
BATTERY CHARGING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
■Caution
Misuse of Lithium-ion batteries may result in the following
hazards: smoke, fire, or the battery may rupture. Misuse
can also cause damage to the battery or degradation of
battery performance.
Prior to using the battery pack for the
first time, or after not using it for a long time, you must fully
charge the pack. Otherwise, the transceiver may not turn ON.
DBattery caution
RDANGER! DO NOT hammer or otherwise impact the bat-
tery. Do not use the battery if it has been severely impacted
or dropped, or if the battery has been subjected to heavy
pressure. Battery damage may not be visible on the outside
of the case. Even if the surface of the battery does not show
cracks or any other damage, the cells inside the battery may
rupture or catch fire.
RDANGER! NEVER use or leave battery packs in areas
with temperatures above +60˚C. High temperature buildup in
the battery, such as could occur near fires or stoves, inside a
sun heated car, or in direct sunlight may cause the battery to
rupture or catch fire.
RDANGER! DO NOT expose the battery to rain, snow, sea-
water, or any other liquids. Never charge or use a wet battery.
If the battery gets wet, be sure to wipe it dry before using.
RDANGER! KEEP battery packs away from fire. Fire or heat
may cause them to rupture or explode. Dispose of used bat-
tery packs in accordance with local regulations.
RDANGER! NEVER solder the battery terminals or NEV-
ER modify the battery pack. This may cause heat genera-
tion, and the battery may burst, emit smoke or catch fire.
RDANGER! Use the battery only with the transceiver for
which it is specified. Never use a battery with any other
equipment, or for any purpose that is not specified in this
instruction manual.
RDANGER! If fluid from inside the battery gets in your
eyes, blindness can result. Rinse your eyes with clean water,
without rubbing them, and see a doctor immediately.
RWARNING! Immediately stop using the battery if it emits
an abnormal odor, heats up, or is discolored or deformed. If
any of these conditions occur, contact your Icom dealer or
distributor.
RWARNING! Immediately wash, using clean water, any
part of the body that comes into contact with fluid from
inside the battery.
RWARNING! NEVER put the battery in a microwave oven,
high-pressure container, or in an induction heating cooker. This
could cause a fire, overheating, or cause the battery to burst.
CAUTION: Always use the battery within the specified
temperature range, for the transceiver –30˚C to +60˚C, and
the battery itself –20˚C to +60˚C. Using the battery out of its
specified temperature range will reduce the battery’s perfor-
mance and battery life.

7
3BATTERY CHARGING
DBattery caution (Continued)
CAUTION: Shorter battery life could occur if the battery is
left fully charged, completely discharged, or in an excessive
temperature environment (above +50˚C) for an extended pe-
riod of time. If the battery must be left unused for a long time,
it must be detached from the transceiver after discharging.
You may use the battery until the remaining capacity is
about half, then keep it safely in a cool dry place with the
temperature range as below:
–20˚C to +50˚C (within a month)
–20˚C to +40˚C (within three months)
BE SURE to replace the battery pack with a new one ap-
proximately five years after manufacturing, even if it still holds
a charge. The inside battery material will become weak after
a period of time, even with little use. The estimated number
of times you can charge the battery is between 300 and 500.
Even when the battery appears to be fully charged, the oper-
ating time of the transceiver may become short when:
• Approximately five years have passed since the battery was
manufactured.
• The battery has been repeatedly charged.
DCharging caution
RDANGER! NEVER charge the battery pack in areas with
extremely high temperatures, such as near fires or stoves,
inside a sun heated vehicle, or in direct sunlight. In such
environments, the safety/protection circuit in the battery will
activate, causing the battery to stop charging.
RWARNING! NEVER charge or leave the battery in the
battery charger beyond the specified time for charging. If the
battery is not completely charged by the specified time, stop
charging and remove the battery from the battery charger.
Continuing to charge the battery beyond the specified time
limit may cause a fire, overheating, or the battery may rupture.
RWARNING! NEVER insert the transceiver (battery at-
tached to the transceiver) into the charger if it is wet or
soiled. This could corrode the battery charger terminals or
damage the charger. The charger is not waterproof.
CAUTION: NEVER charge the battery outside of the speci-
fied temperature range: +10˚C to +40˚C. Icom recommends
charging the battery at +20˚C. The battery may heat up or
rupture if charged out of the specified temperature range. Ad-
ditionally, battery performance or battery life may be reduced.

8
3
BATTERY CHARGING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
■Rapid charging with the BC-213
The BC-213 desktop charger rapid charges the Li-ion bat-
tery pack. The BC-213 is used with a power adapter or the
CP-23L cigarette lighter cable (purchase separately).
• Charging time of the BP-280: Approximately 3 to 4 hours.
CAUTION: STOP charging if the charge indicator alter-
nately lights orange and green.
NOTE: Charge the battery within the specified temperature
range of +10°C to +40°C. Otherwise, the charging time will
be longer, but the battery will not reach a full charge. While
charging, at a point after the temperature goes out of the
specified range, the charging will automatically stop.
Battery pack
Transceiver
Charge indicator
• Lights orange
while charging.
• Lights green when
charging is completed.
BC-213
Power adapter
Tu rn OFF the power
CP-23L
(f
or a 12 V cigarette
lighter so
cket) Can
be used instead of
the po
wer adapter.

9
3BATTERY CHARGING
DRapid charging with the BC-214

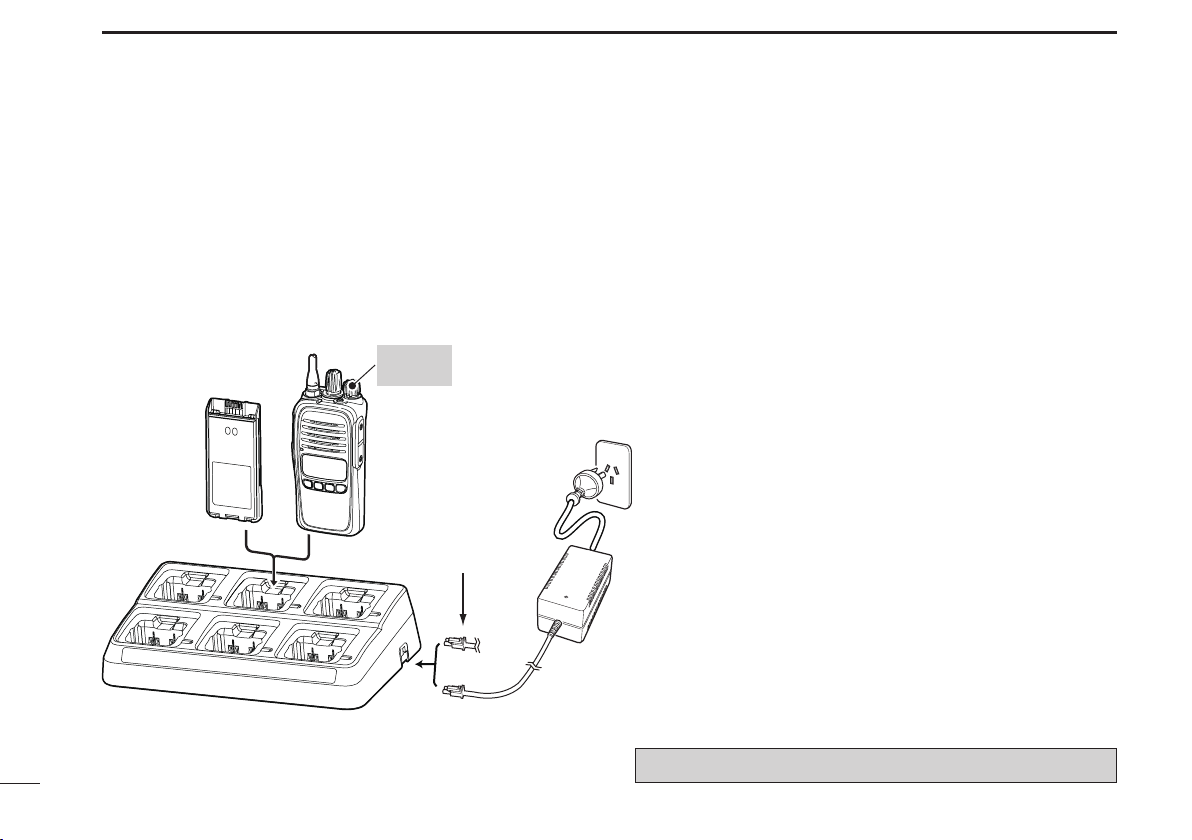

The BC-214 multi charger* can simultaneously charge up
to 6 Li-ion battery packs. The BC-214 is used with the BC-
157S ac adapter*or the OPC-656 dc power cable*.
* Purchase separately
• Charging time of the BP-280: Approximately 3 to 4 hours.
Transceiver
Tu rn OFF
the power
OPC-656
Connect to a DC
power supply:
12 to 16 V, at least 7 A
Red line: +
Black line: _
BC-214
BC-157S
Battery
pack
For more information about Icom accessories, see page 11.

10
4
OPTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
■Optional HM-168LWP description
Alligator type clip
To attach the speaker-mic.
to your shirt or collar, and so on.
PTT button
Hold down to transmit,
release to receive.
Microphone
Speaker
Turn OFF the transceiver
when you connect the
HM-168LWP.
NEVER immerse the connector in water. If the connector
becomes wet, be sure to dry it BEFORE connecting it to the
transceiver.
NOTE: The microphone is located as shown in the dia-
gram above. To maximize the readability of your transmit-
ted signal (voice), hold the microphone approximately 5 to
10 cm from your mouth, and speak in a normal voice level.
Hand
tighten
Follow the steps below to attach the
HM-168LWP. First, you must turn
OFF the transceiver, and detach the
jack cover.
DDetaching the jack cover
qUnscrew the screws using a
screwdriver.
wDetach the jack cover.
DAttaching the HM-168LWP
qAttach the speaker-microphone’s connector to the speak-
er-microphone jack on the transceiver.
wTighten the screws with your fingers.
NOTE: Use only your
fingers instead of tools to
tighten the screws.
CAUTION: Firmly attach
the connector. Otherwise
water will enter into the
connector.
IMPORTANT: Keep the
speaker-microphone jack
cover attached to the
transceiver when an exter-
nal device is not used.
w
q
q

11
4OPTIONS
DBATTERY PACKS
• BP-280/BP-279/BP-278 battery pack
Battery pack Voltage Capacity Battery life*
BP-280
7.2 V
2280 mAh (minimum)
2400 mAh (typical) 18 hours
BP-279 1485 mAh (minimum)
1570 mAh (typical) 12 hours
BP-278 1130 mAh (minimum)
1190 mAh (typical) 9 hours
* When the Power Save function is turned ON, and the operating
periods are calculated under the following conditions:
TX : RX : standby = 5 : 5 : 90
DCHARGERS
• BC-213 desktop charger +BC-123SV ac adapter
To rapidly charge a single battery pack.
• BC-214 multi charger +BC-157S ac adapter
To rapidly charge up to 6 battery packs.
DDC CABLES
• CP-23L cigarette lighter cable
Enables charging the battery pack using a 12 V cigarette lighter
socket. (Use with the BC-213)
• OPC-656 dc power cable
Enables charging the battery pack using a 13.8 V power source
instead of the power adapter. (Use with the BC-214)
DANTENNA
• FA-SC73US stubby antenna
450–490 MHz
DOTHERS
• MB-130 mobile bracket
Mounts the BC-213 desktop charger in a variety of places in a
vehicle.
• MB-133 belt clip
• HM-153LA/HM-166LA earphone microphone
Ideal for hands-free operation. Clip the HM-153LA or HM-166LA
(with integrated PTT switch) to your lapel or breast pocket.
• HM-158LA/HM-159LA/HM-168LWP* speaker microphone
Combination speaker-microphone that provides convenient opera-
tion while the transceiver is hanging on your belt.
• HS-97 headset
+ VS-4LA ptt switch cable/OPC-2004LA adapter cable
HS-97: Throat microphone
VS-4LA: To connect the headset
OPC-2004LA: To connect to the headset for VOX operation
- Adjust both the microphone and VOX gain before use.
• HS-94LWP*/HS-95LWP* headset
hs-94lwp: Ear-hook type
HS-95LWP: Neck-arm type
- Adjust both the microphone and VOX gain before use.
* When in use, the transceiver meets IP67 requirements for dust-tight
and waterproof protection.
• CS-41PRO cloning software + OPC-478UC cloning cable
Enables quick and easy entry of settings such as RX frequencies
and Set mode contents.
Approved Icom optional equipment is designed for optimal performance when
used with an Icom transceiver. Icom is not responsible for the destruction or
damage to an Icom transceiver in the event the Icom transceiver is used with
equipment that is not manufactured or approved by Icom.

12
5
TROUBLESHOOTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PROBLEM POSSIBLE CAUSE SOLUTION
Cannot receive, but others can hear
my transmissions.
Squelch is set too high.
Reduce the squelch level. Push [Side 2] and then rotate
[ROTARY SELECTOR] counterclockwise to set the correct
squelch level.
Tone squelch (quiet reception mode) is
ON. (“TSQL” is displayed)
Hold down [Side 1] for 2 seconds several times untill “TSQL”
disappears.
Selcall Quiet Mode is ON.
(“Q” is displayed)
Push [Top] to enter the Function mode, and then push to
turn OFF the Quiet mode.
Can receive, but others cannot hear
my transmissions.
Output power level is set to “LOW.”
(“LO” is displayed)
Push to change the output power level to “HIGH.”
Make sure that the battery is fully charged.
Other stations are operating in Tone
squelch or Selcall modes. Set the correct Tone squelch setting for the user group.
The transceiver continues to transmit
after PTT is released. The PTT Hold function is ON. Turn OFF the PTT Hold function in the Set mode. (See the ADVANCED MANUAL)
The transceiver transmits regularly
(LED blinks red), the signal strength
indicator blinks, and beeps.
The ATS (Automatic Transponder
System) function is ON.
Hold down [Side 2] for 2 seconds to turn the ATS function
OFF.
Continuous noise is heard from the
speaker.
Monitor (Open squelch) is ON. Push [Side 1] to turn the Monitor function OFF.
Squelch level set too low. Increase the squelch level. Push [Side 2] and then rotate
[ROTARY SELECTOR] clockwise until the noise disappears.
Activity on the channel
Check if the noise is also heard on other channels. If not,
another station may be transmitting on that channel, or you
may be receiving interference from other devices.
Buttons have no effect or do not work
as expected
The Keylock function is ON. Hold down for 2 seconds to unlock the keys.
The keys may have been reassigned. Contact your authorized Icom dealer for details.
Wish to hear the channels announced
audibly
The Channel announce function is
OFF.
Turn ON the Channel announce function in the Set mode.
(See ADVANCED MANUAL)

13
6WARRANTY AND REGISTRATION
ICOM LIMITED WARRANTY
Icom Incorporated is proud of its advanced technology and the high quality of
workmanship and components included in the production of every product. Our
goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to a major failure.
Icom (Australia) Pty. Ltd., the authorised Icom Distributor, warrants this Icom
product within Australia to be free from defects in material or workmanship for
the applicable period indicated below:
• Radios:
Five (5) years from the date of purchase, (excluding accessories), when
purchased from an Australian authorised Icom Dealer.
• Accessories:
One (1) year from the date of purchase, when purchased from an Aus-
tralian authorised Icom Dealer.
(i.e. battery, antenna, battery chargers etc)
Icom (Australia) Pty. Ltd. will, at its discretion, and subject to the terms and
conditions stated below, repair or replace any goods or component parts
which after examination are found to be defective.
Unless otherwise expressly provided, any fault arising from defective work-
manship or material shall be rectified by Icom where the equipment is
returned freight prepaid to Icom (Australia) Attn: Service Dept. Unit 1/103 Gar-
den Rd, Clayton, VIC, 3168.Telephone [phone], Fax: [phone].
Email [email protected].
This warranty shall not apply:
(a) To an Icom Product which has failed due to improper installation, mis-
use, accident, alteration or unauthorised repair or modification.
(b) If any serial number or identification plate attached to the goods has
been altered, rendered illegible, or removed
(c) If the goods have been damaged by corrosion, deterioration or the like
contributed to abnormal temperatures; the influence of foreign matter
or energy or physical or chemical properties of water, steam or chemi-
cal compounds.
(d) To any Icom product not originally supplied by Icom (Australia) Pty Ltd
to an authorised Dealer of Icom (Australia) Pty. Ltd.
Please check with us if you feel an Icom product is being offered
for sale that has been sourced from other than Icom (Australia)
Pty Ltd.
WARRANTY SERVICE INSTRUCTIONS
If you are experiencing difficulty with your Icom equipment:
1. For warranty claims, complete a repair order form located at: http://
www.icom-australia.com/files/Repair_Order_Form.pdf and send with
goods to Icom (Australia) with a brief explanation of the issue.
2. If the fault is related to the use of a particular accessory or acces-
sories, please include these for inspection with the radio, and list
these on the repair order form. Icom (Australia) Pty. Ltd. shall assume
no liability for the loss or safe return of an accessory item that is not
listed.
3. Please contact Icom (Australia) regarding any compensation that
may be payable for reasonable expenses incurred in making a war-
ranty claim.
4. If the requested repairs or services are within the terms of warranty,
your equipment will be returned after repair (prepaid) to any desig-
nated point within Australia.
5. If the requested repairs of service are not within the terms of war-
ranty, or if you fail to provide acceptable evidence of the date of pur-
chase, return freight will be charged.
This warranty is in addition to and does not limit, exclude or restrict your
right under the Competition and Consumer Act 2010 or any other protec-
tion laws that may apply.
PRODUCT REGISTRATION
Please log on to www.icom.net.au to register your Icom product, or complete
& return the registration reply page.

PLACE
POSTAGE
HERE
Icom (Australia) Pty. Ltd.
Unit 1/103 Garden Road Clayton VIC 3168
REGISTRATION CARD
Please fold and tape closed
Cut here

Model No:
Purchaser Details:
Please provide the following optional information to help us meet your future needs:
Serial No:
Purchaser Name:
Purchaser Address:
Phone No:Email:
Magazines you regularly purchase from the Newsagent:
In what media have you seen Icom products advertised?
Date of Purchase:
Receipt No.:
P/Code :
Dealer Name:
Occupation:
Comments:
I would like more information on the following:
Other Radio Communications Equipment you use:
Thank you for completing this Registration Card. We feel confident you will enjoy the many years of superior performance
your Icom equipment provides.
Other:
Newspaper Magazine TV Radio Website
Air Band Commercial Radios UHF CBReceiverMarineAmateur
Cut here
