Icom IC-7610 User manual

SERVICE
MANUAL
HF/50 MHz TRANSCEIVER
i761 0
S-15418XZ-C1
December 2017

INTRODUCTION
This service manual describes the latest
technical information for the IC-7610 HF/50 MHz
TRANSCEIVER, at the time of publication.
MODEL VERSION VERSION
NUMBER
IC-7610
USA #12
EUR #13
EXP #18
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
SERVICE CAUTION
NEVER connect the transceiver to a DC power supply
that uses more than the specified voltage. This will
ruin the transceiver.
DO NOT expose the transceiver to rain, snow or
liquids.
DO NOT reverse the polarities of the power supply
when directly applying power to the transceiver/circuit.
DO NOT apply an RF signal of more than 20 dBm
(100 mW) to the antenna connector. This could
damage the transceiver’s front-end.
ORDERING PARTS
Be sure to include the following four points when
ordering replacement parts:
1. 10-digit Icom part number
2. Component name
3. Equipment model name and unit name
4. Quantity required
<ORDER EXAMPLE>
1180004830 XC6222A331MR IC-7610 MAIN UNIT5 pieces
8110011150 3864 U-COVER IC-7610 CHASSIS 1 piece
Addresses are provided on the inside back cover for
your convenience.
REPAIR NOTES
1. Make sure that the problem is internal before
disassembling the transceiver.
2. DO NOT open the transceiver until the transceiver
is disconnected from its power source.
3. DO NOT short any circuits or electronic parts.
An insulated tuning tool MUST be used for all
adjustments.
4. DO NOT keep power ON for a long time when the
transceiver is defective.
5. NEVER directly transmit power into any test
equipment such as Standard Signal Generator or
a Sweep Generator, otherwise the RF power may
damage them.
6. ALWAYS connect a 50 dB to 60 dB attenuator
between the transceiver and such test equipment.
7. READ the instructions of the test equipment
thoroughly before connecting it to the transceiver.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.

TABLE OF CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 INTERFASE INFORMATION
SECTION 4 ADJUSTMENT PROCEDURES
4 -1 PREPA R ATIO N ……………………………………………………………………………………… 4-1
4-2 RECEIVE ADJUSTMENT FOR A BAND ………………………………………………………… 4-4
4-3 RECEIVE ADJUSTMENT FOR B BAND ………………………………………………………… 4-4
4-4 TRANSMIT ADJUSTMENTS ……………………………………………………………………… 4-5
4-5 ANTENNA TUNER/REFERENCE ADJUSTMENTS …………………………………………… 4-6
4-6 DIGI-SEL ADJUSTMENTS ………………………………………………………………………… 4-7
SECTION 5 PARTS LIST
SECTION 6 MECHANICAL PARTS
SECTION 7 BOARD LAYOUTS
SECTION 8 BLOCK DIAGRAM
SECTION 9 WIRING DIAGRAM
SECTION 10 VOLTAGE DIAGRAM
DISTRIBUTOR ADDRESS

1-1
SECTION 1 SPECIFICATIONS
General
●Frequency range
Receive Operable range 0.030000 MHz ~60.000000MHz
Guaranteed range 0.500000 MHz ~29.999999 MHz
50.000000 MHz ~54.000000 MHz
Transmit 0.135700 MHz ~ 0.137800 MHz (EUR only)
(The transmit frequency range will differ,
depending on the transceiver version.)
1.800000 MHz 1.999999 MHz
3.500000 MHz ~3.999999 MHz
5.332000 MHz, 5.348000 MHz, 5.358500 MHz, 5.373000 MHz,
5.405000 MHz (USA only)
7.000000 MHz ~7.300000 MHz
10.100000 MHz ~10.150000 MHz
14.000000 MHz ~14.350000 MHz
18.068000 MHz ~ 18.168000 MHz
21.000000 MHz ~21.450000 MHz
24.890000 MHz ~24.990000 MHz
28.000000 MHz ~29.700000 MHz
50.000000 MHz ~54.000000 MHz
●Operating mode USB, LSB, CW, RTTY, PSK, AM, FM
●Number of memory channels 101 (99 regular + 2 scan edges)
●Antenna impedance 50 Ω (nominal: at antenna tuner OFF)
●Power supply voltage 13.8 V DC ±15%
●Polarity Negative ground
●Power consumption
Stand-by 3.0 A
Maximum audio 3.5 A
Transmit (at 100 W) 23.0 A
●Operable temperature range 0°C~50°C (32°F~122°F)
●Frequency stability ±0.5 ppm (0°C~50°C)
●Frequency resolution Minimum 1 Hz
●Dimensions (projections not included) 340(W)×118(H)×277(D) mm (13.4(W)×4.6(H)×10.9(D) inches)
●Weight Approximately 8.5 kg (18.7 lb)
Transmitter
●Output power
CW, RTTY, PSK, FM 1 W~100 W
AM 1 W~25 W
●Modulation method
SSB Digital PSN modulation
FM Digital Reactance modulation
AM Digital Low Power modulation
●Spurious emission
Harmonics 1.8 MHz~28 MHz Less than –50 dB
50 MHz band Less than –63 dB
Out-of-band
emission
1.8 MHz~28 MHz Less than –40 dB
50 MHz band Less than –60 dB
●Carrier suppression More than 50 dB
●Unwanted sideband suppression More than 50 dB
●Microphone impedance 600 Ω
●∂TX variable range ±9.999 kHz

1-2
Receiver
●Receive system Direct sampling superheterodyne system
●Intermediate frequency 12 kHz
●Receive sensitivity
(For USA and EXP/Filter shape=Soft)
SSB/CW 1.8 MHz~29.999 MHz –16 dBμ (0.16 μV) typ. (10 dB S/N) (Preamp1 ON)
50 MHz band –18 dBμ (0.13 μV) typ. (10 dB S/N) (Preamp2 ON)
AM 0.5 MHz~1.799 MHz +16 dBμ (6.3 μV) typ. (10 dB S/N) (Preamp1 ON)
1.8 MHz~29.999 MHz +6 dBμ (2.0 μV) typ. (10 dB S/N) (Preamp1 ON)
50 MHz band 0 dBμ (1.0 μV) typ. (10 dB S/N) (Preamp2 ON)
FM 28.0 MHz~29.7 MHz –6 dBμ (0.5 μV) typ. (12 dB SINAD) (Preamp1 ON)
50 MHz band –10 dBμ (0.32 μV) typ. (12 dB SINAD) (Preamp2 ON)
●Receive sensitivity
(For EUR/Filter shape=Soft)
SSB/CW (BW=2.4 kHz)
1.8 MHz~2.999 MHz Less than +10 dBµV emf (12 dB SINAD) (Preamp1 ON)
3.0 MHz~29.999 MHz Less than 0 dBµV emf (12 dB SINAD) (Preamp1 ON)
50 MHz band Less than –6 dBµV emf (Preamp2 ON)
AM (BW=4 kHz/60% Mod.)
1.8 MHz~2.999 MHz Less than +16 dBµV emf (12 dB SINAD) (Preamp1 ON)
3.0 MHz~29.999 MHz Less than +6 dBµV emf (12 dB SINAD) (Preamp1 ON)
50 MHz band Less than 0 dBµV emf (12 dB SINAD) (Preamp2 ON)
FM (BW=7 kHz/60% Mod.)
28 MHz~29.7 MHz Less than 0 dBµV emf (12 dB SINAD) (Preamp1 ON)
50 MHz band Less than –6 dBµV emf (12 dB SINAD) (Preamp2 ON)
●Squelch sensitivity
SSB Less than +10 dBμ (3.2 μV)
FM Less than –10 dBμ (0.32 μV)
●Selectivity (Filter shape=SHARP)
SSB (BW=2.4 kHz) More than 2.4 kHz/–6 dB, Less than 3.6 kHz/–60 dB
CW (BW=500 Hz) More than 500 Hz/–6 dB, Less than 700 Hz/–60 dB
RTTY (BW=500 Hz) More than 500 Hz/–6 dB, Less than 700 Hz/–60 dB
AM (BW=6 kHz) More than 6.0 kHz/–6 dB, Less than 15 kHz/–60 dB
FM (BW=15 kHz) More than 12.0 kHz/–6 dB, Less than 20 kHz/–60 dB
●Spurious and image rejection ratio
HF bands 70 dB
50 MHz band 70 dB (Except for ADC aliasing)
●Audio output power More than 2 W (at 10% distortion into an 8 Ω load)
●Audio output impedance 8 Ω
●RIT variable range ±9.999 kHz
Antenna tuner
●Matching impedance range 16.7 Ω~150 Ω (unbalanced) (VSWR 3:1 or less)
●Tuning time 2~3 seconds (average/15 seconds maximum)
●Tuning accuracy VSWR 1.5:1 or less

2-1
SECTION 2 INSIDE VIEWS

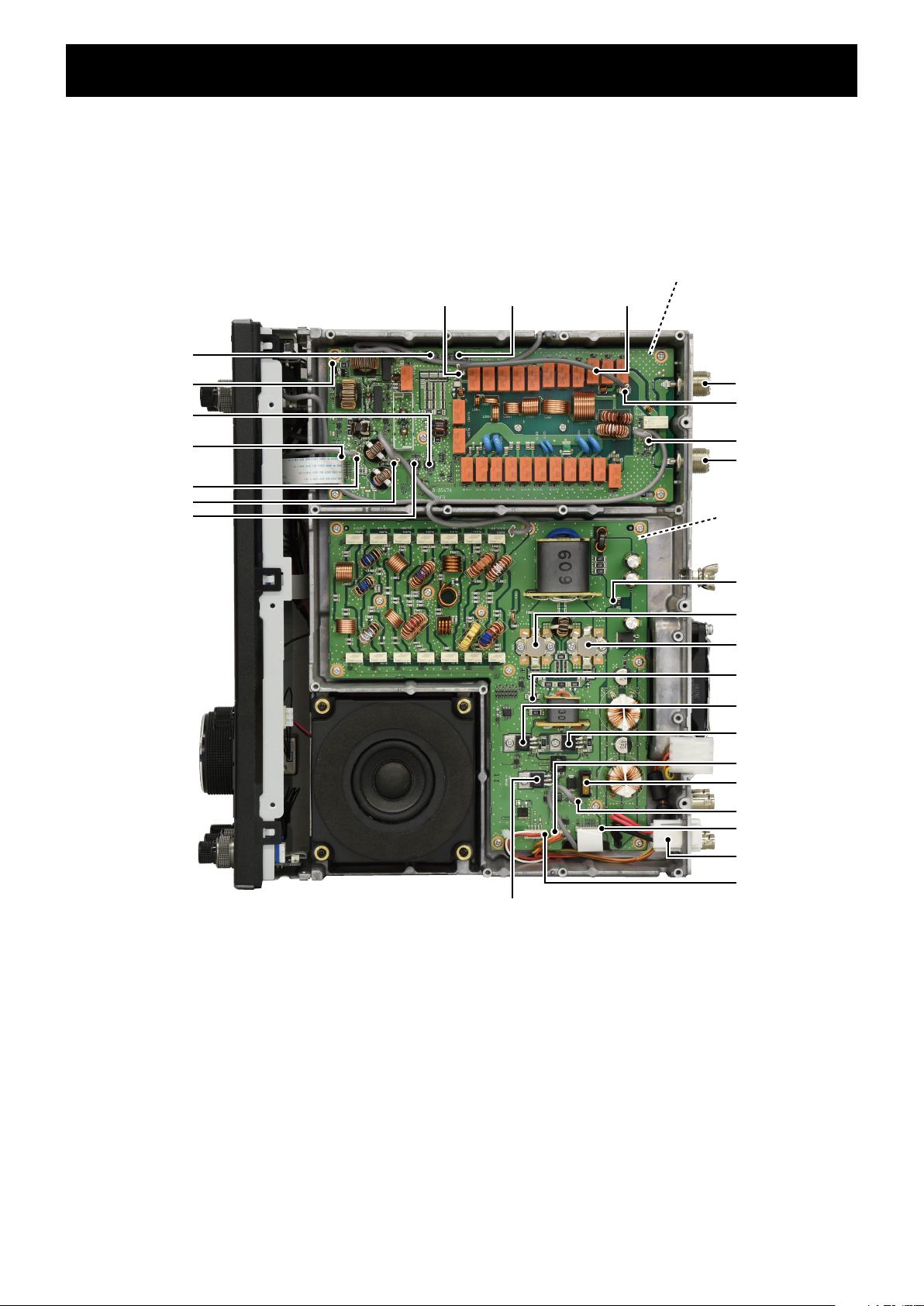

• PA/TUNER (TOP VIEW)
T/R CTRL
(Q503)
SHIFT REGISTER
(IC2831)
SHIFT REGISTER
(IC2821)
SHIFT REGISTER
(IC2841)
SHIFT REGISTER
(IC2811)
ANT1
ANT2
J2003
CURRENT DET
(IC401)
CURRENT DET
(IC411)
PWR AMP
(Q302)
PWR AMP
(Q301)
DRIVE AMP
(Q202)
DRIVE AMP
(Q201)
FUSE
(F432)
J101
J2002
W2001J2001
J1003
J1801
J1001
W1
J701
J591
PRE DRIVE
(Q101)
TUNER UNIT
J721
PA UNIT

2-2
• MAIN/DIGISEL-A/DIGISEL-B (TOP VIEW)
D_S CTRL
(IC4)
D_S CTRL
(IC5)
J361
J8001
J101
J8501
J8502
J301
J611
J451
J602
DVI XMITER
(IC6201)
MAIN CPU
(IC4001)
LVDS XMITER
(IC6301)
USB HUB
(IC7101)
SD RAM
(IC5151)
USB CODEC
(IC7031)
COMM FPGA
(IC5001)
AF AMP
(IC3031)
SUB CPU
(IC6001)
SD RAM
(IC5101)
USB 3.0 I/F
(IC9401)
J1
J2018
J2J1
J2017
DIGISEL-A UNIT DIGISEL-B UNIT
MAIN UNIT
D_S CTRL
(IC4)
D_S CTRL
(IC5)
SHIFT REGISTER
(IC411)
MULTI PLEXER
(IC501)
J2017
J2018
J2
J7401 [LAN]
J351
J151
J621
J601
J321
J6201 [EXT-DISP]
J9401 [USB-2]
J7121 [USB-1]
J3051 [EXT
-SP(B)]
J3061 [EXT
-SP(A)]
J2001J201
J251 J341
J3071
J331

3-1
SECTION 3 INTERFACE INFORMATION
●FRONT panel
[PHONES]
• 6.35 mm (¼ in) (d)
[ELEC-KEY]
• 6.35 mm (¼ in) (d)
[MIC]
[PHONES]
Main band audio
Sub band audio
GND
6.35 (d) mm (¼ in)
• Output impedance: 8~16 Ω
• Output level: More than 5 mW into an 8 Ω
load.
[ELEC-KEY]
6.35 (d) mm (¼ in)
Dot
Com
Dash
[MIC]
q
Microphone input
w
+8 V DC output
e
Frequency up/down
r
Squelch line output
tPTT
yGND (PTT ground)
iAF output
uGND
(Microphone ground)
PIN No. DESCRIPTION
q
Microphone input
NOTE: An 8 V DC bias voltage is applied for
Icom microphones. The DC power can
be turned OFF when you use non-Icom
microphones in the “MIC Input DC Bias”
item on the CONNECTORS screen.
w+8 V DC output (Maximum 10 mA)
eFrequency up/down
External keypad* input
rGrounded when squelch opens.
tPTT
yPTT/External keypad* ground
uMicrophone ground
iAF output (varies with the AF control.)
*External keypad
PIN e
PIN y
1.5 kΩ
±5%
1.5 kΩ
±5%
2.2 kΩ
±5%
4.7 kΩ
±5%
S1S2S3S4
1
2
345
6
7
8
MIC
External keypad
Front panel
view
[MIC]
connector

3-2

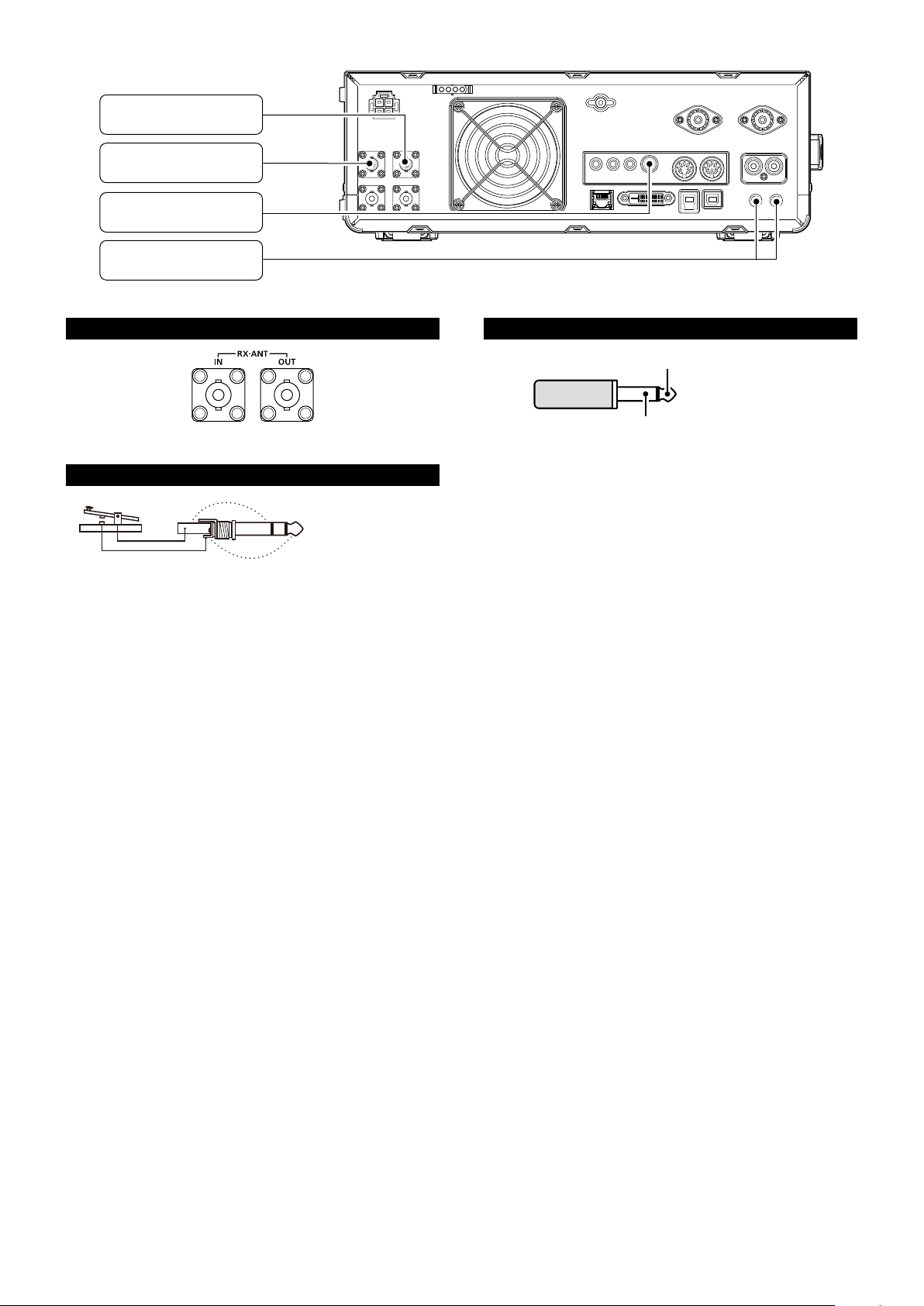

●REAR panel (1)
[METER]
• 3.5 mm (⅛ in) (d)
[ALC]
• RCA plug
[SEND]
• RCA plug
[REF IN]
• BNC connector: 50 Ω
[REMOTE]
• 3.5 mm (⅛ in) (d)
[X-VERTER]
• BNC connector: 50 Ω
[EXT KEYPAD]
• 3.5 mm (⅛ in) (d)
[DC 13.8 V]
[TUNER]
[SEND]
SEND
RCA plug
GND
[ALC]
ALC
GND
RCA plug
• ALC voltage: –4~0 V
[METER]
+_
_
+
Main band
meter
Sub band
meter
3.5 mm (⅛ in) (d)
• Output voltage: 8 V (maximum)
• Output impedance: 10 kΩ
[TUNER]
EKEY
ESTA+14V
GND
[DC 13.8 V]
Rear panel view
+
–
• Input voltage: 13.8 V DC ±15%
[X-VERTER]
• Input/Output impedance: 50 Ω (unbalanced)
• Output signal level: More than –20 dBm
[REF IN]
• Input frequency: 10 MHz
• Impedance: 50 Ω (unbalanced)
• Input level: –10 dBm (approximate)
[REMOTE]
3.5 mm (⅛ in) (d)
GND
I/O
[EXT KEYPAD]
1.5 kΩ
±5%
1.5 kΩ
±5%
2.2 kΩ
±5%
4.7 kΩ
±5%
1.5 kΩ
±5%
1.5 kΩ
±5%
2.2 kΩ
±5%
4.7 kΩ
±5%
S5
3.5 mm (⅛ in) (d)
S6
S7
S8
S1
S2
S3
S4
External Keypad
Mute switch: Mutes both transmission and
reception when the switch is turned ON.

3-3
●REAR panel (2)
[ACC 1]
• 8-pin
[ACC 2]
• 7-pin
[ACC 1]/[ACC 2]
ACC 1 PIN
No. NAME DESCRIPTION SPECIFICATIONS
8-pin
1
2
3
45
67
8
Rear panel
view
1RTTY Controls RTTY keying.
High level: More than 2.4 V
Low level: Less than 0.6 V
Output current: Less than 2 mA
2GND Connects to ground. Connected in parallel with ACC 2 pin 2.
3SEND*1
Input/output pin.
Connected in
parallel with ACC
2 pin 3.
An external unit controls
the transceiver. When
this pin goes to ground,
the transceiver transmits.
Input voltage (RX): 2.0~20.0 V
Input voltage (TX): –0.5~+0.8 V
Current flow: Maximum 20 mA
The pin goes low when
the transceiver transmits.
Output voltage (TX): Less than 0.1 V
Current flow: Maximum 200 mA
4MOD Modulator input.
Connects to the internal modulator circuit.
Input impedance: 10 kΩ
Output level: Approx. 100 mV rms*2
5AF/IF
(IF=12 kHz)*3
Fixed AF detector or receive IF (12 kHz)
signal output.
Output impedance: 4.7 kΩ
Output level: 100~300 mV rms*4
6 SQL S Squelch output.
Grounded when the squelch opens.
SQL open: Less than 0.3 V/5 mA
SQL closed: More than 6.0 V/100 μA
713.8 V 13.8 V output when power is ON.
Connected in parallel with ACC 2 pin 7. Output current: Maximum 1A
8ALC ALC voltage input.
Connected in parallel with ACC 2 pin 5.
Input level: –4~0 V
Input impedance: More than 10 kΩ
ACC 2 PIN
No. NAME DESCRIPTION SPECIFICATIONS
7-pin
1
2
3
45
67
Rear panel
view
1 8 V Regulated 8 V output. Output voltage: 8 V ±0.3 V
Output current: Less than 10 mA
2GND Connects to ground. Connected in parallel with ACC 1 pin 2.
3SEND*1Same as ACC 1 pin 3.
Input voltage (RX): 2.0~20.0 V
Input voltage (TX): –0.5~+0.8 V
Current flow: Maximum 20 mA
4BAND Band voltage output.
(Varies with the selected amateur band) Output voltage: 0~8.0 V
5ALC Same as ACC 1 pin 8. Input level: –4~0 V
Input impedance: More than 10 kΩ
6TRV Activates [X-VERTER] input/output when
“HIGH” voltage is applied.
Input impedance: More than 10 kΩ
Input voltage: 2~13.8 V
713.8 V Same as ACC 1 pin 7. Output current: Maximum 1A
*1When the SEND terminal controls an inductive load,
such as a relay, a counter-electromotive force can
malfunction or damage the transceiver. To prevent this,
we recommend adding a switching diode, such as an
1SS133, on the load side of the circuit to absorb the
counter-electromotive force. When the diode is added, a
delay in relay switching may occur. Be sure to check its
switching action before operating.
(Example) ACC 1/2 socket
To a non-Icom
linear amplifier
Relay
Switching diode
eSEND
u13.8 V
*2The MOD input level is adjustable in the MENU. 100 mV
rms is at 50% as the default.
MENU » SET > Connectors > ACC MOD Level
*3The AF/IF (IF=12 kHz) settings are selectable to output
a 12 kHz IF signal in the MENU. In that case, you can
listen to the DRM broadcast with the application software
receiver that is installed onto your PC.
MENU » SET > Connectors > ACC Output Select
MENU » SET > Connectors > USB Output Select
MENU » SET > Connectors > LAN Output Select
*4The AF/IF (IF=12 kHz) output level is adjustable in the
MENU. Approximately 200 mV rms is at the 50% as the
default.
MENU » SET > Connectors > ACC IF Output Level
MENU » SET > Connectors > USB IF Output Level

3-4
●REAR panel (3)
[RX-ANT OUT]
• BNC connector: 50 Ω
[RX-ANT IN]
• BNC connector: 50 Ω
[EXT-SP A]/[EXT-SP B]
• 3.5 mm (⅛ in) (d)
[KEY]
• 6.35 mm (¼ in) (d)
[RX-ANT IN]/[RX-ANT OUT]
• Input/Output impedance: 50 Ω (unbalanced)
[KEY]
+
_6.35 (d) mm (¼ in)
[EXT-SP A]/[EXT-SP B]
3.5 mm (⅛ in) (d)
Audio _
Audio +
• Output impedance: 4~8 Ω
• Output level: More than 2.0 W at 10%
distortion into an 8 Ω load.

4-1
SECTION 4 ADJUSTMENT PROCEDURE
4-1 PREPARATION
■REQUIRED EQUIPMENT
EQUIPMENT SPECIFICATIONS EQUIPMENT SPECIFICATIONS
DC power supply Output voltage: 13.8 V
Current capacity: 25 A or more Shunt plug Modified 3.5 mm (⅛ inch) monaural plug. (See the next page.)
RF power meter
(50 Ω terminated)
Measuring range: 1~120 W
Frequency range: 0.1~60 MHz
SWR: Less than 1.2 : 1
Standard signal
generator (SSG)
Frequency range: 0.1~60 MHz
Output level: −20 dBμ to 94 dBμ
(−127 to −13 dBm)
Frequency counter
Range: 0.1~60 MHz
Accuracy: ±1 ppm or better
Input level: Less than 1 mW
Audio generator (AG) Frequency range: 300~3000 Hz
Output level: 1~500 mV
AC millivoltmeter Measuring range: 10 mV to 10 V
Attenuator Attenuation: 50 dB
Capacity: More than 120 W Dummy Loads Impedance: 50 Ω and 100 Ω Capacity: More than 120 W
■CONNECTIONS
●Connections on the Front panel
[MIC]
Audio
generator
[MIC]
MIC
MICE
AC
millivoltmeter
●Connections on the Rear panel
to [DC 13.8V]
Fuses 30 A
DC power supply
(13.8 V/25 A)
+
_Black
_
Supplied DC power cable
to [ANT1]
DUMMY LOAD
(100 Ω/120 W)
RF POWER METER
(120 W/50 Ω)
STANDARD SIGNAL GENERATOR
(0.1~60 MHz)
NEVER TRANSMIT while the SSG is connected.
FREQUENCY COUNTER
(0.1~60 MHz)
ATTENUATOR
(50 dB/120 W)
to [ANT2]
+Red

4-2

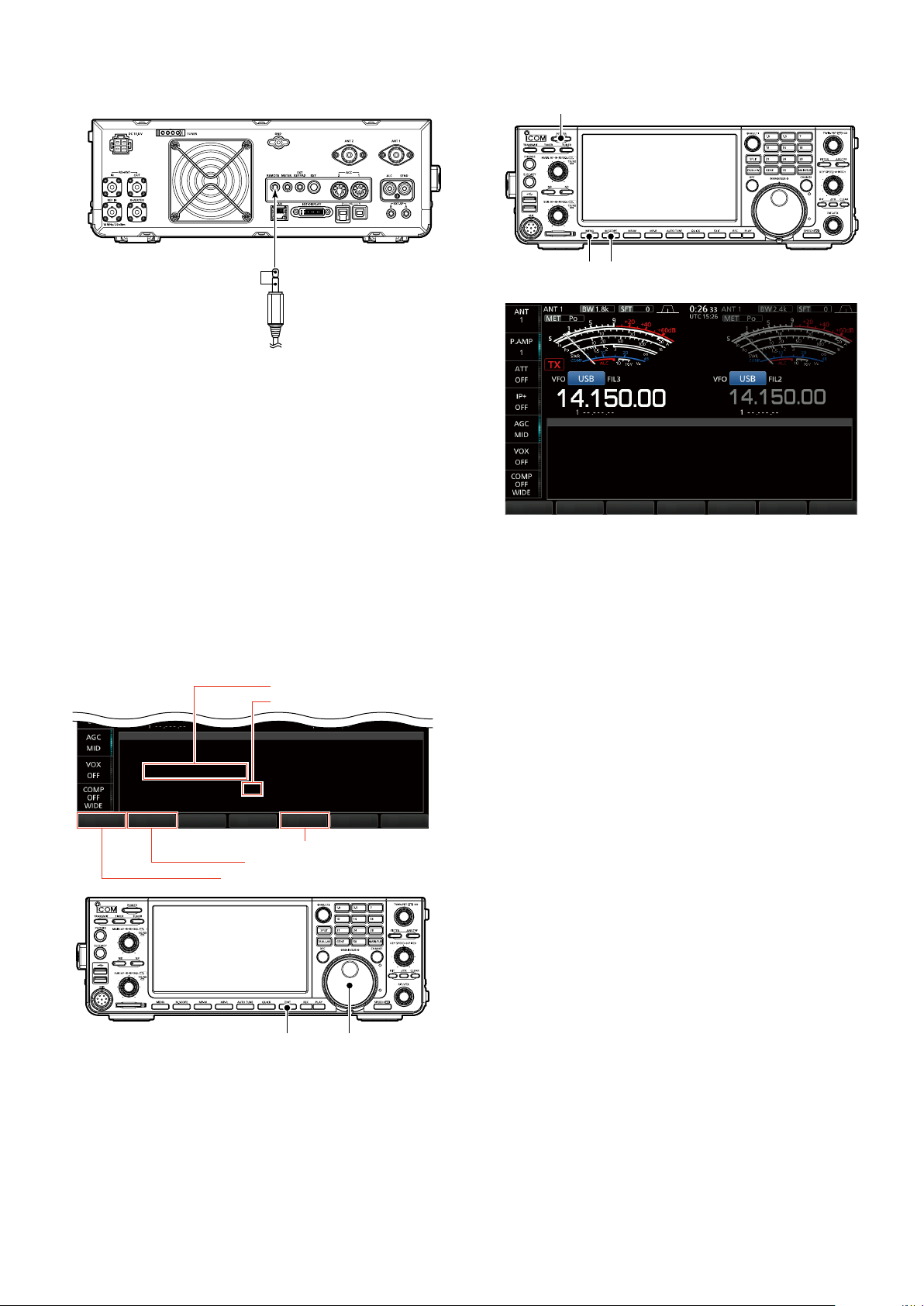

■ENTERING THE ADJUST MODE
1. Turn OFF the power.
2. Connect the shunt plug to the [REMOTE] connector on
the rear panel. (See below)
to [REMOTE]
3.5 mm (⅛ inch)
monaural plug
(Shunt)
3. While holding down both [MENU] and [M.SCOPE], turn
ON the transceiver power to enter the adjust mode.
[POWER]
[MENU] [M.SCOPE]
4. The adjust mode main menu is displayed.
ADJUST MODE
FRONTPreset TX/ID
)())))
))33
0')3'
X
D'
6
TUNER/REFRX ARX BDSEL ALL
■KEY ASSIGNMENTS FOR THE ADJUST MODE
• Touch [Z] to select the next adjustment item, touch [Y] to
select the previous adjustment item.
• Rotate [DIAL] to set or modify the adjustment value.
• Touch [SET] to store the adjusted value, and select the
next adjustment item.
• Push [EXIT] to return to the previous screen.
ADJUST MODE
YZ
5;*DLQ
7RWDO*DLQ$35(2))UHI
$
SET
Stores the adjusted value.
Selects the next adjustment item.
Selects the previous adjustment item.
Adjustment item name
Adjustment value
[DIAL][EXIT]

4-3
■ADJUST MODE SCREENS
●MAIN MENU
ADJUST MODE
FRONTPreset TX/ID
)())))
))33
0')3'
X
D'
6
TUNER/REFRX ARX BDSEL ALL
ADJUST MODE
ID PowerALC
7;,'
DRIVE SWRIdAPC
ADJUST MODE
TUNERREF ULKch
781(55()
ADJUST MODE
Gain S MeterDSEL BAND
5;$
ADJUST MODE
Gain S MeterDSEL BAND
5;%
ADJUST MODE
',*,6(/$OO
',*,6(/$OO&DO
SET
• TX/ID ADJUST MENU•TUNER/REF ADJUST MENU
Enter the TX/ID adjust menu.
Enter the TUNER/REF adjust menu.
Enter the RX A adjust menu.
Enter the RX B adjust menu.
Enter the DSEL ALL adjust menu.
Starts the IdAPC
adjustment.
Starts the SWR adjustment.
Starts the DRIVE adjustment.
Starts the ALC adjustment.
Starts the transmit output power adjustment.
Starts idling current adjustment.
Starts the PLL unlock adjustment.
Starts the reference frequency adjustment.
Starts the tuner referrence voltage adjustment.
• RECEIVE ADJUST MENU for A band • RECEIVE ADJUST MENU for B band
Starts the S-meter adjustment.
Starts the receive gain adjustment.
Starts the S-meter adjustment.
Starts the receive gain adjustment.
• DIGI-SEL ALL ADJUST MENU
Starts the DIGI-SEL adjustment.

4-4
4-2 RECEIVE ADJUSTMENTS FOR A BAND
• Touch [RX A] on the main menu screen.
NOTE: DO NOT change the SSG output level until the two beeps sound.
ADJUSTMENT ADJUSTMENT ITEM DISPLAY SETTING CONDITION OPER ATION
PREPARATION 1 – – Touch [Gain] to start the RX-A
total gain adjustment.
RX-A TOTAL
GAIN
(Preamp OFF)
2 Total Gain A PRE OFF ref Connect the SSG to the [ANT1]
connector and set it to:
Frequency: 14.1515 MHz
Modulation: None
Level: +60 dBμ (–47 dBm)
Touch [SET].
(Two beeps sound 2 seconds
later.)
3 Total Gain A PRE OFF set Set the SSG level to:
Level: OFF
Touch [SET].
(Two beeps sound 20 seconds
later.)
RX-A TOTAL
GAIN
(Preamp ON)
4 Total Gain A PRE1 ref Set the SSG level to:
Level: +60 dBμ (–47 dBm)
Touch [SET].
(Two beeps sound 2 seconds
later.)
5 Total Gain A PRE1 set Set the SSG level to:
Level: OFF
Touch [SET].
(Two beeps sound 20 seconds
later.)
RX-A S-METER 6A S9 LEVEL Set the SSG level to:
Level: +34 dBμ (–73 dBm)
Touch [SET].
(Two beeps sound 1 second
later.)
7 A S9+60 LEVEL Set the SSG level to:
Level: +94 dBμ (–13 dBm)
• After the adjustment, the transceiver shows the RX DIGI-SEL Band adjustment menu.
• Push [EXIT] twice to return to the main menu.
4-3 RECEIVE ADJUSTMENTS FOR B BAND
• Touch [RX B] on the main menu screen.
NOTE: DO NOT change the SSG output level until the two beeps sound.
ADJUSTMENT ADJUSTMENT ITEM DISPLAY SETTING CONDITION OPER ATION
PREPARATION 1 – – Touch [Gain] to start the RX-B
total gain adjustment.
RX-B TOTAL
GAIN
(Preamp OFF)
2Total Gain B PRE OFF ref Connect the SSG to the [ANT1]
connector and set it to:
Frequency: 14.1515 MHz
Modulation: None
Level: +60 dBμ (–47 dBm)
Touch [SET].
(Two beeps sound 2 seconds
later.)
3Total Gain B PRE OFF set Set the SSG level to:
Level: OFF
Touch [SET].
(Two beeps sound 20 seconds
later.)
RX-B TOTAL
GAIN
(Preamp ON)
4Total Gain B PRE1 ref Set the SSG level to:
Level: +60 dBμ (–47 dBm)
Touch [SET].
(Two beeps sound 2 seconds
later.)
5Total Gain B PRE1 set Set the SSG level to:
Level: OFF
Touch [SET].
(Two beeps sound 20 seconds
later.)
RX-B S-METER 6B S9 LEVEL Set the SSG level to:
Level: +34 dBμ (–73 dBm)
Touch [SET].
(Two beeps sound 1 second
later.)
7 B S9+60 LEVEL Set the SSG level to:
Level: +94 dBμ (–13 dBm)
• After the adjustment, the transceiver shows the RX DIGI-SEL Band adjustment menu.
• Push [EXIT] twice to return to the main menu.

4-5
4-4 TRANSMIT ADJUSTMENTS
• Touch [TX/ID] on the main menu screen.
ADJUSTMENT ADJUSTMENT ITEM DISPLAY SETTING CONDITION OPER ATION
PREPARATION 1 – • Connect the RF power meter to the
[ANT1] connector.
Touch [ID] to start the
transmitter adjustment.
ID
ADJUSTMENTS
2VDL IDL SET • Receiving Touch [SET].
(Two beeps sound 0.5
seconds later.)
3FINAL ID SET
4FINAL1 IDV • Automatically transmitted.
5FINAL2 IDV
6DRIVER ID SET • Receiving
7DRIVER1 IDV • Automatically transmitted.
8 DRIVER2 IDV
9PRE DRIVER ID SET • Receiving.
10 PRE DRIVER1 IDV • Automatically transmitted.
TX POWER
ADJUSTMENT
PREPARATION
11 TX POWER SET • Connect the audio generator to the
[MIC] connector and set it to:
Frequency: 1.5 kHz
Level: 10 mV rms
• Receiving.
Touch [SET].
SWR DETECT
NULL POINT
12 SWR detector adjustment • Automatically transmitted. Touch [SET].
(Two beeps sound 0.5
seconds later.)
TRANSMIT
OUTPUT
POWER (HF)
13 TX Total HF Gain • Automatically transmitted. Set to 50 W by [DIAL], then
touch [SET].
(Two beeps sound 0.5
seconds later.)
14 POWER HF 1% Set to 1 W by [DIAL], then
touch [SET].
(Two beeps sound 0.5
seconds later.)
15 POWER HF 10% Set to 10 W by [DIAL], then
touch [SET].
16 POWER HF TUNE (Two beeps sound 0.5
seconds later.)
17 POWER HF 50% Set to 50 W by [DIAL], then
touch [SET].
(Two beeps sound 0.5
seconds later.)
18 POWER HF 100% Set to 103 W by [DIAL], then
touch [SET].
(Two beeps sound 0.5
seconds later.)
AM CARRIER
POWER RATE
19 POWER AM Ratio HF • Receiving. Touch [SET].
20 • Automatically transmitted. Set to 25 W by [DIAL], then
touch [SET].
(Two beeps sound 0.5
seconds later.)
TRANSMIT
OUTPUT
POWER
(50 MHz band)
21 POWER 50M SET • Receiving. Touch [SET].
22 TX Total 50M Gain • Automatically transmitted. Set to 50 W by [DIAL], then
touch [SET].
(Two beeps sound 0.5
seconds later.)
23 POWER 50M 1% Set to 1 W by [DIAL], then
touch [SET].
(Two beeps sound 0.5
seconds later.)
24 POWER 50M 10% Set to 10 W by [DIAL], then
touch [SET].
25 POWER 50M TUNE (Two beeps sound 0.5
seconds later.)
26 POWER 50M 50% Set to 50 W by [DIAL], then
touch [SET].
(Two beeps sound 0.5
seconds later.)
27 POWER 50M 100% Set to 103 W by [DIAL], then
touch [SET].
(Two beeps sound 0.5
seconds later.)

4-6
ADJUSTMENT ADJUSTMENT ITEM DISPLAY SETTING CONDITION OPER ATION
AM CARRIER
POWER RATE
28 POWER AM Ratio 50M • Receiving. Touch [SET].
29 • Automatically transmitted. Set to 25 W by [DIAL], then
touch [SET].
(Two beeps sound 0.5
seconds later.)
ALC
ADJUSTMENT
30 ALC HF • Receiving. Touch [SET].
31 • Automatically transmitted. Two beeps sound 3 seconds
later.
32 ALC 50M • Receiving. Touch [SET].
33 • Automatically transmitted. Two beeps sound 3 seconds
later.
DRIVE GAIN
ADJUSTMENT
34 DRIVE HF • Receiving. Touch [SET].
35 • Automatically transmitted. Two beeps sound 10 seconds
later.
36 DRIVE 50M • Receiving. Touch [SET].
37 • Automatically transmitted. Two beeps sound 3 seconds
later.
SWR METER
ADJUSTMENT
38 SWR2(HF) • Connect the 100 Ω dummy load to
[ANT2].
• Receiving.
Touch [SET].
39 • Automatically transmitted. Two beeps sound 3 seconds
later.
40 SWR2(50M) • Receiving. Touch [SET].
41 • Automatically transmitted. Two beeps sounds 3 seconds
later.
Id APC
ADJUSTMENT
42 ID-APC • Receiving Touch [SET].
43 • Automatically transmitted. Two beeps sound 2 seconds
later.
• After the adjustment, the transceiver shows the TX/ID adjustment menu.
• Push [EXIT] to return to the menu screen.
4-5 ANTENNA TUNER/REFERENCE ADJUSTMENTS
• Touch [TUNER/REF] on the main menu screen.
ADJUSTMENT ADJUSTMENT ITEM DISPLAY SETTING CONDITION OPER ATION
PREPARATION 1 – • Connect the RF power meter to
[ANT1].
Touch [TUNER] to start
the tuner reference voltage
adjustment.
TUNER
REFERENCE
VOLTAGE
ADJUSTMENT
2 Tune IREFV HF 50M • Receiving. Touch [SET].
3 • Automatically transmitted. Two beeps sound 11 seconds
later.
REFERENCE
FREQUENCY
ADJUSTMENT
4REF OSC • Connect the frequency counter
to [ANT1] through a suitable
attenuator.
• Receiving
Touch [SET].
5 • Automatically transmitted. Set the frequency to
50.100 MHz ±1.2 Hz by [DIAL],
then touch [SET].
(Two beeps sound 0.5
seconds later.)
REFULK
ADJUSTMENT
6ULKck • Receiving. Touch [SET].
(Two beeps sound 0.5
seconds later.)
• After the adjustment, the transceiver shows the TUNER/REF adjustment menu.
• Push [EXIT] to return to the menu screen.
4-4 TRANSMIT ADJUSTMENTS (continued)

4-7
4-6 DIGI-SEL ADJUSTMENTS
• Touch [DSEL ALL] on the main menu screen.
ADJUSTMENT ADJUSTMENT ITEM DISPLAY SETTING CONDITION OPER ATION
PREPARATION 1 – • No test equipment is connected to
neither [ANT1] and [ANT2].
Touch [DIGI-SEL ALL] to start
the DIGI-SEL adjustment.
DIGI-SEL
ADJUSTMENT
2DIGI-SEL ALL adjustment menu –Touch [SET].
(Two beeps sound 50 minutes
later.)
3 Verify the message, "DIGI-
SEL ALL=OK," is displayed.
• After the adjustment, the transceiver shows the DIGI-SEL ALL adjustment menu.
• Push [EXIT] to return to the menu screen.

SECTION 5 PARTS LIST
5-1
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
[MAIN UNIT] [MAIN UNIT]
IC401 1130016460 S.IC R2A20169SA T 34.8/161.3
IC411 1130017400 S.IC MC74HC4094ADTR2G T 44.1/161.3
IC421 1110008550 S.IC NJM2904CRB1-TE1-#HMZR B 157.0/154.0
IC431 1110008550 S.IC NJM2904CRB1-TE1-#HMZR B 142.0/162.4
IC491 1110008550 S.IC NJM2904CRB1-TE1-#HMZR T 34.3/74.4
IC501 1130010160 S.IC TC74HC4052AF (ELF) T 54.4/161.2
IC1001 6910026640 S.DC MP2224GJ-P T 16.5/17.5
IC1011 1130019150 S.IC SN74AHCT1G00DCKR T 14.2/12.5
IC1012 1180003460 S.REG NJM2831F05-TE1-#ZZZB T 21.3/12.0
IC1021 1110008550 S.IC NJM2904CRB1-TE1-#HMZR T 72.0/145.6
IC1051 6910022360 S.DC TPS62110RSAR T 30.8/15.3
IC1101 1180004960 S.REG XC6230H001QR-G T 21.4/72.6
IC1111 1180004230 S.REG XC6222A321MR-G T 10.6/90.4
IC1131 1180004830 S.REG XC6222A331MR-G T 161.1/54.1
IC1141 1180004830 S.REG XC6222A331MR-G T 16.3/153.1
IC1161 1180004960 S.REG XC6230H001QR-G T 80.0/102.0
IC1171 1180004390 S.REG TLV70025DCKR T 98.8/39.0
IC1181 1180004200 S.REG XC6221A152MR-G T 86.7/40.7
IC1191 1180004390 S.REG TLV70025DCKR T 89.0/117.5
IC1201 6910026650 S.DC ISL8023IRTAJZ-T7 T 20.8/36.0
IC1241 1180004430 S.REG XC6209F502MR-G T 35.0/68.4
IC1251 6910026650 S.DC ISL8023IRTAJZ-T7 T 32.0/36.0
IC1301 6910022360 S.DC TPS62110RSAR T 47.5/14.5
IC1351 6910024760 S.DC ADP2384ACPZN-R7 T 52.5/33.8
IC1352 1130016520 S.IC BU4SU69G2-TR T 44.8/31.9
IC1401 6910022360 S.DC TPS62110RSAR T 58.8/14.5
IC2301 1190004460 S.IC ADF4002BRUZ-RL7 T 26.7/121.0
IC2302 1180004560 S.REG ADP151AUJZ-3.3-R7 T 13.1/106.5
IC2401 1180004560 S.REG ADP151AUJZ-3.3-R7 T 22.1/138.6
IC2405 1110005610 S.IC NJM2058V-TE1-#ZZZB T 21.8/56.6
IC2407 1110005610 S.IC NJM2058V-TE1-#ZZZB T 12.3/56.6
IC2411 1110008890 S.IC NJU7056F3-TE2-#ZZZH T 22.4/132.2
IC2412 1130012260 S.IC SN74AHC1G32DCKR T 22.4/135.7
IC2442 1180004560 S.REG ADP151AUJZ-3.3-R7 T 42.0/119.2
IC2451 1110008890 S.IC NJU7056F3-TE2-#ZZZH T 19.8/117.7
IC2511 1120003190 S.IC ADCLK944BCPZ-R7 T 34.5/113.0
IC3001 1190003250 S.IC AK4621EFP-E2 T 136.5/31.3
IC3011 1110007390 S.IC NJM2114M-TE1-#ZZZB T 151.7/33.0
IC3031 1110007680 S.IC NJM4580M-TE1-#ZMZB T 138.1/20.5
IC3051 1110003091 IC LA4425A-E
IC3061 1110003091 IC LA4425A-E
IC3101 1130009981 S.IC TC7W53FK (TE85LF) T 112.8/15.8
IC3102 1110006570 S.IC TS462CPT T 122.0/12.4
IC3103 1180004830 S.REG XC6222A331MR-G B 122.7/17.9
IC3111 11100 06 570 S.IC TS462CP T T 113 .1/22.3
IC3121 1110006570 S.IC TS462CPT T 125.3/23.3
IC3151 1110007680 S.IC NJM4580M-TE1-#ZMZB T 176.2/28.0
IC3201 1190004380 S.IC MAX97220AETE+T T 176.6/34.3
IC3301 1110008060 S.IC PCM1754DBQR T 162.2/28.7
IC3311 1110007390 S.IC NJM2114M-TE1-#ZZZB T 161.7/34.2
IC3341 1110008060 S.IC PCM1754DBQR T 124.4/32.6
IC3351 1110007390 S.IC NJM2114M-TE1-#ZZZB T 118.9/32.1
IC4001 1140017780 S.IC R7S721001VCBG T 140.0/144.0
IC4171 1130014080 S.IC BD6517F-E2 B 170.0/160.0
IC4201 1130018090 S.IC EN25QH64A-104HIP T 114.4/163.8
IC4211 1130016621 S.IC GT24C128B-2ZLI-TR B 107.1/151.7
IC4231 1110007780 S.IC NJU7704F3-28A-TE1-#ZZZH T 102.0/166.7
IC4361 1130016730 S.IC S-1009N30I-M5T1U B 131.5/156.0
IC4521 1130018410 S.IC RX-8803LC UB T 127.5/154.0
IC5001 1140018340 S.IC LCMXO21200UHC4FTG256C T 100.0/129.0
IC5101 1130017040 S.IC MT48LC4M16A2P-6A IT:J T 108.1/109.0
IC5151 1130017040 S.IC MT48LC4M16A2P-6A IT:J T 108.0/149.0
IC6001 1140017780 S.IC R7S721001VCBG T 140.0/114.0
IC6201 1130014490 S.IC TFP410PAP T 185.0/100.0
IC6211 1130018090 S.IC EN25QH64A-104HIP T 118.3/123.2
IC6301 1130018670 S.IC DS90CF363BMTX/NOPB T 173.2/125.6
IC7001 1130018160 S.IC 74VHC04FT (BE) T 70.3/39.0
IC7021 1130009581 S.IC TC7W66FU (TE12LF) T 69.5/43.5
IC7031 1190002240 S.IC PCM2901E/2K T 172.6/49.9
IC7032 1130012260 S.IC SN74AHC1G32DCKR T 164.8/51.6
IC7051 1190002730 S.IC CP2102-GMR T 170.4/69.0
IC7071 1190002730 S.IC CP2102-GMR T 170.4/59.8
IC7101 1190002910 S.IC TUSB2046BVFRG4 T 182.0/62.6
IC7401 1130018420 S.IC LAN8710AI-EZK T 168.4/138.6
IC8101 1110009060 S.IC LTC6409IUDB#TRPBF T 75.2/87.0
IC8201 1190004720 S.IC LTC2208IUP#TRPBF T 89.0/87.0
IC8241 1180004430 S.REG XC6209F502MR-G T 71.5/99.0
IC8601 1110009060 S.IC LTC6409IUDB#TRPBF T 75.2/67.0
IC8701 1190004720 S.IC LTC2208IUP#TRPBF T 89.0/67.0
IC8901 1130018700 S.IC 5AGXMA3D4F27I5N T 135.0/60.0
IC9021 1130018530 S.IC SN65LVDS2DBVR T 72.8/48.2
IC9031 1130017950 S.IC SN65LVDS1DBVR T 81.5/43.1
IC9041 1130014260 S.IC SN74LVC2GU04DCKR T 90.4/43.7
IC9101 1190004630 S.IC ISL5961IAZ T 100.0/47.7
IC9201 1110008550 S.IC NJM2904CRB1-TE1-#HMZR T 108.1/33.0
IC9202 1110008060 S.IC PCM1754DBQR T 113.4/32.6
IC9401 1130018830 S.IC FT601Q-B-T T 181.3/79.4
IC9481 1130011540 S.IC BR24L16FV-WE2 T 158.8/73.3
IC9501 1190003520 S.IC ADS7866IDBVR T 152.4/57.7
IC9651 1130018770 S.IC S25FL127SABMFI100 T 76.1/123.5
Q101 1590004310 S.TRA LDTA114EET1G T 11.5/66.9
Q102 1590004060 S.TRA LDTC114EET1G T 10.2/68.9
Q103 1590004060 S.TRA LDTC114EET1G T 13.8/66.9
Q421 1590004060 S.TRA LDTC114EET1G B 154.3/150.3
Q451 1520000900 S.TRA DSA700400L T 79.5/151.2
Q452 1530004140 S.TRA L2SC4081RT1G T 80.7/147.4
Q491 1530004140 S.TRA L2SC4081RT1G T 30.7/72.3
Q1121 1590004060 S.TRA LDTC114EET1G T 6.0/22.1
Q1122 1550000500 S.FET RZF020P01TL T 4.1/26.2
Q1201 1590004060 S.TRA LDTC114EET1G T 24.7/32.0
Q1202 1590004310 S.TRA LDTA114EET1G T 24.7/34.0
Q2009 1530004140 S.TRA L2SC4081RT1G T 18.8/50.6
Q2010 1510001200 S.TRA L2SA1576ART1G T 6.3/50.9
Q2011 1590004310 S.TRA LDTA114EET1G T 5.0/56.9
Q2012 1530003960 S.TRA KTC2875-B-RTK/P T 29.6/61.0
Q2014 1590004060 S.TRA LDTC114EET1G T 3.8/54.7
Q2015 1590004310 S.TRA LDTA114EET1G T 29.0/63.9
Q2016 1560002190 S.FET RUM002N02T2L T 20.0/66.8
Q2061 1560001360 S.FET 2SK3019 TL T 4.7/62.5
Q2062 1590004310 S.TRA LDTA114EET1G T 4.7/64.5
Q2302 1530003900 S.TRA KTC4075 BL-RTK/P T 32.6/119.2
Q2410 1530003900 S.TRA KTC4075 BL-RTK/P T 39.2/138.9
Q2411 1590004060 S.TRA LDTC114EET1G T 42.9/133.5
Q2412 1590004060 S.TRA LDTC114EET1G T 42.9/137.6
Q2431 1530003900 S.TRA KTC4075 BL-RTK/P T 35.1/122.2
Q2601 1590004060 S.TRA LDTC114EET1G T 39.8/132.3
Q3051 1530004210 S.TRA DSC7004S0L T 148.7/12.5
Q3052 1590004060 S.TRA LDTC114EET1G T 183.9/30.9
Q3061 1530004210 S.TRA DSC7004S0L T 173.0/12.5
Q3062 1590004060 S.TRA LDTC114EET1G T 184.4/11.5
Q3071 1590004060 S.TRA LDTC114EET1G T 189.8/49.6
Q3101 1590004060 S.TRA LDTC114EET1G T 107.6/17.4
Q3121 1590004060 S.TRA LDTC114EET1G T 130.4/18.5
Q3122 1550000500 S.FET RZF020P01TL T 129.1/13.5
Q6123 1590004310 S.TRA LDTA114EET1G T 164.2/58.1
Q6124 1590004310 S.TRA LDTA114EET1G T 164.2/60.2
Q7001 1530004140 S.TRA L2SC4081RT1G T 71.8/33.1
Q7002 1510001200 S.TRA L2SA1576ART1G T 74.3/33.7
Q7011 1530004140 S.TRA L2SC4081RT1G T 66.8/33.1
Q7012 1510001200 S.TRA L2SA1576ART1G T 69.3/33.7
Q7021 1590004060 S.TRA LDTC114EET1G T 79.6/36.8
Q7022 1590004310 S.TRA LDTA114EET1G T 81.0/39.1
Q7031 1590004060 S.TRA LDTC114EET1G T 165.1/49.3
Q7051 1590004310 S.TRA LDTA114EET1G T 164.2/69.8
Q7052 1590004310 S.TRA LDTA114EET1G T 164.2/67.7
Q7053 1590004060 S.TRA LDTC114EET1G T 169.4/73.3
Q7054 1590004060 S.TRA LDTC114EET1G T 164.8/73.4
Q7071 1590004060 S.TRA LDTC114EET1G T 167.3/64.1
Q7072 1590004060 S.TRA LDTC114EET1G T 162.5/62.2
Q7073 1590004060 S.TRA LDTC114EET1G T 162.5/65.6
Q7121 1590004060 S.TRA LDTC114EET1G T 190.7/66.1
Q8001 1590004310 S.TRA LDTA114EET1G T 46.4/86.3
Q8003 1590004060 S.TRA LDTC114EET1G T 51.6/83.2
Q8004 1590004310 S.TRA LDTA114EET1G T 51.6/85.2
Q8005 1590004060 S.TRA LDTC114EET1G T 45.1/83.8
Q8201 1590004060 S.TRA LDTC114EET1G T 81.5/94.2
Q8202 1590004060 S.TRA LDTC114EET1G T 88.8/80.4
Q8501 1590004060 S.TRA LDTC114EET1G T 49.6/63.2
Q8502 1590004310 S.TRA LDTA114EET1G T 49.6/65.2
Q8503 1590004310 S.TRA LDTA114EET1G T 44.4/66.3
Q8504 1590004060 S.TRA LDTC114EET1G T 43.1/63.8
Q8521 1590004060 S.TRA LDTC114EET1G T 41.9/56.9
Q8522 1590004310 S.TRA LDTA114EET1G T 47.4/56.4
Q8523 1590004060 S.TRA LDTC114EET1G T 38.4/59.4
Q8524 1590004310 S.TRA LDTA114EET1G T 38.6/57.3
Q8701 1590004060 S.TRA LDTC114EET1G T 81.5/74.1
Q8702 1590004060 S.TRA LDTC114EET1G T 88.8/60.4
Q9151 1590004310 S.TRA LDTA114EET1G T 62.3/54.0
Q9152 1590004310 S.TRA LDTA114EET1G T 62.3/49.2
Q9153 1590004060 S.TRA LDTC114EET1G T 65.6/52.0
Q9154 1590004060 S.TRA LDTC114EET1G T 64.8/54.0
Q9155 1590004060 S.TRA LDTC114EET1G T 64.8/49.4
Q9156 1590001320 S.TRA DTC143ZUA T106 T 60.5/52.2
Q9201 1540000830 S.TRA 2SD1664G-Q-AB3-R T 101.0/34.0
Q9202 1540000830 S.TRA 2SD1664G-Q-AB3-R T 103.5/39.0
D421 1750001810 S.DIO L1SS400T1G B 159.9/150.4
D422 1750001810 S.DIO L1SS400T1G B 156.4/157.4
D423 1750001820 S.DIO LRB706F-40T1G B 161.0/156.0
D424 1750001820 S.DIO LRB706F-40T1G B 150.5/157.1
D425 1750001820 S.DIO LRB706F-40T1G B 139.0/164.8
D426 1750001820 S.DIO LRB706F-40T1G B 138.8/154.7
D427 1750001820 S.DIO LRB706F-40T1G B 143.8/155.0
D451 1750001820 S.DIO LRB706F-40T1G T 155.0/150.2
D452 1750001820 S.DIO LRB706F-40T1G T 158.5/150.2
D501 1750001820 S.DIO LRB706F-40T1G T 49.5/154.2
D502 1750001820 S.DIO LRB706F-40T1G T 58.3/167.4
D1021 1730002850 S.ZEN DZ2J047M0L T 76.0/149.3
D1111 1750002110 S.DIO LRB551V-30T1G T 17.6/95.3
D1351 1730002850 S.ZEN DZ2J047M0L T 46.8/28.6
D1352 1750002110 S.DIO LRB551V-30T1G T 56.0/41.4
D1353 1750002240 S.DIO DB2141300L T 45.2/39.8
D2006 1750001810 S.DIO L1SS400T1G T 9.2/49.9
D2007 1750001810 S.DIO L1SS400T1G T 15.3/49.9
D2010 1750001810 S.DIO L1SS400T1G T 6.4/61.1
D2011 1750001810 S.DIO L1SS400T1G T 8.5/59.2
D2012 1750001810 S.DIO L1SS400T1G T 16.3/61.7
D2013 1750001810 S.DIO L1SS400T1G T 18.0/59.9
D2014 1750001810 S.DIO L1SS400T1G T 26.8/60.8
D2015 1750001810 S.DIO L1SS400T1G T 9.6/64.1
D2016 1750001810 S.DIO L1SS400T1G T 8.3/64.1
D2017 1750001810 S.DIO L1SS400T1G T 30.3/55.0
D2481 1750001790 S.DIO 1SS390 TE61 T 44.6/139.8
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION= See the BOARD LAYOUTS for details

5-2
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
[MAIN UNIT] [MAIN UNIT]
D2482 1750001790 S.DIO 1SS390 TE61 T 45.9/139.8
D2601 1750001810 S.DIO L1SS400T1G T 40.7/134.2
D3051 1750001810 S.DIO L1SS400T1G T 185.9/32.6
D3061 1750001810 S.DIO L1SS400T1G T 185.9/14.8
D3071 1750001810 S.DIO L1SS400T1G T 191.7/47.9
D3121 1750001810 S.DIO L1SS400T1G B 118.2/8.8
D3122 1750001810 S.DIO L1SS400T1G B 119.5/10.6
D4171 1750001820 S.DIO LRB706F-40T1G B 154.5/140.8
D4172 1750001820 S.DIO LRB706F-40T1G B 154.5/143.3
D4173 1750001820 S.DIO LRB706F-40T1G B 159.6/139.3
D4174 1750001820 S.DIO LRB706F-40T1G B 156.8/139.3
D4221 1750001810 S.DIO L1SS400T1G T 126.3/157.5
D4231 1750002230 S.DIO LRB751S-40T1G T 96.9/166.8
D4232 1750002230 S.DIO LRB751S-40T1G T 95.6/166.8
D4233 1750002230 S.DIO LRB751S-40T1G T 98.2/166.8
D4234 1750002230 S.DIO LRB751S-40T1G T 99.5/166.8
D5304 1750001810 S.DIO L1SS400T1G T 81.8/130.0
D5307 1750001810 S.DIO L1SS400T1G Only [#12] T 80.5/130.0
D5308 1750001810 S.DIO L1SS400T1G T 80.5/133.0
D5310 1750001810 S.DIO L1SS400T1G [#13] T 79.2/130.0
1750001810 S.DIO L1SS400T1G [#18]
D5311 1750001810 S.DIO L1SS400T1G T 79.2/133.0
D5313 1750001810 S.DIO L1SS400T1G Only [#18] T 77.9/130.0
D5314 1750001810 S.DIO L1SS400T1G T 77.9/133.0
D5317 1750001810 S.DIO L1SS400T1G T 76.6/133.0
D5319 1750001810 S.DIO L1SS400T1G T 75.3/130.0
D5320 1750001810 S.DIO L1SS400T1G T 75.3/133.0
D5321 1750001810 S.DIO L1SS400T1G T 75.3/136.1
D5322 1750001810 S.DIO L1SS400T1G T 74.0/130.0
D5323 1750001810 S.DIO L1SS400T1G T 74.0/133.0
D5324 1750001810 S.DIO L1SS400T1G Only [#13] T 74.0/136.1
D6101 1750001820 S.DIO LRB706F-40T1G B 151.5/120.0
D6102 1750001820 S.DIO LRB706F-40T1G B 151.5/123.6
D6103 1750001820 S.DIO LRB706F-40T1G T 154.9/104.7
D6104 1750001820 S.DIO LRB706F-40T1G B 151.5/116.4
D6105 1750001820 S.DIO LRB706F-40T1G B 151.5/112.8
D6111 1750001820 S.DIO LRB706F-40T1G T 127.1/122.7
D6112 1750001820 S.DIO LRB706F-40T1G T 127.1/120.2
D7001 1750001810 S.DIO L1SS400T1G T 72.6/30.9
D7011 1750001810 S.DIO L1SS400T1G T 67.6/30.9
D7021 1750001820 S.DIO LRB706F-40T1G T 77.3/40.6
D7022 1750001820 S.DIO LRB706F-40T1G T 78.2/33.9
D7101 1750001820 S.DIO LRB706F-40T1G T 188.9/60.6
D7102 1750001820 S.DIO LRB706F-40T1G T 189.9/57.6
D8001 1750003520 S.DIO L5204FR T 51.5/92.6
D8002 1750001810 S.DIO L1SS400T1G T 46.9/83.2
D8023 1750001810 S.DIO L1SS400T1G T 40.3/57.6
D8051 1750003100 S.DIO BAR64-02V H6327 T 54.6/88.6
D8052 1750003100 S.DIO BAR64-02V H6327 T 57.9/88.6
D8053 1750003100 S.DIO BAR64-02V H6327 T 53.6/86.2
D8054 1750003580 S.DIO SMP1307-011LF T 55.3/86.2
D8055 1750003100 S.DIO BAR64-02V H6327 T 58.1/86.2
D8501 1750003520 S.DIO L5204FR T 49.5/72.6
D8502 1790001622 S.DIO 1SV308L3F T 60.2/68.9
D8503 1750001810 S.DIO L1SS400T1G T 44.9/63.2
D8521 1790001622 S.DIO 1SV308L3F T 49.3/50.6
D8522 1790001622 S.DIO 1SV308L3F T 47.6/48.9
D8551 1750003100 S.DIO BAR64-02V H6327 T 52.6/68.6
D8552 1750003100 S.DIO BAR64-02V H6327 T 55.9/68.6
D8553 1750003100 S.DIO BAR64-02V H6327 T 51.6/66.2
D8554 1750003580 S.DIO SMP1307-011LF T 53.3/66.2
D8555 1750003100 S.DIO BAR64-02V H6327 T 56.1/66.2
D8556 1790001622 S.DIO 1SV308L3F T 60.2/70.1
D9001 1790001622 S.DIO 1SV308L3F B 45.9/71.1
D9002 1790001622 S.DIO 1SV308L3F B 49.4/91.3
D9151 1750001810 S.DIO L1SS400T1G T 63.2/52.1
D9152 1750001810 S.DIO L1SS400T1G T 62.7/50.8
X2302 6050014440 S.XTA CR-1047 (122.88 MHz) T 27.5/105.5
X2401 6050014330 S.XTA CR-1033 (10.0 MHz) T 30.1/127.2
X4021 6050014170 S.XTA CR-1017 (48.000 MHz) T 155.0/146.5
X6021 6050014170 S.XTA CR-1017 (48.000 MHz) T 155.0/116.5
X7031 6050014190 S.XTA CR-1020 (12.000 MHz) T 172.1/41.4
X7111 6050014180 S.XTA CR-1019 (6.000 MHz) T 182.5/52.3
X7401 6050014270 S.XTA CR-1030 (25.000 MHz) T 168.4/146.1
X9401 6050014590 S.XTA CR-1053 (30.000 MHz) T 188.4/73.8
L1001 6200016430 S.COI VLS5045EX-3R3N T 15.6/22.6
L1051 6180003501 S.COI SLF6028T-100M1R3-PF T 31.7/21.5
L1201 6200016280 S.COI NRS5020T1R0NMGJ T 16.0/38.4
L1251 6200016280 S.COI NRS5020T1R0NMGJ T 27.2/38.4
L1301 6180003501 S.COI SLF6028T-100M1R3-PF T 47.7/20.7
L1351 6200012250 S.COI SLF7045T-3R3M2R5-PF 3.3U T 59.6/32.3
L1401 6180003501 S.COI SLF6028T-100M1R3-PF T 60.4/20.7
L1402 6200015100 S.COI MLP2520S100MT T 55.3/25.0
L2491 6200002041 S.COI NLV25T-101J-PF T 42.2/141.4
L2492 6200002041 S.COI NLV25T-101J-PF T 33.8/139.8
L3001 6200005011 S.COI NLV25T-100J-PF T 142.4/29.9
L3002 6200005011 S.COI NLV25T-100J-PF T 128.2/27.7
L3051 6170000140 COI LW-15
L3061 6170000140 COI LW-15
L3121 6200005501 S.COI NLV32T-471J-PF T 6.2/137.0
L3201 6200005011 S.COI NLV25T-100J-PF T 171.5/36.6
L8001 6200016010 S.COI NLFV25T-101K-PF T 45.6/89.2
L8003 6200016010 S.COI NLFV25T-101K-PF T 48.5/89.6
L8004 6200016010 S.COI NLFV25T-101K-PF T 59.6/72.9
L8005 6200016010 S.COI NLFV25T-101K-PF T 49.2/87.1
L8051 6200016010 S.COI NLFV25T-101K-PF T 53.7/92.1
L8052 6200016010 S.COI NLFV25T-101K-PF T 58.7/92.1
L8053 6200016010 S.COI NLFV25T-101K-PF T 60.3/85.8
L8054 6200016010 S.COI NLFV25T-101K-PF T 56.2/92.1
L8101 6140004680 S.COI LR-528 4KBL T 67.1/87.0
L8501 6200016010 S.COI NLFV25T-101K-PF T 43.6/69.2
L8502 6200016010 S.COI NLFV25T-101K-PF T 63.1/73.5
L8503 6200016010 S.COI NLFV25T-101K-PF T 47.0/68.4
L8504 6200016010 S.COI NLFV25T-101K-PF T 61.8/65.5
L8521 6200016010 S.COI NLFV25T-101K-PF T 49.4/54.4
L8522 6200016010 S.COI NLFV25T-101K-PF T 39.4/53.6
L8523 6200016010 S.COI NLFV25T-101K-PF T 52.3/48.9
L8551 6200016010 S.COI NLFV25T-101K-PF T 51.7/72.1
L8552 6200016010 S.COI NLFV25T-101K-PF T 56.7/72.1
L8553 6200016010 S.COI NLFV25T-101K-PF T 58.3/65.8
L8554 6200016010 S.COI NLFV25T-101K-PF T 54.2/72.1
L8601 6140004680 S.COI LR-528 4KBL T 67.1/67.0
L8801 6200010870 S.COI C2520C-R33G-A (0.33 µ) B 111.8/60.8
L8802 6200010870 S.COI C2520C-R33G-A (0.33 µ) B 115.6/59.4
L8803 6200010650 S.COI C2520C-R12G-A (0.12 µ) B 117.4/63.1
L8851 6200010870 S.COI C2520C-R33G-A (0.33 µ) B 111.3/52.6
L8852 6200010870 S.COI C2520C-R33G-A (0.33 µ) B 115.0/51.2
L8853 6200010650 S.COI C2520C-R12G-A (0.12 µ) B 116.2/55.0
L9004 6200010660 S.COI C2520C-R15G-A (0.15 µ) T 69.4/56.5
L9005 6200010680 S.COI C2520C-R22G-A (0.22 µ) T 73.7/54.8
L9051 6140005470 S.COI LR-592 4KBL-S130709 T 88.8/51.7
L9151 6200016010 S.COI NLFV25T-101K-PF T 56.1/54.0
L9152 6200016010 S.COI NLFV25T-101K-PF T 56.1/50.7
L9501 6200003261 S.COI NLV32T-101J-PF T 157.0/52.7
R101 7030015910 S.RES RMC1/16S-101JTH (100) T 12.1/81.1
R102 7030015910 S.RES RMC1/16S-101JTH (100) T 12.1/80.1
R103 7030015910 S.RES RMC1/16S-101JTH (100) T 12.1/79.1
R106 7030015910 S.RES RMC1/16S-101JTH (100) T 12.1/76.1
R107 7030015910 S.RES RMC1/16S-101JTH (100) T 12.1/75.1
R108 7030015910 S.RES RMC1/16S-101JTH (100) T 12.1/74.1
R109 7030015910 S.RES RMC1/16S-101JTH (100) T 5.8/81.6
R110 7030015910 S.RES RMC1/16S-101JTH (100) T 5.8/80.6
R112 7030015910 S.RES RMC1/16S-101JTH (100) T 5.8/78.6
R113 7030015910 S.RES RMC1/16S-101JTH (100) T 5.8/77.6
R114 7030015910 S.RES RMC1/16S-101JTH (100) T 5.8/76.6
R115 7030015910 S.RES RMC1/16S-101JTH (100) T 5.8/75.6
R116 7030015910 S.RES RMC1/16S-101JTH (100) T 5.8/74.6
R117 7030015910 S.RES RMC1/16S-101JTH (100) T 5.8/73.6
R121 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 10.0/66.9
R155 7030015910 S.RES RMC1/16S-101JTH (100) T 154.8/160.3
R156 7030015910 S.RES RMC1/16S-101JTH (100) T 153.8/160.3
R157 7030015910 S.RES RMC1/16S-101JTH (100) T 152.8/160.3
R158 7030015910 S.RES RMC1/16S-101JTH (100) T 151.8/160.3
R163 7030015910 S.RES RMC1/16S-101JTH (100) T 153.3/166.7
R166 7030015910 S.RES RMC1/16S-101JTH (100) T 147.3/166.8
R167 7030015910 S.RES RMC1/16S-101JTH (100) T 146.3/166.8
R211 7030016250 S.RES RMC1/16S-220JTH (22) T 80.8/25.7
R212 7030016250 S.RES RMC1/16S-220JTH (22) T 81.8/25.7
R213 7030016250 S.RES RMC1/16S-220JTH (22) T 82.8/25.7
R214 7030016250 S.RES RMC1/16S-220JTH (22) T 83.8/25.7
R215 7030016250 S.RES RMC1/16S-220JTH (22) T 81.3/19.3
R216 7030016250 S.RES RMC1/16S-220JTH (22) T 82.3/19.3
R217 7030016250 S.RES RMC1/16S-220JTH (22) T 83.3/19.3
R218 7030016250 S.RES RMC1/16S-220JTH (22) T 84.3/19.3
R259 7030015920 S.RES RMC1/16S-221JTH (220) T 99.8/25.7
R261 7030015920 S.RES RMC1/16S-221JTH (220) T 101.8/25.7
R271 7030015910 S.RES RMC1/16S-101JTH (100) T 100.3/19.2
R272 7030015910 S.RES RMC1/16S-101JTH (100) T 101.3/19.2
R274 7030015920 S.RES RMC1/16S-221JTH (220) T 103.3/19.2
R275 7030015920 S.RES RMC1/16S-221JTH (220) T 104.3/19.2
R301 7030015910 S.RES RMC1/16S-101JTH (100) T 8.4/32.7
R302 7030015910 S.RES RMC1/16S-101JTH (100) T 8.4/34.7
R303 7030016520 S.RES RMC1/16S-270JTH (27) T 8.4/33.7
R304 7030016520 S.RES RMC1/16S-270JTH (27) T 8.4/29.7
R305 7030016520 S.RES RMC1/16S-270JTH (27) T 8.4/30.7
R306 7030016520 S.RES RMC1/16S-270JTH (27) T 8.4/36.7
R307 7030016520 S.RES RMC1/16S-270JTH (27) T 8.4/31.7
R308 7030016520 S.RES RMC1/16S-270JTH (27) T 8.4/37.7
R321 7030016560 S.RES RMC1/16SJPTH T 181.2/154.0
R322 7030016560 S.RES RMC1/16SJPTH T 182.2/154.0
R323 7030016560 S.RES RMC1/16SJPTH T 186.3/154.0
R324 7030016560 S.RES RMC1/16SJPTH T 188.2/154.0
R371 7030015910 S.RES RMC1/16S-101JTH (100) T 9.5/149.0
R372 7030015910 S.RES RMC1/16S-101JTH (100) T 9.5/146.0
R373 7030015910 S.RES RMC1/16S-101JTH (100) T 9.5/145.0
R374 7030015910 S.RES RMC1/16S-101JTH (100) T 9.5/148.0
R375 7030015910 S.RES RMC1/16S-101JTH (100) T 9.5/147.0
R376 7030015910 S.RES RMC1/16S-101JTH (100) T 9.5/144.0
R401 7030016560 S.RES RMC1/16SJPTH T 38.9/156.9
R421 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 156.5/149.8
R422 7030016110 S.RES RMC1/16S-473JTH (47 k) B 158.1/150.5
R423 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 156.5/150.8
R424 7030016330 S.RES RMC1/16S-153JTH (15 k) B 156.5/148.8
R426 7030015970 S.RES RMC1/16S-103JTH (10 k) B 152.7/154.0
R427 7030016380 S.RES RMC1/16S-183JTH (18 k) B 153.7/154.0
R428 7030015990 S.RES RMC1/16S-683JTH (68 k) B 158.1/149.6
R429 7030015910 S.RES RMC1/16S-101JTH (100) B 160.5/153.0
R430 7030015900 S.RES RMC1/16S-470JTH (47) B 154.1/157.5
R431 7030016110 S.RES RMC1/16S-473JTH (47 k) B 143.5/165.5
R432 7030016110 S.RES RMC1/16S-473JTH (47 k) B 144.7/160.1
R433 7030016050 S.RES RMC1/16S-102JTH (1 k) B 141.1/165.8
R434 7030016050 S.RES RMC1/16S-102JTH (1 k) B 141.7/157.1
R435 7030009591 S.RES ERA3YED 472V (4.7 k) B 147.7/155.8
R436 7030016900 S.RES RMC1/16SK102FTH (1 k) B 149.0/154.2
R437 7030016050 S.RES RMC1/16S-102JTH (1 k) B 146.3/154.2
R438 7030015910 S.RES RMC1/16S-101JTH (100) B 159.2/155.8
R439 7030015910 S.RES RMC1/16S-101JTH (100) B 142.2/159.2
R441 7030016050 S.RES RMC1/16S-102JTH (1 k) T 155.0/153.0
R442 7030016050 S.RES RMC1/16S-102JTH (1 k) T 158.5/153.0
R443 7030016110 S.RES RMC1/16S-473JTH (47 k) T 155.0/154.0
R444 7030016110 S.RES RMC1/16S-473JTH (47 k) T 158.8/154.0
R445 7030016110 S.RES RMC1/16S-473JTH (47 k) B 143.5/166.6
R446 7030016110 S.RES RMC1/16S-473JTH (47 k) B 141.7/158.0
R447 7030015980 S.RES RMC1/16S-333JTH (33 k) B 160.5/152.0
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION= See the BOARD LAYOUTS for details
