ICON Health & Fitness PRO-FORM Le Tour de France CSC User manual

Model No. PFEX67720-INT.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Serial
Number
Decal
USER’S MANUAL
iconeurope.com
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness, Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. The Bluetooth®word mark and
logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trade-
mark of Google LLC. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi
Alliance.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to
ensure that all users of the exercise bike are
adequately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The exercise bike is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the exercise
bike by someone responsible for their safety.
4. Use the exercise bike only as described in
this manual.
5. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
6. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
7. Place the exercise bike on a level surface,
with a mat beneath it to protect the floor or
carpet. Make sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise bike.
8. Inspect and properly tighten all parts each
time the exercise bike is used. Replace
any worn parts immediately. Use only
manufacturer-supplied parts.
9. Keep children under age 16 and pets away
from the exercise bike at all times.
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
11. The exercise bike should not be used
by persons weighing more than 253 lbs.
(115 kg).
12. Be careful when mounting and dismounting
the exercise bike.
13. Always keep your back straight while using
the exercise bike; do not arch your back.
14. The exercise bike does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
15. To stop the flywheel quickly, press the
brake knob downward.
16. When the exercise bike is not in use, tighten
the brake knob completely to prevent the
flywheel from moving.
17. To avoid damaging the brake pads, do not
lubricate the brake pads.
18. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

4
Thank you for choosing the new PROFORM®
LE TOUR DE FRANCE CSC exercise bike. Cycling
is an effective exercise for increasing cardiovascular
fitness, building endurance, and toning the body. The
LE TOUR DE FRANCE CSC exercise bike provides a
selection of features designed to make your workouts
at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Brake Knob
Saddle
Hand Weight
Adjustment Handle
Adjustment Handle
Water Bottle Holder*
*Water bottle is not included
Pedal/Strap
Leveling Foot
Handlebar
Console
BEFORE YOU BEGIN
Wheel
Length: 4 ft. 5 in. (135 cm)
Width: 1 ft. 10 in. (56 cm)
Weight: 115 lbs. (52 kg)
Carriage Handle

5
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M4 x 20mm
Screw (87)–1
M6 x 12mm
Screw (79)–4
M6 Bolt Set (70)–2 M10 x 25mm
Screw (69)–4
M4 x 16mm
Screw (81)–4

6
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tool(s):
one Phillips screwdriver
one adjustable wrench
one rubber mallet
one pair of scissors
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)

7
2. If there are shipping tubes (not shown) attached
to the front and rear of the Frame (1), remove
and discard the shipping tubes and the hardware
attaching them.
Orient the Front Stabilizer (2) as shown, and
attach it to the Frame (1) with two M10 x 25mm
Screws (69).
2
69
2
1
69
3
3
3. Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 25mm Screws (69).
1

8
1
4
7
14
4. Tip: See the inset drawing to learn how to
operate the Adjustment Handle (14).
Locate the Adjustment Handle (14) on the rear
of the Frame (1). Pull the Adjustment Handle
outward, and insert the Saddle Post (7) into the
Frame.
Next, move the Saddle Post (7) upward or
downward to the desired position, release the
Adjustment Handle (14) into an adjustment
hole in the Saddle Post, and then tighten the
Adjustment Handle four turns. Make sure that
the Adjustment Handle is firmly engaged in
an adjustment hole.
Then, pull the Adjustment Handle (14) outward,
turn it so that it points downward as shown, and
then release it.
10
11
79
12
79
5. Orient the Left and Right Weight Rests (11, 12)
as shown.
Attach each Weight Rest (11, 12) to the Saddle
Carriage (10) with two M6 x 12mm Screws (79).
5
Loosen handle
Pull handle
Adjust post
Release handle
Tighten handle
Pull handle
Turn handle
down

9
6
16
6. Note: You can attach your own pedals if
desired.
Identify the Right Pedal (16). Using your fingers,
turn the Right Pedal about halfway into the Right
Crank Arm (18). Then, use an adjustable wrench
to fully tighten the Right Pedal.
Repeat this step with the Left Pedal (17).
IMPORTANT: You must turn the Left Pedal
COUNTERCLOCKWISE to attach it.
18
17
7. Have a second person hold the Handlebar (4)
near the Frame (1).
Next, locate the wire tie (A) in the Frame (1).
Tie the wire tie to the Handlebar Wire (90) in
the Handlebar (4). Then, pull the lower end of
the wire tie until the Handlebar Wire is routed
through the Frame. Untie and discard the
wire tie.
Tip: See the upper inset drawing to learn how
to operate the Adjustment Handle (14).
Next, locate the Adjustment Handle (14) on
the front of the Frame (1). Pull the Adjustment
Handle outward, and insert the Handlebar (4)
into the Frame.
Next, move the Handlebar (4) downward and
release the Adjustment Handle (14) into the
indicated adjustment hole (B). Then, tighten the
Adjustment Handle four turns. Make sure that
the Adjustment Handle is firmly engaged in
the adjustment hole.
Then, pull the Adjustment Handle (14) outward,
turn it so that it points downward as shown, and
then release it.
See the lower inset drawing. Insert the
Handlebar Wire (90) through the zip tie (C) on
the Frame (1); do not connect the Handlebar
Wire and do not tighten the zip tie yet.
7
4
B
14
A
A
1
1
90
C
90
Loosen
handle
Pull
handle
Adjust
post
Release
handle
Tighten
handle
Pull
handle
Turn handle
down
C

10
9
9. Tip: Avoid pinching the wires. Press the Motor
Cover (38) onto the Frame (1), and attach it with
an M4 x 20mm Screw (87).
87
38
1
Avoid
pinching
the wires

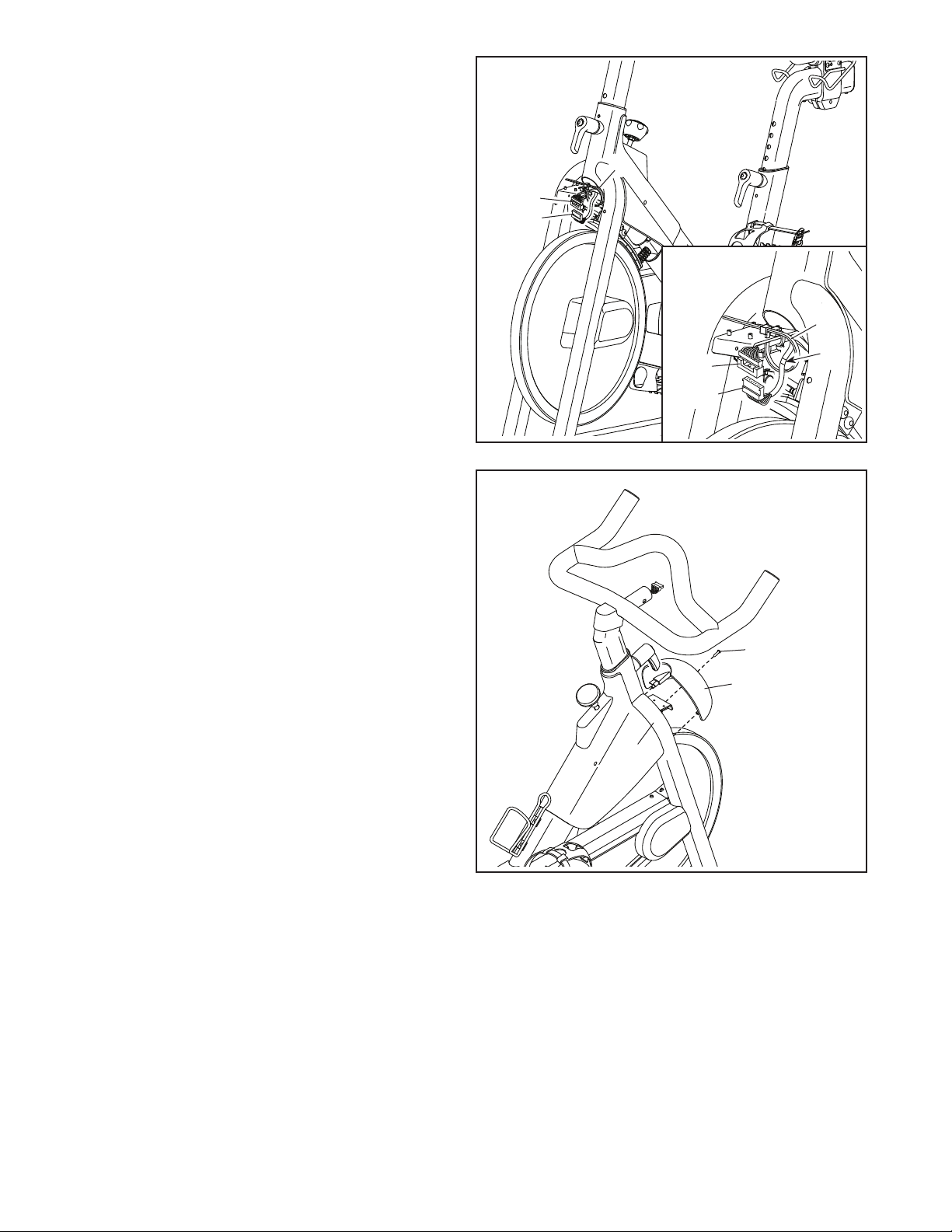

8. See the inset drawing. Connect the connector
on the Handlebar Wire (90) to the connector on
the Frame Wire (82). Tip: The wire connectors
should slide together easily and snap into
place with an audible click. If they do not,
turn one connector and try again.
Next, tighten the zip tie (C) around the indicated
mark (D) on the Handlebar Wire (90). Then, cut
off the excess zip tie.
8
90
82
C
90
82
C
D
