ICON Health & Fitness NordicTrack GX 4.7 User manual

Serial
Number
Decal
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. NTEX73915.0
Serial No.
Write the serial number in the space
above for reference.
To register your product and
activate your warranty today, go
to www.nordictrackservice.com/
registration.
For service at any time, go to
www.nordictrackservice.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE
www.nordictrack.com
USER’S MANUAL

2

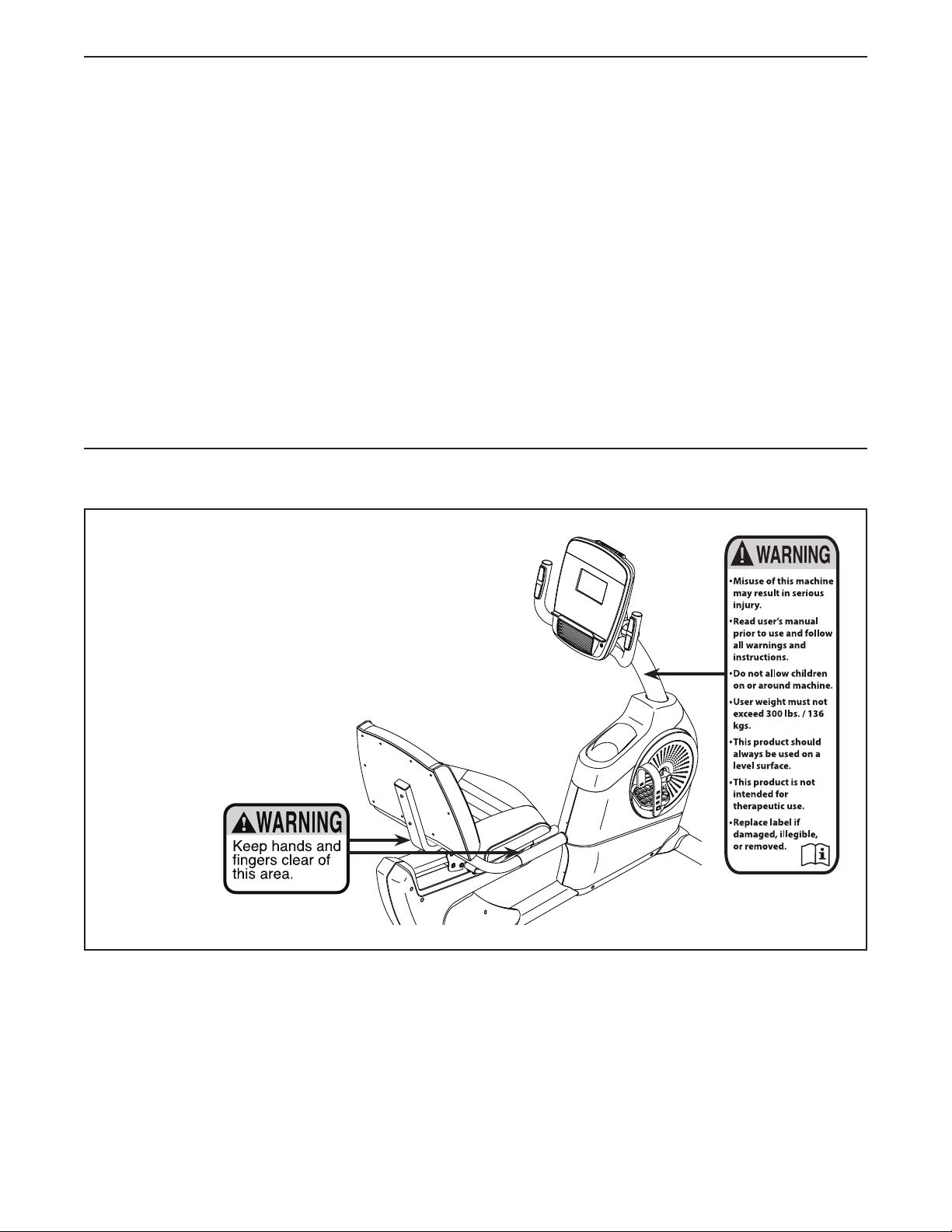

WARNING DECAL PLACEMENT
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
NORDICTRACK is a registered trademark of ICON Health & Fitness, Inc.
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The exercise bike is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the exercise
bike by someone responsible for their safety.
4. Use the exercise bike only as described in
this manual.
5. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
6. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
7. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
8. Inspect and properly tighten all parts each
time the exercise bike is used. Replace any
worn parts immediately.
9. Keep children under age 13 and pets away
from the exercise bike at all times.
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
11. The exercise bike should not be used
by persons weighing more than 300 lbs.
(136 kg).
12. Be careful when mounting and dismounting
the exercise bike.
13. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
14. Always keep your back straight while using
the exercise bike; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

4

5
all
STANDARD SERVICE PLANS

6
BEFORE YOU BEGIN
Thank you for selecting the new NORDICTRACK®
GX 4.7 exercise bike. Cycling is an effective exercise
for increasing cardiovascular fitness, building endur-
ance, and toning the body. The GX 4.7 exercise bike
provides a selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handlebar
Handlebar
Console
Wheel
Seat
Backrest
Pedal
Leveling Foot
Accessory Tray
Fan Heart Rate Monitor
Adjustment Handle
Handle
Length: 4 ft. 9 in. (145 cm)
Width: 2 ft. 1 in. (64 cm)

7
M10 x 80mm Screw (21)–4
M8 x 20mm
Screw (42)–1
M8 x 15mm
Screw (24)–4
M8 x 40mm
Screw (28)–4
M6 x 40mm
Screw (27)–6
M6 x 16mm
Screw (33)–2
M4 x 16mm
Screw (49)–6
M6 Split
Washer (34)–2
M8 x 30mm
Screw (41)–1
M6 Large
Washer (35)–2
M8 Locknut
(25)–2
M8 x 63mm Bolt
(26)–2
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

8

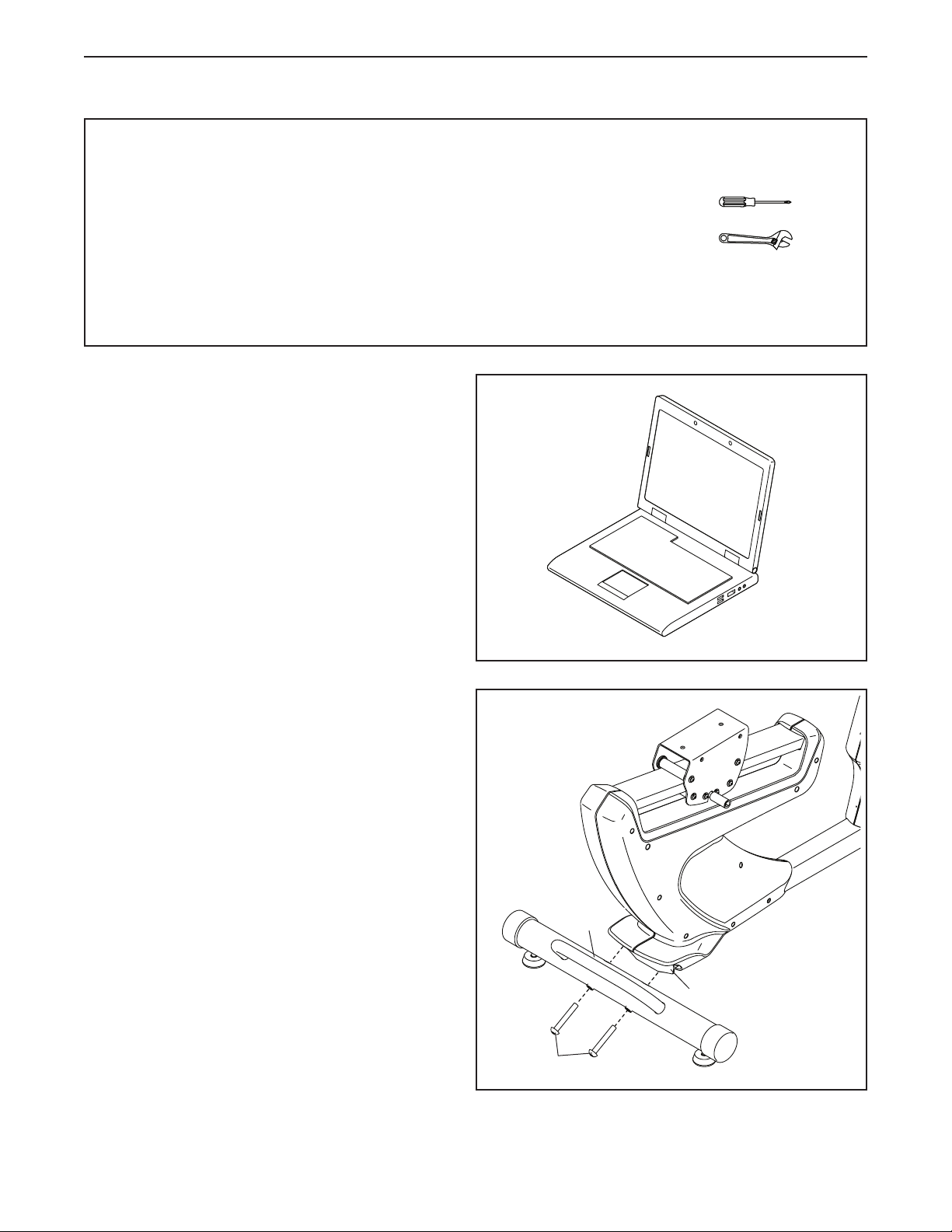

• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you fi nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
2. Orient the Rear Stabilizer (3) as shown.
While a second person lifts the rear of the Frame
(1), attach the Rear Stabilizer (3) to the Frame
with two M10 x 80mm Screws (21).
2
1
3
21
1. Go to www.nordictrackservice.com/
registration on your computer and register
your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
1

9
4
3. Orient the Front Stabilizer (2) as indicated by the
sticker.
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (2) to the
Frame with two M10 x 80mm Screws (21). 21
2
1
5
41
8
7
42
5. Orient the Backrest Frame (8) as shown.
Attach the Backrest Frame (8) to the Seat
Carriage (7) with an M8 x 20mm Screw (42) and
an M8 x 30mm Screw (41).
6
34
35
4. Orient the Adjustment Lever (6) as shown.
Attach the Adjustment Lever (6) to the Brake
Axle (37) with two M6 x 16mm Screws (33),
two M6 Split Washers (34), and two M6 Large
Washers (35).
33
3
37

10
7
7. Attach the Seat Frame (9) to the Seat Carriage
(7) with four M8 x 40mm Screws (28). Start all
the Screws, and then tighten them.
9
7
28
28
6
6. Orient the Seat (10) and the Seat Frame (9) as
shown.
Attach the Seat (10) to the Seat Frame (9) with
four M6 x 40mm Screws (27). Start all the
Screws, and then tighten them.
10
27
27
9

11
9
9. Remove the Accessory Tray (5) from the Left
and Right Front Shields (57, 58). Set the
Accessory Tray aside. Tip: It may be necessary
to use a flat screwdriver to release the tabs
on the Accessory Tray.
Have a second person hold the Upright (4) near
the Frame (1).
Locate the wire tie inside the Upright (4). Tie the
lower end of the wire tie to the Main Wire (77).
Then, pull the other end of the wire tie upward
until the Main Wire is routed through the Upright.
Tip: To prevent the Main Wire (77) from falling
into the Upright (4), secure it to the Upright
with the wire tie.
Wire Tie
Wire Tie
4
1
5
77
57, 58
8

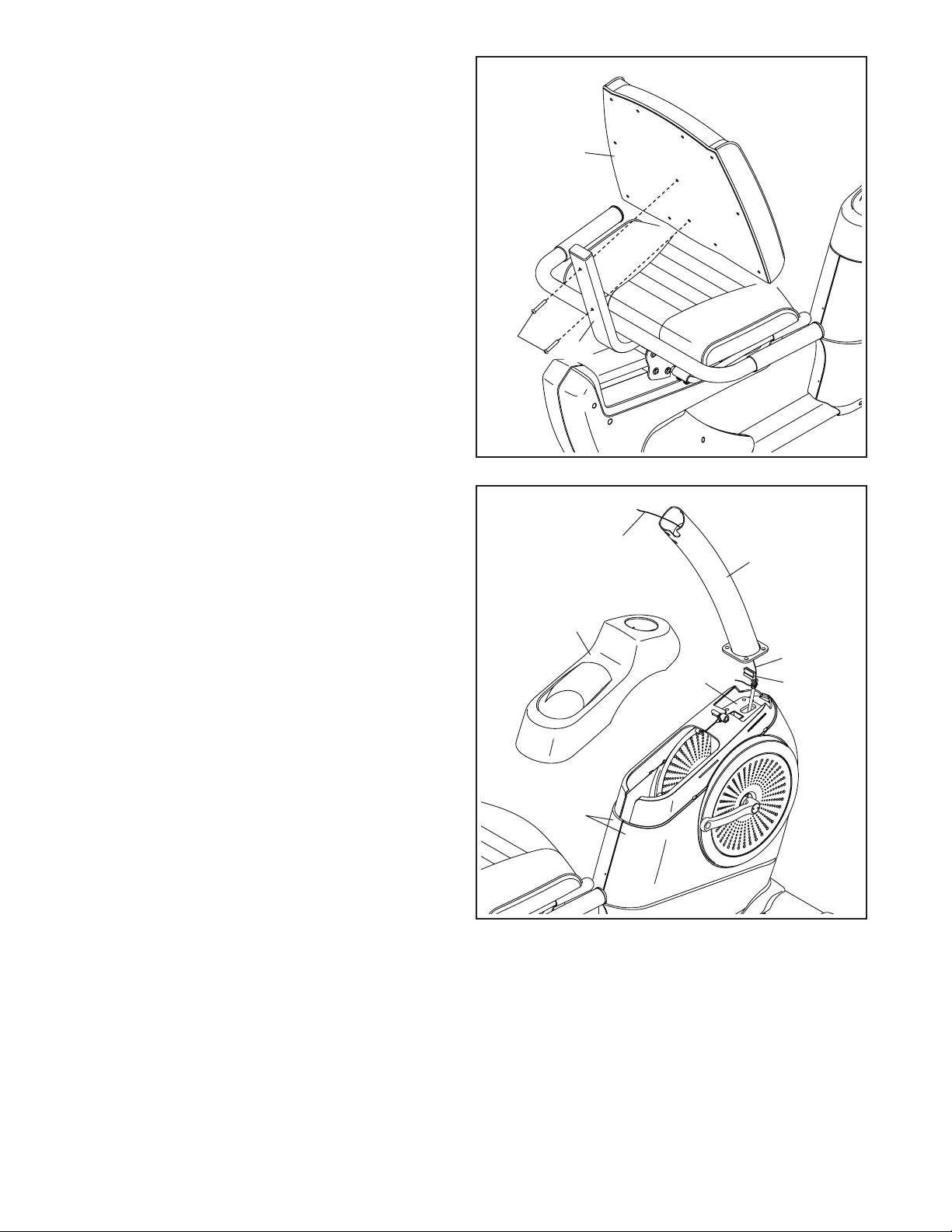

8. Orient the Backrest (11) as shown.
Attach the Backrest (11) to the Backrest Frame
(8) with two M6 x 40mm Screws (27).
11
27 8

12
11. Untie and discard the wire tie on the Main
Wire (77).
While a second person holds the Handlebar (14)
near the Upright (4), route the Main Wire (77)
through the notch in the Upright, through the
groove in the Pivot Bracket (17), and through the
hole in the center of the Handlebar (see the inset
drawing).
Tip: Avoid pinching the Main Wire (77). Insert
the Pivot Bracket (17) into the Upright (4). Attach
the Pivot Bracket with two M8 x 63mm Bolts (26)
and two M8 Locknuts (25). Make sure that the
Locknuts are in the hexagonal holes (A).
14
4
11
10
A
17
25
26
77
10. Tip: Avoid pinching the Main Wire (77). Hold
the Upright (4) against the Frame (1). Attach the
Upright with four M8 x 15mm Screws (24). Start
all the Screws, and then tighten them.
Next, orient the Accessory Tray (5) and the
Console Cover (16) as shown.
Tip: Avoid pinching the Main Wire (77).
Slide the Accessory Tray (5) and the Console
Cover (16) onto the Upright (4). Then, press the
Accessory Tray onto the Left and Right Front
Shields (57, 58).
5
16
77
4
1
24
Avoid
pinching
the Main
Wire (77)
Avoid pinching the
Main Wire (77)
Notch
Hole
Groove
57, 58

13
12
77
15 14 49
49
84
12. While a second person holds the Console (15)
near the Handlebar (14), plug the Main Wire (77)
and the Pulse Wire (84) into the receptacles on
the Console.
The connectors on the Main Wire (77) and
the Pulse Wire (84) should slide easily into
the receptacles and snap into place. If a con-
nector does not slide easily into a receptacle,
turn the connector and try again. If you do not
connect the connectors properly, the Console
(15) may become damaged when you use the
exercise bike.
Insert the excess wire into the Handlebar (14).
Tip: Avoid pinching the wires. Attach the
Console (15) to the Handlebar (14) with four
M4 x 16mm Screws (49). Start all the Screws,
and then tighten them.
Avoid pinching
the wires
13
13. Slide the Console Cover (16) upward against the
Handlebar (14). Attach the Console Cover with
two M4 x 16mm Screws (49).
14
49
16

14
14. Identify the Right Pedal (13).
Using an adjustable wrench, firmly tighten the
Right Pedal (13) clockwise into the Right Crank
Arm (71).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm
(not shown). IMPORTANT: You must turn the
Left Pedal counterclockwise to attach it.
Adjust the right strap to the desired position, and
press the ends of the strap onto the tabs on the
Right Pedal (13). Adjust the strap on the Left
Pedal (not shown) in the same way.
15. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Note: Extra parts may be included. Place a mat beneath the exercise bike to protect the floor.
13
Strap
Tab
14
71

15

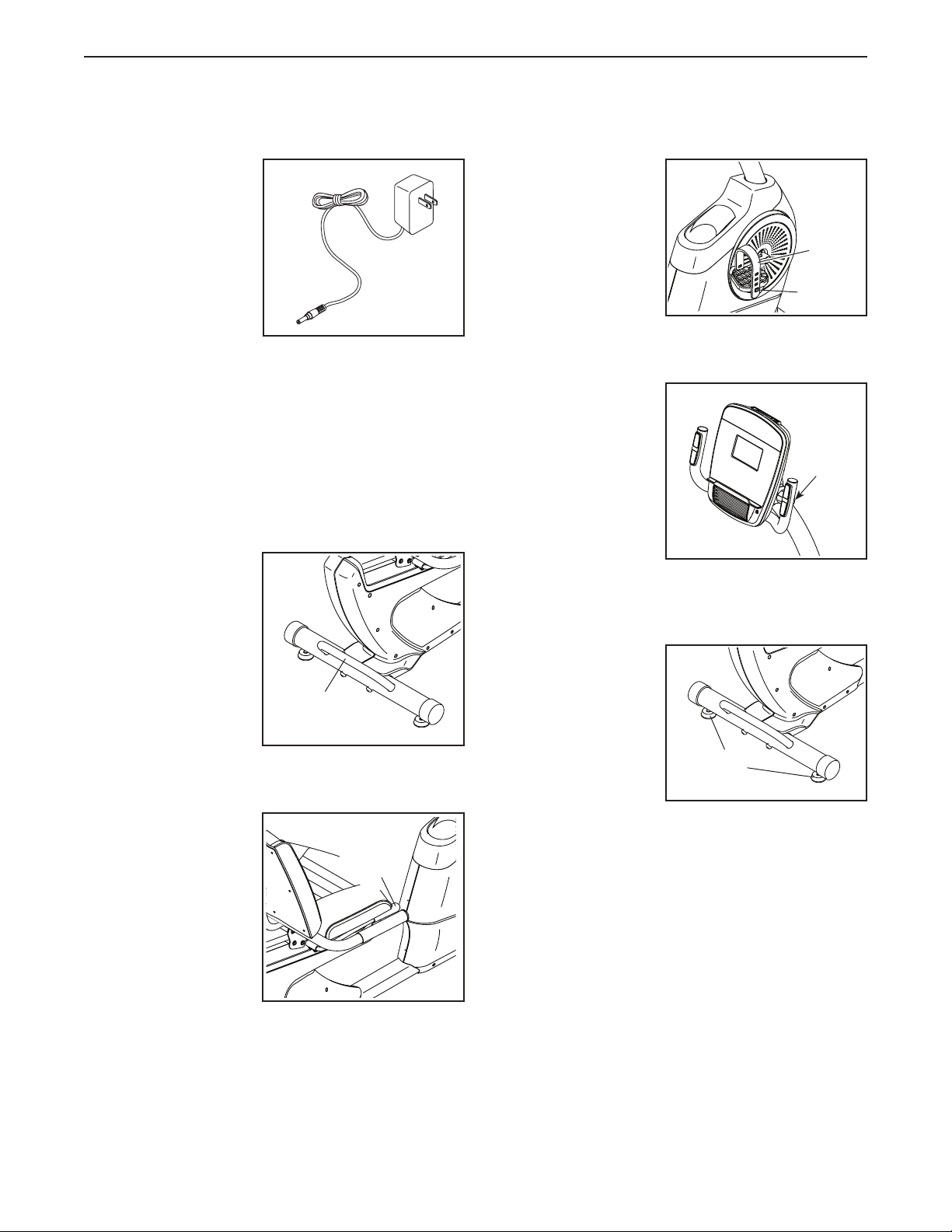

HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the
exercise bike has
been exposed to
cold temperatures,
allow it to warm to
room temperature
before you plug in
the power adapter.
If you do not do
this, you may dam-
age the console
displays or other electronic components.
Plug the power adapter into the receptacle on the
frame of the exercise bike. Then, plug the power
adapter into an appropriate outlet that is properly
installed in accordance with all local codes and
ordinances.
HOW TO MOVE THE EXERCISE BIKE
To move the exercise
bike, hold the handle
on the rear stabilizer
and carefully lift it
until the exercise
bike can be moved
on the front wheels.
Carefully move the
exercise bike to the
desired location and
then lower it.
HOW TO ADJUST THE SEAT
The seat can be
adjusted forward
or backward to the
position that is the
most comfortable. To
adjust the seat, push
downward on the
adjustment handle,
slide the seat to the
desired position, and
then pull upward
on the adjustment
handle to lock the seat in place.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
ends of the straps off
the tabs on the ped-
als. Adjust the straps
to the desired posi-
tion, and then press
the ends of the straps
onto the tabs.
HOW TO ADJUST THE ANGLE OF THE CONSOLE
To adjust the angle of
the console, loosen
the console knob,
rotate the console
and handlebar to
the desired angle,
and then tighten
the console knob.
Make sure to firmly
tighten the console
knob.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks slightly on your
floor during use, turn
one or both of the
leveling feet on the
rear stabilizer until
the rocking motion is
eliminated.
Handle
Tab
Strap
Knob
Leveling
Feet
HOW TO USE THE EXERCISE BIKE
Handle

16
CONSOLE DIAGRAM
MAKE YOUR FITNESS GOALS A REALITY WITH
IFIT.COM
With your new iFit-compatible fitness equipment, you
can use an array of features on iFit.com to make your
fitness goals a reality:
Exercise anywhere in the world with
customizable Google Maps.
Download training workouts designed to
help you reach your personal goals.
Measure your progress by competing
against other users in the iFit community.
Upload your workout results to the iFit cloud
and track your accomplishments.
Set calorie, time, or distance goals for your
workouts.
Choose and download sets of weight-loss
workouts.
Go to iFit.com to learn more.

17
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. While you exercise, the console will display
continuous exercise feedback. You can even measure
your heart rate using the handgrip heart rate monitor.
The console also offers a selection of onboard
workouts. Each workout automatically changes the
resistance of the pedals as it guides you through an
effective workout. You can also set a calorie, distance,
or time goal.
The console also features an iFit mode that enables
the console to communicate with your wireless network
through an optional iFit module. With the iFit mode,
you can download personalized workouts, create your
own workouts, track your workout results, race against
other iFit users, and access many other features.
To purchase an iFit module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see this page. To use the
sound system, see page 19. To use an onboard
workout, see page 20. To use a set-a-goal work-
out, see page 21. To use an iFit workout, see page
22. To change console settings, see page 24.
Note: If there is a sheet of plastic on the display,
remove the plastic.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
2. Select the manual mode.
Press the Home button or press either the Speed
button or the Calorie button repeatedly to select the
manual mode.
If a wireless iFit module is not inserted into the con-
sole and connected to iFit, the manual mode will be
selected automatically.
3. Change the resistance of the pedals as desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons or by pressing one of the numbered
Resistance buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected resis-
tance level.
4. Follow your progress with the display.
The display can show the following workout
information:
Calories (Cals.)—This display mode will show the
approximate number of calories you have burned.
Calories per Hour (Cals./Hr)—This display mode
will show the approximate number of calories you
are burning per hour.

18
Distance (Dist.)—This display mode will show
the distance that you have pedaled in miles or
kilometers.
Pulse—This display mode will show your heart rate
when you use the handgrip heart rate monitor (see
step 5).
Resistance (Resist.)—This display mode will
show the resistance level of the pedals for a few
seconds each time the resistance level changes.
Speed—This display mode will show your pedaling
speed in miles per hour or kilometers per hour.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, this display mode will show the
time remaining in the workout.

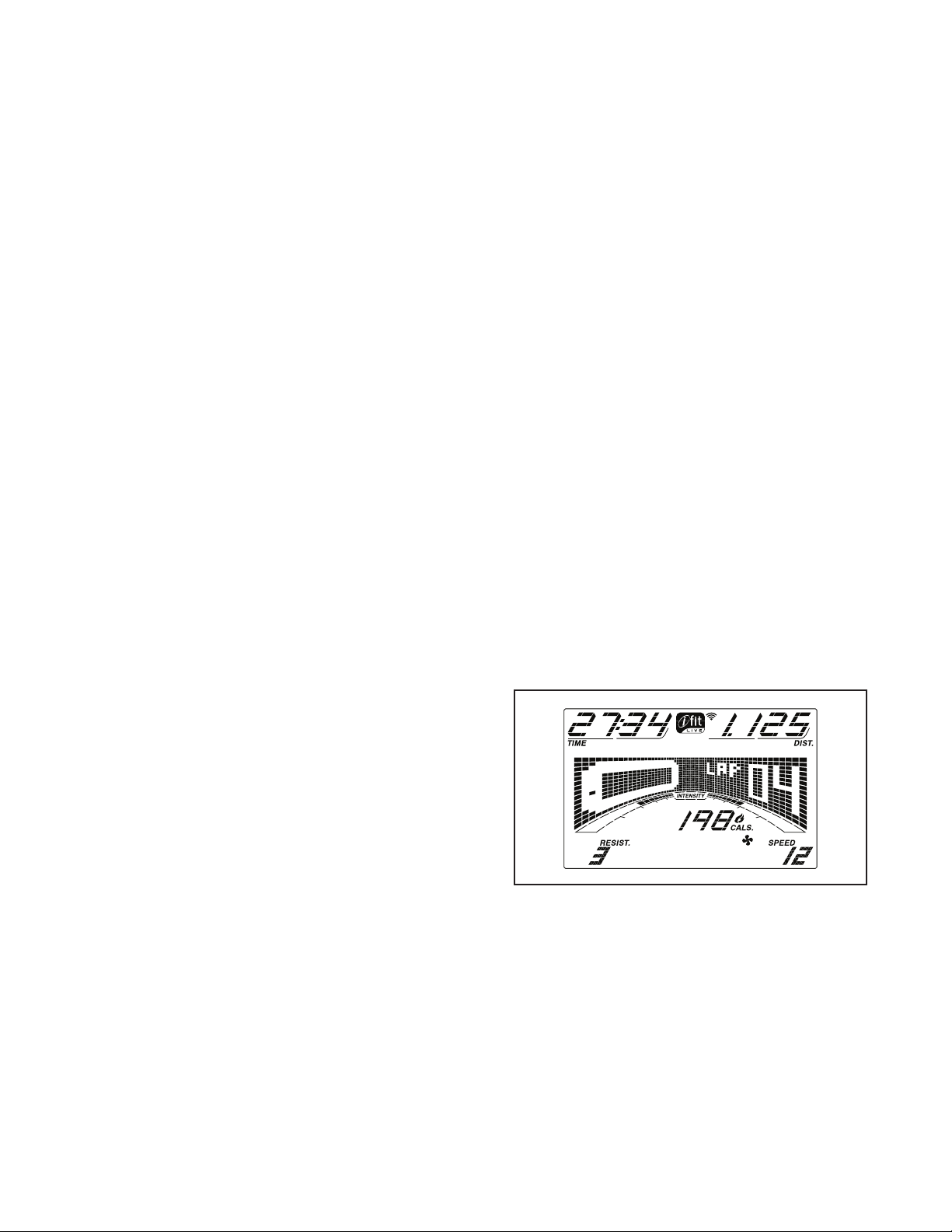

The matrix offers several display tabs. Press the
Display button until the desired tab is shown. You
can also press the increase and decrease buttons
next to the Enter button.
Speed—This tab will show a profile of the speed
settings of the workout. A new segment will appear
at the end of each minute.
My Trail—This tab will show a track that represents
1/4 mile (400 m). As you exercise, the flashing
rectangle will show your progress. The My Trail tab
will also show the number of laps you complete.
Calorie—This tab will show the approximate
amount of calories you have burned. The height of
each segment represents the amount of calories
burned during that segment.
As you exercise, the workout intensity level bar
will indicate the approximate intensity level of your
exercise.

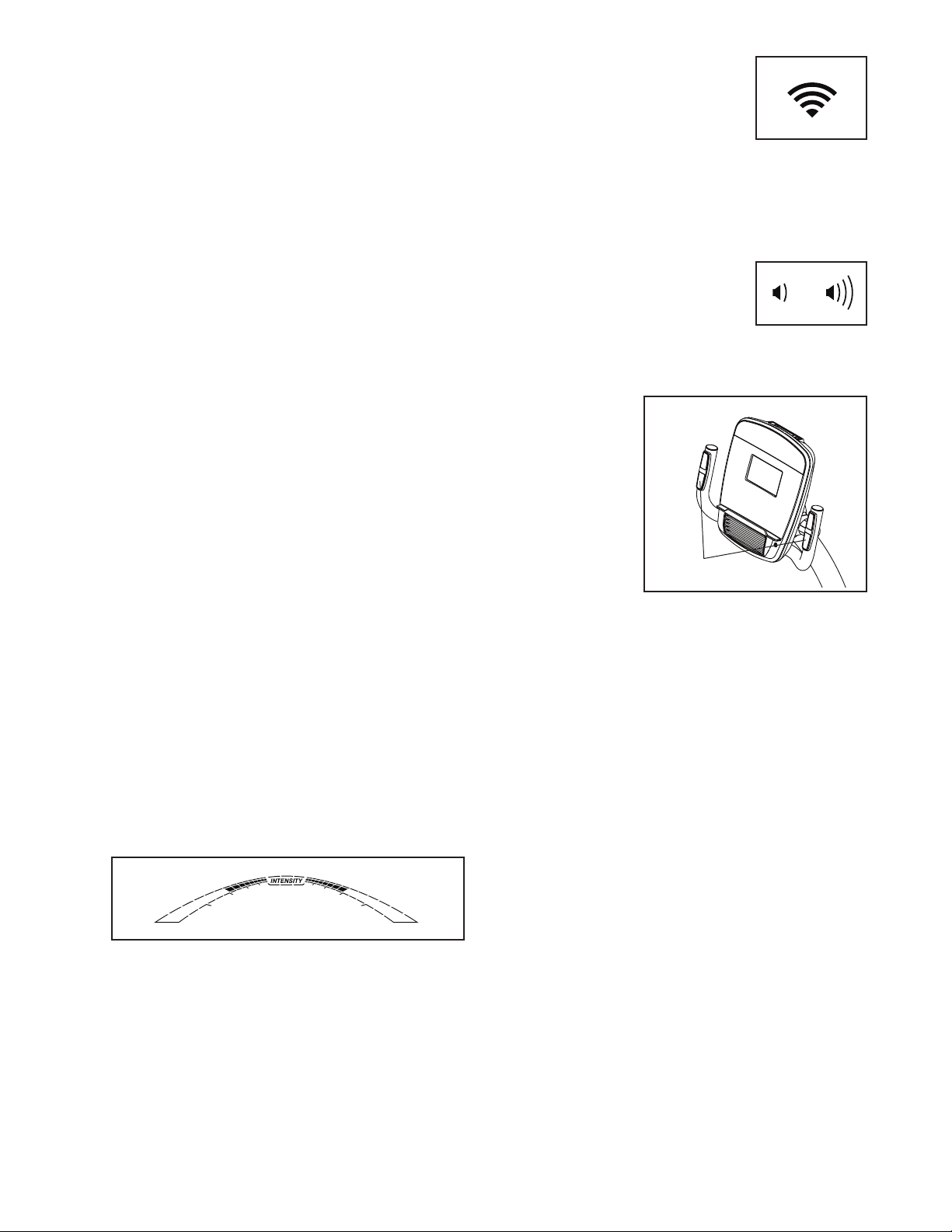

When a wireless iFit module
is connected, the wireless
symbol at the top of the dis-
play will show the strength of
your wireless signal. Four arcs
indicate full signal strength.
To exit the manual mode or a workout, press the
Home button. If necessary, press the Home button
again.
Change the volume level of
the console by pressing the
volume increase and decrease
buttons.
5. Measure your heart rate if desired.
If there are
sheets of
plastic on
the metal
contacts on
the hand-
grip heart
rate moni-
tor, remove
the plastic.
To measure
your heart
rate, hold the handgrip heart rate monitor with your
palms resting against the contacts. Avoid moving
your hands or gripping the contacts tightly.
When your pulse is detected, a heart symbol in the
calorie display will flash each time your heart beats,
one or two dashes will appear, and then your heart
rate will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
Contacts

19
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal perfor-
mance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. Turn on the fan if desired.
The fan has high and low
speed settings. Press the fan
increase and decrease but-
tons repeatedly to select a fan
speed or to turn off the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound, the console will pause, and the
time will flash in the display. To resume your work-
out, simply resume pedaling.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
Note: The console features a display demo mode,
designed to be used if the exercise bike is dis-
played in a store. When the demo mode is turned
on, the console will show a preset presentation. To
turn off the demo mode, see HOW TO CHANGE
CONSOLE SETTINGS on page 24.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the jack
on the console and into a jack on your MP3 player,
CD player, or other personal audio player; make sure
that the audio cable is fully plugged in. Note: To
purchase an audio cable, see your local electronics
store.
Next, press the play button on
your personal audio player. Adjust
the volume level using the volume
increase and decrease buttons on
the console or the volume control
on your personal audio player.

20
HOW TO USE AN ONBOARD WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
2. Select an onboard workout.
To select an onboard workout, press the Speed
button or the Calorie button repeatedly until the
desired workout appears in the display.
When you select an onboard workout, the display
will show the duration of the workout and the name
of the workout. A profile of the speed settings of the
workout will appear in the matrix.
The maximum resistance level and the maximum
speed for the workout will also appear in the
display.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute seg-
ments. One resistance level and one target speed
is programmed for each segment. Note: The same
resistance level and/or target speed may be pro-
grammed for consecutive segments.
During the
workout,
the profile
on the
speed
tab will
show your
progress.
The flashing segment of the profile represents the
current segment of the workout. The height of the
flashing segment indicates the target speed for the
current segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resis-
tance level and/or target speed is programmed for
the next segment, the resistance level and/or target
speed will appear in the display for a few seconds
to alert you. The resistance of the pedals will then
change.
As you exercise, you will be prompted to keep your
pedaling speed near the target speed for the cur-
rent segment. When an upward-pointing arrow
appears in the display, increase your pedal-
ing speed. When a downward-pointing arrow
appears, decrease your pedaling speed. When
no arrow appears, maintain your current pedaling
speed.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfort-
able for you.
If the resistance level for the current segment is
too high or too low, you can manually override
the setting by pressing the Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. The time will flash in the display. To
resume the workout, simply resume pedaling.
4. Follow your progress with the display.
See step 4 on page 17.
5. Measure your heart rate if desired.
See step 5 on page 18.
6. Turn on the fan if desired.
See step 6 on page 19.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 19.
Profile
