USER’S MANUAL
www.proform.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. PFEX78914.1
Serial No.
Write the serial number in the space
above for reference.
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE
Serial
Number
Decal

2

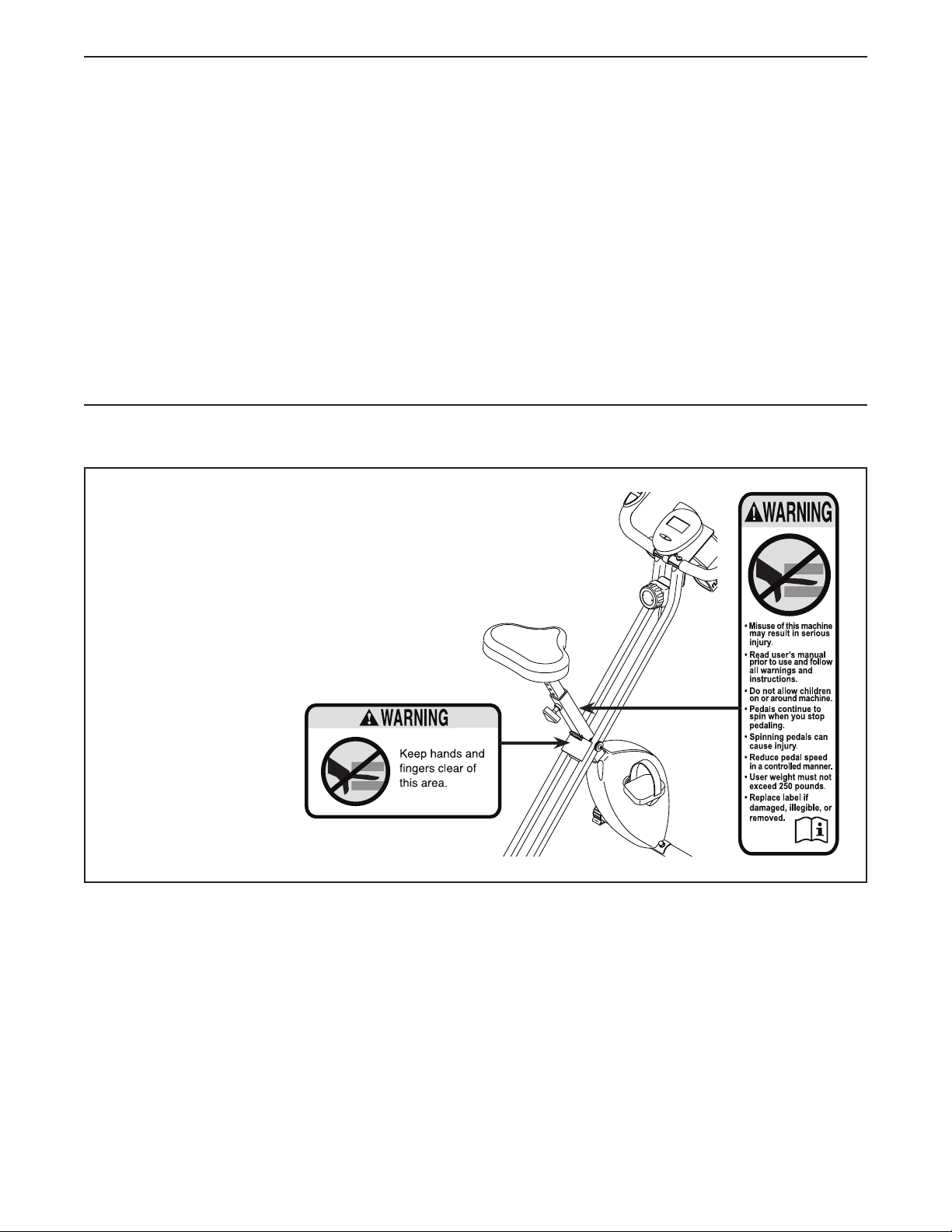

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
PROFORM is a registered trademark of ICON Health & Fitness, Inc.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. Use the exercise bike only as described in
this manual.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface,
with a mat beneath it to protect the floor or
carpet. Make sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise bike.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used
by persons weighing more than 250 lbs.
(113 kg).
11. Be careful when mounting and dismounting
the exercise bike.
12. Always keep your back straight while using
the exercise bike; do not arch your back.
13. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
14. The exercise bike does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
15. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

4
STANDARD SERVICE PLANS

5
Thank you for selecting the new PROFORM® exercise
bike. Cycling is an effective exercise for increasing
cardiovascular fitness, building endurance, and toning
the body. The PROFORM exercise bike provides a
selection of features designed to make your workouts
at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Resistance Knob
Dumbbell
Seat
Seat Knob
Pedal/Strap
Console
Heart Rate Monitor
Handlebar
BEFORE YOU BEGIN
Length: 2 ft. 7 in. (78 cm)
Width: 1 ft. 4 in. (41 cm)

6
M8 x 50mm
Carriage Bolt (13)–4
M8 Split
Washer (20)–2
M8 Curved
Washer (14)–6
M8 Acorn
Nut (15)–4
M4 x 25mm
Screw (22)–1
M8 x 35mm Screw
(21)–2
M6 x 15mm
Screw (18)–4
M6 Washer
(19)–4
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part. The number following the key number is the quantity needed for assem-
bly. Note: If a part is not in the hardware kit, check to see if it has been preassembled. Extra parts may be
included.

7
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you fi nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• In addition to the included tool(s), assembly
requires the following tool(s):
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
2. Attach one of the Stabilizers (3) to the Handlebar
Frame (1) with two M8 x 50mm Carriage Bolts
(13), two M8 Curved Washers (14), and two M8
Acorn Nuts (15).
14
14
15
15
13
2
3
1
1. Go to www.proformservice.com/registration
on your computer and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
1

8

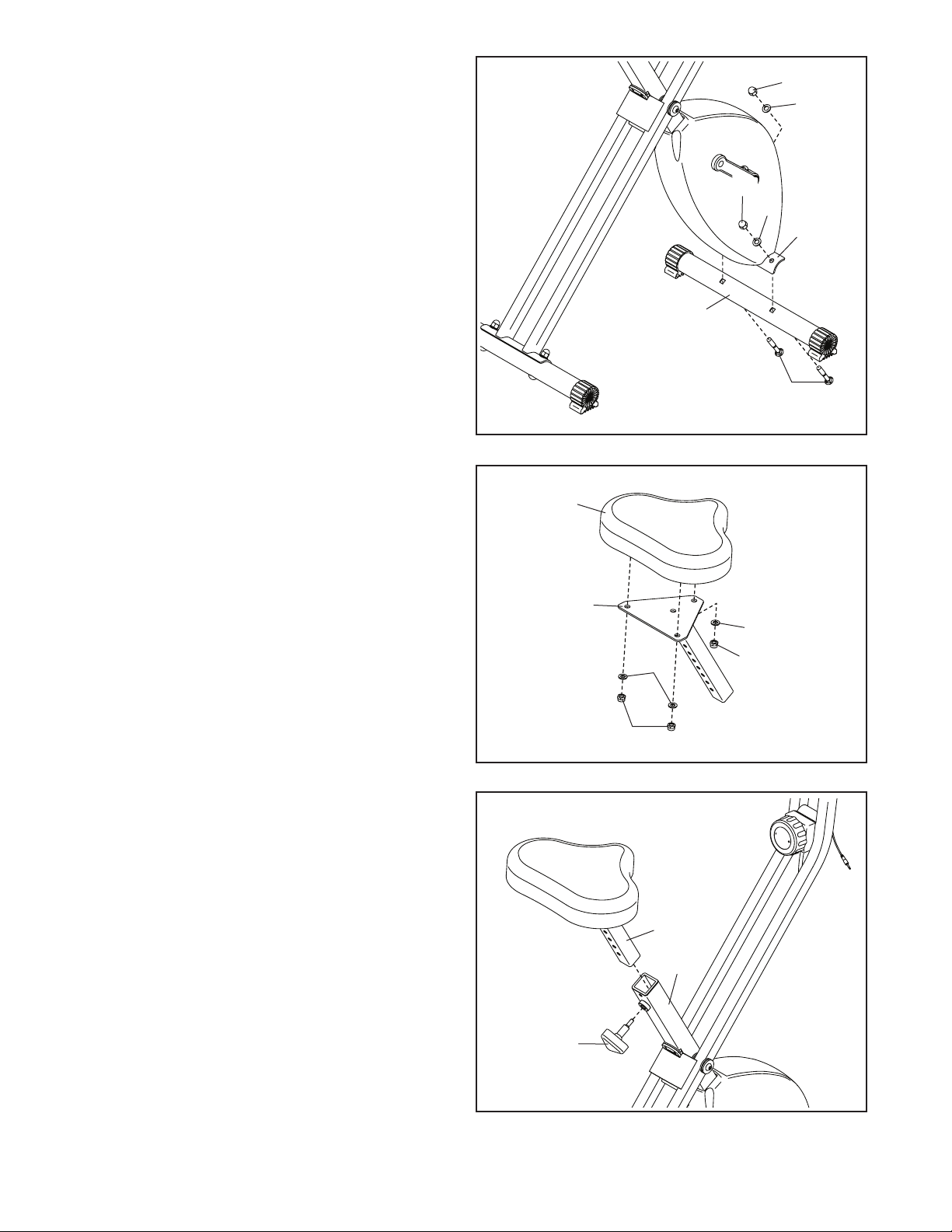

3. Attach the other Stabilizer (3) to the Seat Frame
(2) with two M8 x 50mm Carriage Bolts (13), two
M8 Curved Washers (14), and two M8 Acorn
Nuts (15).
4. Attach the Seat (5) to the Seat Post (4)
with three M8 Locknuts (16) and three M8
Washers (17).
5. Insert the Seat Post (4) into the Seat Frame (2).
Next, insert the Seat Knob (12) into the Seat
Frame (2) and into one of the adjustment holes
in the Seat Post (4); make sure that the Seat
Knob is in one of the adjustment holes in the
Seat Post. Then, tighten the Seat Knob.
3
4
5
14
13
3
4
5
2
14
15
16
16
17
17
2
4
12
15

9
8. The Console (8) requires two AA batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together. IMPORTANT: If the Console has
been exposed to cold temperatures, allow
it to warm to room temperature before you
insert batteries. Otherwise, you may dam-
age the console displays or other electronic
components.
Press the tab on the battery cover, and remove
the battery cover. Next, insert two batteries into
the battery compartment; make sure to orient
the batteries as shown by the diagram inside
the battery compartment. Then, reattach the
battery cover.
6
7. Pull the Console Mount (7) open slightly and
slide it onto the Handlebar (6) and onto the
upper end of the Handlebar Frame (1). Then,
tighten an M4 x 25mm Screw (22) into the
Console Mount; do not fully tighten the
Screw yet.
6. Attach the Handlebar (6) to the Handlebar
Frame (1) with two M8 x 35mm Screws (21),
two M8 Split Washers (20), and two M8 Curved
Washers (14).
7
8
Battery
Cover
1
6
20
21
14
14
22
6
8
1
7

10
10
10. Attach the Dumbbell Rack (9) to the Handlebar
Frame (1) with four M6 x 15mm Screws (18) and
four M6 Washers (19); start all the Screws, and
then tighten them.
See the inset drawing. Set the two Dumbbells
(10) on the Dumbbell Rack (9).
9
9. Have a second person hold the Console (8) near
the Console Mount (7). Connect the wire on the
Console to the Reed Switch Wire (23). Then,
plug the Monitor Wire (24) into the back of the
Console.
Tip: Avoid pinching the wires. Slide the
Console (8) onto the Console Mount (7). Then,
pivot the Console and the Console Mount to the
desired angle.
See step 7. Tighten the M4 x 25mm Screw (22).
Avoid pinching
the wires
23
24
8
7
18
19
1
9
12. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Extra parts may be included. Place a mat under the exercise bike to protect the floor.
11
11. Identify the Right Pedal (11).
Using an adjustable wrench, firmly tighten the
Right Pedal (11) clockwise into the Right Crank
Arm (25).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm
(not shown). IMPORTANT: You must turn the
Left Pedal counterclockwise to attach it.
25
11
910
10

11
HOW TO ADJUST THE SEAT POST
For effective exercise, the seat should be at the proper
height. As you pedal, there should be a slight bend in
your knees when the pedals are in the lowest position.
To adjust the height
of the seat, first
loosen and remove
the seat knob. Next,
slide the seat post
upward or down-
ward and align one
of the adjustment
holes in the seat
post with the hole
in the frame. Insert
the seat knob into
the frame and the
seat post, and
then tighten the
seat knob. Make
sure that the seat knob is inserted into one of the
adjustment holes in the seat post.
HOW TO ADJUST THE PEDALING RESISTANCE
To increase the
resistance of
the pedals, turn
the resistance
knob clockwise;
to decrease the
resistance, turn the
knob counterclock-
wise. IMPORTANT:
Stop turning the
knob when turning
becomes difficult,
or you may dam-
age the exercise bike.
HOW TO USE THE DUMBBELLS
To add upper body
exercise to your
workouts, use the
dumbbells while you
pedal. When you
are not using the
dumbbells, store
them on the dumb-
bell rack.
HOW TO FOLD THE EXERCISE BIKE
When the exercise bike is not in use, it can be folded to
a compact position. First, remove the dumbbells from
the dumbbell rack. Then, hold the handlebar with one
hand, hold the seat with the other hand, and push the
handlebar and the seat towards each other.
Knob
Knob
Dumbbells
HOW TO USE THE EXERCISE BIKE

12

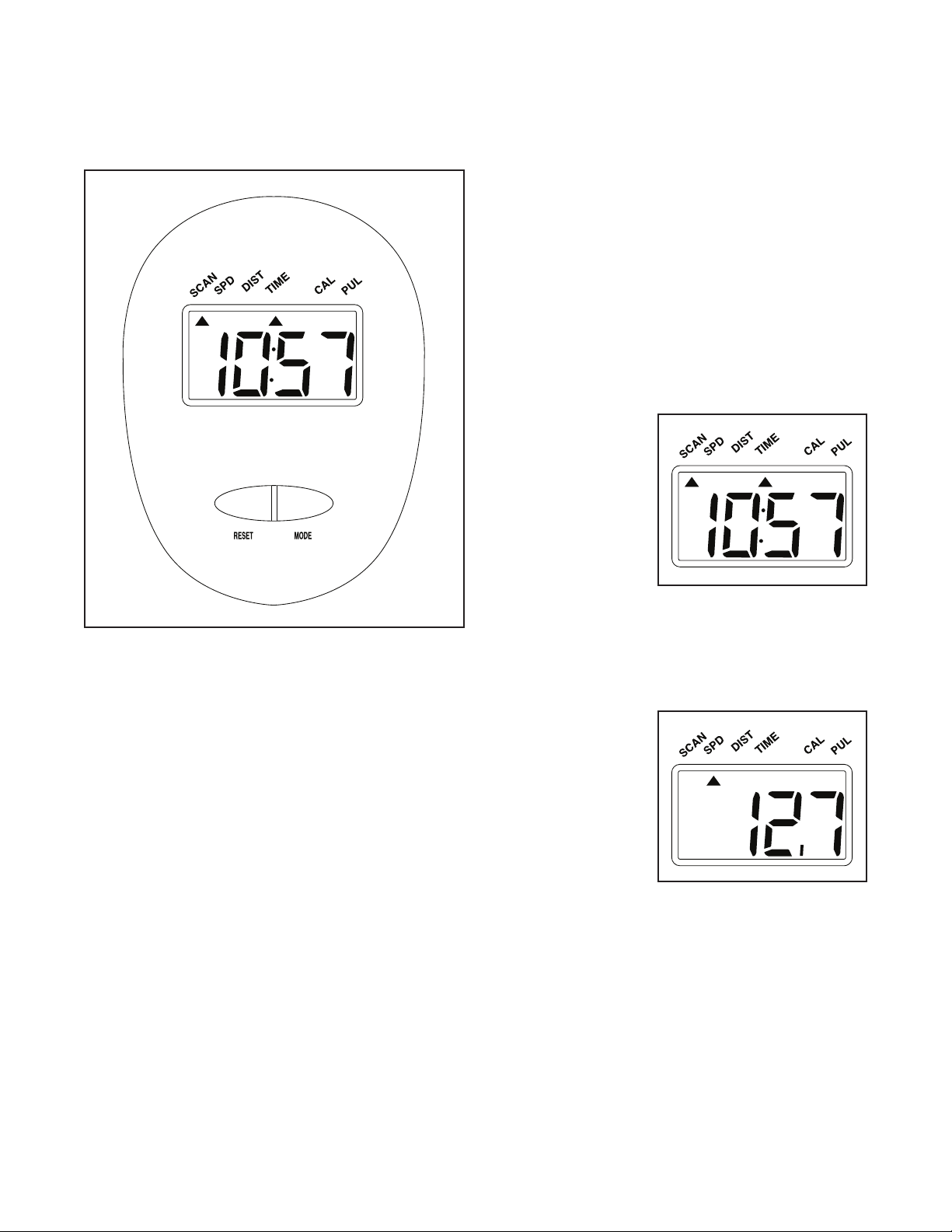

FEATURES OF THE CONSOLE
The easy-to-use console features six modes that pro-
vide instant exercise feedback during your workouts.
The modes are described below.
Scan—This mode displays the time, speed, distance,
calories, and pulse modes, for a few seconds each, in
a repeating cycle.
Time—This mode displays the elapsed time that you
have pedaled during your workout.
Speed (SPD)—This mode displays your pedaling
speed, in kilometers per hour.
Distance (DIST)—This mode displays the dis-
tance that you have pedaled during your workout, in
kilometers.
Calories (CAL)—This mode displays the approximate
number of calories that you have burned during your
workout.
Pulse (PUL)—This mode displays your heart rate in
beats per minute when you are using the heart rate
monitor (see step 3 on page 13). When your pulse is
not detected, a P will appear in the display.
HOW TO USE THE CONSOLE
Make sure that there are batteries (not included) in the
console (see assembly step 8 on page 9). If there
is a sheet of clear plastic on the display, remove the
plastic.
1. Turn on the console.
To turn on the console, press either button on the
console or simply begin pedaling.
2. Select one of the six modes:
Scan mode—
When the
console is
turned on, the
scan mode will
automatically be
selected. One
mode arrow will
point to the word
SCAN, and a
second mode
arrow will show which mode is currently displayed.
Note: If a different mode is selected, select the
scan mode again by repeatedly pressing the Mode
button.
Time, speed,
distance, calo-
ries, or pulse
mode—To
select one of
these modes
for continuous
display, press
the Mode button
repeatedly. The
mode arrows
will show which mode is selected. Make sure that
there is not a mode arrow pointing to the word
SCAN.

13
3. Measure your heart rate, if desired.
If there are
sheets of plastic
on the metal
contacts of the
handgrip heart
rate monitor,
remove the
plastic. Place
your hands on
the handgrip
heart rate moni-
tor, with your
palms on the contacts. Avoid moving your hands.
When your pulse is detected, your heart rate will be
shown when the pulse mode is displayed. For the
most accurate heart rate reading, continue to
hold the handgrips for about 15 seconds.
If your heart rate is not shown, make sure that the
pulse mode is displayed. In addition, make sure
that your hands are positioned as described and
that you are not moving your hands excessively or
squeezing the contacts tightly. For optimal perfor-
mance, periodically clean the contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
4. Reset the console, if desired.
To reset the console, hold down the Reset button
for a few seconds. After the console is reset, the
scan mode will be selected.
5. When you are finished exercising, the console
will turn off automatically.
If the pedals are not moved for a few seconds, the
console will pause.
The console has an auto-off feature. If the ped-
als are not moved and the console buttons are
not pressed for a few minutes, the console will
turn off automatically to save the batteries.
Contacts

14
MAINTENANCE
Inspect and tighten all parts of the exercise bike
regularly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, replace the
batteries (see assembly step 8 on page 9); most
console problems are the result of low batteries.
If the heart rate monitor does not function properly, see
step 3 on page 13.

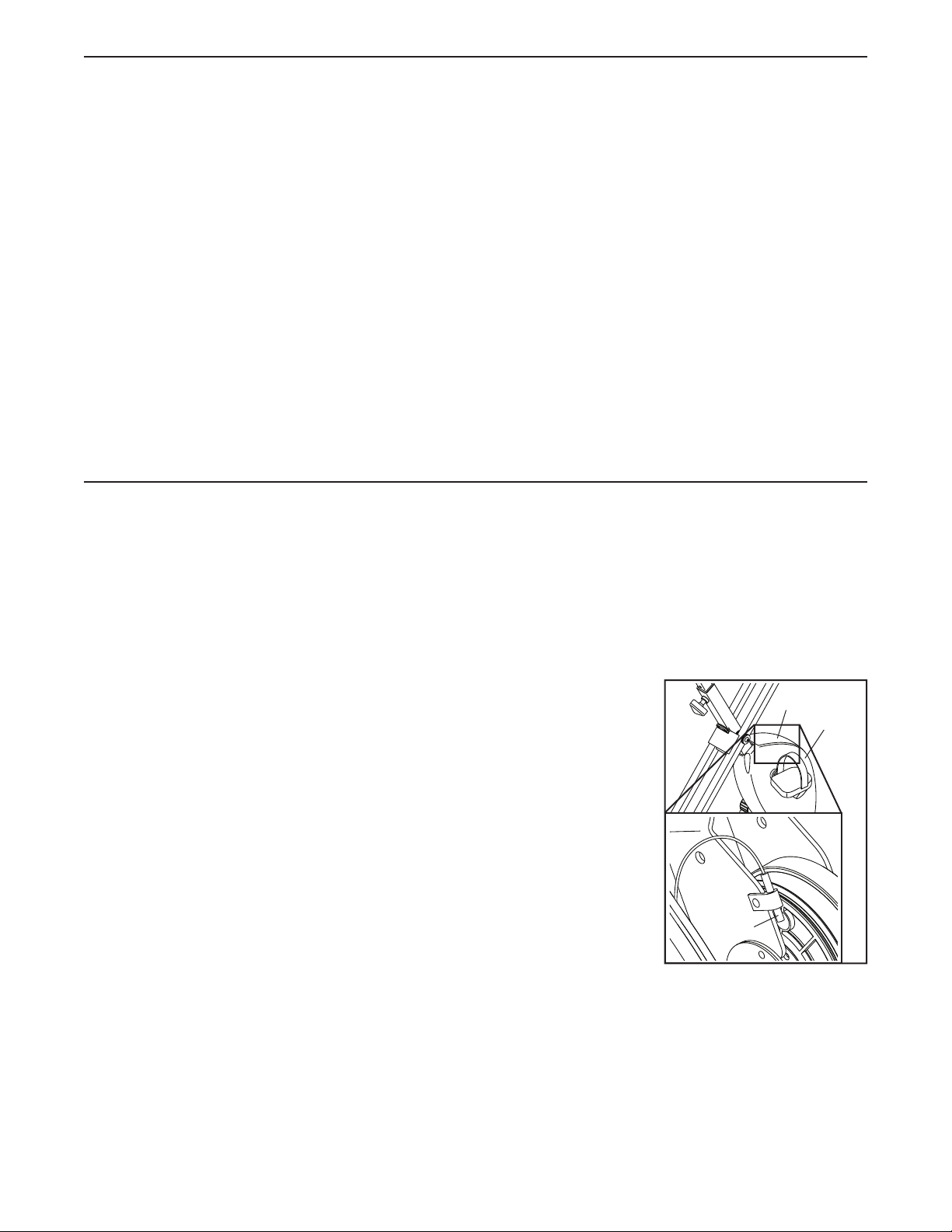

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. Before adjusting the
reed switch, turn the resistance knob to the lowest
setting.
Next, loosen the
screws (not shown)
in the Shields (26,
27), and carefully
remove the Shield
Cover (28).
Locate the Reed
Switch (29), and slide
it upward or down-
ward slightly. Then,
turn the pedals for
a moment and see
whether the console
displays correct feed-
back. Repeat this
step until the console
displays correct feedback.
When the console displays correct feedback, reattach
the Shield Cover (28).
29
28
26, 27
MAINTENANCE AND TROUBLESHOOTING
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate this equipment.

15
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.

Part No. 369507 R1214A Printed in China © 2014 ICON Health & Fitness, Inc.
ORDERING REPLACEMENT PARTS
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for fi ve (5) years from the date
of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
or if the product is used for commercial or rental purposes. No other warranty beyond that specifi cally set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profi ts, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fi tness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specifi c legal rights; the customer may have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
LIMITED WARRANTY
IMPORTANT: To protect your fitness equipment with an extended service plan, see page 4.
For information about available replacement parts, see the front cover of this manual. To help us assist you, be
prepared to provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see ASSEMBLY on pages 7 through 10)
