ICOP Technology PPC-090T-D2N3N User manual

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 i
User’s Manual
PPC-090T
DMP Vortex86 DX2 Processor
Compact Panel PC with 9” Touchscreen
PPC-090T-D2N3N
PPC-090T-D2N4N
PPC-090T-D2N3N-GE
PPC-090T-D2N4N-GE
PPC-090T-D2W4N
PPC-090T-D2W4N-GE
(Revision 1.1A)

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 i
REVISION
DATE VERSION DESCRIPTION
2014/1/22 Version 1.0A New Release
2014/3/11 Version 1.1A Add 4.3 Serial Ports Setting (RS232/422/485)
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 ii
COPYRIGHT
The information in this manual is subject to change without notice for
continuous improvement in the product. All rights are reserved. The
manufacturer assumes no responsibility for any inaccuracies that may
be contained in this document, and makes no commitment to update or
to keep current the information contained in this manual.
No part of this manual may be reproduced, copied, translated or
transmitted, in whole or in part, in any form or by any means without the
prior written permission of the ICOP Technology Inc.
Copyright 2014 ICOP Technology Inc.
Manual # IUMPPC090T-01 Ver.1.1A Mar, 2014
TRADEMARKS ACKNOWLEDGMENT
Vortex86DX2is the registered trademark of DMP Electronics Inc.
Other brand names or product names appearing in this document are
the properties and registered trademarks of their respective owners. All
names mentioned herewith are served for identification purpose only.
For more detailed information or if you are interested in other ICOP
products, please visit our official websites at:
Global: www.icop.com.tw
USA: www.icoptech.com
Japan: www.icop.co.jp
BV: www.icoptech.eu
China: www.icop.com.cn
For technical support or demo images of operating systems download,
please visit our websites at:
ICOP Technical Resource: http://tech.icop.com.tw/
Software Support: http://www.icoptech.net/
This Manual is for the PPC-090T.
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 iii
SAFETY INFORMATION
Read these Safety instructions carefully.
Please carry the unit with both hands, handle carefully.
Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.
Do not expose your Panel PC to rain or moisture in order to prevent
shock and fire hazard.
Input voltage rated +12 ~ 24 VDC
Operating temperature between 0~+50°C (+32~+122°F).
Keep PPC-090T away from humidity.
When a Compact Flash Card or a SATA Slim is the main operating
system storage, please turn off power before inserting or removing.
Do not open the cabinet to avoid electrical shock. Refer to your
nearest dealer for qualified personnel servicing.
Never touch un-insulated terminals or wire unless your power
adaptor is disconnected.
Locate your Panel PC as close as possible to the socket outline for
easy access and to avoid force caused by entangling of your arms
with surrounding cables from the Panel PC.
USB connectors are not supplied with Limited Power Sources.
If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient overvoltage.
WARNING!
DO NOT ATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS
(ENCASING) OF THIS PRODUCT. PLEASE CONTACT YOUR DEALER
FOR SERVICING FROM QUALIFIED TECHNICIAN.
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 iv
Content
Ch. 1 General Information..........................................................................1
1.1 Product Description ............................................................................2
1.2 Product Specifications ........................................................................3
1.3 Inspection Standard for TFT-LCD Panel.............................................5
1.4 Product Dimensions............................................................................7
1.5 Panel Mounting Instruction .................................................................9
1.6 Ordering Information.........................................................................11
Ch. 2 System Installation.........................................................................12
2.1 CPU Board Outline ...........................................................................13
2.2 Connector Summary.........................................................................14
2.3 Connector Pin Assignments..............................................................15
2.4 External I/O Overview.......................................................................16
2.5 External I/O Pin Assignment.............................................................17
2.6 Watchdog Timer................................................................................18
Ch. 3 Hardware Installation .....................................................................19
3.1 Installing the SATA Slim....................................................................20
3.2 Installing the Compact Flash.............................................................21
Ch. 4 Driver Installation ...........................................................................22
4.1 PPC-090T Development Note ..........................................................24
4.2 BIOS Default Setting.........................................................................25
4.3 Serial Ports Setting (RS232/422/485)...............................................26
Warranty....................................................................................................29
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 1
Ch. 1
General Information
1.1 Product Description
1.2 Product Specifications
1.3 Inspection standard for TFT-LCD Panel
1.4 Product Dimensions
1.5 Mounting Instruction
1.6 Ordering Information
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 2
1.1 Product Description
ICOP Technology Inc. is proudly going to release a brand new Panel PC,
which offers fanless design, low power consumption, and IP65 front panel.
The PPC-090T is powered by DMP’s latest Vortex86DX2 SoC, the 3rd
generation SoC of Vortex86 family, and dual-channel 1GB DDRII chipset
that handles processing more efficiently and provides faster performance.
The resistive touch panel with LED backlight TFT LCD increases operation
convenience and visibility in outdoor environments. The ultra-compact and
thin exterior design is perfect for the present demanding embedded and
productive applications.
The new PPC-090T inherited PDX/PMX-series’ smooth appearance
and ultra-texture aluminum exterior design to make your industrial
applications look more stylish. The versatile I/O ports, IP65 front panel,
10/100Mps Ethernet, GIGA high-speed Ethernet, WiFi,…etc. can fulfill
fundamental functions. Our consistent advantages feature stable
performance, extended working temperature support, low power
consumption and fanless design. The expandable customize I/O ports can
be accommodated connectivity requirements to industrial machine platforms
and industrial automation equipment’s needs.
The PPC-090T supports Windows Embedded CE, Windows Embedded
Standard 2009, Windows Embedded Compact 7, and Linux to meet
ready-to-market demand and provide competitive advantages for
customers.
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 3
1.2 Product Specifications
CPU BOARD SPECIFICATIONS
CPU DM&P Vortex86DX2 933MHz
Cache L1:16KB I-Cache, 16KB D-Cache /
L2: 4-way 256KB Cache
BIOS AMI BIOS
Memory 512MB / 1GB /2GB DDR2 onboard
Watchdog Timer Software Programmable from
30.5u to 512 seconds x 2 sets
LAN Integrated 10/100M Ethernet X1
Giga Ethernet (Optional) X1
Audio HD Audio-Realtek ALC262 CODEC
Internal Drives
Compact Flash Type I / II Slot,
SATA SLIM
SD Slot (Optional)
I/O
RS-232/422/485 x 2
USB Ports (Ver2.0) x 3
PS/2 KB
Audio-Out
RJ-45 Port x 1
GIGA Ethernet Port X 1 (Optional)
MECHANICAL & ENVIRONMENT
Power Requirement +12 ~ 24VDC
Power
Consumption MAX : +24VDC@ 1A
Operating
Temperature 0~+50°C (+32~+122°F) /
-20~+60°C (-4~+140°F)
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 4
Storage
Temperature -30~+70°C (-22~ +158°F)
Operating Humidity 0% ~ 90% Relative Humidity,
Non-Condensing
Dimensions 242x156.5x44mm (9.68"x6.26"x1.76")
Weight 3.0 Kg
Protection IP65 Front Panel
Certification CE / FCC / VCCI / Vibration
LCD SPECIFICATIONS
Display Type 9” WSVGATFT LCD
Backlight Unit LED
Display Resolution 1024(W) x 600(H)
Brightness (cd/m2) 300 nits
Contrast Ratio 500 : 1
Display Color 262,144
Pixel Pitch (mm) 190.5 (H) x 189 (V)
Viewing Angle Vertical 140o, Horizontal 160o
Backlight Lifetime 25,000 hrs
TOUCHSCREEN
Type Analog Resistive
Resolution Continuous
Transmittance 80%
Controller PS/2 interface
Software Driver Linux / WinCE / Windows XP
Durability 1 million
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 5
1.3 Inspection Standard for TFT-LCD Panel
DEFECT TYPE LIMIT Not
e
VISUAL
DEFECT INTERNAL
SPOT
φ＜0.15mm Ignore Note
1
0.15mm≦φ≦0.5mm N≦4
0.5mm＜φN=0
FIBER 0.03mm<W≦0.1mm, L≦5mm N≦3 Note
1
1.0mm＜W, 1.5mm＜L N=0
POLARIZER
BUBBLE
φ＜0.15mm Ignore Note
1
0.15mm≦φ≦0.5mm N≦2
0.5mm＜φN=0
Mura It’ OK if mura is slight visible through 6%ND filter
ELECTRI
CAL
DEFECT
BRIGHT DOT
A Grade B Grade
C Area O Area Total C Area O Area Total Note
3
N≦0 N≦2 N≦2 N≦2 N≦3 N≦5 Note
2
DARK DOT N≦2 N≦3 N≦3 N≦3 N≦5 N≦8
TOTAL DOT N≦4 N≦5 N≦6 N≦8 Note
2
TWO ADJACENT DOT N≦0 N≦1
pair N≦1 pair N≦1 pair N≦1 pair N≦1 pair Note
4
THREE OR MORE
ADJACENT DOT NOT ALLOWED
LINE DEFECT NOT ALLOWED
(1) One pixel consists of 3 sub-pixels, including R, G, and B dot. (Sub-pixel = Dot)
(2) Little bright Dot acceptitable under 6% ND-Filter.
(3) If require G0 grand (Total dot N
≦
0), please contact region sales.
[ Note 1 ] W: Width[mm]; L: Length[mm]; N: Number; φ: Average Diameter.
(a) White / Black Spot (b) Polarizer Bubble
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 6

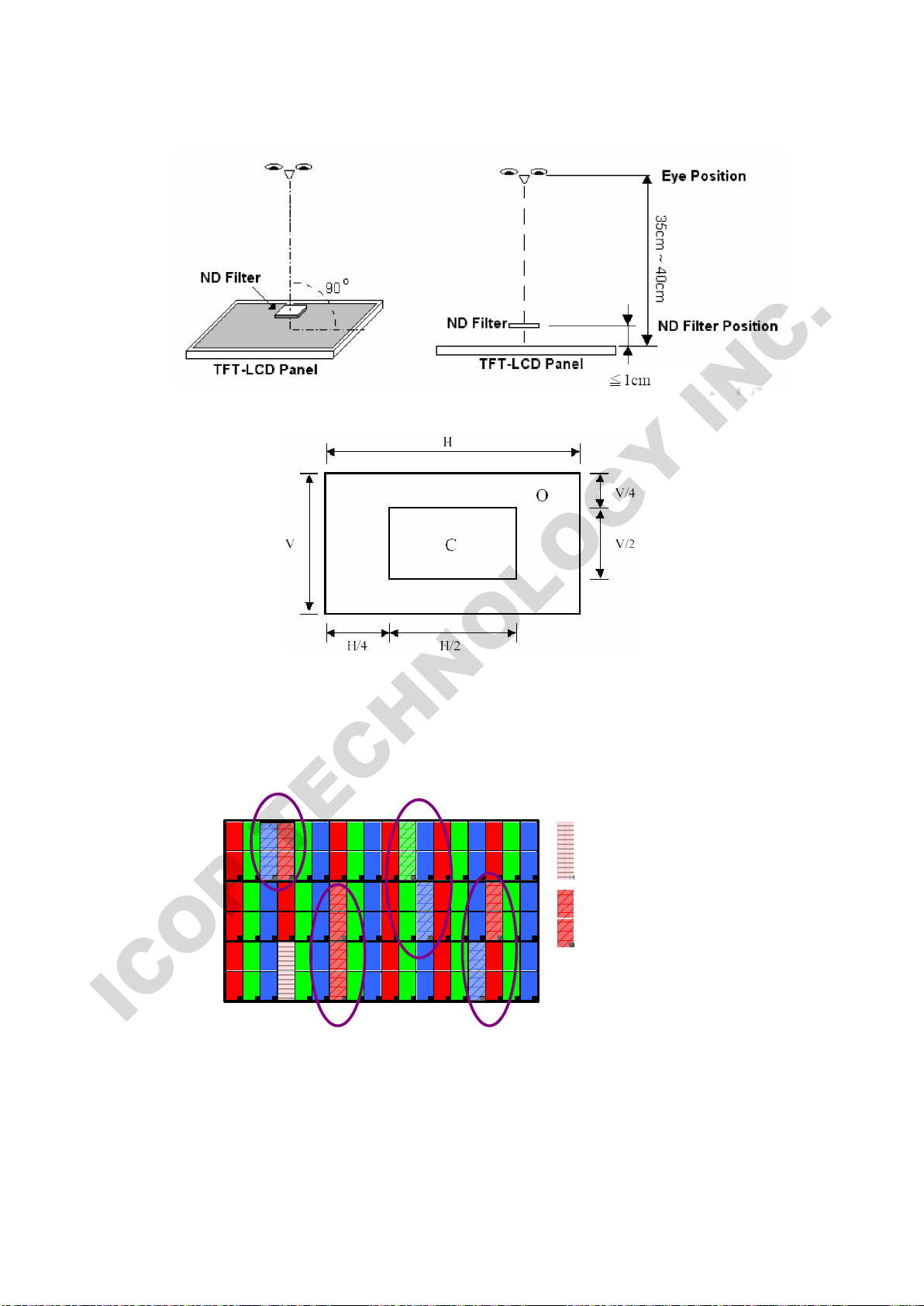

[ Note 2 ] Bright dot is defined through 6% transmission ND Filter as following.
[ Note 3 ] Display area
C Area: Center of display area O Area: Outer of display area
[ Note 4 ] Judge the defect dot and the adjacent dot as following. Allow below
(as A, B, C and D status) adjacent defect dots, including bright and dark adjacent
dot. And they will be counted 2 defect dots in total quantity.
R
R
G
G
Ｂ
Ｂ
R GＢ
R
R
G
G
Ｂ
Ｂ
R GＢ
R
R
G
G
Ｂ
Ｂ
R GＢ
R
R
G
G
Ｂ
Ｂ
R GＢ
R
R
G
G
Ｂ
Ｂ
R GＢ
R
R
G
G
Ｂ
Ｂ
R GＢ
R
RDefect Dot
Adjacent Dot
A
B
C
D
The defects that are not defined above and considered to be problem shall
be reviewed and discussed by both parties.
Defects on the Black Matrix, out of Display area, are not considered as a defect
or counted.
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 7

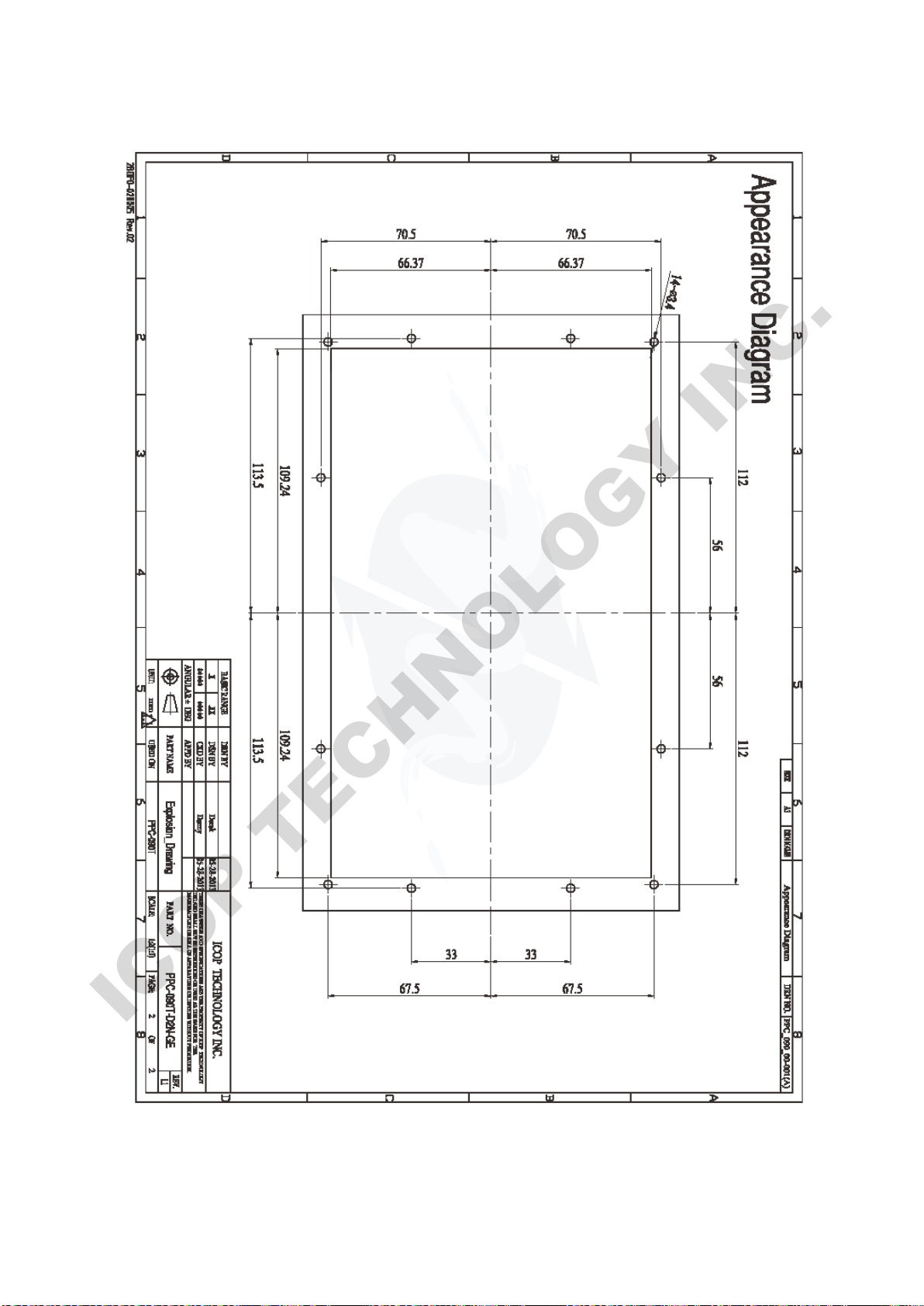

1.4 Product Dimensions
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 8
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 9

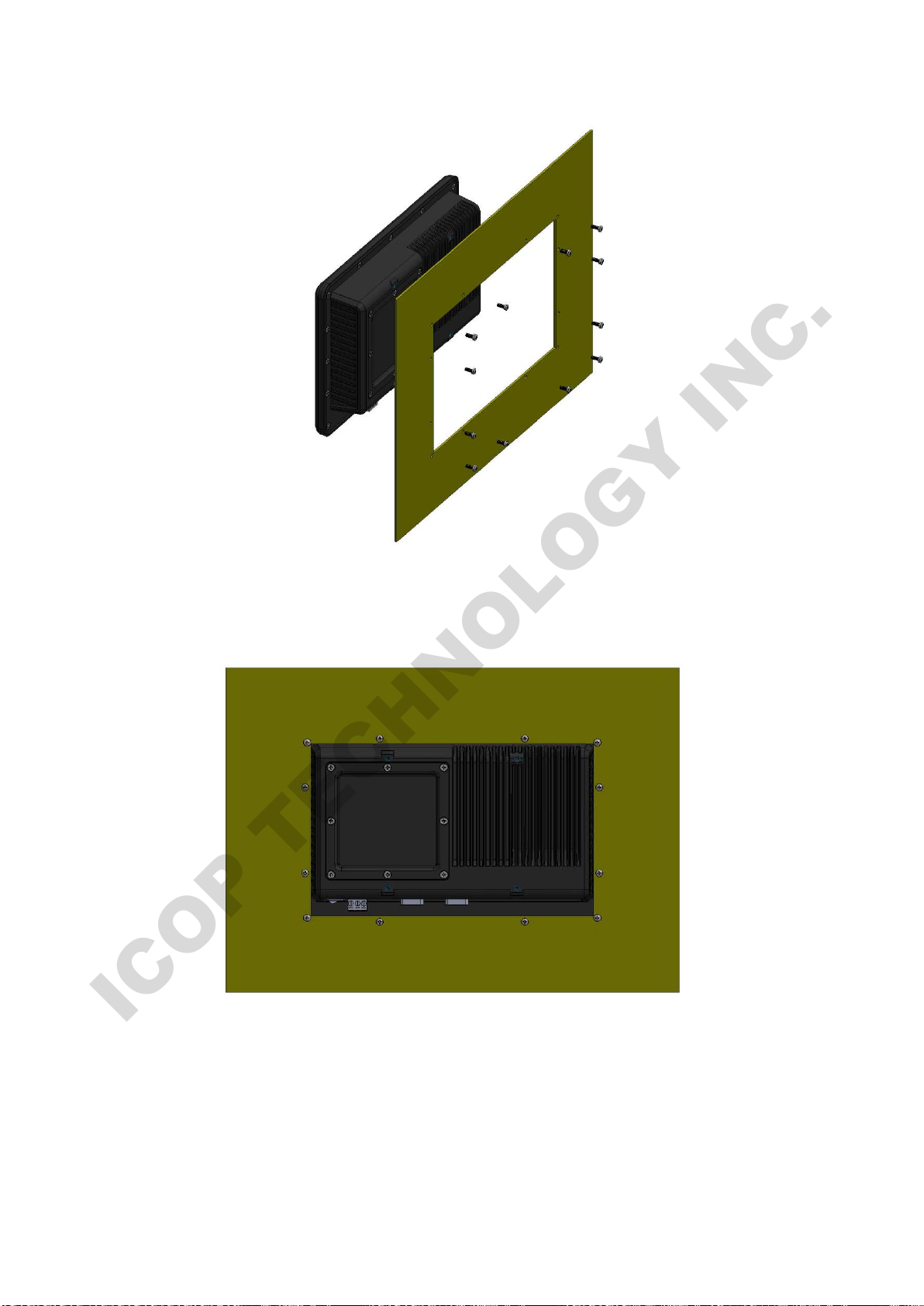

1.5 Panel Mounting Instruction
1. Cut a mounting hole in the panel. (Refer to PPC‐090T Dimensions
on page 7~8.) (Note 1)
2. Check and remove the twelve M3 screws in a diagonal pattern as
image below if necessary.
3. Place PPC‐090T face‐down on a clean, flat surface.
4. Slide the panel cutout around the back of PPC‐090T, until the panel
rests directly on the gasket. Make sure the screw holes align with
the screw holes on PPC‐090T.
5. The screw size is M3*L (L=wall thickness + 6.0mm) (Note 2)
6. Insert all twelve M3 screws into the screw holes. (Note 2)
7. Finger-tighten the M3 screws. Finish tightening the M3 screws in a
diagonal pattern using an M3 screw driver (see the image as below);
maximum torque 1.18Nm (12 kgf‐cm).
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 10
Note 1:
It is strongly recommended that a professional machine shop cut the
mounting hole in the panel.
Note 2:
The length for all twelve M3 screws will be according to the thickness of
mounting panel. For example: The length of standard M3 screws for
PPC-090T is 6mm. If the thickness of your mounting panel is 3mm and
washer thickness is 1mm, you have to use 10mm M3 screw.
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 11
1.6 Ordering Information
PART NUMBER DESCRIPTION
PPC-090T-D2N3N 9” Panel PC w/512MB Memory / 3USB /
AUDIO / LAN / 2COM / DC12~24V
PPC-090T-D2N4N 9” Panel PC w/1GB Memory / 3USB /
AUDIO / LAN / 2COM / DC12~24V
PPC-090T-D2N3N-GE 9” Panel PC w/512MB Memory / 3USB /
AUDIO / LAN / GigaLAN / 2COM /
DC12~24V
PPC-090T-D2N4N-GE 9” Panel PC w/1GB Memory / 3USB /
AUDIO / LAN / GigaLAN / 2COM /
DC12~24V
PPC-090T-D2W4N 9” Panel PC w/1GB Memory / 3USB /
AUDIO / LAN / 2COM / DC12~24V /
Wide Temp
PPC-090T-D2W4N-GE 9” Panel PC w/1GB Memory / 3USB /
AUDIO / LAN / GigaLAN / 2COM /
DC12~24V / Wide Temp
PACKING LIST
PART NUMBER PACKAGE
PPC-090T-D2N3N PPC-090T-D2N3N*1 M4 L8 Screw *4
PPC-090T-D2N4N PPC-090T-D2N4N*1 M4 L8 Screw *4
PPC-090T-D2N3N-GE PPC-090T-D2N3N-GE*1 M4 L8 Screw *4
PPC-090T-D2N4N-GE PPC-090T-D2N4N-GE*1 M4 L8 Screw *4
PPC-090T-D2W4N PPC-090T-D2W4N*1 M4 L8 Screw *4
PPC-090T-D2W4N-GE PPC-090T-D2W4N-GE*1 M4 L8 Screw *4
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 12
Ch. 2
System Installation
2.1 CPU Board Outline
2.2 Connector Summary
2.3 Connector Pin Assignments
2.4 External I/O Overview
2.5 External I/O Pin Assignment
2.6 Watchdog Timer
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 13
2.1 CPU Board Outline
PPC CPU Board
ICOP TECHNOLOGY INC.

PPC-090T User’s Manual IUMPPC090T-01 Ver.1.1A Mar, 2014 14
2.2 Connector Summary
No. Description Type of Connections Pin #
J1 Power Terminal Connector External Power Plug 3-pin
J3 COM (RS232/422/485) External D-Sub Male Connector 9-pin
J4 USB External USB Connector 6-pin
J5 USB External USB Connector 6-pin
J6 PS/2Keyboard External Mini DIN Socket 6-pin
J7 USB External USB Connector 6-pin
J8 USB (Wi-Fi Optional) Internal USB Connector 5-pin
J11 Ethernet External RJ45 Connector 8-pin
J12 GIGA Ethernet External RJ45 Connector 8-pin
J14 VGA 2.0mm 10-pin box header 10-pin
J16 SD Card Slot (Optional) Internal SD Card Socket
J19 RS-232-422-485 2.0mm 10-pin box header 10-pin
J25 SATA Slim Slot Internal SATA Slim Socket
J30 Audio Line-Out 1.25mm Phone Jack 2-pin
CF1 CF Card Socket CF Type I/II Socket
ICOP TECHNOLOGY INC.
