Tipro FREE+ 12.1" User manual

ext. Tipro module
other USB devices
to PC
cables goes first
through the hole
open
the cover
if the cables have to exit
at the back, not at the
bottom: clear the precut
opening
before using
your FREE+,
set the
resolution of
your Video card
to 800×600
and the refresh
rate to 60Hz!
gently close the cover
then VGA
connect
the power supply
and serial
cable...
...followed by the
connection to the PC
standard IBM
PS/2 keyboard
and, if present,
an external Touch
module
guide cables
through the channel
OSD keys
VGA
power supply USB version
11
44
33
22

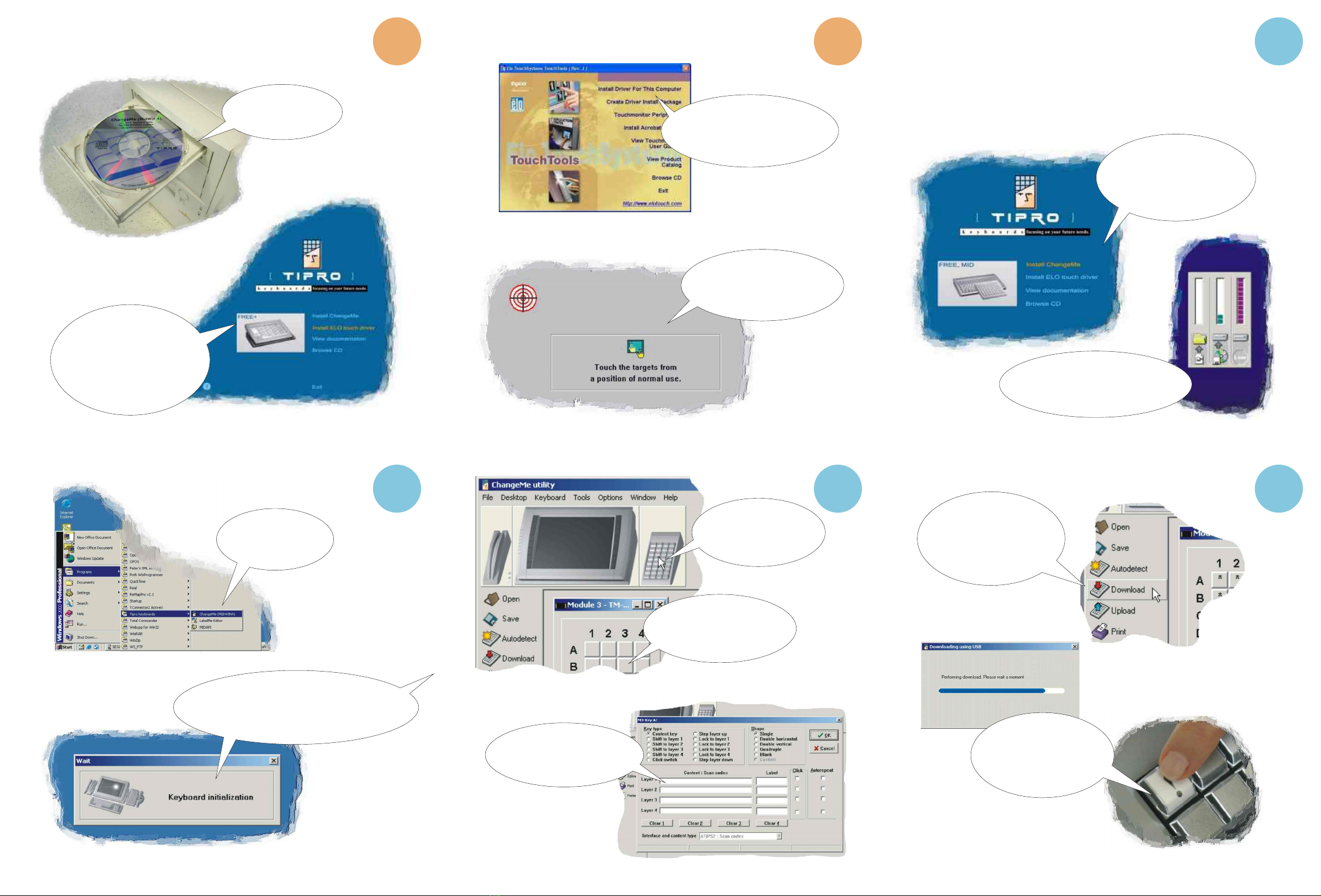

Getting started
with
12,1” FREE+

insert
Tipro CD follow the on-screen
directions
select ChangeMe
installation from
the pop-up menu
and calibrate the
touch-screen
run
ChangeMe
your FREE+ configuration will
be automatically detected
click on the
module
click on the key
to be defined
enter the content
for each layer
when finished,
download to
the keyboard
and try your
new
configuration!
follow directions and
finish the installation
FOLLOWING STEPS ARE NOT NEEDED IF:
- THE CONFIGURATION IS WITHOUT
PROGRAMMABLE KEYBOARD
- THE KEYBOARD IS ALREADY PROGRAMMED
select
ELO touch driver
installation
from the menu
NOT
www.tipro.net
112233
665544
Installing Touch Screen driverInstalling Touch Screen driver Installing ChangeMe programming utilityInstalling ChangeMe programming utility
