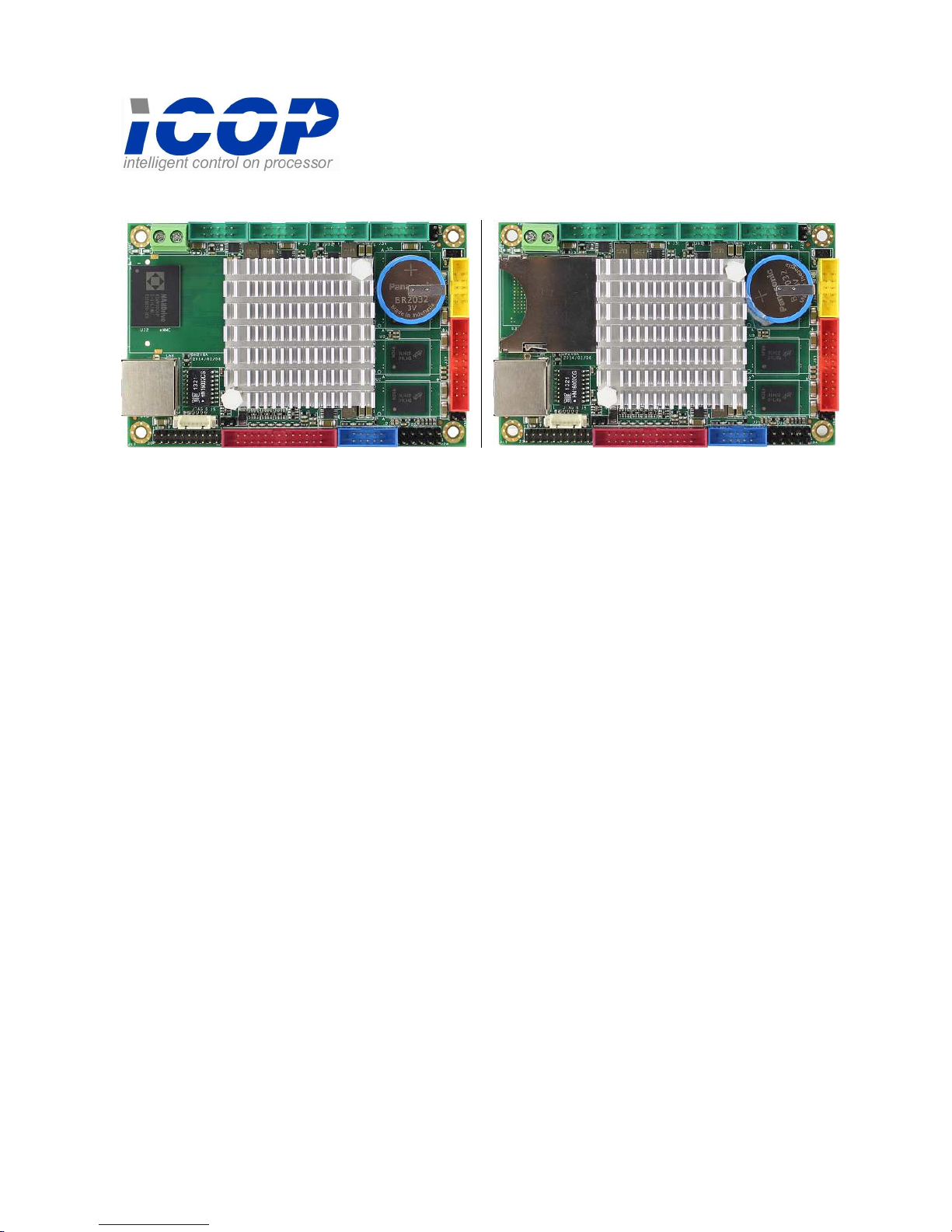

Icop VDX2-6518-E User manual

VDX2-6518-E / VDX2-6518-S
DM&P Vortex86DX2 800MHz
Tiny CPU Module
with 4S/2USB/VGA/LVDS/LAN/eMMC or SD Card/PWMx8
1GB DDR2 Onboard
User’s Manual
(Revision 1.2A)

Copyright
The information in this manual is subject to change without notice for continuous improvement in
the product. All rights are reserved. The manufacturer assumes no responsibility for any
inaccuracies that may be contained in this document and makes no commitment to update or to
keep current the information contained in this manual.
No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part,
in any form or by any means without the prior written permission of the IC P Technology Inc.
Copyright 2014 IC P Technology Inc.
Manual No. IUM6518000-01 Ver.1.0A June, 2014
Manual No. IUM6518000-01 Ver.1.1A July, 2014
Manual No. IUM6518000-01 Ver.1.2A September, 2014
Manual No. IUM6518000-01 Ver.1.3A April, 2015
Trademarks Acknowledgment
Vortex86DX2 is the registered trademark of DM&P Technology Inc.
ther brand names and product names that appear in this document are the
properties and registered trademarks of their respective owners. All names
mentioned herewith are served for identification purpose only.

T a b l e o f C o n t e n t s
T a b l e o f C o n t e n t s ............................................................. iii
C h a p t e r 1 Introduction……………………………………………1
1.1 Packing List ............................................................ 1
1.2 Product Description ................................................ 2
1.3 Specifications ......................................................... 3
1.4 Board Dimension .................................................... 4
C h a p t e r 2 Installation……………………………………………..5
2.1 Board utline ......................................................... 5
2.2 Connectors Location ...................................... ........6
2.3 Connectors & Jumpers Summary ........................... 7
2.4 Pin Assignments & Jumper Settings ....................... 8
2.5 System Mapping ................................................... 12
2.6 Watchdog Timer ................................................... 16
2.7 GPI .................................................................... 16
2.8 SPI flash ............................................................... 17
2.9 PWM .................................................................... 17
C h a p t e r 3 Driver Installation……………………………………18
Appendix ………………………………………………………………..18
A. LVDS Flat Panel Support List .................................... 19
B. Flat Panel Wiring and Lighting .................................. 19
C. TCP/IP library for D S real mode ............................. 20
D. BI S Default Setting ................................................. 21
Warranty ............................................................................................ 22

This page is blank

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
1
C h a p t e r 1
Introduction
1.1 Packing List
Product Name Package
VDX2-6518
Embedded Vorte 86DX2 CPU All-in-One Board
RS232 cable 4
PRINTER cable 1
GPIO cable 1
USB cable 1 (USB port 2 )
VGA cable 1
PS/2 Mouse cable 1
PS/2 Keyboard cable 1
Screw Kit 1

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
2
1.2 Product Description
The VDX2-6518, a low-power x86 embedded controller, is designed to meet tiny module
specification, and is integrated with the following features.
800 MHz Vortex86DX2 SoC
VGA, LVDS LCD support up to
1280x1024 resolution
1 GB DDR2 system memory
10/100Mbps Ethernet
2 USB 2.0 (host)
Up to 4 serial ports
Parallel port
8-bit GPI
nboard 4MB SPI Flash
2 watchdog timer
PWM 8~16channels
JTAG interface
AMI BI S
Single voltage +5V DC
Support operating temperature range
of -10°C to +60°C
The embedded controller tiny module VDX2-6518 is designed with backward compatibility in
mind, to provide migration path for projects facing end-of-life challenges with their existing x86
based tiny module controller. This versatile controller is designed as a plug in replacement, with
backward compatibility to support legacy software to extend running product life cycle without
heavy and time consuming work.
VDX2-6518 is suitable for broad range of data-acquisition, Industrial automation, Process control,
Automotive controller, AVL, Intelligent Vehicle management device, Medical device, Human
machine interface, Robotics, machinery control And more…application that required small
footprint, low-power and low-cost hardware.

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
3
1.3 Specifications
Features VDX2-6518
CPU
DM&P SoC CPU Vortex86
D
X
2
-
8
00MHz
Real Time Clock with Lithium Battery Backup
Cache
L1:16K I-Cache, 16K D-Cache L2:256KB Cache
BI S
AMI BI S
System Memory
1GB DDR2 nboard
Watchdog Timer
Software programmable from 30.5
us
to 512 seconds x2 sets
(Watchdog 1 fully compatible with M6117D)
VGA
Integrated
2D VGA chip with dual display support
(VGA + TTL /
VGA + LVDS)
VGA: Maximum resolution up to 1280x1024 @ 60Hz
LVDS: Maximum resolution up to 1024x768 @ 60Hz
Single channel 24-bit LVDS
LAN
Integrated 10/100M Ethernet
I / Interface
RS-232 port x3
RS-232/422/485 port x1
Parallel port x1
USB port x2 (USB 2.0 version)
8-bit GPI port x1
10/100Mbps Ethernet port x1
Connectors
2.00 mm ∅ 26-pin box header for Printer x1
2.00 mm ∅ 20-pin box header for 8-bit GPI x1
2.00 mm ∅ 20-pin header for LVDS x 1
2.00 mm ∅ 10-pin box header for VGA x1
2.00 mm ∅ 10-pin box header for USB x1
2.00 mm ∅ 10-pin box header for RS-232 x4
2.54 mm ∅ 5-pin box header for Keyboard x1
2.54 mm ∅ 5-pin header for Mouse x1
2.54 mm ∅ 4-pin header for DC-in x1
2.54 mm ∅ 2-pin header for Reset x1
1.25 mm ∅ 6-pin Wafer for JTAG x1
External RJ-45 connector for Ethernet x1
Flash Disk Support
nboard 4MB SPI Flash Disk (Driver: A)
4GB eMMC or SD Card Slot
PWM
8 channels
Power Requirement
Single Voltage +5V @720mA
Dimension
100 X 66mm (3.94 x 2.6 inches)
Weight
63g
perating Temperature
-10
o
C ~ +60
o
C
perating System
Support
Free D S,
MS
-
D S
,WIN
CE6.0,
WIN
CE7.0, Windows XP
Professional, Windows Embedded Standard (XPE), P S
Ready(WeP S), Embedded Linux, X-Linux,

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
4
1.4 Board Dimension

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
5
C h a p t e r 2
Installation
2.1 Board Outline
VDX2-6518-E
VDX2-6518-S
(Note1: COM2 RS232/485 is selected by BIOS setting)
(Note2: GPIO has 8-bit available only (Optional))

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
6

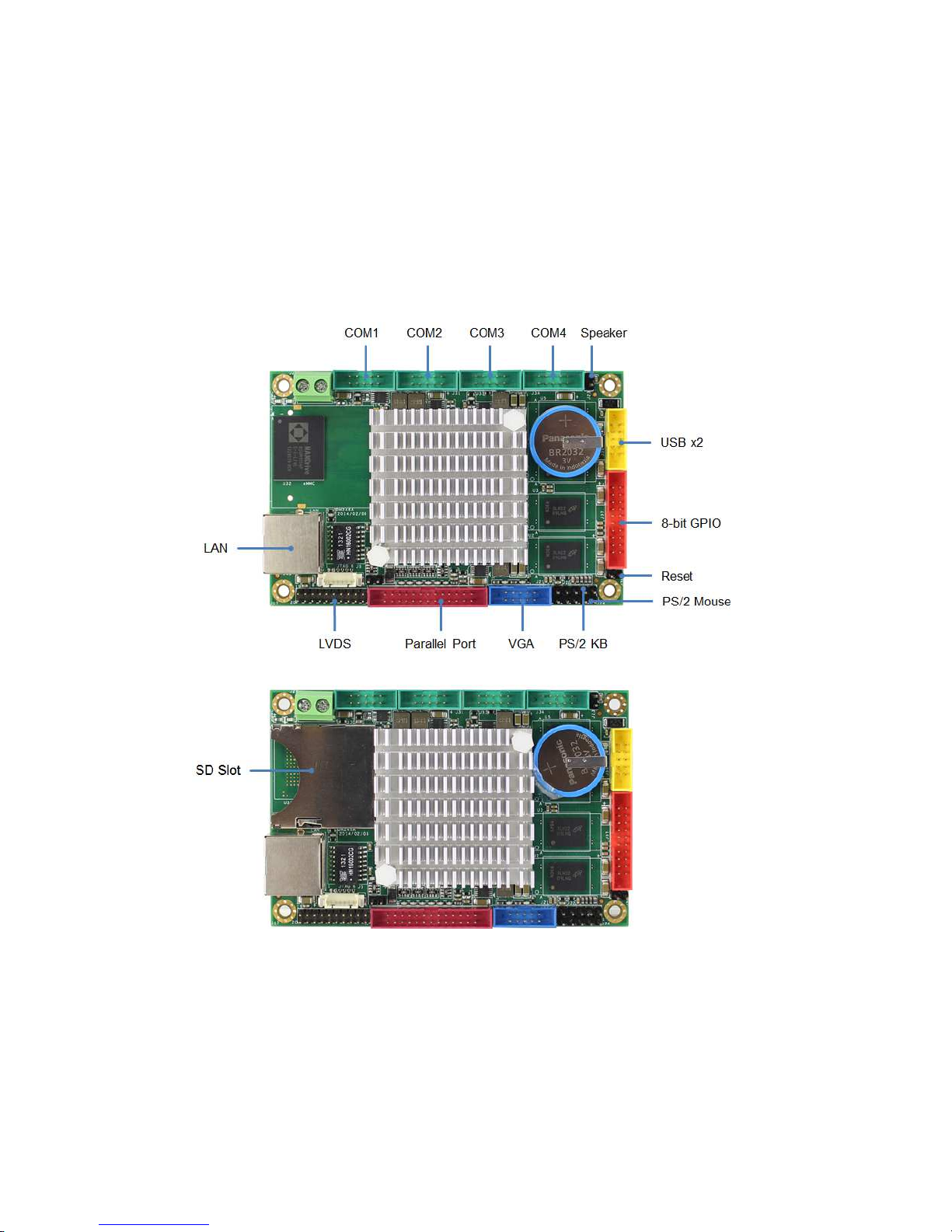

2.2 Connectors Location
Connectors

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
7
2.3 Connectors & Jumpers Summary
Summary Table
Nbr
Description Type of Connections
Pin nbrs.
J5 JTAG (For IC P usage only) Wafer, 1.25∅,1x6 6-pin
J17
LVDS Pin Header, 2.0∅, 10x2 20-pin
J21
VGA Pin Header, 2.0∅, 5x2 10-pin
J22
PS/2 Keyboard Box Header, 2.54∅,1x5 5-pin
J23
Speaker Pin Header, 2.54∅,1x2 2-pin
J24
PS/2 Mouse Box Header, 2.54∅,1x5 5-pin
J26
Power Connector Terminal Block, 5.0∅, 2x1
2-pin
J30
C M1( ptional: TTL) Box Header, 2.0∅, 5x2 10-pin
J31
C M2(RS232/422/485) Box Header, 2.0∅, 5x2 10-pin
J33
C M5( ptional: TTL) Box Header, 2.0∅, 5x2 10-pin
J34
C M6( ptional: TTL) Box Header, 2.0∅, 5x2 10-pin
J37
GPI (Port 3) Box Header, 2.0∅,10x2 20-pin
J38
Reset Pin Header, 2.54∅,1x2 2-pin
J39
USB Pin Header, 2.54∅, 5x2 10-pin
J43
LAN Pin Header, 2.00∅, 4x2 8-pin
J45
CL SE:SPI FLASH H LD Pin Header, 2.54∅,1x2 2-pin
J46
PRINT Box Header, 2.0∅, 13x2
26-pin

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
8
2.4 Pin Assignments & Jumper Settings
J17: LVDS (24-bit support only)
Pin # Signal Name
Pin # Signal Name
1 VCC3(+3.3V)
2 VCC3(+3.3V)
3 GND 4 GND
5 RxIN0+ 6 RxIN0-
7 RxIN1- 8 GND
9 GND 10 RxIN1+
11 RxIN2+ 12 RxIN2-
13 CKIN- 14 GND
15 GND 16 CKIN+
17 RxIN3- 18 GND
19 GND 20 RxIN3+
J21: VGA
Pin # Signal Name
Pin # Signal Name
1 R UT 2 GND
3 G UT 4 GND
5 B UT 6 GND
7 HSYNC 8 GND
9 VSYNCD 10 GND
J22: PS/2 Keyboard
Pin # Signal Name
Pin # Signal Name
1
KBCLK
2
KBDAT
3
NC
4
GND
5
VCC
J23: SPEAKER (BUZZER)
Pin # Signal Name
Pin # Signal Name
1
SPEAKER
2 VCC
J24: PS/2 Mouse
Pin # Signal Name
Pin # Signal Name
1
MSCLK
2
MSDATA
3
NC
4
GND
5
VCC

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
9
J26: Power Connector (Terminal Block 5.0mm)
Pin # Signal Name
1
+5V
2
GND
J30: COM1 (Optional: TTL )
Pin # Signal Name
Pin # Signal Name
1 DCD1- 2 RXD1+
3 TXD1 4 DTR1
5 GND 6 DSR1
7 RTS1 8 CTS1
9 RI1 10 NC
J31: COM2 RS232 / 422 / 485
Pin #
Signal Name Pin # Signal Name
1 DCD2 / 422TX- / RS485-
2 RXD2 / 422TX+ / RS485+
3 TXD2 / 422RX+ 4 DTR2 / 422RX-
5 GND 6 DSR2
7 RTS2 8 CTS2
9 RI2 10 NC
J33: COM5 (Optional: TTL)
Pin # Signal Name
Pin # Signal Name
1 DCD5 2 RXD5
3 TXD5 4 DTR5
5 GND 6 DSR5
7 RTS5 8 CTS5
9 RI5 10 NC
J34: COM6 (Optional: TTL)
Pin # Signal Name
Pin # Signal Name
1 DCD6 2 RXD6
3 TXD6 4 DTR6
5 GND 6 DSR6
7 RTS6 8 CTS6
9 RI6 10 NC

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
10
J37: GPIO Port 3 (Not available if SPI ROM is enabled in BIOS)
Pin # Signal Name Pin # Signal Name
1 GND 2 NC
3 GP30/SPICS 4 NC
5 GP31/SPICLK
6 NC
7 GP32/SPID 8 NC
9 GP33/SPIDI 10 NC
11 GP34 12 NC
13 GP35 14 NC
15 GP36 16 NC
17 GP37 18 NC
19 VCC 20 NC
*Please see Page16 for detail
J38: RESET
Pin # Signal Name
Pin # Signal Name
1 RST_SW 2 GND
J39: USB
Pin # Signal Name
Pin # Signal Name
1
VCC
2
VCC
3
LUS
BD
3
-
4
LUSBD
2
-
5
LUSBD
3
+
6
LUSBD
2
+
7
GND
8
GND
9
GGND
10
GGND
J45: CLOSE: SPI FLASH HOLD
Pin # Signal Name
Pin # Signal Name
1 GND 2 VCC3

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
11
J46: PRINT
Pin # Signal Name
Pin # Signal Name
1 STB- 14 AFD-
2 PD0 15 ERR-
3 PD1 16 INIT-
4 PD2 17 SLIN-
5 PD3 18 GND
6 PD4 19 GND
7 PD5 20 GND
8 PD6 21 GND
9 PD7 22 GND
10 ACK- 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SLCT 26 NC

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
12

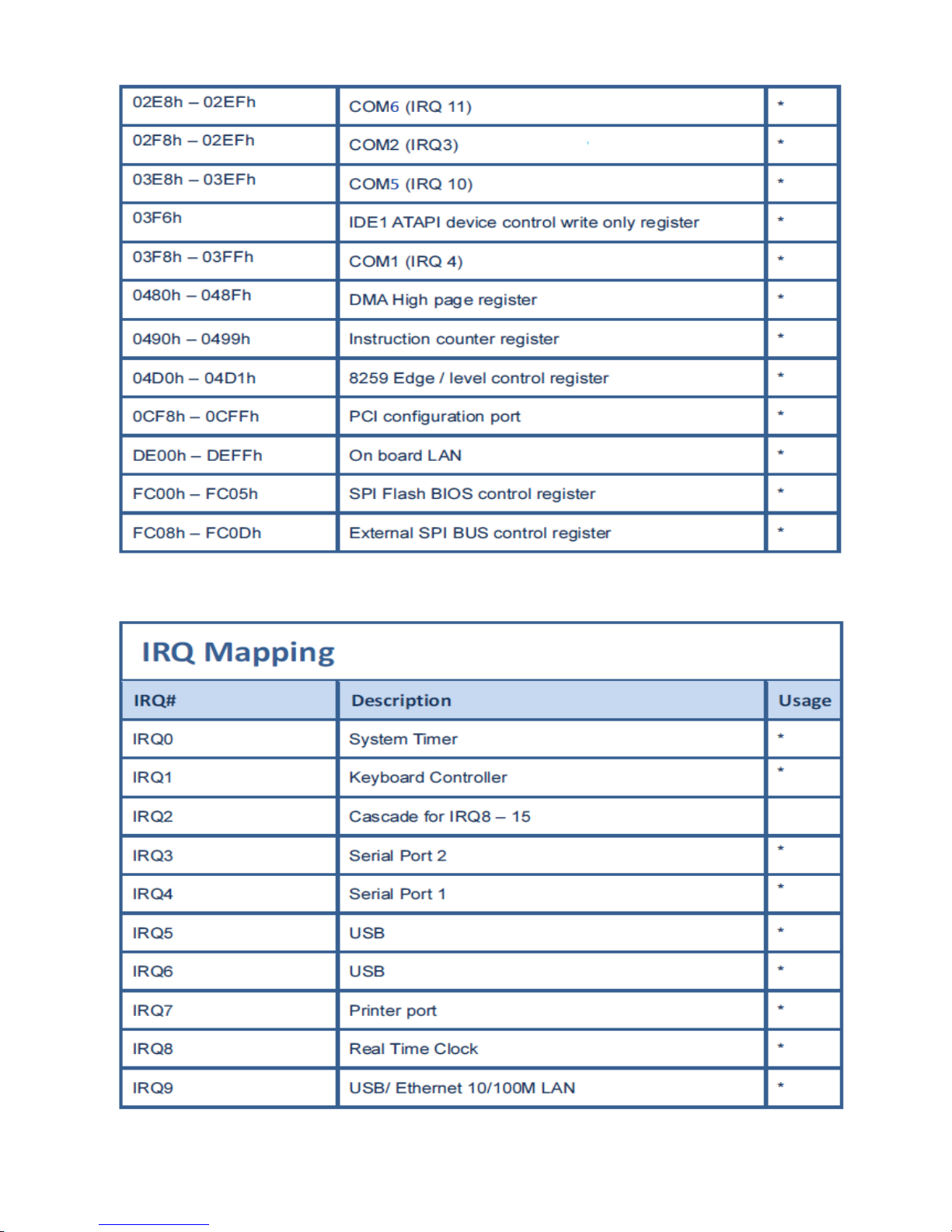

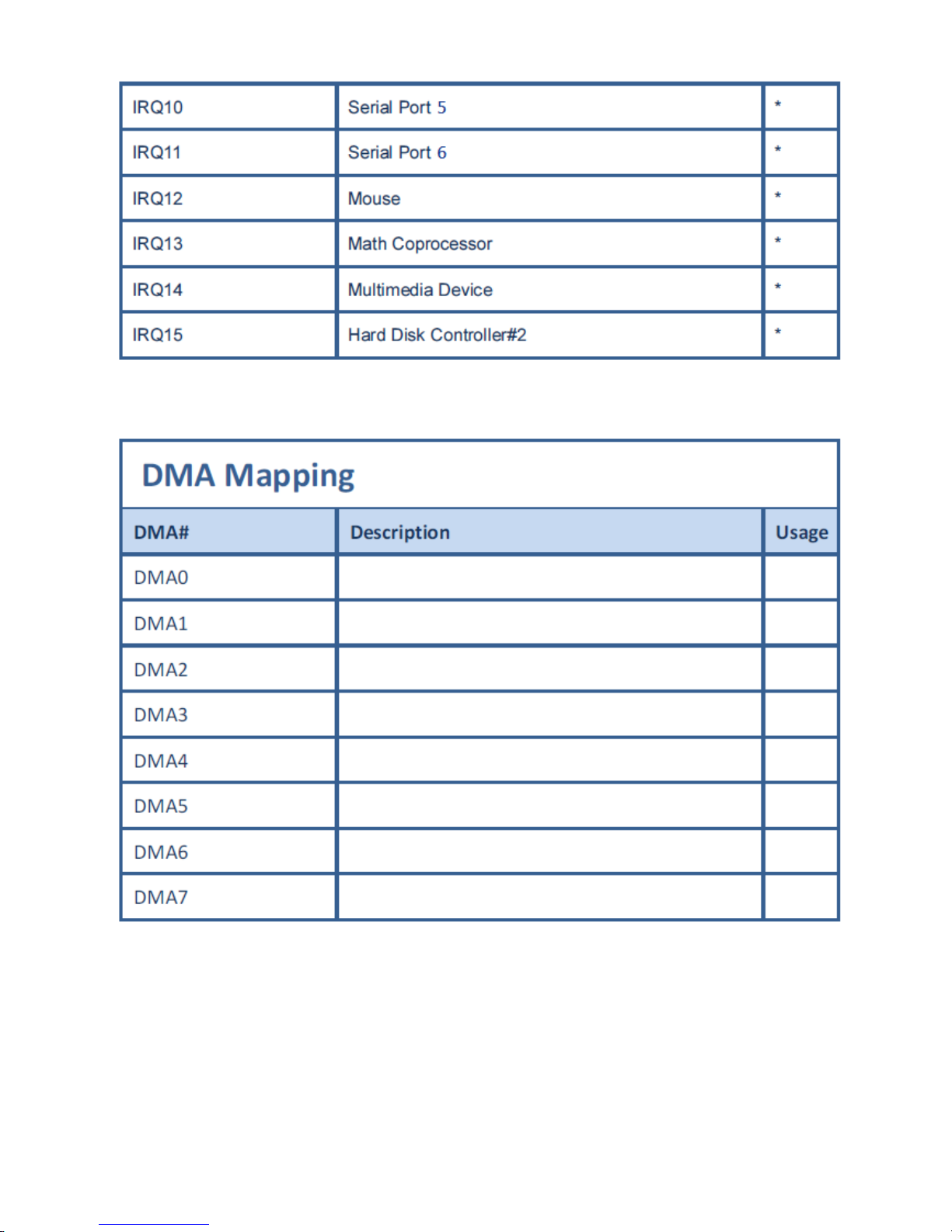

2.5 System Mapping

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
13

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
14

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
15

Vortex86DX2-65 8 Vortex86DX2 Tiny CPU Module
16
2.6 Watchdog Timer
There are two watchdog timers in Vortex86SX/DX/DX2 CPU. ne is compatible with M6117D
watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0
and new one is called WDT1.
We also provide D S, Linux and WinCE example for your reference. For more technical
support, please visit: http://dmp.com.tw/tech
2.7 GPIO (General Purpose Input / Output)
20 GPI pins (16 channels without ACC and Ground) are provided by the Vortex86DX2 for
general usage in the system. All GPI pins are independent and can be configured as inputs or
outputs, with or without pull-up/pull-down resistors.
However, VDX2-6518 only offers 8 channels of GPI , GPI Port 3, for you to use. These
channels are also occupied by onboard SPI flash disk. If you enable SPI flash disk in the CM S
setting, you will not be able to use any GPI channel.
Here is register information of GPI Port 3 for your reference.
Port 6
Data Register: 7BH
Direction Register: 9BH
We also offer D S, Linux and WinCE example for your reference. For more technical support,
please visit: http://www.dmp.com.tw/tech
