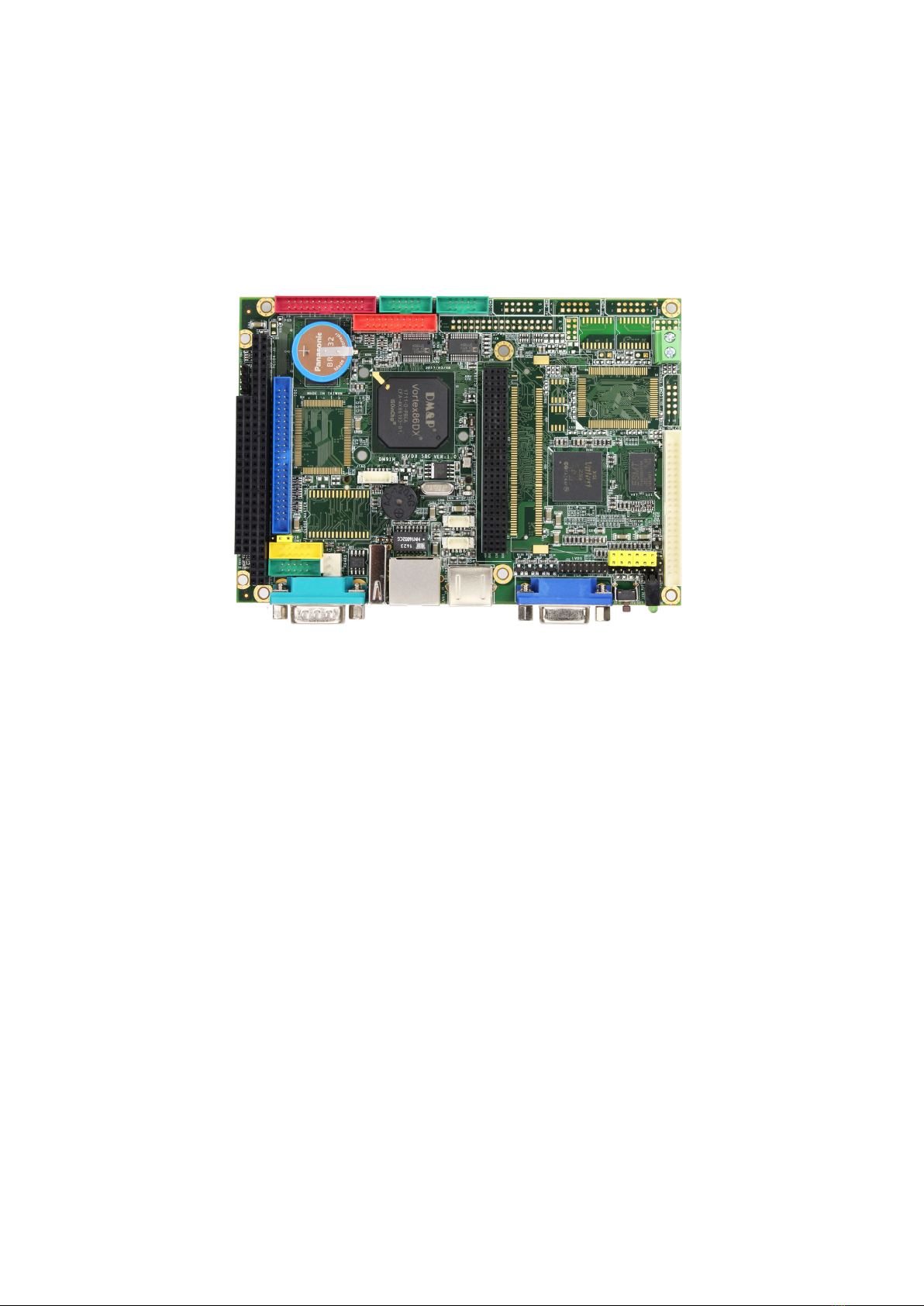

Icop VDX-6328RD-NF User manual

User Manual
VDX-6328RD-NF
with
DM&P Vortex86DX
800MHz processor
Version 1.1

VDX-6328RD-NF User Manual
I
Copyright
The information in this manual is subject to change without notice for continues
improvement in the product. All rights are reserved. The manufacturer assumes no
reasonability for any inaccuracies that may be contained in this document and
makes no commitment to update or to keep current the information contained in
this manual.
Trademarks Acknowledgement
Vortex86DXTM is the registered trademark of DM&P Electronics Inc.
Other brand names and product names that appear in this document are the
properties and registered trademarks of their respective owners. All names
mentioned herewith are served for identification purpose only.

VDX-6328RD-NF User Manual
II
Revision History
Revision Date Remark
1.0 May 7 2018 First version released
1.1 Feb 7, 2020 Remove Y cable from cable list

VDX-6328RD-NF User Manual
III
Table of Contents
1 General Information ........................................................................................................................ 1
1.1 Packing List ....................................................................................................................................... 1
1.2 Block diagram ................................................................................................................................... 1
1.3 Specifications .................................................................................................................................... 2
1.4 Ordering Information ..................................................................................................................... 3
2 Hardware Information ..................................................................................................................... 4
2.1 Dimension ......................................................................................................................................... 4
2.2 Board Outline and Connector Location ....................................................................................... 5
2.3 Connector and Jumper Summary .................................................................................................. 6
2.4 Pin Assignments & Jumper Settings ............................................................................................. 8
J1: IDE ................................................................................................................................................. 8
J2: Jumper Switch for CF Mater/Slave ........................................................................................... 8
J4: USB1 ............................................................................................................................................... 9
J6: LAN ................................................................................................................................................ 9
J7: Reset................................................................................................................................................ 9
J9: PS/2 Connector (for Keyboard/Mouse) .................................................................................. 9
J10: COM1 (Optional: TTL/GPIO-P4/PWM x8) ..................................................................... 10
J11: GPIO (Port0/1 or PWM x8) .................................................................................................. 10
J12: COM2 RS232/433/485 (Optional: TTL/PWM (8254 counter) ....................................... 10
J15: RS485 (Auto direction) ............................................................................................................ 11
J16: Power Connector ...................................................................................................................... 11
J17: COM3 ......................................................................................................................................... 11
J18: Parallel ........................................................................................................................................ 12

VDX-6328RD-NF User Manual
IV
J19: COM4 ......................................................................................................................................... 12
J25: PC/104 Connector (64pins) .................................................................................................... 13
J26: PC/104 Connector (40pins) .................................................................................................... 14
J27: 4P Power Source (Interconnect to PC/104 – J25) .............................................................. 14
J29: PC/104+ .................................................................................................................................... 15
J30: VGA ........................................................................................................................................... 17
J31: LVDS .......................................................................................................................................... 17
J32 to J38: Display Type Setup (CRT/LCD) ............................................................................... 18
J33: LCD (DVO) Connector .......................................................................................................... 19
J40: Lint-out ...................................................................................................................................... 19
J41: MIC-in ........................................................................................................................................ 19
2.5 System Mapping ............................................................................................................................. 20
2.6 Watchdog Timer ............................................................................................................................ 23
2.7 GPIO ............................................................................................................................................... 23
2.8 SPI Flash ......................................................................................................................................... 23
2.9 PWM ................................................................................................................................................ 24
2.10IDE to Micro SD .......................................................................................................................... 25
3 Driver Installation ........................................................................................................................... 26
4 Software Resources......................................................................................................................... 27
4.1 Technical Resource Website ............................................................................................. 27
Technical Support Directly from ................................................................................................ 28
User Manual Feedback ............................................................................................................................. 28
Appendix .................................................................................................................................................... 29
TFT Flash Panel Data Output ............................................................................................................ 29
TFT Flash Panel Support List ............................................................................................................ 30
Flat Panel Hardware Setting ................................................................................................................ 32
Flat Panel Wiring and Lighting ........................................................................................................... 33

VDX-6328RD-NF User Manual
V
TCP/IP Library for DOS Real Mode................................................................................................ 33
BIOS Default Setting ........................................................................................................................... 34
Warranty ..................................................................................................................................................... 35

VDX-6328RD-NF User Manual
1
1 General Information
1.1 Packing List
Product Name Package
VDX-6328RD-NF
VDX-6328RD-NF-512
VDX-6328RD-NF board x1
RS232 cable x3
Parallel cable x1
IDE cable x1
GPIO cable x1
Audio line x2
USB cable x1

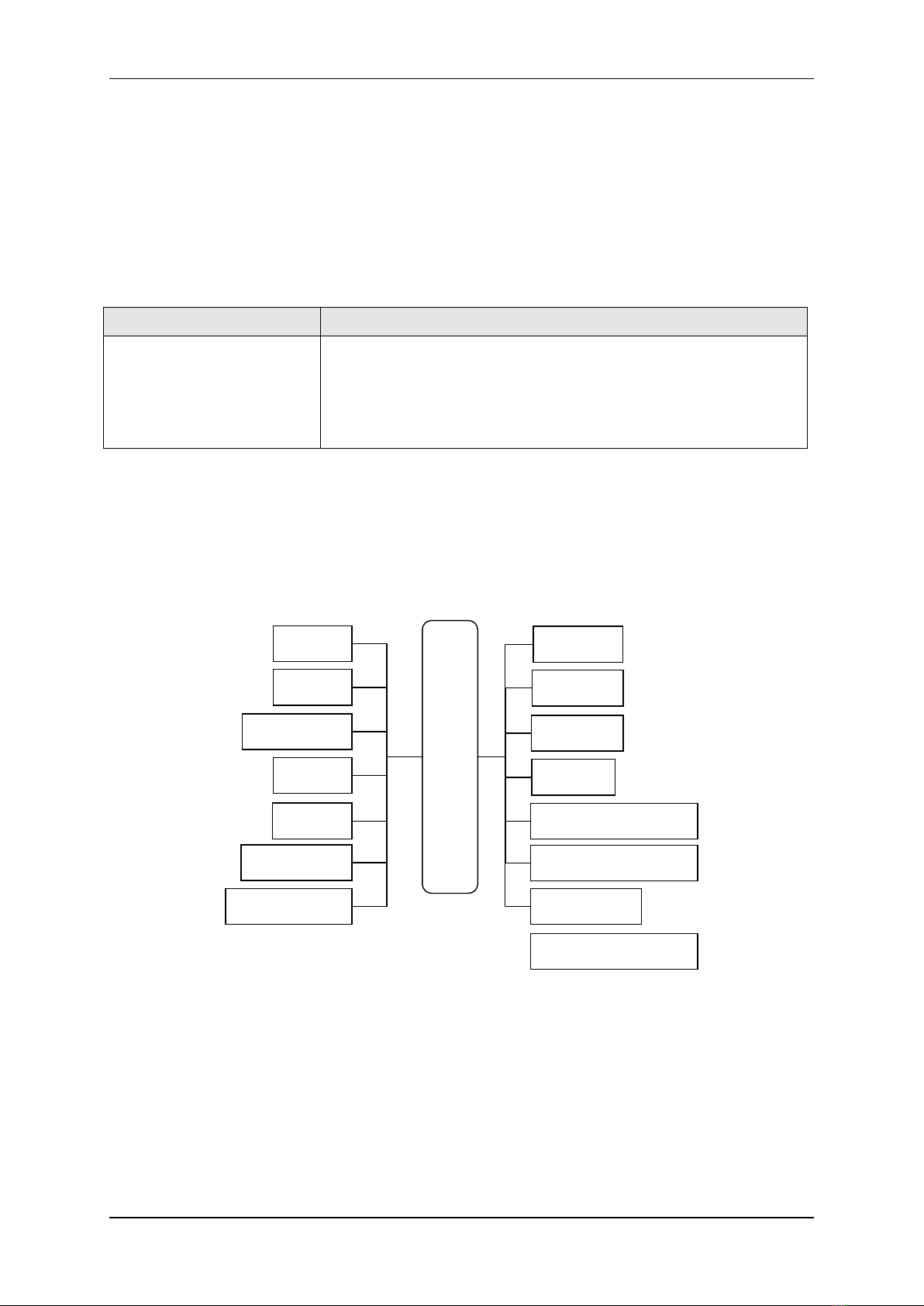

1.2 Block diagram
VDX-6328RD-NF Series
IDM x1
CF x1
SPI Disk x1
COM x4
USB x3 Line-in & MIC-out x1
Keyboard/Mouse x1
Parallel x1
16-bit GPIO x1
VGA x1
LVDS x1
LAN x1
PC/104+ x1
LCD x1
Mini PCI x1 (Optional)

VDX-6328RD-NF User Manual
2
1.3 Specifications
CPU DM&P Vortex86DX 800MHz
RMA 256/512MB DDR2 Onboard
BIOS AMI BIOS
Bus PC/104+ Standard Compliant
Display XGI Volari Z9s Chipset with VGA, TFT-LCD, and 18-bit LVDS Flat Panel
Interface Support and onboard 32MB VGA memory
VGA: Maximum resolution up to 1280 x 1024 @ 60Hz
LVDS/TFT-LCD: Maximum resolution up to 1024 x 768 @ 60Hz
LAN Integrated 10/100Mbps Ethernet x1
Disk Support IDE DoM Compact Flash Onboard 4MB SPI Flash
SRAM Support 512KB (Optional)
I/O Interface RS232 x3 RS232/422/485 x1
USB (Ver. 2.0) x3
16-bit GPIO x1
Parallel x1
Audio
Connectors 2.54mm 4-pin pin header for +12V, -12V, -5V, GND x1
2.54mm 2-pin pin header for Reset x1
2.54mm 3-pin pin header for RS485 x1
2.0mm 16-pin pin header for LVDS x1
2.54mm 104-pin PC/104 connector x1
2.0mm 44-pin box header for IDE x1
2.0mm 44-pin box header for LCD x1
2.0mm 26-pin box header for Parallel x1
2.0mm 20-pin box header for 16-bit GPIO x1
2.0mm 10-pin box header for RS232 x3
2.0mm 10-pin box header for USB x1
1.25mm 4-pin wafer for Line-Out/MIC-In x2
15-pin D-Sub female connector for VGA x1
9-pin D-Sub connector for RS232 x1
RJ45 connector for Ethernet x1
0.8nn 124-pin Mini PCI connector x 1 (Optional)
Mini DIN connector for Keyboard/Mouse x1
Type I/II Compact Flash Slot x1
USB connector x1
Power
Requirement DC +5V @ 840mA

VDX-6328RD-NF User Manual
3
Operating
Temperature
-20 - +70°C
-40 - +85°C (Optional)
Dimension 102 x 146mm
Weight 150g
O/S Support Windows Embedded 2009
Windows Embedded CE6.0
Windows Embedded CE 5.0
Linux
Free BSD
DOS
POS Ready (WePOS)
VxWorks
1.4 Ordering Information
PART NO. VDX-6328RD-NF VDX-6328RD-NF-512
CPU (MHz) 800MHz
DRAM (DDR2) 256MB 512MB
Storage
IDE DoM
Compact Flash
SPI Flash
Display VGA, LVDS, TFT-LCD
Bus PC/104+
LAN 1
RS232 3
RS485 1
USB 3
Parallel 1
Audio Line-out, MIC-in
Keyboard 1
Mouse 1

VDX-6328RD-NF User Manual
4
2 Hardware Information

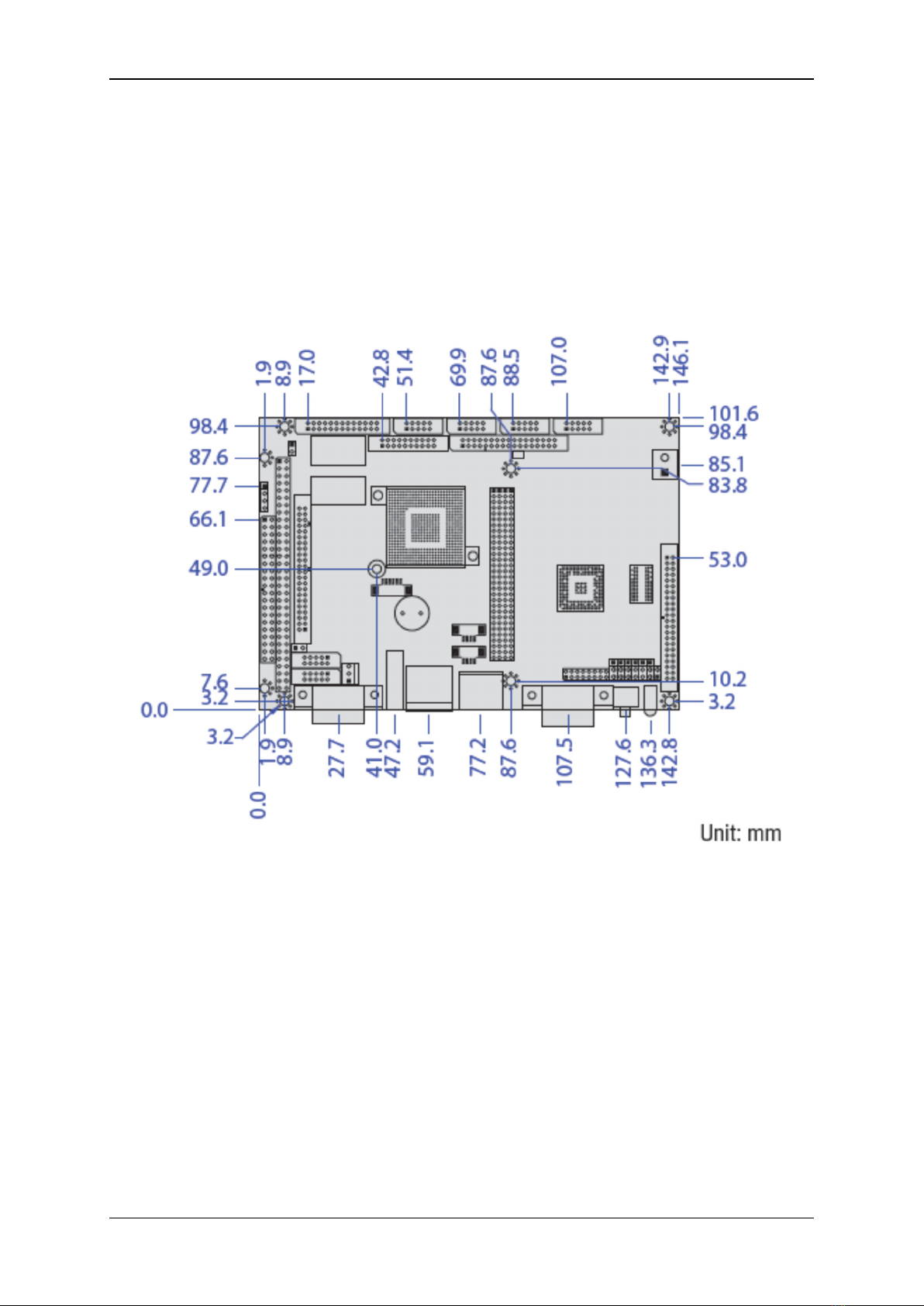

2.1 Dimension
