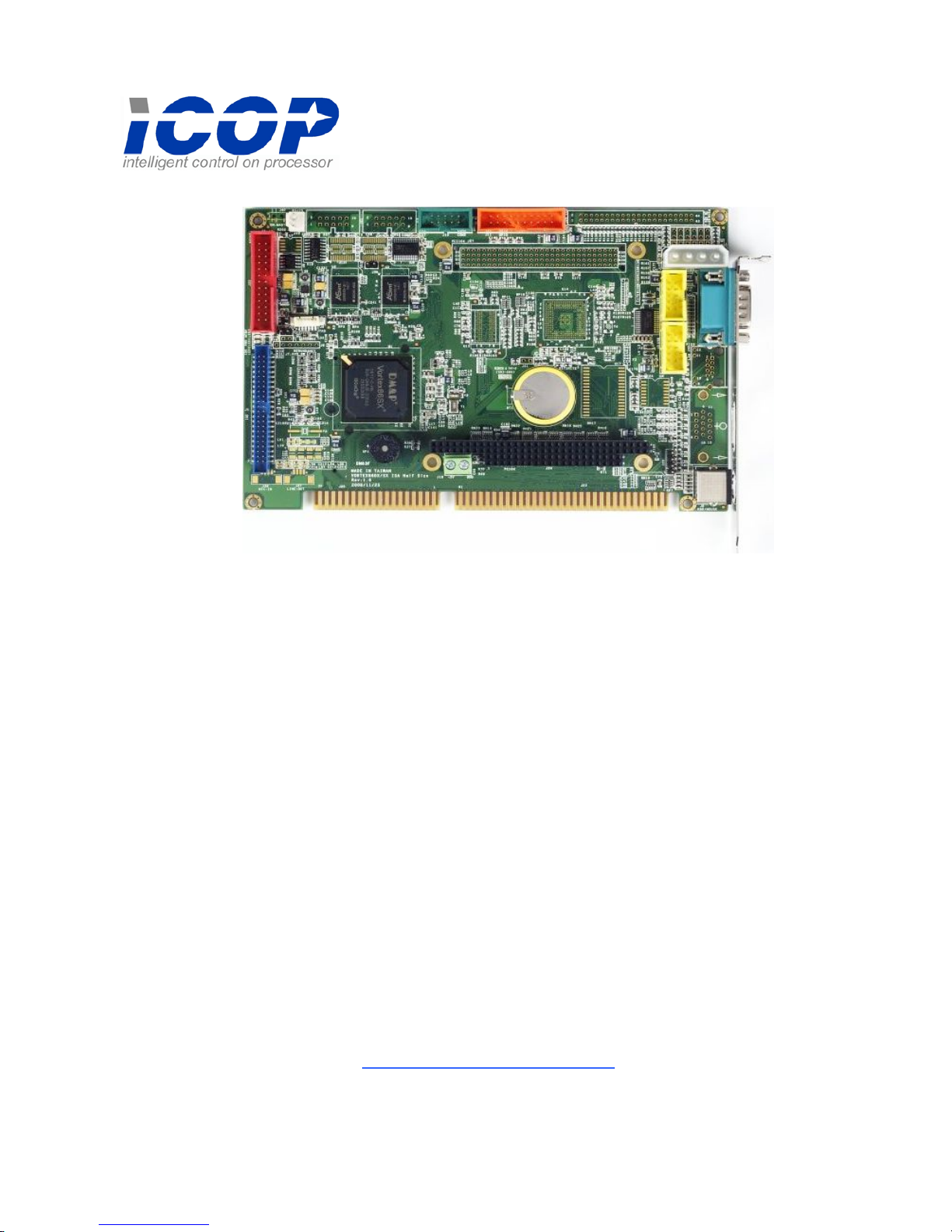

Icop VSX-6121-V2 User manual

Full 16-bit ISA Bus
VSX-6121-V2
DM&P Vortex86SX 300MHz
Half-Size CPU Module
with 2S/4USB/GPIO
128MB DDR2 Onboard
User’s Manual
(Revision 1.0A)
http://www.microcomputersystems.com

Copyright
The information in this manual is subject to change without notice for continuous improvement in
the product. All rights are reserved. The manufacturer assumes no responsibility for any
inaccuracies that may be contained in this document. And makes no commitment to update or to
keep current the information contained in this manual.
No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part,
in any form or by any means without the prior written permission of the ICOP Technology Inc..
Copyright 2007 ICOPTechnology Inc.
Manual No. IUM6121-V2000-01 Ver.1.0A July, 2010
Trademarks Acknowledgment
Vortex86SXis the registered trademark of ICOP Technology Inc.
Other brand names or product names appearing in this document are the properties
and registered trademarks of their respective owners. All names mentioned herewith
are served for identification purpose only.

T a b l e o f C o n t e n t s
T ab l e o f C o n t e nt s.............................................................iii
C h a p t e r 1 Introduction……………………………………………1
1.1 Packing List............................................................1
1.2 Product Description................................................2
1.3 Specifications.........................................................3
1.4 Board Dimension....................................................5
C h a p t e r 2 Installation……………………………………………..6
2.1 Board Outline.........................................................6
2.2 Connectors & Jumpers Location............................7
2.3 Connectors & Jumpers Summary...........................9
2.4 PinAssignments & Jumper Settings.....................10
2.5 System Mapping...................................................19
2.6 Watchdog Timer...................................................22
2.7 GPIO....................................................................23
2.8 SPI flash...............................................................24
C h a p t e r 3 Driver Installation……………………………………25
Appendix ………………………………………………………………..26
A. TCP/IPlibrary for DOS real mode.............................26
B. BIOS Default Setting.................................................27
Warranty............................................................................................28

Vortex86SX-6121-V2 Vortex86SXHalf-Size CPU Module
1
C h a p t e r 1
Introduction
1.1 Packing List
Product Name Package
VSX-6121-V2
Embedded Vortex86SX CPU All-in-One Board
Manual & Drivers CD x 1
RS232 cable x 1
PRINT cable x1
IDE cable x 1
USB cable x 2 (USB port x 2)
GPIO cable x 1
YKB for PS/2 Keyboard & Mouse x 1

Vortex86SX-6121-V2 Vortex86SXHalf-Size CPU Module 2
1.2 Product Description
The VSX-6121-V2 family of low-power x86 embedded controller is designed to meet Half-Size
specification with full 16-bit ISABus, and integrated with the following features.
300MHz Vortex86SX System-On-Chip
128/ 256MB DDR2 system memory
Enhanced IDE
4 USB 2.0 (host)
Up to 2 serial ports
Parallel port
16-bit GPIOs
Onboard 2MB SPI Flash
PC/104-Plus expansion bus
Meet PC/104 stacking spec.
2 watchdog timer
JTAG interface
AMI BIOS
Single voltage +5V DC
Support extended operating
temperature range of -20°C to +70°C
The VSX-6121-V2 Half-Size family of embedded controller is designed with backward
compatibility in mind, to provide migration path for projects facing end-of-life challenges with their
existing x86 based Half-Size controller.The VSX-6121-V2 family of controller is designed as a
plug in replacement, with backward compatibility to support legacy software to help extend
existing product life cycle without heavy re-engineering.
VSX-6121-V2 is suitable for broad range of data-acquisition, Industrial automation, Process
control,Automotive controller,AVL, Intelligent Vehicle management devic,Medical device,
Human machine interface, Robotics, machinery controlAnd more…application that required
small footprint, low-power and low-cost hardware with open industry standard such as Half-Size.

Vortex86SX-6121-V2 Vortex86SXHalf-Size CPU Module 3
1.3 Specifications
Features VSX-6121-V2
CPU DM&P SoC CPU Vortex86SX- 300MHz
Real Time Clock with Lithium Battery Backup
Cache L1:16K I-Cache, 16K D-Cache
BIOS AMI BIOS
Bus Interface PC/104 Standard Compliant (Optional: PCI-104)
System Memory 128 /256MB DDR2 onboard
Watchdog Timer Software programmable from 30.5 us to 512 seconds x2
sets(Watchdog 1 fully compatible with M6117D)
Audio CM119 USB Audio Controller (Optional)
I /O Interface Enhanced IDE port x1
RS-232 port x1
RS-232/422/485 port x1 (RS485 Auto Direction)
Parallel port x1
USB port (2.0) x4
16-bit GPIO port x1
10/100Mbps Ethernet port x1
Connectors 2.54 mm 26-pin box header for Print x1
2.54 mm 10-pin box header for RS-232 x1
2.54 mm 10-pin box header for USB x2
2.54 mm 20-pin box header for 16-bit GPIO x1
2.54 mm 3-pin header for RS-485 x1
2.54 mm 2-pin header for Reset x1
2.54mm 4-pin header for DC-in x1
2.54mm 7-pin header for Redundancy Signal x1(O)
2.54mm 2-pin header for SYS-SW-IN x1 (Opt)
2.0 mm 44-pin box header for IDE x1
1.25mm 6-pin Wafer for JTAG x1
1.25 mm 4-pin Wafer for Line-out/MIC-in x2 (O)
External RJ-45 connector for Ethernet x1
External Mini DIN connector for KBD/Mouse x1
External D-Sub 9 pin male connector for RS232 x1
Type I/II Compact Flash Slot x1 (Optional)
4-pin Male Power Connector x1

Vortex86SX-6121-V2 Vortex86SXHalf-Size CPU Module 4
Flash Disk Support
On board 2MB SPI Flash Disk (Driver: A)
44-pin IDE Flash Disk( EmbedDisk 16MB or above)
Compact Flash Type I/II (Optional)
SRAM support 512KB (Optional)
Power Requirement Single Voltage +5V @ 340mA
Dimension 184mm X 122mm (7.24 x4.80 inches)
Weight 156g
Operating
Temperature -20oC ~ +70oC
-40°C ~ +85°C (Optional)

Vortex86SX-6121-V2 Vortex86SXHalf-Size CPU Module 5

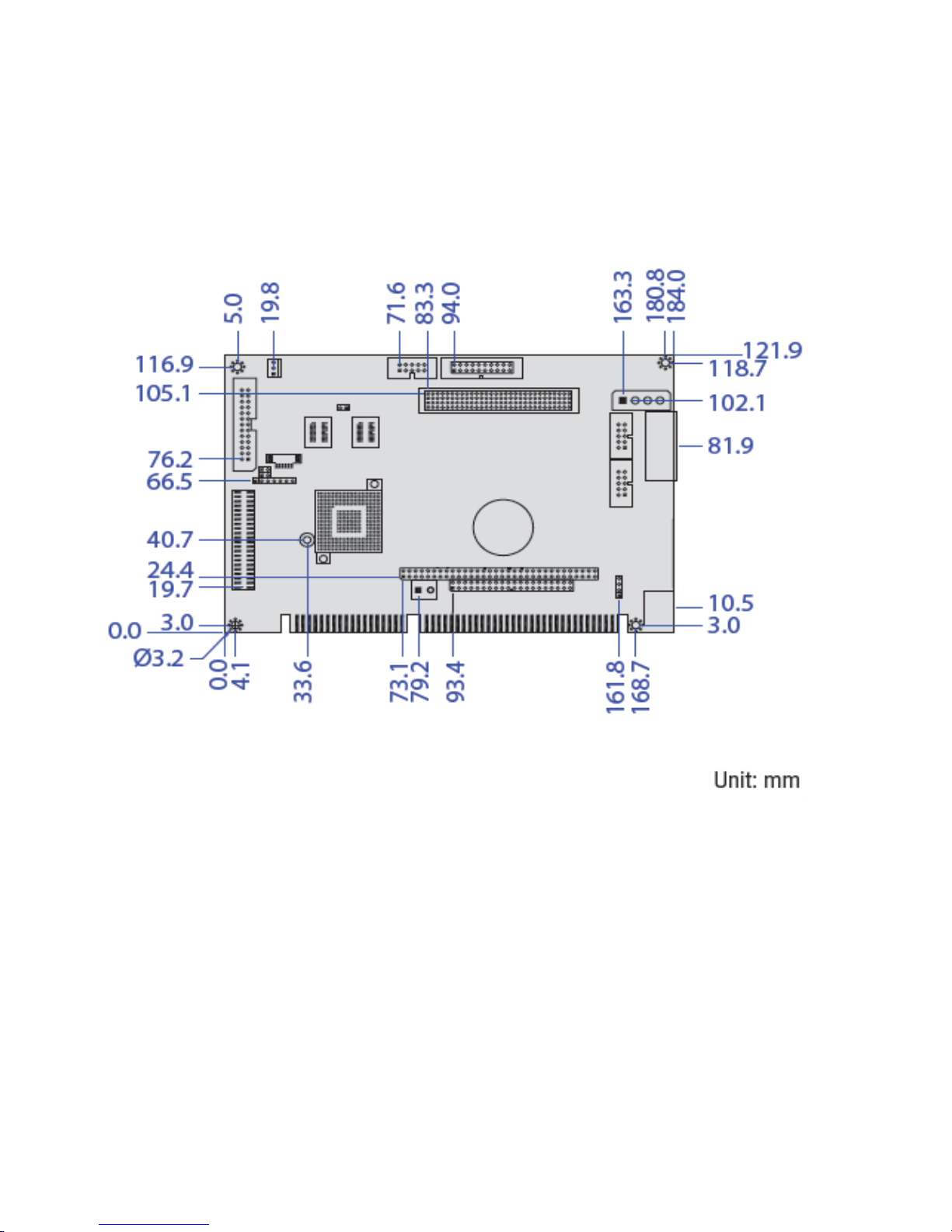

1.4 Board Dimension

Vortex86SX-6121-V2 Vortex86SXHalf-Size CPU Module 6
C h a p t e r 2
Installation

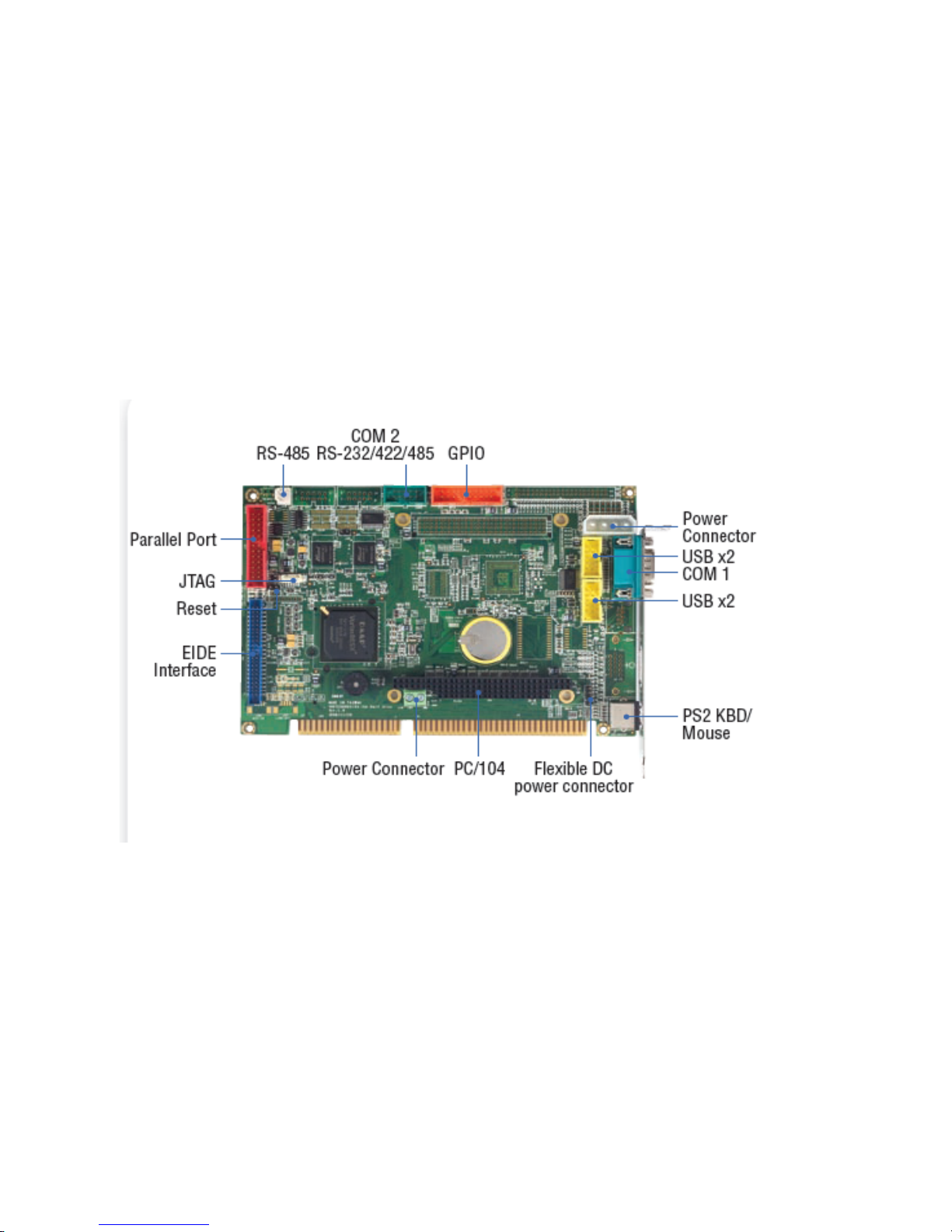

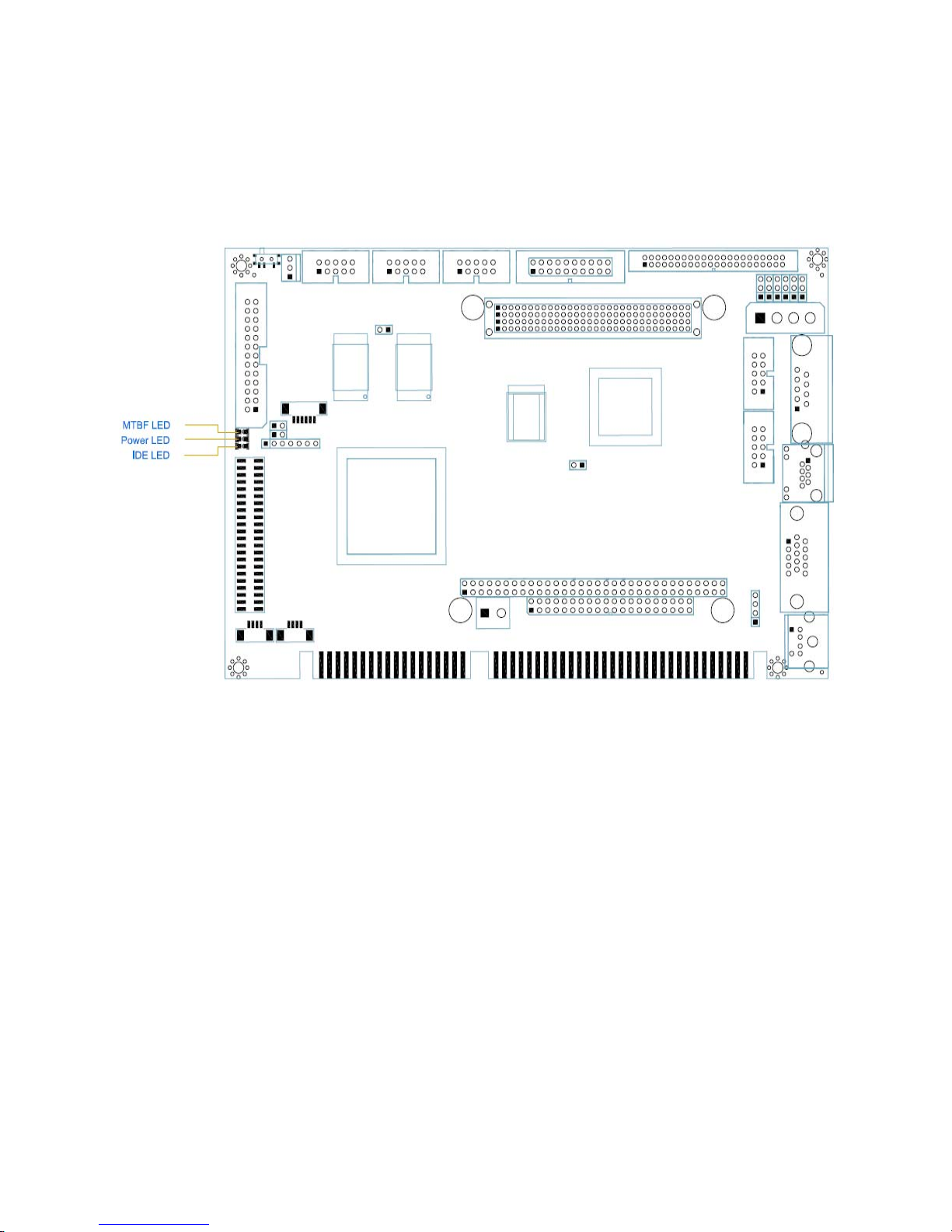

2.1 Board Outline
(Note1: COM2 RS232/422/485 is selected by BIOS setting)
(Note2: J39 Default setting of JTAG Has to be Disable: Pin 1 & Pin 2 short)
(Note3: PCI-104 connector is optional: VI/O setting: +5V only)
(Note4: Redundancy Signal and System-Fail-SW are optional)

Vortex86SX-6121-V2 Vortex86SXHalf-Size CPU Module 7

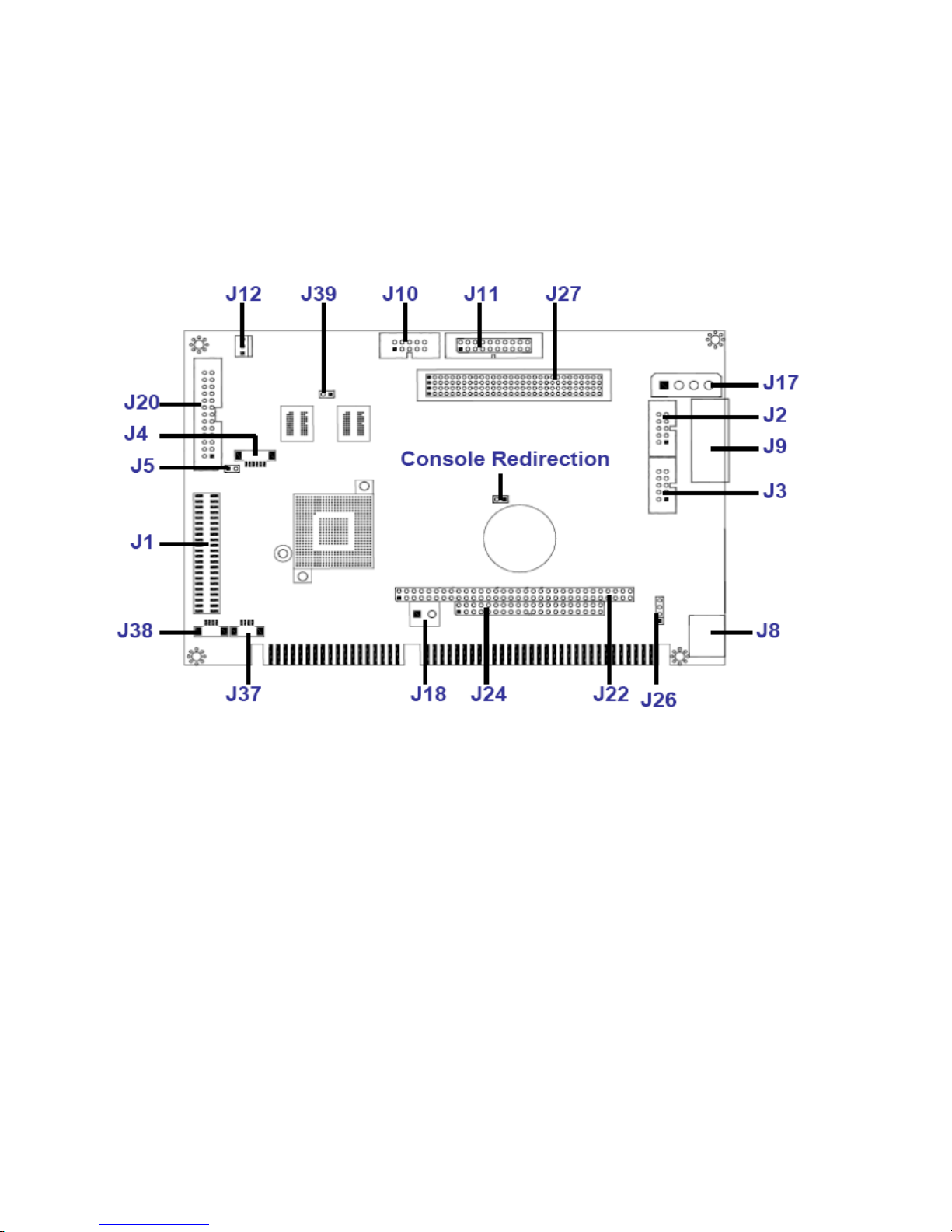

2.2 Connectors & Jumpers Location
Connectors
