VORTEX86-6047LV-6S
Embedded Vortex86 CPU AIO Board
with 6S/CRT/LCD/LAN/CF/Audio/USB/16-bit GPIO
128MB DRAM Onboard
User’s Manual
(Revision 1.0A)

ii
Copyright
The information in this manual is subject to change without notice for continuous improvement in
the product. All rights are reserved. The manufacturer assumes no responsibility for any
inaccuracies that may be contained in this document. And makes no commitment to update or to
keep current the information contained in this manual.
No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part,
in any form or by any means without the prior written permission of the ICOP Technology Inc..
Copyright 2005 ICOP Technology Inc.
Manual No. IUM6047-6S-000-01 Ver.1.0A August, 2005
Trademarks Acknowledgment
Vortex86is the registered trademark of ICOP Technology Inc.
Other brand names or product names appearing in this document are the properties
and registered trademarks of their respective owners. All names mentioned
herewith are served for identification purpose only.

iii
T a b l e o f C o n t e n t s
T a b l e o f C o n t e n t s…………………………………………
C h a p t e r 0 Startup
0.1 Packing List ..................................................... 1
0.2 Specification..................................................... 2
0.3 Board Dimension ............................................. 4
C h a p t e r 1Introduction
1.1 Features............................................................ 5
1.2 VGA Interface.................................................. 6
Chapter 2 Installation
2.1 Board Outline................................................... 7
2.2 Connectors & Jumpers Location ..................... 8
2.3 Connectors & Jumpers Summary .................. 10
2.4 Pin Assignments & Jumper Settings .............. 12
2.5 IRQ Mapping................................................. 24
2.6 Watchdog Timer............................................. 25
2.7 GPIO (General Purpose Input / Output) ........ 28
C h a p t e r 3 SVGA Setup
3.1 Introduction ................................................... 30
3.2 Flat Panel BIOS Setting................................. 31
3.3 Flat Panel Wiring ........................................... 31
C h a p t e r 4 Network Interface
4.1 Introduction ................................................... 32
4.2 Software Support ........................................... 32
Warranty

VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board 1
C h a p t e r 0
Startup
0.1 Packing List
Product Name Package
VORTEX86-6047LV-6S
Embedded Vortex86 CPU All-in-One
Board
Manual & Drivers CD x 1
RS232 cable x 5
PRINTER cable x1
FDD cable x 1
IDE cable x 1 (44pin to 40 pin)
Audio cable x 3
USB cable x 1 (USB port x 2)
Y Cable for Keyboard & PS/2 Mouse x 1
PS/2 Keyboard cable x1

2VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board
0.2 Specification (VORTEX86-6047LV-6S)
Features VORTEX86-6047LV-6S
Chipset DM&P(SiS) Vortex86System-on-Chip CPU–166MHz
(Low Voltage)
Real Time Clock with Lithium Battery Backup
BIOS AMI BIOS
System Memory 128MB SDRAM onboard
Bus Interface Specific 32-bit x-PCI bus Interface
PC/104 Standard Compliant
Watchdog Timer Software programmable from 4ms to 1hour
VGA AGP Rev.2.0 compliant
Shared system memory up to 32MB (Default 8 MB)
Support resolution up to 1,280x1,024 true colors
VGA and TFT/LVDS Flat Panel interface support
LAN Realtek 8100B 10/100Mbps Ethernet Controller
Half/Full duplex capability
Audio Compliant with AC97 V2.1
I /O Interface Enhanced IDE interface
RS232 port x 5
RS232/485 port x1 (RS485 with Auto Direction)
Parallel port x1
FDD interface x1
USB port x2 (USB 1.1 version)
GPIO x 16 bit
Connectors 2.0mm ∅44-pin box header for IDE x1
2.0mm ∅34-pin box header for FDD x1
2.0mm ∅26-pin box header for Printer x1
2.0mm ∅10-pin box header for RS-232 x 5
D-sub 9-pin male connector for RS-232 x 1
2.0mm ∅20-pin box header for GPIO (16-bit)
2.54mm∅2-pin header for RS-485
RJ 45 LAN connector x 1
2.0mm ∅10-pin box header for USB (2 USB ports)
USB connector x 1
D-sub 15-pin female connector VGA x 1
2.0mm ∅44-pin box header for LCD Interface
4-pin box header for Audio x 3 (Audio-in,Audio-out,
Mic-in)
2.54mm 5-pin header for keyboard x 1
Mini-DIN 6-pin for Keyboard / Mouse ( with Y cable)
Type I/II CF socket x 1

VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board 3
Flash Disk Support 44-pin IDE Flash Disk( EmbedDisk 16MB or above)
Type I/II CF Card
Power Requirement Single Voltage +5V @980 mA
Dimension 102mm X 144mm (4.01” x 5.67 inches)
Weight 170g
Operating
Temperature
-20oC ~ +70oC

4VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board

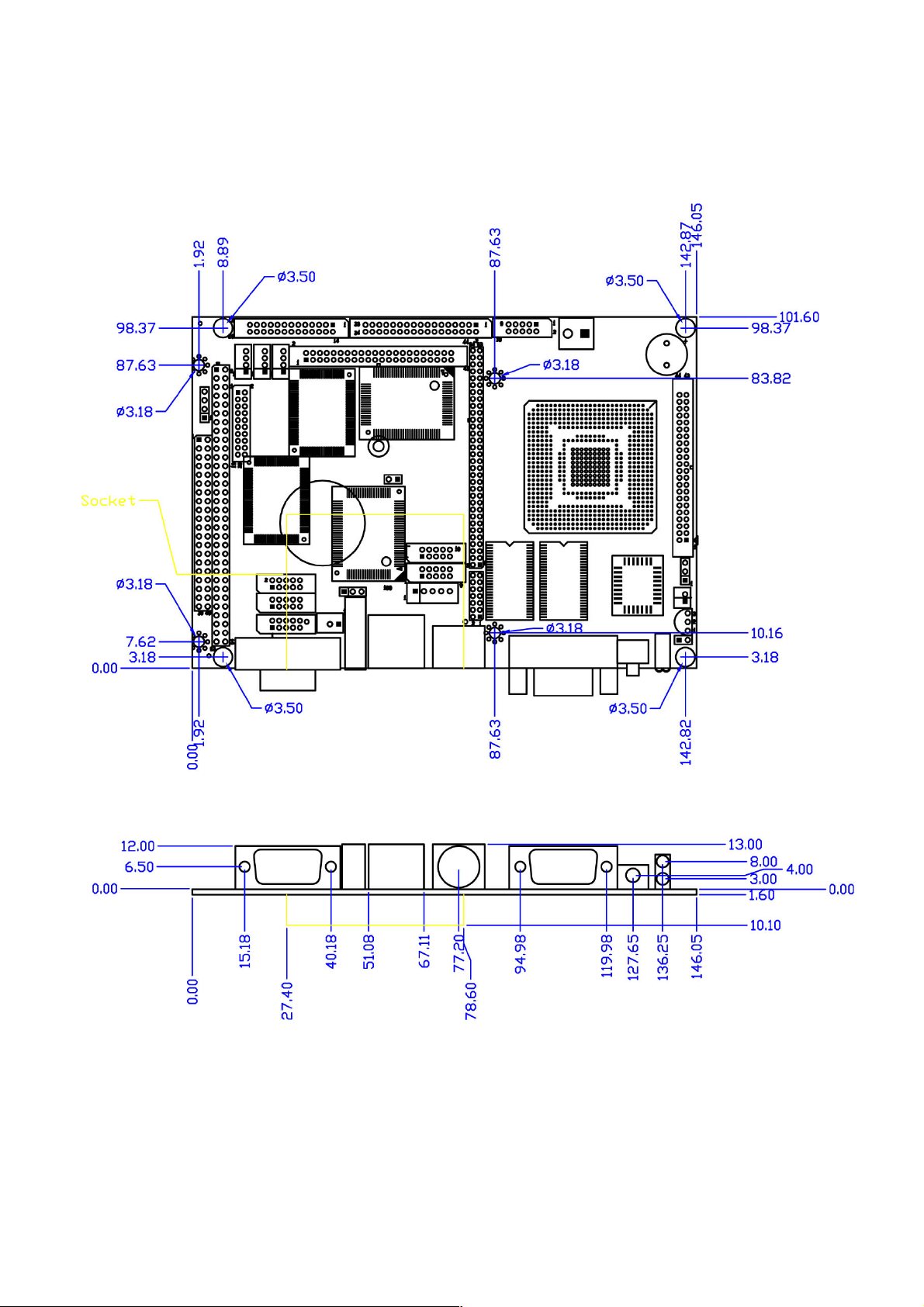

0.3 Board Dimension
Unit: mm

VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board 5
C h a p t e r 1
Introduction
1.1 Features
Embedded CPU: DM&P Vortex86System-on-Chip CPU – 166MHz, Realtime
clock, and watchdog timer.
BIOS: AMI system BIOS
DRAM Memory: Onboard 128MB
Bus Interface: X-PCI Bus & PC/104 Standard Compliant
Data Bus: 64-bit
Bus Speeds: PCI Bus – 33MHz
DMA Channels: 7
Interrupt Levels: 15
Enhanced IDE: supports one port and up to two hard drives or Enhanced IDE
devices of PIO mode 4. BIOS enabled/disabled
Watchdog Timer: generates either a RESET, NMI or an IRQ when your
application loses control over the system. Optionally the watchdog can trigger a
user specified interrupt. The watchdog is configurable from 16 msec. to 512
seconds
Real-time Clock: included in Vortex86 SOC with onboard lithium battery backup
for 10 years of data retention. CMOS data backup of BIOS setup and BIOS
default.
PS/2 Keyboard & Mouse: Supports PS/2 Keyboard and mouse
Serial ports: Supports high speed RS-232 port x3, high speed RS-232/485 port
x1 (jumper selectable). The RS485 interface is Auto Direction.
USB ports: Version 1.1 USB port x 3
GPIO port: General Purpose Input / Out x 16 bit
Floppy Disk Drive Interface: supports up to two floppy drives, 5¼“ (360 KB or 1.2
MB) and 3½ “ (720 KB, 1.44 MB). BIOS enabled / disabled
Bi-directional Parallel Port: supports SPP, EPP and ECP mode. BIOS
enabled/disabled

6VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board
1.2 VGA Interface
Chipset: DM&P Vortex86SOC
Memory: Shared system memory up to 32MB
System Bus: 33-bit PCI bus
Panel Data Bus: 18-bit
Display: CRT and LCD Flat Panel
Compliance:
- AGP 2.0 / 4X Compliant / Fully DirectX 8 Compliant

VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board 7
C h a p t e r 2
Installation

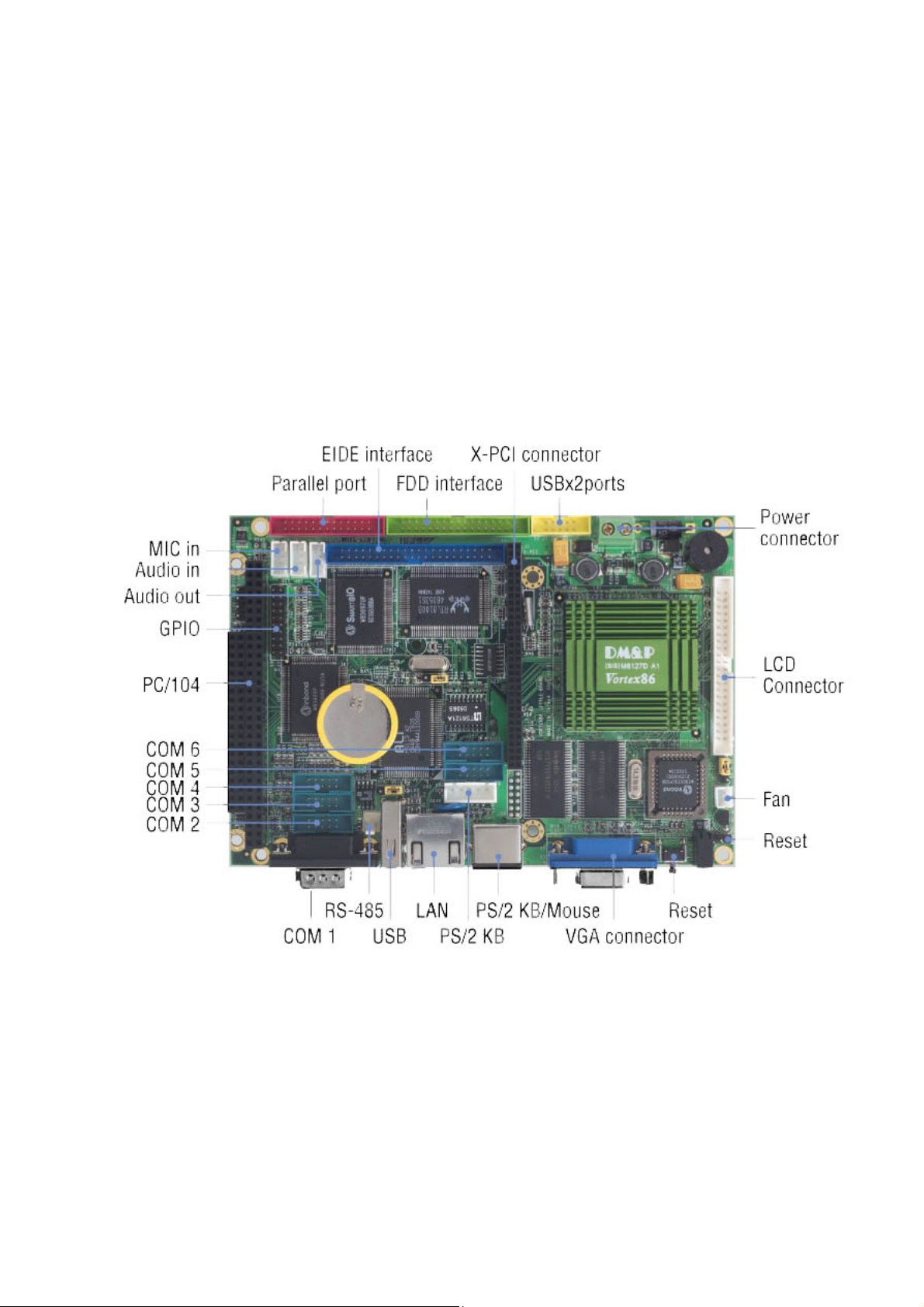

2.1 Board Outline

8VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board
2.2 Connectors & Jumpers Location
Solder Side

VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board 9
Bottom side

10 VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board

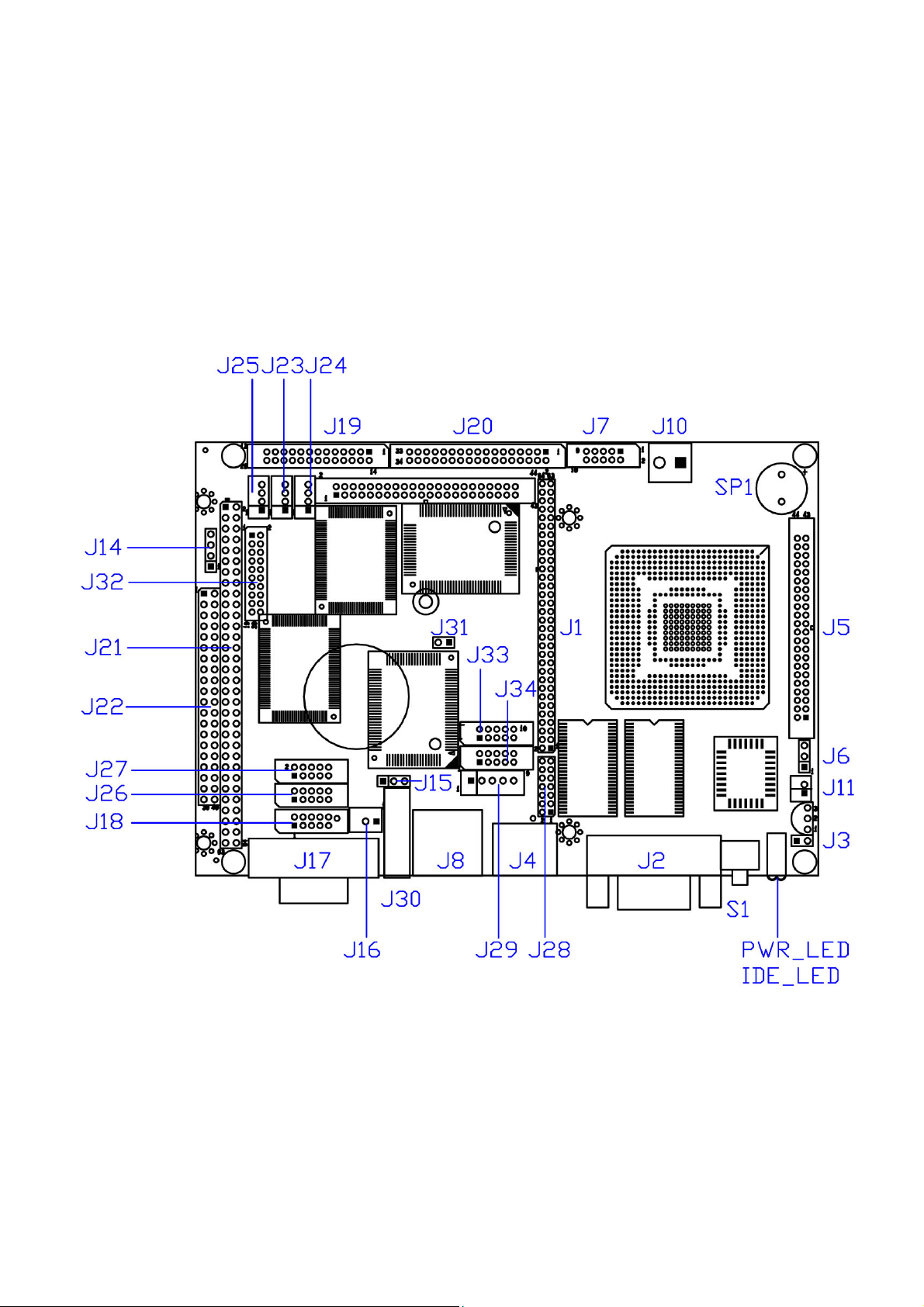

2.3 Connectors & Jumpers Summary
Summary Table
Nbr Description Type of Connections Pin
nbrs.
J1 X-PCI Box Header, 2.0∅, 32x2 64-pin
J2: VGA D-Sub Female 15-pin
J3: RESET Pin Header,2,54∅, 1x2 2-pin
J4: PS/2 Keyboard / Mouse Mini-DIN Female 6-pin
J5: LCD Connector Box Header, 2.0∅, 22x2 44-pin
J6: LCD Volts Sel. Pin Header, 2.54∅, 3x1 3-pin
J7: USB Box Header, 2.0∅, 5x2 10-pin
J8: LAN RJ 45 8-pin
J9: IDE Box Header, 2.0∅, 22x2 44-pin
J10: Power Connector Terminal Block 5.0∅, 2x1 2-pin
J11 Reserved for FAN Molex Header, 2.0∅, 2x1 2-pin
J14: 4P Power Source Pin Header, 2.54∅, 4x1 4-pin
J15 RS232/RS485 Select (COM 2) Pin Header, 2.54∅, 3x1 3-pin
J16 RS485 Molex Header2.54∅, 2x1 2-pin
J17 COM1 D-Sub Male 9-pin
J18 COM2 Pin Header, 2.0∅5x2 10-pin
J19 PRINT Pin Header, 2.0∅, 13x2 26-pin
J20 FDD Pin Header, 2.0∅, 17x2 34-pin
J21 PC104 Connector – 64 pin Box Header, 2.54∅32x2 64-pin
J22 PC104 Connector – 40 pin Box Header, 2.54∅20x2 40-pin
J23 LINE IN Molex Header, 2.0∅, 4x1 4-pin
J24 LINE OUT Molex Header, 2.0∅, 4x1 4-pin
J25 MIC IN Molex Header, 2.0∅, 4x1 4-pin
J26 COM3 Pin Header, 2.0∅5x2 10-pin
J27 COM4 Pin Header, 2.0∅5x2 10-pin
J28 LPC Box Header, 2.0∅, 7x2 14-pin
J29 Keyboard Pin Header,2,54∅, 1x5 5-pin
J30 USB USB connector 4-pin
J31 CF Card Master/Slave Select Pin Header, 2.54∅, 2x1 2-pin
J32 GPIO Pin Header, 2.0∅, 10x2 20-pin
J33 COM5 Pin Header, 2.0∅5x2 10-pin
J34 COM6 Pin Header, 2.0∅5x2 10-pin

VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board 11

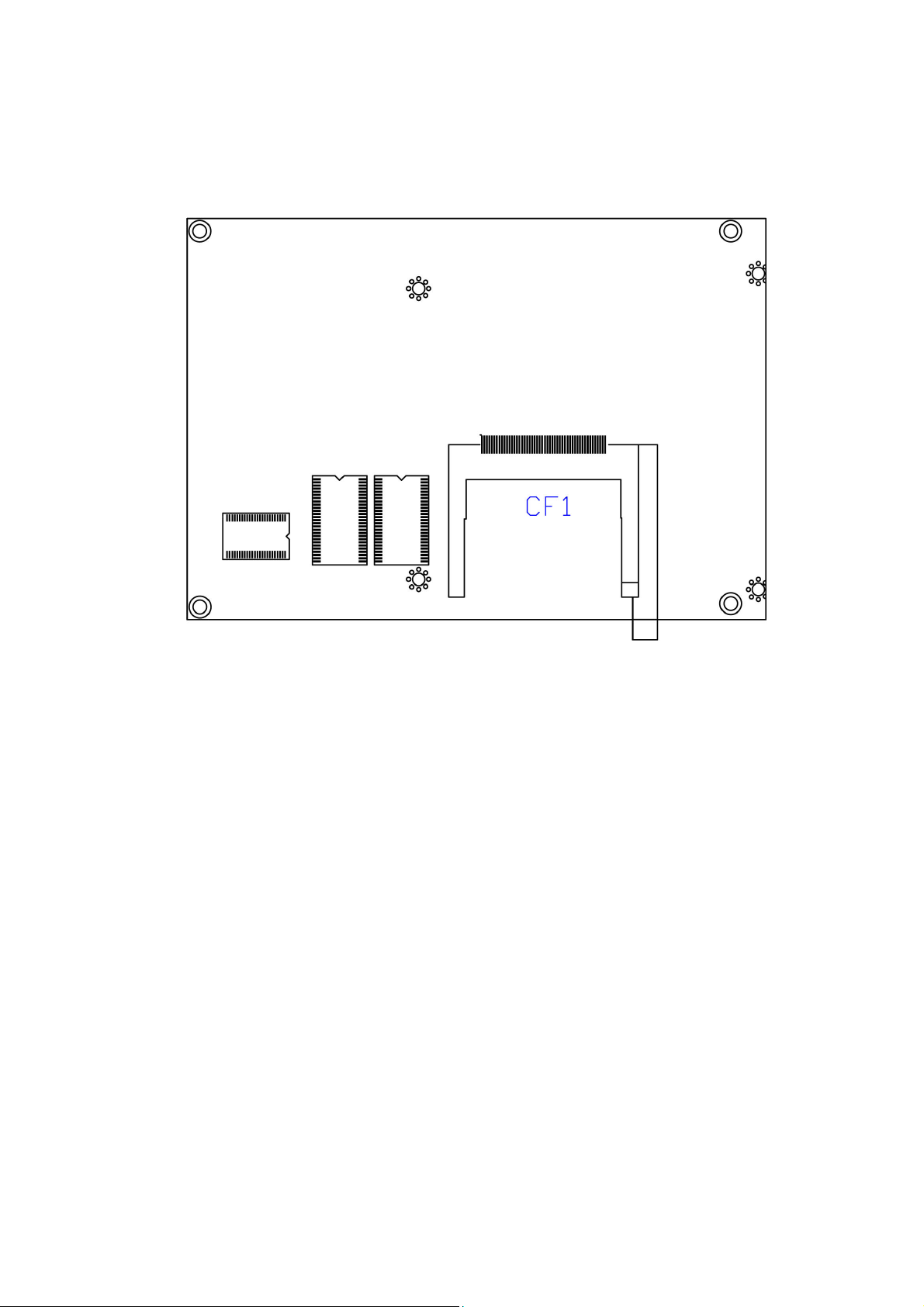

CF1: Compact Flash Type I/II CF Connector 50-pin
PWR_LED POWER Active LED
IDE_LED IDE Link LED
SP1 BUZZER
S1 RESET SWITCH

12 VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board
2.4 Pin Assignments & Jumper Settings
J1: X-PCI - Box Header - 2.0 ∅32x2
Pin # Signal Name Pin # Signal Name
1 GND 2 GND
3 AD0 4 AD1
5 AD2 6 AD3
7 AD4 8 AD5
9 AD6 10 AD7
11 AD8 12 AD9
13 AD10 14 AD11
15 AD12 16 AD13
17 AD14 18 AD15
19 VCC 20 VCC
21 AD16 22 AD17
23 AD18 24 AD19
25 AD20 26 AD21
27 AD22 28 AD23
29 AD24 30 AD25
31 AD26 32 AD27
33 AD28 34 AD29
35 AD30 36 AD31
37 VCC3 38 VCC3
39 CBE-0 40 CBE-1
41 CBE-2 42 CBE-3
43 PGNT-0 44 PREQ-0
45 PGNT-1 46 PREQ-1
47 PGNT-2 48 PREQ-2
49 INT-A 50 INT-B
51 INT-C 52 INT-D
53 GND 54 GND
55 FRAME- 56 IRDY-
57 TRDY- 58 STOP-
59 SERR- 60 PAR
61 DEVSEL- 62 PLOCK-
63 PCIRST- 64 PCICLK1

VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board 13
J2: VGA
Pin # Signal
Name Pin # Signal Name Pin # Signal Name
1 MR 6 GND 11 NC
2 MG 7 GND 12 VCC
3 MB 8 GND 13 HYSYNC
4 NC 9 NC 14 VSYNC
5 GND 10 GND 15 VCC
J3: RESET
Pin # Signal Name Pin # Signal Name
1 VCC 2 GND
J4: PS/2 Keyboard / Mouse
Pin # Signal Name Pin # Signal Name
1 KBCLK 2 PMCLK
3 GND 4 KBDAT
5 PMDAT 6 SB5V

14 VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board
J5: LCD Connector (for 18-bit TFT LCD)
Pin # Signal Name Pin # Signal Name
1 LCDVCC 2 LCDVCC
3 G2 4 G3
5 G4 6 G5
7 ---------- 8 ----------
9 R0 10 R1
11 R2 12 R3
13 R4 14 R5
15 GND 16 ----------
17 ---------- 18 ----------
19 ---------- 20 GND
21 ---------- 22 ----------
23 B0 24 B1
25 B2 26 B3
27 B4 28 B5
29 ---------- 30 ----------
31 G0 32 G1
33 GND 34 GND
35 ---------- 36 XCLK
37 ---------- 38 DEN
39 ---------- 40 HSYNC
41 ---------- 42 VSYNC
43 ---------- 44 VDDEN
J6: LCD Volts Sel.
Pin # Signal Name Pin # Signal Name
1-2 +5V 2-3 +3.3V

VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board 15
J7: USB
Pin # Signal Name Pin # Signal Name
1 VCC 2 VCC
3 -DATA1 4 -DATA0
5 +DATA1 6 +DATA0
7 GND 8 GND
9 GND 10 GND
J8: LAN
Pin # Signal Name Pin # Signal Name
1 TX+ 2 TX-
3 RX+ 4 NC
5 NC 6 RX-
7 NC 8 NC
9 VCC 10 VCC
11 GND 12 GND
J9: IDE
Pin # Signal
Name Pin # Signal Name
1 IDERST- 2 GND
3 IDED7 4 IDED8
5 IDED6 6 IDED9
7 IDED5 8 IDED10
9 IDED4 10 IDED11
11 IDED3 12 IDED12
13 IDED2 14 IDED13
15 IDED1 16 IDED14
17 IDED0 18 IDED15
19 GND 20 NC
21 IDEREQ 22 GND
23 IDEIOW- 24 GND
25 IDEIOR- 26 GND
27 ICHRDY 28 GND
29 IDACK- 30 GND
31 IDEIRQ 32 NC
33 IDESA1 34 CBLID
35 IDESA0 36 IDESA2
37 IDECS-0 38 IDECS-1
39 DASP 40 GND
41 VCC 42 VCC
43 GND 44 NC

16 VORTEX86-6047LV-6S Embedded Vortex 86CPU AIO Board
J10: Power Connector
Pin # Signal Name Pin # Signal Name
1 +5V 2 GND-
J11: FAN
Pin # Signal Name Pin # Signal Name
1 +5V 2 GND-
J14: 4P Power Source
Pin # Signal Name
1 +12V
2 -12V
3 -5V
4 GND
J15: RS232/RS485 Select(COM2)
Pin # Signal Name
1-2 COM2 RS232
2-3 RS485
J16: RS485
Pin # Signal Name
1 RS485+
2 RS485-
J17: COM 1
Pin # Signal
Name Pin # Signal Name
1 DCD1 2 RXD1
3 TXD1 4 DTR1
5 GND 6 DSR1
7 RTS1 8 CTS1
9 RI1 10-11 GGND
