ICP Electronics PCISA-3716E2V User manual

PCISA-3716E2V
CeleronTM , Pentium®III ,VIA Cyrix®III Processor
With Dual Ethernet , VGA , Audio Board
©Copyright 2000 by ICP Electronics Inc. All Rights Reserved. Manual first
edition July.10, 2000.
The information in this document is subject to change without prior notice
in order to improve reliability, design and function and does not represent
a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to
use the product or documentation, even if advised of the possibility of
such damages.
This document contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
Trademarks
PCISA-3716E2V is a registered trademark of ICP Electronics Inc. IBM PC
is a registered trademark of International Business Machines Corporation.
Intel is a registered trademark of Intel Corporation. AWARD is a registered
trademark of Award Software Internation, Inc. Other product names
mentioned herein are used for identification purposes only and may be
trademarks and/or registered trademarks of their respective companies.
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board 1
Contents
1. Introduction ..........................................................4
1.1 Specifications..............................................................................5
1.2 What You Have...........................................................................7
2. Installation............................................................8
2.1 PCISA-3716E2V Layout...............................................................9

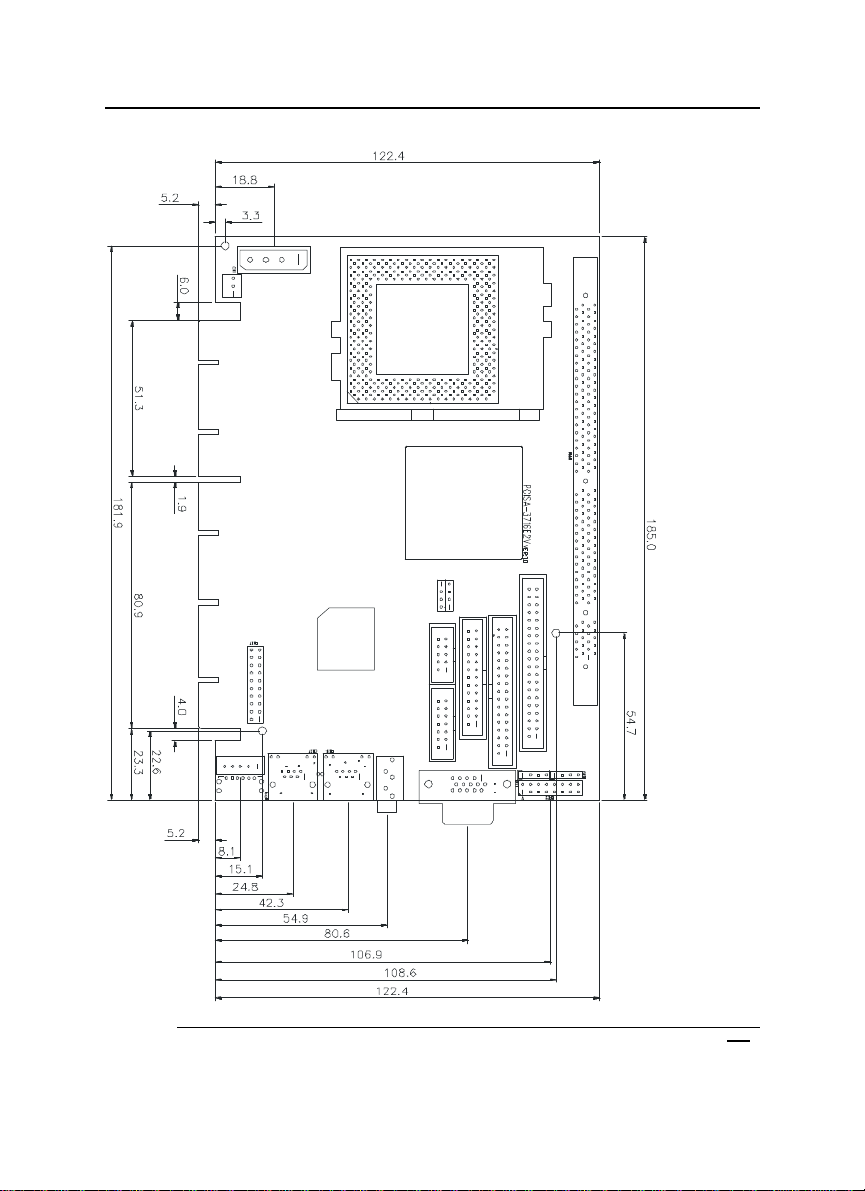

2.2 PCISA-3716E2V Dimension.......................................................10
2.3 Unpacking Precautions..............................................................11
2.4 Setting the CPU of PCISA-3716E2V ..........................................12
2.5 Clear CMOS Setup....................................................................12
2.6 COM 2 RS-232 / 422 / 485 Setup...............................................13
3. Connection.........................................................14
3.1 Floppy Disk Drive Connector......................................................14
3.2 PCI E-IDE Disk Drive Connector................................................15
3.3 Parallel Port...............................................................................15
3.4 Serial Ports................................................................................16
3.5 Keyboard/Mouse Connector.......................................................18
3.6 External Switches and Indicators ...............................................18
3.7 USB Port Connector ..................................................................19
3.8 IrDA Infrared Interface Port........................................................20
3.9 VGA Connector .........................................................................20
3.10 LAN RJ45 Connector.................................................................21
3.11 Fan Connector...........................................................................21
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board
2
3.12 Temperature Sensor Connector.................................................22
3.13 Audio CD IN Connector..............................................................22
3.14 Audio Line OUT Connector........................................................22
3.15 Speaker OUT Connector............................................................23
3.16 Audio Panel Connector..............................................................23
3.17 Compact Flash Connector ........................................................24
3.18 Power Connector.......................................................................25
4. AWARD BIOS Setup .........................................26
4.1 Introduction ...............................................................................26
4.2 Starting Setup............................................................................26
4.3 Using Setup...............................................................................27
4.4 Getting Help ..............................................................................28
4.5 Main Menu.................................................................................29
4.6 Standard CMOS Setup ..............................................................32
4.7 Advanced BIOS Features Setup.................................................36
4.8 Advanced Chipset Features Setup .............................................41
4.9 Integrated Peripherals Setup......................................................47
4.10 Power Management Setup ........................................................52
4.11PnP/PCI Configuration Setup.....................................................56
4.12 PC Health Status Setup.............................................................58
4.13 Frequency / Voltage Control Setup.............................................59
4.14 Defaults Menu Setup..................................................................61
4.15 Change Supervisor/User Password............................................62
4.16 Exit Selection.............................................................................63
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board 3
Appendix A. WatchDog Timer..........................................64
Appendix B. POST Messages..........................................66
Appendix C.
DMA , IRQ , 1st MB Memory and I/O Address Map.....72
Appendix D. How to Upgrade a New BIOS .....................74
Appendix E. ATX Power Supply.......................................77
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board
4
1
Introduction
Welcome to the PCISA-3716E2V Socket 370 Celeron®,
Pentium III®(FC-PGA) and VIA Cyrix®III with two 10/100Mbps
Ethernet , VGA , Audio Board. It is equipped with high
performance Intel®Celeron up to 677MHz( or above ) , Pentium
III ( FC-PGA ) 500-933MHz ( or above ) and VIA Cyrix®III 600
MHz ( or above ) Processor and advanced high performance
multi-mode I/O, designed for the system manufacturers,
integrators, or VARs that want to provide all the performance,
reliability, and quality at a reasonable price.
This board has a built-in IDE Interface CompactFlashDisk™
Flash Disk ( Type II ) for embedded application. The
CompactFlashDisk™ Flash Disk is 100% compatible to hard
disk. User can use any DOS command without any extra
software utility. The Flash Disk currently is available from
128MB to 1GB.
One advanced high performance LPC super I/O chip –ITE
( IT8705F ) is used in the PCISA-3716E2V board. The on-chip
UARTs are compatible with the NS16C550. The parallel port and
FDD interface are compatible with IBM PC/AT architecture.
PCISA-3716E2V uses the advanced SIS SIS630E Chipset which
is 100% PCI compatible chipset with PCI 2.1 standard. In
addition, this board provides one 168-pin sockets for its on-board
DRAM. The DIMM module is 3.3V SDRAM and max. 512MB for
each module.
The VGA chip ( on chip SiS300) used on PCISA-3716E2V
supports 3D function .
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board 5
1.1 Specifications :
•CPU : support Intel Celeron®up to 677 MHz or above, Pentium III
( FC-PGA ) 500-933 MHz (or Above ) and VIA Cyrix® III Processor.
Supports 66MHz, 100MHz and 133 MHz FSB.
•Expansion Bus : PCISA bus( ISA and PCI bus), expansion to
support PCI and ISA ( ** Slave mode only ) bus signal
•DMA channels : 7
•Interrupt levels : 15
•Chipset : SIS630E 66/100/133MHz CPU / DRAM Clock
•DRAM : One 168-pin DIMM socket ,supports SDRAM RAM module,
up to 512MB.
•AGP VGA Controller : On chip SIS300 3D ( Share memory up
to 64MB RAM)
AGP bus speed : 66MHz
VESA Standard Super High Resolution Graphic Mode up to
1600 x 1200 256/32K colors 100 Hz
1280 x 1024 256/32K/64K/16M colors 120 Hz
1024 x 768 256/32K/64K/16M colors 120 Hz
800 x 600 16/256/32K/64K/16M colors 120 Hz
640 x 480 16/256/32K/64K/16M colors 120 Hz
•10/100Mbps Ethernet Controller : Two Ethernet -Realtek 8139C
and SIS900 ( embedded in SIS630 chipset ), Auto-sensing interface
to 10Mbps, 100Mbps Network , RJ45 connector for 10BASE-TX and
100BASE-TX , Full Duplex capability , Full Software driver support
•Ultra DMA/66 (Enhanced PCI IDE Interface) : Supports two PCI
Enhance IDE hard drives. The Ultra DMA/66 IDE can handle data
transfer up to 66MB/s. The best of all is that this new technology is
compatible with existing ATA-2 IDE specifications. So, there is no
need to do any change for customer’s current accessory.
•Multi-I/O Chip : IT8705Fl I/O, setup by BIOS
Two 16C550 RS-232C Ports , One EPP/ECP Parallel Port, Floppy
Port.
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board
6
•Floppy disk drive interface : Two 2.88 MB, 1.44MB, 1.2MB,
720KB, or 360KB floppy disk drives.
•Two high speed Serial ports : NS16C550 compatible UARTs
•Bi-directional Parallel Port : One parallel port support , IEEE1284
compatible.
•IrDA port : Support Infrared and Amplitude Shift Keyed IR(ASKIR)
interface.
•USB port : Support Two USB ports for future expansion ,USB 1.2
compatible.
•Watchdog timer : Supports resolution of 1 second and period of 1-
255 . Reset is generated when CPU does not periodically trigger the
timer. You can uses IO port 443H to control the watch-dog and
generate a system reset.
•CompactFlash Disk –Type II CompactFlashDisk™. The Flash Disk
provides 100% compatibility with IDE hard disk.
•SIS7018 PCI Audio Chipset: Sound Blaster compatible and Roland
MPU401 compatible ( AC97 )
•Support ATX Power function
•Mouse & Keyboard Connector : PS/2 Mouse Port Expansion
Keyboard.
•Power Consumption : +5V : 7.5A (Pentium III 933MHz, 256MB
SDRAM ) +12V : 0.3A
•Operating Humidity : 5 ~ 95 % , non-condensing
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board 7
1.2 What You Have
In addition to this User's Manual, the PCISA-3716E2V package
includes the following items:
•PCISA-3716E2V Socket 370 Celeron®, Pentium III and VIA
Cyrix® III with Dual Ethernet , VGA , Audio Board
•FDD/HDD ( 1x2.54mm and 1x2.54mm Support DMA66)Cable
( 32200-000017 / 32200-000052 )
•Keyboard / Mouse Adapter Y Cable
( 32000-000138 )
•Printer / Serial Port ( 1x RS232 ) Cable
( 32200-000039 )
•Audio ( Line In ,Line Out ,Mic In ) / Serial Port ( 1xRS232 )
Cable ( 19800-000004 )
If any of these items is missing or damaged, contact the dealer
from whom you purchased the product. Save the shipping
materials and carton in case you want to ship or store the product
in the future.
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board
8
2
Installation
This chapter describes how to install the PCISA-3716E2V. The
layout of PCISA-3716E2V is shown on the next page and the
Unpacking Precautions that you should be careful with are
described on the following page. Also included is the jumpers
and switches setting for this board’s configuration, such as: CPU
type selection, system clock setting and Watchdog timer.
2.1 PCISA-3716E2V 's Layout
< please, refer to the next page >
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board 9
2.1 PCISA-3716E2V 's Layout
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board
10
2.2 PCISA-3716E2V 's Dimension ( Unit : mm )
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board 11
2.3 Unpacking Precautions
Some components on PCISA-3716E2V are very sensitive to static
electric charges and can be damaged by a sudden rush of power.
To protect it from unintended damage, be sure to follow these
precautions:
üGround yourself to remove any static charge before touching your
PCISA-3716E2V. You can do it by using a grounded wrist strap at
all times or by frequently touching any conducting materials that is
connected to the ground.
üHandle your PCISA-3716E2V by its edges. Don’t touch IC chips,
leads or circuitry if not necessary.
üDo not plug any connector or jumper while the power is on.
üDo not put your PCISA-3716E2V unprotected on a flat surface
because it has components on both sides.
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board
12
2.4 Setting the CPU of PCISA-3716E2V
•JP1,2,3,4 : CPU & DRAM FREQUENCY SETTING ( H/W )
2
1
CPU/DRAM
JP1 JP2 JP3 JP4
66/66 OOOC
100/100 OOCO
133/133 CCCO
O : Open
C : Close
2.5 Clear CMOS Setup
If you forget the CMOS password, you can clear or reset it by
closing the JP5. After JP5(1-2) is closed, turn on the power for
about 3 seconds then turn it off and open the JP5(1-2). Now,
the password has been cleared from your CMOS.
•JP5 : Clear CMOS Setup
1
2
3
PIN NO. DESCRIPTION
2-3Normal Operation
1-2Clear CMOS Setup
l
l
l
l
l
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board 13
2.6 COM2 RS-232/422,485 Selection
•JP6 : COM2 Mode Selection
3
2
1
JP6 DESCRIPTION
1-2RS232
2-3RS422/RS485
** 2-3 RS422 / RS485 ( Option )
l
l
l
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board
14
3
Connection
This chapter describes how to connect peripherals, switches and
indicators to the PCISA-3716E2V board.
3.1 Floppy Disk Drive Connector
PCISA-3716E2V board is equipped with a 34-pin daisy-chain
driver connector cable.
•CN14 : FDD CONNECTOR
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1GROUND 2REDUCE WRITE
3GROUND 4N/C
5GROUND 6N/C
7GROUND 8INDEX#
9GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 D4IRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE GATE#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT#
33 GROUND 34 DISK CHANGE#
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board 15
3.2 PCI E-IDE Disk Drive Connector
You can attach two IDE (Integrated Device Electronics) hard
disk drives to the PCISA-3716E2V IDE controller .The maximal
data transfer rate is 66MB/s . In this case , Cable total length
shall not exceed 0.46 m ( 18 in ).
CN13 ( 40Pin 2.54mm IDE) : Primary IDE Connector
•CN13 : IDE Interface Connector
PIN NO.
DESCRIPTION PIN NO. DESCRIPTION
1RESET# 2GND
3DATA 7 4DATA 8
5DATA 6 6DATA 9
7DATA 5 8DATA 10
9DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 N/C
21 IDE DRQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 IDE CHRDY 28 GND
29 IDE DACK 30 GND
31 INTERRUPT 32 N/C
33 SA 1 34 N/C
35 SA 0 36 SA 2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GND
3.3 Parallel Port
This port is usually connected to a printer, The PCISA-3716E2V
includes an on-board parallel port, accessed through a 26-pin
flat-cable connector CN15.
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board
16
•CN15 : ( LPT1 ) Parallel Port Connector
Pin Description Pin Description
1STROBE# 2AUTO FORM FEED #
3DATA 0 4ERROR#
5DATA 1 6INITIALIZE
7DATA 2 8PRINTER SELECT LN#
9DATA 3 10 GND
11 DATA 4 12 GND
13 DATA 5 14 GND
15 DATA 6 16 GND
17 DATA 7 18 GND
19 ACKNOWLEDGE 20 GND
21 BUSY 22 GND
23 PAPER EMPTY 24 GND
25 PRINTER SELECT 26 N/C
3.4 Serial Ports
The PCISA-3716E2V offers Two high speed NS16C550
compatible UARTs with Read/Receive 16 byte FIFO serial ports
(COM1/COM2).
•CN12 : Serial Port 2x5 pin header Connector (COM1)
Pin No.
Description Pin No. Description
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board 17
•CN16 : Serial Port 2x7 pin header Connector (COM2)
COM2 Support Three Mode : RS232, RS422/RS485
( For 2x5 pin header Connector ) RS232 Mode
Pin No.
Description Pin No. Description
1DCD 2DSR
3RXD 4RTS
5TXD 6CTX
7DTR 8RI
9GND 10 NC
RS422 / RS485 Mode ( Option )
( For 2x7 pin header Connector )
RS422 Mode
Pin No.
Description Pin No. Description
12
34
56
78
910
11 TX+ 12 TX-
13 RX+ 14 RX-
( For 2x7 pin header Connector )
RS485 Mode
Pin No.
Description Pin No. Description
12
34
56
78
910
11 12
13 RX+ 14 RX-
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com

PCISA-3716E2V Socket 370 CeleronTM & Pentium III ®
VIA Cyrix® III with Daul Ethernet , VGA , Audio Board
18
3.5 Keyboard/Mouse Connector
The PCISA-3716E2V provides one external keyboard &
mouse ,one mouse and one keyboard connectors.
•CN28 : Extended Keyboard & PS/2 Mouse 6-pin Mini Din
Connector
PIN NO. DESCRIPTION
1KB DATA
2MS DATA
3GND
4VCC
5KB CLOCK
6MS CLOCK
•CN26 : 5-pin Header Keyboard Connector
PIN NO. DESCRIPTION
1KB CLOCK
2KB DATA
3N/C
4GND
5+5V
3.6 External Switches and Indicators
There are several external switches and indicators for
monitoring and controlling your CPU board. All the functions are
in the CN17 connector.
Tri-M Systems Inc., 6-1301 Ketch Court, Coquitlam, B.C., V3K 6X7, Canada
Phone: [phone] Fax: [phone]
Email: [email protected] Web: www.Tri-M.com
