Icron Spectra 3001-15 User manual

USB 3.0 Spectra™3001-15
1-Port USB 3.0 15m Active Extension Cable
User Guide

Thank you for purchasing the Icron USB 3.0 Spectra™3001-15.
Please read this guide thoroughly.
This document applies to Part Number 00-00351.
FCC Radio Frequency Interference Statement Warning
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received
including interference that may cause undesired operation.
CE Statement
We, Icron Technologies Corporation, a Maxim Integrated brand, declare under our sole responsibility that the
Spectra 3001-15, to which this declaration relates, is in conformity with European Standards EN 55024, EN
55032, EN 61000, and RoHS Directive 2011/65/EU + 2015/863/EU.
IC Statement
This Class B digital apparatus complies with Canadian ICES-003.
WEEE Statement
The European Union has established regulations for the collection and recycling of all waste electrical
and electronic equipment (WEEE). Implementation of WEEE regulations may vary slightly by individual EU
member states. Please check with your local and state government guidelines for safe disposal and recycling
or contact your national WEEE recycling agency for more information.
Product Operation and Storage
Please read and follow all instructions provided with this product, and operate for intended use only. Do
not attempt to open the product casing as this may cause damage and will void warranty. When not in use,
product should be stored in a dry location between -20°C and 70°C.
©2020 All rights reserved.
Document #90-01291-A04

Contents
3 Introduction
Product Contents 3
Features 3
USB 3.0 Spectra 3001-15 Components 4
5 Installation Guide
Requirements 5
Connection Instructions 6
Compatibility 6
7 Troubleshooting
8 Warranty Information
Limited Hardware Warranty 8
Hardware Remedies 8
Limitation of Liability 8
Obtaining Warranty Service 8
9 Contacting Technical Support
9 Contacting Sales
10 Specifications

Introduction
This guide provides product information for the USB 3.0 SpectraTM 3001-15 1-port 15m active copper
extension cable, installation instructions and troubleshooting guidelines.The instructions in this guide
assume a general knowledge of computer installation procedures, familiarity with cabling requirements,
and some understanding of USB devices.
NOTE: Notes provide additional information that could be useful.
CAUTION: Cautions provide important information about an operational requirement.
Product Contents
Your Spectra 3001-15 package includes:
• 15-meter USB 3.0 Spectra 3001-15 Active Copper Cable
• Cable Tie
• Quick Start Guide
Features
The Spectra 3001-15 incorporates Icron’s patented ExtremeUSB® technology, enabling users to extend
beyond the standard 3m cable limit for USB 3.0 peripheral devices.With the Spectra 3001-15, USB 3.0 devices
can be extended up to 15m from the computer.
The Spectra 3001-15 includes the ExtremeUSB suite of features:
• Transparent USB extension
• True plug and play; no software drivers required
• Works with all major operating systems:Windows®, macOS™, Linux® and Chrome OS™
The Spectra 3001-15 is a single-port USB 3.0 SuperSpeed active copper extension cable that is designed to
work with AIA USB3 VisionTM compliant devices such as machine vision cameras.
CAUTION: The Spectra 3001-15 supports only USB 3.0 devices. USB 2.0 and 1.1 devices will not
function using this extender.
note
3

USB 3.0 Spectra 3001-15 Components
ITEM TYPE DESCRIPTION
1
LED Light is GREEN Active cable is powered on.
LED Light is RED Active cable is not powered properly or not detected by host.
2USB 3.0 Type A Locking
Receptacle
Connects to USB 3.0 device. Port can accept USB 3.0 standard
connector and locking-type connector as per AIA USB3 Vision
standards.
3 USB 3.0 Host Connector Connects to USB 3.0 port on host computer.
4 USB Power Connector
An additional power supply that can be connected to the host
computer. It is recommended to plug this power connector into
the host computer especially for USB devices that draw more than
2.5W of power.
4

Installation Guide
Example Application
Requirements
To complete installation of the Spectra 3001-15, you will also require the following items that are not
included with the product:
• USB 3.0 compatible computer (host computer) with a USB 3.0 compliant operating system
• USB 3.0 compatible device (e.g. camera or storage drive)
• Optional: cable to connect the USB 3.0 device to the Spectra 3001-15 (if required, e.g. USB 3.0 camera)
CAUTION: The Spectra 3001-15 cable is not backward compatible with USB 2.0/1.1 devices. Per USB-IF
specification, USB 3.0 devices must attempt enumeration on USB 3.0 first. If your USB 3.0 device enumerates
on USB 2.0 first, then your device is out of spec and will not operate with this cable.
CAUTION: The Spectra 3001-15 will not operate on a USB 2.0 port; please ensure you connect it to a USB 3.0
port.
5

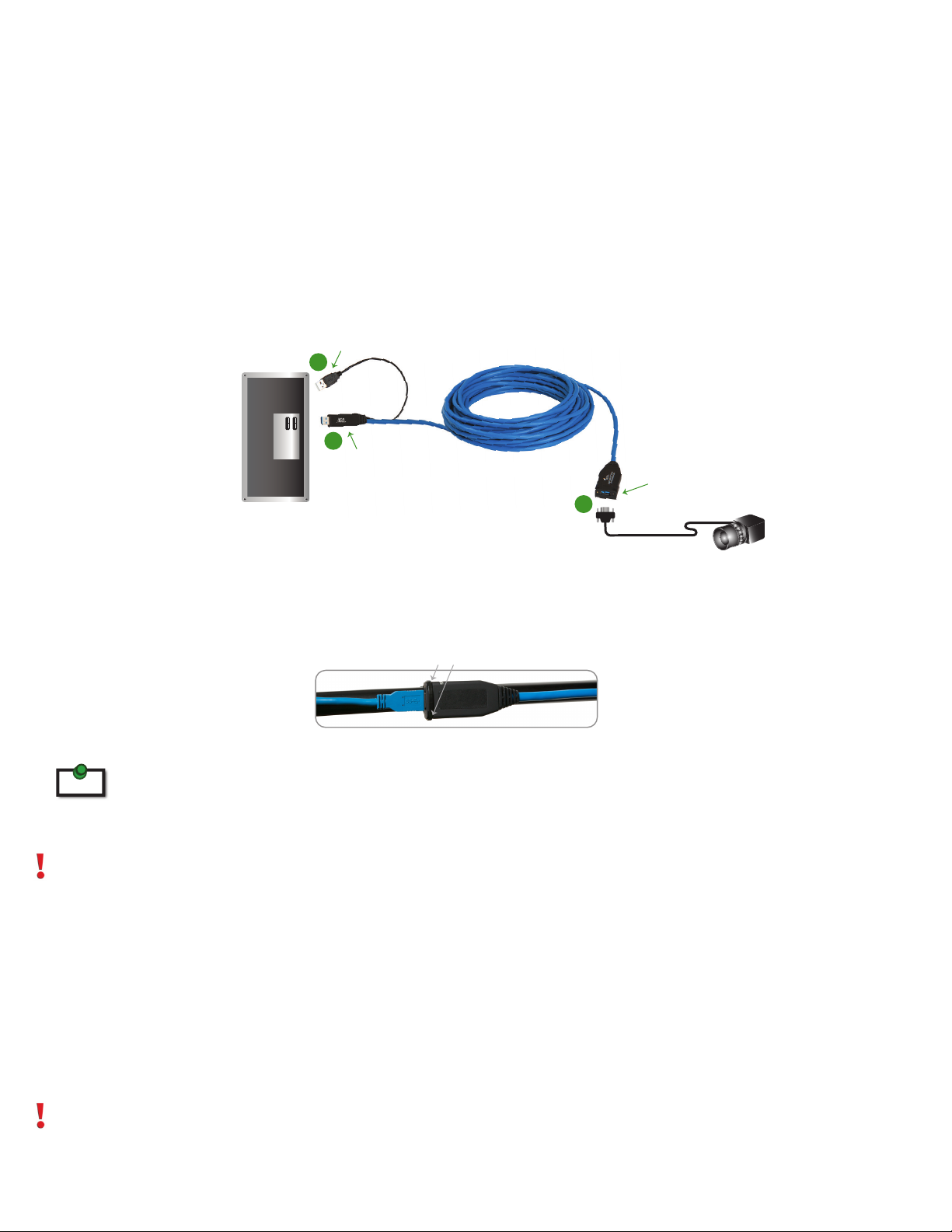

Connection Instructions
Before you get started, ensure that all the drivers required for your USB 3.0 device(s) are installed.
1. Plug the Spectra 3001-15’s USB 3.0 host connector into a USB 3.0 port on your computer.
2. It is recommended to plug the Spectra 3001-15’s USB power connector into any USB port on your
computer.This step is essential if your USB 3.0 device is not self-powered or draws more than 2.5W of
power.
3. Attach your USB 3.0 device into the Spectra 3001-15’s USB 3.0 receptacle.AIA USB3 Vision locking
USB connectors are supported if needed.
Computer
USB 3.0 Device
(e.g. Camera)
USB 3.0 Host
Connector
USB Power
Connector
2
2
1
1
USB 3.0 Locking
Receptacle
USB 3.0 Spectra™ 3001-15
Active Cable
3
Conveniently secure your configuration by wrapping the included cable tie around the USB 3.0 receptacle’s
two mounting slots.
mounting slots for cable tie
note
Most USB 3.0 self-powered devices and flash drives require less than 2.5W of power, while many of the USB 3.0 cameras
need more than 2.5W of power.When more than 2.5W of power is required, both connectors of the Spectra 3001-15
should be plugged into the host computer.
CAUTION: The Spectra 3001-15 is a rugged and robust cable. However, it can be subject to damages if the
Spectra 3001-15 is bent beyond the bend radius of 28mm (1.10”). For optimal performance, use the Spectra
3001-15 according to the product specifications on page 10 of this guide.
Compatibility
The Spectra 3001-15 complies with USB 3.0 specifications governing the design of USB devices. However,
Icron does not guarantee that all USB 3.0 devices are compatible with the Spectra 3001-15, as there are
a number of different configurations that may impact the operation of USB 3.0 devices over extended
distances.
CAUTION: The Spectra 3001-15 supports only USB 3.0 devices. USB 2.0 and 1.1 devices will not function using
this extender.
6

Troubleshooting
The following table provides troubleshooting tips. The topics are arranged in the order in which they should
be executed in most situations. If you are unable to resolve the problem after following these instructions,
please contact Technical Support for further assistance.
PROBLEM CAUSE SOLUTION
The LED light on
the cable is red
• The USB 3.0 device draws more
than 2.5W of power and the
USB power connector is
not plugged in.
• The Spectra 3001-15 is not
recognized by the host
computer.
• The host computer is not
providing enough power.
• The Spectra 3001-15 is
malfunctioning.
1. Disconnect the Spectra 3001-15 from your host
computer.
2. Plug in the USB power connector first, and
then plug into the host connector.
3. If this problem persists, move the USB power
connector to another USB port on the host
computer.
4. Contact Technical Support for assistance.
The LED light
on the cable
is green but
the USB 3.0
device does
not operate
correctly, or is
detected as
an“Unknown
Device” in the
operating
system.
• The USB 3.0 device enumerates
on USB 2.0 prior to USB 3.0.
• The USB 3.0 device is
malfunctioning.
• The computer does not
recognize the USB 3.0 device.
• The application software for the
device is not operating.
• The Spectra 3001-15 is
malfunctioning.
1. Disconnect the Spectra 3001-15 from the
computer.
2. Connect the USB device directly into the USB 3.0
port on your computer.
3. If your USB device does not operate properly,
consult the user documentation for this device.
4. Update your system BIOS, chipset, or USB Host
controller drivers from your System/Mother
board manufacturer’s website.
5. If your USB device operates properly when
directly connected to the computer, connect
another USB 3.0 device (of a different type) to the
Spectra 3001-15. Connect the Spectra 3001-15 to
your computer.
6. If your second USB 3.0 device does not operate,
the Spectra 3001-15 may be malfunctioning.
Contact Technical Support for assistance.
7. If your second USB 3.0 device does operate
properly, your first device may not be compatible
with the Spectra 3001-15.
7

Warranty Information
Limited Hardware Warranty
Icron, a Maxim Integrated Brand, warrants that any hardware products accompanying this documentation
shall be free from significant defects in material and workmanship for a period of two years from the date
of purchase. Icron's hardware warranty extends to Licensee, its customers and end users.
The Warranty does not include repair of failures caused by misuse, neglect, accident, modification, operation
outside a normal operating environment, failure caused by service of the device by non-authorized servicers,
or failure caused by a product for which Icron is not responsible. Opening the product will void warranty.
Hardware Remedies
Icron's entire liability and the Licensee’s exclusive remedy for any breach of warranty, shall be, at Icron’s
option, either (a) return of the price paid or (b) repair or replacement of hardware, which will be warranted
for the remainder of the original warranty period or 30 days, whichever is longer.These remedies are void if
failure of the hardware has resulted from accident, abuse or misapplication.
Limitation of Liability
The hardware warranty set forth in this agreement replaces all other warranties. Icron expressly disclaims all
other merchantability and fitness for a particular purpose and noninfringement of third-party rights with
respect to the hardware.
Icron dealer, agent or employee is not authorized to make any modification extension, or addition to this
warranty. Under no circumstances will Icron, its suppliers or licensors be liable for any costs of procurement
or substitute products or services, lost profits, loss of information or data, or any other special, indirect,
consequential, or incidental damages arising in any way out of the sale of, use of, or inability to use Icron
product or service, even if Icron, its suppliers or licensors have been advised of the possibility of such
damages. In no case shall Icron, its suppliers and licensors’ liability exceed the actual money paid for the
products at issue.
Since some jurisdictions do not allow the limitation of implied warranties of liability for incidental,
consequential, special, or indirect damages, the above limitation may not always apply.The above limitation
will not apply in case of personal injury where and to the extent that applicable law requires such liability.
Obtaining Warranty Service
To obtain warranty service, you must first contact Icron within the warranty period for a Return Material
Authorization (RMA) number. Icron will not accept returns without an authorized RMA number. Prior
to contacting Icron, be sure you have recorded the serial number of your cable. Package the product
appropriately for safe shipment and mark the RMA number on the outside of the package.The package
must be sent prepaid to Icron Technologies Corporation.We recommend that you insure it or send it by
a method that provides package tracking.The repaired or replaced item will be shipped to you, at Icron's
expense, not later than thirty days after Icron receives the defective product.
8

Contacting Technical Support
If you are experiencing problems not referenced in the Troubleshooting section, contact Icron Technical
Support:
www.icron.com/support
Tel: [phone]
To help us serve you better, please include the following information with your technical support request:
• Host computer make and model
• Type of Operating System installed (e.g. Windows 10, macOS 10.14, etc.)
• Part number and serial number
• Make and model of any USB device(s) attached to this extender system
• Description of the installation such as Host computer model, transmission media used and
information about the USB device(s)
• Description of the problem
Address the returned product to:
RMA Coordinator
Icron Technologies Corporation
4664 Lougheed Highway, Suite 221
Burnaby, BC Canada
V5C 5T5
Contacting Sales
Email: [e-mail]
Tel: [phone]
9

Specifications
RANGE
Active Copper Cable 15m (49.21 ft)
SPEEDS
USB 3.0 Up to 5Gbps (Not backward compatible with USB 2.0/1.1)
PHYSICAL
USB Connector on Device Side 1 x USB 3.0 Type A Locking Receptacle per AIA USB 3 Vision™ specification
USB Connectors on Host Side 1 x USB 3.0 Host Connector and 1 x USB 3.0 Power Connector
(recommended for devices drawing more than 2.5W)
Cable Diameter 6.9mm (0.27”)
Jacket Material PVC
Minimum Bend Radius 28mm (1.10”)
Mounting Slots on Device
Side Slots for Cable Tie
POWER
Power Source Bus Power
Input Power Up to 1.4A
Available Power to Device 5V, 900mA
ENVIRONMENTAL
Operating Temperature Range 0°C to 45°C (32°F to 113°F)
Storage Temperature Range -20°C to 70°C (-4°F to 158°F)
Operating Humidity 20% to 80% relative humidity, non-condensing
Storage Humidity 10% to 90% relative humidity, non-condensing
COMPLIANCE
EMC FCC (Class B), CE (Class B)
Environmental RoHS2 (CE)
Flammability VW-1 (UL 1581)
Machine Vision Works with AIA USB3 Vision compliant devices
SUPPORT
Warranty 2-year
10

Icron Technologies Corporation
4664 Lougheed Highway, Suite 221
Burnaby, BC Canada
V5C 5T5
Tel: [phone]
www.icron.com/contact/
www.icron.com
