Icron DVI Ranger 500 User manual

DVI Ranger 500
User Guide
Featuring ExtremeDVI™ Technology

DVI Ranger 500
This document applies to Part Numbers: 00-00103, 00-00104 and
00-00105.
FCC Radio Frequency Interference Statement Warning
The DVI Ranger has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. The DVI Ranger generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with this
user guide, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CE Statement
We, Icron Technologies Corporation, declare under our sole responsibility
that the DVI Ranger, to which this declaration relates, is in conformity with
European Standard EN 55022/A1 Class B, and EN 50082-1 (IEC 801-2,
IEC 801-3, IEC 801-4)
IC Statement
This Class B digital apparatus complies with Canadian ICES-003.
©2004 Icron Technologies Corporation. All rights reserved. Icron
Technologies Corporation, the Icron Technologies Corporation logo, and the
Icron Technologies Corporation products referred to herein are either the
trademarks or the registered trademarks of Icron Technologies Corporation.
All other trademarks are property of their respective owners. Icron
Technologies Corporation assumes no responsibility for errors that may
appear in this manual. Information contained herein is subject to change
without notice.

User Guide
i
Contents
Introduction................................................................................................ 1
DVI Ranger Product Contents ................................................................... 1
About the DVI Ranger ............................................................................... 2
Before You Begin ...................................................................................... 6
Installing the TX unit ................................................................................. 6
Installing the RX unit................................................................................. 6
Connecting the TX unit to the RX unit ...................................................... 7
Completing the Installation ........................................................................ 8
Troubleshooting ......................................................................................... 9
Specifications........................................................................................... 11
Limited Hardware Warranty .................................................................... 12
Hardware Remedies ................................................................................. 12
Limitation of Liability.............................................................................. 12
Obtaining Warranty Service..................................................................... 13
Contacting Technical Support.................................................................. 13

DVI Ranger 500
ii
Notes

User Guide
1
Introduction
This manual will help you install the DVI Ranger model 500. The
instructions in this guide assume a general knowledge of computer
installation procedures, familiarity with cabling requirements, and some
understanding of DVI devices.
NOTE:Notes give additional information that could make installation
easier.
DVI Ranger Product Contents
When you open your DVI Ranger for the first time you should find the
following items:
• DVI Ranger User Guide (1)
• TX unit (1)
• RX unit (1)
• AC power adapter (1)
• DVI M-M cable (2)
To complete the installation, you will also require the following items that
are not included with the product:
• DVI compatible computer or other video source
• DVI display
• Four strands of multimode fiber-optic cable terminated at each end
with duplex LC connectors (if using surface cabling)
OR,
Four strands of multimode fiber-optic cabling terminated at each
end in duplex LC information outlets and four multimode fiber-
optic patch cables with duplex LC connectors (if using premise
cabling)
• Category 5 Unshielded Twisted Pair (UTP) cable with RJ45
connectors (if using surface cabling),
OR,
Category 5 UTP cabling with two information outlets and two
Category 5 UTP patch cords with RJ45 connectors (if using
premise cabling)
NOTE: The maximum length of the Category 5 UTP cable, including patch
cords, must not exceed 100m.
NOTE: The maximum length of the fiber-optic cable, including patch
cords, must not exceed 500m.

DVI Ranger 500
2
About the DVI Ranger
The DVI Ranger brings the benefits of digital transmission to extended range
video applications. With the DVI Ranger, any DVI-capable source of video
information can be connected to a DVI display up to 100 metres away. (In
special circumstances, this can even be extended to 500 metres.)
The DVI Ranger is composed of two individual units, the TX unit) and the
RX unit. Video signals in DVI format are transmitted from the TX unit to the
RX unit over four strands of multimode fiber cable. Information regarding
the capabilities of the display (such as its native resolution and refresh rate)
are conveyed from the RX unit to the TX unit over a Category 5 UTP cable
in EDID/DDC format.
The TX unit
The TX unit connects to the video source (usually a computer) using a
conventional DVI cable. Depending on your needs, it also connects to a
power outlet through an AC power adapter.
Front View
2 3 4 51

User Guide
3

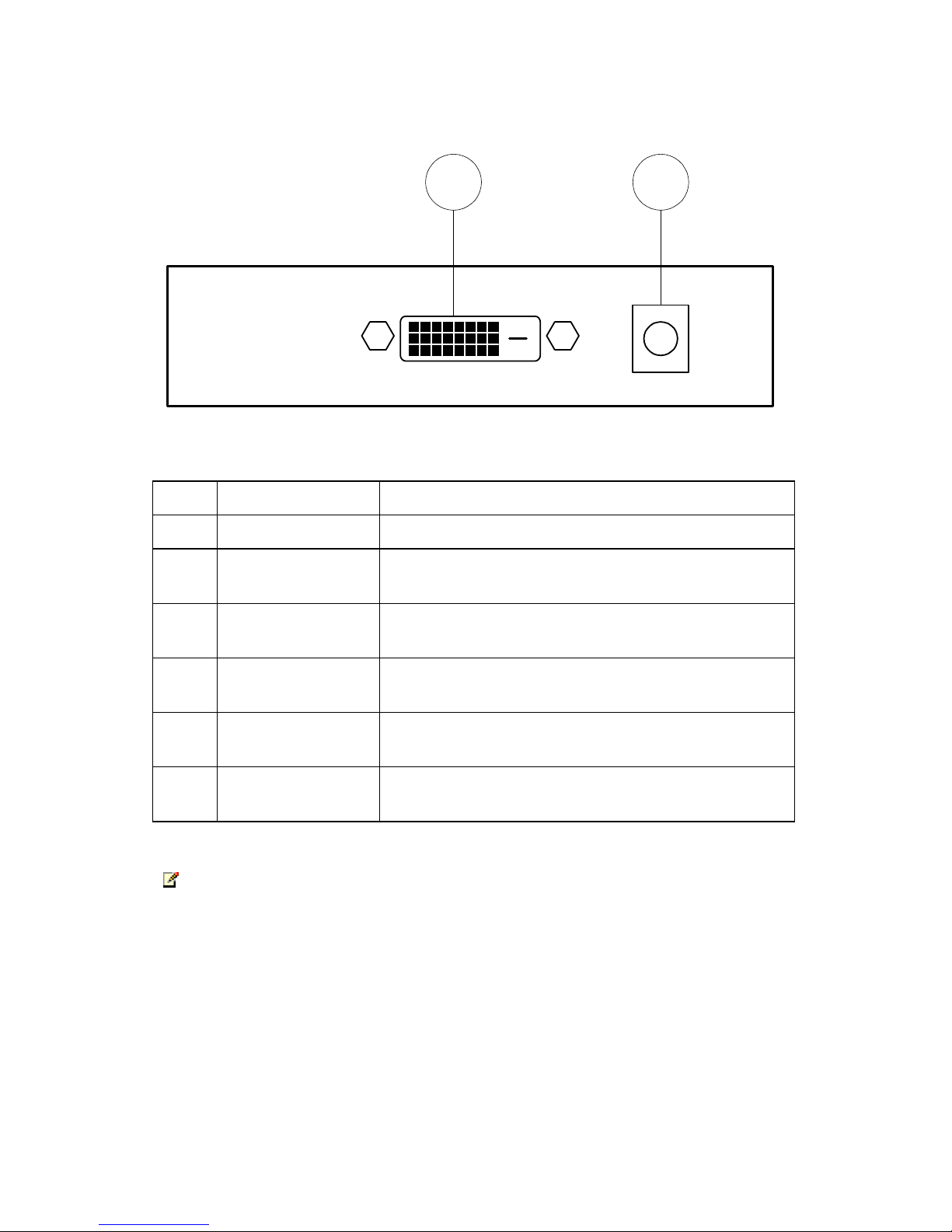

Rear View
6 7
The features of the TX unit are as follows:
1 Status LED Lit (green) when power is applied to the unit
2 Power LED Lit (red) when power is applied to the unit
3 Link 1 port Duplex LC receptacle for connection to fiber
network cable
4 Link 2 port Duplex LC receptacle for connection to fiber
network cable
5 DDC port RJ45 receptacle for connection to copper
network cable
6 DVI connector DVI-D receptacle for connection to computer or
other video source
7 Power connector Receptacle for connection of 12V DC power
adapter
NOTE:The power adapter for the DVI Ranger 500 can be connected to
either the TX unit or to the RX unit, as convenient.

DVI Ranger 500
4
The RX unit
The RX unit connects to the video display using a conventional DVI cable.
Depending on your needs, it also connects to a power outlet through an AC
power adapter.
The physical structure of the RX unit is identical to that of the TX unit
shown previously. The features of the RX unit are as follows
1 Status LED Lit (green) when DVI information is detected by
the unit
2 Power LED Lit (red) when power is applied to the unit
3 Link 1 port Duplex LC receptacle for connection to fiber
network cable
4 Link 2 port Duplex LC receptacle for connection to fiber
network cable
5 DDC port RJ45 receptacle for connection to copper
network cable
6 DVI connector DVI-D receptacle for connection to digital
display
7 Power connector Receptacle for connection of 12V DC power
adapter
Network Cabling
The TX unit and RX unit are interconnected by two sets of cables that
perform separate functions:
• Digital video signals are transmitted from the TX unit to the RX
unit over four strands of multimode fiber cable. The Digital Visual
Interface (DVI) is composed of four separate video channels,
namely Red, Green, Blue and Clock. Each channel is transmitted
over a separate strand of fiber.
• In many applications, the source of video information (computer)
needs to know the capabilities of the display device to which it is
connected. The most significant of these parameters are the
maximum resolution and maximum refresh rate of the screen.
Exceeding these values can result in a blank screen or even physical
damage. This information is stored in the display in a format known
as EDID and is provided to the computer using a protocol called

User Guide
5
DDC. This EDID/DDC information is obtained from the display by
the RX unit and transmitted to the TX unit over a Category 5 UTP
cable. The information is then relayed to the computer over the DVI
cable.
• In certain applications, the EDID/DDC function is not required. In
this situation, the DDC cable can be omitted from the configuration
and the system can be operated at the maximum range of the fiber
connection – 500 meters.
NOTE:Category 5 UTP cabling is the standard data communications cable
installed in most commercial and some residential buildings.

DVI Ranger 500
6
Before You Begin
Before you can install the DVI Ranger, you need to prepare your site.
1. Determine where the computer is to be located and set up the
computer.
2. Determine where you want to locate the display
3. Decide whether the power adapter is to be connected to the TX unit
or the RX unit.
4. If you are using surface cabling, ensure you have enough
multimode fiber and Category 5 UTP cabling to connect the two
locations.
OR
If you are using premise cabling, ensure multimode fiber and
Category 5 UTP cabling is installed between the two locations, with
duplex LC and RJ45 information outlets located near both the
computer and the display.
Installing the TX unit
1. Place the TX unit near the computer.
2. Switch off the computer.
3. Connect the DVI output of the computer to the DVI port of the TX
unit using the DVI M-M cable provided.
Installing the RX unit
1. Place the RX unit near the DVI display.
2. Switch off the display.
3. Connect the DVI port of the RX unit to the DVI input of the display
using the DVI M-M cable provided.

User Guide
7
Connecting the TX unit to the RX unit
NOTE:To ensure proper operation, we recommend that only Category 5 or
better, Unshielded Twisted Pair (UTP) cabling be used to connect
the TX unit to the RX unit. The UTP cabling must have a straight-
through conductor configuration with no crossovers, and must be
terminated with 8-conductor RJ45 connectors at both ends.
With Surface Cabling
1. Remove the dust covers from the Link ports of the TX unit and the
RX unit.
2. Plug one end of the first duplex multimode cable (not included) into
the Link 1 port on the TX unit. Plug the other end of this cable into
the Link 1 port on the RX unit.
3. Plug one end of the second duplex multimode cable (not included)
into the Link 2 port on the TX unit. Plug the other end of this cable
into the Link 2 port on the RX unit.
4. Plug one end of the Category 5 UTP cabling (not included) into the
DDC port on the TX unit. Plug the other end of the Category 5 UTP
cabling into the DDC port on the RX unit.
With Premise Cabling
1. Remove the dust covers from the Link ports of the TX unit and the
RX unit.
2. Plug one end of the first duplex multimode patch cord (not included)
into the Link 1 port on the TX unit. Plug the other end of this cable
into the first LC receptacle on the adjacent information outlet.
3. Plug one end of the second duplex multimode patch cord (not
included) into the Link 2 port on the TX unit. Plug the other end of
this cable into the second LC receptacle on the adjacent information
outlet.
4. Plug one end of a Category 5 patch cord (not included) into the DDC
port on the TX unit. Plug the other end of the patch cord into the
RJ45 receptacle on the adjacent information outlet.
5. Plug one end of the third duplex multimode patch cord (not
included) into the Link 1 port on the RX unit. Plug the other end of
this cable into the first LC receptacle on the adjacent information
outlet.

DVI Ranger 500
8
6. Plug one end of the fourth duplex multimode patch cord (not
included) into the Link 2 port on the RX unit. Plug the other end of
this cable into the second LC receptacle on the adjacent information
outlet.
7. Plug one end of the second Category 5 patch cord (not included) into
the DDC port on the RX unit. Plug the other end of this cord into the
RJ45 receptacle on the adjacent information outlet.
NOTE:The maximum length of the Category 5 UTP cable, including patch
cords, must not exceed 100 meters.
NOTE:It is essential that the fiber connections are not crossed. The left
channel of Link 1 on the TX unit must be connected to the left
channel of Link 1 on the RX unit, and so on.
Completing the Installation
1. Connect the AC power adapter to either the TX unit or RX unit as
convenient. Connect the AC cord to an available AC outlet.
2. Switch on the computer and DVI display.
3. Check that the Power LEDs on the TX unit and RX unit are both
on.
4. Check that the Status LEDs on the TX unit and RX unit are both on.

User Guide
9
Troubleshooting
The following table provides troubleshooting help. The topics are arranged
in the order in which they should be executed in most situations. If you are
unable to resolve the problem after following these instructions, please
contact technical support for further assistance (see page 13).
Symptoms/Cause Remedy
All LEDs on TX unit and
RX unit are off.
Cause:
The DVI Ranger is not
receiving power from
the adapter
1. Ensure that the power adapter is connected to
the TX unit or RX unit.
2. Check that the adapter is connected to a live
source of electrical power.
Power LED on one unit
is on, power LED on
other unit is off.
Cause:
There is no DDC
connection between the
TX unit and RX unit.
1. Ensure that a Category 5 UTP cable with
straight-through conductors is connected
between the TX unit and RX unit.
2. Connect a short Category 5 patch cord
between the TX unit and RX unit. Recheck the
operation of the system.
Status LED on RX unit
is off.
Cause:
a) There is no fiber
connection between
the TX unit and RX
unit.
b) There is no active
video source
connected to the TX
unit.
1. Ensure that multimode fiber cables are
connected between the TX unit and RX unit.
2. Ensure that each port on the TX unit is
connected to the corresponding port on the
RX unit (i.e. Link 1 to Link 1, Link 2 to Link 2).
3. Connect two short multimode fiber patch
cords between the TX unit and RX unit.
Recheck the operation of the system.
4. Ensure that a DVI video source is properly
connected to the TX unit.
5. Ensure that the DVI video source is powered
on and is configured for a DVI display.
Connect the display directly to the video
source to confirm its operation.

DVI Ranger 500
10
Symptoms/Cause Remedy
Display screen is black
Cause:
The display is not
receiving a signal from
the DVI Ranger.
1. Check that power is applied to the display.
2. Check that the display is connected to the RX
unit with a DVI cable.
3. Ensure that each port on the TX unit is
connected to the corresponding port on the
RX unit (i.e. Link 1 to Link 1, Link 2 to Link 2).
4. Power the display OFF then ON again.
5. Do not remove the DVI cable from the TX unit
during normal operation.
Display is distorted or
noisy
Cause:
The screen resolution is
not set properly.
1. On the host computer, open the display
properties dialog and select the Settings tab.
Ensure that the resolution is set to UXGA
(1600 x 1200) at 60 Hz refresh rate, or a
lesser value.
2. Reset the system
Display does not
operate after computer
wakes up from
Sleep/Standby mode.
1. Power the display OFF then ON again.
Display switches off
and on intermittently.
1. Power the display OFF then ON again.

User Guide
11
Specifications
Range (over Category
5 UTP cable) 100 meters (330 ft)
Range (over multimode
fiber)
500 meters (1650 ft)
Fiber cable
compatibility
62.5/125 µm or 50/125 µm multimode
DVI cable 2 meters (6.6 ft)
Maximum resolution UXGA
1600 x 1200 at 60 Hz refresh rate
DVI bandwidth 1.65 Gb/s per channel
Power adapter 12 V, 3 A, centre positive
TX unit connector
(upstream)
1 x DVI-D receptacle
TX unit connectors
(downstream)
1 x RJ45 receptacle
2 x Duplex LC receptacle
RX unit connector
(upstream)
1 x RJ45 receptacle
2 x Duplex LC receptacle
RX unit connector
(downstream)
1 x DVI-D receptacle
TX unit dimensions 107 mm x 80 mm x 26 mm
4.2” x 3.2” x 1.0”
TX unit weight 0.3 kg (0.6 lb)
RX unit dimensions 107 mm x 80 mm x 26 mm
4.2” x 3.2” x 1.0”
RX unit weight 0.3 kg (0.6 lb)
Total system shipping
weight
1.1 kg (2.4 lb)
Temperature range 4°C to 40°C
Regulatory testing FCC, CE Class B

DVI Ranger 500
12
Limited Hardware Warranty
Icron Technologies Corporation warrants that any hardware products
accompanying this documentation shall be free from significant defects in
material and workmanship for a period of one year from the date of
purchase. Icron Technologies Corporation’s hardware warranty extends to
Licensee, its customers and end users.
Hardware Remedies
Icron Technologies Corporation’s entire liability and the Licensee’s
exclusive remedy for any breach of warranty, shall be, at Icron Technologies
Corporation’s option, either (a) return of the price paid or (b) repair or
replacement of hardware, which will be warranted for the remainder of the
original warranty period or 30 days, whichever is longer. These remedies are
void if failure of the hardware has resulted from accident, abuse, or
misapplication.
Limitation of Liability
The hardware warranty set forth in this agreement replaces all other
warranties. Icron Technologies Corporation expressly disclaims all other
merchantability and fitness for a particular purpose and non-infringement of
third-party rights with respect to the hardware. Icron Technologies
Corporation dealer, agent, or employee is authorized to make any
modification, extension, or addition to this warranty. Under no
circumstances will Icron Technologies Corporation, its suppliers or licensors
be liable for any costs of procurement or substitute products or services, lost
profits, loss of information or data, or any other special, indirect,
consequential, or incidental damages arising in any way out of the sale of,
use of, or inability to use Icron Technologies Corporation product or service,
even if Icron Technologies Corporation, its suppliers or licensors have been
advised of the possibility of such damages. In no case shall Icron
Technologies Corporation, its suppliers and licensors’ liability exceed the
actual money paid for the products at issue. Because some jurisdictions do
not allow the limitation of implied warranties of liability for incidental,
consequential, special, or indirect damages, the above limitation may not
always apply. The above limitations will not apply in case of personal injury
where and to the extent that applicable law requires such liability.

User Guide
13
Obtaining Warranty Service
To obtain warranty service, you must contact Icron Technologies
Corporation within the warranty period for a Return Material Authorization
(RMA) number. Be sure you have the serial numbers of the TX unit and RX
unit units before calling. Package the product appropriately for safe shipment
and mark the RMA number on the outside of the package. The package must
be sent prepaid to Icron Technologies Corporation. We recommend that you
insure it or send it by a method that provides for tracking of the package. The
repaired or replaced item will be shipped to you, at Icron Technologies
Corporation’s expense, not later than thirty days after Icron Technologies
Corporation receives the defective product.
Address the returned product to:
RMA Coordinator
Icron Technologies Corporation
4664 Lougheed Highway, Suite 275
Burnaby, BC, V5C 5T5
Canada
Tel: [phone]
Contacting Technical Support
If you require technical assistance, send an e-mail message to:
techsupp[email protected]
To help us serve you better, please include the following information with
your technical support request:
• Description of the problem
• Host computer make and model
• Type of operating system installed (e.g. Win98, Mac OS X, etc.)
• Part number and serial number of the TX unit and the RX unit
• Make and model of any display device attached to the DVI Ranger
• Description of the installation

DVI Ranger 500
14
Notes

User Guide
15
Notes

90-00134-A01
Icron Technologies Corporation
4664 Lougheed Highway, Suite 275
Burnaby, BC, V5C 5T5
Canada
Tel: [phone]
Fax: [phone]
www.icron.com
