ICS HYDROTECHNIK MultiSystem 4070 User manual

MultiSystem 4070
Universal Portable Measuring System
Firmware Version 1.2
Handbook Version 1.2
ENG
Operating Instructions
ENG

Contents
Firmware Version 1.2 MultiSystem 4070 2
DEU
Safety
General safety and warning information ............. 4
Handling information for
the MultiSystem 4070........................................ 4
Information about the use of sensors
and cables........................................................... 5
Information about handling batteries................... 5
Introduction
Scope.................................................................. 6
Copyright............................................................. 6
Limitation of liability............................................. 7
Intended use ....................................................... 8
Warranty ............................................................. 8
Customer obligations .......................................... 9
Authorized personnel .......................................... 9
Description of the measuring
instrument
Properties of the MultiSystem 4070 ................ 10
Connections ...................................................... 11
Characteristics of analogue inputs............... 12
Characteristics of frequency/analog inputs.. 13

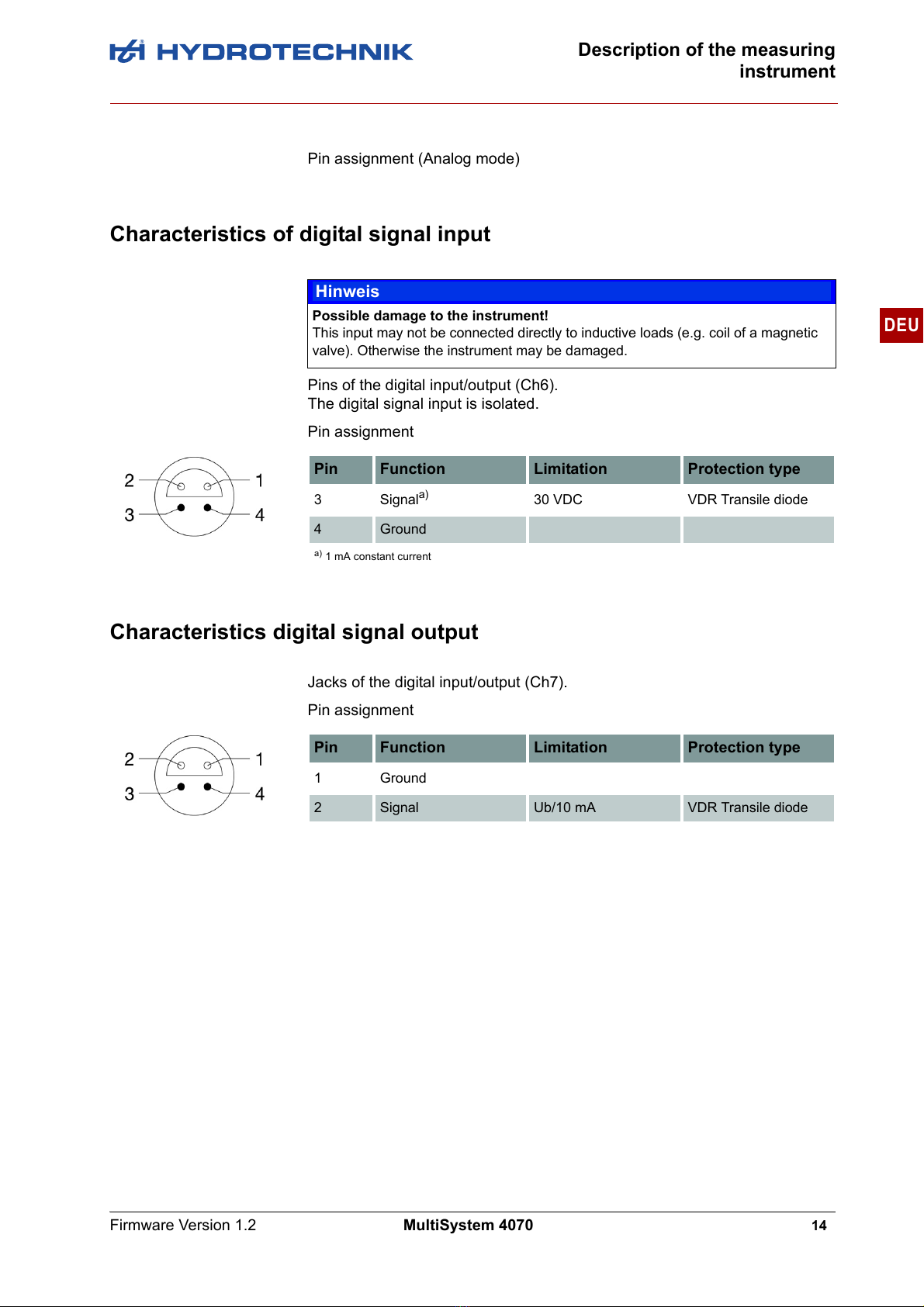

Characteristics of digital signal input............ 14
Characteristics digital signal output ............. 14
Characteristics of
combi jack CAN / RS 232 ............................ 15
Characteristics of USB interface.................. 15
Display .............................................................. 16
Keyboard........................................................... 17
HYDROcom software package ......................... 18
Technical data................................................... 18
Commissioning
Check delivery .................................................. 19
Scope of delivery .............................................. 19
Charge batteries ............................................... 20
Display operating instructions ........................... 20
Operation
Switch the instrument On and Off ..................... 22
Operation of the instrument software................ 23
Navigating in the instrument software.......... 24
Favorites ...................................................... 25
User-defined softkeys.................................. 26
Softkeys: Symbols/text ................................ 26
Select operating language ................................ 27
Adjust number format ....................................... 28
Set date and time.............................................. 29
Connect sensors............................................... 29
Enter sensor parameters .................................. 30
Record measuring data .................................... 32
Delete measuring data...................................... 33
Display information on selected file .................. 34
Connect a PC and transfer data ....................... 35
Directory structure for DATA-VOL partition ...... 36
Reset instrument............................................... 38
Operating software
Frequently used functions................................. 39
Home ................................................................ 41
Available menus .......................................... 41
Start recording .................................................. 42
Measure (measured values display)................. 44
Change display............................................ 44
Measured values with their units ................. 45
Measured values with MinMax .................... 46
Symbols in the measured values display .... 46
Error display ................................................ 47
Configurations................................................... 48
Save a new configuration ............................ 48
Load a saved configuration ......................... 49
Delete a saved configuration ....................... 49
Series of measurements................................... 50
Overview series ........................................... 50
Show series ................................................. 51
Presentation type “Table” ............................ 59
Presentation type “Graph” ........................... 60
Spot function ..................................................................62
Delta-spot function .........................................................63
Delete series................................................ 64
Search series............................................... 65
Setting............................................................... 67
Channels ..................................................... 68
Overview Filter ...............................................................78
Channel extension .........................................................79
Display......................................................... 81

Contents
Firmware Version 1.2 MultiSystem 4070 3
DEU
Display (Symbols/colors) dialog .................................... 85
Display scaling dialog .................................................... 86
Device.......................................................... 87
Connections .................................................................. 88
General Settings ........................................................... 95
Info ................................................................................ 99
Date/Time .................................................................... 100
Memory medium ......................................................... 101
Security ....................................................................... 102
Calibration setting ....................................................... 103
Hardware Diagnostic ................................................... 104
Battery information ...................................................... 105
Recording................................................... 106
Trigger function ........................................................... 107
Setup Recording ......................................................... 111
Extras.............................................................. 112
Convert and Export.................................... 113
Special functions
Linearization table........................................... 116
Define CAN channel ....................................... 118
Graphic presentation in display menu............. 122
Coupling of several instruments...................... 123
Connecting a measuring instrument
electrically .................................................. 123
Serial coupling ............................................................. 124
Parallel coupling .......................................................... 125
Use of the MultiXtend Trigger ..................................... 125
Program instruments.................................. 126
Program the Master instrument ................................... 126
Program Slave instruments ......................................... 126
Start recording ........................................... 126
Transfer and evaluate measured values.... 127
Connecting MultiXtend A and T ...................... 127
Enable CAN bus ........................................ 128
Program CAN channels ............................. 129
Activate MultiXtend power supply.............. 129
Start the MultiXtend ................................... 130
Viscosity-compensated volume flow rate
measurement .................................................. 131
Reprogram CAN parameters .......................... 136
Icon reference
Favorites ......................................................... 139
Softkeys: Symbols/text.................................... 143
Cleaning and maintenance
Cleaning.......................................................... 147
Maintenance ................................................... 147
Repair ............................................................. 148
Manufacturer address and customer service.. 148
Special applications

Firmware Version 1.2 MultiSystem 4070 4
Safety
DEU
Safety
General safety and warning information
•Never cut, damage or modify the power pack cables or place things on the
power pack.
•Never touch the power pack with wet or moist hands.
•Only connect the power pack to power supplies for which it is suited (see
Kapitel Technical data auf Seite 18),
•Unplug the power cable from the outlet during a thunderstorm.
•Unplug the power cable if you detect smoke or there is an odor, or if the
power cable is damaged.
•Ensure sufficient grounding of your system. Inadequate grounding may
cause incorrect measurements.
Handling information for the MultiSystem 4070
•Never expose the instrument to excessive heat or moisture and observe
the technical data.
•Do not store the instrument in humid or dusty locations or at temperatures
below freezing point.
•Never submerge the instrument into water or other liquids. Never let liq-
uids come into the instrument.
•Never open the instrument.
•Do not use the instrument if it has been dripped or if the casing is
damaged.
•Avoid strong magnetic fields. Keep the instrument away from electric
motors or other instruments which generate electromagnetic fields. Strong
magnetic fields may cause malfunctions and influence measurement
values.
•Prevent the formation of condensation. If condensation has formed, let the
instrument acclimate before you switch it on.

Firmware Version 1.2 MultiSystem 4070 5
Safety
DEU
Information about the use of sensors and cables
•Protect the sensors from exceeding the allowed power range, mechanical
overload and incorrect pin assignment.
•Make sure you enter the sensor parameters correctly when using sensors
without ISDS (Intelligent Sensor Detection System).
•The measuring cables MK 01 and MKS may not be lengthened. Otherwise
the shielding will be interrupted.
•The data of an ISDS sensor are read in when the measuring instrument is
switched on. If sensors are reconnected the measuring instrument must
be switched off and on again to allow the sensor data to be adopted.
Information about handling batteries
•Always keep batteries away from heat sources and open fire.
•Never submerge batteries into water.
•Never disassemble, repair or modify the batteries.
•Never short-circuit the contacts of batteries.
•Use only batteries that are installed or delivered by HYDROTECHNIK.
•Only charge the battery while it is mounted in the instrument.
•Dispose of used batteries as hazardous waste. Cover the contacts with
insulation tape.
Disposal information
Do not dispose of this product with your household waste.
You can find more detailed information on disposal on our website at: www.hydro-
technik.com.

Firmware Version 1.2 MultiSystem 4070 6
Introduction
DEU
Introduction
Scope
The manual on hand is valid for measuring instruments named
MultiSystem 4070. It is intended for the operator of the instrument, that
means the person who works with the instrument. This is not a technical man-
ual. Please contact our customer service for questions that go beyond the
contents of this manual.
Copyright
The measuring instrument and this manual are protected by copyright. Repro-
duction without license will be prosecuted. All rights reserved to this manual;
this includes the reproduction and/or duplication in any conceivable form, e.g.
by photocopying, printing, on any data recording media or in translated form.
Reproduction of this manual is only permitted with a written approval of
HYDROTECHNIK GmbH.
The technical state by the time of delivery of instrument and manual is deci-
sive, if no other information is given. We reserve the right to make technical
changes without prior notice. Earlier manuals are no longer valid.
The general conditions of sale and delivery of HYDROTECHNIK GmbH are
valid.
The information contained in this section is important. If you neglect it, you might
lose the right to make guarantee and warranty claims.

Firmware Version 1.2 MultiSystem 4070 7
Introduction
DEU
Limitation of liability
We guarantee the faultless functioning of our product in accordance with our
advertising, the product information we publish and this manual. Further prod-
uct features are not guaranteed. We assume no liability for the economy and
faultless function if the product is used for a different purpose than the one de-
scribed in the chapter Intended use.
Compensation claims are generally excluded, except if intention or culpable
negligence by HYDROTECHNIK is proved, or if assured product features are
not provided. If the product is used in environments for which it is not suited or
that do not represent the technical standard, we shall not be responsible for
the consequences.
We assume no liability for damage to installations and systems in the sur-
roundings of the product that is caused by a fault of the product or an error in
this manual.
We are not responsible for the violation of patents and/or other rights of third
persons outside the Federal Republic of Germany.
We are not liable for damage that results from improper operation and non-
compliance with the instructions in this manual. We are not liable for lost profits
and for consequential damages that arise from non-compliance with safety
and warning information. We assume no liability for damage that results from
the use of accessories and wearing parts that were not delivered and/or ap-
proved by HYDROTECHNIK.
The products of HYDROTECHNIK GmbH are designed for a long life. They
represent the state of the art and their functions have been individually
checked before delivery. The electrical and mechanical design corresponds to
current standards and regulations. HYDROTECHNIK conducts ongoing prod-
uct and market research for the further development and continuous
improvement of its products.
In case of faults and/or technical trouble, please contact HYDROTECHNIK
customer service. We can assure you that we will take immediate measures.
The guarantee conditions of HYDROTECHNIKapply; if desired, we will gladly
send you these.

Firmware Version 1.2 MultiSystem 4070 8
Introduction
DEU
Intended use
The measuring instrument MultiSystem 4070 is a mobile, hand-held instru-
ment for the recording, storage and evaluation of measuring data, collected by
sensors connected to the instrument.
You can connect a large variety of different sensors to the instrument, but they
have to meet the requirements defined in the section Technical data. Any oth-
er use of the measuring instrument is considered improper. If you have any
question or want to use the measuring instrument for a different purpose,
please do not hesitate to contact our service staff. We will be happy to assist
you with any possibly necessary configurations.
Warranty
In accordance with our warranty conditions, we guarantee the condition with-
out defects for this measuring instrument for a duration of six months. Wearing
parts and storage batteries are excluded from this warranty. The warranty be-
comes void if repair work or interventions are executed by unauthorized
persons.
Within the warranty period we will repair damage or defects that are caused
by a manufacturing fault. We only accept warranty claims if they are reported
to us immediately after their discovery, but no later than six months after deliv-
ery. The warranty benefit is by our choice through free repair of defective parts
or replacement with sound parts.
Please send the instruments for which you have made a warranty claim post-
age-paid and with a copy of the invoice or the delivery slip to
HYDROTECHNIK customer service. You can find the address at the end of
this manual.

Firmware Version 1.2 MultiSystem 4070 9
Introduction
DEU
Customer obligations
The operating authority of this product has to assure, that only persons who
•know the regulations concerning occupational safety and accident
prevention
•have been instructed in the operation of this product
•have read and understood this manual
•are permitted to use and operate this product.
Persons who operate this instrument are obliged to
•obey all regulations on occupational safety and accident prevention
•read this manual completely, especially the safety instructions in the first
chapter.
Authorized personnel
Persons are considered to be authorized if they have a professional education,
technical experience, knowledge of the relevant standards and regulations
and if they are able to estimate their duties and recognize possible danger at
an early time.
Operator of the instrument
Persons are considered to be authorized if they have been instructed in the
operation of the instrument and have read and understood this manual
completely.
Personnel for installation and maintenance
Persons are considered to be authorized if they have been trained in all as-
pects of the instrument and have read and understood this manual completely.

Firmware Version 1.2 MultiSystem 4070 10
Description of the measuring
instrument
DEU
Description of the measuring
instrument
Properties of the MultiSystem 4070
The MultiSystem 4070 is a practice-oriented, user-friendly hand-held mea-
suring instrument supporting the user in the daily measuring functions. When
using sensors with ISDS (intelligent sensor detection), the MultiSystem 4070
automatically identifies the connected sensors during switch-on and adopts all
parameters: Measurement range, physical measurand, unit of measurement,
signal output and characteristic curve (linearization). You can also connect
sensors without ISDS designation. The entry of the sensor parameters is then
done in clear operation menus.
You can connect up to five sensors and store all measured values. Calcula-
tions from the measured values such as difference, sum and performance, as
well as the 1st derivation (e.g. speed from path) are available as additional
special channels for display and recording. The buffering of extreme values of
the minimum and maximum measurands is always active and can be dis-
played by the corresponding key selection.
All measurements can be conveniently transferred to a PC using a USB cable.
The HYDROcom software is delivered for free with the instrument and offers
comprehensive support with functions for the evaluation, presentation and
printing of the measured values.
System requirements for your PC:
•Windows 7/8 (driver required)
www.hydrotechnik.com
•Windows 8.1 or later

Firmware Version 1.2 MultiSystem 4070 11
Description of the measuring
instrument
DEU
Connections
APower supply – power pack
BUSB interface
CCombi jack CAN/RS232
DInput Ch5 – frequency input
EInput Ch3 – analogue input
FInput Ch1 – analog input
GDigital input and output
HInput Ch2 – analog input
IInput Ch4 – frequency/analog input
A B C D FE
GI H

Firmware Version 1.2 MultiSystem 4070 12
Description of the measuring
instrument
DEU
Characteristics of analogue inputs
Pin assignment
Number 4 (Ch1 to Ch4)
Signal input Switchable 0/4 … 20 mA;
0/2 … 10 V; ± 10 V; 0.5 … 4.5 V; 1 … 5 V
Resolution 13-bit analogue/digital converter
(12-bit + sign)
Measuring rate 1.0 ms = 1 kHz
Filter function Input filter 50 kHz (dynamic mode)
IIR filter Connectable: 5 kHz (standard mode) / 50 Hz (damped
mode)
Connector 6 pin device plug
Protection type IP40

Firmware Version 1.2 MultiSystem 4070 13
Description of the measuring
instrument
DEU
Characteristics of frequency/analog inputs
Pin assignment (Frequency mode)
Number 1 (Ch4, Ch5) frequency/counter inputs with switchable
direction detection or analog inputs
Signal input
(Frequency mode)
5 – 30 VDC
0.25 Hz – 20 kHz
Signal input
(Analog mode)
Switchable 0/4 … 20 mA;
0/2 … 10 V; ± 10 V; 0.5 … 4.5 V; 1 … 5 V
Resolution
(Analog mode)
13-bit analogue/digital converter
(12-bit + sign)
Measuring rate
(Analog mode)
Max. 10,000 values per second
Filter function
(Frequency mode)
Adjustable period measurement for averaging
Filter function
(Analog mode)
Input filter 50 kHz (dynamic mode)
IIR filter
(Analog mode)
Connectable: 5 kHz (standard mode) / 50 Hz (damped
mode)
Connector 6 pin device plug
Protection type IP40

Firmware Version 1.2 MultiSystem 4070 14
Description of the measuring
instrument
DEU
Pin assignment (Analog mode)
Characteristics of digital signal input
Pins of the digital input/output (Ch6).
The digital signal input is isolated.
Pin assignment
Characteristics digital signal output
Jacks of the digital input/output (Ch7).
Pin assignment
Hinweis
Possible damage to the instrument!
This input may not be connected directly to inductive loads (e.g. coil of a magnetic
valve). Otherwise the instrument may be damaged.
Pin Function Limitation Protection type
3 Signala)
a) 1 mA constant current
30 VDC VDR Transile diode
4Ground
Pin Function Limitation Protection type
1 Ground
2Signal Ub/10 mA VDR Transile diode

Firmware Version 1.2 MultiSystem 4070 15
Description of the measuring
instrument
DEU
Characteristics of combi jack CAN / RS 232
8-pin M12x1
Pin assignment
Characteristics of USB interface
Micro USB Type B for communication with a PC.
Pin Function
1 Ground
2Power supply for MultiXtend or CAN sensorsa)
a) ~14.6 to 15 V, max. 800 mA (power supply) / ~ 13 VDC / 180 mA (battery)
3DTR
4CAN_H
5TXD
6RTS from PC (input)
7CAN_L
8RXD
Function Designation Remarks
Signal D+ green twisted cable
Signal D– white twisted cable
VCC red ~ 5 VDC / 500 mA
Ground black –

Firmware Version 1.2 MultiSystem 4070 16
Description of the measuring
instrument
DEU
Display
The instrument is equipped with a color display where all information and mea-
sured values are displayed.
Graphical presentations can be configured individually.
Various items of information can be displayed as icons in the upper bar of the
display:
In normal operation, either the battery or power pack icon is displayed. If the
battery icon flashes during mains operation, the batteries are either missing,
defective or deep-cycled. Possibly the battery cable isn't plugged correctly.
Recording bar Indicates recording in progress
USB Instrument is connected to a PC via the USB interface
(device)
Battery Loading state of the battery; when the icon turns red,
the battery should be charged immediately
Power supply Instrument power supply with external power pack;
batteries are charged
If the instrument detects problems with the power sup-
ply, the icon changes to red.
Page count Displays current page and total page count
Use and to browse display pages

Firmware Version 1.2 MultiSystem 4070 17
Description of the measuring
instrument
DEU
Keyboard
The membrane keyboard is resistant to moisture and dirt; the keys are as-
signed as follows:
You can use the number
keys to select a menu
quickly.
The number keys
correspond to the icon
position on the display.
Function key 1 Function key 2
Function key 3 Function key 4
Function key 5
Switch instrument on Open Home menu
Fn function key: Assign favor-
ites and softkeys
Screenshot (using Fn)
Cursor / page to the left Cursor/Highlighting Up
Store input
Cursor/Highlighting Down Cursor / page to the right
Switch instrument off Cancel input/function without
storing
Input 1 Input 2 or ABCÄ
Input 3 or DEF Input 4 or GHI
Input 5 or JKL Input 6 or MNOÖ
Input 7 or PQRSß Input 8 or TUVÜ
Input 9 or WXYZ
Input 0 or space
Dash, period, special charac-
tersa)
a) Use the key to enter special characters,
e.g. ( ) * / @ ° …
In Input mode:
Delete individual character (to
right of cursor)
In the measured values dis-
play:
Delete MinMax memory or
reset counter (using Fn)

Firmware Version 1.2 MultiSystem 4070 18
Description of the measuring
instrument
DEU
HYDROcom software package
After transferring the measuring data to a PC, you can use this software to
evaluate, process and present the data graphically.
Technical data
Casing PC+ABS+20GF plastic
Weight 795 g
Protection type IP40
CE conformity mark Complies with Directive 2014/30/EU (Electromagnetic Compatibility);
Complies with Directive 2014/68/EU (Pressure Equipment Directive)
Complies with Directive 2011/65/EU (Restriction of Hazardous Substances)
Internal power supply Lithium ions, 7.2 V / 6.2 Ah
External Power supply 24 VDC / 2 A
Dimensions ~ 270 x 140 x 69 mm (L x W x H)
Interfaces USB, RS232 interface, 1 x CAN
Ambient temperature -10 °C – 50 °C
Relative humidity 0 – 80% (not condensing)
Storage temperature -20 °C – 50 °C
Measured values display 5-digit
Trigger 4 channels as start/stop; with connections AND or OR;
time trigger
Scanning rate Selectable between 1 µsec and 999 min
Measuring rate Analog inputs 1 ms (1 kHz)
Frequency inputs 0.25 Hz … 20 kHz
Measured value memory 4 GB SD card, max. 100 measurement series, max. 8 MB per measurement series
(2 million values)
Tolerances Analogue ± 0.10% of final value, digital ± 0.02% of measured value (resolution
20 ns)

Firmware Version 1.2 MultiSystem 4070 19
Commissioning
DEU
Commissioning
Check delivery
The measuring instrument is delivered by HYDROTECHNIK and transported
by suited shipping companies. At the time of delivery to you, you should check:
•Does the number of delivered items corresponds with the
HYDROTECHNIK delivery note?
•Is the packing free of visible damage?
•Are measuring instrument and accessories free of visible damage?
•Are there any indications of rough treatment during transportation (e.g.
burn marks, scratches, color)?
To maintain all claims against the shipping company you should document all
possible transportation damage (e.g. by taking photos and signing a written
protocol), before you unpack the measuring instrument.
HYDROTECHNIK is not responsible for transportation damage and will as-
sume no liability.
Scope of delivery
Carefully remove the transportation packing. Please observe all rules and reg-
ulations for the disposal of packing materials. After unpacking you should find
the following parts:
• MultiSystem 4070 measuring instrument
•Plug-in power pack, 230 VAC/24 VDC
•USB data transmission cable
Check the scope of delivery against the delivery note and the order docu-
ments. Please report any discrepancies immediately to HYDROTECHNIK.
Subsequent claims about incomplete delivery cannot be accepted.

Firmware Version 1.2 MultiSystem 4070 20
Commissioning
DEU
Charge batteries
The instrument is equipped with internal lithium ion batteries. This has only
been slightly charged at the factory. Charge them for 3 hours before you put
the instrument into operation. An empty battery will be indicated by a red bat-
tery symbol.
Information about
handling instrument
batteries
The life cycle of lithium ion cells can be very long, but it depends greatly on the
conditions of use.
Avoid a complete discharge, continuous charging and immediate re-charging
after every use.
A red battery symbol will be displayed when the battery is nearly empty. In this
case you should maintain a 3 hour charging time.
In case of longer periods without use you should discharge and charge the
batteries monthly.
Display operating instructions
The operating instructions are available as a PDF file on the measuring
instrument.
Connect the measuring instrument to a PC.
See Connect a PC and transfer data auf Seite 35.
You can also find the operating instructions on our website:
www.hydrotechnik.com
Hinweis
Battery performance endangered!
Charge the instrument batteries for 3 hours before you put the instrument into opera-
tion. Otherwise, there is the risk of excessive discharge, which would severely impair
the battery performance.
The lithium ion battery integrated in the measuring instrument will be charged as
soon as the instrument is supplied by a HYDROTECHNIK power pack.
The measuring instrument is recognized as a removable storage device. You can
open the operating instructions directly from the instrument.
