ICT KT-LCD7C User manual

User Manual
KT-LCD7C eBike Special Meter
www.emotoer.com

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 1 -
Contents
Preface……………………………………………………………………………..………. 4
Outlook and Size…………………………………………………………………………... 4
Meter Dimension …………………………………………………………………… 4
Main Material and Color………………………………………………….………...... 4
Wiring Schematic……………………………………………………………….……. 5
Installation Instruction……………………………………………………………….…….. 5
Function Overview……………………………………………………………………..….. 5
Display Content…………………………………………………………………….….…... 6
Button Definition…………………………………………………………………….….…. 6
Normal Operation………………………………………………………………………...... 7
On/Off…………………………………………………………………………........... 7
Display Interface………………………………………………………….….…….....7
Display of Turned on Throttle……………………………………………………. 8
PAS Ratio (or Throttle) Gear Switch……………………………….……………. 8
Push Function…………………………………………………………..…………… 9
Cruise Function…………………………………………………………………...…9
Turn On/Off Backlight…………………………………………………….………... 10
Battery Capacity Indicator…………………………………………..…………….…10
Environment Temperature…………………………………………………………... 11
Single Data Clearing……………………………………………………………….... 11
Automatic Prompt Interface……………………………………………………..….. 12
Error Code Display…………………………………………………….…........ 12
Motor Operating Temperature Alarm……………………………………......... 12
User Project Setting……………………………………………………………………..... 13
General Project Setting…………………………………………………………………… 13
Maximum Trip Speed………………………………………………………….......... 13
Wheel Diameter…………………………………………………………………..…. 14

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 2 -
Metric and Imperial Units…………………………………………………………... 14
Exit General Project Setting……………………………………………………….... 15
P Parameter Setting……………………………………………………………….…….... 15
P1 Motor Characteristic Parameter Setting ............................................................... 15
P2 Wheel Speed Pulse Signal Setting ....................................................................... 16
P3 Power Assist Control Mode Setting ...................................................................... 17
P4 Throttle Startup Setting ..................................................................................... 17
P5 Power Monitoring Setting ..................................................................................... 18
Exit P Parameter Setting ............................................................................................. 19
C Parameter Setting ............................................................................................................ 19
C1 Power-assist Sensor and Parameter Selection Setting ......................................... 19
C2 Motor Phase Classification Coding Setting .......................................................... 20
C3 Power-assist Ratio Gear Initialization Setting ..................................................... 21
C4 Throttle Function Setting .................................................................................. 21
C5 Controller Maximum Current Adjustment Setting ............................................... 23
C6 Backlight Brightness Adjustment Setting ............................................................. 24
C7 Cruise Function Setting ........................................................................................ 24
C8 Motor Operating Temperature Display Setting .................................................... 25
C9 Power-on Password Setting .................................................................................. 26
C10 Automatic Restore Default Setting ..................................................................... 27
C11 Attribute Selection Setting .................................................................................. 28
C12 Controller Minimum Voltage Adjustment Setting ............................................. 29
C13 ABS brakes of the controller and parameters of anti-charge control Setting ......30
C14 Power-assist Tuning Parameters Setting .............................................................31
C15 Push-assist Speed Parameters Setting...................................................................32
L parameters Setting. ...................................................................................................32
L1 parameters Setting. .................................................................................................32
L2 parameters Setting. .................................................................................................33
L3 parameters Setting. .................................................................................................33
L4 Parameter setting............................................................................................. 34

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 3 -
Exit C Parameter Setting............................................................................................. 35
Parameter Copy .................................................................................................................. 36
User Setting Note ............................................................................................................... 36
Version Information……………………………………………………………………… 36
Preface
The illustrated manual will help you understand and be familiar with the meter
function, guiding you on how to operate the meter, how to set the project parameters, how

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 4 -
to achieve the best match of the three as motor, controller and meter to improve electronic
control performance of the electric motor. This manual covers installation, operation,
parameter setting of the meter and how to use it properly, which help you resolve the
problems appeared in practical use.
Outlook and Size
○Meter Dimension
Meter Dimension
○Main Material and Color
PC material is mainly used for KT-LCD7C meter and button box housing, and the
housing color is black.
○Wiring Schematic
Installation Instruction

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 5 -
The meter body and button box are mounted on the handlebars of the electric vehicle,
adjusting perspective. In the case that the vehicle is power off, the meter connectors are in
plug connection to corresponding controller connectors. Turn on the power, electric
vehicle and meter will be under normal operation, the meter installation is finished. The
protection film on meter display panel should be torn.
○Physical installation icon
Function Overview
KT-LCD7C meter provide you with a variety of functions such as vehicle controls
and vehicle status digitized displays to meet the trip demands.
◇Trip time display (with displays of a single trip time (TIM) and total trip time (TTM));
◇Trip speed display (with displays of real-time speed (Km/H or MPH) and a single
maximum speed (MXS) and a single average speed (AVS));
◇Trip distance display (with displays of a single trip distance (DST) and total trip distance
(ODO));
◇Display of turned on handlebar（THR）;
◇Display of power-assist startup;
◇Power assistant ratio (or handlebar) gear (PAS) switch;
◇6Km/H power assistant push ( ) function;
◇Cruise function ( );
◇Battery capacity indicator ( );
◇Real-time battery voltage (VOL) display;
◇Motor power and temperature (MOTOR W) and (MOTO ℃) display;

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 6 -
◇Brake display ( );
◇Turn on backlighting and lights ( );
◇Environment temperature (℃ or ℉) display;
◇Data clearing;
◇Fault code display;
◇User parameter setting
◇24V, 36V, 48V supply voltage can automatic identification and be compatible
Display Content
The display content is shown as follow.
Button Definition
KT-LCD7C meter adopts the structural form with part design buttons.
Normal Operation
○On/Off
Hold button (SW) long, the meter is powered on and into normal operation, and
it provides the controller with power supply. Under normal operating status, hold
button (SW) long, the meter is powered off, meanwhile to shutdown the power supply of
controllers. When the vehicle is stopped and without any button operation on the
meter for five minutes, the meter will automatically shut down, and the power supply
of the electric vehicle will be powered off. In power off mode, the power consumption of
the meter and controller is zero.

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 7 -
○Display Interface
Display 1：
The meter is startup to enter display 1.
Display 1
Display 2：
In display 1, press button (SW) to enter display 2.
Display 2
Display 3：
In display 2, press button (SW) to enter display 3.
Display 3
In display 3, press button (SW) again to enter display 1.
In each display interface, if you hold button (SW) long, the meter will be

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 8 -
powered-off together with that of the controller.
○Display of turned on handlebar
Rotate the handlebar under normal operating of the meter, the display interface shows
the sign of turned-on handlebar, see the Figure below. The sign will be off automatically
after about five seconds.
○PAS Ratio (or Handlebar) Gear Switch
Under normal operation, press button (UP) or button (DOWN) to
switch the power assist ratio (or handlebar) gear (PAS), changing motor output power.
Switching range is 0-5 gear (this can also be configured according to the customer
requirements), gear 1 is for the lowest power, and gear 5 is for the highest power.
At every startup, the meter will automatically restore gear (this can also be
configured as required by users) when it was at last shut down. When the power
assist ratio is gear 0 zero, there’s no power assist function.
○Power Assistant Push Function
Users can use 6Km/H power assist function when pushing vehicles. Hold
button (DOWN), the meter assist function logo ( ) flashes, the vehicle drives at the
speed of no more than 6Km/h. Release button (DOWN), the assist function will be

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 9 -
revoked.
○Cruise Function
When C7 parameter setting is 1 (see C parameter setting), the meter turns on cruise
function, hold button (DOWN) long to enter the cruise status when the vehicle
speed is more than 7 km/h, and the cruise function logo ( ) lights. Brake or hold any
button to revoke cruise function.
○ Startup Backlights and Headlights
Hold button (UP) long, the meter turns on the backlights as well as the vehicle
headlights (the Controller should have headlights driving and output functions), meter
backlighting and vehicle lights power logo ( ) light, hold button (UP) long again
to turn off backlights and vehicle headlights.

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 10 -
○Brake status display
Under normal operation, vehicle brake, brake status indicator display ( ), as
shown in the figure.
○Battery Capacity Indicator
The meter can automatically identify 24V, 36V, 48V battery capacities when it is
supporting use with the specified controller. When the battery capacity is over 70%, the
four power displays of the meter are lit, when the battery capacities drop, the four power
displays are off in order, when the power capacity is less than 15%, the four power
displays are totally turned off.
When the controller is power off due to voltage shortage, the power display frame
flashes, indicating the vehicle has been in voltage shortage and waiting for shutdown
currently.
Voltage shortage flashes
Battery capacity indicator
○ Environment Temperature
After startup, the environment temperature for using meter will be displayed in

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 11 -
environment temperature display column.

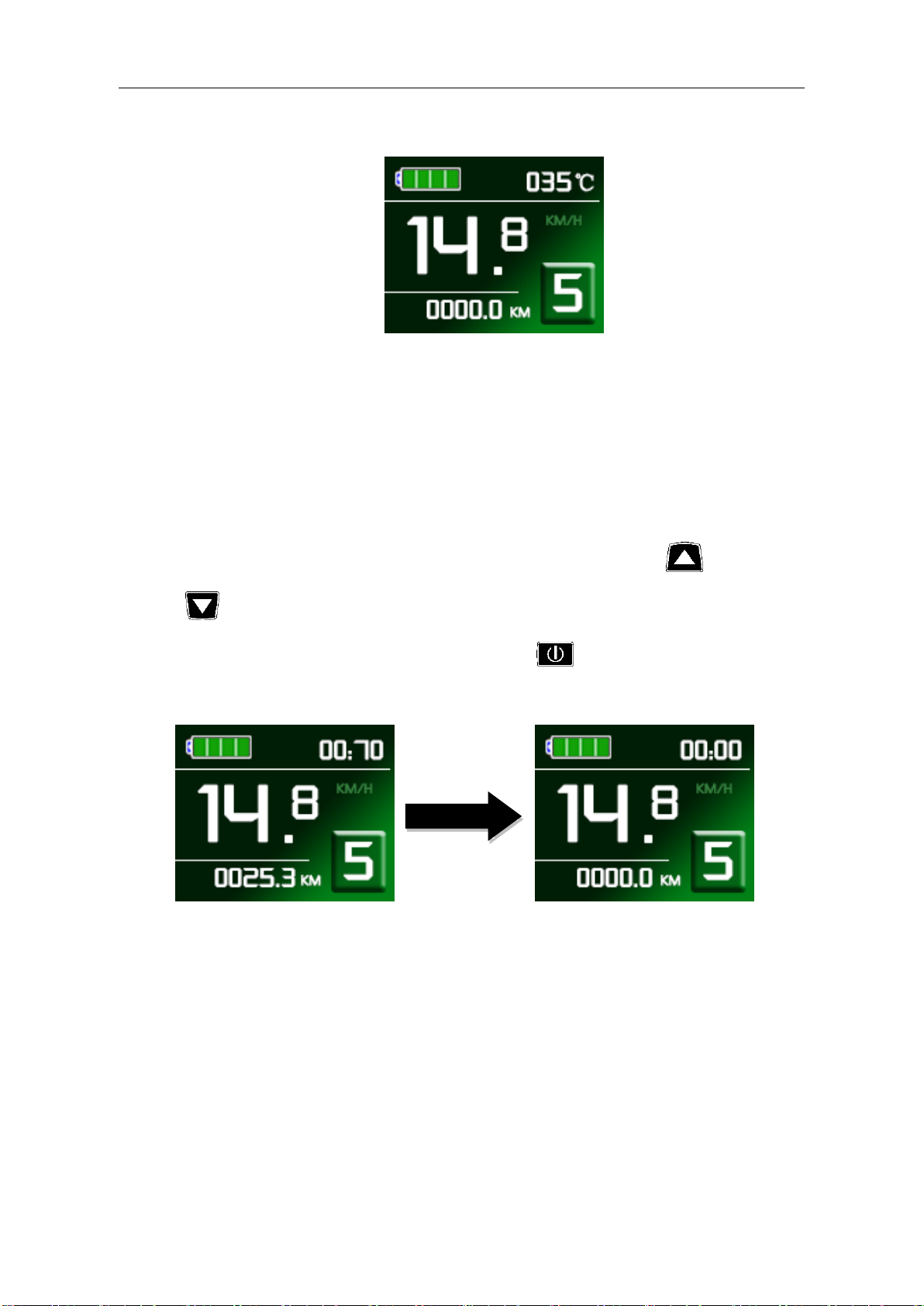

Environment temperature display
The temperature display value may be in deviation shortly after boot-up, and the
display value will be gradually approaching the environment temperature within 10
minutes after boot-up.
○Single Data Clearing
5 seconds after the meter is powered on, at display 1, hold both the button (UP)
and the button (DOWN) simultaneously for about 2 seconds, the single trip time
(TM) and single trip distance (DST) flicker, then press button shortly (SW), the
record contents of both will be cleared.
Single data clearing display
Under the status of data flashing, if there were no operations on the data within 5
seconds, the meter will automatically return to display1 after 5 seconds, and the
original record content will be saved.
○Automatically Prompt Interface
Error Code Display：
When the electronic control system of the electric vehicle fails, and the meter will

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 12 -
automatically display (flicker) fault code. You can’t exit the fault code display only the
fault is removed.
Error Code Display
Error Code & Definition Table：
Error Code
Definition
Motor position sensor fault!
illegal signal for hall sensor
Motor or controller short circuit fault!
there is a short-circuit fault occur
THROTTLE fault!
illegal signal for throttle
Motor operating temperature alarm：
Under any interface, when the motor operating temperature exceeds the warning value,
the motor operating temperature display flashes to alarm, meanwhile, the controller will
offer the appropriate protection to motor.
User Setting Project
KT-LCD7C meter user setting project：
◇General project setting
◇P parameter setting
◇C parameter setting
◇L parameter setting
General Project Setting
○Maximum Trip Speed
Under power off status, hold button long (SW), the meter is turned on. Within
5 seconds after boot-up, hold button (UP) and button (DOWN)
simultaneously for about 2 seconds, the first is to enter the maximum riding speed setting

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 13 -
interface, then the speed display column flashes. Press button (UP) or button
(DOWN) in order to set the maximum riding speed value. The default maximum riding
speed value was 25Km/h. When the speed of the electric vehicle exceeds the set value,
the motor will be stopped driving.
Setting interface of maximum trip speed
Under the setting maximum riding speed interface, if there’s no button operation
on the meter for more than 1 minute, and then the meter will automatically return to
display 1, and the original set values will be saved.
After finishing the maximum riding speed setting, Press button (SW) to save
the current set values and enter into the next setting.
○Wheel Diameter
After finishing the maximum riding speed setting, enter the wheel diameter setting
interface, and then the wheel diameter display column flashes. Press button (UP) or
button (DOWN) to choose the corresponding wheel diameter specification to a
selected vehicle. The selection range of wheel diameter specifications are 16 species such
as 5,6,8,10,12,14,16,18,20,23,24,26,27.5,700C，28 and 29 inches.
Setting Interface of Wheel Diameter

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 14 -
Under the wheel diameter setting interface, if there’s no button operation on the
meter for more than 1 minute, and then the meter will automatically return to display
1, and the original set values will be saved.
After finishing the wheel diameter setting, press button (SW) to save the
current set specification and enter into the next setting.
○Metric and Imperial Units
After finishing the wheel diameter setting, enter into the metric/imperial units setting
interface, and then the speed and mileage unit flash. Press button (UP) or
button (DOWN) to make sync selection of three metric/imperial units as speed, mileage,
and the environment temperature.
Setting Interface of Metric/Imperial Units
Definition Table of Metric/Imperial Units：
Display
Metric
Imperial
Riding speed
Km/H
MPH
Total distance
Km
Mil
Environment
temperature
℃Temperature
℉Fahrenheit
Under the metric/imperial units setting interface, if there’s no button operation
on the meter for more than 1 minute, and then the meter will automatically return to
display 1, and the original set units will be saved.
After finishing the metric/imperial units setting, press button (SW) to save the
current set values, and then speed and mileage units stop flashing. Press button (SW)

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 15 -
again, and the meter will enter into the maximum riding speed interface again, or hold
button (SW) long for about 2 seconds to exit the general project setting environment
and return to display 1.
○Exit General Project Setting
Among the three general project settings, after each setting is completed, if hold
button (SW) long for about 2 seconds, all can exit the setting environment and return to
display 1, meanwhile, the current set parameters are saved.
Under each setting interface, if there’s no button operation on the meter for more than
1 minute, and then the meter will automatically return to display 1, and the original set
parameters will be saved.
P Parameter Setting
After finishing metric/imperial unit settings, the speed and mileage units stop flashing.
Within one minute after stopping flashing, hold button (UP) and button
(DOWN) simultaneously for about 2 seconds to enter P parameter setting environment.
○ P1 Motor Characteristic Parameter Setting
P1 is motor characteristic parameter setting, P1 = motor gear reduction ratio×number
of rotor magnet pieces, just rounding if there’s any decimal.
After entering P parameter setting environment, the first is to set P1parameter, P1
parameter column flashes. P1 setting ranges between1-255, press button (UP) or
button (DOWN) for selection.
P1 parameter setting interface
Under P1 parameter setting interface, if there’s no button operation on the

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 16 -
meter for more than 1 minute, and then the meter will automatically return to display
1, and the original set parameter will be saved.
After finishing P1 parameter setting, Press button to save the current set values
and enter P2 parameter setting interface.
○ P2 Wheel Speed Pulse Signal Setting
Enter P2 parameter setting interface, P2 parameter column flashes.

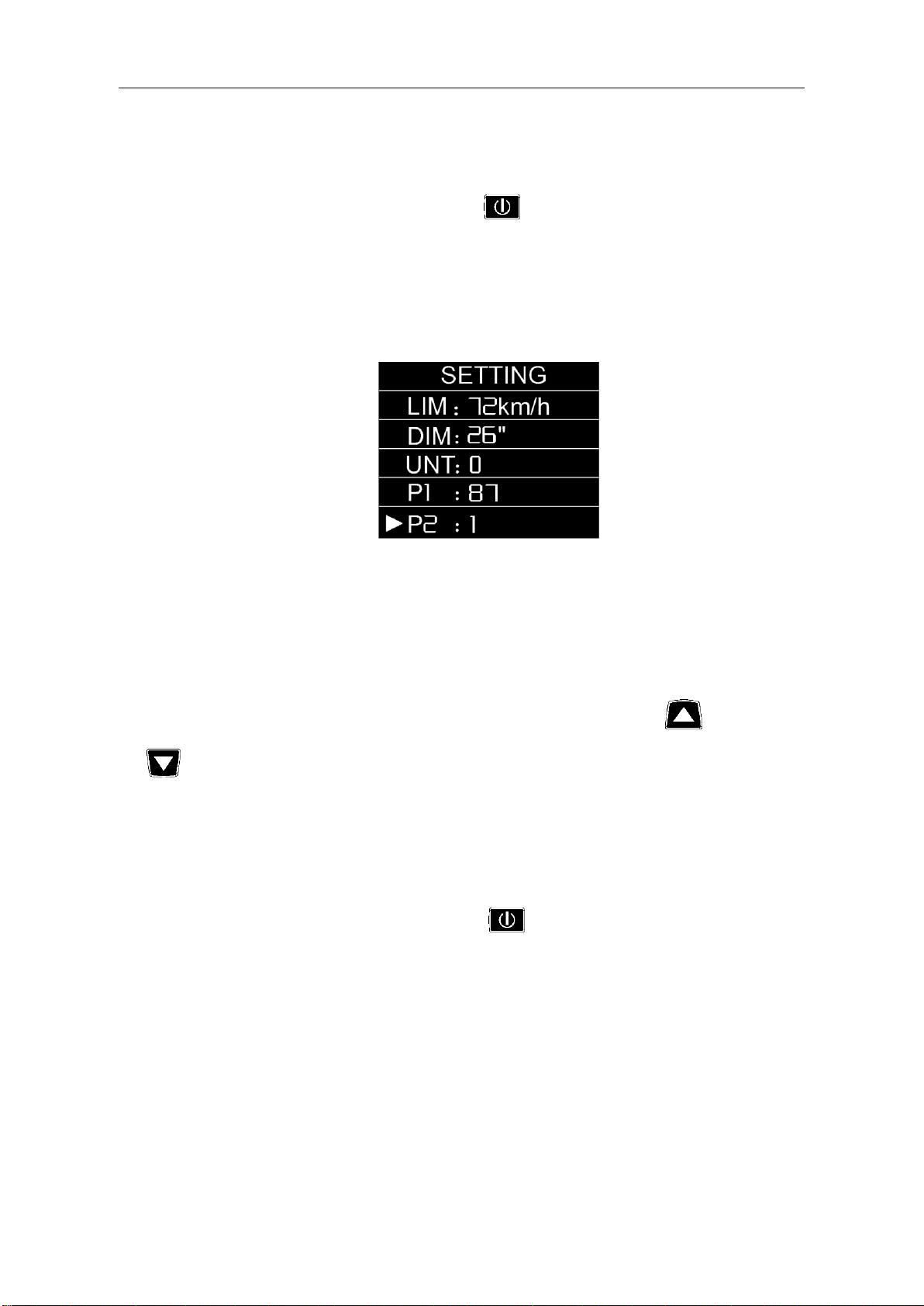

P2 parameter setting interface
P2 is wheel speed pulse signal setting, if wheel generated 1 pulse signal by a
revolution, P2 should be set as1. If wheel generated 6 pulse signals by a revolution, P2
should be set as 6. If users didn’t configure the pulse signal system, and then P2 parameter
setting can be 0. The setting range of P2 should be between 0-6, press button (UP)
or button (DOWN) for selection.
Under P2 parameter setting interface, if there’s no button operation on the meter
for more than 1 minute, and then the meter will automatically return to display 1,
and the original set parameter will be saved.
After finishing P2 parameter setting, press button (SW) to save the current set
values and enter P3 parameter setting interface.
Please Note：when P2 parameter is set to be 0, for the built-in clutch motor, there will
be the following defects, when the internal motor rotors stop or the internal rotor speed is
lower than the outer rotor speed, then the speed displayed on the meter is inaccurate!
○P3 Power Assist Control Mode Setting
Enter P3 parameter setting interface, P3 parameter column flashes.

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 17 -

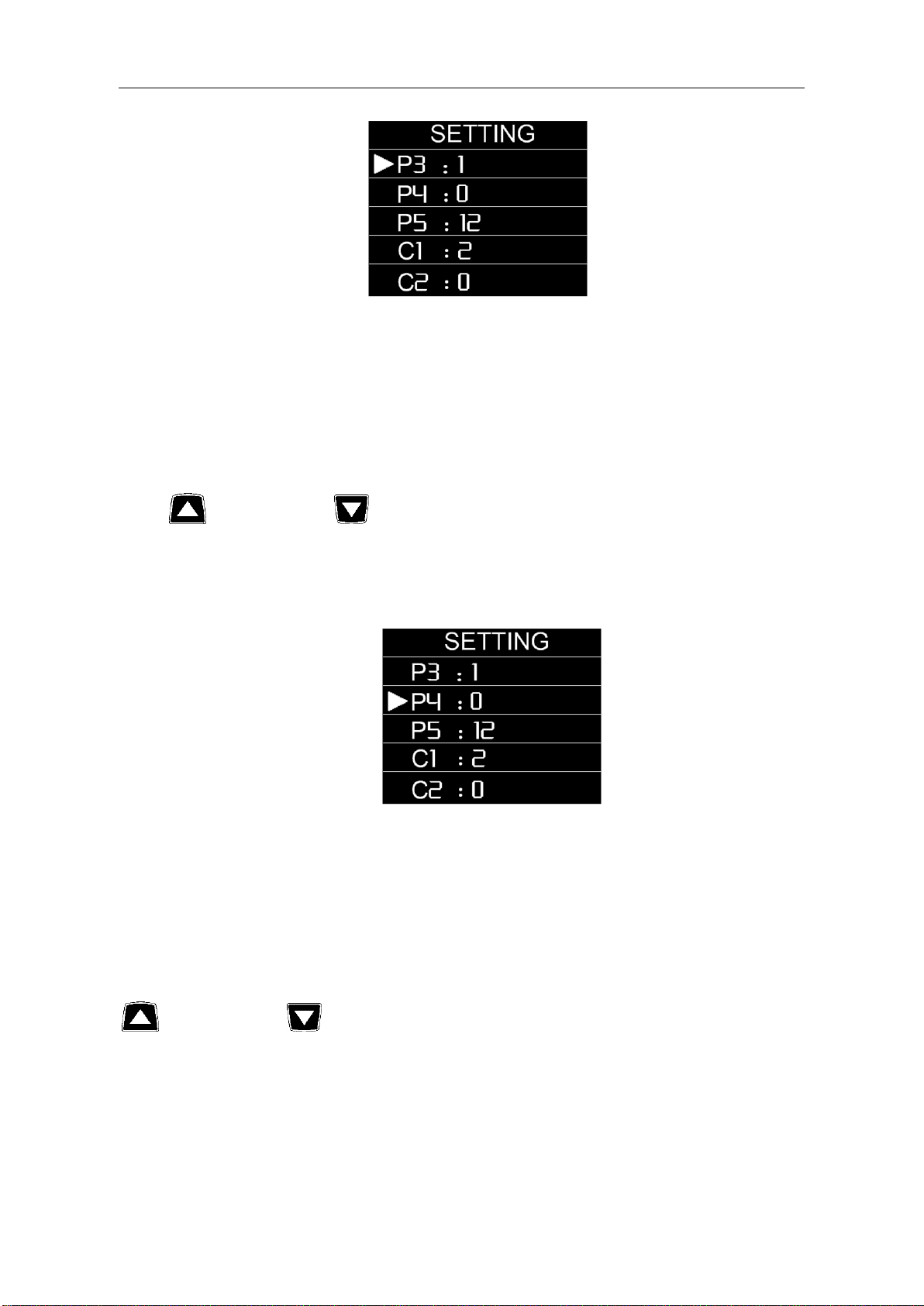

P3 parameter setting interface
P3 is power assist control mode setting, when P3 parameter setting is1, power assist
control mode is gear 5 of "imitation torque control" mode, when P3 parameter setting is
0, power assist control mode is gear 5 of "speed control" mode. P3 parameter needs to be
determined according to the distributed function of the controller, its setting range is 0 or 1,
press button (UP) or button (DOWN) for selection.
○P4 Handlebar Startup Setting
Enter P4 parameter setting interface, P4 parameter column flashes.
P4 parameter setting interface
P4 is handlebar startup setting, when P4 setting is 1, indicating the handlebar is under
"non-zero startup" mode, namely, the handlebar can be effective only after startup the
foot power assist. When P4 setting is 0, indicating the handlebar is under "zero startup"
mode, the motor can be startup by the handlebar directly. P4 setting range is 0 or 1, press
button (UP) or button (DOWN) for selection.
○P5 Power Monitoring Setting
Enter P5 parameter setting interface, P5 parameter column flashes.

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 18 -
P5 parameter setting interface
P5 is power monitoring setting, when P5 setting is 0, the power monitoring is the
"real-time voltage" mode. Namely, it is the method to determine the battery capacity
based on real-time battery voltage. When P5 equals to a specified parameter, the power
monitoring is the "smart power" mode (this parameter is determined by the battery
characteristics, ordinary 24V lithium is generally is 4-11, 36V lithium is between 5_15). P5
setting ranges from 0-40, press button (UP) or button (DOWN) for selection.
After finishing P5 parameter setting, press button (SW) to save current set the
values, and then P5 parameter column stops flashing. Press button (SW) again, the
meter re-enter P1 parameter setting interface. Or hold button (SW) for about 2
seconds to exit P parameter setting environment and return to the display 1.
○Exit P Parameter Setting
Among the five P parameter settings, when each parameter setting is completed, if
hold button (SW) for about 2 seconds, all can exit the setting environment and
return to display 1, meanwhile, the current set parameters would be saved.
Under each parameter setting interface, if there’s no button operation on the meter for
more than 1 minute, and then the meter will automatically return to display 1, and the
original set parameters will be saved.
C Parameter Setting
After finishing P5 parameter setting, P5 parameter column stops flashing. Within 1
minute after stopping flashing, hold button (UP) and button (DOWN) for
about 2 seconds to enter C parameter setting environment.

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 19 -
○C1 Power-Assist Sensor and Parameter Select Setting
Set C1 parameter first after entering C parameter setting environment, C1 parameter
column flashes.
C1 parameter setting interface
C1 is power-assist sensor and parameter select setting, its definition is shown in
following table. C1 setting ranges between 0-7, press button (UP) or button
(DOWN) for selection.
C1 parameter definition table：
KUNTENG power assist
sensors
C1
value
Start
Sensitivity
KUNTENG V12
power assist sensors
C1
value
Start
Sensitivity
Forward 5 Signal
00
Standard
Reverse 6 Signal
05
Standard
01
Lower
06
Lower
02
Lowest
07
Lowest
Forward 8 Signal
00
Higher
Reverse 10 Signal
05
Higher
01
Standard
06
Standard
02
Lower
07
Lower
Forward 10 Signal
00
Highest
Reverse 12 Signal
05
Highest
01
Higher
06
Higher
02
Standard
07
Standard
After finishing C1 parameter setting, press button (SW) to save the current set
values and enter C2 parameter setting interface.
○C2 Motor Phase Classification Coding Setting
Enter C2 parameter setting interface, C2 parameter column flashes.
