IDEAL MSC-18K-X-236 Manual

May 2019
Mobile Column Lift Model Sets
MSC-18K-X-236, MSC-18K-X-472 & MSC-18K-X-6108
Capacity 18,000lbs / Each Column
Installation - Operation –Service Manual
IMPORTANT!!
READ MANUAL THOROUGHLY BEFORE INSTALLING, OPERATING, SERVICING
OR MAINTAINING LIFT

2
MSC-18K-X
May 2019
INDEX
PREFACE--------------------------------------------------------------------------- PAGE 2
PRODUCT IDENTIFICATION-------------------------------------------------- PAGE 2
OWNER / EMPLOYER OBLIGATIONS------------------------------------- PAGE 3
IMPORTANT SAFETY INSTRUCTIONS----------------------------------- PAGE 4
LOCATION------------------------------------------------------------------------- PAGE 7
GENERAL INFORMATION ---------------------------------------------------- PAGE 9
SET-UP / INSTALLATION ------------------------------------------------------ PAGE 10
SYSTEM TESTING BEFORE ACTUAL USE------------------------------ PAGE 15
LIFTING OPERATION----------------------------------------------------------- PAGE 20
MAINTENANCE INSTRUCTIONS ------------------------------------------- PAGE 21
SERVICE --------------------------------------------------------------------------- PAGE 22
SYSTEM DIAGNOSTIC MESSAGES -------------------------------------- PAGE 24
EMERGENCY LOWERING PROCEDURE-------------------------------- PAGE 25
EXPLODED VIEWS & PARTS LISTS -------------------------------------- PAGE 26
LIMITED WARRANTY ---------------------------------------------------------- PAGE 34
PREFACE
Prior to the operation of your lift make sure that you have read the instructions thoroughly. These
instructions are found in this manual. Please note that your warranty can be voided if you do not read
the manual and understand its content.
If you have any questions, concerning operation, safety or application of your lift, please consult your
distributor.
PRODUCT IDENTIFICATION

3
MSC-18K-X
May 2019
OWNER / EMPLOYER OBLIGATIONS
1. The Owner/Employer shall ensure that lift operators are qualified and that they are trained in the
safe use and operation of the lift using the manufacturer’s operating instructions; ALI/SM10-1, ALI
Lifting it Right safety manual; ALI/ST-10 ALI Safety Tips card; ANSI/ALI ALOIM-2008 (R2013),
American National Standard for Automotive Lifts - Safety Requirements for Operation,
Inspection and Maintenance; ALI/WL400 Series, ALI Uniform Warning Label Decals/Placards;
and in the case of frame engaging lifts, ALI/LP-GUIDE, Vehicle Lifting Points/Quick Reference
Guide for Frame Engaging Lifts.
2. The Owner/Employer shall establish procedures to periodically inspect the lift in accordance with
the lift manufacturer’s instructions or ANSI/ALI ALOIM-2008 (R2013), American National
Standard for Automotive Lifts - Safety Requirements for Operation, Inspection and
Maintenance; and the Employer shall ensure that the lift inspectors are qualified and that they are
adequately trained in the inspection of the lift.
3. The Owner/Employer shall establish procedures to periodically maintain the lift in accordance with
the lift manufacturer’s instructions or ANSI/ALI ALOIM-2008 (R2013), American National
Standard for Automotive Lifts - Safety Requirements for Operation, Inspection and
Maintenance; and the Employer shall ensure that the lift maintenance personnel are qualified and
that they are adequately trained in the maintenance of the lift.
4. The Owner/Employer shall maintain the periodic inspection and maintenance records
recommended by the lift manufacturer’s instructions or ANSI/ALI ALOIM-2008 (R2013), American
National Standard for Automotive Lifts - Safety Requirements for Operation, Inspection and
Maintenance.
5. The Owner/Employer shall display the lift manufacturer’s operating instructions; ALI/SM 10-1, ALI
Lifting it Right safety manual; ALI/ST-10 ALI Safety Tips card; ANSI/ALI ALOIM-2008 (R2013),
American National Standard for Automotive Lifts - Safety Requirements for Operation,
Inspection and Maintenance; ALI/WL Series, ALI Uniform Warning Label Decals/Placards; and
in the case of frame engaging lifts, ALI/LP- GUIDE, Vehicle Lifting Points/Quick Reference
Guide for Frame Engaging Lifts in a conspicuous location in the lift area convenient to the
operator.

4
MSC-18K-X
May 2019
6. The Owner/Operator shall provide necessary lockout/tag out means for energy sources per ANSI
Z244.1-1982 (R1993), Safety Requirements for the Lockout/Tag out of Energy Sources,
before beginning any lift repairs and maintenance.
7. The Owner/Employer shall not modify the lift in any manner without the prior written consent of the
manufacturer.
IMPORTANT SAFETY INSTRUCTIONS
(SAVE THESE INSTRUCTIONS)
Please deliver this manual to the lift owner and/or operator along with all other documentation
provided with the lift. Failure to operate this equipment as intended may cause injury or death.
When using this lift, basic safety precautions should always be followed, including the following:
1. Read all instructions in this manual and on the lift thoroughly before installing, operating, servicing
or maintaining the lift.
2. Care must be taken as burns can occur from touching hot parts.
3. Do not operate equipment with a damaged cord or if the equipment has been dropped or damaged
–until it has been examined by a qualified service person.
4. Do not let a cord hang over the edge of the table, bench, or counter or come in contact with hot
manifolds or moving fan blades.
5. If an extension cord is necessary, a cord with a current rating equal to or more than that of the
equipment should be used. Cords rated for less current than the equipment may overheat. Care
should be taken to arrange the cord so that it will not be tripped over or pulled.
6. Always unplug equipment from electrical outlet when not in use. Never use the cord to pull the plug
from the outlet. Grasp plug and pull to disconnect.
7. Let equipment cool completely before putting away. Loop cord loosely around equipment when
storing.
8. To reduce the risk of fire, do not operate equipment in the vicinity of open containers of flammable
liquids (gasoline).

5
MSC-18K-X
May 2019
9. Adequate ventilation should be provided when working on operating internal combustion engines.
10. Keep hair, loose clothing, fingers, and all parts of body away from moving parts.
11. To reduce the risk of electric shock, do not use on wet surfaces or expose to rain.
12. Use only as described in this manual. Use only manufacturer’s recommended attachments.
13. ALWAYS WEAR SAFETY GLASSES. Everyday eyeglasses only have impact resistant lenses;
they are not safety glasses.
14. Inspect lift daily. Do not operate if it malfunctions or problems have been encountered. Never
operate lift if it has broken, damaged or worn parts.
15. Never attempt to overload the lift. The manufacturer’s rated capacity is shown on the identification
label on the power side column. Do not override the operating controls or the warranty will be void.
16. Only trained and authorized personnel should operate the lift. Do not allow customers or
bystanders to operate the lift or be in the lift area.
17. Position the lift support pads to contact the vehicle manufacturers recommended lifting points.
Raise the lift until the pads contact the vehicle. Check pads for secure contact with the vehicle.
18. CAUTION! Never work under the lift unless the mechanical safety locks are engaged.
19. Note that the removal or installation of some vehicle parts may cause a critical load shift in the
center of gravity and may cause the vehicle to become unstable. Refer to the vehicle
manufacturer’s service manual for recommended procedures.
20. Always keep the lift area free of obstruction and debris. Grease and oil spills should always be
cleaned up immediately.
21. Never raise vehicle with passengers inside.
22. Before lowering check area for any obstructions.
23. Before removing the vehicle from the lift area, position the columns to prevent damage to the lift
and /or vehicle.

6
MSC-18K-X
May 2019
24. Check and adjust if need the correct air pressure in all tires before lifting. Do not exceed tire load
when raising vehicle.
25. DO NOT raise / lower only one side if a vehicle.
26. Lift only on same axle. Do not stagger between axles.
27. Do not drive over or pinch the electrical communication cables.
28. Do not remove hydraulic fittings while under pressure.
29. Check floor to ceiling height for clearance when vehicle is fully raised.
30. Use only qualified lift service personnel and genuine manufacturing parts to make repairs.
WARNING!! Failure by purchaser to provide the recommended mounting surface could result
in unsatisfactory lift performance, property damage, or personal injury.

7
MSC-18K-X
May 2019
For additional safety instructions regarding lifting, lift types, warning labels, preparing to lift, vehicle
spotting, vehicle lifting, maintaining load stability, emergency procedures, vehicle lowering, lift
limitations, lift maintenance, good shop practices, installation, operator training and owner/employer
responsibilities, please refer to “Lifting It Right”(ALI/SM) and “Safety Tips”(ALI/ST) and vehicle lift
points for service garage lifting SAE J2184.
For additional instruction on general requirements for lift operation, please refer to “Automotive
Lift-Safety Requirements for Operation, Inspection and Maintenance”(ANSI/ALI ALOIM).
Installation shall be performed in accordance with ANSO/ALI ALIS, Safety Requirements for
Installation and Service of Automotive Lifts.
LOCATION
This lift has been evaluated for INDOOR USE ONLY with an operating ambient temperature range of
5 - 40°C (41-104°F)
ATTENTION! This lift is intended for indoor installation only. It is prohibited to
install this product outdoors. Operating environment temperature range should be
41 –104 °F (5 –40 °C). Failure to adhere will result in decertification, loss of
warranty, and possible damage to the equipment.
NOTICE If attachments, accessories, or configuration
modifying components used on this lift are located in the load path
and affect operation of the lift, affect the lift electrical listing, or
affect intended vehicle accommodation; and if they are not certified
for use on this lift, then the certification of this lift shall become null
and void. Contact the participant for information pertaining to
certified attachments, accessories, or configuration modifying
components.
www.auolift.org ©2011 by ALI, Inc. ALI/WLSIA01

8
MSC-18K-X
May 2019
SAFETY DECALS
These Decals Must Be Applied to Lift.
REFERENCE: AUTOMOTIVE LIFT INSTITUTE, Inc.
NOTE: SOME IMAGES IN THIS MANUAL ARE GENERIC AND MAY NOT RESEMBLE THE LIFT
YOU HAVE PURCHASED.

9
MSC-18K-X
May 2019
1. GENERAL INFORMATION
1.1 SPECIFICATIONS
Models # MSC-18K-X-236, MSC-18K-X-472 & MSC-18K-X-6108
Capacity 18,000 lbs. / Each Column
Pressure Relief Valve 2,030 psi Sealed Ex-Works
Pump motor 4HP ( 3Kw, DC24V, Max 125 Amp ) / Each Column
Battery charger power
supply
Input: 100-140VAC, 60Hz, Single Phase
Output: 24VDC, Max 15 Amp
Operational Voltage 24 VDC
Lifting Height 67.1"
Column L / W / H 56.9”/ 44.1”/ 88.6”(Max Ht. 155.5”)
Fork Adjustable Range 12.6”- 22”
Fork length 17.9”
Lifting / Lowering Time 100 sec / 60 sec at load of 18,000 lbs / each column
Noise Level Max. 70 dB(A)
Set-up Indoors
Unit Weight 1,548 lbs. per Column
Maximum Distance
between Columns 32.8'
Min. Concrete Surface
Strength 3000 Psi

10
MSC-18K-X
May 2019
2. SET-UP / INSTALLATION
Remark: Only move the lifting column with the forklift. Only raise the lifting column at the correct
points. Damage to lifting column and /or injury to persons may occur if the lifting column
is not moved in the correct manner.
2.1 PACKING LIST
The complete lift is a set of either two (2), four (4) or six (6) mobile column lifting units and one (1)
parts box, based on model type.
1. Each column is a self-contained unit.
2. The parts box contains: (Based on Model Type)
a) Either - One (1), Three (3) or Five (5) Communication Cable Reels.
b) Either - Eight (8), Sixteen (16) or twenty-four (24) Battery Clamps.
c) Either –One (1), Two (2) or Three (3) Sets of Combined Seal Washers and Filter
Meshes.
d) One (1) spare Electro-Magnetic Valve.
e) One (1) spare T-Connector.
f) Two (2) Keys for Column Door Interlock.
g) One (1) Magnet Ring. (Emergency Lowering Procedure)
Important document packet that includes, Installation, Operation and Maintenance Manual, ALI
Manual, “Lifting it Right”, Automotive Lift Safety Tips Placard, ALI “Lifting Points Guide”, ANSI/ALI
ALOIM:2008(R2013) Safety Requirements for Operation, Inspection and Maintenance.
Warranty Statement and Warranty Registration Instructions.
2.2 INSTALLATION REQUIREMENTS AND TOOLS / SUPPLIES
Foundation
Important : It is the user’s responsibility to provide a satisfactory installation area for the lift. Lifts
should only be installed on level concrete floors with a minimum thickness of four inches and half
(4.5") or 114 mm. Concrete must have a minimum strength of 3000 psi and should be aged thirty (30)
days prior to installation. Please consult an architect, contractor or engineer if doubt exists as to the
strength and feasibility of the floor to enable proper lift installation and operation. Do not use on
asphalt. Do not use on a suspended floor without approval from a licensed structural engineer.
A qualified person should be consulted to address seismic loads and other local or state
requirements.

11
MSC-18K-X
May 2019
It is the user’s responsibility to provide all wiring for electrical hook-up prior to installation and to
insure that the electrical installation conforms to local building codes. Where required, it is the user’s
responsibility to provide an electrical isolation switch located in close proximity to the lift that will
enable emergency stop capability and isolate electrical power from the lift for any servicing
requirements.
Tools / Supplies
1. Cutting device to remove packaging.
2. Metric wrenches.
3. Allen wrenches.
4. Philips screw drivers.
5. Clean funnel for adding hydraulic oil.
6. Clean new *AW-32 Hydraulic Oil
(Hydraulic Oil needed per column 3.6 Gallons / 13.5 Liters)
*Note: Use only new fresh clean AW-32 Hydraulic Oil. The use of transmission fluids will void
the lift warranty.
NOTE: MSC-18K-X Lifts are NOT supplied with Batteries.
Customer must supply Batteries as recommended on Page 14.
Installation Instructions
When the lift arrives on site:
Check for any freight damages. The shipment should be thoroughly inspected as soon as it is
received. The signed bill of lading is acknowledgement by the carrier of receipt in good condition of
shipment covered by our invoice. If any of the goods called for on your bill of lading are shorted or
damaged, do not accept them until the carrier makes a notation on the freight bill of the missing or
damaged goods. Do this for your own protection. Check the contents of the accessory and hardware
boxes to make sure no parts are missing.
NOTE: IT IS DIFFICULT TO COLLECT FOR LOSS OR DAMAGE AFTER YOU HAVE GIVEN THE
CARRIER A CLEAR RECEIPT. THE LIFT MANUFACTURER IS NOT RESPONSIBLE FOR ANY
FREIGHT DAMAGE.

12
MSC-18K-X
May 2019
2.3 UNPACKING AND HANDLING THE LIFTING COLUMN
Unpacking Procedure
·Remove all plastic wrap and cardboard. Be careful not to cut into the lower hydraulic hoses and
fittings or to scratch the paint or damage the safety decals.
·Carefully open the parts box, avoid cutting the enclosed communication cables.
·Take out all of the cable reels, battery clamps, spare parts and document packet.
Preparing Lift for Initial Startup
To transport the columns to a location within the service facility for setup, please use the pallet jack
attached to the column. Each column can be easily moved by lifting up and holding the lever on the
handle, by raising up & lowering down the pallet jack handle in a pumping motion, 3-5 times until the
column’s central base is lifted from the floor. You can now maneuver the lift columns to any location
by pulling the pallet jack handle to the desired location. Once you release the lever on the pallet jack
handle, the column will lower down to the ground. The lift shall not be operated unless the column
is fully lowered to the ground.
Filling the tank with hydraulic oil after the lower column cover is opened and the red plug on the
motor pump tank is removed. Use a clean funnel and add new hydraulic oil (AW-32) into the tank.
The oil level shall meet the indicating label on the tank. The approx. amount of oil per tank is 3.6Gal /
13.5 Liter.
After finished, reinstall the red plug back to the top of the tank. Close motor pump cover and secure
with bolts.
Note: The hydraulic system was tested during manufacturing. Each hydraulic cylinder and the power
unit tank was filled and cycled to test for leaks and for performance. During this process the
hydraulic cylinders were bleed to remove any air. The hydraulic oil was removed from the tank after
testing. Because residual oil at the bottom of the tank and inside the cylinder remain, additional
hydraulic system bleeding is not necessary.
To install the batteries, first take away the battery covers on both sides of each column. After the
battery is positioned, secure it with the battery clamps provided. Then connect the power cables to
the battery terminals. Repeat for other side.
Note: Ensure to correctly connect terminals: Red/Pos. = (+), Black/Neg. = (-)

13
MSC-18K-X
May 2019
To charge the battery, if necessary. A battery charger is built into each column. Plug the battery
charger power supply cord into a 110 volt grounded electrical outlet. Charge each mobile column lifts
using a separate electrical outlet. Best performance will be obtained by charging all mobile column
batteries at the same time. While charging, the red CHARGING lamp will be lighted. After the
batteries are fully charged (about 10 hours), this red lamp will be off and the green FINISHED lamp
will be lighted
When the lifts are new, charge the batteries for the first time approx. 12-15 hours or until the charging
indicator light turns green. Battery charging after 20-30 cycles will typically take 6-8 hours. When the
batteries are fully charged, disconnect the electrical cable and store in the charger bay.
To install the communication cable reels, first insert the reel holding frame into the base on the
upper cover of the column. Then fix the reel on the base by screws. Plug the communication cable
end into the socket on that specific column.
Please Note the Important Safety Information below for use of Extension Cords:
An extension cord should not be used unless absolutely necessary. Use of improper extension
cords could result in a risk of fire or electric shock. If extension cords must be used, make sure the
following safety precautions are observed.
·That the pins of plug of the extension cord are the same number, size and shape of those of the
plug on the battery charger.
·That the extension cord is properly wired and in good electrical condition.
·That the wire in the extension cord is proper size as recommend below.
Minimum recommended wire size for various length extension cords used with each battery
charger:
Length of Cord 25' 50' 100'
Cord Gauge 16 Gauge 14 Gauge 12 Gauge
·Do not operate the battery charger with a damaged cord or plug.
·Do not operate the battery charger if it has received a sharp blow, been dropped or otherwise
damaged in any way.
·Do not disassemble the charger. Incorrect reassembly may result in a risk of electric shock or fire.
·To reduce the risk of electric shock, unplug the charger from outlet before attempting any
maintenance or cleaning. Disconnecting the leads will not reduce this risk.
·To reduce the risk of shock or spark, never touch the ring terminals together while the charger is
plugged into an outlet or extension cord.
·External connections to the battery charger shall comply with all local, state, and federal
regulations.

14
MSC-18K-X
May 2019
Battery Requirement Information:
·Battery Quantity: 2ea per MSC Column - (Not included with MSC-18K-X Lifts)
·Battery Type: 12VDC Sealed Deep Cycle Battery
·Battery Size: BCI Group 31
·Battery Capacity: 105 AH (Amp/Hour) @ 20 HR (Hour Rate)
·Battery Terminals: Threaded Stud Terminals
WARNING
RISK OF EXPLOSIVE GASES
WORKING IN THE VICINITY OF A LEAD ACID BATTERY IS DANGEROUS.
BATTERIES CONTAIN SULFURIC ACID AND PRODUCE EXPLOSIVE GASES. A
BATTERY EXPLOSION COULD RESULT IN LOSS OF EYESIGHT OR SERIOUS
BURNS. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT YOU FOLLOW
THE INSTRUCTIONS EACH TIME YOU USE THE CHARGER.
TO REDUCE THE RISK OF BATTERY EXPLOSION, FOLLOW THESE
INSTRUCTIONS AND THOSE PUBLISHED BY THE BATTERY MANUFACTURER
FOR ANY EQUIPMENT YOU INTEND TO USE IN THE VICINITY OF THE BATTERY.
REVIEW CAUTIONARY MARKINGS ON THESE PRODUCTS AND ON ENGINE,
MOTOR OR OTHER EQUIPMENT REQUIRING BATTERY USAGE.

15
MSC-18K-X
May 2019
3. System testing before actual use
(Do not do any testing with a vehicle)
Familiarize yourself with the electronic controls and warning lights by reviewing the
functions of each item listed below.
3.1 The Electronic Control Panels:
The electronic control system of MSC-18K-X includes one master and either one, three or five slave
control panels, based on the model type. Each column has one height sensor, one motor pump, and
one electromagnet safety latch.
Main Control
Panel
-
#
1 Column

16
MSC-18K-X
May 2019
3.2 CONTROL PANEL DETAILS
1. EMERGENCY Button
To stop movements (lifting or lowering) immediately.
2. POWER Switch
Controls the power of the control panel or charging of the batteries.
3. ‘⇑ ’ ( UP ) Button
Controls the lifting of the columns.
4. ‘⇓ ’ ( DOWN ) Button
Controls the lowering of the columns.
5. ‘⇓ ’ ( PARK ) Button
Controls the locking of the columns.
6. POWER Light
This light will go on when the control panel is power on.
7. 8. 9. 10. CURSOR Buttons
These buttons move cursor on the screen to edit items.
Sub
Control
Panels
-
#2, #3, #4, #5, #6
Columns

17
MSC-18K-X
May 2019
11. 12. 13. MODE Buttons
To select between the functions: “WHEEL”, “AXLE”& “ALL”
14. BIAS Button
To set the zero point of height in initialization.
15. START Button
To start the running of the software.
16. SHIFT Button
This button is for the running of the program.
17. ENTER Button
This button serves confirming of instruction or entering sub menu.
18. ESC Button
Serves to enter or exit from menu; or from sub menu to upper lever menu.
19. LCD SCREEN
Display the height readings of columns & information
20. WARNING Light
This light will go on when the EMERGENCY button is pressed.
21. CABLE Port
This port is used for communication cable connection.
22. BATTERY Indicator
This indicator shows the output voltage of the batteries.
23. LED Light Socket
This socket provides the DC power for the LED light.
24. CHARGING Lamp
This is to indicate the batteries are in charging.
25. FINISHED Lamp
This is to indicate the batteries are fully charged.
Note:
Before turning on again the Power Switch, please wait for 20 seconds.
In “Axle”mode, are always paired as 1# & 2#, 3# & 4#, 5# & 6# per each vehicle axle.
In “ALL”mode, all columns move together.
In “Wheel”mode, each column moves individually.
In case of emergency, push down the ‘EMERGENCY’button to stop. If any motor does not stop, turn
off the battery switch on column’s right side to make an immediate cease.

18
MSC-18K-X
May 2019
3.3 COLUMN POSITIONS & CONNECTIONS
Depending on the model type, a full combination consists of either 2, 4 or 6 lifting columns. The
position of the main column 1# should be located opposite of column 2# loading on the same axel
of vehicle. The columns 3# and 4# shall be at wheels of the same axel. If required, the same will
apply for columns 5# and 6#. (Figs. 3.3a, b, c)
Fig. 3.3a (Two Column Configuration)
Fig. 3.3b (Four Column Configuration)
Fig. 3.3c (Six Column Configuration)

19
MSC-18K-X
May 2019
3.4 OPERATION TEST
The mobile column lifts are designed in such a way as to offer maximum flexibility and convenience.
A lifting system can consist of 4 lifting columns.
The mobile column lifts are set-up as following:
1. Position the lifting columns as indicated in 3.3 (Fig. 3.3.)
2. Then turn on the battery power switch of each column on the side.
3. Set the control box power switch on each sub column to left position (ON) first, the green Power
indicators will be on.
4. Then turn on the switch on main column to left (ON) and the LCD screen is lighted.
5. Wait until the LCD screen displays ‘Press START…’, then press the START button to start
running of the software.
6. Take care that the emergency stop button of each lifting column must been released.
Unloaded Rise:
1. Press and hold the “UP”button on the master 1# column panel, check if the carriages rise normally.
Repeat to try the other columns in same way.
2. Press and hold the “UP”button and allow the carriage to rise to its highest position. Check for any
hydraulic leaks.
Emergency Stop:
1. Push down the red emergency button to stop the lifts while rising.
2. Turn red emergency button to release it after test.
Lower Down:
1. Press and hold the “DOWN”button, the carriages will go up a little automatically to disengage the
safety locks first, then go down.

20
MSC-18K-X
May 2019
Park:
1. Press and hold the ‘Park’button, the carriage will go down until the safety lock is engaged.
Mode ‘Wheel’or ‘Axle’test:
1. Press the button ‘Wheel’or ‘Axle’or ‘All’to change mode.
2. In ‘Wheel’mode, only that button pressed column will operate.
3. In ‘Axle’mode, only that button pressed pair columns will operate.
Note:
a. In WHEEL or AXLE mode, the lifting or lowering will be carried out only 5 seconds per
time.
b. In WHEEL or AXLE mode, the lifting or lowering will be stopped when the height
difference between all columns or axles is greater than 2”(50 mm)
c. It is normal that during the moving process you may notice one or more columns slow or
stop momentary. This occurs when the lift control system is synchronizing each column
to maintain leveling.
After you have read and understand all of the information in this manual and
finished the operations testing you are ready to proceed to lifting vehicles. All
technicians that will be using this equipment MUST read and understand all of the
safety and operation items in this manual.
4. LIFTING OPERATION
4.1 Load a Vehicle:
1. Check and correct the tire pressure in each tire of the vehicle.

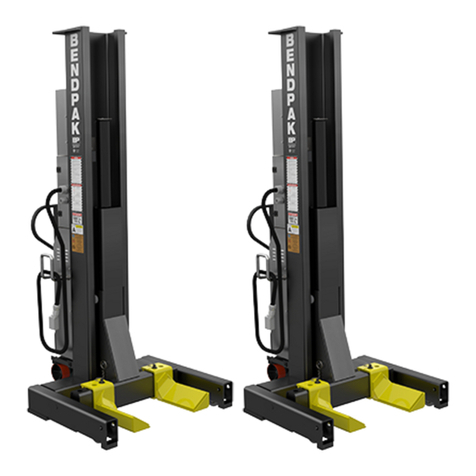

2. Position each mobile column adjacent to each tire on the vehicle. If the vehicle has dual rear
axles position the mobile columns to use on the drive axle.
Note: If an older vehicle has air bag suspension on the non-drive axles and mobile column are not
used, extra support for the axles may be needed to prevent air bag damage. Consult with the
vehicle manufacturer to determine if the air bag suspension has mechanical stops.
3. Adjust the lifting arms so they are at the narrowest position that will allow the arms to position
under the tires.
4. Move the lifting arms under the vehicle wheels then rest on ground.
Note: Always maintain approx. 6 inches of clearance between the column top and the vehicle body.
Note: The lift shall not be operated until the columns are fully lowered off dolly wheels.
