Idex BAND-IT S750 User manual

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 1 of 19
S750
Air Tool
Operating
Instructions

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 2 of 19
S750
Air Tool
Table of Contents
Introduction
Page
Introduction 2
S750 Air Tool Specifications
Air Line Requirements 3
Safety Procedures 4
Inspection and Installation 5
Mounting Template 6
S750 Operating and Setting Controls
Clamp Application 7
Troubleshooting 8
Schematic – S750 Air Tool 9
Maintenance 10
Maintenance Check List
Warranty 11
S750 Air Flow Diagram 12
Tool Base and Air Cylinder Repair Parts List 13
S750 Air Group Repair Parts List 14-15
S750 Assembly Repair parts List 16-17
BAND-IT Jr. Clamp Head Repair Parts List 18
Option-Band and Buckle Head 19
Introduction
The BAND-IT S750 Air Tool is
designed for volume production
clamping of all widths of BAND-IT Jr.
Preformed clamps.
With proper maintenance and using
the recommended clamps, the
BAND-IT Air Tool will give many
years of good service.

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 3 of 19
S750
Air Tool
Specifications and
A
ir Line Requirements
Air Line Requirements
Air Line Pressure : 100 PSI Minimum, 150 PSI
Maximum
Consumption: 3-5 CFM
Line Size: ¼” I.D. Minimum
Connection: ¼” N.P.T.
Filter/Lubricator: Located in Air Supply in back of
Air Tool.
Lubricant: SAE 10 Wt. Non-Detergent Motor Oil
Safety Procedures
1. Familiarize yourself with operating procedures
before operating the S750 Air Tool.
2. Do no operate tool without cover in place.
3. Use only recommended BAND-IT preformed
clamps.
4. Do not exceed recommended pressure
settings. Excess pressure may cause sudden
clamp failure during application or result in an
unsafe clamp.
5. Always keep fingers clear of clamp during
application.
6. Disconnect air supply before servicing air tool.
7. Tool must be firmly mounted (see page 4)
8. Safety glasses or goggles should be worn
when applying clamps.
9. Always keep tool in good operating condition.

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 4 of 19
S750
Air Tool

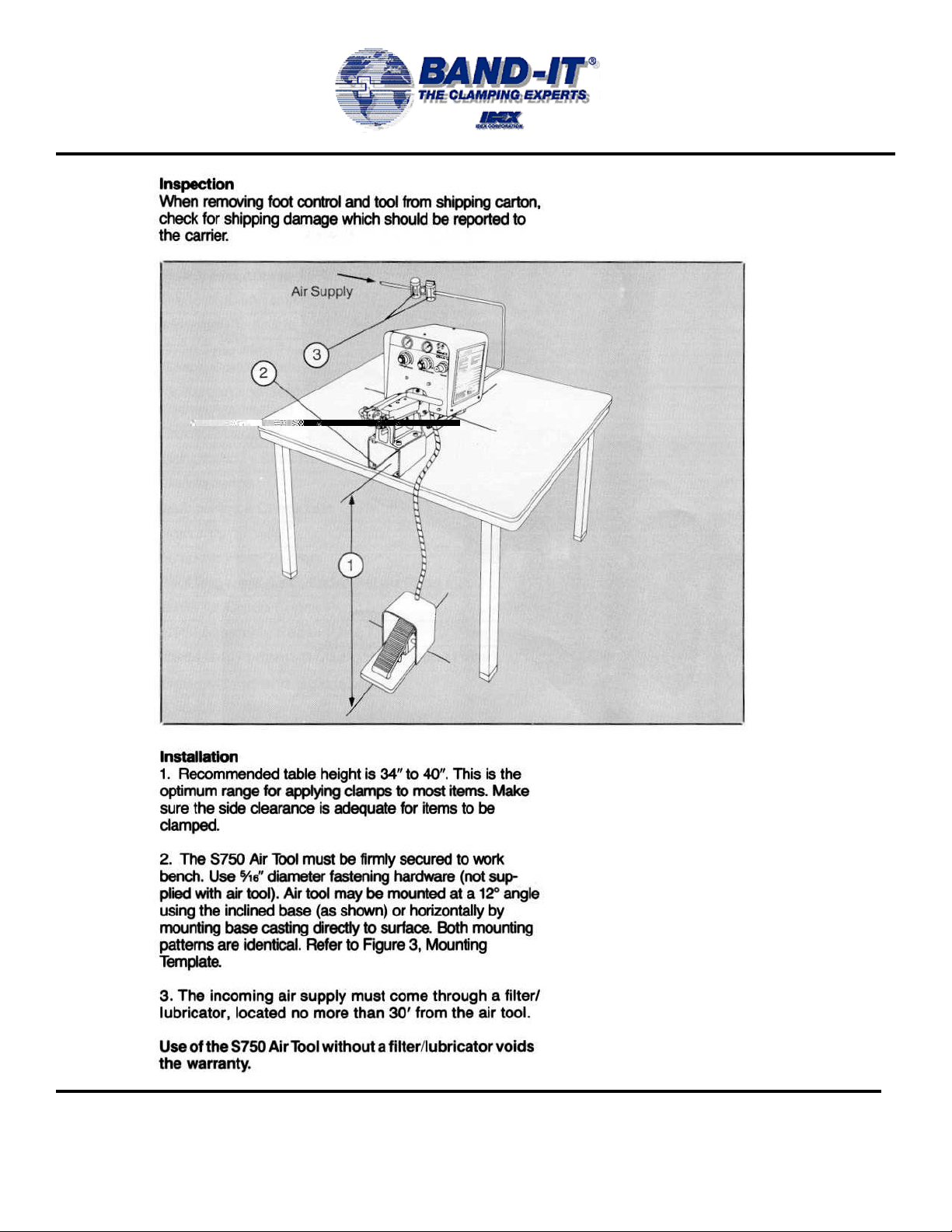

Inspection and
Installation

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 5 of 19
S750
Air Tool
Mounting
Template
NOTE: Not to scale

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 6 of 19
S750
Air Tool

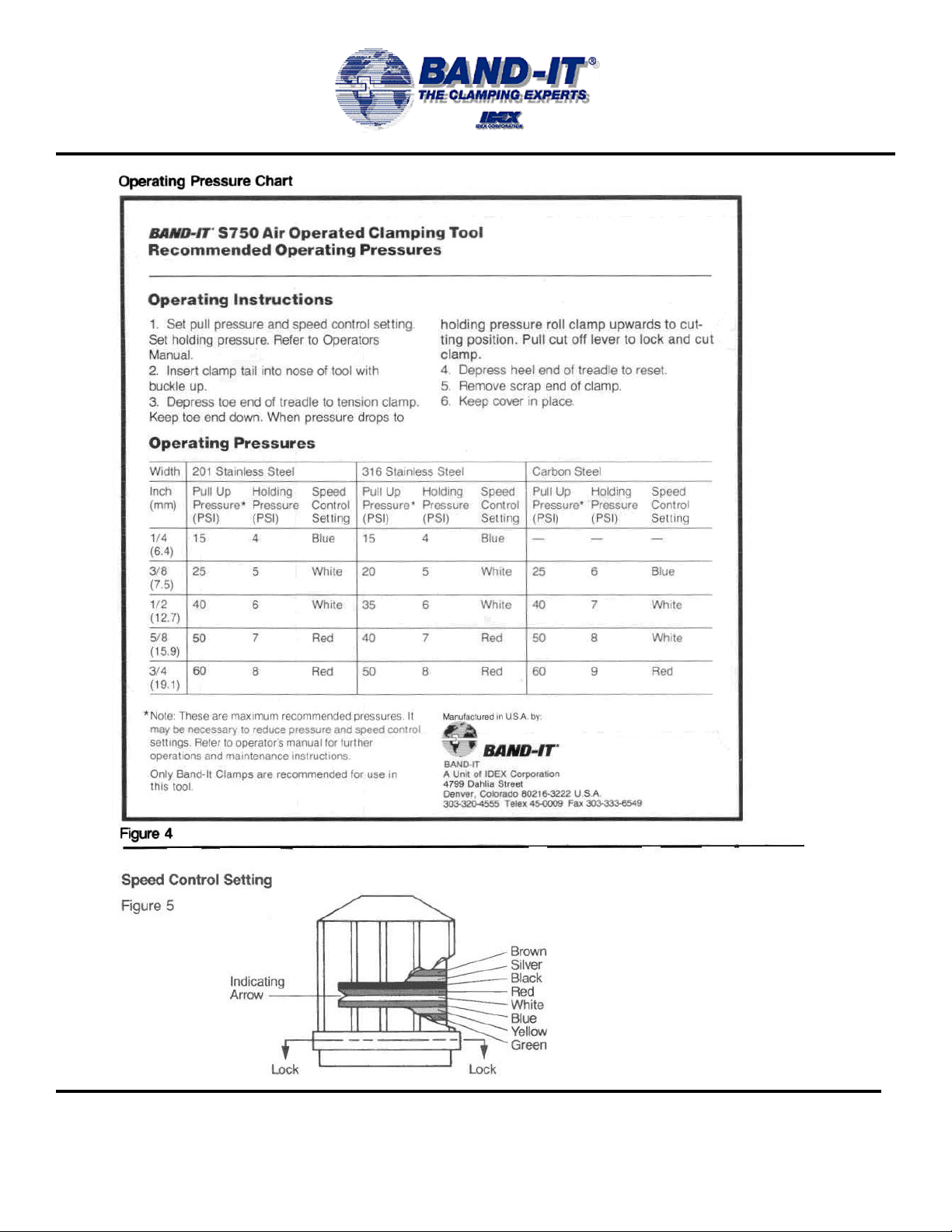

Operating Pressure
Chart and
Clamp Application

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 7 of 19
S750
Air Tool
Operation and
Clamp Application

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 8 of 19
S750
Air Tool
Troubleshooting

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 9 of 19
S750
Air Tool

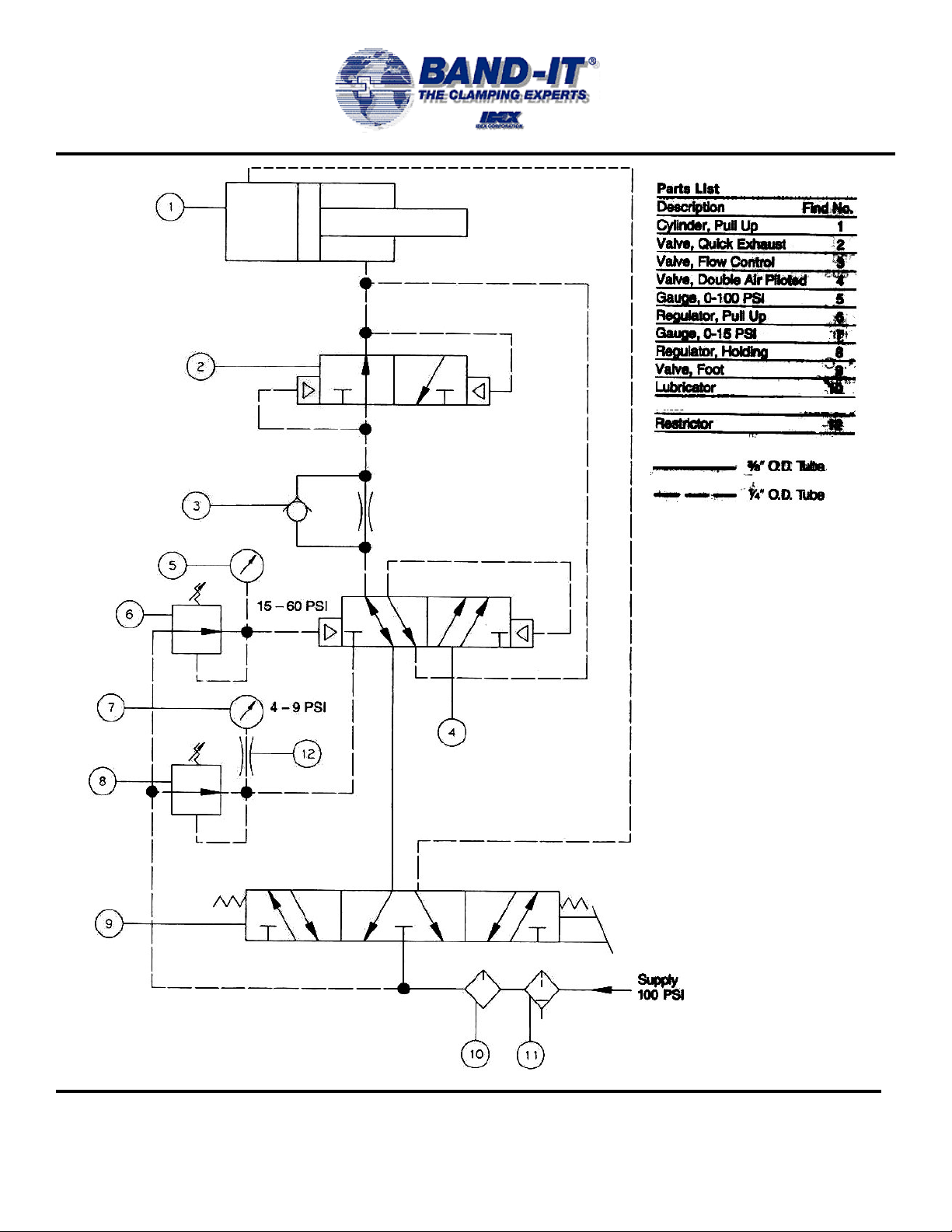

Schematic –
S750 Air Tool

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 10 of 19
S750
Air Tool
Maintenance

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 11 of 19
S750
Air Tool
Maintenance Check
List and Warranty
Unless sold without warranty, BAND-IT products are warranted to be free from
defective workmanship and/or materials for a period of one year from the date of
purchase. Warranty on tools is void if clamps not meeting BAND-IT specifications
are used, or if the tool is altered or abused in any manner, including lack of
lubrication or used for any purpose in any way not intended by the manufacturer as
specifically covered by the instructions accompanying the tool. Specific tool
components, such as knives, blades and grippers, which are subjected to normal
wear, are excluded from this coverage, as component life depends on usage of the
tool. Tools that are repaired or sold as used by BAND-IT are subject to a warranty
of 90 days from date of shipment. NO OTHER WARRANTY OF ANY KIND
WHATSOEVER, EITHER ORAL OR WRITTEN, INCLUDING IMPLIED
WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR OTHER WARRANTY OF QUALITY IS EITHER EXPRESSED OR
IMPLIED FOR THE PERFORMANCE OF BAND-IT PRODUCTS. BAND-IT SHALL
NOT BE LIABLE FOR SPECIAL, INCIDENTAL, AND/OR CONSEQUENTIAL
DAMAGES, EVEN IF BAND-IT HAS BEEN NOTIFIED OF THE POTENTIAL OF
SUCH LOSS OR CLAIM. (8/02)

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 12 of 19
S750
Air Tool
A
ir Flo
w
Diagram

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 13 of 19
S750
Air Tool
Tool Base and
A
ir Cylinde
r

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 14 of 19
S750
Air Tool

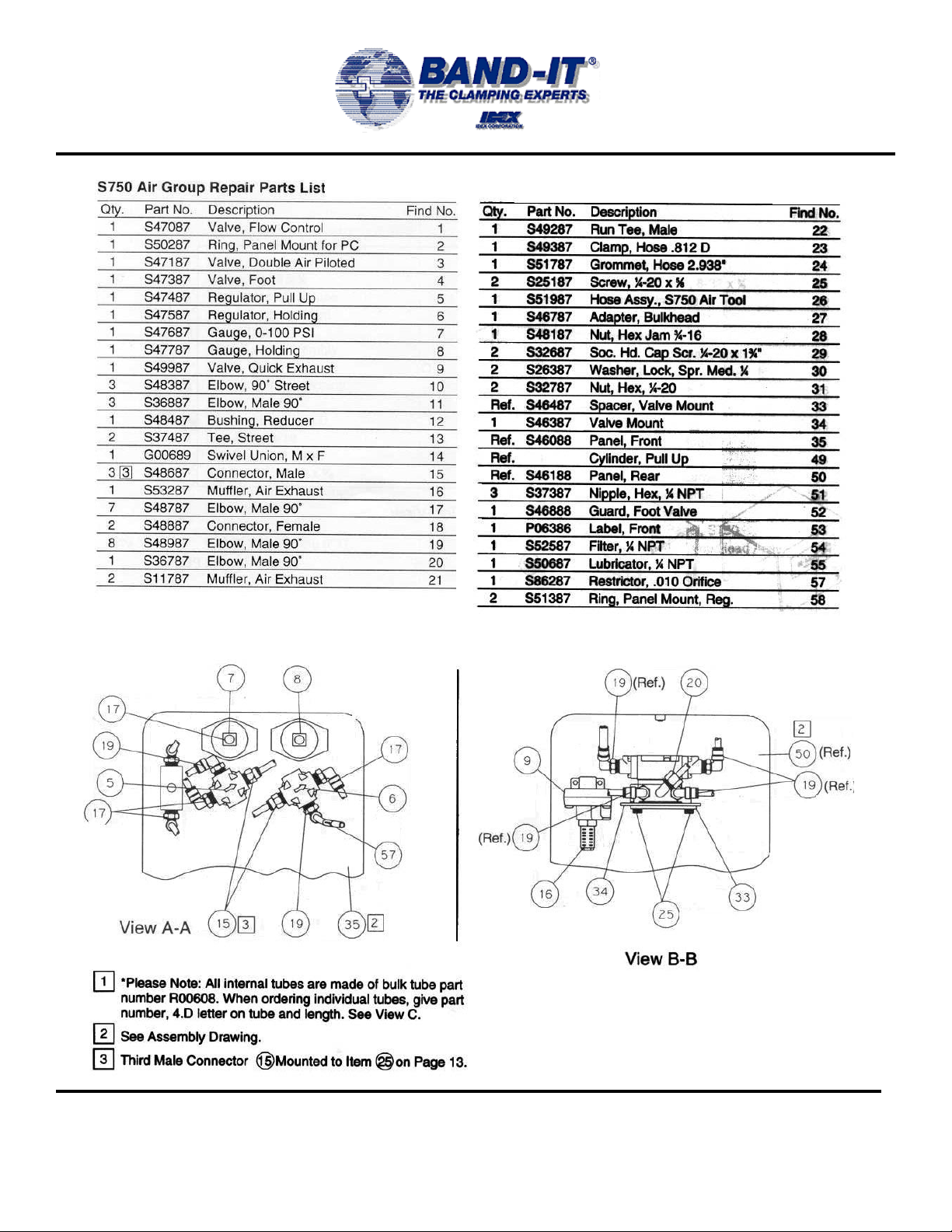

S750
A
ir Group

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 15 of 19
S750
Air Tool

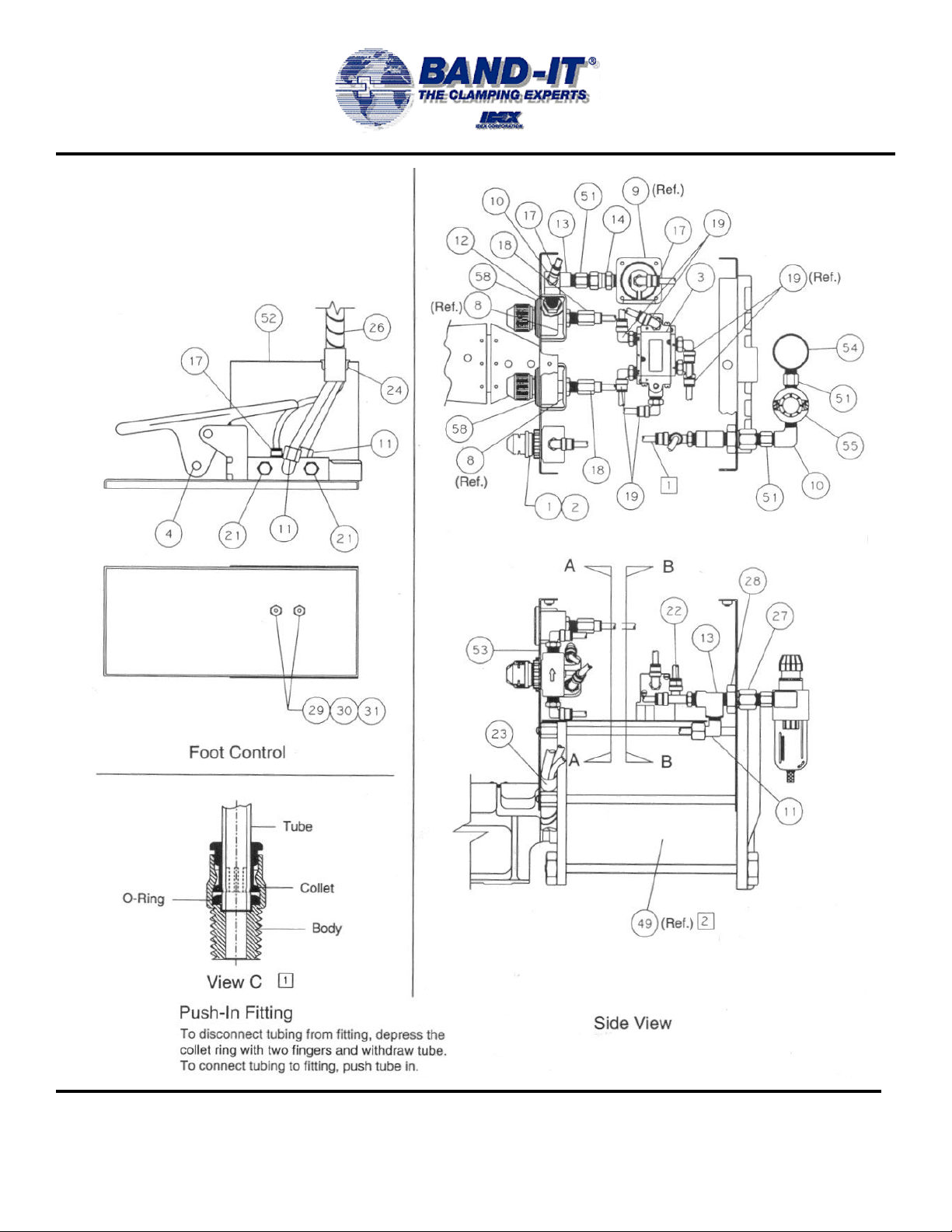

S750
A
ir Group

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 16 of 19
S750
Air Tool

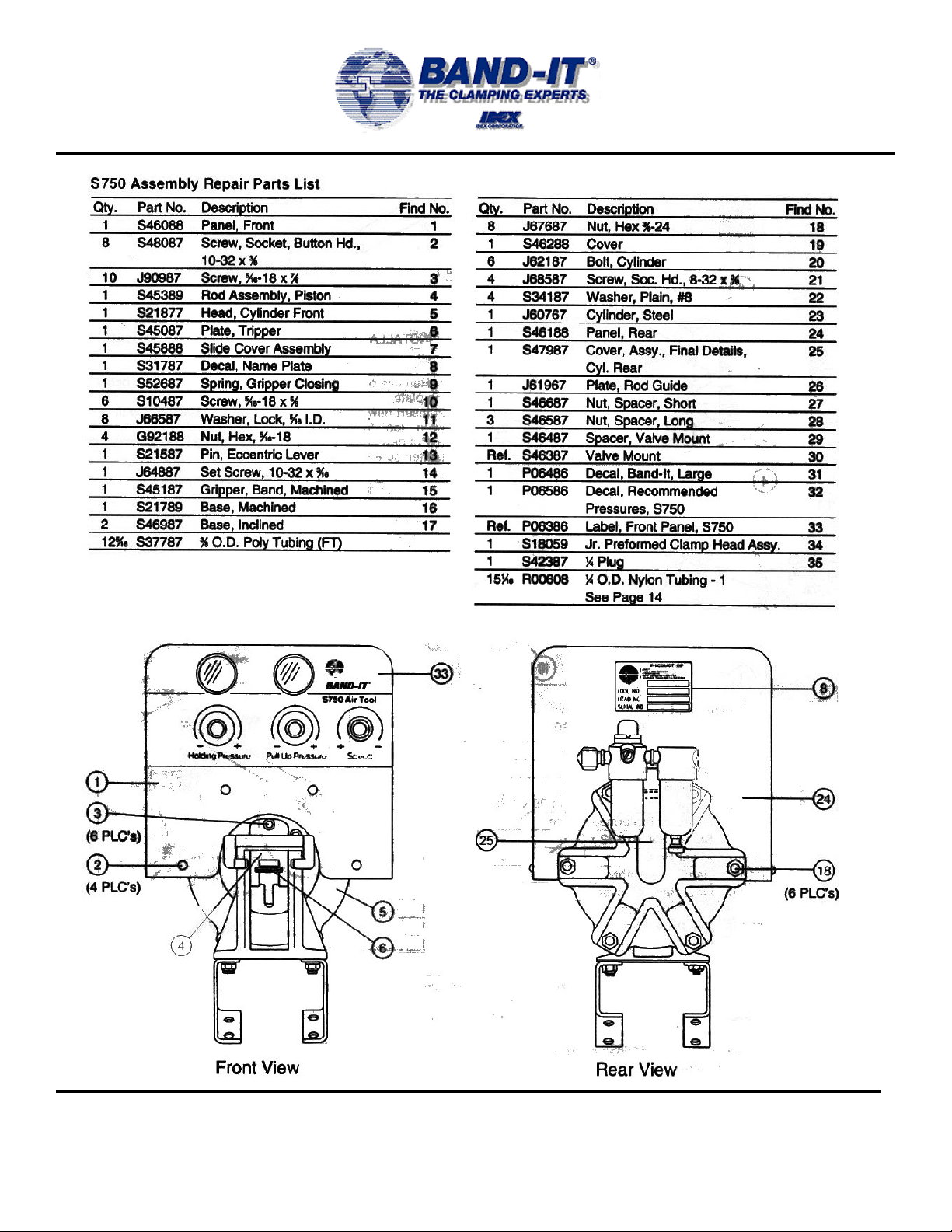

S750 Assembly

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 17 of 19
S750
Air Tool
S750 Assembly

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 18 of 19
S750
Air Tool

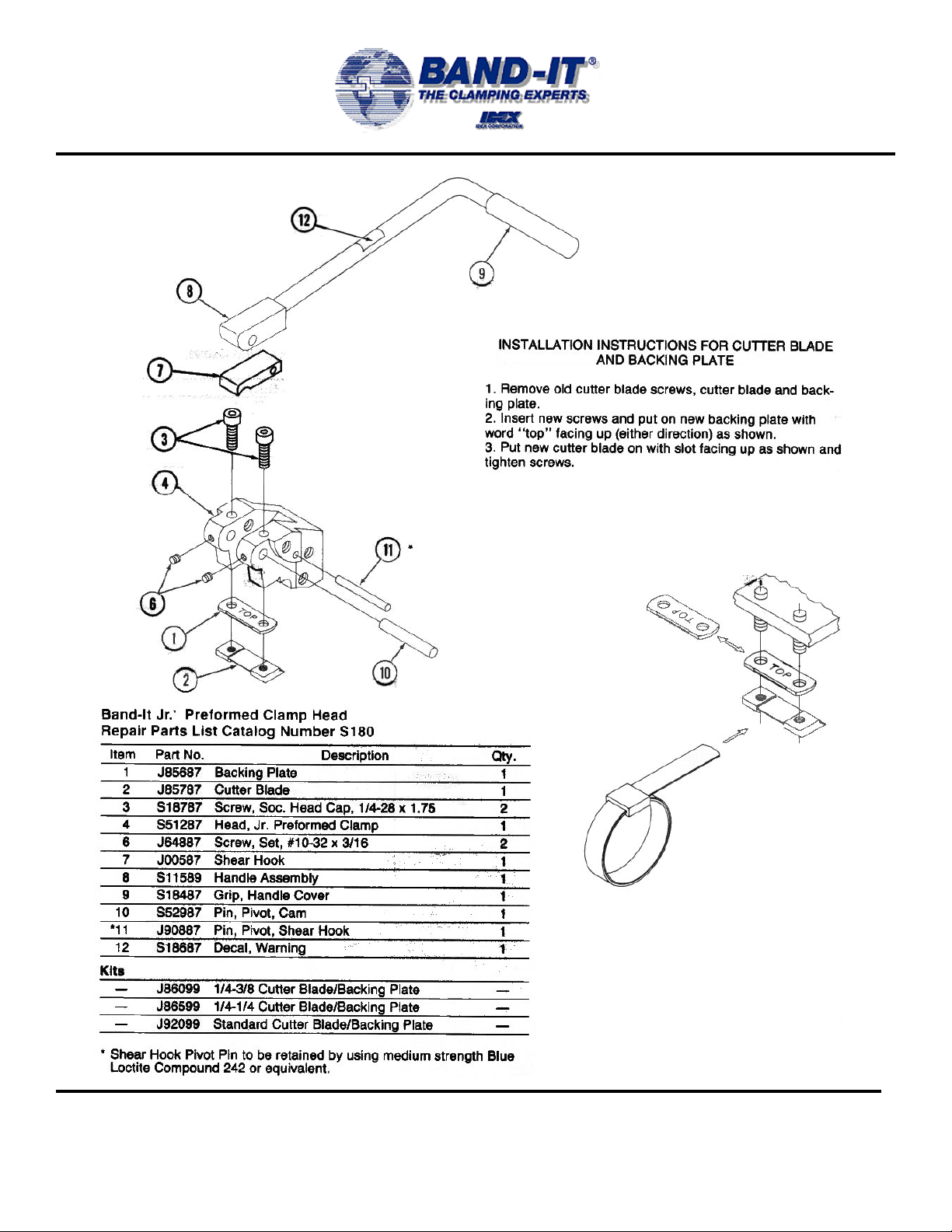

BAND-IT Jr.
Clamp Head

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-627-3925
Document # P36687 rev.
A
© Copyright
BAND-IT-IDEX, Inc. 2003
All rights reserved
www.BAND-IT-IDEX.com
Page 19 of 19
S750
Air Tool

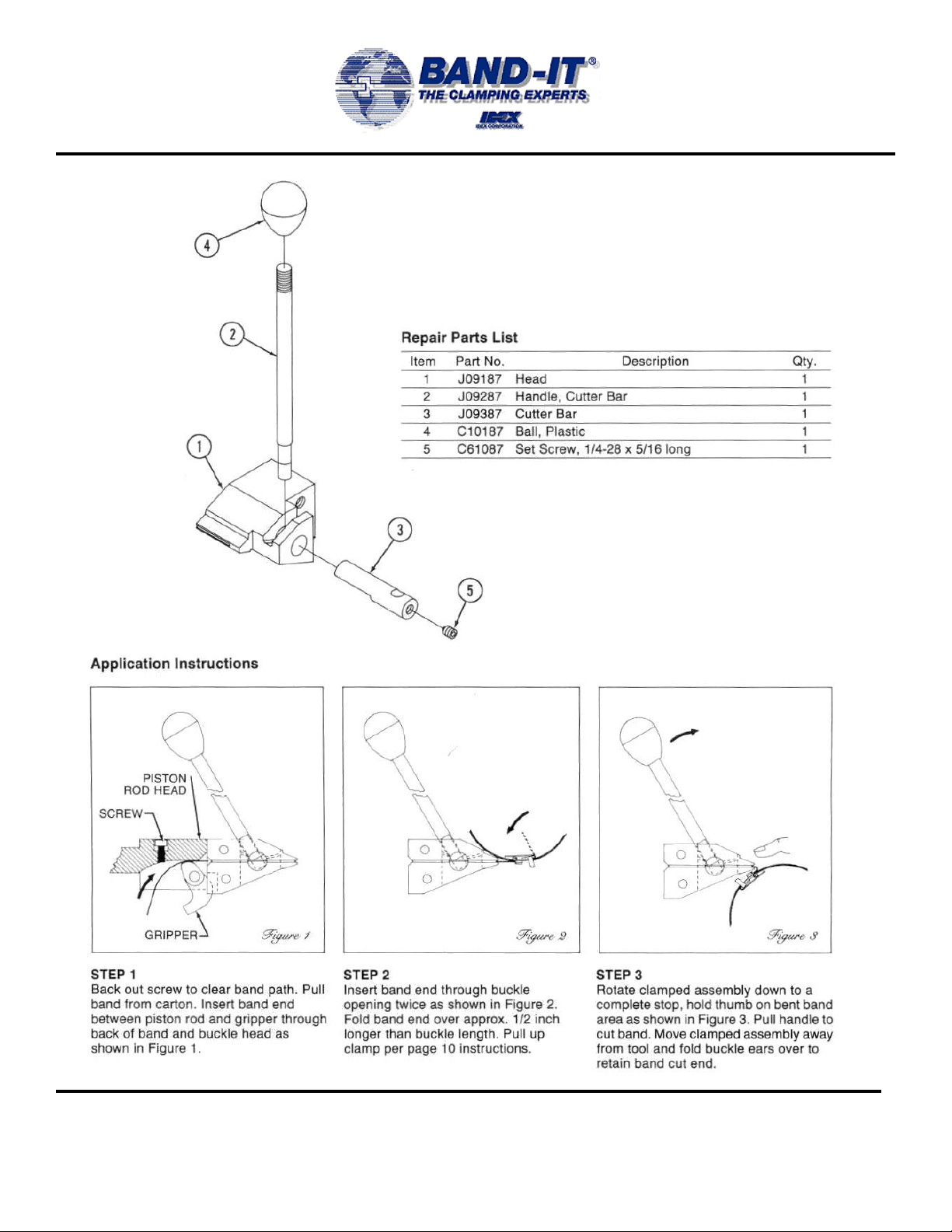

Option – Band and
Buckle Head
