idi Aspect100HT User manual

Operator Manual Aspect 100HT
Made in the USA
Aspect100HT
High-Tilt
Mobile Imaging Table
Operator Manual

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com ii
Table of Contents
PRODUCT DATA ............................................................................................................................................ 1
INTRODUCTION ............................................................................................................................................ 2
CUSTOMER SUPPORT ................................................................................................................................... 3
SYMBOLS AND DATA PLATE......................................................................................................................... 4
SPECIFICATIONS............................................................................................................................................ 6
ELECTROMAGNETIC COMPATIBILITY STATEMENT...................................................................................... 7
SETUP............................................................................................................................................................ 8
SAFETY HAZARDS.......................................................................................................................................... 9
SAFETY HAZARD ALERTS ............................................................................................................................ 10
SAFETY INSTRUCTIONS............................................................................................................................... 10
OPERATOR CONTROLS ............................................................................................................................... 14
EMERGENCY STOP SWITCH........................................................................................................................ 16
EQUIPOTENTIAL TERMINAL ....................................................................................................................... 16
ELECTRIC SYSTEM .......................................................................................................................................17
MAINTENANCE ........................................................................................................................................... 19
USER REPLACEMENT ITEMS ....................................................................................................................... 21
DISPOSAL OF COMPONENTS...................................................................................................................... 22
WARRANTY................................................................................................................................................. 23
Linak documentation can be found at their web site: www.linak-us.com
Select “Products | User manuals” and click on “Actuators & Electronics”.
The text of this manual was originally written, approved
and published by the manufacturer in English.

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 1
PRODUCT DATA
•Low attenuation carbon fiber tabletop
•Low attenuation patient pad
•Tabletop: 61cm x 203cm (24in x 80in)
•Tilt: 0° (Horizontal) to 75°
•Height: 81cm (32in)
•Patient capacity: 238kg (525lbs)
•Locking swivel casters
•Foot operator control standard
•Emergency Stop Switch
•Equipotential Terminal
•Foot Rest
•Optional hand operator control

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 2
INTRODUCTION
Overview
This manual pertains to the specified product only. It is intended for qualified medical
personnel who have been trained in the use of medical equipment. It is not designed to
replace or substitute for certified training in the application of this equipment.
Functional capabilities and operation of the equipment described herein which can be
employed in a variety of diagnostic, therapeutic, and surgical applications. It is designed
for use as either a fluoroscopic or radiographic table.
Owner Responsibilities
The owner is responsible to ensure system compatibility, the qualifications of the
operator and maintenance personnel. The operator must be properly trained and have
obtained credentials from the appropriate authorities.
This equipment should only be installed in an area provided with the proper electrical
power.
The owner is responsible for verifying continued compliance with all applicable
regulations and standards. Consult local, state, federal and/or international agencies
regarding specific requirements and regulations applicable to the use of this equipment.
Image Diagnostics, Inc. certifies this equipment. After-sale operating practices and safety
are the responsibility of the owner and operator. Image Diagnostics, Inc. assumes no
liability or responsibility for after-sale operating or safety practices; nor can it be
responsible for personal injury or damage resulting from misuse.
Never make modifications or adjustments to the equipment unless directed by a qualified
Image Diagnostics representative. This equipment, when properly assembled, meets US
federal regulations and international standards. Unauthorized modifications to the
equipment may impact adherence to these standards and make the equipment unsafe to
operate.

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 3
CUSTOMER SUPPORT
Image Diagnostics will make available, on request, circuit diagrams,
component part lists, calibration instructions, or other information which
will assist the user’s appropriately qualified technical personnel to repair
those parts of equipment which are designated by the manufacturer as
repairable.
For technical assistance, call IDI at [phone] or send fax to (978)
829-0027. Be prepared to give the complete model and serial number
found on the dataplate on the table base at the time of contact.
This X-ray component manufactured by Image Diagnostics, Inc. complies
with applicable FDA performance standards contained in 21CFR at date of
manufacture.

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 4

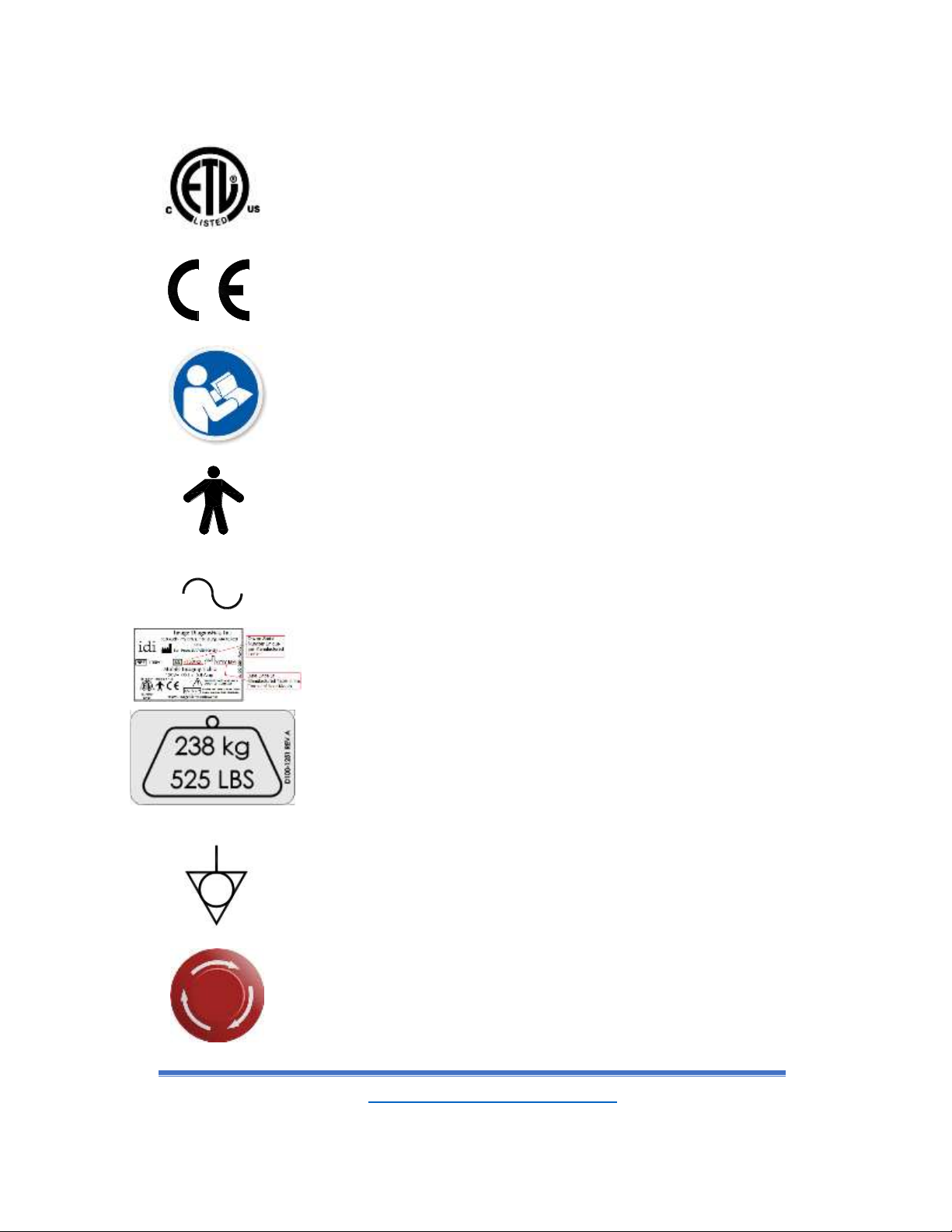

SYMBOLS AND DATA PLATE
Intertek Testing Service
The system was tested and found to be in compliance with the
requirements of all relevant directives and standards in effect within
the European Union at the time of manufacture.
Attention! Consult accompanying documents.
Failure to follow these instructions can cause accidents resulting in
serious personal injury or damage to equipment. CD ROMs
containing file copies of all relevant drawings, BOMs, and
documentation are included with this manual, one for general
operators and one for the BIOMED department.
Type B equipment
Alternating current
Data Plate
Maximum Patient Weight
Equipotential Terminal (Featured on some models)
Indicates the Equipotential terminal of the table. Provides for a
connection between the table and the equipotential bus bar of the
facility.
Emergency Stop Button

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 5

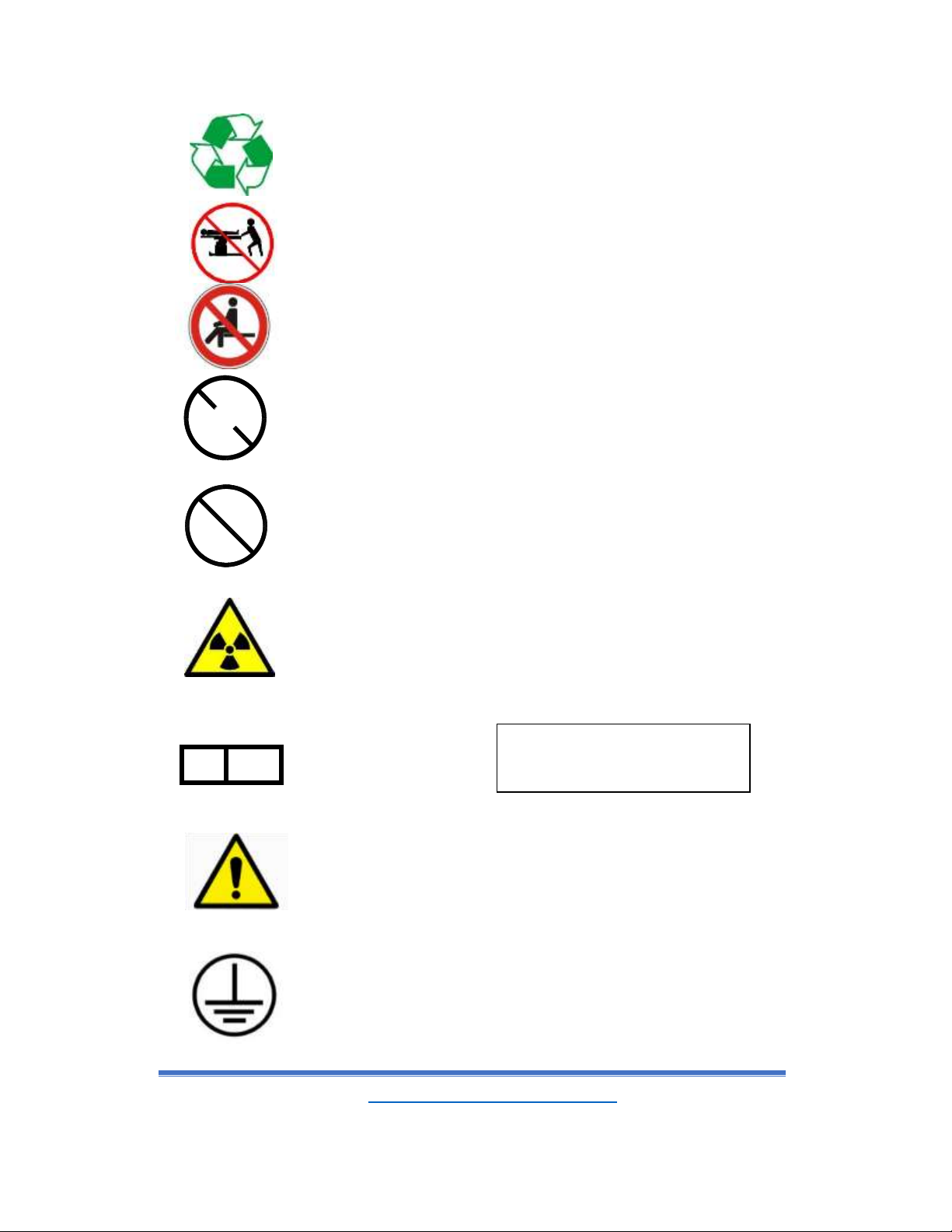

LATEX
Recycle
Some of the material can be recycled rather than discarded.
Not for Patient Transport. The table should not be relocated with a
patient on it nor should it be used to move a patient.
Do Not Sit
This label is found on parts that are not designed to support the
sitting weight of a patient.
Not made with natural rubber latex.
Single Use item.
This symbol, when used in this manual, indicates the potential of
exposure to harmful x-rays. Be sure to read and comply with all
warnings.
European Authorized
Representative
Warning! Information or instructions shown near this symbol must
be adhered to in order to prevent a potentially hazardous situation
which if not avoided, could result in death, personal injury or
damage to the equipment.
Protective Ground
This is the common tie point between the AC cord ground, frame
ground, and controller ground.
2
EC
REP
Advena Ltd. Pure Offices, Plato Close,
WARWICK CV34 6WE UK

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 6
SPECIFICATIONS
Mode of Operation:
For continuous operation with short time loading
Duty Cycle: 10% (6 min/hr)
Type of Equipment:
Class I Type B (as defined by IEC 60601-1, UL 60601-1,
EN 60601-1, CSA 601.1, IEC 60601-2-32:1994 and IEC 60601-2-46)
Type B protection against electrical shock
Complies with FDA standards
Electrical:
Supply Voltage: 120±5% Vac 60Hz or 23010% Vac 50Hz
Duty Cycle: 10% (6 min/hr)
Current Rating: Less than 10 Amps
Internally Battery Powered
Environmental:
Operating Temperature Range: -10C to +40C
Operating Humidity Range: 30% to 75% relative humidity, noncondensing
Operating Pressure Range: 700hPa to 1060 hPa
Transport & Storage Temperature Range: -40C to +60C
Transport & Storage Humidity Range: 30% to 75% relative humidity, noncondensing
Transport & Storage Pressure Range: 500hPa to 1060 hPa
Rated IPX4 (Protected against splashing water)
Meets EMC requirements of EN 60601-2 (1993)
Tabletop:
The tabletop is made of carbon fiber and is certified to meet all the requirements of 21 CFR Subchapter J

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 7
ELECTROMAGNETIC COMPATIBILITY STATEMENT
This equipment may generate and use radio frequency energy. The equipment must be installed and used
according to the manufacturer’s instructions in order to avoid radio frequency interference.
If this equipment generates or receives interference:
•Verify that the equipment is the cause by turning the system off and on.
•In the event of unintended motor actuation, immediately remove power to the equipment.
•Use only cables supplied by Image Diagnostics, Inc.

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 8
SETUP
Unpack
No special handling is required for unpacking this equipment at the site. Conventional shipping materials
are used.
To remove the table from the shipping pallet, first remove the shipping brackets that secure the table to
the wooden pallet using a ½” wrench. Then roll the table down a temporary ramp or lift off pallet with a
forklift. When using a forklift, pad the forks to protect the paint. Lift from under the metal base. When
rolling the table off the pallet by hand, use the long metal rails attached to the tabletop to guide the table
after releasing the caster brakes.
Install
Mobile tables are equipped with four locking caster brakes. Unlock brakes while positioning.
Foot controls are standard with this table with a hand control being an option. The operator should become
familiar with the controls before using.
The table operates on 110Vac (or 230Vac) or on internal battery backup. Plug the power cord into a properly
grounded hospital grade outlet.
The outlet used should be visible and accessible to the user. The cord should be routed where it will not be subject
to damage or be a hazard. Check that the power cord ground pin is in good condition. Check that the cord ground
wire is securely connected to the ground stud inside the unit.
During an AC failure, the table will automatically run on battery backup without any manual switching required.
It is recommended that power be applied at all times, even when not in use, to keep a proper charge on the
batteries and achieve maximum battery life. (Batteries are being charged during normal use).
Where the integrity of the external protective earth conductor is in doubt, this equipment shall be operated from its
internal electrical power source by unplugging the power cord from the mains.
Recycle or dispose of shipping
material per local regulations.

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 9
Preparation for Patient Use
New Installation:
This equipment will need to be properly cleaned before patient use as it will inevitably come into contact with
contaminants during shipping, unpacking, storage, and installation.
After Installation:
This equipment will need to be properly cleaned between patient use as it will inevitably come into contact with
contaminants during procedures.
SAFETY HAZARDS
Operators using this equipment should understand the safety issues, emergency procedures, and
operating instructions provided.
Comments and questions regarding safety should be addressed to:
Customer Support
Image Diagnostics, Inc.
310 Authority Drive
Fitchburg, MA 01420
USA
Or call IDI at [phone] or send fax to [phone].
Or call toll-free at [phone].
Review the SAFETY INSTRUCTIONS before
operating table

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 10
SAFETY HAZARD ALERTS
Alert
Circumstances for Use
DANGER
Indicates an imminently hazardous situation which, if
not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentiallyhazardous situation which, if not
avoided, may result in minor or moderate injury or
equipment damage.
WARNING!
This equipment has not been tested for use with high
frequency surgical equipment, cardiac defibrillators, or
cardiac defibrillator monitors.
WARNING!
If an antistatic path is required, use the equipment on an
antistatic floor. Use only the tabletop pad (patient
mattress) supplied with the table.
CAUTION
Secure power cord when in use so that it does not get
entangled with other equipment and/or compromise
the safety of the operator and/or staff.
CAUTION
Do not modify this equipment without authorization of
the manufacturer.

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 11
SAFETY INSTRUCTIONS
This manual should be accessible to all personnel installing, operating, or servicing this equipment.
Only a qualified technician may install or maintain this equipment.
Only qualified persons may operate this equipment.
Failure to follow safety precautions may result in serious injury to patient or user or damage to equipment.
This symbol, when found marked on the equipment
means:
”Attention, consult accompanying documentation.”
WARNING!
Always safely position and secure patient on table
WARNING!
Do not exceed patient weight of 525 pounds (238kg)
CAUTION
Do not leave patient on table unattended
CAUTION
Patient must be restrained at all times. The restraining
straps are not intended to restrain an uncontrollable
patient.
CAUTION
The carbon fiber top is subject to damage or possible
damage from impact from other objects. Take caution
when using power driven diagnostic equipment around
table. Regular inspection of the tabletop is necessary for
the safety of patient and operator.

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 12
Push down to lock
CAUTION
Ensure that the tabletop does not contact other
equipment as it moves.
CAUTION
During operation, listen for any unusual sounds and
watch for uneven operation.
CAUTION
Do not sit on the table top at the head of the table.
CAUTION
Do not place or store any containers or large items
underneath the tabletop. As the tabletop is descending,
contact with an obstruction may cause permanent
damage to the table.
CAUTION
Do not use table for patient transport.
CAUTION
Secure wheel locks by depressing locks on all 4
wheels prior to patient usage and when table is not
in motion. Disengage to reposition.

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 13

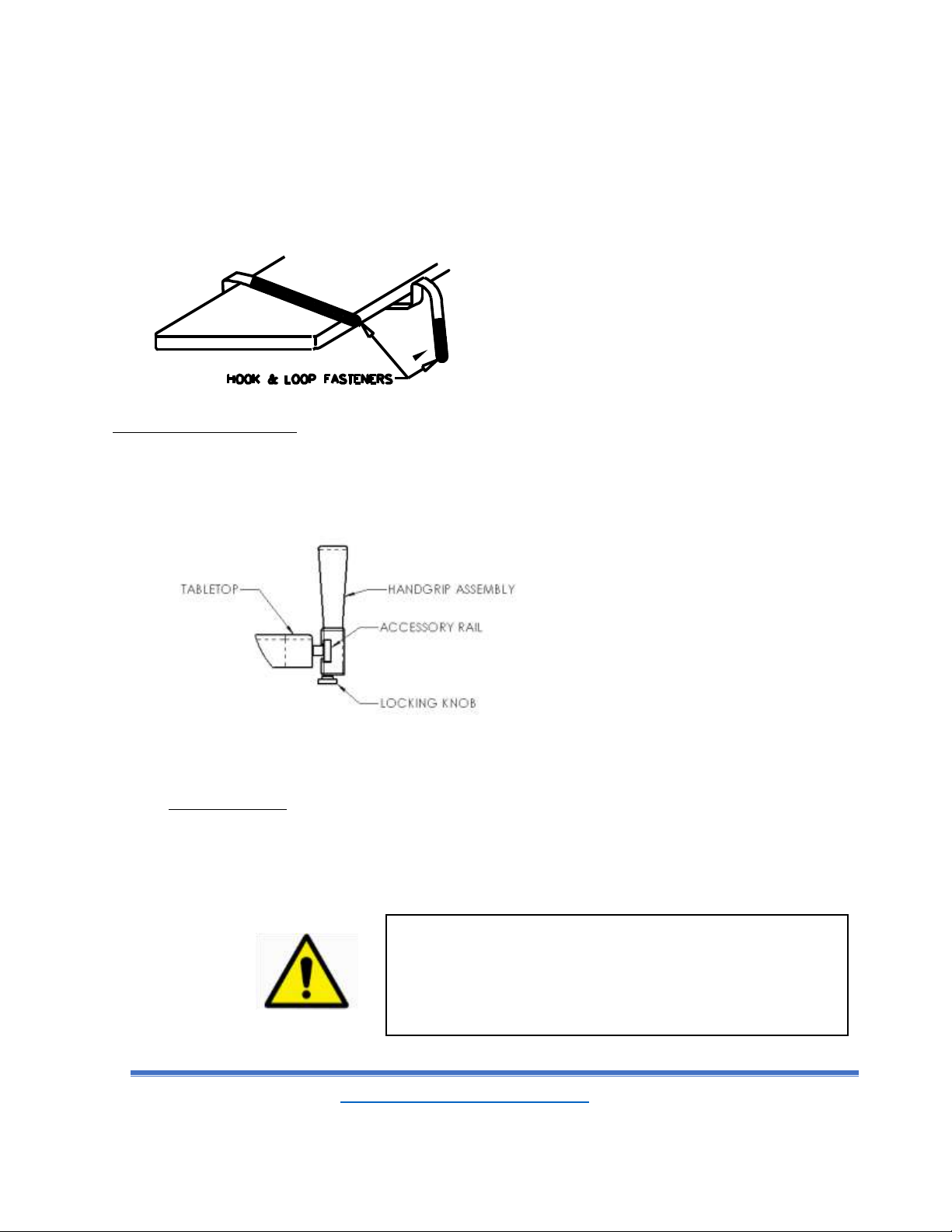

ACCESSORIES
•PATIENT RESTRAINT STRAPS
UPatient Restraint Strap SetU
Part Number C000-0571
(Two straps 3” wide)
•PATIENT HANDGRIP
The patient handgrip can be quickly locked to the accessory rail in any position to suit the patient.
UPatient HandgripU
Part Number A100-1711
(Order 2 for a complete pair)
WARNING!
25lbs (11kg) Maximum Load
Check that handgrip is tight before each use.

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 14
OPERATOR CONTROLS
HAND CONTROL (OPTIONAL)
• Buttons control the tilt motion
To move the tabletop, press the appropriate button and hold until the desired
position is reached.
UHand ControlU
Part Number: Handset K000-0041, Label D100-1824
Go to the Linak web site for disposal information.
The URL is listed on the table of contents page of this manual.
CAUTION
Always check that the patient is secure before
activating any table motion

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 15
•FOOT CONTROL (OPTIONAL)
• The two pedals control the tilt motion
To move the tabletop, depress the appropriate pedal and hold until the
desired position is reached.
UFoot ControlU
Part Number A100-1823
Contact IDI Customer Service for individual components of foot control.
CAUTION
Always check that the patient is secure before
activating any table motion

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 16
EMERGENCY STOP SWITCH
•The red emergency stop button is located on top of the control box
•Pressing this button down will stop all motor movement
• In the event that the hand or foot control malfunctions, the emergency stop control
prohibits motion by removing power from all system components
• ACTIVATE: Engage the emergency stop mode by pushing the button down
• RESET: Restore the electrical functions by rotating the button a quarter turn
Note: The battery will not charge if the emergency stop switch is pushed down.
EQUIPOTENTIAL TERMINAL
The Equipotential terminal provides a connection point between equipment and a
potential equalization busbar.
Symbol Terminal

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 17
ELECTRIC SYSTEM
BATTERY FUNCTION (Motorized tables)
When AC power is applied, the battery will begin charging until the battery reaches full
capacity. When it does, the charging will taper off. If the power goes out, the table will
automatically switch to battery back-up mode.
Note: The battery will not charge if the emergency stop switch is pushed down.
An audible tone is sounded when using an operator control function if the battery
charge is low.
Local procedures may be in place for proper disposal or recycling. For more
information about batteries, such as battery life, production codes and
disposal go to the Linak web site for disposal information. Select
“Products|User Manuals” and click on “Actuators & Electronics”. Linak
documentation can be found at their web site: www.linak.com

Operator Manual Aspect 100HT
L100-3064 REV A www.imagediagnostics.com 18
GENERAL CLEANING
The disinfectant cleaners and cleaning steps on this page apply to all the parts of the table.
• Clean tabletop, pads, accessories, and painted surfaces with a clean cloth dampened
with an approved cleaner (see list below).
Do not use abrasives, solvents, sprays, or corrosive agents.
APPROVED AND TESTED DISINFECTANT CLEANERS
•Sodium hypochlorite (generic household bleach) in solution of 5.25% sodium hypochlorite
diluted between 1:10 and 1:100 with water.
•Alcohol (generic)
• Envirocide ® Disinfectant and Cleaner
CAUTION
After each procedure, the table should be carefully
cleaned.

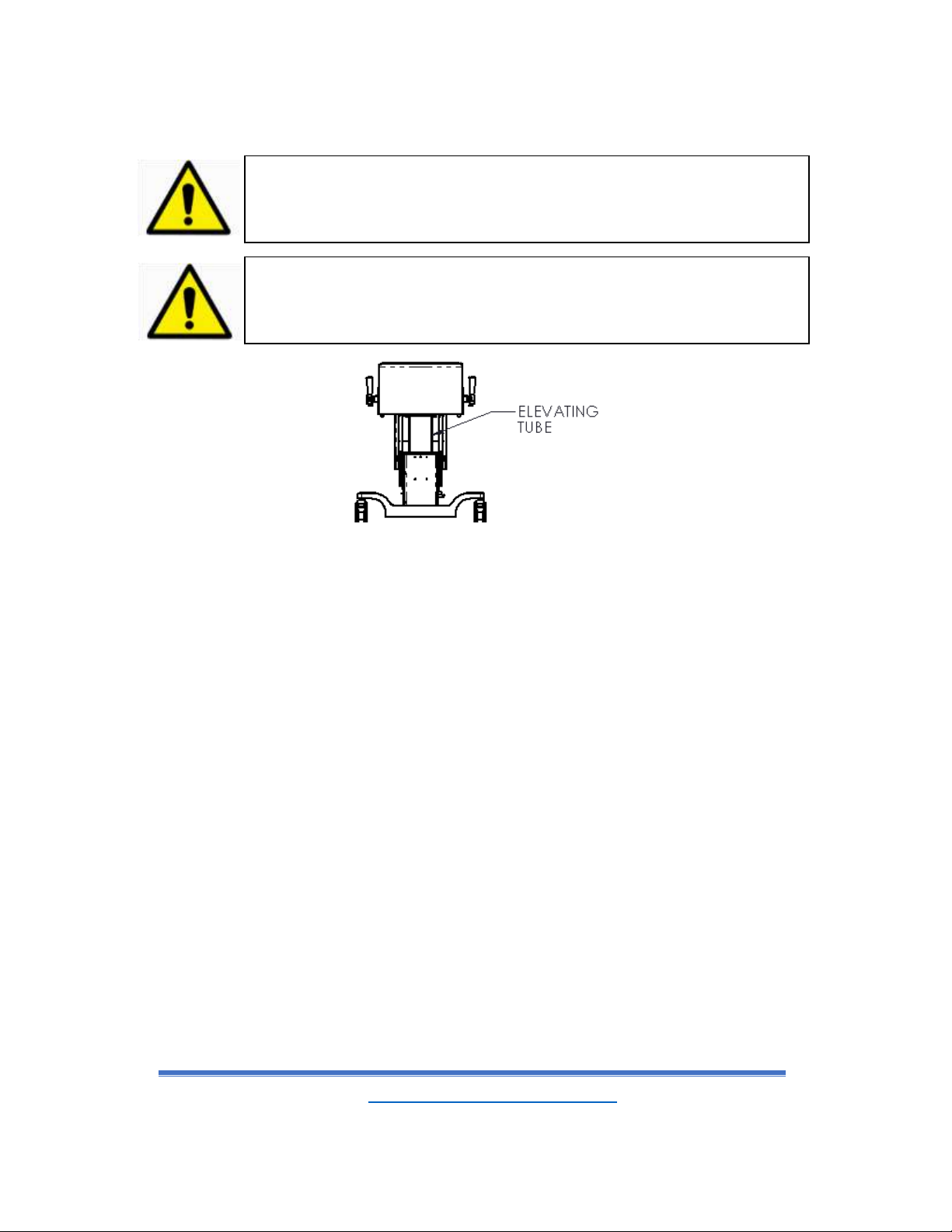

CAUTION
Avoid cleaning or getting cleaning solutions on
elevating tube if possible.
