Idiag P100 User manual

Guide to getting started

with Idiag P100 training

Background

At rest, a human being takes some 20,000 breaths a day. As the only vital skeletal muscle, the

respiratory muscles work day and night. During sporting or other generally strenuous activity,

however, these muscles can become fatigued and impair athletic performance and even quali-

ty of life. Various diseases may also increase this fatigue.

To train these muscles effectively, ordinary endurance training is not sufficient. The Idiag

P100 can be used to train the respiratory muscles in a targeted manner, thus improving athle-

tic performance and also reducing respiratory system complaints caused by disease.

As with any skeletal muscle, the respiratory muscles can be stimulated either through endur-

ance training or through strength training. Comprehensive training encompasses both com-

ponents, which is why we also recommend that healthy people perform both endurance and

strength training. Both modalities are possible with the Idiag P100.

A differentiation can be made between three different breathing movements: The abdominal

breathing movement, the thoracic breathing movement and the breathing movement in the

neck/throat/shoulder area.

The abdominal breathing movement is mainly performed by the diaphragm. The diaphragm is

considered the main inhalation muscle, which lowers itself in the abdominal cavity when it

contracts during inhalation. This causes the abdominal cavity to expand, thereby allowing a

large volume of air to be inhaled.

During inhalation, the diaphragm is supported by muscles which cause the rib cage to expand

by raising the ribs. This is known as the thoracic breathing movement.

The breathing movement in the neck/throat/shoulder area comes into play if the respiratory

muscles need to develop great strength, are overstrained or exhausted. The constant action

of the shoulder and neck muscles during endurance training can lead to overloading of the

neck area and to it suffering cramps as a result. In endurance training, this is therefore con-

sidered a compensatory mechanism and should consequently be prevented. Strength training,

on the other hand, requires action from the neck and shoulder areas in order to generate the

corresponding forces and pressures.

The optimal breathing technique consists of a combination of abdominal and chest breathing

movements. The optimal breath is initiated by the diaphragm and shortly thereafter the rib

cage begins to participate. This allows for maximum expansion and therefore ventilation of

the lungs. During endurance training with the Idiag P100 the breathing pattern is exactly the

same, whereby breathing is forced. The focus here is on the diaphragm, which is trained corre-

spondingly. The neck/throat/shoulder area remains loose and relaxed..

IDIAG

P100®

PERFORMANCE

If one wishes to develop maximum pressures, as is the case with strength training, it is pri-

marily the accessory respiratory muscles that are active. During inhalation, these are mainly

the outer intercostal muscles. The diaphragm cannot exert large forces. During exhalation it

is mainly the inner intercostal muscles and the large abdominal muscles that force air out of

the lungs.

Depending on the posture adopted, respiratory muscle training is either made more difficult

or easier. When sitting, breathing is made easier because body tension is reduced. By suppor-

ting the body on the elbows too, breathing can be made easier again.

When standing, breathing resistance increases because the upper body postural musculature

is tense. This resistance is reduced by leaning the shoulder girdle against a wall, thereby ma-

king breathing easier.

First steps with the Idiag P100

Before using the Idiag P100 for the first time, please read the Quick Reference Guide and visit

the instruction website at https://www.idiag.ch/en/idiag-p100-training/ for helpful informa-

tion in video form.

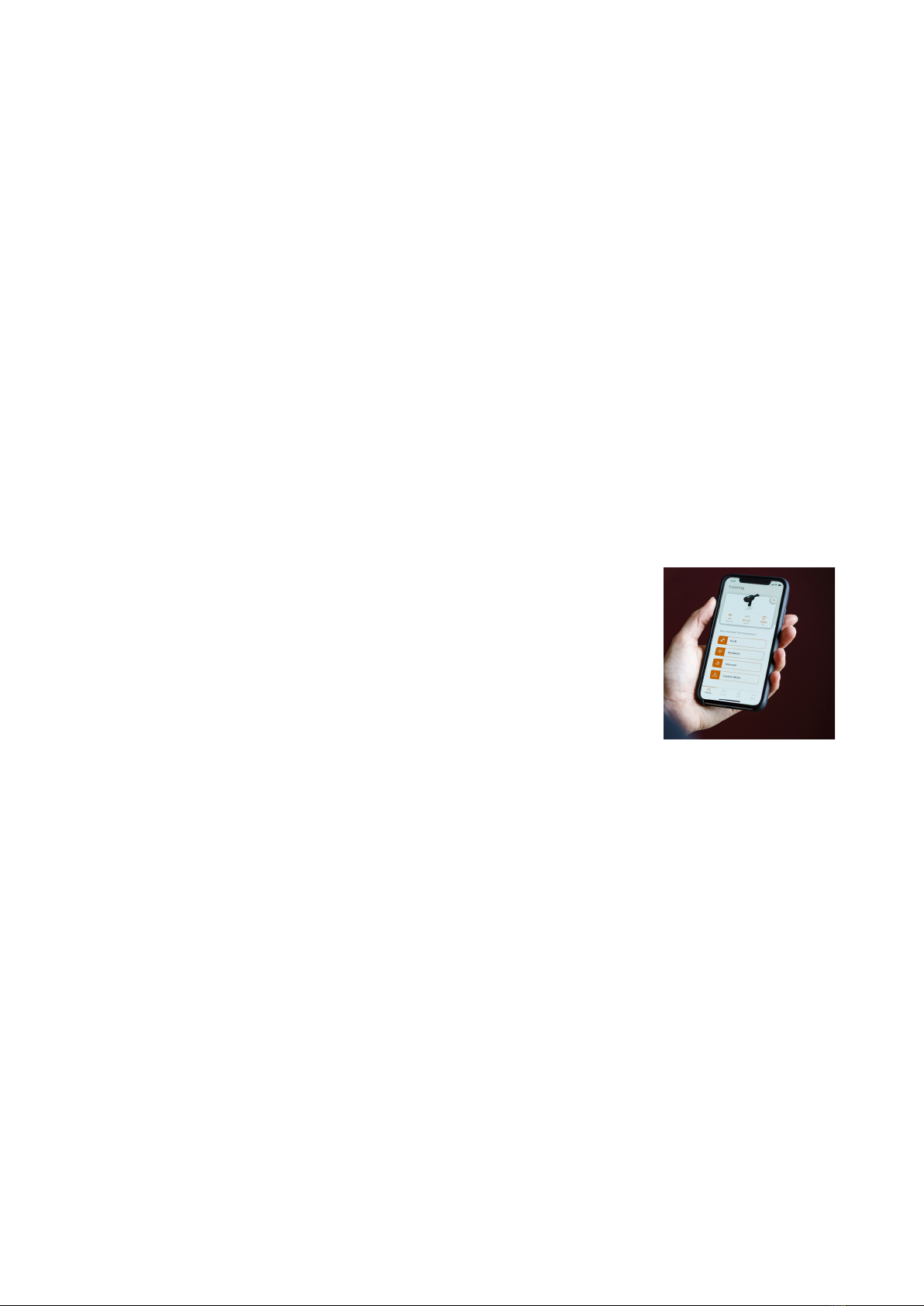

To harness the full potential of the Idiag P100, download

the Idiag P100sport smartphone app, register your device

and connect it to the app at least once. This activates

endurance and strength training on the device in addition

to free mode. You can run these additional modes either

with or without the app.

Starting respiratory muscle training

To start training with the Idiag P100 and get to know the device, we recommend that you

first train in „free mode“. In this mode, you can train without any specifications regarding bre-

athing frequency or breathing depth. Free mode is therefore perfectly suited to acquiring a

solid breathing technique and gaining a feeling for how the device works.

Start a training session (without the app) in free mode and place the mouthpiece into your

mouth. First, begin to breathe in and out through your mouth through the device in a relaxed

manner. After approx. 30 seconds, take the device out of your mouth and look at the display.

It shows your breathing frequency and depth over the last 3 breathing cycles. At rest, one

achieves about 15-20 breathing cycles per minute. Next, start breathing a little faster and

deeper than before, so that your breathing frequency reaches approx. 25. Each time, inhale

and exhale deeply enough to fill your lungs and then exhale completely again.

Now continuously increase the training duration over a period of 1-2 weeks, with the aim of

being able to train for approx. 10-15 minutes without a break.

Depending on your fitness level and individual progress, we recommend that you build up to

this level gradually in smaller steps.

Example:

5 x 3 minutes (with a break of approx. 30 seconds between intervals).

If this goes well, gradually build up your training until you can breathe for 10-15 minutes at a

time.

1. Goal To lay the foundation for solid respiratory muscle endurance

2. Goal To adopt a good breathing technique

Frequency 3-5 training sessions a week

Exercises for consolidating your breathing technique for free mode and endurance training

Conscious abdominal breathing

Brace your hands under your ribs on the sides of your flanks.

Inhale without the Idiag P100 so that your hands are pushed

outwards as far as possible (standing or sitting). Ensure that

your shoulders remain loose. You can simplify the exercise by

leaning your shoulder girdle against a wall. Now apply this

breathing technique using the Idiag P100.

Conscious chest breathing

Place an elastic band (e.g. Theraband) or even a cord around your chest and hold both ends

with one hand in the middle of your sternum. Hold the Idiag P100 in your other hand. Now try

to inhale such that your chest expands as much as possible in all directions and the elastic

band or cord tightens as much as possible. Ensure that your shoulders remain loose.

Combine these two breathing movements to create an optimal breathing technique. The opti-

mal inhalation breath is initiated by the diaphragm and shortly thereafter the rib cage begins

to participate.

Endurance training

The endurance mode corresponds to free mode in terms of training, but in endurance mode

you receive a target and feedback in terms of your desired breathing frequency and depth.

Endurance training can therefore be considered either as a form of follow-up training to free

mode or as an alternative to it.

Assessment and adjustment of the parameters

When you start a workout in endurance mode for the first time, you will be prompted to take

an assessment. Based on the results of this test, breathing frequency and breathing depth

are determined for you to continue training. If you know your approximate training values

from training in free mode, you can also skip the tests and then enter your parameters manu-

ally in the settings menu.

The assessment for endurance training takes place in 2 stages:

1. 12 seconds maximum breathing: You will be prompted to breathe simultaneously as deeply as possible

and as fast as possible for 12 seconds. Based on this result, your breathing frequency is determined for

subsequent training.

2. Breathing depth test: You will be prompted to inhale fully once and then exhale through the device at

maximum volume. Your maximum breathing depth is measured during exhalation. For endurance trai-

ning, the device sets the breathing depth to 60% of your maximum.

You will only be prompted to do the assessment during your first training session. If you

would like to repeat the test, you can select it from the settings menu.

Both the training parameters that are set on the basis of these tests (breathing frequency

and depth) and the duration of training can be adjusted in the settings menu before the trai-

ning session. The pre-set duration for an endurance training session is 15 minutes.

Controlling the intensity

The aim should be to train for 15-20 minutes per endurance training session.

Such a training session should always be intense and should fatigue you in order to set a trai-

ning stimulus. This is the only way to make progress.

We recommend to complete 3-5 training sessions per week.

We recommend increasing the intensity for more strenuous endurance training as follows:

1. Increase the training duration

2. Increase breathing frequency

3. Increase breathing depth

1. Goal To understand and implement feedback from the device.

2. Goal To continuously adjust the training parameters so that training always remains

intense.

Frequency 3-5 training sessions, each of 15-20 minutes, a week.

Tips on training

Always pay attention to breathing frequency first. As soon as you can maintain this at a good

level, focus on breathing depth.

If you want to change the breathing frequency during training, you can do so by pressing the

+ and - buttons on the device. Pressing the respective button once changes the frequency by

one breath per minute.

If the breathing depth feedback is always orange, try breathing deeper. If the colour still does

not change, you should reduce the breathing depth in the settings menu. If the breathing

depth feedback is always blue, increase the breathing depth in the settings menu (you are

breathing deeper than prescribed).

Training can be continued with both permanent orange and permanent blue feedback. The

evaluation after the training session will then show what you have achieved in reality.

The feedback from the device always refers to the measured values over the last 3 breathing

cycles. This means that adjustments in your breathing always appear on the device with some

delay.

Vary your posture during the training sessions. Prop yourself on your elbows, stand up, walk

around – this way you will directly feel the different stresses caused by the change in post-

ure.

Strength training

You can start strength training at the same time as endurance training. We recommend that

you perform strength training before endurance training if you want to do both types of trai-

ning during the same training session.

You do not need the breathing bag for strength training, because regulation of your breathing

air is not necessary in this mode. However, you can leave the bag attached to the device du-

ring strength training. This prevents moisture from dripping out of the air guide.

In strength mode you have the option of training inspiration, expiration or both. Initially, we

recommend that you train inspiration and expiration separately and always train both, i.e. in-

spiration and expiration consecutively, during one training session.

Assessment and adjustment of the parameters

Before the first strength training session, an assessment must be carried out to determine

your basic individual training settings.

During the assessment for inspiration and expiration strength training, the maximum pressu-

res you can achieve in the device by inhaling and exhaling are measured. The maximum pres-

sure that can be achieved by expiration is often higher than the pressure that can be achie-

ved by inspiration. This is also why two tests must be performed.

On the basis of these results, resistance thresholds are set for strength training, which you

must then overcome in order to successfully complete a repetition during strength training.

This threshold is set to a default value of 50% of the maximum pressure determined during

the assessment.

You will only be prompted to do the assessment during your first training session. If you

would like to repeat the test, you can select it from the settings menu.

Both the threshold values set on the basis of this test and the number of breaths for training

can be adjusted in the settings menu before commencing training. The pre-set number of bre-

aths is 10.

Controlling the intensity

Strength training should be intensive and should fatigue you. For this reason it is important

to set and continuously adjust the training parameters accordingly.

Initially, we recommend that you perform strength training with 10 breaths against the resis-

tance of 50% of the maximum pressure determined during the assessment.

You will probably find this rather easy and not very strenuous. So you can soon increase the

intensity.

We recommend increasing the intensity for more strenuous strength training as follows:

1. Increase the number of breaths up to approx. 30

2. Train 2 x daily

3. Increase the threshold

1. Goal To understand and implement feedback from the device.

2. Goal To continuously adjust the training parameters so that training always remains intense.

Frequency 3-5 training sessions a week

Tips on training

If you want to change the threshold value during training, you can do this by pressing the „+“ and „-“ but-

tons on the device. Pressing the respective button once changes the threshold value by 5%.

In rare instances training using the Idiag P100 may cause dizziness, shortness of breath, headaches, nausea or vestibular disorders. If negative symptoms occur, training with the Idiag P100 must be

stopped immediately. The user assumes full responsibility for his training. Idiag accepts no liability whatsoever for any consequences arising from training using the Idiag P100.
