IDK PDU-1209 User manual

Power Distribution Unit for IP-NINJAR
PDU-1209
User’s Guide Ver. 1.0.0
Thank you for choosing this IDK product.
To ensure the best performance of this product, please read this User’s Guide fully and carefully
before using it and keep this manual beside this product.
IDK Corporation

PDU-1209 User’s Guide
2
Trademarks
Blu-ray Disc and Blu-ray are trademarks of Blu-ray Disc Association.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing, LLC in the United States and other countries.
All other company and product names mentioned in this manual are either registered trademarks or
trademarks of their respective owners. In this manual, the “®” or “™” marks may not be specified.

PDU-1209 User’s Guide
3
Before reading this manual
● All rights reserved.
● Some of the contents in this User’s Guide such as product appearance in diagrams, menu operations,
communication commands, and so on may differ depending on the version of the product.
● This User’s Guide is subject to change without notice. You can download the latest version from IDK’s
website at: http://www.idkav.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case the user will be required to correct the interference
at his own expense.
Note: This equipment was tested with shielded cables on the peripheral devices. Shielded cables must be
used with the equipment to ensure compliance with FCC emissions limits.
CE MARKING
This equipment complies with the essential requirements of the relevant European health, safety and
environmental protection legislation.
WEEE MARKING
Waste Electrical and Electronic Equipment (WEEE), Directive 2002/96/EC
(This directive is only valid in the EU.)
This equipment complies with the WEEE Directive (2002/96/EC) marking requirement.
The left marking indicates that you must not discard this electrical/electronic equipment in
domestic household waste.

PDU-1209 User’s Guide
4
Safety Instructions
Read and understand all safety and operating instructions before using this product. Follow all instructions
and cautions as detailed in this document.
Enforcement Symbol
Description
Indicates the presence of a hazard that may result in death or serious
personal injury if the warning is ignored or the equipment is handled
incorrectly.
Indicates the presence of a hazard that may cause minor personal
injury or property damage if the caution is ignored or the equipment is
handled incorrectly.
Symbol
Description
Example
Caution
This symbol is indicated to alert the user. (Warning and caution)
Electrical
Hazard
Prohibition
This symbol is intended to prohibit the user from actions.
Do not
disassemble
Instruction
This symbol is intended to instruct the user.
Unplug
Caution
Warning

PDU-1209 User’s Guide
5
Prohibition
Do not place the product in any unstable place.
Install the product to a horizontal and stable place. Otherwise, it may fall/turn over and lead to injury.
Do not place the product in any environment with vibration.
Otherwise, it may move/fall and lead to injury.
Keep out any foreign objects.
In order to avoid fire or electric shock, do not allow foreign objects, such as metal and paper, to enter the product
from the vent holes.
For power cable/ plug:
Do not scratch, heat, or modify, including extending them.
Do not pull, put heavy stuff on them, or pinch them.
Do not bend, twist, or tie them together forcefully.
If they are used in those states continuously, it may cause fire or electric shock. If power cables/plugs become
damaged, contact IDK.
Do not
disassemble
Do not repair, modify or disassemble.
Since the product includes high-voltage part, those actions may cause fire or electric shock. For internal inspections
or repairs, contact IDK.
Do not
touch
In the event of lighting or thunder, do not touch the main unit and cables such as
power cable and LAN cable.
Contact may cause electric shock
Instruction
For installation:
The product is intended to be installed by skilled technicians. For installation, please contact a system integrator or
IDK. Otherwise, it may cause fire, electric shock, injury, or property damage.
Set the power plug in a convenient place to unplug easily.
You can easily unplug in case of any extraordinary failure or abnormal situation, and it also helps for unplugging
when you do not use it for a long period.
Plug the power plug into appropriate outlet completely.
If the plug is plugged incompletely, it may overheat which causes electrical shock or fire. Do not use damaged plug
or loosened outlet.
Clean the power plug regularly.
If the plug is covered in dust, it may cause fire due to reduced insulating power.
Unplug
Unplug immediately if the product smokes, makes unusual noise, or smells.
If you continue to use the product under those situations, it may cause electric shock or fire. After confirming that the
product stops smoking, contact IDK.
Unplug immediately if you drop the product or if the cabinet is damaged.
If you continue to use the product under those situations, it may cause electrical shock or fire. For maintenance and
repair, contact IDK.
Unplug immediately if water or other objects are directed inside.
If you continue to use it under those situations, it may cause electrical shock or fire. For maintenance and repair,
contact IDK.
For connection
Instruction
Differences in ground potential among the product and external devices may cause electric shock or damage of the
devices. When using cables to connect devices, including connection of long-distance transmission, unplug the
power cables of all related devices.
After connecting signal/control cables of each device, plug in the power cables of each device.
Warning

PDU-1209 User’s Guide
6
For installation
For rack mount devices:
Instruction
Mount the product to the rack meeting EIA standards, and maintain spaces above and
below for air cooling. For your safety, attach an L-shape bracket in addition to the mount
bracket kit for the front panel to balance the weight.
For devices with rubber feet:
Instruction
Never insert only the screws into the holes after removing the rubber feet. It may lead to
damage when the screws contact electrical circuit or parts inside of the product.
To put the rubber feet back on, use only supplied rubber feet and screws.
Electrical
Hazard
Double Pole / Neutral Fusing
Hot surfaces
Caution
Do not touch the product’s hot surface.
If the product is installed without enough space, it may cause failures of other products operation.
If you touch product’s hot surface, it may cause burn.
Prohibition
Do not place the product in any place where it will be subjected to high
temperatures.
If the product is subjected to direct sunlight or high temperatures, it may cause fire.
Do not place the product in humid, oil smoke, or dusty place.
If the product is placed near humidifiers or dusty area, it may cause fire or electric shock.
Do not block the vent holes.
If ventilation slots are blocked, it may cause fire or failure due to internal heat.
Do not put heavy items on the product.
It may fall/turn over and lead to injury.
Do not exceed ratings of outlet and wiring devices.
If several plugs are put in an outlet, it may cause fire and electric shock.
Use only the provided AC adapter and power cable.
Do not use the provided AC adapter and power cable with other products.
If non-compliant adapter or power cables is used, it may cause fire or electrical shock. Use the supplied AC
power connection cable.
No wet hands
Do not plug or unplug with wet hands.
It may cause electrical shock.
Instruction
Use and store the product within the specified temperature/humidity range.
If the product is used outside the range continuously, it may cause fire or electric shock.
Turn off devices when they are connected to another device.
It may cause fire or electric shock.
Unplug
Unplug the power plug if you do not use the product for a long period.
In case of defect, it may cause fire.
Unplug the power plug before cleaning.
It may cause electric shock.
Caution

PDU-1209 User’s Guide
7
Altitude:
Instruction
Do not place the product at elevations of 2,000 meters (6562 feet) or higher above sea
level. Failure to do so may shorten the life of the internal parts and result in malfunctions.
Fuse (For products having a fuse holder)
Products with a fuse holder, the fuse can be replaced with a new one. Follow the detailed procedure indicated
in the manual to replace the fuse. In case the fuse blows again even after the blown fuse is replaced, the
product may have problems.

PDU-1209 User’s Guide
8
Table of Contents
1Included Items...................................................................................................................................... 9
2Product Outline....................................................................................................................................10
3Features..............................................................................................................................................11
4Front and Rear Panels.........................................................................................................................12
5System configuration example.............................................................................................................13
6Precautions and preparations..............................................................................................................14
6.1 Attaching Rubber feet.....................................................................................................................14
6.2 Installation......................................................................................................................................14
6.3 Cabling...........................................................................................................................................15
6.3.1 Connecting to compatible models............................................................................................16
6.3.2 Connecting alarm....................................................................................................................17
7Alarm conditions..................................................................................................................................18
7.1 Overcurrent protection....................................................................................................................19
7.2 Fan rotating speed slows down.......................................................................................................20
8Product Specification...........................................................................................................................21
9Troubleshooting...................................................................................................................................22

PDU-1209 User’s Guide
9
1 Included Items
Ensure that all items below are included in the package.
If any items are missing or damaged, please contact IDK.
PDU-1209
Power cord (5.9 ft./1.8 m) (1)
DIN plug DC cable with a lock
(4.9 ft./1.5 m) (9)
2-pin terminal block (1)
Rubber feet (4)

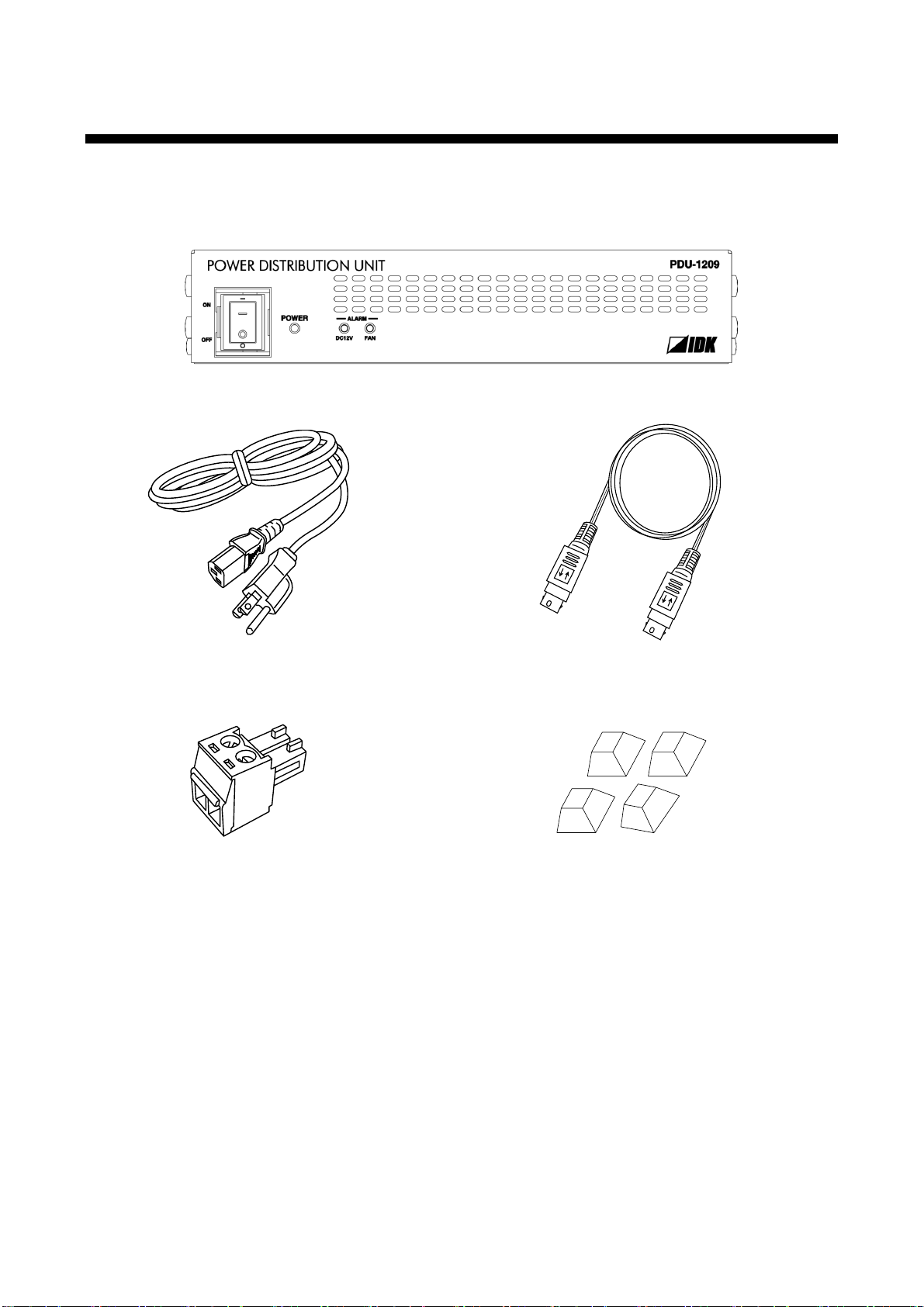

[Fig. 1.1] Included items
Note:
Follow the instructions below to prevent fire and electrical shock.
・Do not use any other cables than the supplied DIN-plug DC cable.
・Do not use the supplied DC cable for purpose other than power supply to the following products:
NJR-01UHD, NJR-04HD, NJR-CTB, MSD-402, and HDC-TH200

PDU-1209 User’s Guide
10
2 Product Outline
The PDU-1209 is a power distribution unit that provides power for up to 9 compatible model devices
(NJR-01UHD, NJR-04HD, and NJR-CTB, MSD-402, and HDC-TH200).
The PDU-1209 has overcurrent protection. If the PDU-1209 detects a power failure or a fan failure, the
appropriate front panel LED is illuminated and the PDU-1209 outputs a warning alarm.
：
：
：Up to 9 devices
PDU-1209 provides power up to 9
channels
(DC 12 V 3.3 A) NJR-T01UHD
NJR-T01UHD
PDU-1209

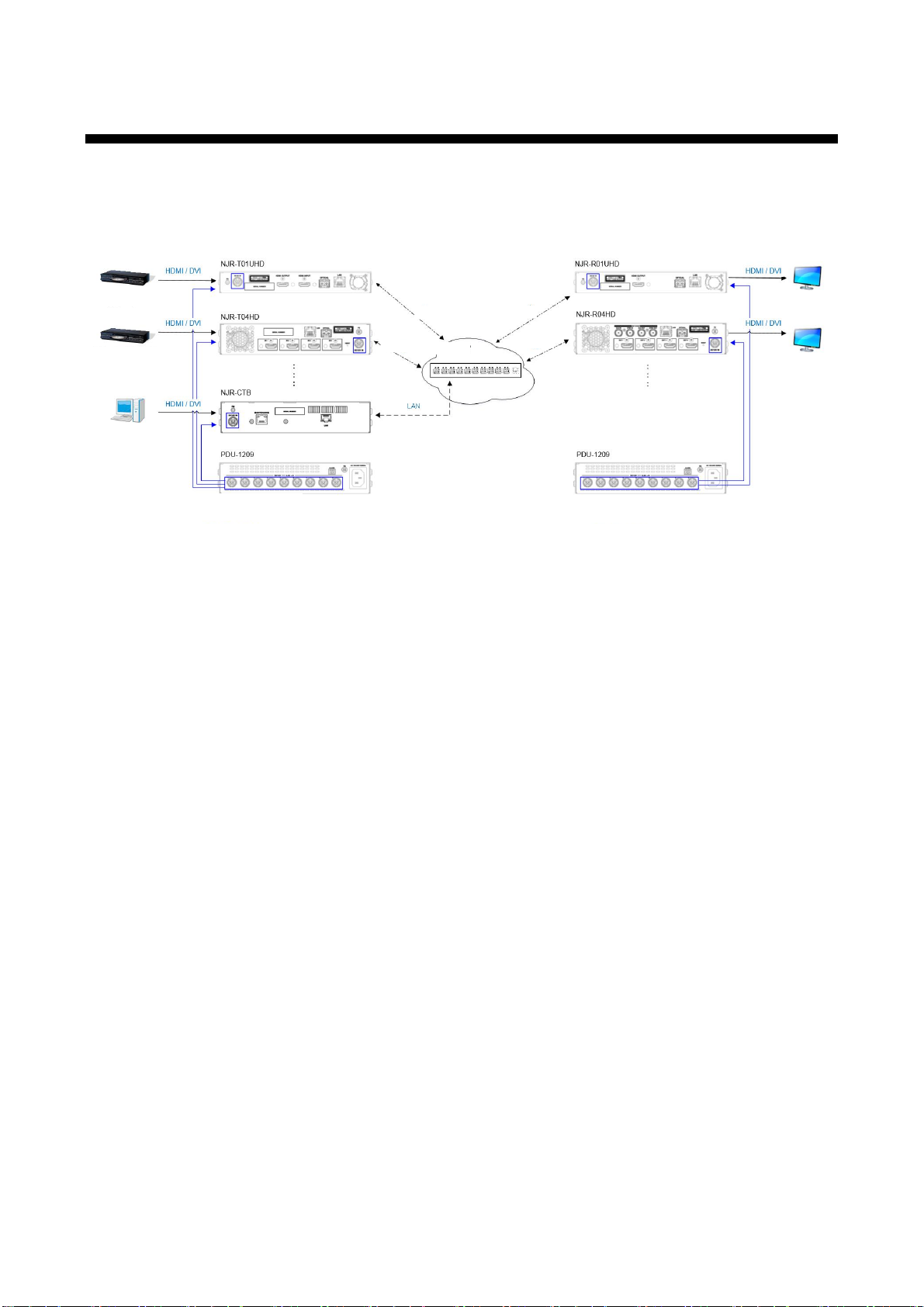

[Fig. 2.1] Typical application diagram
[Table 2.1] Compatible models
Series
Model number
IP-NINJAR products
NJR-01UHD, NJR-04HD, NJR-CTB
Other IDK products
MSD-402, HDC-TH200
Note:
Do not use the PDU-1209 for any purpose other than for power distribution to the products listed above.

PDU-1209 User’s Guide
11
3 Features
■Power supply
・Power distribution for IP-NINJAR products
・Up to 9 independent 12 VDC and 3.3 A simultaneous outputs
・Overcurrent protection
■ Others
・Alarm (in case of excessive DC output current or cooling fan malfunction)
・DC cable with locking connector

PDU-1209 User’s Guide
12
4 Front and Rear Panels
①③④
②⑦
⑥
⑤

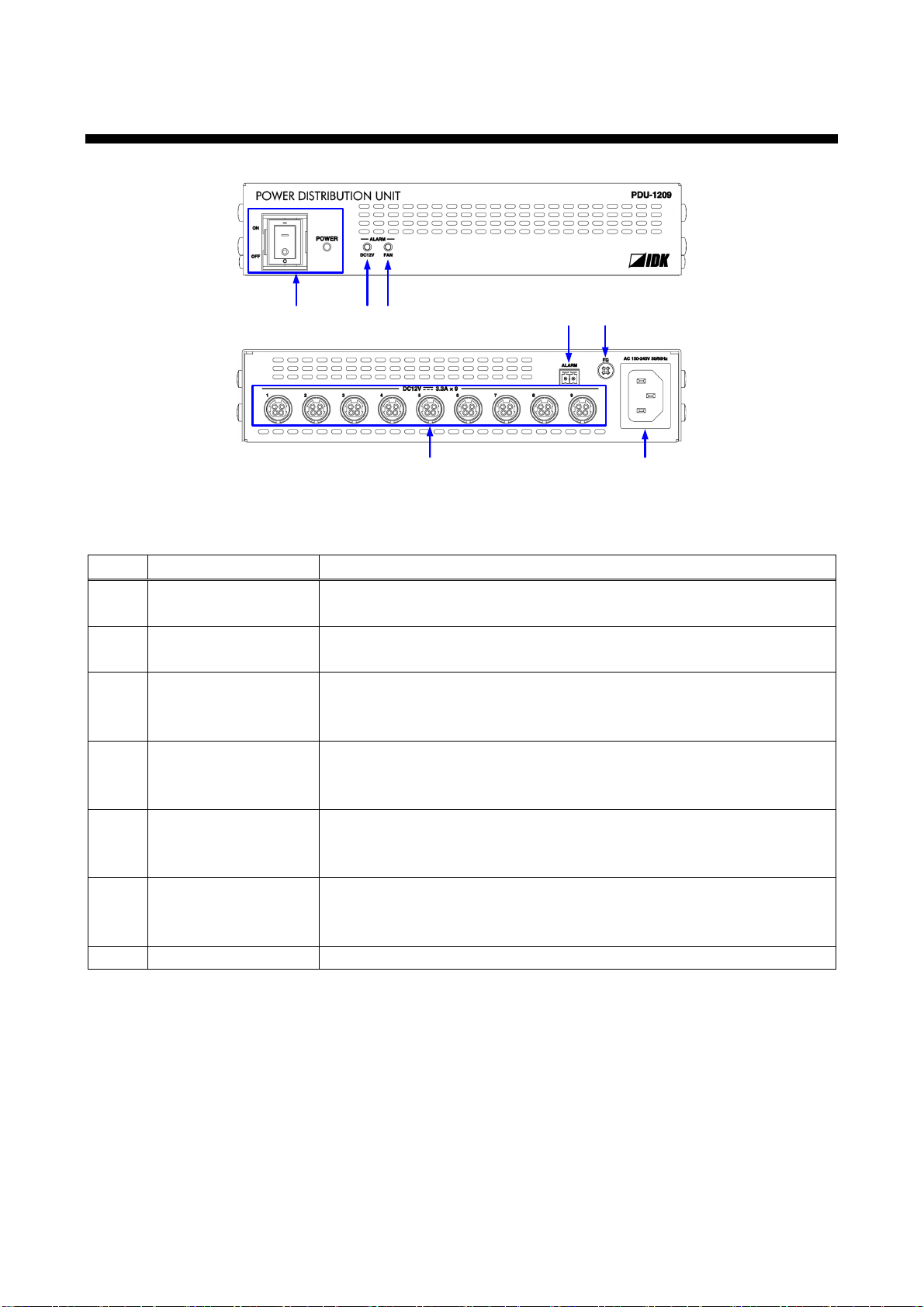

[Fig. 4.1] Panel drawing (Upper: Front panel, Lower: Rear panel)
[Table 4.1] Part names and descriptions
Number
Name
Description
①
POWER switch
Powers the PDU-1209 ON/OFF.
The POWER LED (green) lights when the PDU-1209 is powered on.
②
DC output connectors
Connects to target devices using DIN plug DC cables. When ①is
turned ON, power is supplied to the target devices.
③
ALARM (DC12V) LED
Illuminates red if an overcurrent condition causes one or more output
connectors (②) to be disabled.
【See: 7 Alarm conditions】
④
ALARM (FAN) LED
Illuminates red if the cooling fan fails to operate correctly
.
【See: 7 Alarm conditions】
⑤
ALARM connector
Detects abnormalities in the PDU-1209 power and its cooling fan using
the supplied 2-pin terminal block.
【See: 6.3.2 Connecting alarm】
⑥
Frame ground
Ground terminal ⑥can be used to provide an electrical bond between
the PDU-1209 and surrounding equipment ground potential.
An M4 screw is used.
⑦
AC power connector
For the supplied power cable

PDU-1209 User’s Guide
13
5 System configuration example
System configuration example: The PDU-1209 is connected to IP-NINJAR series products which are
connected to source and sink devices.
Blu-ray Player
Blu-ray Player
PC for control
Monitor
4K Monitor
IP network
10 GbE switch
Fiber optic
Fiber optic
Fiber optic
Fiber optic
PDU-1209 can provides
power for 9 channels
(DC 12 V 3.3A)
PDU-1209 can provides
power for 9 channels
(DC 12 V 3.3A)
[Fig. 5.1] Configuration example

PDU-1209 User’s Guide
14
6 Precautions and preparations
Before using the PDU-1209, follow the precautions and instructions below.
6.1 Attaching Rubber feet
First, clean the bottom surface of the PDU-1209 as needed, and then peal the release papers from the rubber
feet and place them in each of the four corners.
6.2 Installation
Follow the instructions below when installing the PDU-1209.
・Do not place the PDU-1209 on another device directly. The temperature of its bottom surface is elevated
after it is powered on.
・Do not block vent holes. To provide adequate ventilation, maintain sufficient clearances around the
PDU-1209 (30 mm/1.18 inches or more).
・When placing the PDU-1209 in an EIA rack-mount unit, keep 1U or more vertical clearance above and
below the unit.
・Prepareventilating equipment to keep the ambient temperature at 40 degrees C/104 degrees F or less. If
inadequately vented, the life of parts may be shortened and operation may be affected.
・When you do not use an EIA rack-mount unit , maintain adequate clearances (30 mm/1.18 inches or
more) as shown below.
30 mm/1.18"
or more 30 mm/1.18"
or more
30 mm/1.18" or more
[Figure 6.1] Minimum required clearances (when an EIA rack-mount unit is not used)

PDU-1209 User’s Guide
15
6.3 Cabling
Follow the precautions below when connecting the PDU-1209 to target devices.
・Read the user’s guides of connected devices carefully.
・When connecting a cable to the PDU-1209 or a compatible product, dissipate static electricity by touching
grounded metal such as racks before handling single cables. Failure to observe this precaution may result
in ESD (electrostatic discharge) damage.
・Turn off all devices.
・Be sure to fully seat all plugs and connections and dress cables to reduce stress on connectors.
Notes:
If you do not follow the precautions above, the PDU-1209 may malfunction or may be damaged.
・Do not connect the AC adapter that is supplied with the compatible models (NJR-01UHD, NJR-04HD, and
NJR-CTB, MSD-402, and HDC-TH200) to a DC output connector of the PDU-1209.
・Do not connect the PDU-1209’s DC outputs to one another using the supplied DIN plug DC cable.

PDU-1209 User’s Guide
16
6.3.1 Connecting to compatible models
Use a supplied DIN plug DC cable to connect the PDU-1209 to a compatible product.
Insert each DC plug into an output connector until it clicks. To remove a plug from the output connector, grasp
the plug as illustrated below.
Inserting Removing
Grasp this part when
removing the DC plug.
DIN plug DC cable
PDU-1209
NJR-T01UHD

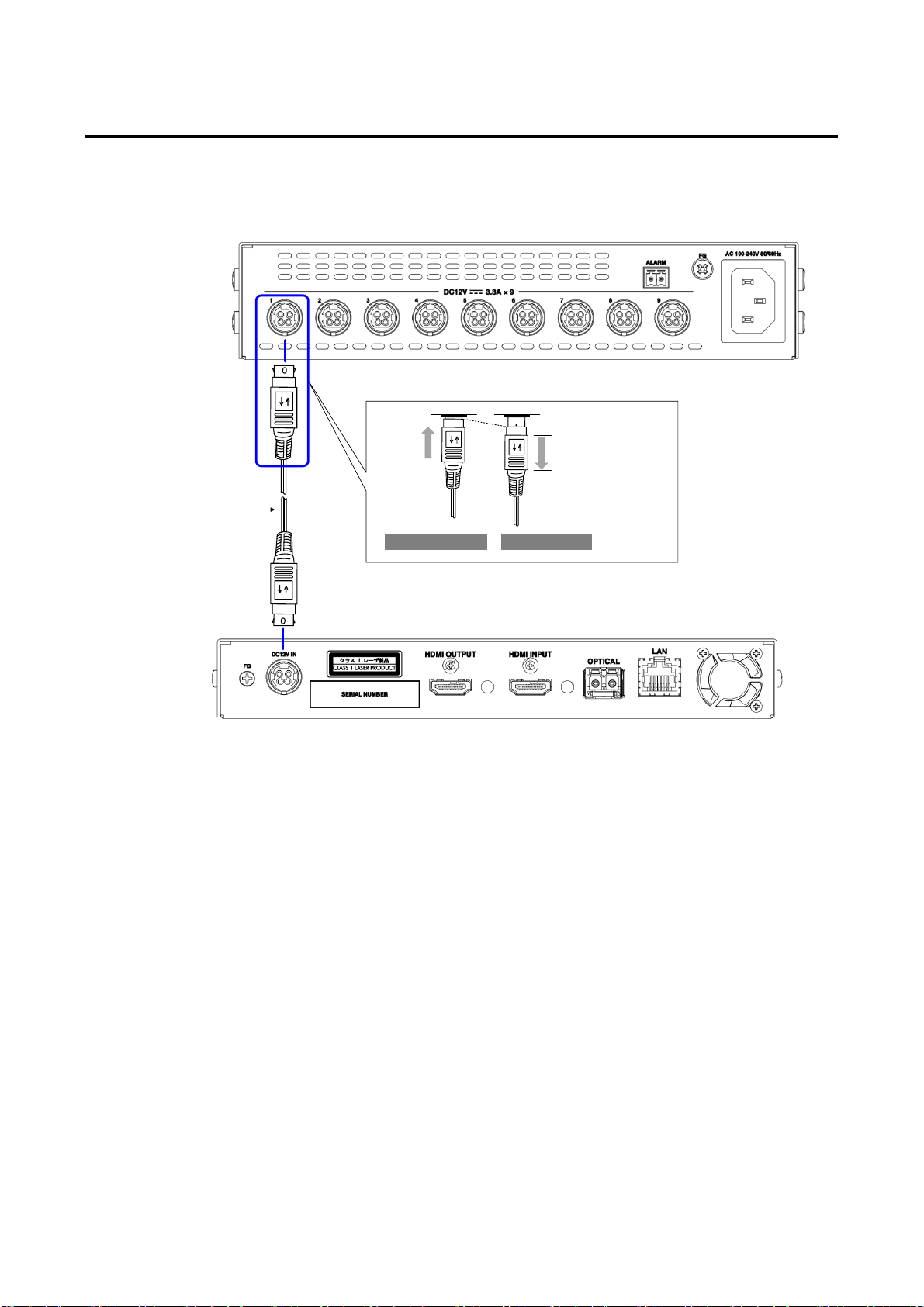

[Fig. 6.2] Connecting PDU-1209 to NJR-T01UHD

PDU-1209 User’s Guide
17
6.3.2 Connecting alarm
In order to activate the alarm function which warns you of a power failure and a decrease in cooling fan speed,
attach the supplied 2-pin terminal block to a cable and connect to the ALARM connector.
AWG 28 to AWG 16 conductor gauge is recommended. The maximum wire strip length is 7 mm/0.28 inch.
LoosenTighten
7 mm/0.28 inch MAX.

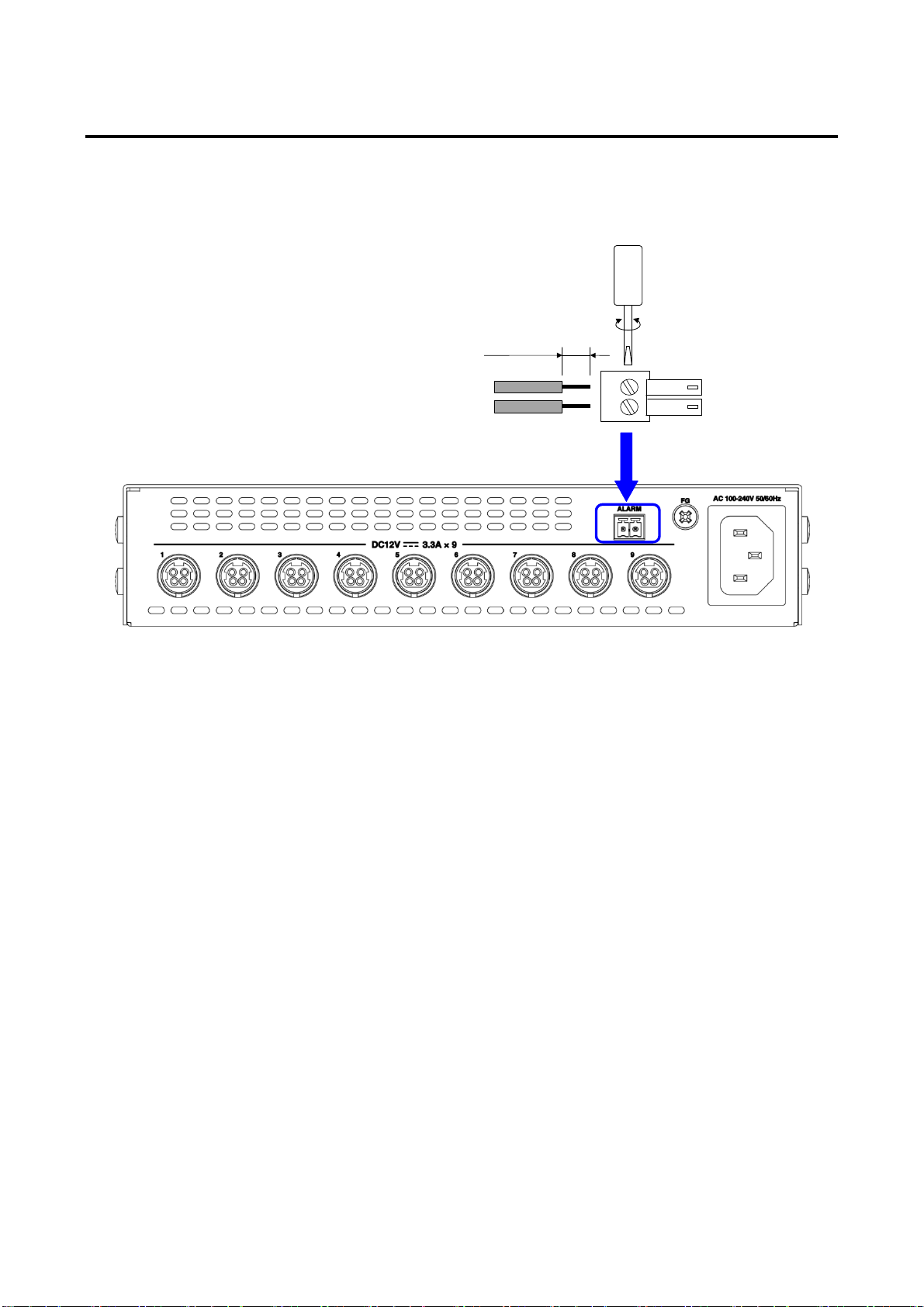

[Fig. 6.3] Connecting 2-pin terminal block

PDU-1209 User’s Guide
18
7 Alarm conditions
The PDU-1209 outputs an alarm when one of the following problems occurs.
While the ALARM (DC12V) LED is illuminated, the PDU-1209 automatically interrupts power to the particular
DC output connectors with an overcurrent condition. Power is automatically restored, once the overcurrent
fault has been corrected.
[Table 7.1] Outputting alarm
ALARM LED
Power supply
Problem
Stop supplying
Malfunction and overcurrent
【See: 7.1 Overcurrent protection】
Continues to
supply
Failure in the fan or rotating speed slows down due to
age-related deterioration
【See: 7.2 Fan rotating speed slows down】
Note:
In case an alarm is output, the PDU-1209 may be damaged. Power off the PDU-1209 and stop using it.
Tip:
ALARM (DC12V) LED lights if even one DC output connector has an overcurrent condition.
Contact
Rated voltage: 24 V
Rated current: 300 mA
Outputting alarm
LED lights: A problem occurs
LED does not light: No problems occur

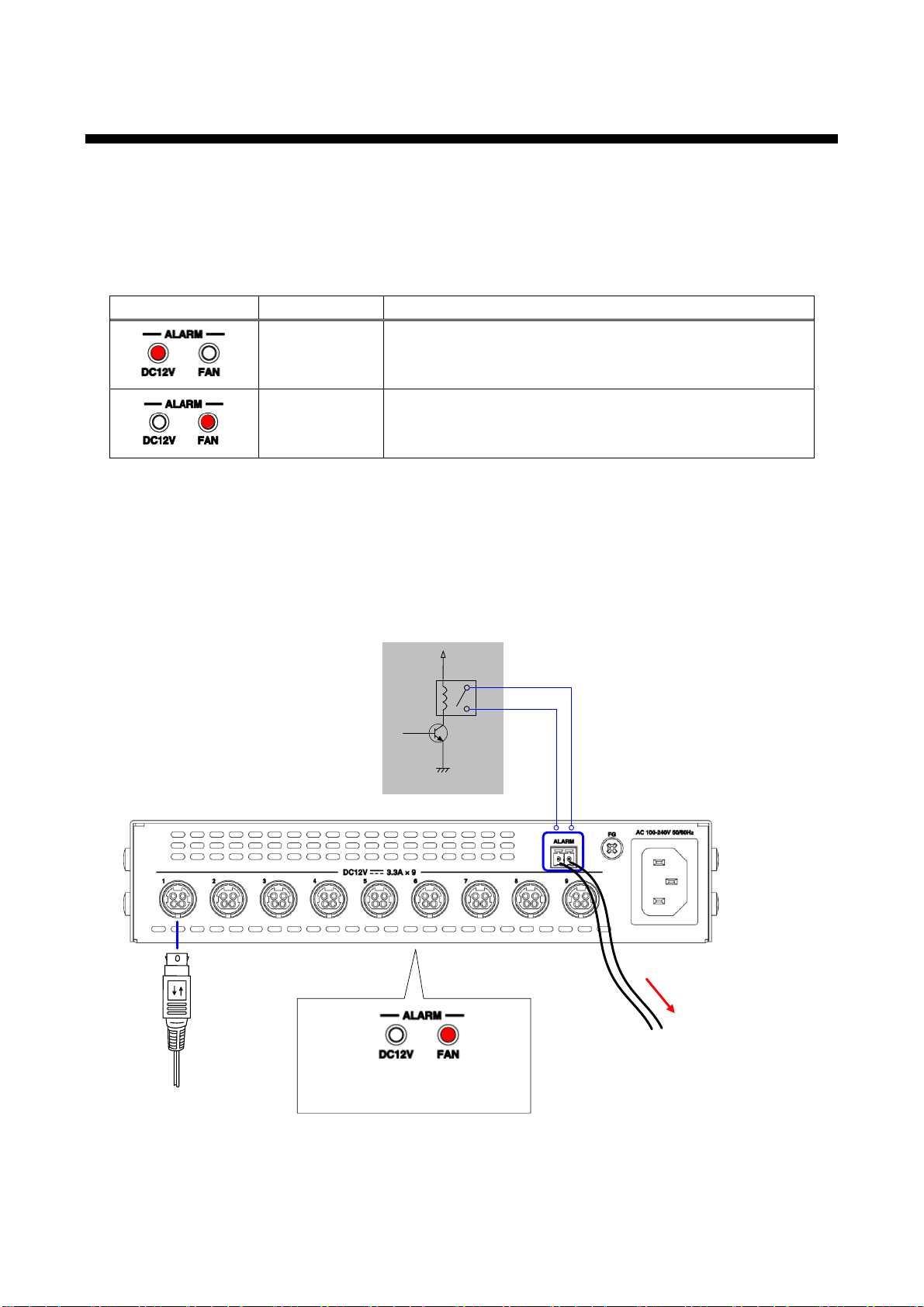

[Figure 7.1] Outputting alarm

PDU-1209 User’s Guide
19
7.1 Overcurrent protection
Each DC output connector can source up to a maximum rated current of 3.3 A.
If a short circuit occurs due to a damaged DIN plug DC cable or if a DC output connector is connected to a
device other than compatible products, 3.4 A or larger current may be output.
Once an overcurrent condition is detected, the PDU-1209 stops supplying power from the affected DC output
connecter temporarily. In order to notify you of the problem, the PDU-1209 outputs an alarm and it lights the
ALARM (DC12V) LED. When the overcurrent condition is corrected, the PDU-1209 re-establishes power to
the DC output connector automatically.
Stops power supply
Rated current: 3.3 A
3.3 A or less Over 3.3 A3.3 A or less
[Fig. 7.2] Overcurrent protection

PDU-1209 User’s Guide
20
7.2 Fan rotating speed slows down
If the fan’s rotational speed decreases due to age-related deterioration or other causes, the PDU-1209 may
not operate correctly. If the fan’s rotational speed is insufficient to maintain the correct internal temperature,
the PDU-1209 outputs an alarm and lights the ALARM (FAN) LED.
