IEI Technology NOVA-9152 User manual

1
5.25” SBC, Intel® Pentium® M/ Celeron® M CPU with VGA,
LVDSx2, Dual PCIe GbE, USB2.0, SATA and audio
NOVA-9152/9102
Quick Installation Guide
Version 1.0
Apr. 22, 2008
Package Contents
NOVA-9152/NOVA-9102 package includes the following items:
 1 x NOVA-9152/NOVA-9102 Single Board Computer
 1 x Mini Jumper Pack
 1 x ATA66 Flat Cable
 2 x SATA Cable
 1 x SATA Power Cable
 1 x VGA Cable
 1 x KB/MS Y Cable
 1 x 4 ports RS-232 Adapter Cable
 1 x USB Cable
 1 x Audio Cable
 1 x Utility CD
 1 x QIG (Quick Installation Guide)
©2006 Copyright by IEI Technology corp.
All rights reserved.

2
Specifications

CPU:
Socket 479 Intel® Pentium® M/ Celeron® M processor with a
533/400 MHz FSB
On board Intel® Celeron® M 1GHz zero cache or 1GHz 512KB
cache processor
 System Chipset:
Intel® 915GME + ICH6-M
Intel® 910GMLE + ICH-6M
 BIOS
AMI Flash BIOS
 System Memory
Two x 200-pin DDRII SDRAM SO-DIMM 400/533 MHz
(NOVA-9152 system max. 2GB)
Two x 200-pin DDRII SDRAM SO-DIMM 400 MHz (NOVA-9102
system max. 2GB)

Ethernet: Dual Realtek RTL8111CP GbE chipsets

I/O Interface
4 x RS-232
2 x RS-232/422/485
6 x USB 2.0
2 x SATA
1 x IDE
1 x LPT
1 x KB/MS (by 6-pin header)

Expansion
1xPCI
1 x PCIe Mini Card Slot
1 x PC/104+ (ISA+PCI Bus)

Digital I/O: 24-bit digital I/O, 12-bit input/12-bit output

IrDA: by super I/O

Super I/O: Winbond W83627EHG

Display Interface:

3
VGA output Integrated in Intel® 915GME/910GMLE
1st Dual–channel 18/24-bit LVDS by Intel® 9152GME/910GMLE
(NOVA-9152/9102 series)
2nt Dual-channel 18/24-bit LVDS by Chrontel CH7308 via SDVO
bus (NOVA-9152LVDS2 only)

Optional External Audio kits
5.1 channel audio kit with Realtek ALC655 AC’97 codec

SSD: CF type I/II

WTD: Software programmable 1-255 sec. system reset
 Power Supply: AT/ATX Power

Power Consumption:
[email protected], 12[email protected]
(Intel® Pentium® M 2.0GHz CPU with 1GB DDR2 400MHz)

Temperature: 0 ~ 60°C (32 ~ 140°F)
 Humidity: Operating 5% ~ 95% non-condensing
 Dimension: 203mm x 146mm

Weight: GW: 1100g / NW:400g
Ordering Information
NOVA-9152-R10
5.25” SBC, Intel® Pentium® M/ Celeron® M CPU with VGA/LVDS, Dual
PCIe GbE, USB2.0, SATA and Audio
NOVA-9152LVDS2-R10
5.25” SBC, Intel® Pentium® M/ Celeron® M CPU with VGA/LVDSx2, Dual
PCIe GbE, USB2.0, SATA and Audio
NOVA-9102-1GZ-R10
5.25” SBC, Intel® Celeron® M 1GHz zero cache CPU with VGA/LVDS, Dual
PCIe GbE, USB2.0, SATA and Audio
NOVA-9102-1G512-R10
5.25” SBC, Intel® Celeron® M 1GHz 512KB cache CPU with VGA/LVDS,
Dual PCIe GbE, USB2.0, SATA and Audio
IO-KIT-4COM-R10: 4 COM Ports Adapter Board
CF-479B-RS: CPU Cooler
3200-000017-RS: LPT cable
32100-052100-RS: ATX Power cable
32200-026500-RS: RS-232/422/485 cable
AC-KIT08R-R10: 5.1 channel audio kit with Realtek ALC655 AC’97 codec

4

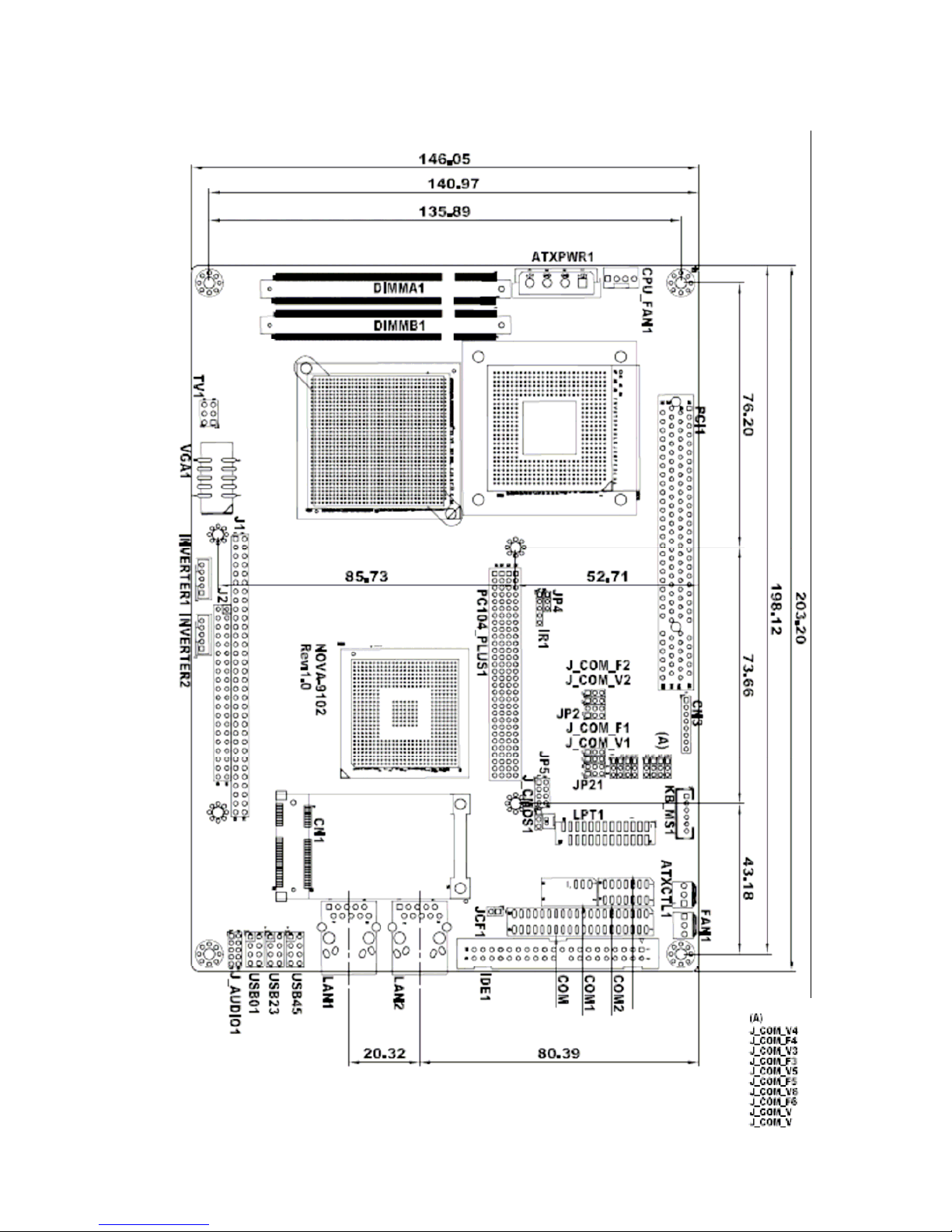

Jumpers setting and Connectors
J_CMOS1: Clear CMOS Setup
J_CMOS1 DESCRIPTION
1-2
(Default)* Keep CMOS Setup (Normal Operation)
Short 2-3 Clear CMOS Setup
J_VLVDS1: Set LVDS Voltage
J_VLVDS1 DESCRIPTION
1-2 +3.3V LVDS
2-3 +5V LVDS
J_FREQ1:CPU Frequency Selection
J_FREQ1 DESCRIPTION
1-2 400MHz
2-3 533MHz (socket only)
JP2: configure COM2 Mode
JP1 DESCRIPTION
Short 1-2
(Default) RS - 232
Short 3-4 RS - 422
Short 5-6 RS - 485
JP1: configure COM1 Mode
JP2 DESCRIPTION
Short 1-2
(Default) RS - 232
Short 3-4 RS - 422
Short 5-6 RS - 485
JP4: PC104+ VIO Voltage select
JP4 DESCRIPTION
Short 1-2 +5V
Short 2-3 +3.3V
J_VLVDS2: LVDS Voltage Selection
J_VLVDS2 DESCRIPTION
1-2 +3.3V LVDS
2-3 +5V LVDS
J_COM_F1 and J_COM_F2
1 – 2 Pin8 and pin18 of COM as voltage
2 – 3 Pin8 and pin18 of COM as signal “RING”
J_COM_V1 and J_COM_V2
1 – 2 +5V
2 – 3 +12V
J_COM_F3 and J_COM_F4
1 – 2 Pin8 and pin18 of COM as voltage
2 – 3 Pin8 and pin18 of COM as signal “RING”
JCF1: configure CF Card type
JCF1 DESCRIPTION
OFF
Default Slave
Short 1-2 Master

5
J_COM_F5 and J_COM_F6
1 – 2 Pin28 and pin38 of COM as voltage
2 – 3 Pin28 and pin38 of COM as signal “RING”
J_COM_V3 and J_COM_V4
1 – 2 +5V
2 – 3 +12V
J_COM_V5 and J_COM_V6
1 – 2 +5V
2 – 3 +12V
JP5: LVDS1 Panel Resolution Selection
JP5
LVDS1 LVDS2
1-2 3-4 5-6 7-8 DESCRIPTION
OFF OFF OFF OFF LVDS1 & LVDS2 (Default)
1024 X 768 (18bit)
OFF ON OFF OFF LVDS1
1280 X 1024 (36bit)
ON OFF OFF OFF LVDS1
1024 X 768 (24bit)
ON ON OFF OFF LVDS1
1280 X 1024 (48bit)
OFF OFF OFF ON LVDS2
1280 X 1024 (36bit)
OFF OFF ON OFF LVDS2
1024 X 768 (24bit)
OFF OFF ON ON LVDS2
1280 X 1024 (48bit)
OFF ON OFF ON LVDS1 & LVDS2
1280 X 1024 (36bit)
ON OFF ON OFF LVDS1 & LVDS2
1024 X 768 (24bit)
ON ON ON ON LVDS1 & LVDS2
1280 X 1024 (48bit)

6
IR1: IrDA connector
PIN DESCRIPTION
1 VCC
2 NC
3 IR-RX
4 GND
5 IR-TX
KB_MS1: 6-pin Mini-DIN
Keyboard/Mouse Connector
PIN DESCRIPTION
1 VCC
2 Mouse Data
3 Mouse Clock
4 Keyboard Data
5 Keyboard Clock
6 GND
LAN1/LAN2: RJ45 LAN Connector
PIN DESCRIPTION PIN DESCRIPTION
1 MDIA3- 5 MDIA1+
2 MDIA3+ 6 MDIA2+
3 MDIA2- 7 MDIA0-
4 MDIA1- 8 MDIA0+
VGA1: VGA Connector
PIN DESCRIPTION PIN DESCRIPTION
1 Red 2 5V_DDCLK
3 Green 4 5V_DDCDA
5 Blue 6 GND
7 5V_HSYNC 8 GND
9 5V_VSYNC 10 VCC
A
TXCTL1:
A
TX Connector
PIN DESCRIPTION
1 GND
2 PS_ON#
3 5VSB
FAN1: system Fan Connector
PIN DESCRIPTION
1 Rotation Signal
2 +12V
3 Ground
CN3: Programming LC4064
Connector
PIN DESCRIPTION
1 VCC3
2 TDO
3 TDI
4 NC
5 NC
6 TMS
7 GND
8 TCK
CPU_FAN1: CPU Fan Connector
PIN NO. DESCRIPTION
1 Ground
2 +12V
3 CPUFANIN
4 CPUFANOUT

7
CN1: PCI-E Mini Card Connector (DVI Connector)
PIN DESCRIPTION PIN DESCRIPTION
1 PCIE_WAKE# 2 VCC3
3 N/C 4 GND
5 N/C 6 1.5V
7 CLKREQ# 8 LFRAME#
9 GND 10 LAD3
11 CLK- 12 LAD2
13 CLK+ 14 LAD1
15 GND 16 LAD0
17 PCIRST# 18 GND
19 LPC 20 VCC3
21 GND 22 PCIRST#
23 PERN2 24 3VDual
25 PERP2 26 GND
27 GND 28 1.5V
29 GND 30 SMBCLK
31 PETN2 32 SMBDATA
33 PETP2 34 GND
35 GND 36 USBD-
37 N/C 38 USBD+
39 N/C 40 GND
41 N/C 42 N/C
43 N/C 44 RF_LINK#
45 N/C 46 BLUELED#
47 N/C 48 1.5V
49 N/C 50 GND
51 N/C 52 VCC3
COM1/COM2: Serial Port Connector
PIN DESCRIPTION PIN DESCRIPTION
1 -NDCD 2 -NDSR#
3 NSIN 4 -NRTS#
5NSOUT6-NCTS#
7 -NDTR# 8 -XRI#
9GND10GND
11 C# TXD485+ 12 C# TXD485#
13 C# RXD485+ 14 C# RXD485#

8
PCI104: PCI104 Connector (120-pin PCI bus)
PIN Description PIN Description PIN Description PIN Description
A1 GND B1 SERIRQ# C1 VCC D1 AD0
A2 PIOVCC B2 AD2 C2 AD1 D2 VCC
A3 AD5 B3 GND C3 AD4 D3 AD3
A4 C_BE#0 B4 AD7 C4 GND D4 AD6
A5 GND B5 AD9 C5 AD8 D5 GND
A6 AD11 B6 PIOVCC C6 AD10 D6 GND
A7 AD14 B7 AD13 C7 GND D7 AD12
A8 VCC3 B8 C_BE#1 C8 AD15 D8 VCC3
A9 SERR# B9 GND C9 SBO- D9 PAR
A10 GND B10 PERR# C10 VCC3 D10 SDONE
A11 STOP# B11 VCC3 C11 PLOCK# D11 GND
A12 VCC3 B12 TRDY# C12 GND D12 DEVSEL#
A13 FRAME# B13 GND C13 IRDY# D13 VCC3
A14 GND B14 AD16 C14 VCC3 D14 C_BE#2
A15 AD18 B15 VCC3 C15 AD17 D15 GND
A16 AD21 B16 AD20 C16 GND D16 AD19
A17 VCC3 B17 AD23 C17 AD22 D17 VCC3
A18 IDSEL0 B18 GND C18 IDSEL1 D18 IDSEL2
A19 AD24 B19 C_BE#3 C19 PIOVCC D19 IDSEL3
A20 GND B20 AD26 C20 AD25 D20 GND
A21 AD29 B21 VCC C21 AD28 D21 AD27
A22 VCC B22 AD30 C22 GND D22 AD31
A23 PCI_REQ#0 B23 GND C23 PCI_REQ#1 D23 PIOVCC
A24 GND B24 PCI_REQ#2 C24 VCC D24 PCI_GNT#0
A25 PCI_GNT#1 B25 VIO3 C25 PCI_GNT#2 D25 GND
A26 VCC B26 PCLK0 C26 GND D26 PCLK1
A27 PCLK2 B27 VCC C27 PCLK3 D27 GND
A28 GND B28 INT_PIRQD# C28 VCC D28 PCI_RST#
A29 +12V B29 INT_PIRQA# C29 INT_PIRQB# D29 INT_PIRQC#
A30 -12V B30 NC C30 NC D30 GND
USB01/USB23/USB45: Internal USB Connector
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 2 GND
3 DATA- 4 DATA+
5 DATA+ 6 DATA-
7 GND 8 VCC

9
LPT1: Parallel Port Connector
PIN DESCRIPTION PIN DESCRIPTION
1 STROBE# 14 AUTO FORM FEED #
2 DATA0 15 ERROR#
3 DATA1 16 INITIALIZE#
4 DATA2 17 PRINTER SELECT LN#
5 DATA3 18 GND
6 DATA4 19 GND
7 DATA5 20 GND
8 DATA6 21 GND
9 DATA7 22 GND
10 ACKNOWLEDGE# 23 GND
11 BUSY 24 GND
12 PAPER EMPTY 25 GND
13 PRINTER SELECT 26 N/C
DIO1: Digital Input / Output Connector
PIN DESCRIPTION PIN DESCRIPTION
1 Ground 2 VCC
3IN04OUT0
5IN16OUT1
7IN28OUT2
9IN310OUT3
11 8IN0 12 8OUT0
13 8IN1 14 8OUT1
15 8IN2 16 8OUT2
17 8IN3 18 8OUT3
19 8IN4 20 8OUT4
21 8IN5 22 8OUT5
23 8IN6 24 8OUT6
25 8IN7 26 8OUT7
F_PANEL1: PWR & RST Buttons and Indicators panel
PIN DESCRIPTION PIN DESCRIPTION
1 PWRBTSW+ 2 VCC
PWRBTN 3GND 4 GND Power
LED
5 VCC 6 SYSRST#HDD
LED 7-HDLED 8 GND RESET

10
COM: COM3~COM6 Internal Serial Port Connector
PIN DESCRIPTION PIN DESCRIPTION
1 DATA CARRIER DETECT
(-NDCD3) 2 DATA SET READY
(-NDSR3)
3 RECEIVE DATA
(NSIN3) 4 REQUEST TO SEND
(-NRTS3)
5 TRANSMIT DATA
(NSOUT3) 6 CLEAR TO SEND (-NCTS3)
7 DATA TERMINAL READY
(-NDTR3) 8 RING INDICATOR (-XRI3)
9 GND 10 GND
11 DATA CARRIER DETECT
(-NDCD4) 12 DATA SET READY (-NDSR4)
13 RECEIVE DATA
(NSIN4) 14 REQUEST TO SEND (-NRTS4)
15 TRANSMIT DATA
(NSOUT4) 16 CLEAR TO SEND
(-NCTS4)
17 DATA TERMINAL READY
(-NDTR4) 18 RING INDICATOR (-XRI4)
19 GND 20 GND
21 DATA CARRIER DETECT
(-NDCD5) 22 DATA SET READY (-NDSR5)
23 RECEIVE DATA
(NSIN5) 24 REQUEST TO SEND (-NRTS5)
25 TRANSMIT DATA
(NSOUT5) 26 CLEAR TO SEND (-NCTS5)
27 DATA TERMINAL READY
(-NDTR5) 28 RING INDICATOR
(-XRI5)
29 GND 30 GND
31 DATA CARRIER DETECT
(-NDCD6) 32 DATA SET READY
(-NDSR6)
33 RECEIVE DATA
(NSIN6) 34 REQUEST TO SEND
(-NRTS6)
35 TRANSMIT DATA
(NSOUT6) 36 CLEAR TO SEND
(-NCTS6)
37 DATA TERMINAL READY
(-NDTR6) 38 RING INDICATOR (-XRI6)
39 GND 40 GND

11
IDE1: IDE Interface Connector
PIN DESCRIPTION PIN DESCRIPTION
1 RESET# 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 N/C
21 IDE DRQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 IDE CHRDY 28 BALE – DEFAULT
29 IDE DACK 30 GND
31 INTERRUPT 32 N/C
33 SA1 34 PDIAG#
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GND
J_AUDIO1: Audio Source Connector
PIN DESCRIPTION PIN DESCRIPTION
1 SYNC 2 BITCLK
3 SDOUT 4 PCBEEP
5 SDIN 6 RST#
7 VCC 8 GND
9 12V 10 GND
ATXPWR1:
A
TX POWER IN
PIN DESCRIPTION
1 +12V
2 GND
3 GND
4 VCC

12
LVDS1: LVDS Connector
PIN DESCRIPTION PIN DESCRIPTION
1 GND1 2 GND2
3 A_Y0 4 A_Y0#
5 A_Y1 6 A_Y1#
7 A_Y2 8 A_Y2#
9 A_CK 10 A_CK#
11 A_Y3 12 A_Y3#
13 GND3 14 GND4
15 B_Y0 16 B_Y0#
17 B_Y1 18 B_Y1#
19 B_Y2 20 B_Y2#
21 B_CK 22 B_CK#
23 B_Y3 24 B_Y3#
25 GND5 26 GND6
27 VCC_LCD 28 VCC_LCD
29 VCC_LCD 30 VCC_LCD
INVERTER1: Panel
Power Supply
PIN DESCRIPTION
1 BRIGHTNESS
2 GND
3 12V
4 GND
5 BL_EN
LVDS2: LVDS Connector (NOVA-9152LVDS
only)
PIN DESCRIPTION PIN DESCRIPTION
1 GND1 2 GND2
3 A_Y0 4 A_Y0#
5 A_Y1 6 A_Y1#
7 A_Y2 8 A_Y2#
9 A_CK 10 A_CK#
11 A_Y3 12 A_Y3#
13 GND3 14 GND4
15 B_Y0 16 B_Y0#
17 B_Y1 18 B_Y1#
19 B_Y2 20 B_Y2#
21 B_CK 22 B_CK#
23 B_Y3 24 B_Y3#
25 GND5 26 GND6
27 VCC_LCD 28 VCC_LCD
29 VCC_LCD 30 VCC_LCD
INVERTER2: Panel
Power Supply
(NOVA-9152LVDS only)
PIN DESCRIPTION
1 BRIGHTNESS
2 GND
3 12V
4 GND
5 BL_EN

13
PC104: J1 Connector (64 & 40 pin ISA bus)
PIN DESCRIPTION PIN DESCRIPTION PIN DESCRIPTION PIN DESCRIPTION
1 -IOCHK 33 SA14 2 GND 34 -DACK1
3 SD7 35 SA13 4 RSTDRV 36 DRQ1
5 SD6 37 SA12 6 VCC 38 -REFRESH
7 SD5 39 SA11 8 IRQ9 40 BCLK
9 SD4 41 SA10 10 NC 42 IRQ7
11 SD3 43 SA9 12 DRQ2 44 IRQ6
13 SD2 45 SA8 14 NC 46 IRQ5
15 SD1 47 SA7 16 -NOWS 48 IRQ4
17 SD0 49 SA6 18 +12V 50 IRQ3
19 IOCHRDY 51 SA5 20 GND 52 -DACK2
21 AEN 53 SA4 22 -SMEMW 54 TC
23 SA19 55 SA3 24 -SMEMR 56 BALE
25 SA18 57 SA2 26 -IOW 58 VCC
27 SA17 59 SA1 28 -IOR 60 ISAOSC
29 SA16 61 SA0 30 -DACK3 62 GND
31 SA15 63 GND 32 DRQ3 64 GND
PC104: J2 Connector (64 & 40 pin ISA bus)
PIN DESCRIPTION PIN DESCRIPTION PIN DESCRIPTION PIN DESCRIPTION
1 GND 21 -MEMW 2 GND 22 -DACK5
3 -SBHE 23 SD8 4 -MEMCS16 24 DRQ5
5 SA23 25 SD9 6 -IOCS16 26 -DACK6
7 SA22 27 SD10 8 IRQ10 28 DRQ6
9 SA21 29 SD11 10 IRQ11 30 -DACK7
11 SA20 31 SD12 12 IRQ12 32 DRQ7
13 SA19 33 SD13 14 IRQ15 34 VCC
15 SA18 35 SD14 16 IRQ14 36 -MASTER
17 SA17 37 SD15 18 -DACK0 38 GND
19 -MEMR 39 NC 20 DRQ0 40 GND
SATA1、SATA2 : Serial ATA Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 5 RX-
2 TX+ 6 RX+
3 TX- 7 GND
4 GND 8 N/C

14
CF1: CF Card Interface Slot
PIN DESCRIPTION PIN DESCRIPTION
1 GND 26 CD1#
2 D3 27 D11
3 D4 28 D12
4 D5 29 D13
5 D6 30 D14
6 D7 31 D15
7 CE# 32 CE2#
8 A10 33 VS1#
9 OE# 34 IOR#
10 A9 35 IOW#
11 A8 36 WE#
12 A7 37 IRQ
13 VCC 38 VCC
14 A6 39 CSEL#
15 A5 40 VS2#
16 A4 41 RESET#
17 A3 42 WAIT#
18 A2 43 INPACK#
19 A1 44 REG#
20 A0 45 BVD2
21 D0 46 BVD1
22 D1 47 D8
23 D2 48 D9
24 IOCS16# 49 D10
25 CD2# 50 GND2

15

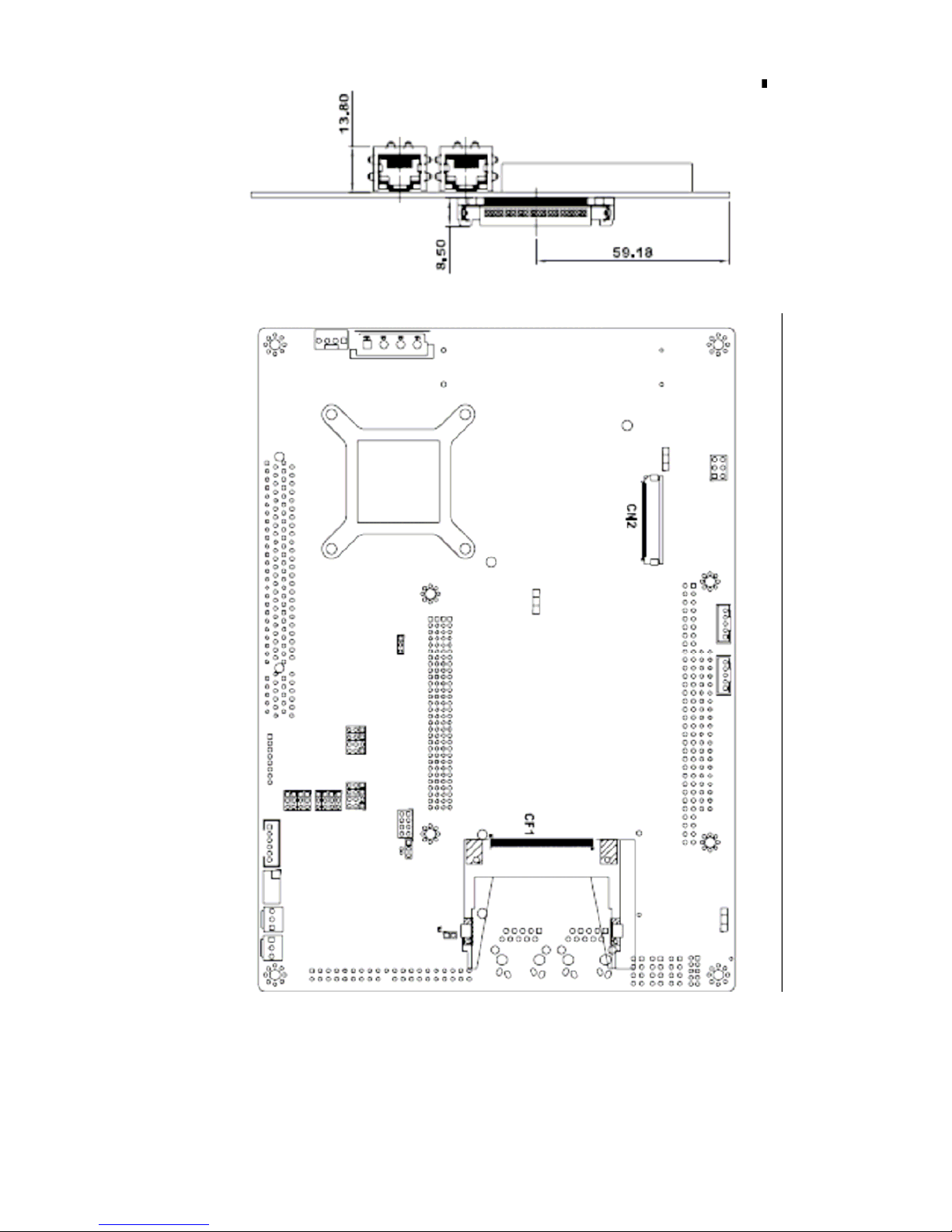

Board Layout: Jumper and Connector Locations

16
