IEI Technology Mustang-200 User manual
Mustang-200 Computing Accelerator
Page I
User Manual
Mustang-200
MODEL:
10 Gbps Network Based PCIe Computing Accelerator Card with
Two Intel® Core™ i5/i7 Processors, 32 GB RAM,
1 TB SSD, QTS-Lite, SDK, RoHS
Rev. 1.00 - October 27, 2017
Mustang-200 CPU Card
Mustang-200 Computing Accelerator
Page II
Revision
Date Version Changes
October 27, 2017 1.00 Initial release
Mustang-200 Computing Accelerator
Page III
Copyright
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Mustang-200 Computing Accelerator
Page IV
Manual Conventions
WARNING
Warnings appear where overlooked details may cause damage to the
equipment or result in personal injury. Warnings should be taken
seriously.
CAUTION
Cautionary messages should be heeded to help reduce the chance of
losing data or damaging the product.
NOTE
These messages inform the reader of essential but non-critical
information. These messages should be read carefully as any directions
or instructions contained therein can help avoid making mistakes.
HOT SURFACE
This symbol indicates a hot surface that should not be touched without
taking care.
Mustang-200 Computing Accelerator
Page V
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 INTRODUCTION........................................................................................................... 2
1.2 MODEL VARIATIONS ................................................................................................... 3
1.3 FEATURES................................................................................................................... 3
1.4 CONNECTORS ............................................................................................................. 4
1.5 DIMENSIONS............................................................................................................... 5
1.6 DATA FLOW ................................................................................................................ 6
1.7 TECHNICAL SPECIFICATIONS ...................................................................................... 6
2 UNPACKING ................................................................................................................. 8
2.1 ANTI-STATIC PRECAUTIONS ........................................................................................ 9
2.2 UNPACKING PRECAUTIONS......................................................................................... 9
2.3 PACKING LIST........................................................................................................... 10
2.4 OPTIONAL ITEM.........................................................................................................11
3 HARDWARE INSTALLATION................................................................................. 12
3.1 ANTI-STATIC PRECAUTIONS ...................................................................................... 13
3.2 INSTALLATION CONSIDERATIONS.............................................................................. 13
3.3 HARDWARE INSTALLATION....................................................................................... 14
4 SOFTWARE INSTALLATION .................................................................................. 18
4.1 SYSTEM REQUIREMENTS .......................................................................................... 19
4.2 PREREQUISITES ........................................................................................................ 19
4.3 HOST SDK INSTALLATION........................................................................................ 19
5 WEB APPLICATION.................................................................................................. 21
5.1 WEB APPLICATION INTRODUCTION .......................................................................... 22
5.2 DEVELOPER INSTALLATION GUIDE ........................................................................... 22
5.3 HOW TO ACCESS....................................................................................................... 24
5.4 INTERFACE OVERVIEW ............................................................................................. 24
5.4.1 Overview .......................................................................................................... 24
5.4.2 Log ................................................................................................................... 25
Mustang-200 Computing Accelerator
Page VI
5.4.3 Cards Info ........................................................................................................ 26
5.4.3.1 Port Settings .............................................................................................. 27
5.4.3.2 Add Task ................................................................................................... 28
5.5 TRANSCODING SPECIFICATIONS................................................................................ 29
5.6 EXAMPLES................................................................................................................ 30
5.6.1 VOD Transcoding............................................................................................. 30
5.6.2 File Transcoding .............................................................................................. 35
A REGULATORY COMPLIANCE .............................................................................. 40
B PRODUCT DISPOSAL .............................................................................................. 42
C HAZARDOUS MATERIALS DISCLOSURE ......................................................... 44
Mustang-200 Computing Accelerator
Page VII
List of Figures
Figure 1-1: Mustang-200 ................................................................................................................2
Figure 1-2: Connectors (Front Side) .............................................................................................4
Figure 1-3: Connectors (Rear Side) ..............................................................................................4
Figure 1-4: Dimensions (mm) ........................................................................................................5
Figure 1-5: Data Flow Diagram......................................................................................................6
Figure 3-1: Remove Two Blank Brackets...................................................................................15
Figure 3-1: Install and Secure Mustang-200 ..............................................................................16
Figure 3-1: Power Cable Connection..........................................................................................16
Figure 3-1: Assign a Card ID .......................................................................................................17
Figure 3-1: Multiple Mustang-200 Installed................................................................................17
Figure 3-1: IEI Resource Download Page ..................................................................................19
Mustang-200 Computing Accelerator
Page VIII
List of Tables
Table 1-1: Mustang-200 Model Variations....................................................................................3
Table 1-2: Technical Specifications..............................................................................................7
Table 5-1: Transcoding Specifications.......................................................................................29
Mustang-200 Computing Accelerator
Page 1
Chapter
1
1 Introduction
Mustang-200 Computing Accelerator
Page 2
1.1 Introduction
Figure 1-1: Mustang-200
The Mustang-200 is a 10 Gbps network based computing accelerator for speeding up
computations, calculations and applications in an affordable and scalable way. Equipped
with two Intel® Core™ i5/i7 processors, 32 GB (four 8GB) RAM, and 1TB (two 512GB)
SSDs, the Mustang-200 PCIe card can be used with the existing system, enabling
high-performance computing without costing a fortune. Multiple Mustang-200 can be
installed into one system to further boost the computing capabilities.
The integrated QTS-Lite operating system supports various virtualization technologies
such as containers and virtual machines, making it easy to convert the physical system
into a virtual one (P2V) and assign it to one of the nodes on the Mustang-200.
SDK and a Web Application are also come with the Mustang-200. The Web Application is
capable of VOD (file to live), Live (live to live) and File (file to file) transcoding scenarios.
Each transcoding scenario can be created using simple wizard steps. It was developed
based on the Host API, allowing developers to modify it to meet their requirements.
Mustang-200 Computing Accelerator
Page 3
1.2 Model Variations
The model variations of the Mustang-200 series are listed below.
Model No. Processor
Mustang-200-i5-1T/32G Intel® Core™ i5-7267U
(3.5 GHz, dual-core, 4 MB cache, TDP=28 W)
Mustang-200-i7-1T/32G Intel® Core™ i7-7567U
(4.0 GHz, dual-core, 4 MB cache, TDP=28 W)
Table 1-1: Mustang-200 Model Variations
1.3 Features
Some of the Mustang-200 motherboard features are listed below:
Two Intel® Core™ i7-7567U or i5-7267U processors, up to 4.00 GHz
Support Intel® Iris™ Plus Graphics 650.
Compatible with PCI Express x4, x8, and x16 slots
Decentralized computing architecture for independent tasks based on
10Gbps network transmission
Increasing computing power without changing or adding servers
Achieve higher densities computing
Lower capital expense and operation expense costs
Mustang-200 Computing Accelerator
Page 4

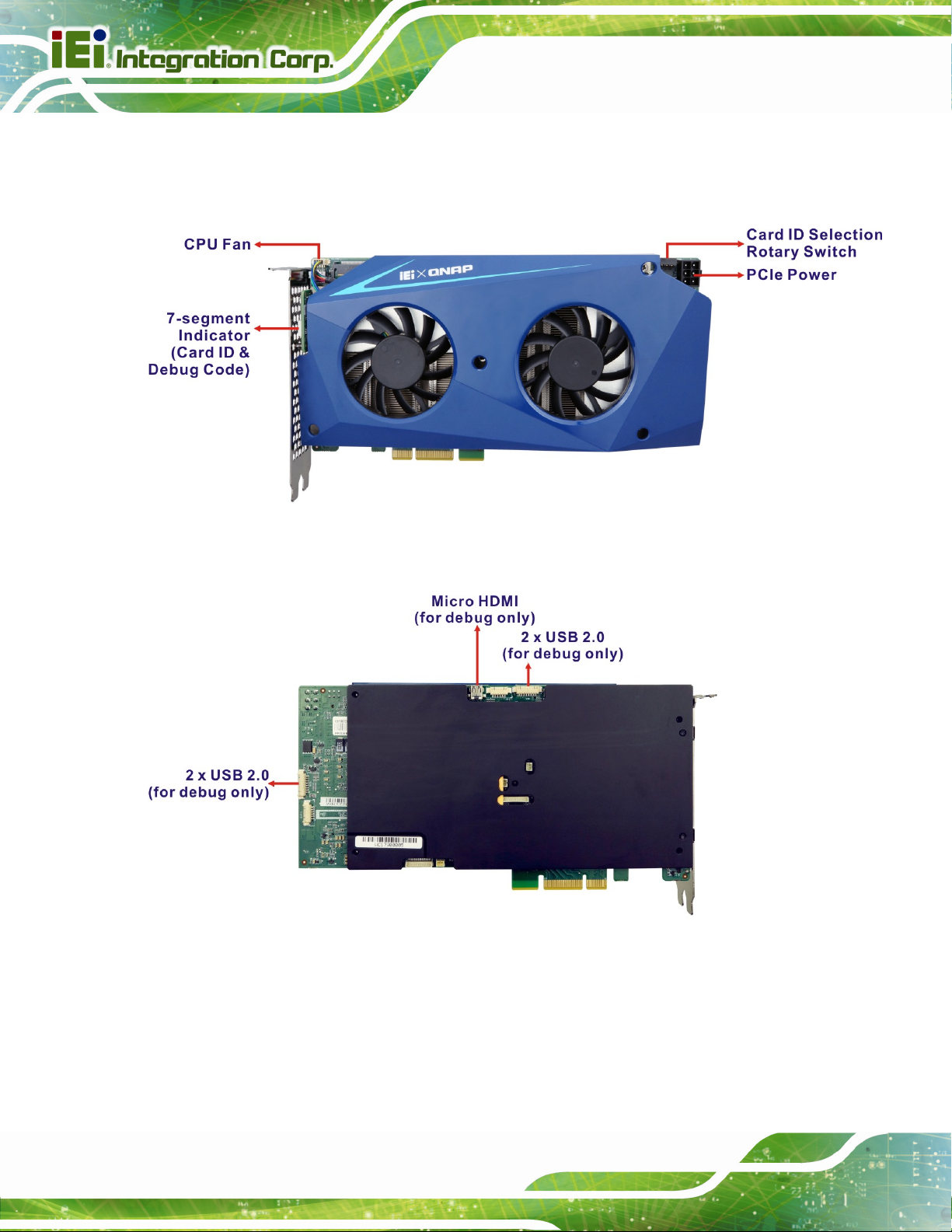

1.4 Connectors
The connectors on the Mustang-200 are shown in the figures below.
Figure 1-2: Connectors (Front Side)
Figure 1-3: Connectors (Rear Side)
Mustang-200 Computing Accelerator
Page 5

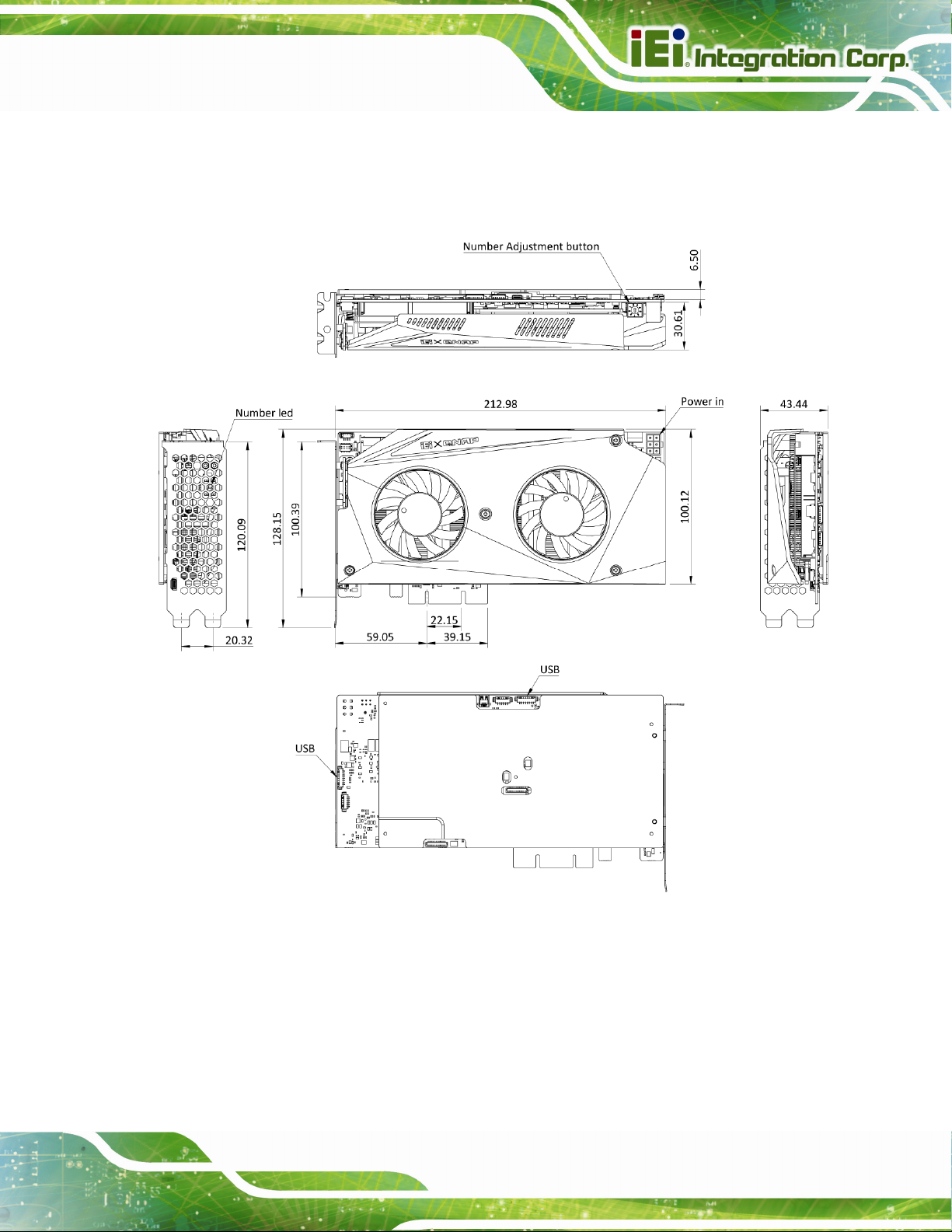

1.5 Dimensions
The dimensions of the board are listed below:
Figure 1-4: Dimensions (mm)
Mustang-200 Computing Accelerator
Page 6
1.6 Data Flow
Figure 1-5 shows the data flow between the CPU and other components installed on the
Mustang-200.
Figure 1-5: Data Flow Diagram
1.7 Technical Specifications
Mustang-200 technical specifications are listed below.
Specification Mustang-200
Processor Intel® Core™ i5-7267U
(up to 3.5 GHz, dual-core, 4 MB cache, TDP=28 W)
Intel® Core™ i7-7567U
(up to 4.0 GHz, dual-core, 4 MB cache, TDP=28 W)
Memory 4 x 8 GB DDR4 SO-DIMM
(two 8GB DDR4 SO-DIMMs per CPU )
Processor Graphics Intel® Iris™ Plus Graphics 650 (GT3e)
Graphics base frequency: 300 MHz
Graphics max dynamic frequency: 1.05 GHz
Embedded graphics DRAM per GPU: 64 MB
Mustang-200 Computing Accelerator
Page 7
Specification Mustang-200
Hardware Video Decode H.264, H.265/HEVC
MPEG2, M/JPEG
VC-1 VP8 (8-bit) / VP9 (10-bit)
Hardware Video Encode H.264, H.265/HEVC
MPEG2, M/JPEG
VC-1 VP8 (8-bit)
Display Output 2 x Micro HDMI for debugging
USB Ports 4 x USB 2.0 (pin header) for debugging
Storage 2 x Intel® SSD 600P series
(512 GB, M.2 80mm PCIe 3.0 x4, 3D1, TLC)
Physical PCIe Interface PCI Express x8
Data Plane Interface PCI Express x4
Compliant with PCI Express Specification V2.0
Compatible with PCI Express x4, x8 and x16 slots
External Interface Reset button
Power button
Indicator 7-segment LED display for card ID and debug code
Fan Dual fan
Power Consumption 120 W, 12 V @ 10 A
Operating Temperature 0°C ~ 40°C
Operating Humidity 10% ~ 90%
Dimensions (WxHxD) 210 mm x 111 mm x 40 mm
Remark There is no support for UPnP (Universal Plug and Play). This
is because Mustang-200 is not connected to router directly,
and its connection to external network can only be established
via the host server.
Table 1-2: Technical Specifications
Mustang-200 Computing Accelerator
Page 8
Chapter
2
2 Unpacking
Mustang-200 Computing Accelerator
Page 9
2.1 Anti-static Precautions
WARNING!
Static electricity can destroy certain electronics. Make sure to follow the
ESD precautions to prevent damage to the product, and injury to the
user.
Make sure to adhere to the following guidelines:
Wear an anti-static wristband: Wearing an anti-static wristband can prevent
electrostatic discharge.
Self-grounding: Touch a grounded conductor every few minutes to discharge
any excess static buildup.
Use an anti-static pad: When configuring any circuit board, place it on an
anti-static mat.
Only handle the edges of the PCB: Don't touch the surface of the
motherboard. Hold the motherboard by the edges when handling.
2.2 Unpacking Precautions
When the Mustang-200 is unpacked, please do the following:
Follow the antistatic guidelines above.
Make sure the packing box is facing upwards when opening.
Make sure all the packing list items are present.
Mustang-200 Computing Accelerator
Page 10

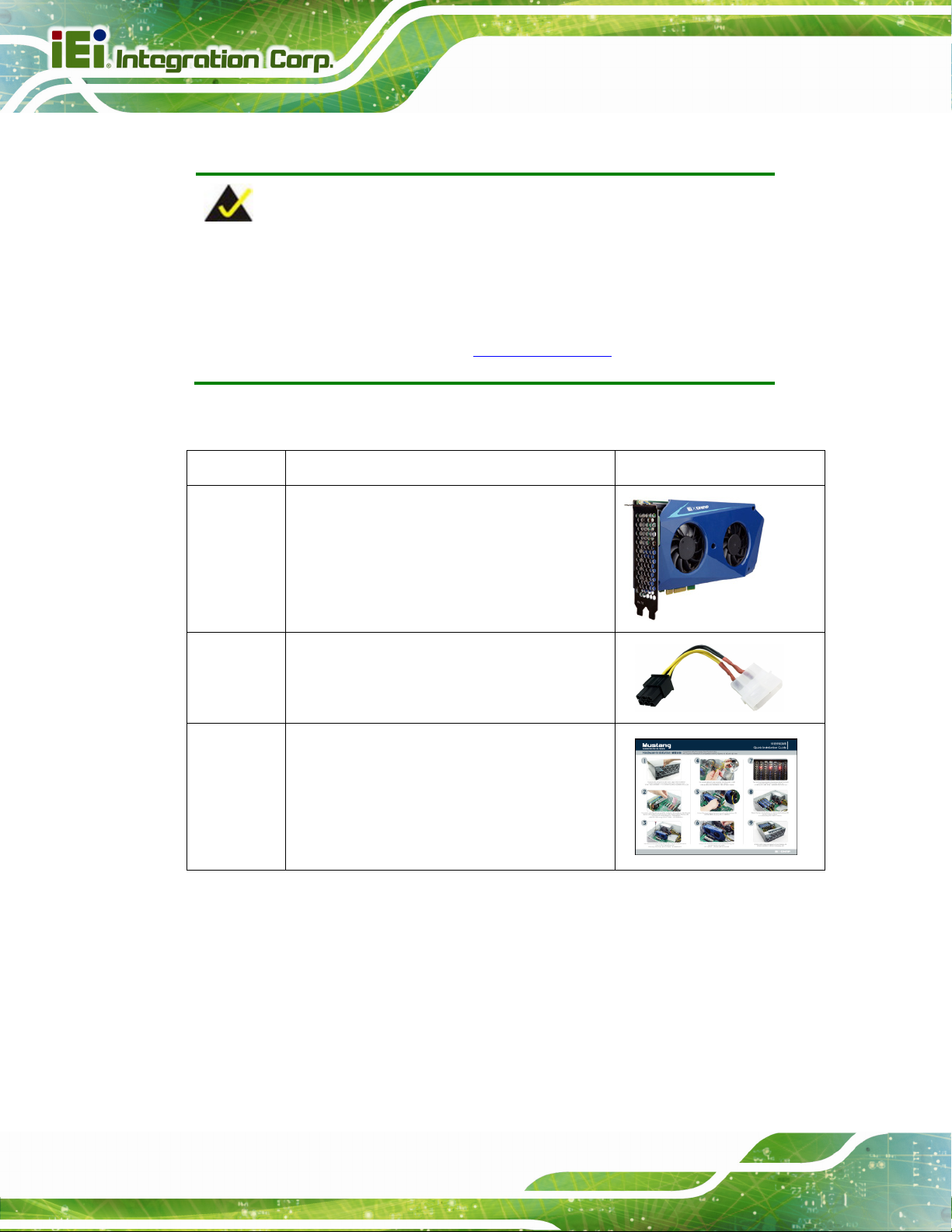

2.3 Packing List
NOTE:
If any of the components listed in the checklist below are missing, do not
proceed with the installation. Contact the IEI reseller or vendor the
Mustang-200 was purchased from or contact an IEI sales representative
The Mustang-200 is shipped with the following components:
Quantity Item and Part Number Image
1 Mustang-200 computing accelerator
1 4-pin to 6-pin PCIe power adapter
1 Quick Installation Guide
Mustang-200 Computing Accelerator
Page 11

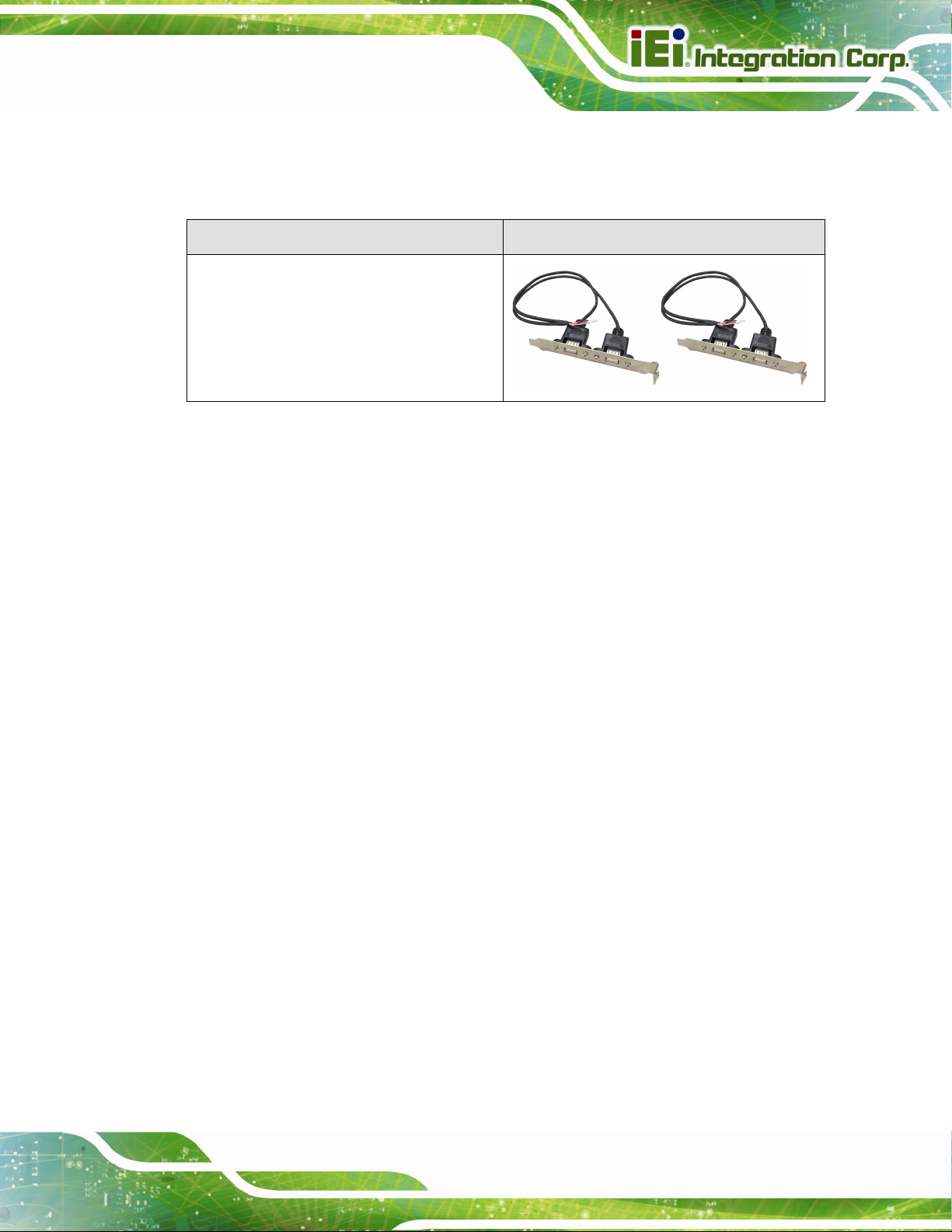

2.4 Optional Item
The following is optional component which may be separately purchased:
Item Image
Dual-port USB cable kit for debug
(includes two cables)
(P/N: 19B00-000396-00-RS)
Mustang-200 Computing Accelerator
Page 12
Chapter
3
3 Hardware Installation
Table of contents
Other IEI Technology Video Card manuals
