IEMCA SIR 52 P Instruction manual

SIR 52 P - SIR 52 F
EN MANUAL FOR USE AND MAINTENANCE
Rel. 2Date 01/02/2006 Cod. 610505400
S/N
SOFTWARE RELEASE
REDATTORE: Bosi Andrea
PER APPROVAZIONE: Magnani Claudio
OP: PLC:
AUTOMATIC BAR FEEDER
ELENCO ALLEGATI
MANUAL FOR USE AND MAINTENANCE
KEYBOARD INSTRUCTION MANUAL
SPARE PARTS BOOK
SCHEMATICS
EC CONFORMITY DECLARATION FOR MACHINE

IEMCA S.p.A.
Via Granarolo, 167
Tel. [phone] - Fax. [phone]
TLX 550879
COSTRUTTORE: IEMCA division of IGMI S.p.A.
INDIRIZZO: Via Granarolo, 167 - 48018 Faenza (RA) - ITALY
Tel. [phone] - Fax. [phone]
TLX 550879
TIPO DI DOCUMENTO: MANUAL FOR USE AND MAINTENANCE
PRODOTTO: AUTOMATIC BAR FEEDER
MODELLO: SIR 52 P - SIR 52 F

1 GENERAL INFORMATION ........................................................................ SIR-52-P/F
2 TECHNICAL INFORMATION..................................................................... SIR-52-P/F
3 SAFETY PROCEDURES - GENERAL INFORMATION.................................. SIR-52-P/F
4 HANDLING AND INSTALLATION ............................................................. SIR-52-P/F
5 ADJUSTMENTS AND SETTING-UP ........................................................... SIR-52-P/F
6 USE AND OPERATION.............................................................................. SIR-52-P/F
7 BAR FEEDER MAINTENANCE ................................................................... SIR-52-P/F
8 TROUBLES - CAUSES - CURES ................................................................. SIR-52-P/F
9 PART REPLACEMENT ............................................................................... SIR-52-P/F
10 GUIDE CHANNELS-BAR PUSHER-REVOLVING TIPS................................ SIR-52-P/F
11 COLLETS .................................................................................................. SIR-52-P/F
12 LIST OF AFTER-SALES CENTERS ............................................................. SIR-52-P/F

1 - GENERAL INFORMATION SIR-52-P/F
EN
1 - Pag. 1 / 4
INDEX
1.1 TERMS OF WARRANTY.............................................................................................2
1.2 MANUAL PURPOSE...................................................................................................3
1.3 MANUFACTURER AND BAR FEEDER IDENTIFICATION................................................4
1.4 TECHNICAL ASSISTANCE .........................................................................................4
1.5 ANNEXES ENCLOSED ...............................................................................................4

EN
1 - GENERAL INFORMATION SIR-52-P/F
1 - Pag. 2 / 4
Operations described in paragraphs showing this symbol, must be performed by qualified
and skilled personnel only.
Any other operation can be performed either by qualified personnel or by professional
bar feeder operators.
Before carrying out any servicing whatsoever on the bar feeder, it is of the
utmost importance to read this manual carefully.
1.1 TERMS OF WARRANTY
The warranty validity is subordinated to a correct assembly and coupling of the bar feeder to
lathe. In particular, before the first start-up, carry out an accurate check to make sure the bar
feeder is correctly aligned with the lathe and fastened with the expansion plugs as shown in
section 4.
The product warranty is valid only if the bar loader is
installed by an authorized technician with Original
Installation Certificate. Please ask the technician, who will
make the installation, to show the certificate, in order to
ascertain the quality of the technical works being carried
out.
The warranty shall begin from the date on the Installation
Certificate duly filled in and signed.
The document must be sent per mail to:
CUSTOMER SERVICE
IEMCA division of IGMI spa
48018 Faenza (Ra) ITALY - Via Granarolo,167

1 - GENERAL INFORMATION SIR-52-P/F
EN
1 - Pag. 3 / 4
1.2 MANUAL PURPOSE
This manual has been written and supplied by the manufacturer, the information herewith
contained has been written in Italian (manufacturer's language) to be translated to other
languages, in order to comply with legal and/or commercial requirements. This manual is
integral part of the bar feeder and of its equipment.
The compliance with the instructions contained herein ensures the operator and bar feeder
safety as well as a running economy and a longer life of the bar feeder itself.
In order to allow a quick search of contents, consult the descriptive index.
Particularly important parts of this manual have been highlighted in bold type and preceded by
the following symbols:
DANGER - WARNING:
shows impending danger which might cause serious injuries, exert the
maximum caution.
CAUTION - PRECAUTION
indicates measures to be adopted to avoid accidents or damages to property.
INFORMATION
technical instructions of particular importance.
For a quick search of topics see the table of contents.
In addition to this manual, which contains all the instructions for the bar feeder use and
maintenance, one more is supplied: the "Push-button panel instruction manual".
The "Push-button panel instruction manual" contains all the instructions on how to use the
installed software.

EN
1 - GENERAL INFORMATION SIR-52-P/F
1 - Pag. 4 / 4
1.3 MANUFACTURER AND BAR FEEDER IDENTIFICATION
A Manufacturer's identification
B CE conformity marking
C Year of manufacture
D Bar feeder model
E Serial number
G Mains frequency
H Absorption power
M Feeding voltage
N Direct driving voltage
P Air pressure
Q Bar feeder and pusher length
R Breaking capacity
S Number of base wiring diagram
T Number of interface wiring diagram
INFORMATION:
Always provide the Manufacturer with
the above mentioned specifications
when requesting information or
ordering spare parts, etc.
1.4 TECHNICAL ASSISTANCE
Whenever necessary, please apply to one of the Technical Assistance Centres shown in the
attached list.
INFORMATION
when requesting technical assistance for the bar feeder, always specify the
information shown on the machine dataplate.
1.5 ANNEXES ENCLOSED
- Electric diagram
- Pneumatic diagram
- Hydraulic diagram
- Lubrication system diagram
- Technical assistance departments list.
- Push-button panel instruction manual.

2 - TECHNICAL INFORMATION SIR-52-P/F
EN
2 - Pag. 1 / 16
INDEX
2.1 DESCRIPTION OF MODELS.......................................................................................2
2.2 GENERAL BAR FEEDER DESCRIPTION.......................................................................5
2.3 WORKING CYCLE - GENERAL DESCRIPTION..............................................................8
2.4 SAFETY DEVICES.....................................................................................................9
2.5 SAFETY PLATES - LOCATION AND DESCRIPTION ....................................................11
2.6 TECHNICAL INFORMATION ....................................................................................12
2.6.1 Noise levels ...........................................................................................................15
2.7 FITTINGS - DESCRIPTION......................................................................................16
2.7.1 Additional inner lighting lamp..................................................................................16

EN
2 - TECHNICAL INFORMATION SIR-52-P/F
2 - Pag. 2 / 16

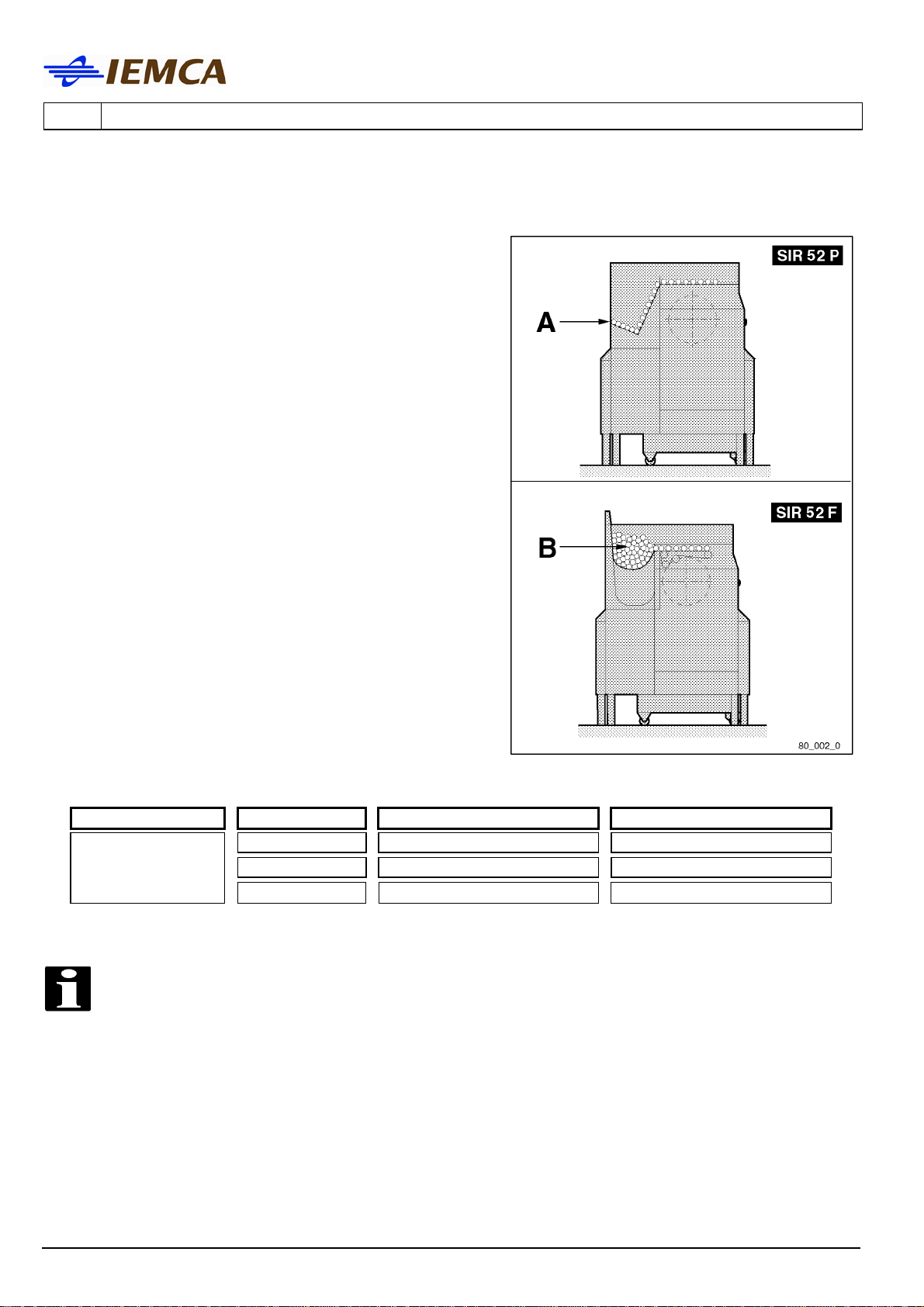

2.1 DESCRIPTION OF MODELS
The bar feeder is available in four models:
- SIR 52 P for bars to 52 mm with rack magazine
type (A);
- SIR 52 F for bars to 52 mm with bar bundle
magazine type (B).
MANUFACTURING FEATURES
- Maximum and minimum bar length.
Table 1.Maximum and minimum bar length.
Models Version Max. length (mm) Min. length (mm) *
33 3300 2500
38 3800 3000
SIR 52 P
SIR 52 F 43 4300 3000
(*)Please contact IEMCA Sales Department before loading bundles of short bars into the bundle
magazine, in order to check whether a short bar loading set is necessary.
INFORMATION
In bundle models, bars are loaded in the middle of the magazine.

2 - TECHNICAL INFORMATION SIR-52-P/F
EN
2 - Pag. 3 / 16

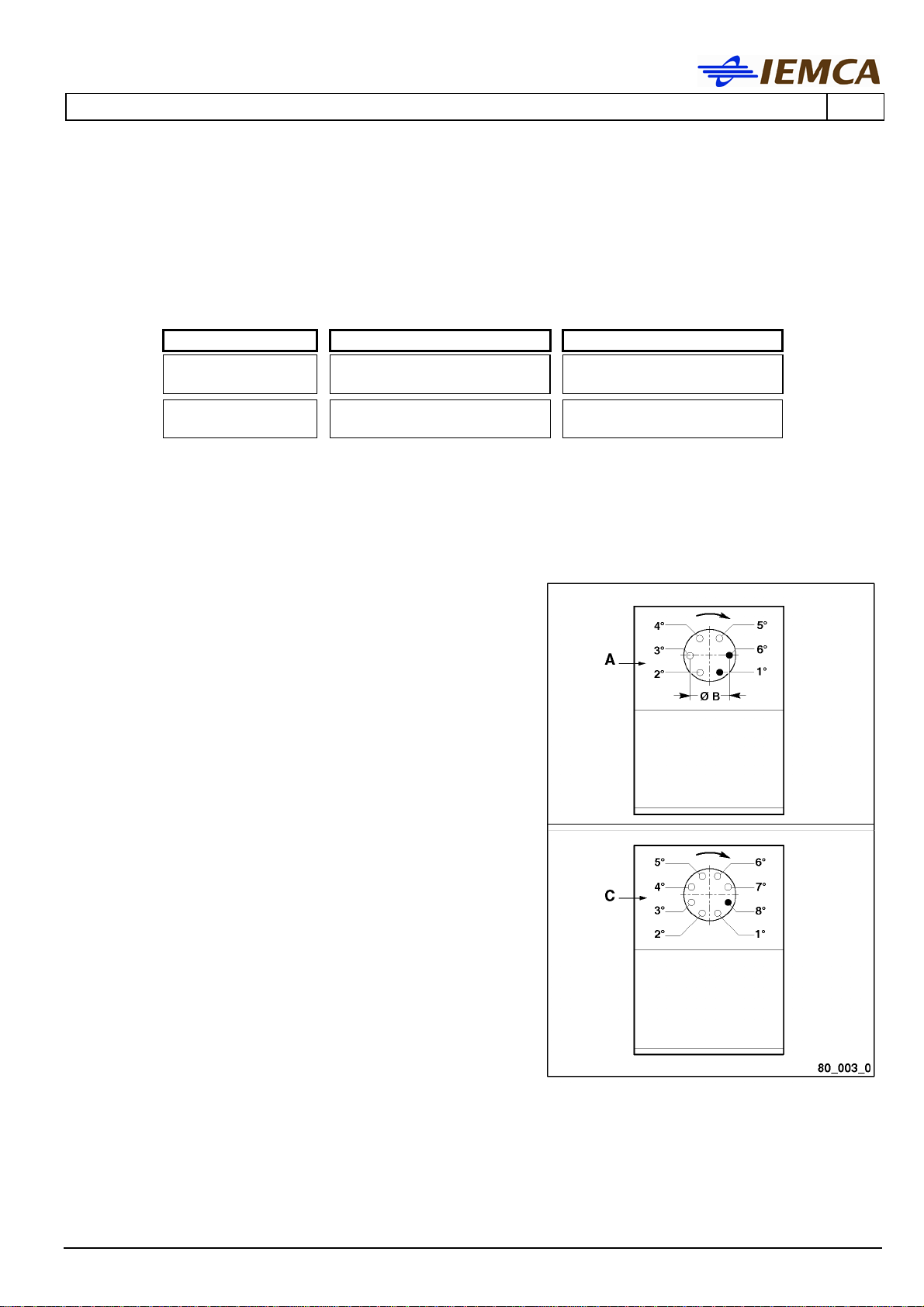

- Bar loading: into the 6th or 1st station of lathe (A) in case of 6-spindle lathe.
Loading the bar in the seventh station of lathe (C) when the lathe has 8 spindles.
- Stock tube diameter ø (B).
Table 2.Stock tube diameter
Models Min diameter (mm) Max diameter (mm)
SIR 52 P/F 6
channel 276 360
SIR 52 P/F 8
channel 330 370
In the case of a lathe with a number of spindles other than 6 - 8, such dimensions may
change.
- Bar feeding in more stations: bar feeding can occur in two or more stations, in any possible
combination. For further information, apply to IEMCA service department.

EN
2 - TECHNICAL INFORMATION SIR-52-P/F
2 - Pag. 4 / 16
- Bar pusher extension.
Table 3.Bar pusher features
Models Version Bar pusher type Bar pusher
extension MAX Clamp position
N STANDARD 1110 A
L LONG 1360 B
SIR 52 P
SIR 52 F
XL EXTRA LONG 1610 C

2 - TECHNICAL INFORMATION SIR-52-P/F
EN
2 - Pag. 5 / 16

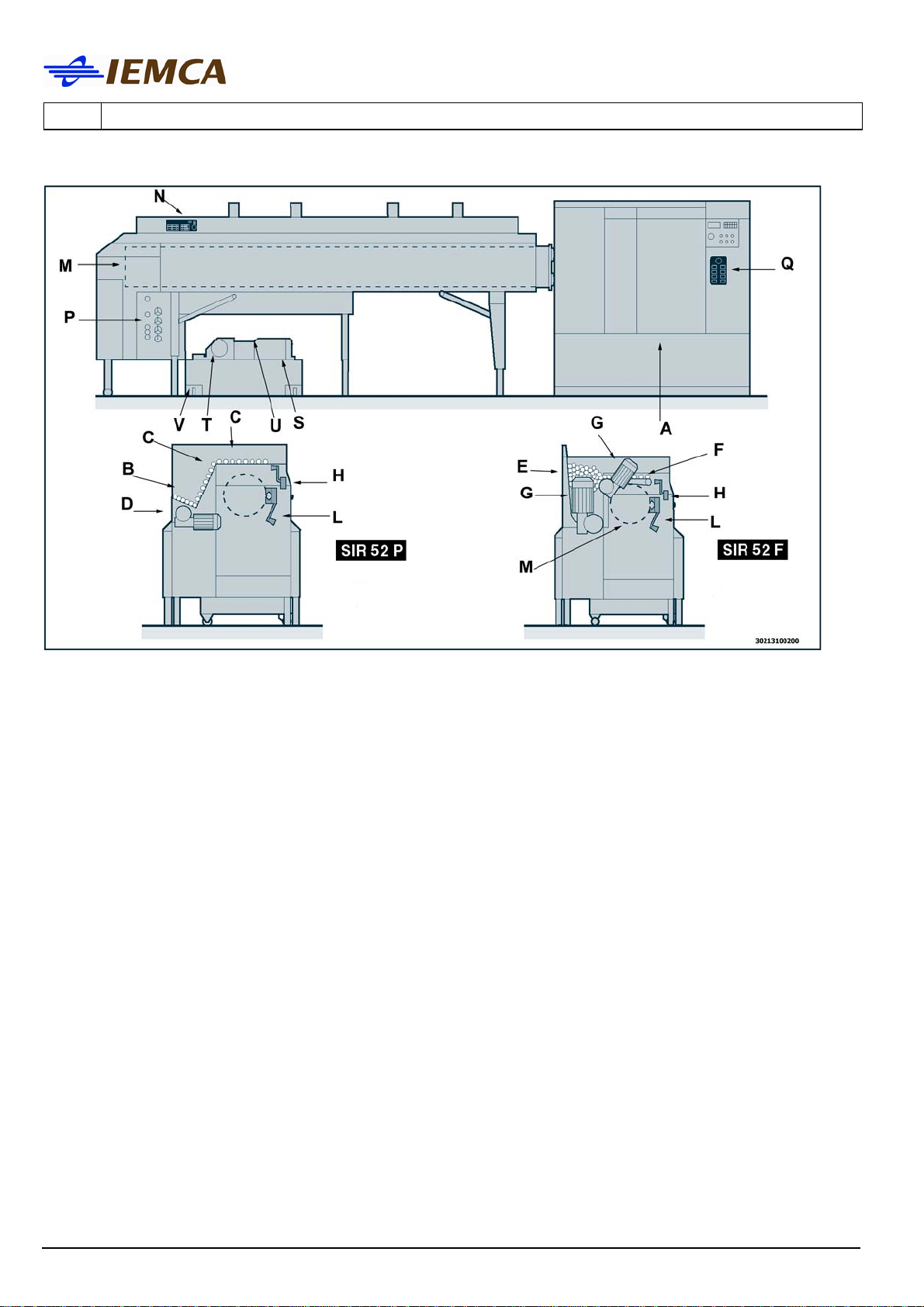

2.2 GENERAL BAR FEEDER DESCRIPTION
The automatic bar feeder SIR 52 P or SIR 52 F is used in the machine tools sector and more
specifically to automatically feed multi-spindle lathes.
The bar feeder has been designed to be installed instead of the lathe stock tube, thus replacing
the bar guiding and feeding systems. It allows round, hexagonal and square bars to be loaded.
The working cycle is controlled by a PLC fitted in the electric switchboard, able to dialogue with
the lathe control.
A LATHE
machines the bars loaded by the bar feeder.
B RACK MAGAZINE
stores the bars.
C TRAVERSE DEVICE
takes single bars, moving them from the rack magazine to the inserting device.
D DRIVE
drives the bar traverse device from the rack to the inserting device.

EN
2 - TECHNICAL INFORMATION SIR-52-P/F
2 - Pag. 6 / 16

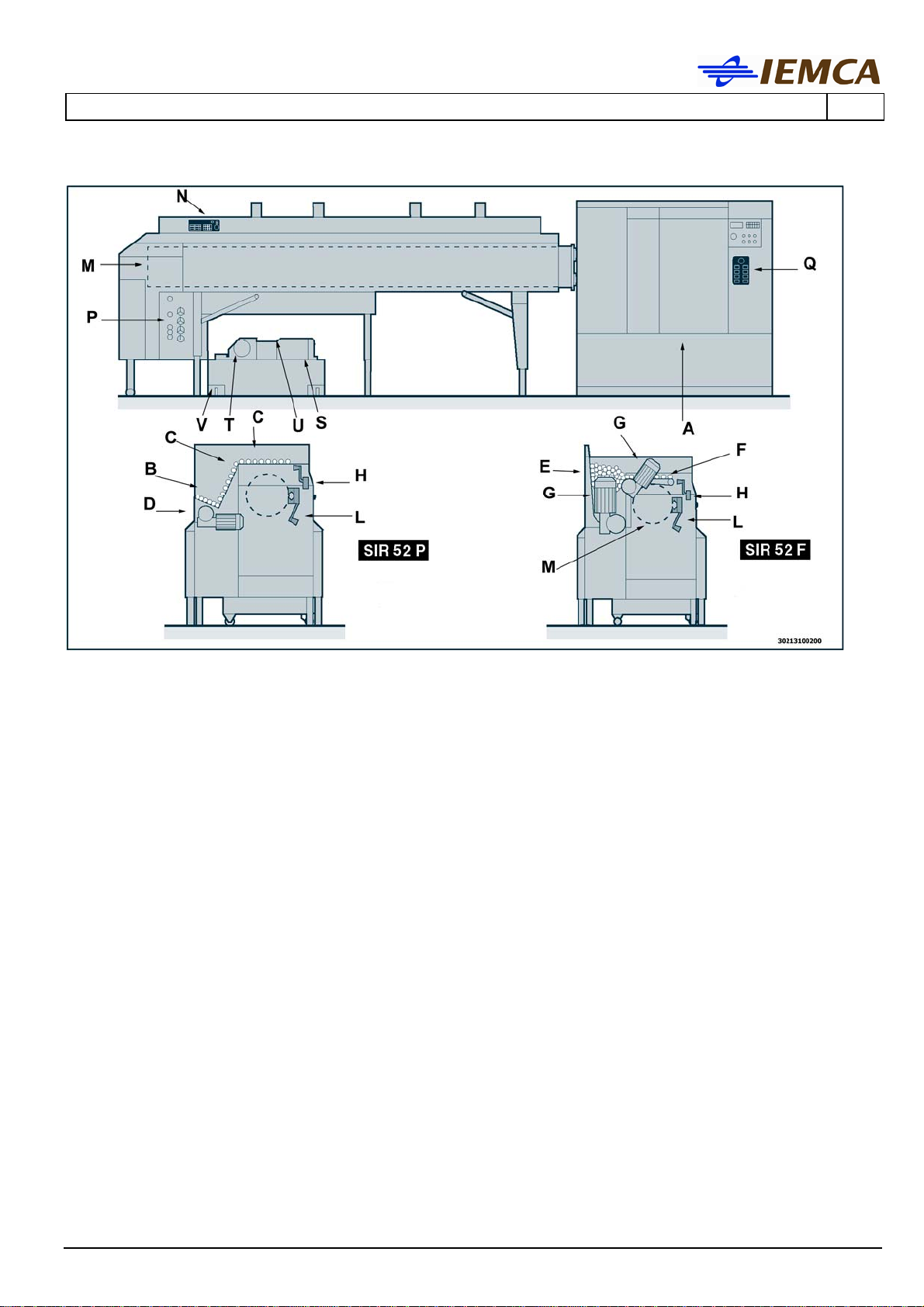

E BUNDLE MAGAZIN/E
stores bars.
F BAR SELECTING DEVICE
selects bars.
G DRIVE
drives the bar selecting device.
H BAR INSERTING DEVICE
takes the bars and arranges them into the guide channels.
L CLAMP AND BAR PUSHER UNIT
inserts into and removes the bar from the collet.
Furthermore, it inserts into and removes the bar pusher from guide channels.
M FEEDING DRUM
inserts bars into lathe.
N CONTROL PUSH-BUTTON PANEL
controls all bar feeder functions.
P HYDRAULIC CONTROLS
adjust hydraulic oil flow.
Q ADDITIONAL PUSH-BUTTON PANEL
controls some bar feeder functions (not supplied in some models, being its functions
included into the lathe push-button panel).
R CUBICLE
fits the electric switchboard.

2 - TECHNICAL INFORMATION SIR-52-P/F
EN
2 - Pag. 7 / 16
S REMNANT RECOVERY TANK
collects bar remnants.
T HYDRAULIC OIL PUMP
produces pressure for the hydraulic functions of the bar feeder.
U LUBRICATING OIL PUMP
produces pressure to lubricate guide channels.
V HYDRAULIC OIL TANK
contains the hydraulic system oil.
Z LUBRICATING OIL TANK
contains the oil for the lubricating system.

EN
2 - TECHNICAL INFORMATION SIR-52-P/F
2 - Pag. 8 / 16
2.3 WORKING CYCLE - GENERAL DESCRIPTION
SIR 52 P
- The bars, manually loaded into magazine (A), are taken by the chain displacement device
(B).
- The bar loading device (D) introduces them into drum (C).
- The clamp device (E) inserts the bar into the bar pusher collet.
- Then, bars are fed into the lathe.
SIR 52 F
- Bars, previously loaded inside the magazine (A) through a lifting device, are selected by the
bar selecting device (B).
- The bar inserting device (D) introduces them into drum (C).
- The clamp device (E) inserts the bar into the bar pusher collet.
- Then, the bars are fed into the lathe.

2 - TECHNICAL INFORMATION SIR-52-P/F
EN
2 - Pag. 9 / 16

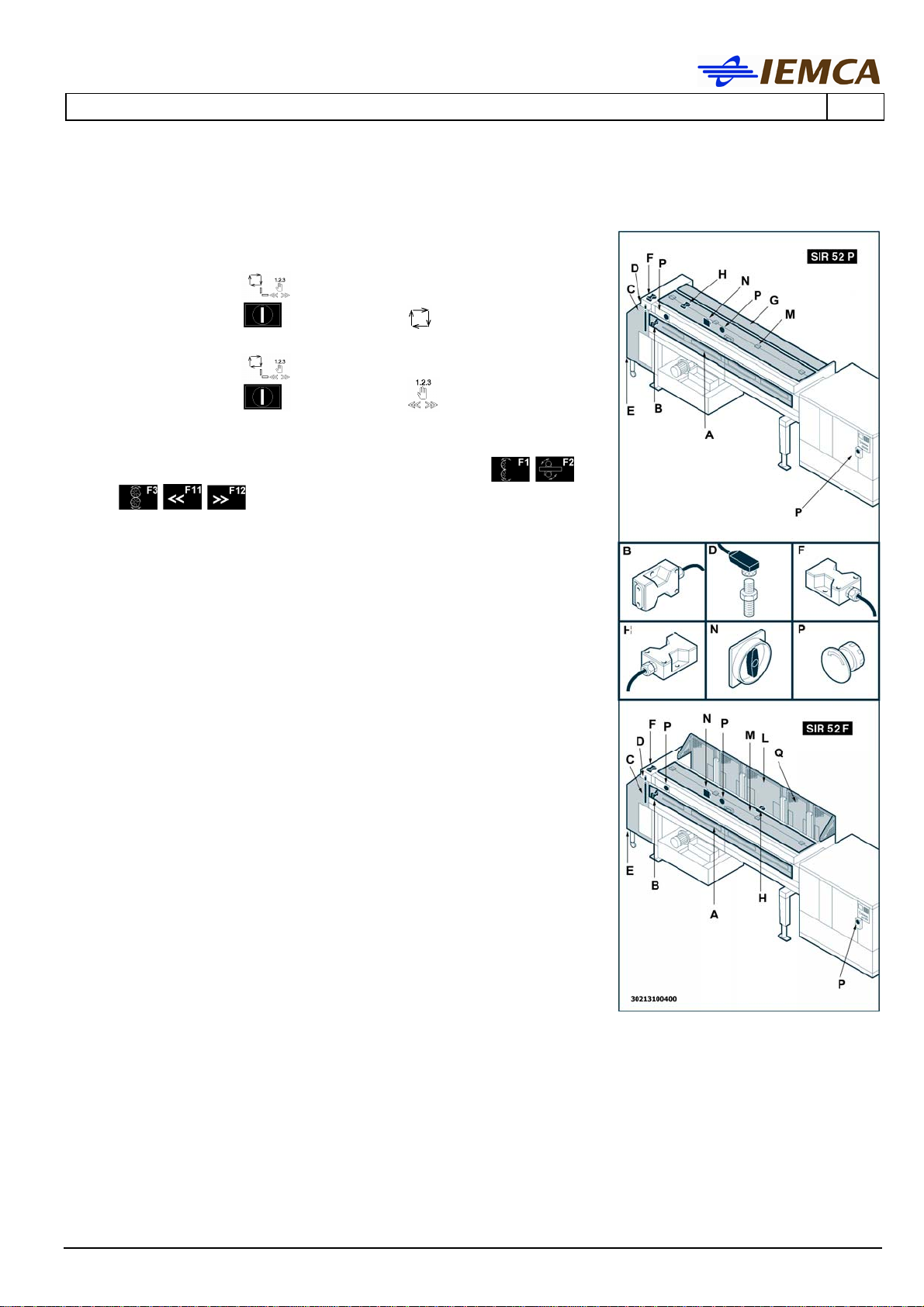

2.4 SAFETY DEVICES
A INTERLOCKED MOBILE GUARD. It is associated to
microswitch (B):
- when selector is turned to , the bar feeder
stops by opening the guard;
- when selector is turned to , the bar feeder
does not stop by opening the guard, but there are few
controls enabled, i.e. those necessary for setting up or
change the machining procedures; they are:
.
C AXIAL DISPLACEMENT LOCKING.
It is associated to sensor (D).
By releasing the lever, all lathe and bar feeder functions are
disabled.
E MOBILE GUARD.
Associated to microswitch (F).
By opening the guard, all lathe and bar feeder functions are
disabled.
G MOBILE GUARD.
Associated to microswitch (H).
By opening the guard, all bar magazine functions are
disabled. The bar feeder keeps feeding the lathe until the
feeding drum runs out of bars.

EN
2 - TECHNICAL INFORMATION SIR-52-P/F
2 - Pag. 10 / 16
L Mobile guard
Prevents the accidental access to bundle magazine.
M Mobile guard
Prevents the accidental access to the bar selecting station.
N Main switch
Disconnects the electric supply when servicing the electric
switchboard.
P Emergency push-button
By pressing it, all lathe and bar feeder functions are
disabled.

2 - TECHNICAL INFORMATION SIR-52-P/F
EN
2 - Pag. 11 / 16
2.5 SAFETY PLATES - LOCATION AND DESCRIPTION
DANGER - WARNING:
Keep safety plates clean.
A Danger of arm crushing.
B Give the greatest attention to running parts.
C Danger of material falling.
D Do not remove safety guards.
E Wear safety work gloves and shoes.
Do not lift any load exceeding 15 kg manually.
F Do not open the bar feeder while it is running.
G Caution: danger of electric shock.
H Warning: fix the bar feeder to the ground.

EN
2 - TECHNICAL INFORMATION SIR-52-P/F
2 - Pag. 12 / 16
2.6 TECHNICAL INFORMATION
