iHome Studio Series User manual

STUDIO SERIES
FEATURING BONGIOVI ACOUSTICS DPS
USER GUIDE

WELCOME
Thank you for choosing the iHome Studio Series featuring
Bongiovi Acoustics DPS. This user guide will get you up and
running
quickly and provide helpful hints to maximize enjoyment.
For more information about this and other iHome products, please
visit
www.ihomeaudio.com
Remote Control
iPod/iPhone Bumper /
o 00000
0000000
o 00000
Dock
~,- p_o_w_e_r _A_d_a~p_to_r

GETTING
STARTED
Place unit on a stable surface. Plug the power adaptor into the
AC jack on back of the unit and the other end into awall socket.
Designed and Engineered by iHome in the USA
Line-in
Component Video Out
DC:-:-: 20V 3.25A8-~~
Line-in for plugging in
other audio devices.
For details, see page 5.
Component video jacks
for displaying videos on
your iPod/iPhone to TV
(cord not included)
For details, see page 6.
AC adaptor jack for
powering unit.
2

M A IN
CONTROLS
Bongiovi DPS: Turn
DPS audio enhancement on/off Decrease volume
+
Power Button: Turn Increase volume
unit on/off
BONGIOVI DPS
The iHome Studio Series featuring Bongiovi Acoustics DPS
(Digital Power Station) represents agenuine breakthrough in
audio processing. This unique and powerful processor, years in
the making, was developed by ateam of audio engineers that
have over 40 years
of experience in the music and motion '
picture recording industries. Audio
is digitally restored in real
time, adding missing harmonics, improving clarity, presence,
and bass resonance. Your music comes alive
in ways never
before possible.
3

P H 0 N E &
POD
Docking &Charging your iPhone or iPod
Make sure your iPod/iPhone's firmware is up to date via iTunes
before use. Remove
your iPod/iPhone from case or skin before
docking. Carefully dock your iPod/iPhone onto the dock. Your
iPhone or iPod will charge while docked.
Listening to iPhone or iPod
Press the Power Button (or any button) to turn the unit on. Press
Play on iPhone or iPod to listen to music. Adjust levels with -or +
Buttons. Press the DPS Button to activate Bongiovi audio. When
you are done listening, press the Power Button to turn the unit
off. When unit
is off, docking an already playing iPhone or iPod will
turn it on.
4

U SIN G
LINE-IN
LINE-IN JACK
Connect one end of a standard stereo 3.5mm audio cable (not
included) into the line-in
jack on the back of your iHome and
the
other into the headphone or output jack of your audio
device. Turn the device on and press play. Press the Power
Button on the unit to turn it on. Adjust volume on your audio
device and the unit as needed. Do not play an line-in audio
device and a docked iPhone or iPod at the same time or you
will hear
both sources.
5

VIDEO-OUT
Your iHome is capable of outputting video stored on your
iPod/iPhone to your television via the jacks on the rear.
Depending on your model of iPod/iPhone. the supported
video-out characteristics vary. See below.
For component video.
use the three jacks on rear
I
pr; PF
~~~
For composite video.
use only the center
Jack
I
p, p,
~@®
iPod classic, 3G iPod nano, 4G iPod nano, 2G iPod touch,
iPhone 3GS: These iPod models can
output progressive scan
component video.
1GiPod touch, iPhone, iPhone
3G: These models can output
interlaced scan component video.
All iPod/iPhone models also output composite video. To switch to
composite video. turn your iHome on, hold Bongiovi
DPS button (on
front) and press volume down (-) button. To switch back to component
video, hold Bongiovi
DPS button and press volume up (+) button.
These steps will
be necessary each time you dock your iPod/iPhone.
5G iPod: Only composite video is supported. 6

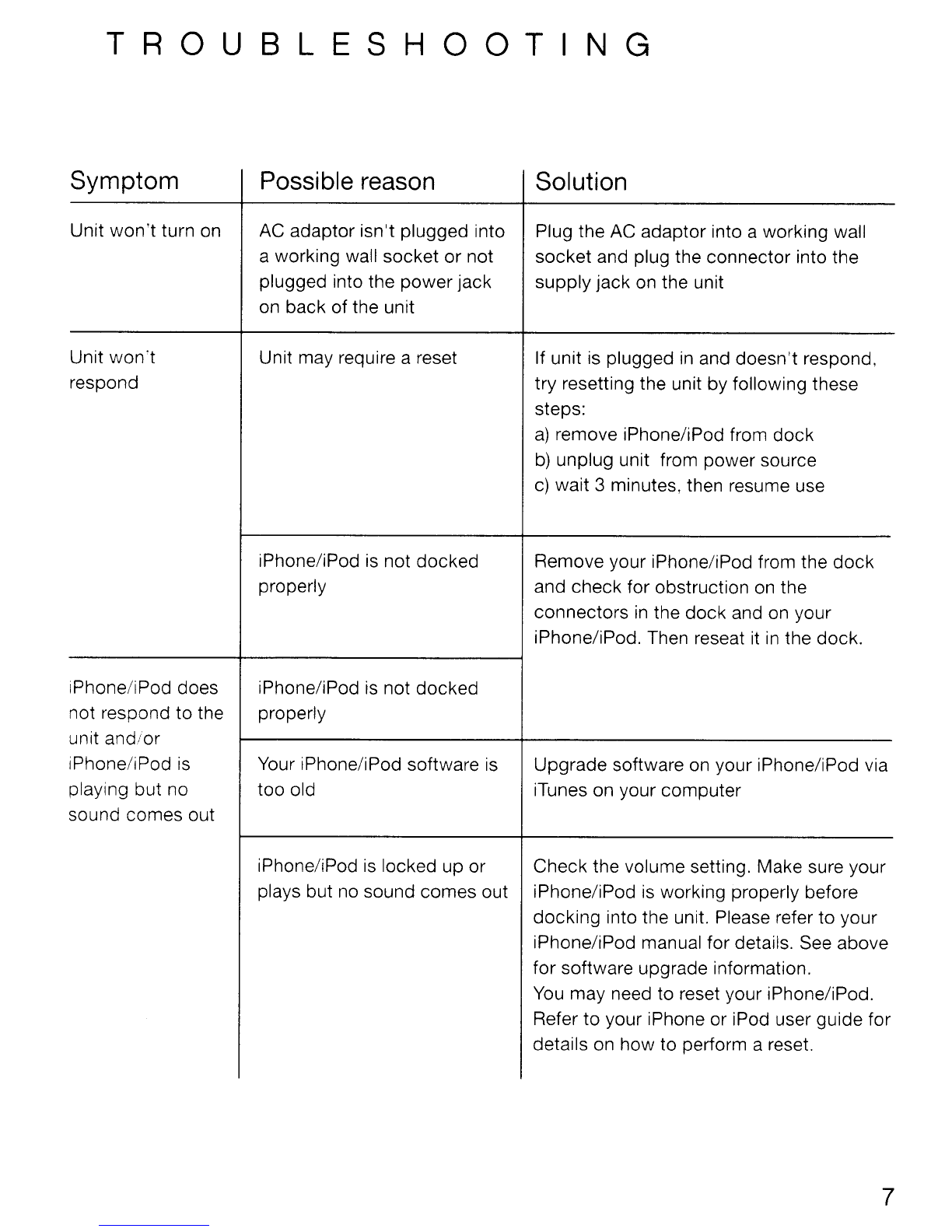

TROUBLESHOOTING
Symptom Possible reason Solution
Unit won't turn on AC adaptor isn't plugged into Plug the AC adaptor into aworking wall
aworking wall socket or not socket and plug the connector into the
plugged into the power jack supply jack on the unit
on back of the unit
Unit
won't Unit may require areset If unit is plugged in and doesn't respond,
respond try resetting the unit by following these
steps:
a) remove iPhone/iPod from dock
b) unplug unit from power source
c) wait 3minutes, then resume use
iPhone/iPod is not docked Remove your iPhone/iPod from the
dock
properly and check for obstruction
on the
connectors
in the dock and on your
iPhone/iPod. Then reseat it
in the dock.
iPhone/iPod does iPhone/iPod
is not docked
not respond to the properly
unit and/or
iPhone/iPod
is Your iPhone/iPod software is Upgrade software on your iPhone/iPod via
playing but no too old iTunes
on your computer
sound comes out
iPhone/iPod
is locked up or Check the volume setting. Make sure your
plays but
no sound comes out iPhone/iPod is working properly before
docking into the unit. Please refer to your
iPhone/iPod manual for details. See above
for software upgrade information.
You may need to reset your iPhone/iPod.
Refer to your iPhone or iPod user guide for
details
on how to perform areset.
7

TROUBLESHOOTING
Symptom
Possible reason Solution
Erratic External interference Move unit away from potential sources of
performance external interference such as computers.
modems. wireless devices (routers) or
fluorescent light.
No sound Volume
is too low
Turn volume up
Sound distorted Volume is
too high
Turn volume down
Sound source is distorted
If the iPhone/iPod original sound file (MP3) is
old or of poor quality. distortion and noise are
easily noticed with high-power speakers.
Try
upgrading file from atrusted source such as
iTunes.
Bongiovi DPS
and/or eq Turn Bongiovi DPS off if necessary.
settings are set too high
iPod/iPhone iPhone/iPod is locked
upl Please make sure your iPhone/iPod is
doesn't charge up frozen working properly before docking into the unit.
Please refer to your iPhone/iPod manual for
iPhone/iPod battery has details.
problem
iPhone/iPod
is not docked Remove your iPhone/iPod from the dock and
properly check for obstruction
on the connectors in
the dock and on your iPhone/iPod.
8

MPORTANT
S A F E T Y
TIP S
\\/herused In the directed manner. this unit has been designed and manufactured to ensure your personal
safet~. Ho\','ever. improper use can result In potential electrical shock or fire hazards. Please read all
safet~ and operating instructions carefully before installation and use. and keep these instructions handy
for future reference. Take special note of
all warnings listed In these Instructions and on the unit
1. Water and Moisture -The unit should not be used near water. For example: near abathtub. washbowl.
Kitchen slf'k. laundry tub. swimming pool or
in awet basement.
2. Vent!atlon -The unit should be situated so that Its location or position does not Interfere with its proper
ventilation. For example.
it should not be situated on abed. sofa. rug or similar surface that may block
vert;latioropenings. Also.
It should not be placed in abuilt-in installation. such as abookcase or cabinet.
:.hlch May Impede the flow of air through the ventilation openings.
3. Heat -The unit should be situated away from heat sources such as radiators. heat registers. stoves or
other appliances (including amplifiers) that produce heat.
4. Po':. er Sources -The unit should be connected to a power supply only of the type described in the
operating Instructions or as marked
on the appliance.
5. Po':/er-Cable Protection -Power supply cables should be routed so that they are not likely to be
·:.'alked on
or pinched by items placed upon or against them. It is always best to have aclear area from
\'/here the cable exits the unit to where
it is plugged into an AC socket.
6. Cleaning -The unit should be cleaned only as recommended. See the Maintenance section of this
manual for cleaning instructions.
7. Objects and Liquid Entry -Care should be taken so that Objects do not fall and liqUids are not spilled
,nto any openings or vents located
on the product.
8. Attachments -Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection -Unplug the unit from the wall socket and disconnect the
antenna or cable system during alightning storm or when it is left unattended and unused for long
periods of time. This will prevent damage to the product due to lightning and power-line surges.
10. Overloading - Do not overload wall sockets. extension cords. or Integral convenience receptacles as
thiS can result in arisk of fire or electriC shock.
11. Damage Requiring Service -The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. tre unit exhibits amarked change in performance or does not operate normally.
12. Periods
of Non use -If the unit is to be left unused for an extended period of time. such as amonth or
longer. the
power cable should be unplugged from the unit to prevent damage or corrosion.
13. Servicing -The user should not attempt
to service the unit beyond those methods described in the
user's operating instructions. Service methods not covered
In the operating Instructions should be
referred to qualified service personnel.
1.+. Magnetic Interference: This product's speakers contain powerful magnets which could cause
Interference or damage to sensitive equipment such as hard drives. CRT televisions and monitors. as well
as medical. scientific. and navigational devices. Keep this unit away from these products at all times. 9

AG U IDE TO PRODUCT
SAFETY
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions (1) This device may not cause harmful interference. and (2) this device must accept a'ij'
interference received. including interference that may cause undesired operation.
This equipment complies with the limits for aClass Bdigital device
as specified in Part 15 of FCC
Rules. These limits provide reasonable protection against radio and
TV interference In aresidentla'
area
However. your equipment might cause
TV or radio interference even when it is operating properly. To
eliminate interference you can try one or more of the following corrective measures:
•Reorient or relocate the receiving antenna.
•Increase the distance between the equipment and the radio or
TV.
•Use outlets on different electrical circuits for the equipment and the radio or TV.
•Consult your dealer or an experienced radio/television technician if the problem still exists.
Modifying or tampering with your system's internal
components can cause amalfunction and migflt
invalidate the system's warranty and void your FCC authorization to operate
it.
This Class Bdigital apparatus complies with Canadian ICES-003.
Cet appareil numerique de
la classe Best conforme a la norme NMB-003 du Canada.
WARNING: Lithium batteries can explode or cause burns if disassembled. shorted. recharged.
exposed
to water. fire. or high temperatures. Do not place loose batteries in apocket. purse. or other
container containing metal objects. mix with used or other battery types. or store with hazardous or
combustible materials. Store
in cool. dry. ventilated area. Follow applicable laws and regulations for
transport and disposal.
10

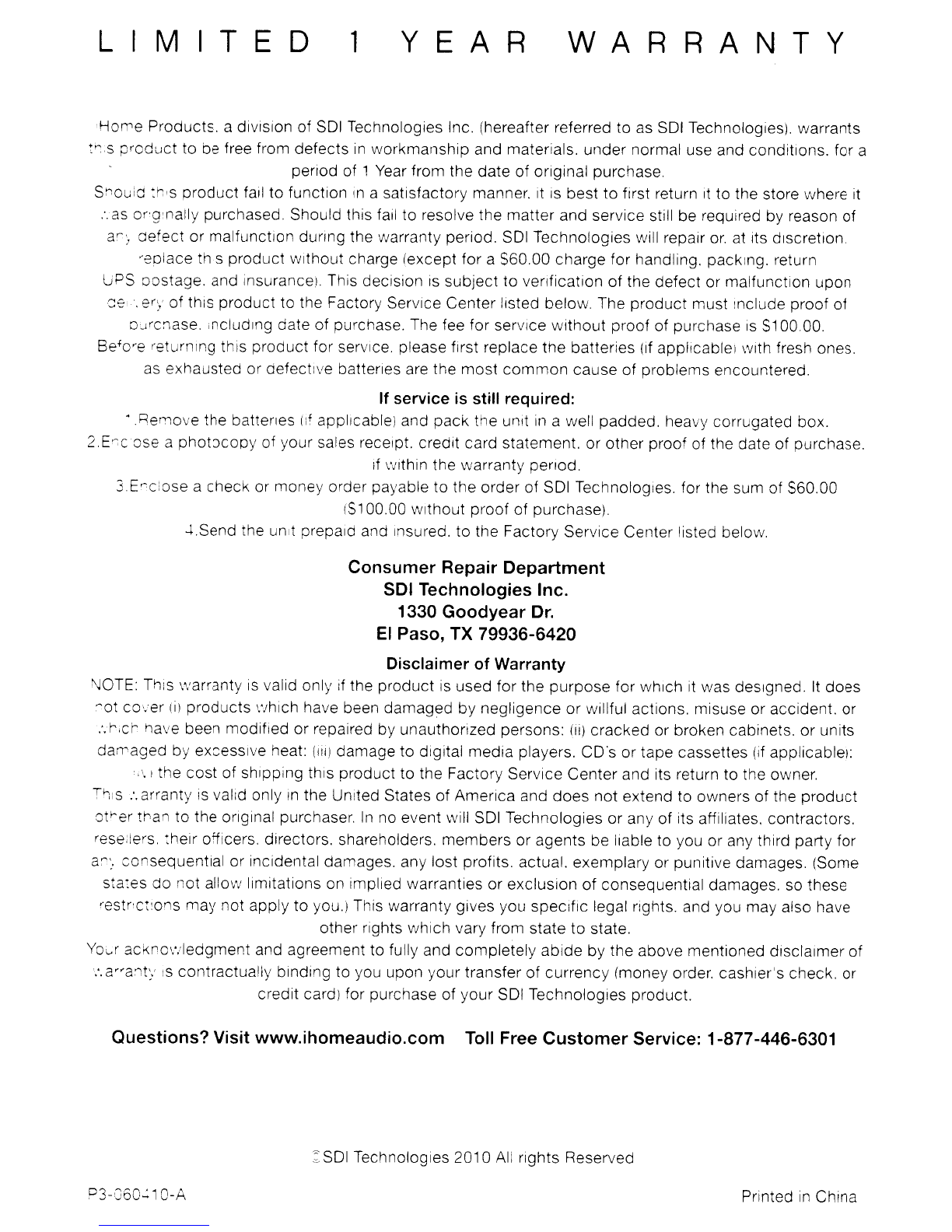

LIMITED 1 YEA R
WARRANTY
'Hoflle Products, adivision of SOl Technologies Inc, (hereafter referred to as SOl Technologies). warrants
t"'s product to be free from defects in workmanship and materials. under normal use and conditions. for a
period of 1
Year from the date of original purchase.
Should th,s product fail to function
In asatisfactory manner. it is best to first return it to the store where it
:.as or'g:nally purchased. Should this fail to resolve the matter and service still be required by reason of
a'J defect or malfunction dUring the warranty period. SOl Technologies will repair or. at its discretion.
'eolace this product without charge (except for aS60.00 charge for handling. packing. return
UPS oostage. and insurance). This decision
IS subject to verification of the defect or malfunction upon
ce,. ery of this product to the Factory Service Center listed below The product must include proof of
OurCilase. including date of purchase. The fee for service
without proof of purchase is S1 0000.
Befo'e "eturnlng this product for service. please first replace the batteries (if applicableJ with fresh ones.
as exhausted or defective batteries are the
most common cause of problems encountered.
If service is still required:
•. Remove the batteries [If applicable) and pack the unit in awell padded. heavy corrugated box.
2.E·-,cose a
photocopy of your sales receipt. credit card statement. or other proof of the date of purchase.
if \vithin the warranty period
3E"'ciose acheck or money order payable to the order of SOl Technologies. for the sum of S60.00
IS 100.00 without proof of purchase).
..+.Send the unit prepaid and Insured. to the Factory Service Center listed below.
Consumer Repair Department
SOl Technologies Inc.
1330 Goodyear
Dr.
EI Paso, TX 79936-6420
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does
:,ot co'.'er (il products which have been damaged by negligence or willful actions. misuse
or accident. or
:.hcr have been modified or repaired by unauthorized persons: Iii) cracked or broken cabinets. or units
dan'aged by excessive heat: (Iii) damage to digital media players. CD's or tape cassettes
(If applicable):
i'. Ithe cost of shipping this product to the Factory Service Center and its return to the owner.
This
:. arranty IS valid only in the United States of America and does not extend to owners of the product
otrer !ran to the original purchaser. In no event will SOl Technologies or any of its affiliates. contractors.
rese:lers. their officers. directors. shareholders. members or agents be liable to you or any third party for
ar':. consequential or incidental damages. any lost profits. actual. exemplary or punitive damages. (Some
states
do not allow limitations on implied warranties or exclusion of consequential damages. so these
'estr:ct'ons
may not apply to you.) This warranty gives you specific legal rights. and you may also have
other rights which vary from state to state.
YOc...r ackno\:/Iedgment and agreement to fully and completely abide by the above mentioned disclaimer of
:. a"a:it:/ IS contractually binding to you upon your transfer of currency Imoney order. cashier's check. or
credit card) for purchase of your SOl Technologies product.
Questions? Visit www.ihomeaudio.com Toll Free Customer Service: 1-877-446-6301
~ SDI Technologies 2010 All rights Reserved
D3-D60": 1 O-A Printed in China

Rz2
remote control
instruction booklet

Unit Controls
Plus/Minus Treble Buttons
• Raises and lowers treble
settings
Plus/Minus Bass Buttons
• Raises and lowers bass
settings
Power Button
• Turns unit ON or OFF.
Lower fRaise Volume
• Ra ises or lowers volume
of the unit
Mute Button
• Mute ON/OFF
Bongiovi DPS Button
• Turns Bongiovi Digital
Power Station processing
circuit on and off
Reset Button
•QUickly resets bass and
treble to default settings
treble
bass
ED
o
CD
e
•
·- - - iPhone/iPod Controls
1
1
1
1
1
1
I
I
1
1-

•
•
•
•
•
.......
.: .. :-
CD
•
e
•
iPhone/iPod Controls
Enter Button
•Confirm iPhone/iPod menu settings
Menu Button
•Access iPhone/iPod menu
Up/Down Buttons
•Scroll/adjust selected iPhone/iPod menu settings UP or
DOWN
Play/Pause Button
•Switches iPhone or iPod between Play and Pause modes
Track Buttons
•Skip to next or previous track
•HOLD
to scan reverse or forward within atrack
Shuffle Button
•Play tracks randomly from the selected playlist
Repeat Button
•Repeat the currently playing track
NOTE: this remote control may have features and functions
that don't apply to or work with your particular iHome model.
2

Replacing the Battery
Your Rz2 remote control comes with one CR2032 battery installed. When the range
of the remote seems reduced or if it ceases to work properly, it's time to replace the
battery.
1. Slide battery compartment cover on rear of remote
control off and remove battery.
2. Place
fresh CR2032 in battery well as shown
(make
sure +/- polarity matches markings).
3. Replace battery compartment cover.
WARNING: Lithium batteries can explode or cause burns
if disassembled, shorted, recharged, exposed to water,
fire, or high temperatures. Do not place loose batteries
in
apocket, purse, or other container containing metal
objects, mix with used or other battery types, or store with
hazardous or combustible materials. Store
in cool, dry,
ventilated area. Follow
applicable laws and regulations
for transport and disposal.
Battery compartment
cover
Troubleshooti ng
Problem: Remote doesn't work
Solutions:
A. Make sure you are within 15 feet of the unit and that the remote is pointed at the
front of the unit.
B. Try replacing the battery (see above),
RZ2 IB-6031 O-A(iP2/iP31 3
Printed in china

To make sure your iPod® or iPhone® and your iHome®
work together, follow these 3simple tips.
•Always use the insert that matches your iPod/iPhone
to avoid
damage to iPod/iPhone connector pins. (To
find out which insert is the right one for your
iPod/iPhone, see instruction book).
If product does
not require inserts, dock gently.
•Always place
and remove your iPod/iPhone at a
15 degree angle to the rear. This allows your
iPod/iPhone to
be inserted and removed smoothly.
•Never pull iPod/iPhone forward
or push backwards.
This can damage your iHome product and/or your
iPod/iPhone.
•For more information, visit www.ihomeaudio.com
PROBLEMS?
RESET YOUR iPod (will not affect music on your iPod)
1. Toggle (move) the Hold switch ON and OFF (slide it to Hold, then turn it off again.)
2. Press and hold the Menu +Select buttons until the Apple logo appears (about 6-10
econds). You may need to repeat this step.
RESET YOUR iPhone/iPod touch
1. Press and hold the Sleep/Wake button and the Home button at the same time for
at least ten seconds until the Apple logo appears.
UPDATE iPhone/iPod FIRMWARE
Update your iPhone/iPod firmware via iT unes on you computer.
3.10.09-5

•
I
+Sleep
FREE download
visit www.ihomeaudio.com/apps to
discover more about our app-enhanced
product line and award winning app

www.ihomeaudio.com
Portable mullimedia speakers for your iPod, iPhone,
Mocbook or any laptop, and MP3 player. Includes
buill-in rechargeable batteries and prolective cose.
H15W
=•
.(1)(11:1
.MODES
-
-
-
-
Color Chonging Stereo Syslem with Possive
Subwoofer for iPod. Chorges your iPod, 100. '-"""""'''-'
iH15

iH16
,PilI!
Spacesaver Alarm Cleek
fer iPhone·· & iPed
iPll
Portable Stereo Speakers wilh Alarm Clock
far iPed. Charge, wake & sleep to iPed'".
