iHome IP56 User manual

•
IModel iP56
Portable Rechargeable
Speaker System for your
iPhone® and iPod ®
..
. X
'. ...
. ... ..
• > •
.,
> •
Questions? Visit www.ihomeaudio.com

iP56 Quick Start
·Table of Contents .
1
Controls and Indicators ----- -- - --- --- - ------- -------- ----- --- ------- - ------ - ------ - --------- ---- --- ------- --------- 2
Using the iP56
------- - --------- -- ------ -- ---- - --- ----- - -- ----- - ------- --- ------- ---- --------------------- -- - ----- 3-4
AConsumer Guide
to Product Safety -- . 5
Trouble Shooting .
._____ _ 6
Warranty Information --------- -------- - ------- ----- --- - -- ---- ------ ---- ------- ------- ---- ----- - -------------- --------- 7
SRS@" SR5@·
i1!!:M and ~Ilol"" are registered trademarks of SRS Labs, Inc.
TruBass and wowtechnologies are incorporated under license from SRS Labs, Inc.

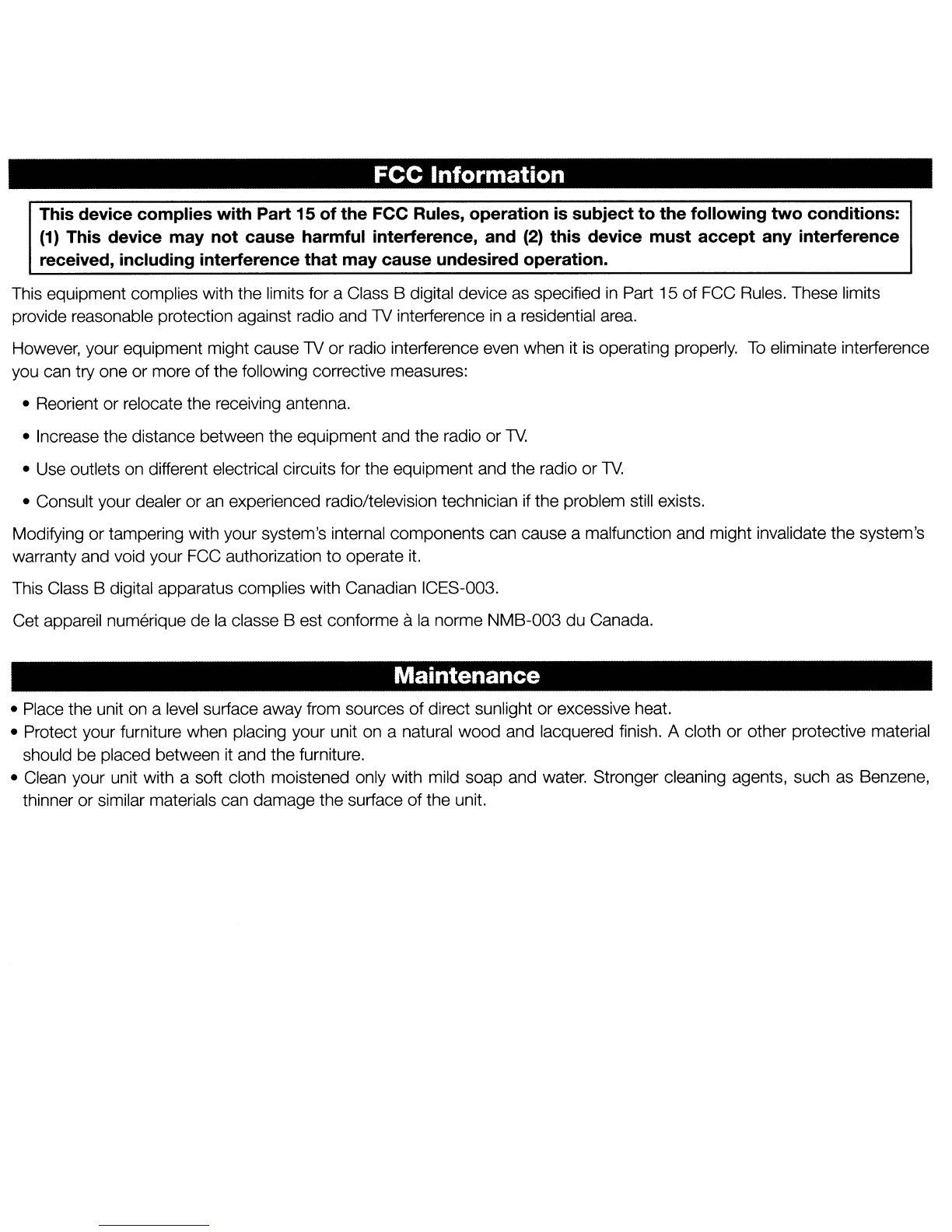

FCC Information
This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment complies with the limits for aClass Bdigital device as specified in Part 15 of FCC Rules. These limits
provide reasonable protection against radio and TV interference
in aresidential area.
However, your equipment might cause TV or radio interference even when it
is operating properly. To eliminate interference
you can try one or more
of the following corrective measures:
•Reorient or relocate the receiving antenna.
•Increase the distance between the equipment and the radio or
1V
•Use outlets on different electrical circuits for the equipment and the radio or TV.
•Consult your dealer or an experienced radio/television technician if the problem still exists.
Modifying or tampering with your system's internal components can cause amalfunction and might invalidate the system's
warranty and void your FCC authorization
to operate it.
This Class Bdigital apparatus complies with Canadian ICES-003.
Cet appareil numerique de
la classe Best conforme ala norme NMB-003 du Canada.
Maintenance
•Place the unit on alevel surface away from sources of direct sunlight or excessive heat.
•Protect your furniture when placing your unit on anatural
wood and lacquered finish. Acloth or other protective material
should be placed between it and the furniture.
•Clean your unit with asoft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzene,
thinner or similar materials can damage the surface
of the unit.

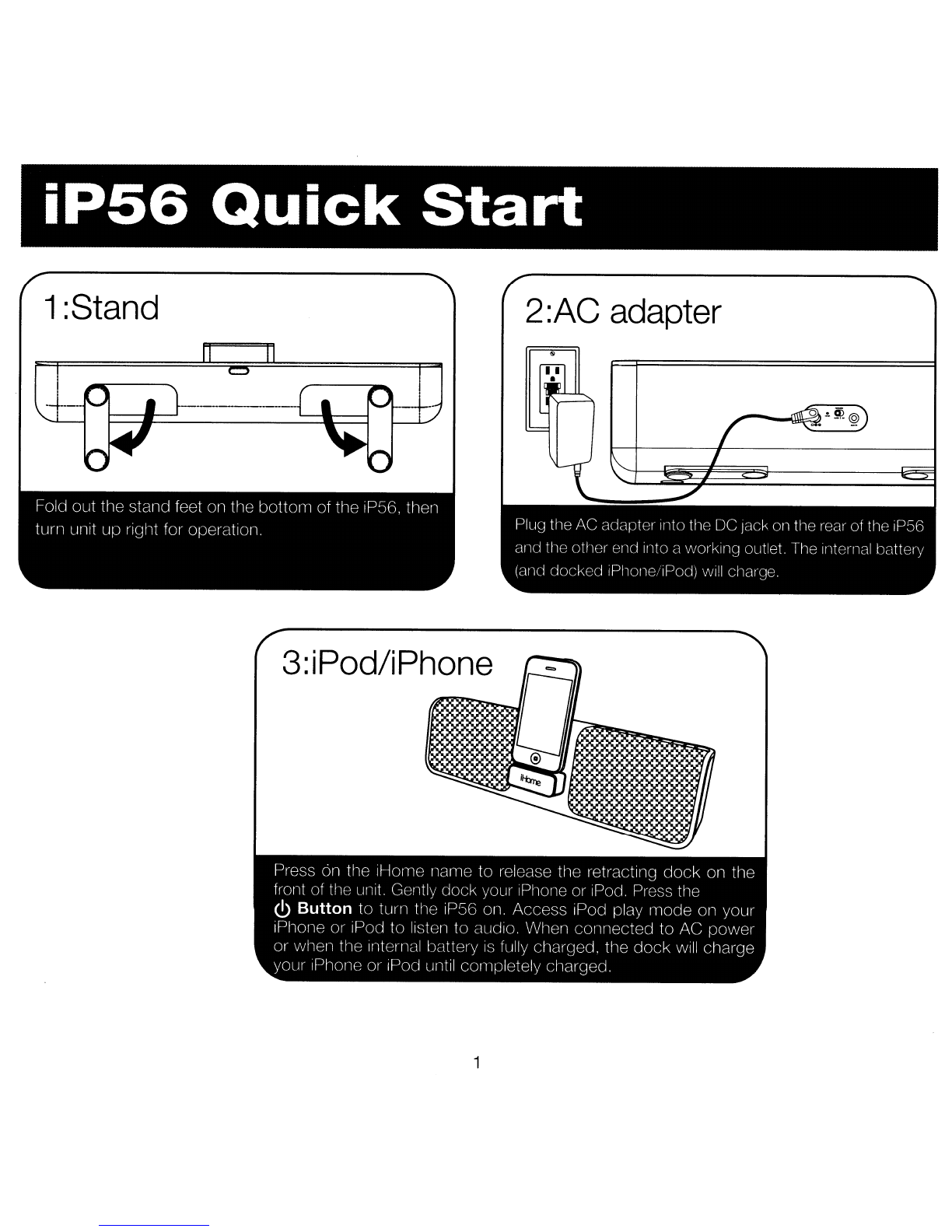

iP56 Quick Start
1 :Stand
Fold out the stand feet 011 ll1e) bottom at the ,PSG, therl
tum unit up ri~Jht for oper'dllCll1,
2 :AC adapter
1

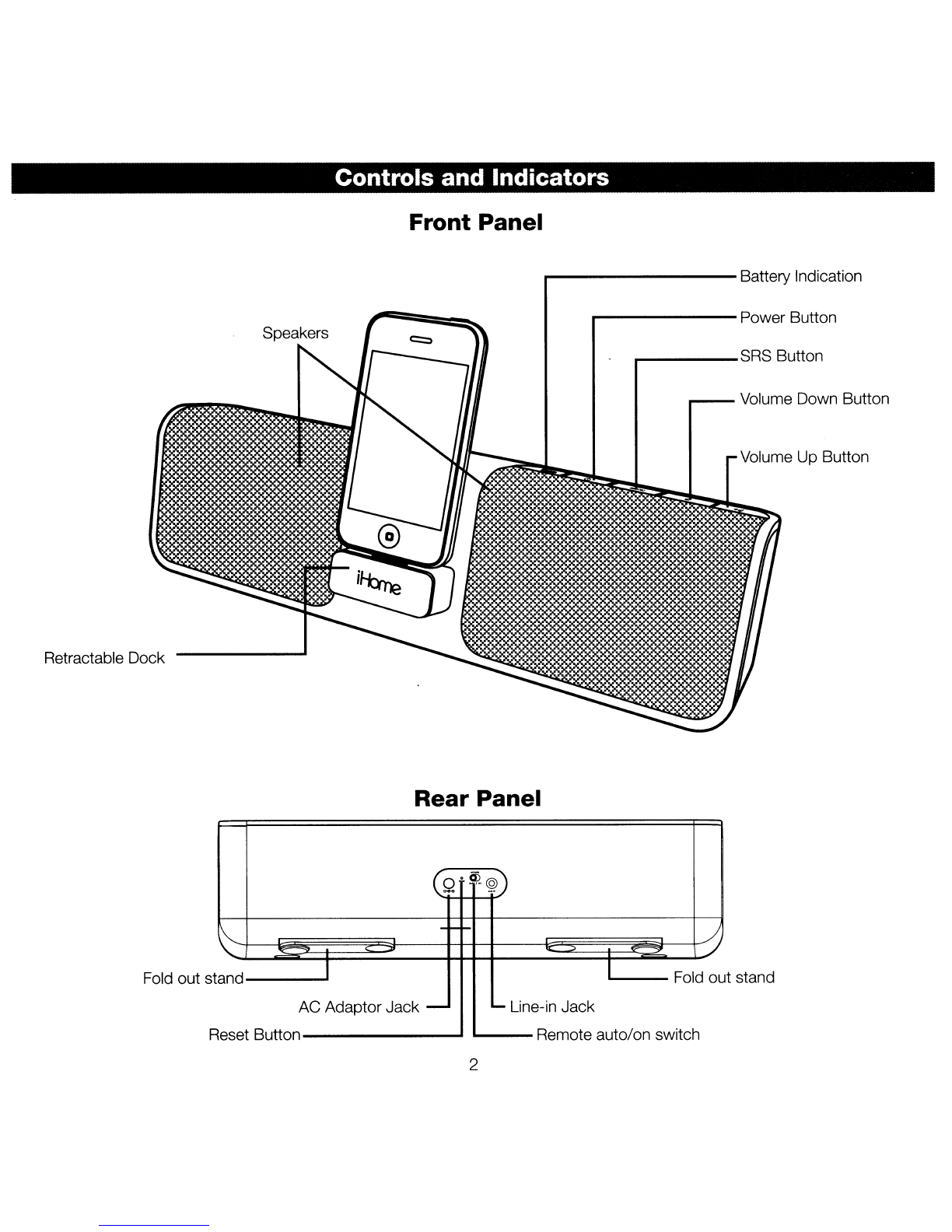

Controls and Indicators
Front Panel
r---------- Battery Indication
Retractable Dock
...------- Power Button
r------SRS Button
r---- Volume Down Button
Volume Up Button
Rear Panel
tstand
(Q'~®
-
./
tand I I Fold ou
AC Adaptor Jack -
l.- Line-in Jack
eset Button Remote
aut%n switch
R
Fold out s
2

Using the iPS6
-
L=... ~
0
~-rJ1
----:::::
Dock Release
Note: Docking an already playing iPhone or iPod will also turn the iP56 on.

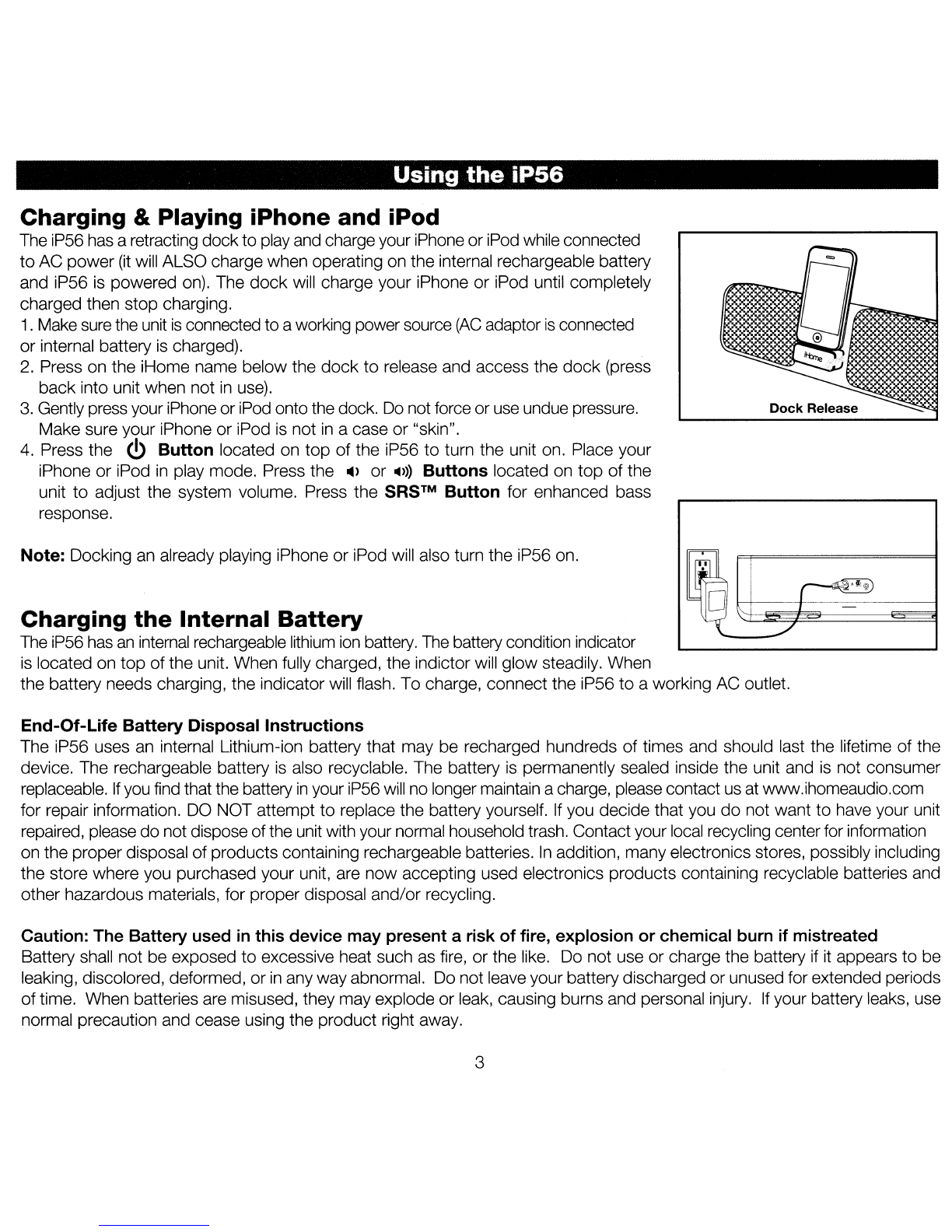

Charging the Internal Battery
The iP56 has an internal rechargeable lithium ion battery. The battery condition indicator
is located on top of the unit. When fully charged, the indictor will glow steadily. When
the battery needs charging, the indicator will flash. To charge, connect the iP56
to aworking AC outlet.
Charging &Playing iPhone and iPod
The iP56 has aretracting dock to play and charge your iPhone or iPod while connected
to AC power (it will ALSO charge when operating on the internal rechargeable battery
and iP56
is powered on). The dock will charge your iPhone or iPod until completely
charged then stop charging.
1. Make sure the unit
is connected to aworking power source (AC adaptor is connected
or internal battery is charged).
2. Press on the iHome name below the
dock to release and access the dock (press
back into unit when not
in use).
3. Gently press your iPhone or iPod onto the dock. Do not force or use undue pressure.
Make sure your iPhone
or iPod is not in acase or "skin".
4. Press the
<!> Button located on top of the iP56 to turn the unit on. Place your
iPhone
or iPod in play mode. Press the J4) or ,.») Buttons located on top of the
unit
to adjust the system volume. Press the SRSTM Button for enhanced bass
response.
End-Of-Life Battery Disposal Instructions
The iP56 uses an internal Lithium-ion battery that may be recharged hundreds of times and should last the lifetime of the
device. The rechargeable battery
is also recyclable. The battery is permanently sealed inside the unit and is not consumer
replaceable.
If you find that the battery in your iP56 will no longer maintain acharge, please contact us at www.ihomeaudio.com
for repair information. DO NOT attempt
to replace the battery yourself. If you decide that you do not want to have your unit
repaired, please do not dispose ofthe unit with your normal household trash. Contact your local recycling center for information
on the proper disposal
of products containing rechargeable batteries. In addition, many electronics stores, possibly including
the store where you purchased your unit, are
now accepting used electronics products containing recyclable batteries and
other hazardous materials, for proper disposal and/or recycling.
Caution: The Battery used in this device may present arisk of fire, explosion or chemical burn if mistreated
Battery shall not be exposed to excessive heat such as fire, or the like. Do not use or charge the battery if it appears to be
leaking, discolored, deformed, or
in any way abnormal. Do not leave your battery discharged or unused for extended periods
of time. When batteries are misused, they may explode or leak, causing burns and personal injury.
If your battery leaks, use
normal precaution and cease using the product right away.
3

Using the iPS6
Using
the Aux Line-in Jack
The iP56 has an aux line-in jack located on the back of the unit to play other audio devices.
1. Connect one end of astandard 3.5mm audio cable (available
at www.ihomeaudio.com) to the aux line-in jack and the
other end into the headphone or line-out jack on your audio device.
2. Press the <!> Button on the iP56 to turn it on. Make sure your device is turned on, too.
3. Put your device into play mode. Press the ..) or -.») Buttons to adjust the system volume. You may need to adjust the
volume on your device, too.
4.Press the
<!> Button to turn the iP56 off. Remember to turn your device off, too.
Note: Do not play an audio device through the aux line-in jack while an iPhone or iPod is playing in the dock or you will hear
both at once.
Using the Remote aut%n switch
The iP56 has aremote aut%n switch located on the back of the unit. Slide the switch to the AUTO position to save battery
power when traveling or operating on the internal battery.
AUTO disables remote operation when operating on the internal
battery. Slide switch
to ON position for normal remote operation
Resetting the iPS6
Your iP56 was designed with aspecial surge protection circuit to prevent permanent damage to the
unit
in the event of an unexpected power surge. If your unit appears to be 'locked up' and is not
operating normally, and you know that the battery
is properly charged, use astraightened paper clip,
toothpick, or similar object to press the RESET button, located on the back panel next to the AC
jack. This will unlock the unit and restore the original factory default settings.
Reset button located
on
back of unit
4

IMPORTANT SAFETY INSTRUCTIONS
When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However,
improper use can result
in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully
before installation and use, and keep these instructions handy for future reference. Take special note
of all warnings listed in
these instructions and on the unit.
1.
Water and Moisture -The unit should not be used near water. For example: near abathtub, washbowl, kitchen sink,
laundry tub, swimming pool
or in a wet basement.
2. Ventilation -The unit should
be situated so that its location or position does not interfere with its proper ventilation. For
example,
it should not be situated on abed, sofa, rug or similar surface that may block ventilation openings. Also, it
should not be placed
in abuilt-in installation, such as abookcase or cabinet, which may impede the flow of air through
the ventilation openings.
3.
Heat -The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances
(including amplifiers) that produce heat.
4. PowerSources-The unit should be connected to apower supply only of the type described in the operating instructions
or as marked on the appliance.
5. Power-Cable Protection -Power supply cables should be routed so that they are not likely
to be walked on or pinched
by items placed upon or against them. It is always best to have aclear area from where the cable exits the unit to where
it is plugged into an AC socket.
6. Cleaning -The unit should
be cleaned only as recommended. See the Maintenance section of this manual for cleaning
instructions.
7. Objects and Liquid Entry-Care should be taken so that objects do not fall and liquids are not spilled into any openings
or vents located on the product.
8. Attachments -Do not use attachments not recommended by the product manufacturer.
9. Lightning and
Power Surge Protection -Unplug the unit from the wall socket and disconnect the antenna or cable
system during alightning storm
or when it is left unattended and unused for long periods of time. This will prevent damage
to the product due to lightning and power-line surges.
10. Overloading -Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result
in
arisk of fire or electric shock.
11.
Damage Requiring Service -The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits amarked change in performance or does not operate normally.
12. Periods
of Nonuse -If the unit is to be left unused for an extended period of time, such as amonth or longer, the power
cable should
be unplugged from the unit to prevent damage or corrosion.
13. Servicing -The user should not attempt
to service the unit beyond those methods described in the user's operating
instructions. Service methods not covered
in the operating instructions should be referred to qualified service personnel.
Questions? Visit www.ihomeaudio.com
or call 1-800-288-2792Toll Free
5

Trouble Shooting
Symptom Possible Problem Solution
Unit doesn't respond AC adaptor isn't plugged into awall outlet Plug the AC adaptor into awall outlet and plug the
(no power) or the connector
is not plugged into the connector into the supply jack on the unit
power supply jack on the back of the dock
Wall outlet is not functioning or switched off Plug another device into the same outlet to confirm the outlet
is working. Make sure any associated power switch is ON
Battery
is weak! dead Charge internal battery by connecting AC adaptor to
workina outlet until batterv indicator alows steadilv.
iPod/iPhone does not iPod/iPhone not docked properly Remove your iPod/iPhone from the
dock and check for
dock properly obstruction on the connectors
in the dock and on your
iPod/iPhone. Make sure there
is no "skin" or case on the
iPod/iPhone. Then reseat
it in the dock.
iPod/iPhone does iPod/iPhone
is not docked properly Remove your iPod/iPhone from the dock and check for
not respond to the obstruction on the connectors
in the dock and on your
unit iPod. Then reseat
it in the dock.
Your iPod/iPhone software
is too old Upgrade software on your iPod/iPhone via iTunes
iPod/iPhone
is locked up Please make sure your iPod/iPhone
is working properly
before docking into the unit. Please refer to your
iPod/iPhone manual for details.
Using 1
8t
or 2
nd
generation iPod, iPod Unit cannot control those iPod models or other devices.
shuffle or other devices. Use the Line-in jack to play these devices.
iPod/iPhone does not
If your iPod/iPhone is not used for some Press the Menu button
on your iPod/iPhone
come on immediately time,
it may enter deep sleep mode
iPod/iPhone battery
is run down or is too Charge your iPod/iPhone for about 5minutes
weak
Unit operation
is erratic
Unit requires reset
Insert the end of apaperclip or similiar into the Reset port
located next to the AC jack and press
in for afew seconds
to restore the unit to factory default settings. Doing so will
overwrite any current settings.
Remote control Battery
is weak or dead Replace with new battery
doesn't work Remote Control
is too far away or not Point
the Remote Control toward the unit and use within 15 feet
aimed properly toward the device of the unit.
Remote switch
is in AUTO position Move Remote switch to
ON position
6

Limited 1 Year Warranty Information
iHome Products, a dMsion of SOl Technologies Inc. (hereafter referred to as SOl Technologies), warrants this product to be free from defects
in workmanship and materials, under normal use and conditions, for a period of 1 Year from the date of original purchase.
Should this product fail to function in a satisfactory manner, it is best to first retum it to the store where it was originally purchased. Should this
fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period, SOl Technologies will
repair or, at its discretion, replace this product without charge (except for a $20.00 charge for handling, packing, retum UPS/postage, and
insurance). This decision is subject to verification of the defect or malfunction upon delivery of this product to the Factory Service Center listed
below. The product must include proof of purchase, including date of purchase. The fee for service without proof of purchase is $40.00.
Before retuming this product for service, please first replace the batteries (If applicable) with fresh ones, as exhausted or defective batteries are
the most common cause of problems encountered.
If service is still required:
1. Remove the batteries (If applicable) and pack the unit in a well padded, heavy corrugated box.
2. Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty period.
3. Enclose a check or money order payable to the order of SOl Technologies, for the sum of $20.00 ($40.00 without proof of purchase).
4. Send the unit prepaid and insured, to the Factory Service Center listed below.
Consumer Repair Department
SOl Technologies Inc.
1330 Goodyear Drive
B Paso, TX 79936-6420
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (0 products which have
been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized persons; 00
cracked or broken cabinets, or units damaged by excessive heat; OiO damage to digital media players, CD's or tape cassettes (if applicable); (IV)
the cost of shipping this product to the Factory Service Center and its retum to the owner.
This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original purchaser.
In no event will SOl Technologies or any of its affiliates, contractors, resellers, their officers, directors, shareholders, members or agents be liable
to you or any third party for any consequential or incidental damages, any lost profits, actual, exemplary or punitive damages. (Some states do
not allow limitations on implied warranties or exclusion of consequential damages, so these restrictions may not apply to you.) This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state.
Your acknowledgement and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually binding
to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your SOl Technologies product.
© 2010 SOl Technologies, Inc. All rights reserved
Questions? Visit www.ihomeaudio.com
or call 1-800-288-2792 Toll Free
7

iP56-051310-A
•
I
Printed in China

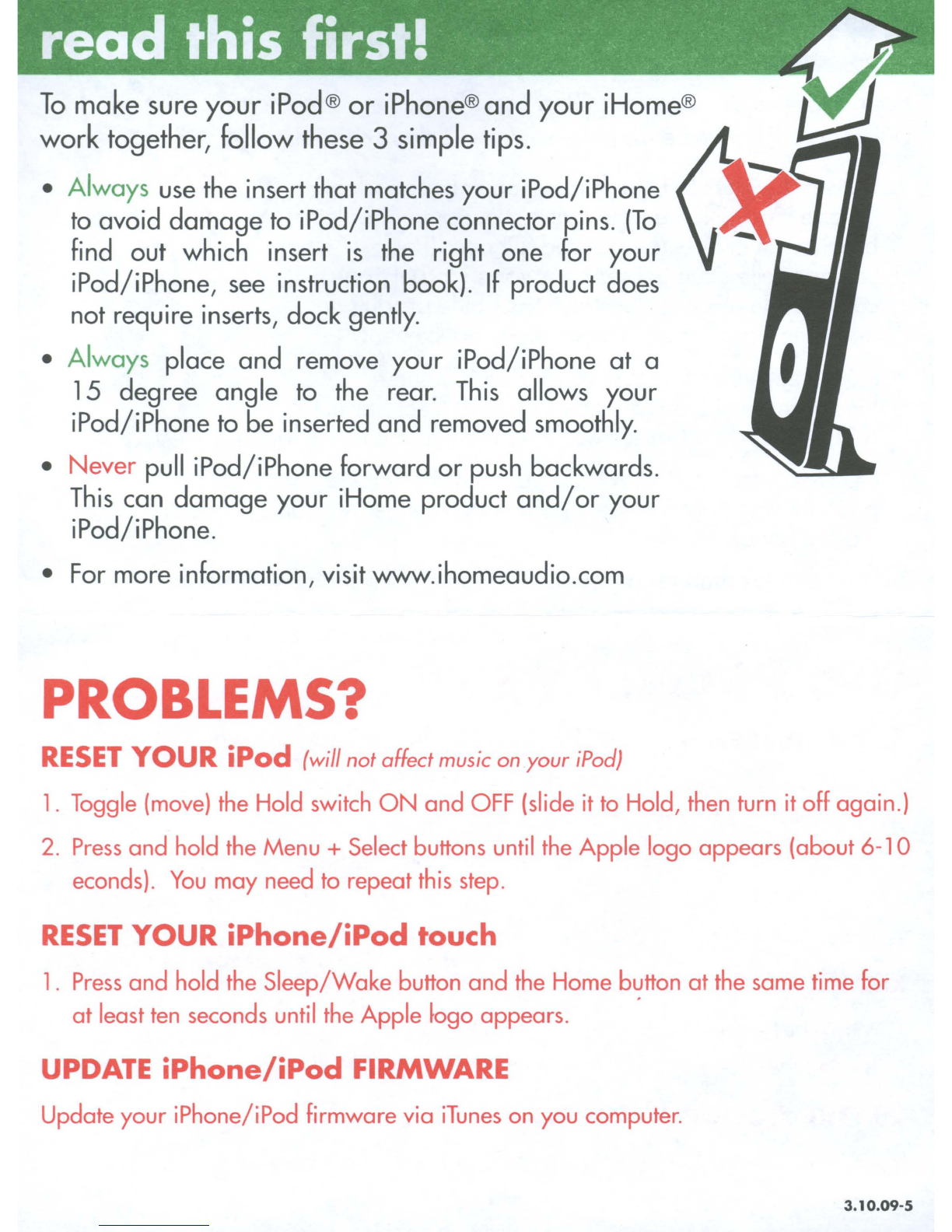

To make sure your iPod® or iPhone® and your iHome®
work together, follow these 3simple tips.
•Always use the insert that matches your iPod/iPhone
to avoid
damage to iPod/iPhone connector pins. (To
find out which insert is the right one for your
iPod/iPhone, see instruction book). If product does
not require inserts,
dock gently.
•Always place
and remove your iPod/iPhone at a
15 degree angle to the rear. This allows your
iPod/iPhone to be inserted and removed smoothly.
•Never pull iPod/iPhone
forward or push backwards.
This can damage your iHome product and/or your
iPod/iPhone.
•For more information, visit www.ihomeaudio.com
PROBLEMS?
RESET YOUR iPod (will not affect music on your iPod)
1. Toggle (move) the Hold switch ON and OFF (slide it to Hold, then turn it off again.)
2. Press and hold the Menu +Select buttons until the Apple logo appears (about 6-10
econds). You may need to repeat this step.
RESET YOUR iPhone/iPod touch
1. Press and hold the Sleep/Wake button and the Home b~tton at the same time for
at least ten seconds until the Apple ~ogo appears.
UPDATE iPhone/iPod FIRMWARE
Update your iPhone/iPod firmware via iTunes on you computer.
3.10.09-5

RZ7 remote
For only $1 9.99, we'll send you afull-function remote that lets you
control your
unit and basic iPhone and iPod® functions from almost
anywhere in
the room.
ORDERS SHIPPED TO NJ, TX, WA and MI ARE SUBJECTTO STATE AND LOCAL SALES TAXES
free shipping & handling
•Play or pause iPhone and iPod®
•
Access iPod menu functions
•Access next and previous song
•
Scan current track backwards and forwards
•Control sound effects,
volume levels and mute function
order online: www.ihomeaudio.com (order iRZ7B)
order
by phone: toll free 1-800-288-2792(order iRZ7B)
*Offer available only in continental US.
Shipment:allow up to 30 days
Offer valid while supplies last.
Condition of Sale: Replacements only
NOTE: This remote control may have features and functions that
don't apply to or work with your particular iHome model
iPod is aregistered trademark owned and licensed from
AppleComputers in
the u.s. and in other countries
•
I

•
I
Register by mail or online
www.ihomeaudio.com
•Confirmation of Ownership
• Product Safety Notifications
•
Product Tips and Updates
Thank you for choosing iHome.
We hope to enhance your product ownership experience.

SOl Technologies Inc.
Attn: Customer Service
135 Essex Avenue
Avene1NJ,07001
TBC01
•
I
PO BOX 174032
DENVER CO 80217-4032
First -Class
Postage
Required
Post Office
will not deliver
without proper
postage
11 •• 1.11 ••••• 1.1 ••• 111 ••• 1.1 •• 111 ••••• 11 ••• 1.1 •• 11 ••• 1.11 •• 1.1

Register online today to enter the iHome quarterly giveaway
1. 1.0 Mr.
Rrst Name
2.0 Mrs. 3.0 Ms. 4.0 Miss
Initial Last name
Street Apt
TBC01
City
StatelProvince Zip/Postal code
E-mail address:
2. Your date of birth:
/
Month
Year
4. Date of purchase:
//
Month Day Year
3. Marital status: 01. 0 Married
5. Model number:
02.0 Single
6. Name of store where purchased:
11. What features/factors influence this purchase?
01
0 Ad - lV/Magazine/
07.
0
Overall design
Newspaper
08.
0
Price
02.
0
Application enhancement/
09.
0
Remote control
Bongiovi technology
10.
0
Store display
03. 0
Brand reputation/
11.
0
Sound
Experience
12.
0
Wake/Sleep to iPod!
04.
0
Battery backup
iPhone
15.
05.
0
Charges iPod!iPhone
13. 0
Wake to radio/alarm
06. 0 Friends/Relatives
14.
0
Website
recommendation
15.
0
Other
9. Which of the following best describes this purchase?
01. 0 The first product of this type you've owned
02. 0 A replacement/upgrade of a similar product
03. 0 An addition to a similar product you already own
04. 0 Received as a gift
05. 0 Other
10. Please indicate the gender and age of the person
who will be using this product most often:
8. Price paid (excluding sales tax): $
7. Did you:
01. 0 Purchase this product yourself?
02. 0 Receive this product as a gift?
13. What brands did you consider?
01. 0 Altec Lansing 08. 0 Philips
02. 0 Bose 09. 0 Sony
03. 0 HoMedicS/Sharper Image 10. 0 XtremeMac
04. 0 iLuv 11. 0 No other brands
05. 0 JBL considered
06. 0 Logitech 12. 0 Other
07. 0 Memorex
14. OccupationlEmployment status: (check all that apply)
You Spouse
01. ProfessionallTechnical 0 0
02. Upper management/Executive 0 0
03. Middle management 0 0
04. Sales/Marketing 0 0
05. Clerical/Service worker 0 0
06 Tradesman/Machine op.lLaborer 0 0
07. Teacher/Educator 0 0
08. Healthcare-PhysicianiNurse/Other 0 0
09. Homemaker 0 0
10. Military 0 0
11. Retired 0 0
12. Self employed/Business owner 0 0
13. Work from home office 0 0
Which group describes your annual family income?
01. 0 Under $25,000 05. 0 $75,000-$99,999
02. 0$25,000-$49,999 06. 0 $100,000-$149,999
04. 0$50,000-$74,999 07. 0 $150,000 and over
. a a
02. 0 Female 03. Age: 01. 0 Male
12. Where do you plan on using this product?
01. 0 Bedroom 05. 0 Kitchen
02. 0 Home office 06. 0 Work office
03. 0 Family Room/Den 07. 0 Dormitory
04 0 Home gym 08. 0 Other
16.
Do you own an iPhone?
01. 0 Yes 02. 0
No
17.
Do you own an iPad?
01. 0
Yes
02. 0
No
18. How many applications have you downloaded?
01. 0 0-10 02.011-20 03.0 21-30 04.0 31+
--_. ------------
iHome respects your privacy. All information will be kept confidential. We do not share personal information with any third party.

iH15
1!il~1
••
iHM79
-
-
•
•
••
• (1]1II:1
"I'MODES
•
•
•
•
Color Changing Stereo System with Passive
Sub-.vooler lor iPod Charges your iPod, 100. L;;;;;;;;~
Portable multimedia speakers for your iPod, iPhone,
i\l\acbook or any loplop, and MP3 player. Includes
built-in rechargeable batteries and protective case.
www.ihomeoudio.com

Spocesover Alarm Clock
for iPhone .... & iPed
iPll
"""- ......
Portable Stereo Speakers with Alarm Clock
for iPod. Charge, woke &sleep to iPod~.
iH16

iHome+Sleep
App Enhanced Alarm Clock
Speaker System for iPhone & iPed
iA5
liilirnl
:..
iP46
Portable Stereo Specker System
lor iPed & iPhone with built-in
rechargeable battery
iP37
Portable stereo speaker system for iPhofle'~ & iPod .
Ploy/charge your iPhone/iPod in this l09-240V
splash resistant zippered case. ..nl~=

Duol dock 3·olorm stereo dock rodio for
your iPod & iPhone. Independently wake to
iPhone/iPod, playlist, radio or buzzer.
iP88
The stereo clock radio for your iPhone & iPed.
Ploy, charge, and woke/sleep to your iPhone & iPedl
Dual alarm, EO function &radio presets.
iP90
!
"~.'
~
iP41
Rotating alarm dock for iPhone & iPod.
LCD display automatically changes
to match orientation.
