IKEA Livsgnista User manual

LIVSGNISTA
GB
DK
FI
NO
SE
GB DK FI NO SE

GB
DK
NO
FI
SE
LANGUAGE, TAAL
COUNTRY, LAND
ENGLISH 5
DANSK 23
SUOMI 41
NORSK 60
SVENSKA 78

9
Min. 5 cm
Min. 40 cm
Min. 10 cm
L
Min. 52 cm
Min. 10 cm
Min. 60 cm
Max 68 cm
Min. 5 cm
Min. 75 cm
Min. 10 cm
Min. 40 cm
> 68 cm
Min. 5 cm
Min. 75 cm

5
Before using the appliance, read
these safety instructions. Keep
them nearby for future reference.
These instructions and the
appliance itself provide important
safety warnings, to be observed
at all times. The manufacturer
declines any liability for failure to
observe these safety instructions,
for inappropriate use of the
appliance or incorrect setting of
controls.
These instructions are valid if
the country symbol appears on the
appliance. If the symbol doesn’t
appear on the appliance, it is
necessary to refer to the technical
instructions which will provide the
necessary instructions concerning
modication of the appliance
to the conditions of use of the
country.
CAUTION: The use of the
gas cooking appliance results in
the production of heat, moisture
and products of combustion in
the room in which it is installed.
Ensure that the kitchen is well
ventilated especially when the
appliance is in use: keep natural
Safety Information
Table of contents
ventilation holes open or install
a mechanical ventilation device
(mechanical extractor hood).
Prolonged intensive use of the
appliance may call for additional
ventilation, for example opening
of the window, or more effective
ventilation,increasing the level
of mechanical ventilation where
present.
WARNING!: The appliance
and its accessible parts become
hot during use. Care should be
taken to avoid touching heating
elements. Children less than 8
years of age must be kept away
unless continuously supervised.
WARNING!: If the hob surface
is cracked, don’t use the appliance
– risk of electrical shock.
WARNING!: Danger of re :
Do not store items on the cooking
surfaces.
CAUTION: The cooking process
has to be supervised.
A short cooking process has to be
supervised continuously.
WARNING!:Unattended
cooking on a hob with fat or oil
Safety Information 5

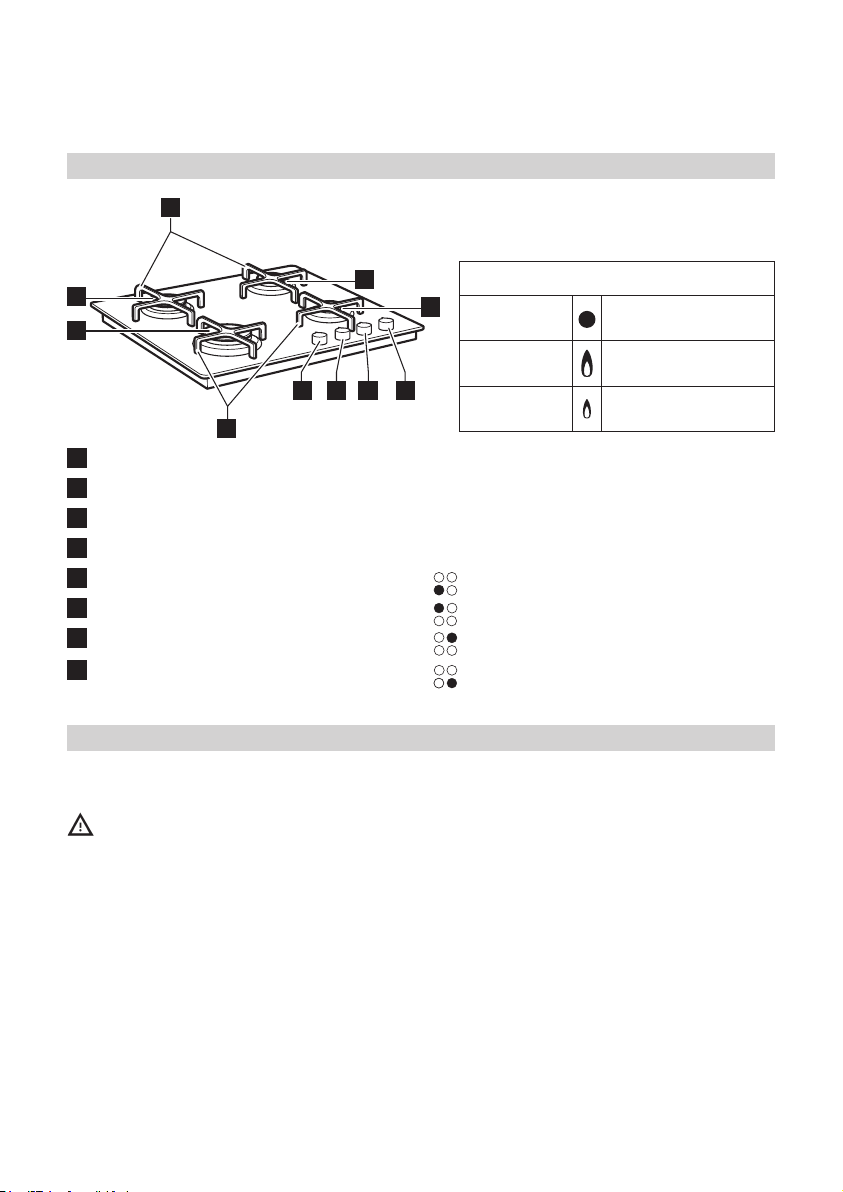

Product description 11
Daily use 11
Helpful hints and tips 12
Maintenance and cleaning 12
What to do if ... 13
Injector table 14
Technical data 15
Installation 15
Environmental concerns 20
Manufacturer 20
IKEA GUARANTEE 21
GB
ENGLISH

ENGLISH 6
can be dangerous – risk of re.
NEVER try to extinguish a re with
water, but switch off the appliance
and then cover ame e.g. with a
lid or a re blanket.
Do not use the hob as a work
surface or support.
Keep clothes or other ammable
materials away from the
appliance, until all the components
have cooled down completely –
risk of re.
If the information in this manual
is not followed exactly, a re or
explosion , may result causing
property damage or injury.
Very young children (0-3 years)
should be kept away from the
appliance. Young children (3-8
years) should be kept away from
the appliance unless continuously
supervised. Children from 8 years
old and above and persons
with reduced physical, sensory
or mental capabilities or lack of
experience and knowledge can
use this appliance only if they
are supervised or have been
given instructions on safe use and
understand the hazards involved.
Children must not play with the
appliance. Cleaning and user
maintenance must not be carried
out by children without supervision.
CAUTION: In case of hotplate
glass breakage:- shut immediately
off all burners and any electrical
heating element and isolate the
appliance from the power supply;
- do not touch the appliance
surface; -do not use the appliance.
The glass lid can break in if it
is heated up. Turn off all the
burners and the electric plates
before closing the lid. Do not
shout down lid when burner
alight.
PERMITTED USE
CAUTION: the appliance is not
intended to be operated by means
of an external switching device,
such as a timer, or separate remote
controlled system.
This appliance is intended
to be used in household and
similar applications such as: staff
kitchen areas in shops, ofces
and other working environments;
farm houses; by clients in hotels,
motels, bed & breakfast and other
residential environments.
No other use is permitted (e.g.
heating rooms).
This appliance is not for
professional use. Do not use the
appliance outdoors.
Use pots and pans with
bottoms the same width as that of
the burners or slightly larger (see
specic table). Make sure pots on
the grates do not protrude beyond
the edge of the hob.
Improper use of the grids can
result in damage to the hob: do
not position the grids upside down

ENGLISH 7
or slide them across the hob.
Do not let the burner ame extend
beyond the edge of the pan.
Do not use : Cast iron griddles,
ollar stones, terracotta pots and
pans.
Heat diffusers such as metal mesh,
or any other types. Two burners
simultaneously for one receptacle
(e.g. Fish kettle).
Should particular local conditions
of the delivered gas make the
ignition of burner difcult, it is
advisable to repeat the operation
with the knob turned to small ame
setting.
In case of installation of a hood
above the cooktop, please refer
to the hood instructions for the
correct distance.
The protective rubber feet on the
grids represent a chocking hazard
for young children. After removing
the grids, please ensure that all the
feet are correctly tted.
INSTALLATION
The appliance must be
handled and installed by two or
more persons - risk of injury. Use
protective gloves to unpack and
install - risk of cuts.
Installation, including water
supply (if any) and electrical
connections, and repairs must
be carried out by a qualied
technician. Do not repair or
replace any part of the appliance
unless specically stated in the
user manual. Keep children away
from the installation site. After
unpacking the appliance, make
sure that it has not been damaged
during transport. In the event of
problems, contact the dealer or
your nearest Aftersales Service.
Once installed, packaging waste
(plastic, styrofoam parts etc.)
must be stored out of reach of
children - risk of suffocation. The
appliance must be disconnected
from the power supply before
any installation operation - risk of
electrical shock. During installation,
make sure the appliance does not
damage the power cable - risk
of re or electrical shock. Only
activate the appliance when the
installation has been completed.
The electrical and gas
connections must comply
with local regulation.
WARNING!: Modication of
the appliance and its method of
installation are essential in order
to use the appliance safely and
correctly in all the additional
countries.
Use pressure regulators
suitable for the gas pressure
indicated in the instruction.
The room must be equipped
with an air extraction system that
expels any combustion fumes.
The room must also allow
proper air circulation, as air is

ENGLISH 8
needed for combustion to occur
normally.
The ow of air must not be less
than 2 m3/h per kW of installed
power.
The air circulation system
may take air directly from the
outside by means of a pipe with
an inner cross section of at least
100 cm2; the opening must not
be vulnerable to any type of
blockages.
The system can also provide
the air needed for combustion
indirectly, i.e. from adjacent rooms
tted with air circulation tubes as
described above. However, these
rooms must not be communal
rooms, bedrooms or rooms that
may present a re hazard.
Liquid petroleum gas sinks to
the oor as it is heavier than air.
Therefore, rooms containing LPG
cylinders must also be equipped
with vents to allow gas to escape
in the event of a leak. As a result
LPG cylinders, whether partially
or completely full, must not be
installed or stored in rooms or
storage areas that are below
ground level (cellars, etc.). It is
advisable to keep only the cylinder
being used in the room, positioned
so that it is not subject to heat
produced by external sources
(ovens, replaces, stoves, etc. )
which could raise the temperature
of the cylinder above 50°C.
Carry out all cabinet cutting
works before tting the appliance
in the furniture and remove all
wood chips and sawdust.
If the appliance is Not installed
above an oven, a separator panel
(not included) must be installed
in the compartment under the
appliance.

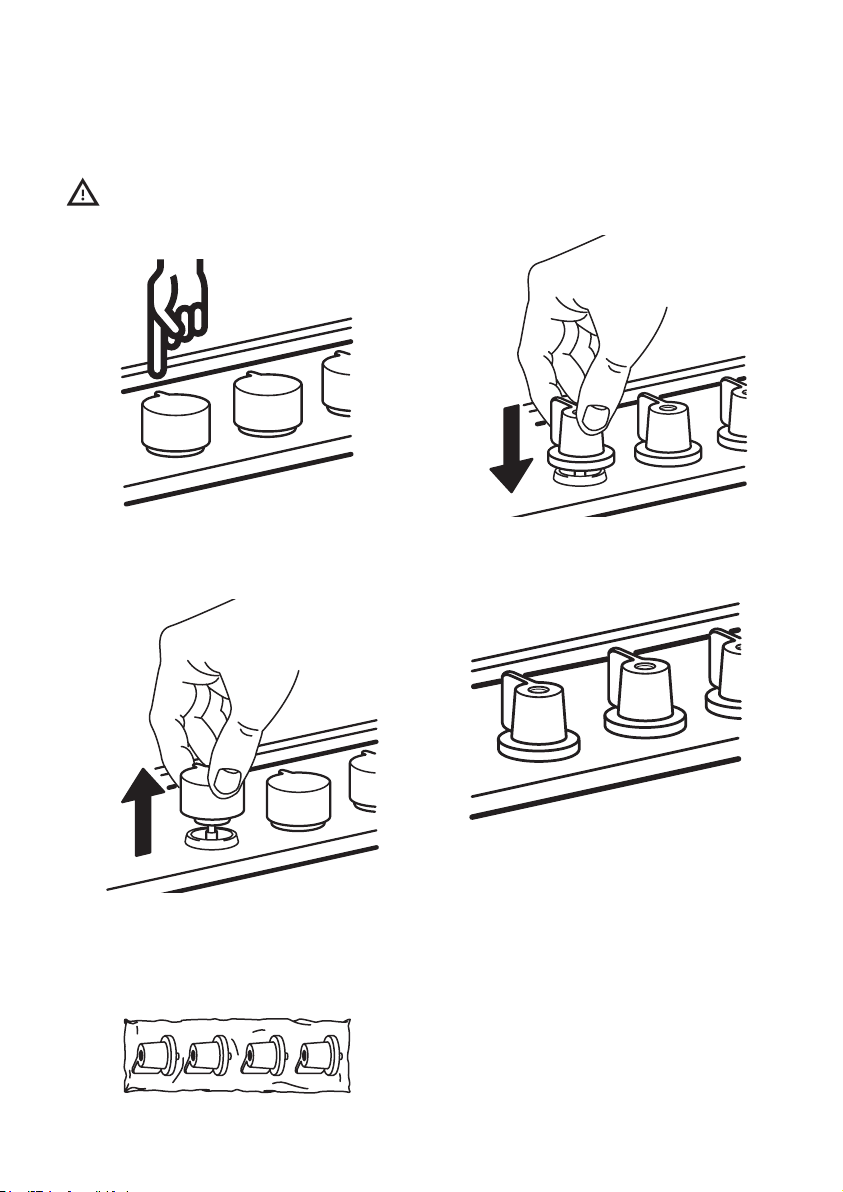

Should you experience difculty in
turning the burners knobs, please
contact After Sales Service for
replacement of the burner tap if
found to be faulty.
The openings used for the
ventilation and dispersion of heat
must never be covered.
GAS CONNECTION
WARNING!: Prior to
installation, ensure that the local
distribution conditions (nature of
gas and gas pressure) and the
adjustment of the appliance are
compatible.
Check that the pressure
of the gas supply is consistent
with the values indicated in
Table 1 (“Burner and nozzle
specications”).

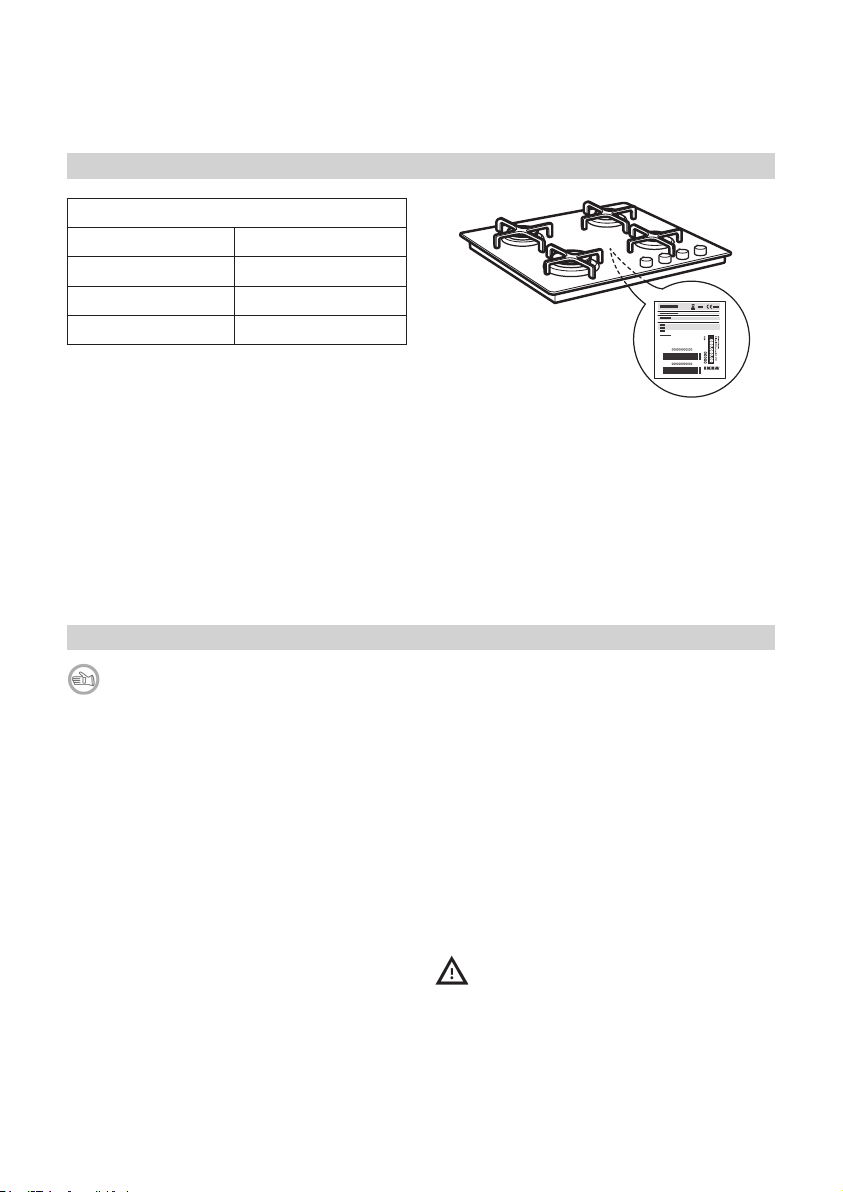

WARNING!: The adjustment
conditions for this appliance are
stated on the label (or data plate).
WARNING!: This appliance
is not connected to a combustion
products evacuation device. It
shall be installed and connected
in accordance with current

ENGLISH 9
installation regulations. Particular
attention shall be given to the
relevant requirements regarding
ventilation.
If the appliances is connected
to liquid gas, the regulation screw
must be fastened as tightly as
possible.
IMPORTANT: When gas
cylinder is adopted, the gas
cylinder or gas container must
be properly settled (vertical
orientation).
WARNING!: This operation
must be performed by a qualied
technician.
Use only exible or rigid metal
hose for gas connection.

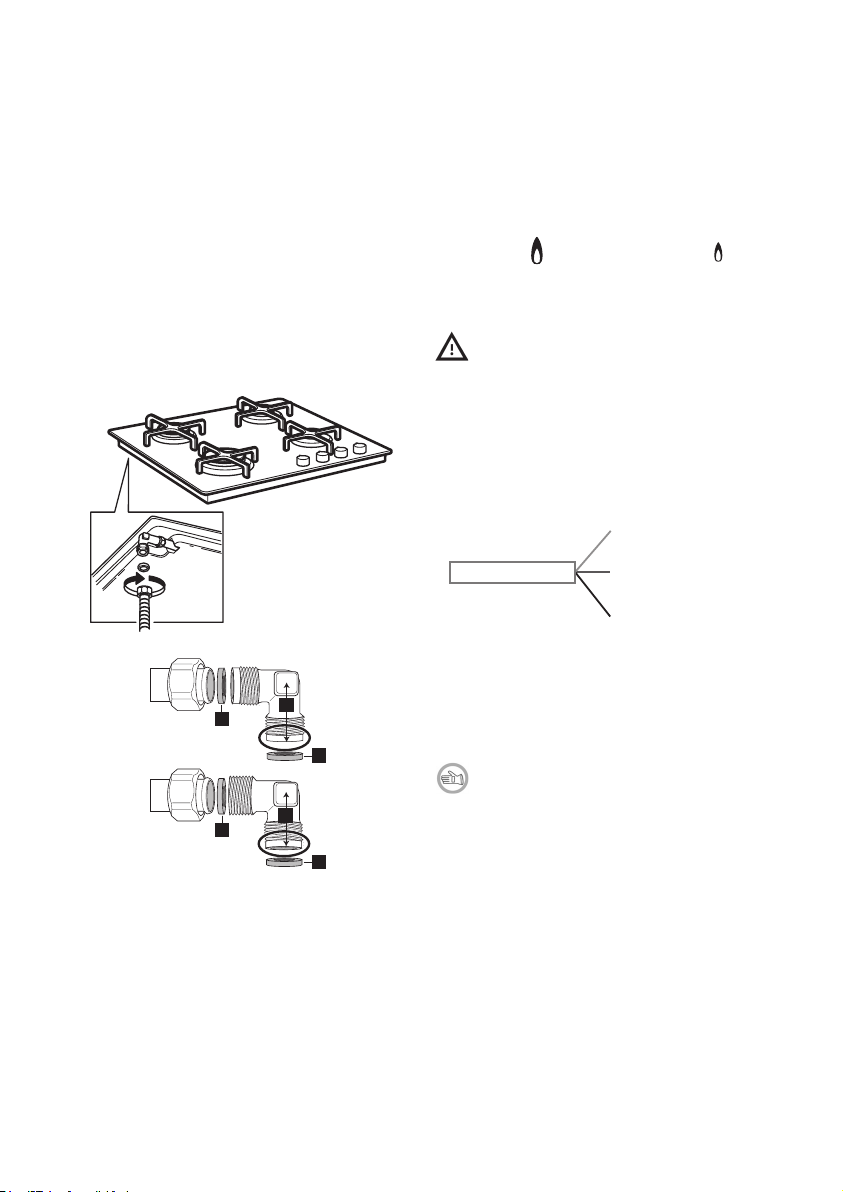

Connection with a rigid pipe
(copper or steel) Connection to
the gas system must be carried
out in such a way as not to
place any strain of any kind
on the appliance. There is an
adjustable L-shaped pipe tting
on the appliance supply ramp
and this is tted with a seal in
order to prevent leaks. The seal
must always be replaced after
rotating the pipe tting (the seal
is provided with the appliance).
The gas supply pipe tting is a
threaded 1/2 gas cylindrical male
attachment.
Connecting a exible jointless
stainless steel pipe to a threaded
attachment The gas supply pipe
tting is a threaded 1/2 gas
cylindrical male attachment.
These pipes must be installed so
that they are never longer than
2000 mm when fully extended.
Once connection has been
carried out, make sure that the
exible metal pipe does not
touch any moving parts and is
not compressed. Only use pipes
and seals that comply with current
National regulations.
IMPORTANT: If a stainless steel
hose is used, it must be installed
so as not touch any mobile part of
the furniture (e.g. drawer). It must
pass through an area where there
are no obstructions and where it
is possible to inspect it on all its
length.
The appliance should be
connected to the main gas supply
or to gas cylinder in compliance
with the current National
regulations. Before carry out the
connection, make sure that the
appliance is compatible with the
gas supply you wish to use. If this is
not the case, follow the instructions
indicated in the paragraph
“Adapting to different types of
gas”.
After connection to the gas
supply, check for leaks with soapy
water. Light up the burners and
turn the knobs from max position
1* to minimum position 2* to check
ame stability.

ENGLISH 10
ADAPTING TO DIFFERENT TYPES
OF GAS
In order to adapt the
appliance to a type of gas other
than the type for which it was
manufactured (indicated on the
rating label), follow the dedicated
steps provided after installation
drawings.
ELECTRICAL WARNINGS
IMPORTANT: The data
relevant to the voltage an power
absorptions are indicated on the
rating plate.
The power cable must be long
enough to connect the appliance,
once tted in its housing, to the
main power supply. Do not pull the
power supply cable.
It must be possible to
disconnect the appliance from the
power supply by unplugging it if
plug is accessible, or by a multi-
pole switch installed upstream of
the socket in accordance with the
wiring rules and the appliance
must be earthed in conformity
with national electrical safety
standards.
Do not use extension leads,
multiple sockets or adapters.
The electrical components must
not be accessible to the user
after installation. Do not use the
appliance when you are wet or
barefoot. Do not operate this
appliance if it has a damaged
power cable or plug, if it is not
working properly, or if it has been
damaged or dropped.
If the supply cord is damaged,
it must be replaced with an
identical one by the manufacturer,
its service agent or similarly
qualied persons in order to avoid
a hazard - risk of electrical shock.

ENGLISH 11
Product description
1Removable grates
2Rapid burner
3Auxiliary burner
4Semi-rapid burner
5Front left rapid burner control knob
6Rear left semi-rapid burner control knob
7Rear right semi-rapid burner control knob
8Front right auxiliary burner control knob
1
2
3
7 8
4
5 6
1
4Symbols
Solid disc Tap closed
Large ame Maximum ame
Small ame Minimum ame
IMPORTANT: When the hob area is hot do
not spill liquids to avoid glass damages.
Do not let the burner ame extend
beyond the edge of the pan.
IMPORTANT: when the hob is in use, the
entire hob area may become hot.
- To ignite one of the burners, turn the
relative knob anti-clockwise to the
maximum ame setting.
- Press the knob against the control panel
to ignite the burner.
- After the burner has ignited, keep the
knob pressed for about 5-10 seconds to
allow proper device operation.
This burner safety device shuts off the gas
supply to the burner if the ame goes out
accidentally (because of sudden draught, an
interruption in the gas delivery, boiling over
of liquids, etc.).
- The knob must not be pressed for more
than 15 sec. If, after that time has elapsed,
the burner does not remain lit, wait at
least one minute before trying to light it
again.
NOTE: should particular local conditions
of the delivered gas make the ignition of
burner difcult, it is advisable to repeat
the operation with the knob turned to small
ame setting.
The burner might go out when the knob is
released. This means that the safety device
has not warmed up enough. In this
case, repeat the operations described
above.
Daily use

ENGLISH 12
This hob has burners of different diameters.
For better burner performance, please stick
to the following rules:
- Use pots and pans with bottoms the same
width as that of the burners or slightly
larger (see following table).
- Only use at-bottomed pots and pans.
- Use the correct amount of water for
cooking foods and keep the pot covered.
- Make sure pots on the grates do not
protrude beyond the edge of the hob.
Burner Pot Ø
Rapid from 24 to 26 cm
Semi-rapid from 22 to 24 cm
Auxiliary from 8 to 14 cm
IMPORTANT: improper use of the grids can
result in damage to the hob: do not position
the grids upside down or slide them across
the hob. Do not use:
- Cast iron griddles, ollar stones, terracotta
pots and pans.
- Heat diffusers such as metal mesh, or any
other types.
- Two burners simultaneously for one
receptacle (e.g. sh kettle).
Helpful hints and tips
WARNING!: Ensure that the appliance
is switched off and disconnected from
the power supply before performing any
maintenance operation; never use steam
cleaning equipment - risk of electric shock.
Do not use abrasive or corrosive
products, chlorine-based cleaners or pan
scourers.

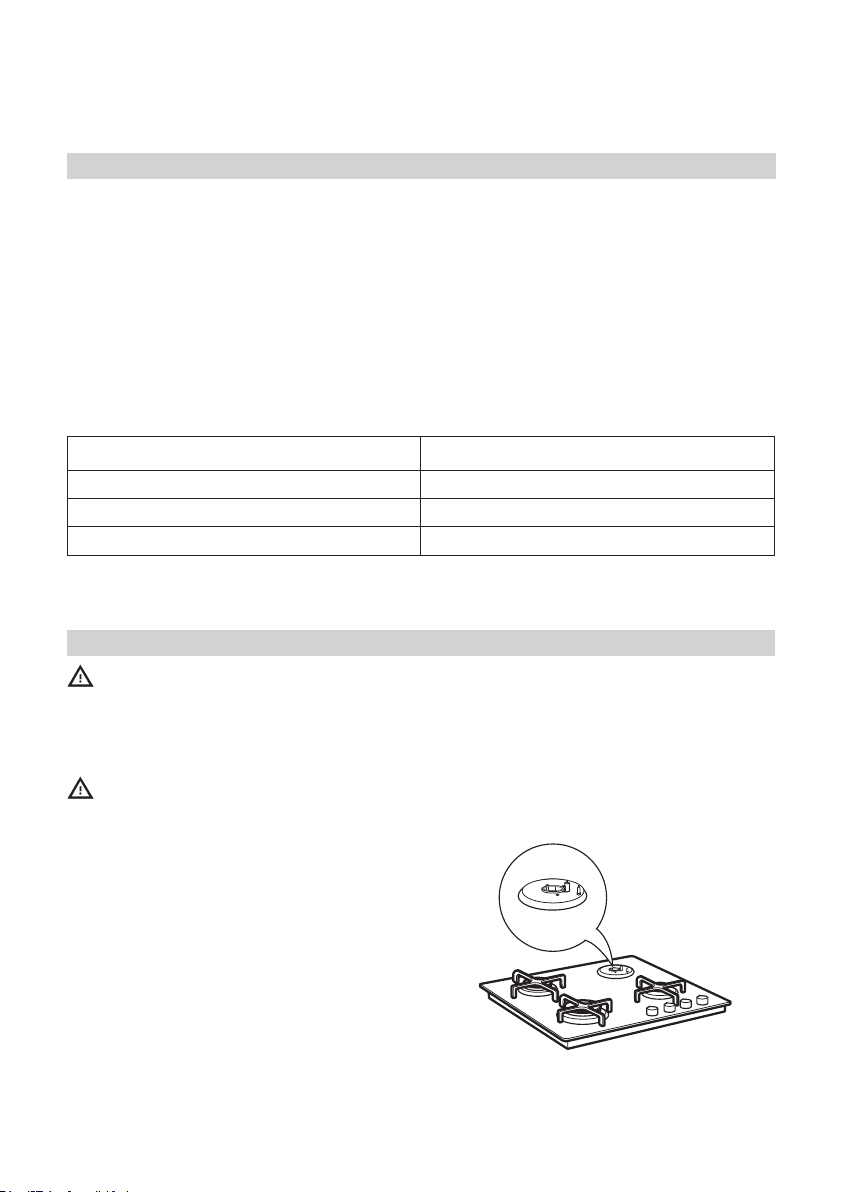

CLEANING THE HOB PARTS
- Grids, burner caps and burners can be
removed to be cleaned.
- Clean them by hand with warm water
and non-abrasive detergent, removing
any food residues and checking that none
of the burner openings is clogged.
- Rinse and dry
- Ret burners and burner caps correctly in
the respective housings.
- When replacing the grids, make sure that
the panstand area is aligned with the
burner.
- Models equipped with electrical ignition
plugs and safety device require thorough
cleaning of the plug end in order to
ensure correct operation.
Check these items frequently, and if
necessary, clean them with a damp cloth.
Any baked-on food should be removed
with a toothpick or needle.
NOTE: to avoid damaging the electric
ignition device, do not use it when the
burners are not in their housing.
Maintenance and cleaning

ENGLISH 13
Problem Possible cause Solution
The electric ignition does not
work
There is no electrical
supply
Check the unit is plugged in
and the electrical supply is
switched on.
The burner fails to ignite The gas tap could be
closed
Check that the gas tap is
open
The gas ring burns unevenly Burner crown may
be occluded by food
residues
Clean the burner crown
according to cleaning
instructions to make sure that
the burner crown is clear of
food residues.
What to do if ...
Before calling the After-Sales Service:
1. Check “Troubleshooting guide” to see if
you can eliminate the problem yourself
2. Turn the hob on again to check if correct
operation has been restored.
3. If the problem persists, contact the After-
sales Service.
Give the following information:
• type of fault;
• hob model;
• service number (i.e. the number after the
word SERVICE on the dataplate under
the hob and on the warranty certicate);
• your full address;
• your telephone number.
If any repairs are required, contact an
authorised service centre, indicated in the
warranty.
In the unlikely event that an operation or
repair is carried out by an unauthorised
technician, always request certication
of the work carried out and insist on the use
of original spare parts.
Failure to comply with these instructions
may compromise the safety and quality of
the product.

ENGLISH 14
ENGLISH 10
Injector table
Refer to the injector table of your Country
Electric Power: 220-240 V ~ 50-60 Hz - 1,1W
Injector table

ENGLISH 15
ENGLISH 11
Technical data
Dimensions
Width (mm) 590
Height (mm) 44
Length (mm) 510
Voltage (V) 220-240 V ~
The technical information are situated in the
rating plate on the bottom side of the appliance.
Installation
Use protective gloves for handling,
preparing and installing the product.
After unpacking the hob, make sure that it
has not been damaged during transport. In
the event of problems, contact the dealer or
your nearest After-sales Service.
Technical information for the installer
- This product can be embedded in a
worktop 20 to 60 mm thick.
- If there is no oven beneath the hob,
insert a separator panel that has a
surface at least equal to the opening
in the work surface. This panel must be
positioned at a maximum distance of
150 mm below the upper surface of the
work surface but, in no case less than 20
mm from the bottom of the hob.
- Before installation, make sure that:
- the local gas delivery conditions (nature
and pressure) are compatible with the
settings of the hob (see the rating plate
and injector table);
- the outer surfaces of the furniture or
appliances adjacent to the hob are heat
resistant according to local regulations;
- This appliance is not connected to a
fume exhaust device. It shall be installed
in accordance with current installation
regulations. Particular attention shall
be given to the relevant requirement
regarding ventilation.
- Combustion products are discharged
outdoors through specic hoods or wall
and/or window mounted electrical fans.
Gas connection
This operation must be performed by a
qualied technician.
The gas supply system must comply with
local regulations to the relavant gas
standard.
- You can nd specic local regulations for
some countries in the paragraph
- “Reference to Local Regulations”. If no
information concerning your Country is
Technical data
Dimensions
Width (mm) 590
Height (mm) 44
Length (mm) 510
Voltage (V) 220 - 240 V ~
The technical information are situated in the
rating plate on the bottom side of the
appliance.
Installation

ENGLISH 16
ENGLISH 12
given, please ask details to a qualied
technician.
- The connection of the hob to the gas
pipe network or gas cylinder must be
made by means of a rigid copper or
steel pipe with ttings complying with
local regulations, or by means of a
continuous-surface stainless steel hose
complying with local regulations. The
maximum length of the hose is 2 linear
metres.
A
B
C
C
D
D
- Connect elbow (A)* or (B)* supplied with
to the hob inlet main pipe and interpose
the washer (C) supplied, in compliance
with EN 549.
- Use elbow (A) for France and elbow (B)
for all other destinations.
-IMPORTANT: if a stainless steel hose
is used, it must be installed so as not to
touch any mobile part of the furniture.
It must pass through an area where
there are no obstructions and where it is
possible to inspect it on all its length.
- After connection to the gas supply, check
for leaks with soapy water. Light up the
burners and turn the knobs from max
position to minimum position to
check ame stability
Electrical connection
WARNING
- This operation must be performed by a
qualied technician.
- The electrical connections must comply
with local regulations.
- The earthing of this appliance is
compulsory by law.
L
N
Earth
(yellow/green)
- Do not use an extension cord.
-IMPORTANT: the data relevant to the
voltage and power absorption are
indicated on the rating plate.
Assembly
Use protective gloves for cleaning the
product perimeter surface, then apply
the supplied gasket to the hob.
After having cleaned the perimeter surface,
apply the supplied gasket to the hob.
Position the hob in the worktop opening
made respecting the dimensions indicated
in the Instruction.
NOTE: the power supply cable must be long
enough to permit its upward extraction.
To secure the hob, use the brackets provided
with it. Fit the brackets into the relevant
bores shown by the arrow and fasten them
by means of their screws in accordance with
the thickness of the worktop.
Make sure that the outlet is near the product
to install. So, if the cable that came with the
product is not long enough, you will need to

ENGLISH 17
ENGLISH 13
replace it with another one having the same
features but with the right length.
Adjustment to different type of gas
WARNING
- This operation must be performed by a
qualied technician.
If the appliance is intended to operate with
a different gas from the gas type stated on
the rating plate and information label on
the top of the hob, change the injectors.
Remove the information label and keep it
with the instructions booklet.
Use pressure regulators suitable for the gas
pressure indicated in the Instruction.
- The gas injectors must be changed
by After Sales Service or a qualied
technician.
- Injectors not supplied with the appliance
must be ordered from After Sales
Service.
- Adjust the minimum setting of the taps.
NOTE: when liquid petroleum gas is used
(G30/G31), the minimum gas setting screw
must be tightened as far as it will go.
IMPORTANT: should you experience
difculty in turning the burners knobs,
please contact the After Sales Service for
the replacement of the burner tap if found to
be faulty.
IMPORTANT: when gas cylinder is adopted,
the gas cylinder or gas container must be
properly settled (vertical orientation).
Replacing the injectors (see paragraph
“injector table”)
- Remove grids (A).
- Extract burners (B).
- Using a socket spanner of the
appropriate size unscrew the injector
(C), unscrew the injector to be replaced.
- Replace it with the injector suitable for
the new type of gas.
- Re-assemble the injector in (D).
Before installing the hob, remember to afx
the gas calibration plate supplied with
the injectors in such a way that it covers
the existing information relating to gas
calibration.
Replacement of the gas injector
Adjusting minimum gas setting of taps
To ensure that the minimum setting is
correctly adjusted, remove the knob (E) and
proceed as follows:

ENGLISH 18
ENGLISH 14
- tighten screw to reduce the ame height
(-);
- loosen screw to increase the ame height
(+).
The adjustment must be performed with the
tap in minimum gas setting position (small
ame ) .
- The primary air of the burners does not
need to be adjusted.
- At this stage, light up the burners and
turn the knobs from max position to
minimum position to check ame
stability.
Upon completion of adjustment, reseal
the work surface using sealing wax or an
equivalent material.
DK FI NO SE
REFERENCE TO LOCAL REGULATIONS
Ensure that the installation and gas
connections are performed by a qualied
technician, following the manufacturer’s
instructions and in compliance with current
local safety regulations.

ENGLISH 19
ENGLISH 15
KNOBS REPLACEMENT
1. Be sure that your hob is switched-off!
All knobs must be in closed position.
2. Pull upwards each knob of the cooktop
and store together after removal.
3. Take the kit with new knobs, which is
located in upper part of packaging and
remove the new knobs from the plastic bag.
4. Push each of knob on the valve shaft until
you feel the end of sliding (sparking may
occur).
5. Make sure that all the knobs are in the
right position.
6. Verify correct installation by switching
each burner separately.

ENGLISH 20
DISPOSAL OF PACKAGING MATERIALS
The packaging material is 100% recyclable
and is marked with the recycle symbol .
The various parts of the packaging must
therefore be disposed of responsibly and
in full compliance with local authority
regulations governing waste disposal.
DISPOSAL OF HOUSEHOLD APPLIANCES
This appliance is manufactured with
recyclable or reusable materials.
Dispose of it in accordance with local waste
disposal regulations.
For further information on the treatment,
recovery and recycling of household
electrical appliances, contact your local
authority, the collection service for
household waste or the store where you
purchased the appliance. This appliance
is marked in compliance with European
Directive 2012/19/EU, Waste Electrical and
Electronic Equipment (WEEE).
By ensuring this product is disposed of
correctly, you will help prevent negative
consequences for the environment and
human health.
The symbol on the product or on the
accompanying documentation indicates
that it should not be treated as domestic
waste but must be taken to an appropriate
collection center for the recycling of
electrical and electronic equipment.
Ikea of Sweden AB
SE - 343 81 Älmhult, Sweden
Environmental concerns
Manufacturer
ENERGY SAVING TIPS
Use pots and pans with bottom width equal
to that of the cooking zone.
Only use at-bottomed pots and pans.
When possible, keep pot lids on during
cooking.
Use a pressure cooker to save even more
energy and time.
Place the pot in the middle of the cooking
zone marked on the hob.
DECLARATION OF CONFORMITY
This appliance meets the Ecodesign
requirements set out in European Regulation
n. 66/2014, in conformity to the European
standard EN 30-2-1.
