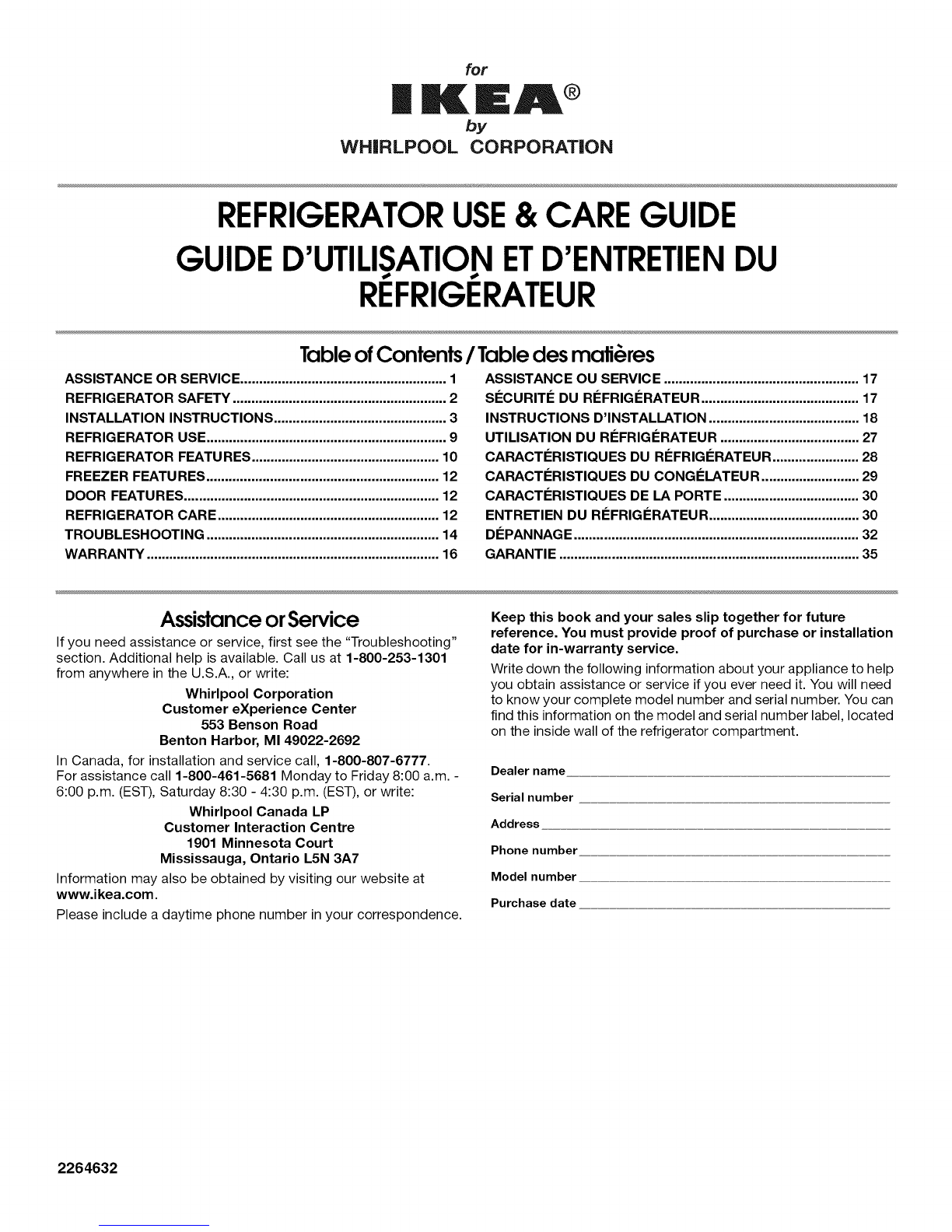

IKEA IR8GSMXRS00 User manual

for
| K A®
by
WHIRLPOOL CORPORATION
REFRIGERATORUSE&CARE GUIDE
GUIDE D'UTILISATION ETD'ENTRETIENDU
ell ell
REFRIGERATEUR
Table of Contents ITable des mafi_res
ASSISTANCE OR SERVICE ....................................................... 1
REFRIGERATOR SAFETY ......................................................... 2
INSTALLATION INSTRUCTIONS .............................................. 3
REFRIGERATOR USE................................................................ 9
REFRIGERATOR FEATURES .................................................. 10
FREEZER FEATURES .............................................................. 12
DOOR FEATURES .................................................................... 12
REFRIGERATOR CARE ........................................................... 12
TROUBLESHOOTING .............................................................. 14
WARRANTY .............................................................................. 16
ASSISTANCE OU SERVICE .................................................... 17
SleCURITle DU RleFRIGleRATEUR .......................................... 17
INSTRUCTIONS D'INSTALLATION ........................................ 18
UTIMSATION DU RI=FRIGleRATEUR ..................................... 27
CARACTleRISTIQUES DU RleFRIGleRATEUR ....................... 28
CARACTleRISTIQUES DU CONGleLATEUR .......................... 29
CARACTleRISTIQUES DE LA PORTE .................................... 30
ENTRETIEN DU RleFRIGleRATEUR ........................................ 30
DlePANNAGE ............................................................................ 32
GARANTIE ................................................................................ 35
Assistance orService
If you need assistance or service, first see the "Troubleshooting"
section. Additional help is available. Call us at 1-800-253-1301
from anywhere in the U.S.A., or write:
Whirlpool Corporation
Customer experience Center
553 Benson Road
Benton Harbor, MI 49022-2692
In Canada, for installation and service call, 1-800-807-6777.
For assistance call 1-800-461-5681 Monday to Friday 8:00 a.m. -
6:00 p.m. (EST), Saturday 8:30 - 4:30 p.m. (EST), or write:
Whirlpool Canada LP
Customer Interaction Centre
1901 Minnesota Court
Mississauga, Ontario L5N 3A7
Information may also be obtained by visiting our website at
www.ikea.com.
Please include a daytime phone number in your correspondence.
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your appliance to help
you obtain assistance or service if you ever need it. You will need
to know your complete model number and serial number. You can
find this information on the model and serial number label, located
on the inside wall of the refrigerator compartment.
Dealer name
Serial number
Address
Phone number
Model number
Purchase date
2264632

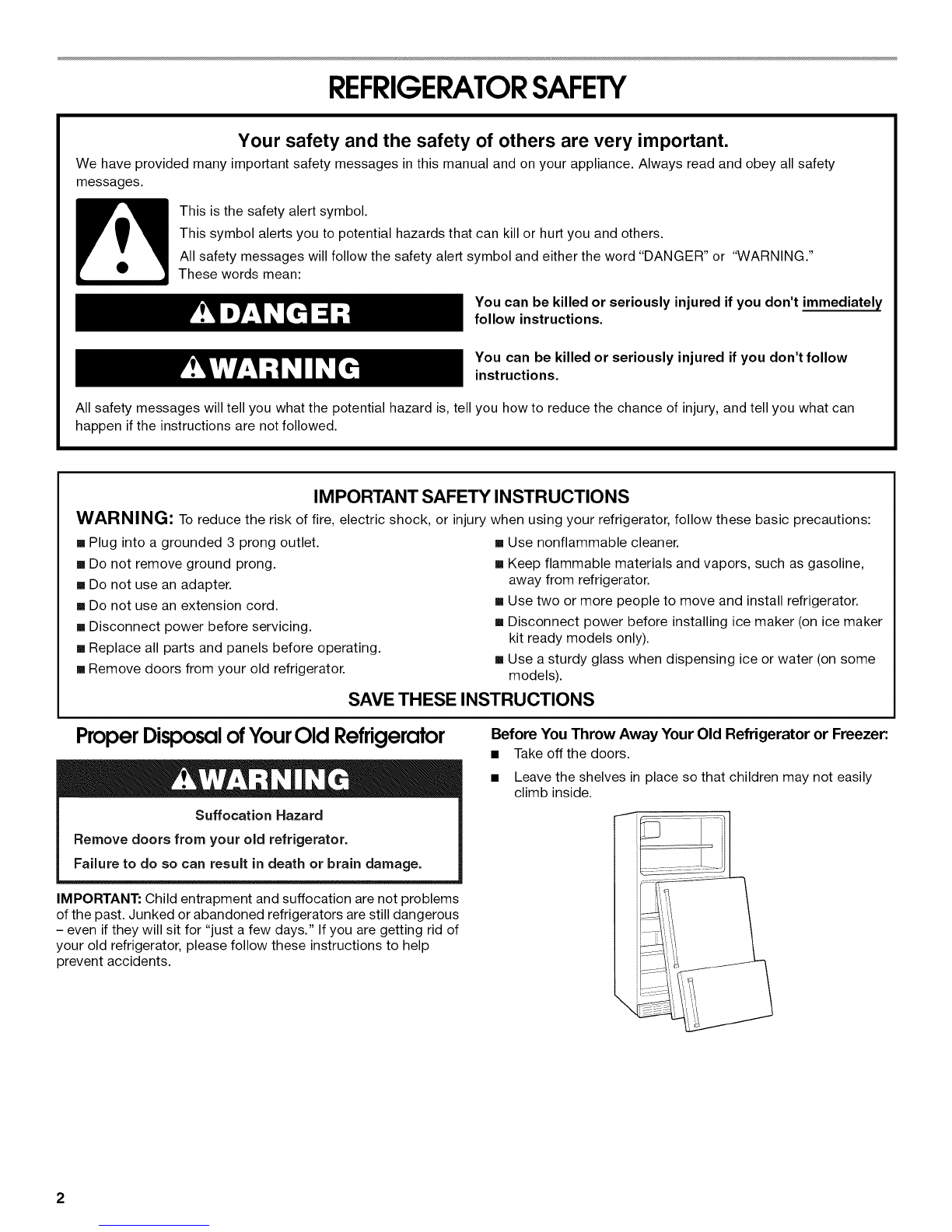

REFRIGERATORSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Remove doors from your old refrigerator.
• Use nonflammable cleaner.
• Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
• Use two or more people to move and install refrigerator.
• Disconnect power before installing ice maker (on ice maker
kit ready models only).
• Use a sturdy glass when dispensing ice or water (on some
models).
SAVE THESE INSTRUCTIONS
ProperDisposalofYourOld Refrigerator
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
Before You Throw Away Your Old Refrigerator or Freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easily
climb inside.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous
- even if they will sit for "just a few days." If you are getting rid of
your old refrigerator, please follow these instructions to help
prevent accidents.
2

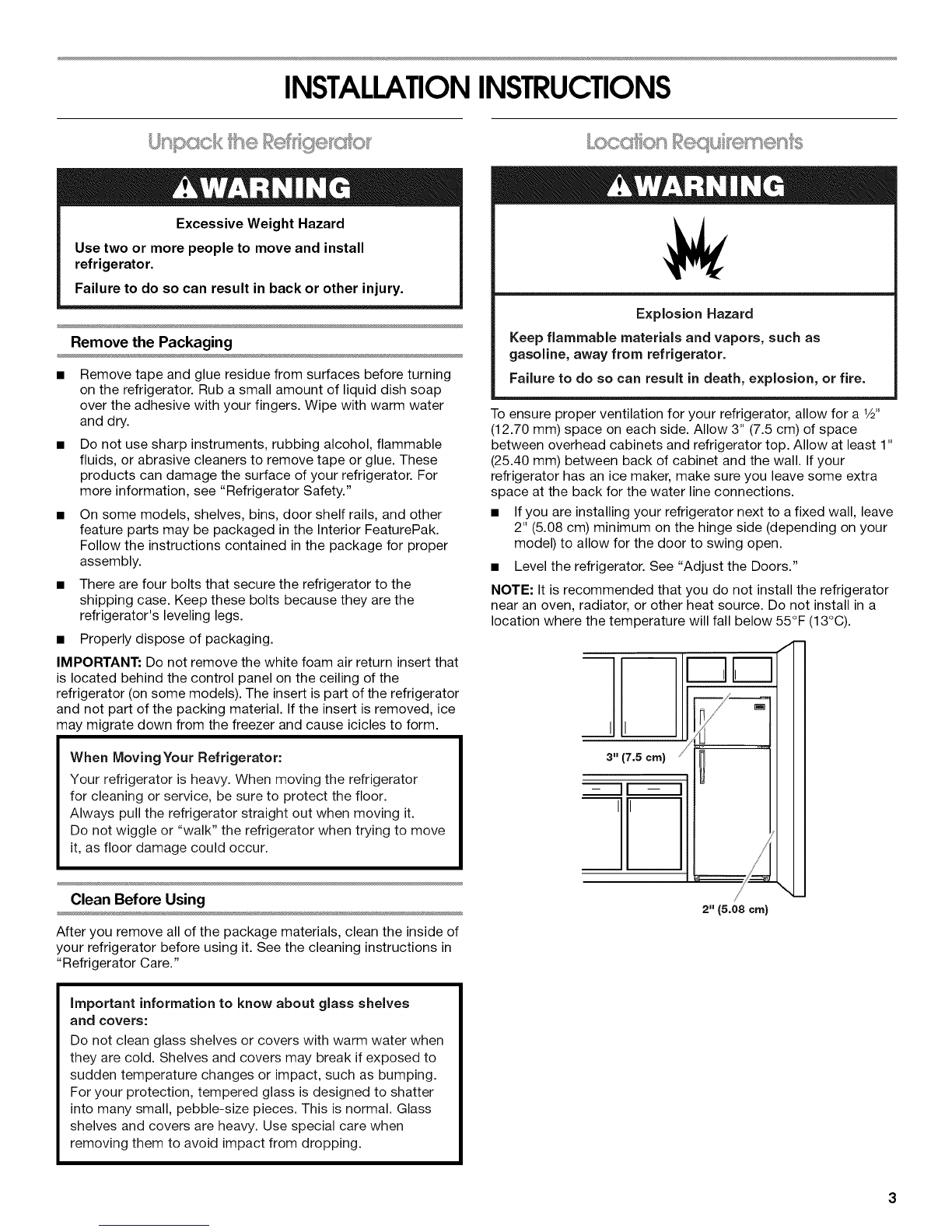

INSTALLATIONINSTRUCTIONS
Un , xscK f!he Sege
r
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
Remove the Packaging
• Remove tape and glue residue from surfaces before turning
on the refrigerator. Rub a small amount of liquid dish soap
over the adhesive with your fingers. Wipe with warm water
and dry.
• Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see "Refrigerator Safety."
• On some models, shelves, bins, door shelf rails, and other
feature parts may be packaged in the Interior FeaturePak.
Follow the instructions contained in the package for proper
assembly.
• There are four bolts that secure the refrigerator to the
shipping case. Keep these bolts because they are the
refrigerator's leveling legs.
• Properly dispose of packaging.
IMPORTANT: Do not remove the white foam air return insert that
is located behind the control panel on the ceiling of the
refrigerator (on some models). The insert is part of the refrigerator
and not part of the packing material. If the insert is removed, ice
may migrate down from the freezer and cause icicles to form.
When IVlovingYour Refrigerator:
Your refrigerator is heavy. When moving the refrigerator
for cleaning or service, be sure to protect the floor.
Always pull the refrigerator straight out when moving it.
Do not wiggle or "walk" the refrigerator when trying to move
it, as floor damage could occur.
Clean Before Using
After you remove all of the package materials, clean the inside of
your refrigerator before using it. See the cleaning instructions in
"Refrigerator Care."
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
To ensure proper ventilation for your refrigerator, allow for a 1/2"
(12.70 mm) space on each side. Allow 3" (7.5 cm) of space
between overhead cabinets and refrigerator top. Allow at least 1"
(25.40 mm) between back of cabinet and the wall. If your
refrigerator has an ice maker, make sure you leave some extra
space at the back for the water line connections.
• If you are installing your refrigerator next to a fixed wall, leave
2" (5.08 cm) minimum on the hinge side (depending on your
model) to allow for the door to swing open.
• Level the refrigerator. See "Adjust the Doors."
NOTE: It is recommended that you do not install the refrigerator
near an oven, radiator, or other heat source. Do not install in a
location where the temperature will fall below 55°F (13°C).
J
2" (5.08crn)
important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
For your protection, tempered glass is designed to shatter
into many small, pebble-size pieces. This is normal. Glass
shelves and covers are heavy. Use special care when
removing them to avoid impact from dropping.

E ¸ _ _:}_I_,_,_ / _E_",_ !i_£_
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical
connection.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, turn the control (Thermostat, Refrigerator
or Freezer Control depending on the model) OFF and then
disconnect the refrigerator from the electrical source. When you
are finished, reconnect the refrigerator to the electrical source
and reset the control (Thermostat, Refrigerator or Freezer Control
depending on the model) to the desired setting.
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
IMPORTANT:
• If you turn the refrigerator on before the water line is
connected, turn the ice maker OFE
• All installations must meet local plumbing code requirements.
• Use copper tubing and check for leaks. Install copper tubing
only in areas where the household temperatures will remain
above freezing.
TOOLS NEEDED: Flat-blade screwdriver, 7/_e"and V2"open-end
wrenches or two adjustable wrenches, 1/4"nut driver and drill bit,
hand drill or electric drill (properly grounded).
NOTE: Your refrigerator dealer has a kit available with a %"
(6.35 mm) saddle-type shutoff valve, a union, and copper tubing.
Before purchasing, make sure a saddle-type valve complies with
your local plumbing codes. Do not use a piercing-type or 3Ae"
(4.76 mm) saddle valve which reduces water flow and clogs more
easily.
Water Pressure
A cold water supply with water pressure of between 30 and
120 psi (207 - 827 kPa) is required to operate the water dispenser
and ice maker. If you have questions about your water pressure,
call a licensed, qualified plumber.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a
reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 30 and 120 psi (207 - 827 kPa).
If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 - 414 kPa).
If the water pressure to the reverse osmosis system is less than
40 to 60 psi (276 - 414 kPa):
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill
after heavy usage.
• If your refrigerator has a water filter cartridge, it may further
reduce the water pressure when used in conjunction with a
reverse osmosis system. Remove the water filter cartridge.
See "Water Filtration System."
If you have questions about your water pressure, call a licensed,
qualified plumber.
£}_} %ome models}
Read all directions before you begin.
IMPORTANT: If you turn the refrigerator on before the water line
is connected, turn the ice maker OFE
Connecting to Water Line
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
3. Find a V2"(1.27 cm) to 1Y4"(3.18 cm) vertical COLD water
pipe near the refrigerator.
NOTE: Horizontal pipe will work, but the following procedure
must be followed: Drill on the top side of the pipe, not the
bottom. This will help keep water away from the drill. This
also keeps normal sediment from collecting in the valve.
4. To determine the length of copper tubing you will need,
measure from connection on lower left rear of refrigerator to
water pipe. Add 7 ft (2.1 m) to allow for moving refrigerator for
cleaning. Use V4"(6.35 mm) O.D. (outside diameter) copper
tubing. Be sure both ends of copper tubing are cut square.
5. Using a grounded drill, drill a V4"(6.35 mm) hole in the cold
water pipe you have selected.
A. Cold WaterPipe E.Compression Sleeve
B.Pipe Clamp F. Shutoff Valve
C. Copper Tubing G.Packing Nut
D. Compression Nut

6. Fasten shutoff valve to cold water pipe with pipe clamp. Be
sure outlet end is solidly in the 1/4"(6.35 mm) drilled hole in the
water pipe and that washer is under the pipe clamp. Tighten
packing nut. Tighten the pipe clamp screws slowly and
evenly so washer makes a watertight seal. Do not overtighten
or you may crush the copper tubing, especially if soft (coiled)
copper tubing is used. Now you are ready to connect the
copper tubing.
7. Slip compression sleeve and compression nut on copper
tubing as shown. Insert end of tubing into outlet end squarely
as far as it will go. Screw compression nut onto outlet end
with adjustable wrench. Do not overtighten.
8. Place the free end of the tubing into a container or sink, and
turn ON main water supply and flush out tubing until water is
clear. Turn OFF shutoff valve on the water pipe. Coil copper
tubing.
Connecting to Refrigerator
NOTE: The first step for connecting the water line to your
refrigerator is different depending on the type of water valve
provided with your refrigerator. See the diagrams below to
determine the style of valve you have. (On kit models, assemble
water valve to refrigerator per kit instructions.)
1. For Style 1, disconnect the tube clamp on the back of the
product and insert the copper tubing through the clamp, as
shown. Remove the tape label from the valve inlet and insert
copper tubing until it bottoms out (approximately 3/4"
[1.9 cm]). Tighten nut by hand as much as possible; then turn
the nut an additional 1/2turn using a wrench. Do not
overtighten. Reattach the tube clamp and tube to the back of
the cabinet. Skip to Step 2.
For Style 2, disconnect the tube clamp on the back of the
product and insert copper tubing through the clamp as
shown. Attach the copper tube to the valve inlet using a
compression nut and sleeve as shown. Tighten the
compression nut. Do not overtighten. Reattach the tube
clamp and tube to the back of the cabinet. Move to Step 2.
Style 1
B
C
A. TubeClamp C.Compression Nut
B.Copper Tubing D. ValveInlet
Style 2
A
B
C
A. Tube Clamp
B. Copper Tubing C. Compression Nut
2=
3=
Turn shutoff valve ON. Check for leaks. Tighten any
connections (including connections at the valve) or nuts that
leak.
The ice maker is equipped with a built-in water strainer. If
local water conditions require periodic cleaning or a well is
your source of water supply, a second water strainer should
be installed in the 1/4"(6.35 mm) water line. Obtain a water
strainer from your nearest appliance dealer. Install at either
tube connection.
Complete the Installation
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug in refrigerator or reconnect power.
TOOLS NEEDED: s46" hex-head socket wrench, No. 2 Phillips
screwdriver, flat-head screwdriver, s46"open-end wrench, flat
2" putty knife.
IMPORTANT:
• Before you begin, turn the refrigerator control OFF. Unplug
refrigerator or disconnect power.
• Remove food and any adjustable door or utility bins from
doors.
• If you are only removing and replacing the doors, see the
"Door and Hinge Removal" and "Door and Hinge
Replacement" sections.
• Depending on your model, you may have standard (Style 1)
or contour (Style 2) doors. If you are also going to reverse the
door swing, follow the instructions for the appropriate door
style.
Door and Hinge Removal
1=
2.
%6" Hex-Head Hinge Screw
Unplug refrigerator or disconnect power.
Close the refrigerator door and keep both doors closed until
you are ready to lift them free from the cabinet.
NOTE: Provide additional support for the doors while the
hinges are being moved. Do not depend on the door magnets
to hold the doors in place while you are working.

3. RemovethepartsforthetophingeasshowninTopHinge
graphic.
4. Liftthefreezerdoorfreefromthecabinet.
5. RemovethepartsforthecenterhingeasshownintheCenter
Hingegraphic.
6. Lifttherefrigeratordoorfreefromthecabinet.
7. Removethepartsforthebottomhingeasshowninthe
BottomHingegraphic.
IMPORTANT:Ifyouwanttoreverseyourdoorssothattheyopen
intheoppositedirection,followthesesteps.Ifyouarenot
reversingthedoors,see"DoorandHingeReplacement."
Door Reversal (optional)
Style 1 -Standard
(Graphics follow these instructions.)
Door Stop Screw
DoorHandle Sealing Screw
Flat-Head Handle Screw
Door Handle Seal Screw Front
Cabinet
Door Hinge Hole Plug
Cabinet Hinge HolePlug
DoorHandle Screw Cover
Round-Head Handle Screw
1. Remove %6" hex-head hinge screws from handle side and
move them to opposite side. See Graphic 1-1.
2. Remove cabinet hinge hole plugs from cabinet top and
move them to opposite side hinge holes as shown.
See Graphic 1-2.
Freezer door
1. Remove freezer handle assembly as shown. Keep all parts
together. See Graphic 2.
2. Remove door hinge hole plug. Move to opposite side as
shown. See Graphic 3.
3. Remove door handle sealing screws. Move to opposite side
of freezer door as shown. See Graphic 4.
4. Remove door stop. Move to opposite side of freezer door as
shown. See Graphic 5.
5. Position freezer handle on opposite side of freezer door.
Assemble handle on door as shown. See Graphic 2.
6. Tighten all screws. Set aside door until hinges and
refrigerator compartment door are in place.
Refrigerator door
1. Remove the screw cover. See Graphic 6.
2. Remove refrigerator handle assembly as shown. Keep all
parts together. See Graphic 6.
3. Remove door hinge hole plug from refrigerator door. Move to
opposite side hinge hole as shown. See Graphic 3.
4. Remove door handle sealing screws. Move to opposite side
of refrigerator door as shown. See Graphic 4.
5. Remove door handle seal screw front. Move to opposite side
of refrigerator door as shown. See Graphic 7.
6. Remove door stop. Move to opposite side of refrigerator door
as shown. See Graphic 5.
7. Position refrigerator handle on opposite side of the
refrigerator door as shown. See Graphic 6. Drive top two
screws in handle first. Align lower portion of handle and drive
bottom screw.
8. Replace screw cover. See Graphic 6.
9. Tighten all screws. Set aside refrigerator door until bottom
hinge is installed on refrigerator.
Style 2 - Contour
(Graphics follow these instructions.)
Round-Head Door Handle
Handle Screw Screw HolePlug
Cabinet
Door Hinge
Hole Plug
1. Remove %e" hex-head hinge screws from handle side and
move them to opposite side. See Graphic 1-1.
2. Remove cabinet hinge hole plugs from the cabinet top and
move them to opposite side hinge holes as shown. See
Graphic 1-2.
Doors
1. Remove door hinge hole plug from top of freezer door. Move
to opposite side as shown. See Graphic 2.
2. Remove door stop from both the freezer and refrigerator
doors and move to the other side. See Graphic 3.
Door and Hinge Replacement
NOTE: Graphic may be reversed if door swing is reversed.
1. Replace the parts for the bottom hinge as shown. Tighten
screws. Replace the refrigerator door.
NOTE: Provide additional support for the doors while the
hinges are being moved. Do not depend on the door magnets
to hold the doors in place while you are working.
2. Assemble the parts for the center hinge as shown and tighten
all screws. See Center Hinge graphic. Replace the freezer
door.
3. Assemble the parts for the top hinge as shown. See Top
Hinge graphic. Do not tighten screws completely.
4. Line up the doors so that the bottom of the freezer door
aligns evenly with the top of the refrigerator door. Tighten all
screws.
Final Steps
1. Check all holes to make sure that hole plugs and screws are
in place. Reinstall top hinge cover. See Top Hinge graphic.
2. Plug in refrigerator or reconnect power.
3. Reset the controls. See "Using the Control(s)" section,
depending on your model.
4. Return all removable door parts to doors and food to
refrigerator.
6

St ,le I -Standard
Top Hinge
A. 5/_6"Hex-Head Hinge Screws
B. Top Hinge
C. Spacer
Center Hinge
A. Door Stop
B. Door Step Screw
C. Spacer
D. Center Hinge
E. 5A6"Hex-Head Hinge Screws
F. Spacer
Bottom Hinge
¢
D
A. Door Stop
B. Spacer
C. Door Stop Screw
D. Bottom Hinge
E. 5_6"Hex-Head Hinge Screws
A. Cabinet Hinge Hole Plugs
_ ....................................A
li f
A. Door Hinge Hole Plug
A
A. Flat-Head Handle Screws
B. Freezer Handle
_,................................A
I I
A. Door Handle Sealing Screws
Front View Side View
A. Door Stop Screw A B
B. Door Stop
/
o,[o, > o o
r/" A
A. sac" Hex-Head Hinge
Screws and Washers
A. Door Handle
Seal Screw Front
_.. A
H
_ ................D
A. Flat-Head Handle Scre_
B. Refrigerator Handle
C. Handle Screw
D. Screw Cover
7

Style 2 - Contour
A
B
C
C
D
Top Hinge
A. Top Hinge Cover
B. 5A6"Hex-Head Hinge Screws
C. Top Hinge
D. Spacer
Center Hinge
F
A. Door Stop
B. Door Stop Screw
C. Spacer
D. Center Hinge
E. 5A_"Hex-Head Hinge Screws
F. Spacer
Bottom Hinge
A. Door Stop
B. Spacer
C. Door Stop Screw
D. Bottom Hinge
E. 5A6"Hex-Head Hinge Screws
o.o ,=======_ o o
_\_ .....................................................A
A. _G " Hex-Head H/nge
Screw8 and I/Yasher8
!
!
!
!
I
I
!
!
!
A. Cabinet Hinge Hole Plugs
[]
A. Door Hinge Hole Plug
Removal of Door Stops
A. Door Stop
B. Door Stop Screw
Reinstallation of Door Stops
A. Door Stop
B. Door Stop Screw
8

A_'t _:__')"y_t} _S
Your refrigerator has two front adjustable rollers - one on the right
and one on the left. Ifyour refrigerator seems unsteady or you
want the doors to close easier, adjust the refrigerator's tilt using
the instructions below:
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
1. Roll out the refrigerator and use a level to check the floor at
the back from side to side. If needed, use shims to level the
back of the refrigerator if it is uneven. Roll the refrigerator
back into place with the rear rollers on top of any shim(s)
used so that the rear of the refrigerator is level.
2. With the rear already level and the refrigerator in place, use
the bottom leveling screws to level the refrigerator from side
to side. They are part of the front roller assemblies, which are
found at the base of the refrigerator on either side.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws and
rollers. This makes it easier to adjust the screws.
3. Depending on your model, to level your refrigerator you may
either turn the screw clockwise to raise that side of the
refrigerator or turn the screw counterclockwise to lower that
side. Place a level on top of the refrigerator to check
adjustments.
Style 1
Style 2
6. Using a level, check to see that the refrigerator is still level
side to side. Readjust if necessary.
K£,l_nds
Your new refrigerator may make sounds that your old one didn't
make. Because the sounds are new to you, you might be
concerned about them. Most of the new sounds are normal. Hard
surfaces, such as the floor, walls, and cabinets, can make the
sounds seem louder. The following describes the kinds of sounds
and what may be making them.
• If your refrigerator is equipped with an ice maker, you will hear
a buzzing sound when the water valve opens to fill the ice
maker for each cycle.
• Your refrigerator is designed to run more efficiently, to keep
your food items at the desired temperatures and to minimize
energy usage. The high efficiency compressor and fans may
cause your refrigerator to run longer than your old one. You
may also hear a pulsating or high-pitched sound from the
compressor or fans adjusting to optimize performance.
• You may hear the evaporator fan motor circulating air through
the refrigerator and freezer compartments. The fan speed
may increase as you open the doors or add warm food.
• Rattling noises may come from the flow of refrigerant, the
water line, or items stored on top of the refrigerator.
• Water dripping on the defrost heater during a defrost cycle
may cause a sizzling sound.
• As each cycle ends, you may hear a gurgling sound due to
the refrigerant flowing in your refrigerator.
• Contraction and expansion of the inside walls may cause a
popping noise.
• You may hear air being forced over the condenser by the
condenser fan.
You may hear water running into the drain pan during the
defrost cycle.
REFRIGERATORUSE
PK}pe CHsucson
In order to ensure proper temperatures, you need to permit
airflow between the refrigerator and freezer sections. As shown in
the illustration, cool air enters through the bottom of the freezer
section and moves up. Most of the air then flows through the
freezer section vents and recirculates under the freezer floor. The
rest of the air enters the refrigerator section through the top vent.
4. If the doors do not close on their own, you will need to raise
the front of the refrigerator so it is slightly higher than the
back. To do this, turn both leveling screws clockwise _/2turn.
IMPORTANT: Be sure to turn both screws an equal amount
or the refrigerator will no longer be level side to side.
5. Open both doors again and check to make sure that they
close as easily as you like. If not, repeat steps 3 and 4.
Do not block any of these vents with food packages. If the vents
are blocked, airflow will be prevented and temperature and
moisture problems may occur.

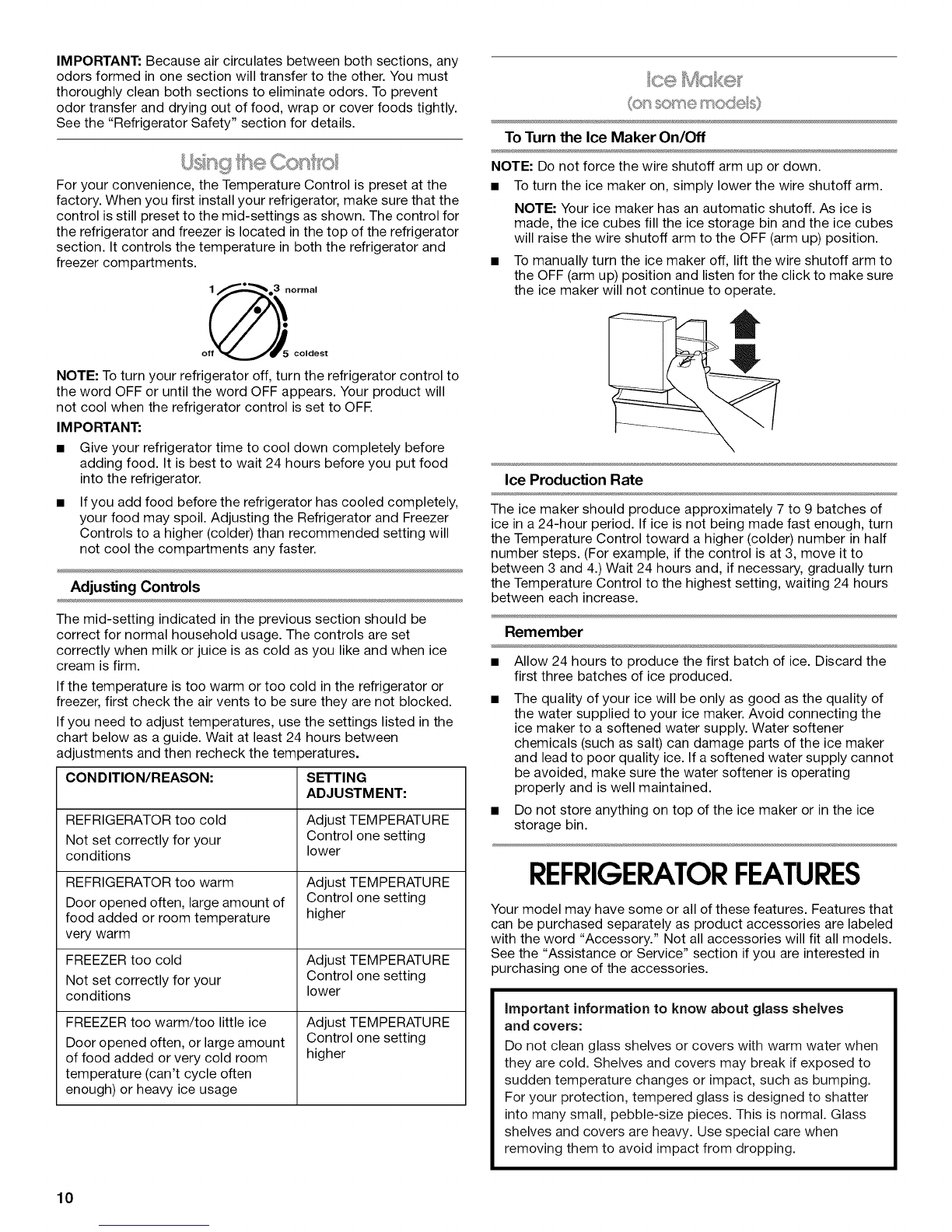

IMPORTANT:Becauseaircirculatesbetweenbothsections,any
odorsformedinonesectionwilltransfertotheother.Youmust
thoroughlycleanbothsectionstoeliminateodors.Toprevent
odortransferanddryingoutoffood,wraporcoverfoodstightly.
Seethe"RefrigeratorSafety"sectionfordetails.
Foryourconvenience,theTemperatureControlispresetatthe
factory.Whenyoufirstinstalyourrefrigerator,makesurethatthe
controlisstillpresettothemid-settingsasshown.Thecontrolfor
therefrigeratorandfreezerislocatedinthetopoftherefrigerator
section.Itcontrolsthetemperatureinboththerefrigeratorand
freezercompartments.
off__5 coldest
NOTE: To turn your refrigerator off, turn the refrigerator control to
the word OFF or until the word OFF appears. Your product will
not cool when the refrigerator control is set to OFR
IMPORTANT:
• Give your refrigerator time to cool down completely before
adding food. It is best to wait 24 hours before you put food
into the refrigerator.
• If you add food before the refrigerator has cooled completely,
your food may spoil. Adjusting the Refrigerator and Freezer
Controls to a higher (colder) than recommended setting will
not cool the compartments any faster.
Adjusting Controls
The mid-setting indicated in the previous section should be
correct for normal household usage. The controls are set
correctly when milk or juice is as cold as you like and when ice
cream is firm.
If the temperature is too warm or too cold in the refrigerator or
freezer, first check the air vents to be sure they are not blocked.
If you need to adjust temperatures, use the settings listed in the
chart below as a guide. Wait at least 24 hours between
adjustments and then recheck the tem
CONDITION/REASON:
REFRIGERATOR too cold
Not set correctly for your
conditions
REFRIGERATOR too warm
Door opened often, large amount of
food added or room temperature
very warm
FREEZER too cold
Not set correctly for your
conditions
FREEZER too warm/too little ice
Door opened often, or large amount
of food added or very cold room
temperature (can't cycle often
enough) or heavy ice usage
3eratures.
SETTING
ADJUSTMENT:
Adjust TEMPERATURE
Control one setting
lower
Adjust TEMPERATURE
Control one setting
higher
Adjust TEMPERATURE
Control one setting
lower
Adjust TEMPERATURE
Control one setting
higher
c® Mc£e
>++,=I I @_,= I Q]: I/'/+= '., _,,H < W
To Turn the Ice Maker On/Off
NOTE: Do not force the wire shutoff arm up or down.
• To turn the ice maker on, simply lower the wire shutoff arm.
NOTE: Your ice maker has an automatic shutoff. As ice is
made, the ice cubes fill the ice storage bin and the ice cubes
will raise the wire shutoff arm to the OFF (arm up) position.
• To manually turn the ice maker off, lift the wire shutoff arm to
the OFF (arm up) position and listen for the click to make sure
the ice maker will not continue to operate.
Ice Production Rate
The ice maker should produce approximately 7 to 9 batches of
ice in a 24-hour period. If ice is not being made fast enough, turn
the Temperature Control toward a higher (colder) number in half
number steps. (For example, if the control is at 3, move it to
between 3 and 4.) Wait 24 hours and, if necessary, gradually turn
the Temperature Control to the highest setting, waiting 24 hours
between each increase.
Remember
• Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
The quality of your ice will be only as good as the quality of
the water supplied to your ice maker. Avoid connecting the
ice maker to a softened water supply. Water softener
chemicals (such as salt) can damage parts of the ice maker
and lead to poor quality ice. If a softened water supply cannot
be avoided, make sure the water softener is operating
properly and is well maintained.
Do not store anything on top of the ice maker or in the ice
storage bin.
REFRIGERATORFEATURES
Your model may have some or all of these features. Features that
can be purchased separately as product accessories are labeled
with the word "Accessory." Not all accessories will fit all models.
See the "Assistance or Service" section if you are interested in
purchasing one of the accessories.
Important information to know about glass shelves
an_ covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
For your protection, tempered glass is designed to shatter
into many small, pebble-size pieces. This is normal. Glass
shelves and covers are heavy. Use special care when
removing them to avoid impact from dropping.
10

_'%_ _h@_w_ _,,_ ©_ _C_;_¢_#__%_t_

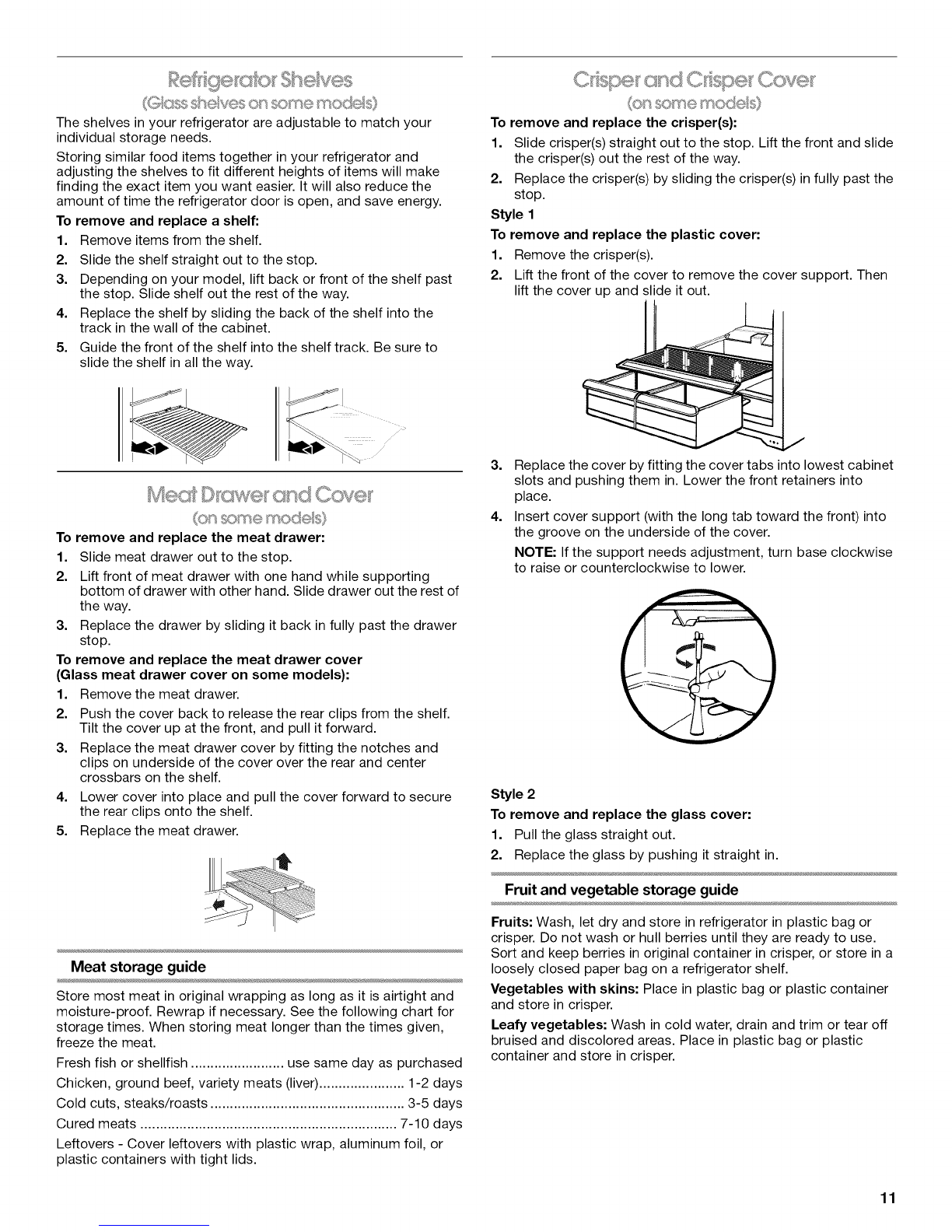

The shelves in your refrigerator are adjustable to match your
individual storage needs.
Storing similar food items together in your refrigerator and
adjusting the shelves to fit different heights of items will make
finding the exact item you want easier. It will also reduce the
amount of time the refrigerator door is open, and save energy.
To remove and replace a shelf:
1. Remove items from the shelf.
2. Slide the shelf straight out to the stop.
3. Depending on your model, lift back or front of the shelf past
the stop. Slide shelf out the rest of the way.
4. Replace the shelf by sliding the back of the shelf into the
track in the wall of the cabinet.
5. Guide the front of the shelf into the shelf track. Be sure to
slide the shelf in all the way.
To remove and replace the meat drawer:
1. Slide meat drawer out to the stop.
2. Lift front of meat drawer with one hand while supporting
bottom of drawer with other hand. Slide drawer out the rest of
the way.
3. Replace the drawer by sliding it back in fully past the drawer
stop.
To remove and replace the meat drawer cover
(Glass meat drawer cover on some models):
1. Remove the meat drawer.
2. Push the cover back to release the rear clips from the shelf.
Tilt the cover up at the front, and pull it forward.
3. Replace the meat drawer cover by fitting the notches and
clips on underside of the cover over the rear and center
crossbars on the shelf.
4. Lower cover into place and pull the cover forward to secure
the rear clips onto the shelf.
5. Replace the meat drawer.
Meat storage guide
Store most meat in original wrapping as long as it is airtight and
moisture-proof. Rewrap if necessary. See the following chart for
storage times. When storing meat longer than the times given,
freeze the meat.
Fresh fish or shellfish ........................ use same day as purchased
Chicken, ground beef, variety meats (liver)...................... 1-2 days
Cold cuts, steaks/roasts .................................................. 3-5 days
Cured meats .................................................................. 7-10 days
Leftovers - Cover leftovers with plastic wrap, aluminum foil, or
plastic containers with tight lids.
(ot_ some modes}
To remove and replace the crisper(s):
1. Slide crisper(s) straight out to the stop. Lift the front and slide
the crisper(s) out the rest of the way.
2. Replace the crisper(s) by sliding the crisper(s) in fully past the
stop.
Style 1
To remove and replace the plastic cover:
1. Remove the crisper(s).
2. Lift the front of the cover to remove the cover support. Then
lift the cover up and slide it out. 1
3. Replace the cover by fitting the cover tabs into lowest cabinet
slots and pushing them in. Lower the front retainers into
place.
4. Insert cover support (with the long tab toward the front) into
the groove on the underside of the cover.
NOTE: If the support needs adjustment, turn base clockwise
to raise or counterclockwise to lower.
Style 2
To remove and replace the glass cover:
1. Pull the glass straight out.
2. Replace the glass by pushing it straight in.
Fruit and vegetable storage guide
Fruits: Wash, let dry and store in refrigerator in plastic bag or
crisper. Do not wash or hull berries until they are ready to use.
Sort and keep berries in original container in crisper, or store in a
loosely closed paper bag on a refrigerator shelf.
Vegetables with skins: Place in plastic bag or plastic container
and store in crisper.
Leafy vegetables: Wash in cold water, drain and trim or tear off
bruised and discolored areas. Place in plastic bag or plastic
container and store in crisper.
11

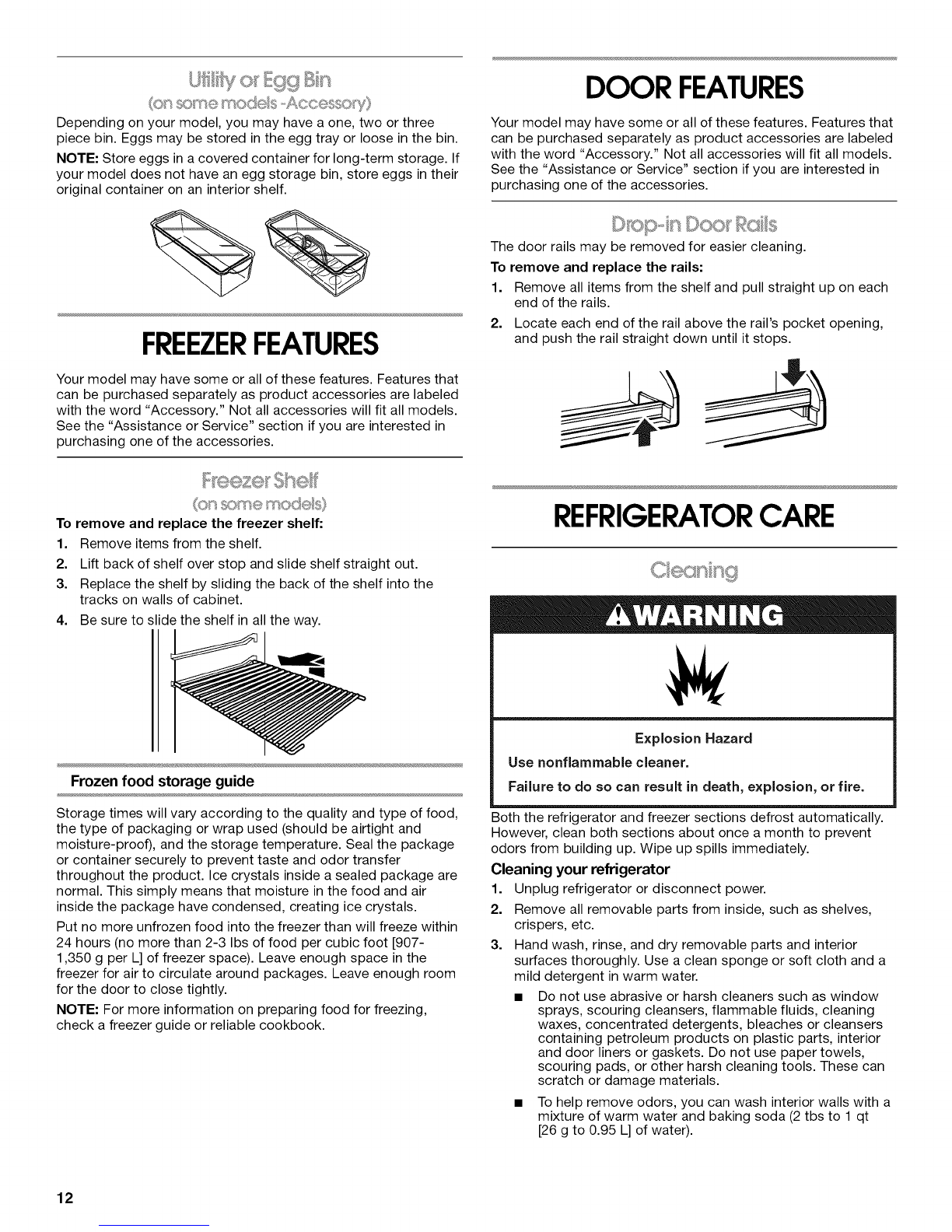

l];>_/__[_mo models -Access×s_y)
Depending on your model, you may have a one, two or three
piece bin. Eggs may be stored in the egg tray or loose in the bin.
NOTE: Store eggs in a covered container for long-term storage. If
your model does not have an egg storage bin, store eggs in their
original container on an interior shelf.
FREEZERFEATURES
Your model may have some or all of these features. Features that
can be purchased separately as product accessories are labeled
with the word "Accessory." Not all accessories will fit all models.
See the "Assistance or Service" section if you are interested in
purchasing one of the accessories.
DOOR FEATURES
Your model may have some or all of these features. Features that
can be purchased separately as product accessories are labeled
with the word "Accessory." Not all accessories will fit all models.
See the "Assistance or Service" section if you are interested in
purchasing one of the accessories.
l_[<}lllS
The door rails may be removed for easier cleaning.
To remove and replace the rails:
1. Remove all items from the shelf and pull straight up on each
end of the rails.
2. Locate each end of the rail above the rail's pocket opening,
and push the rail straight down until it stops.
Osn s_{x'_"® rood®Is}
To remove and replace the freezer shelf:
1. Remove items from the shelf.
2. Lift back of shelf over stop and slide shelf straight out.
3. Replace the shelf by sliding the back of the shelf into the
tracks on walls of cabinet.
4. Be sure to slide the shelf in all the way.
Frozen food storage guide
Storage times will vary according to the quality and type of food,
the type of packaging or wrap used (should be airtight and
moisture-proof), and the storage temperature. Seal the package
or container securely to prevent taste and odor transfer
throughout the product. Ice crystals inside a sealed package are
normal. This simply means that moisture in the food and air
inside the package have condensed, creating ice crystals.
Put no more unfrozen food into the freezer than will freeze within
24 hours (no more than 2-3 Ibs of food per cubic foot [907-
1,350 g per L] of freezer space). Leave enough space in the
freezer for air to circulate around packages. Leave enough room
for the door to close tightly.
NOTE: For more information on preparing food for freezing,
check a freezer guide or reliable cookbook.
REFRIGERATORCARE
E×plosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to prevent
odors from building up. Wipe up spills immediately.
Cleaning your refrigerator
1. Unplug refrigerator or disconnect power.
2. Remove all removable parts from inside, such as shelves,
crispers, etc.
3. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a
mild detergent in warm water.
•Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, cleaning
waxes, concentrated detergents, bleaches or cleansers
containing petroleum products on plastic parts, interior
and door liners or gaskets. Do not use paper towels,
scouring pads, or other harsh cleaning tools. These can
scratch or damage materials.
• To help remove odors, you can wash interior walls with a
mixture of warm water and baking soda (2 tbs to 1 qt
[26 g to 0.95 L] of water).
12

4= Wash stainless steel and painted metal exteriors with a clean
sponge or soft cloth and a mild detergent in warm water. Do
not use abrasive or harsh cleaners. Dry thoroughly with a soft
cloth. For additional protection against damage to painted
metal exteriors, apply appliance wax (or auto paste wax) with
a clean, soft cloth. Do not wax plastic parts.
NOTE: To keep your stainless steel refrigerator looking like
new and to remove minor scuffs or marks, it is suggested that
you use the manufacturer's approved Stainless Steel Cleaner
& Polish.
IMPORTANT: This cleaner is for stainless steel parts only!
Do not allow the Stainless Steel Cleaner & Polish to come into
contact with any plastic parts such as the trim pieces,
dispenser covers or door gaskets. If accidental contact does
occur, clean plastic part with a sponge and mild detergent in
warm water. Dry thoroughly with a soft cloth. To order the
cleaner, see the "Accessories" section.
5. Clean the condenser coils regularly. Coils may need to be
cleaned as often as every other month. This may help save
energy.
• Pull refrigerator out away from the wall (see the
"Unpacking" section).
• Vacuum coils when they are dusty or dirty.
• Roll refrigerator back into place. Make sure to leave 1"
(2.5 cm) between the cabinet back and the wall.
• Check to see that the refrigerator is level.
6. Plug in refrigerator or reconnect power.
NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to
replace the bulb with one of the same size, shape, and wattage.
1. Unplug refrigerator or disconnect power.
2. Reach behind the control panel and unscrew the bulb.
3. Replace the bulb with a 40-watt appliance bulb.
4. Plug in refrigerator or reconnect power.
If the power will be out for 24 hours or less, keep the door or
doors closed (depending on your model) to help food stay cold
and frozen.
If the power will be out for more than 24 hours, do one of the
following:
• Remove all frozen food and store it in a frozen food locker.
• Place 2 Ibs. (907 g) of dry ice in the freezer for every cubic
foot (28 L) of freezer space. This will keep the food frozen for
2 to 4 days.
• If neither a food locker nor dry ice is available, consume or
can perishable food at once.
REMEMBER: A full freezer stays cold longer than a partially filled
one. A freezer full of meat stays cold longer than a freezer full of
baked goods. Ifyou see that food contains ice crystals, it may be
refrozen, although the quality and flavor may be affected. If the
condition of the food is poor, dispose of it.
Vacations
If You Choose to Leave the Refrigerator On While You're
Away:
1. Use up any perishables and freeze other items.
2. If your refrigerator has an automatic ice maker:
• Raise wire shutoff arm to OFF (up) position or move the
switch to the OFF (right) setting.
• Shut off water supply to the ice maker.
3. Empty the ice bin.
If You Choose to Turn the Refrigerator Off Before You
Leave:
1. Remove all food from the refrigerator.
2. If your refrigerator has an automatic ice maker:
• Turn off the water supply to the ice maker at least one day
ahead of time.
• When the last load of ice drops, raise the wire shutoff arm
to the OFF (up) position or move the switch to the OFF
(right) setting.
3. Depending on the model, turn the Thermostat Control or
Refrigerator Control to OFR See "Using the Controls."
4. Clean refrigerator, wipe it, and dry well.
5. Tape rubber or wood blocks to the tops of both doors to prop
them open far enough for air to get in. This stops odor and
mold from building up.
Moving
When you are moving your refrigerator to a new home, follow
these steps to prepare it for the move.
1. If your refrigerator has an automatic ice maker:
• Turn off the water supply to the ice maker at least one day
ahead of time.
• Disconnect the water line from the back of the
refrigerator.
• When the last load of ice drops, raise the wire shutoff arm
to the OFF (up) position or move the switch to the OFF
(right) setting.
2. Remove all food from the refrigerator and pack all frozen
food in dry ice.
3. Empty the ice bin.
4. Depending on the model, turn the Thermostat Control or
Refrigerator Control to OFR See "Using the Controls."
5. Unplug refrigerator.
6. Empty water from the defrost pan.
7. Clean, wipe, and dry thoroughly.
8. Take out all removable parts, wrap them well, and tape them
together so they don't shift and rattle during the move.
9. Depending on the model, raise the front of the refrigerator so
it rolls more easily OR screw in the leveling legs so they don't
scrape the floor. See "Adjust the Doors."
10. Tape the doors closed and tape the power cord to the back
of the refrigerator.
When you get to your new home, put everything back and refer to
the "Installation Instructions" section for preparation instructions.
Also, if your refrigerator has an automatic ice maker, remember to
reconnect the water supply to the refrigerator.
13

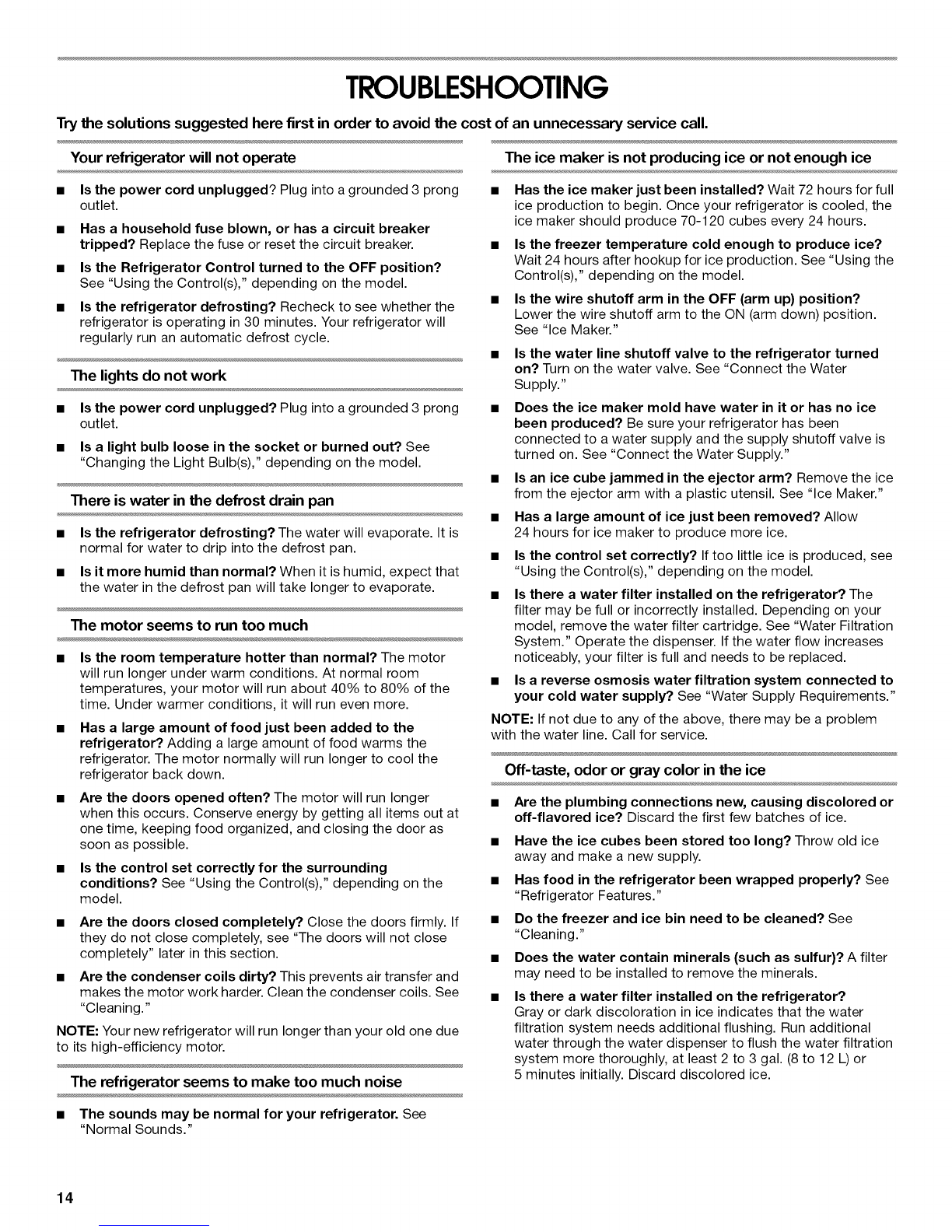

TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.
Your refrigerator will not operate The ice maker is not producing ice or not enough ice
Is the power cord unplugged? Plug into a grounded 3prong
outlet.
Has ahousehold fuse blown, or has acircuit breaker
tripped? Replace the fuse or reset the circuit breaker.
Is the Refrigerator Control turned to the OFF position?
See "Using the Control(s)," depending on the model.
Is the refrigerator defrosting? Recheck to see whether the
refrigerator is operating in 30 minutes. Your refrigerator will
regularly run an automatic defrost cycle.
The lights do not work
•Is the power cord unplugged? Plug into a grounded 3 prong
outlet.
•Is a light bulb loose in the socket or burned out? See
"Changing the Light Bulb(s)," depending on the model.
There is water in the defrost drain pan
•Is the refrigerator defrosting? The water will evaporate. It is
normal for water to drip into the defrost pan.
• Is it more humid than normal? When it is humid, expect that
the water in the defrost pan will take longer to evaporate.
The motor seems to run too much
•Is the room temperature hotter than normal? The motor
will run longer under warm conditions. At normal room
temperatures, your motor will run about 40% to 80% of the
time. Under warmer conditions, it will run even more.
•Has a large amount of food just been added to the
refrigerator? Adding a large amount of food warms the
refrigerator. The motor normally will run longer to cool the
refrigerator back down.
•Are the doors opened often? The motor will run longer
when this occurs. Conserve energy by getting all items out at
one time, keeping food organized, and closing the door as
soon as possible.
• Is the control set correctly for the surrounding
conditions? See "Using the Control(s)," depending on the
model.
•Are the doors closed completely? Close the doors firmly. If
they do not close completely, see "The doors will not close
completely" later in this section.
• Are the condenser coils dirty? This prevents air transfer and
makes the motor work harder. Clean the condenser coils. See
"Cleaning."
NOTE: Your new refrigerator will run longer than your old one due
to its high-efficiency motor.
The refrigerator seems to make too much noise
• The sounds may be normal for your refrigerator. See
"Normal Sounds."
•Has the ice maker just been installed? Wait 72 hours for full
ice production to begin. Once your refrigerator is cooled, the
ice maker should produce 70-120 cubes every 24 hours.
• Is the freezer temperature cold enough to produce ice?
Wait 24 hours after hookup for ice production. See "Using the
Control(s)," depending on the model.
• Is the wire shutoff arm in the OFF (arm up) position?
Lower the wire shutoff arm to the ON (arm down) position.
See "Ice Maker."
•is the water line shutoff valve to the refrigerator turned
on? Turn on the water valve. See "Connect the Water
Supply."
• Does the ice maker mold have water in it or has no ice
been produced? Be sure your refrigerator has been
connected to a water supply and the supply shutoff valve is
turned on. See "Connect the Water Supply."
•Is an ice cube jammed in the ejector arm? Remove the ice
from the ejector arm with a plastic utensil. See "Ice Maker."
• Has a large amount of ice just been removed? Allow
24 hours for ice maker to produce more ice.
• Is the control set correctly? If too little ice is produced, see
"Using the Control(s)," depending on the model.
• Is there a water filter installed on the refrigerator? The
filter may be full or incorrectly installed. Depending on your
model, remove the water filter cartridge. See "Water Filtration
System." Operate the dispenser. If the water flow increases
noticeably, your filter is full and needs to be replaced.
• Is a reverse osmosis water filtration system connected to
your cold water supply? See "Water Supply Requirements."
NOTE: If not due to any of the above, there may be a problem
with the water line. Call for service.
Off-taste, odor or gray color in the ice
Are the plumbing connections new, causing discolored or
off-flavored ice? Discard the first few batches of ice.
•Have the ice cubes been stored too long? Throw old ice
away and make a new supply.
• Has food in the refrigerator been wrapped properly? See
"Refrigerator Features."
• Do the freezer and ice bin need to be cleaned? See
"Cleaning."
• Does the water contain minerals (such as sulfur)? A filter
may need to be installed to remove the minerals.
• Is there a water filter installed on the refrigerator?
Gray or dark discoloration in ice indicates that the water
filtration system needs additional flushing. Run additional
water through the water dispenser to flush the water filtration
system more thoroughly, at least 2 to 3 gal. (8 to 12 L) or
5 minutes initially. Discard discolored ice.
14

The water dispenser will not operate properly
•Has the water system not filled? The water system needs
to be filled the first time it is used. Use a sturdy container to
depress the water dispenser until water begins to flow.
Dispense and discard 2 to 3 gal. (8 to 12 L) of water. This will
take approximately 5 minutes and will help clear air from the
line. Additional flushing may be required in some households.
See "Water Dispenser."
•Is the water shutoff valve not turned on or the water line
connected at the source? Be sure the water shutoff valve is
turned on and the water source is connected to the
refrigerator. See "Connect the Water Supply."
•Is the water shutoff valve clogged or incorrectly installed?
See "Connect the Water Supply." If clogging or installation is
not a problem, call for service or contact a plumber.
•Is there akink in the home water source line? Ifyou find or
suspect a kink in the water line, contact a licensed, qualified
plumber.
•Is there a water filter installed on the refrigerator? The
filter may be clogged or incorrectly installed. First, check the
filter installation instructions to ensure that the filter was
installed correctly and is not clogged. If installation or
clogging is not a problem, call for service.
•Is a reverse osmosis water filtration system connected to
your cold water supply? See "Water Supply Requirements."
Water flow from the dispenser decreases noticeably
Is there a water filter installed on the refrigerator? The
filter may be full or incorrectly installed. Depending on your
model, remove the water filter cartridge. See "Water Filtration
System." Operate the dispenser. If the water flow increases
noticeably, your filter is full and needs to be replaced.
Water leaking from the dispenser
•Is the glass not being held under the water dispenser long
enough? Hold the container under the water dispenser 2 to
3 seconds after releasing the dispenser lever. Water may
continue to dispense during this time.
•Is there a water filter installed on the refrigerator? The
water filtration system may have air in the lines, causing water
to drip. Additional flushing may help clear air from the lines.
Normal dispenser use should flush air from the lines within
24 to 72 hours.
The dispenser water is not cool enough
•Has the refrigerator been newly installed? Allow 24 hours
for the refrigerator to cool completely.
•Has alarge amount of water been recently dispensed?
Allow 24 hours for the water to cool completely.
•Has water not been recently dispensed? The first glass of
water may not be cool. Discard the first glass of water.
The divider between the two compartments is warm
The warmth is probably due to normal operation of the automatic
exterior moisture control.
Temperature is too warm
•Are the air vents blocked in either compartment? This
prevents cold air movement between the compartments.
Move objects away from the air vents. See "Ensuring Proper
Air Circulation" for air vent locations.
•Are the door(s) opened often? The refrigerator will warm
when this occurs. Keep the refrigerator cool by getting all
items out at one time, keeping food organized, and closing
the door as soon as possible.
•Has alarge amount of food just been added to the
refrigerator or freezer? Adding a large amount of food
warms the refrigerator. It can take several hours for the
refrigerator to return to the normal temperature.
•Are the controls set correctly for the surrounding
conditions? See "Using the Control(s)," depending on your
model.
There is interior moisture buildup
•Are the air vents blocked in the refrigerator? Remove any
objects from in front of the air vents. See "Ensuring Proper Air
Circulation" for air vent locations.
•Are the door(s) opened often? Avoid humidity buildup by
getting all items out at one time, keeping food organized, and
closing the door as soon as possible.
• Is the room humid? It is normal for moisture to build up
inside the refrigerator when the room air is humid.
• Is the food packaged correctly? Check that all food is
securely wrapped. Wipe off damp food containers before
placing them in the refrigerator.
•Is the control set correctly for the surrounding
conditions? See "Using the Control(s)," depending on your
model.
Was aself-defrost cycle completed? It is normal for
droplets to form after the refrigerator self-defrosts.
The doors are difficult to open
•Are the gaskets dirty or sticky? Clean gaskets and the
surface that they touch. Rub athin coat of paraffin wax on the
gaskets following cleaning.
The doors will not close completely
•Are food packages blocking the door open? Rearrange
containers so that they fit more tightly.
• Is the ice bin out of position? Push the ice bin in all the way.
• Are the crisper cover, pans, shelves, bins, or baskets out
of position? Put these items into their correct positions. See
"Refrigerator Features" for more information.
• Are the gaskets sticking? Clean gaskets and the surface
that they touch. Rub a thin coat of paraffin wax on the
gaskets following cleaning.
•Does the refrigerator wobble or seem unstable? Level the
refrigerator. See "Adjust the Doors."
• Were the doors removed during product installation and
not properly replaced? Remove and replace the doors
according to "Refrigerator Doors," or call a qualified service
technician.
15

IKEA®REFRIGERATORWARRANTY
ONE-YEAR FULL WARRANTY ON REFRIGERATOR
For one year from the date of purchase, when this refrigerator (excluding the water filter) is operated and maintained according to
instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP will pay for factory specified parts
and repair labor costs to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service
company.
On models with a water filter: 30 day limited warranty on water filter. For 30 days from the date of purchase, when this filter is operated
and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP will
pay for replacement parts to correct defects in materials and workmanship.
Whirlpool Corporation or Whirlpool Canada LP will not pay for:
1. Service calls to correct the installation of your refrigerator, to instruct you how to use your refrigerator, to replace house fuses or
correct house wiring or plumbing, to replace light bulbs, or replacement water filters other than as noted above.
2. Repairs when your refrigerator is used in other than normal, single-family household use.
3. Pickup and delivery. Your refrigerator is designed to be repaired in the home.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God, or use of products not
approved by Whirlpool Corporation or Whirlpool Canada LR
5. Any food loss due to product failure.
6. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
7. Replacement parts or repair labor costs for units operated outside the United States or Canada.
8. In Canada, travel or transportation expenses for customers who reside in remote areas.
WHIRLPOOL CORPORATION OR WHIRLPOOL CANADA LP SHALL NOT BE LIABLE
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation
may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or
province to province.
Outside the 50 United States and Canada, this warranty does not apply. 11/04
16

GUIDED'UTILISATIONETD'ENTRETIENDU REFRIGERATEUR
Assistance ou service
Si vous avez besoin d'assistance ou de service, consulter
d'abord la section "Depannage". On peut obtenir de I'aide
supplementaire. Nous appeler au 1-800-253-1301 de n'importe
oQ aux 12.-U.,ou en ecrivant a :
Whirlpool Corporation
Customer experience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Au Canada, pour installation et service, appeler le
1-800-807-6777. Pour assistance, composer le 1-800-461-5681
du lundi au vendredi - de 8 h 00 a 18 h 00 (HNE) - et le samedi de
8 h 30 a 16 h 30 (HNE), ou ecrire &:
Whirlpool Canada LP
Centre d'interaction avec la clientele
1901 Minnesota Court
Mississauga, Ontario L5N 3A7
Des informations peuvent egalement _tre obtenues en visitant
notre site sur www.ikea.com.
Dans votre correspondance, veuillez indiquer un num6ro de
tel6phone oQ I'on peut vous joindre dans la journee.
Conservez ce manuel et votre re_u de vente ensemble pour
r_f_rence ult_rieure. Pour le service sous garantie, vous
devez presenter un document prouvant la date d'achat ou
d'installation.
Inscrivez les renseignements suivants au sujet de votre appareil
m6nager pour vous aider a obtenir assistance ou service en cas
de besoin. Vous devrez connaitre le numero de modele et le
num6ro de serie au complet. Vous trouverez ces renseignements
sur la plaque signaletique situ6e sur la paroi interne du
compartiment de refrig6ration.
Nom du marchand
Numero de serie
Adresse
Numero de t_lephone
SECURITEDUREFRIGERATEUR
Votre securite et celle des autres est tres importante.
Nous donnons de nombreux messages de s_curit_ importants dans ce manuel et sur votre appareil m_nager. Assurez-vous de
toujours lire tousles messages de s_curit_ et de vous y conformer.
Voici le symbole d'alerte de s_curit_.
Ce symbole d'alerte de s_curit_ vous signale les dangers potentiels de d_c_s et de blessures graves a vous
eta d'autres.
Tousles messages de s_curit_ suivront le symbole d'alerte de s_curit_ et le mot "DANGER" ou
"AVERTISSEMENT". Ces mots signifient •
Risque possible de d_ces ou de blessure grave si vous ne
suivez pas imm_diatement les instructions.
Risque possible de d_ces ou de blessure grave si vous
ne suivez pas les instructions.
Tousles messages de s_curit_ vous diront quel est le danger potentiel et vous disent comment r_duire le risque de blessure et
ce qui peut se produire en cas de non-respect des instructions.
17

IMPORTANTES INSTRUCTIONS DE SI_CURITI_
AVERTISSEMENT :Pour reduire les risques d'incendie, de choc electrique ou des blessures Iors de I'utilisation du
refrig6rateur, prendre quelques precautions fondamentales, y compris les suivantes :
• Brancher I'appareil sur une prise & 3 alveoles reliee a la terre.
• Ne pas enlever la broche de liaison & la terre.
• Ne pas utiliser un adaptateur.
• Ne pas utiliser un c&ble de rallonge.
• Utiliser deux ou plus de personnes pour deplacer et installer
le refrig6rateur.
• Debrancher la source de courant electrique avant I'entretien.
• Replacer pieces et panneaux avant de faire la remise en
marche.
• Utiliser un produit de nettoyage ininflammable.
• Garder les materiaux et les vapeurs inflammables, telle que
I'essence, loin du refrigerateur.
• Debrancher le refrigerateur avant I'installation de la machine
glagons (seulement pour modeles pr_ts a recevoir une
machine & gla£_ons).
• Utiliser un verre robuste pour prendre des gla(_ons ou de
I'eau (sur certains modeles).
• Enlever les portes de votre vieux refrigerateur.
CONSERVEZ CES INSTRUCTIONS
Miseau rebutde votre vieux r( frig( rateur
Risque de suffoquer
Enlever Jes portes de votre vJeux r_frig6rateur.
Le non=respect de cette instruction peut causer
un d_c_s ou des I_sions c_r_brales.
IMPORTANT :L'emprisonnement et I'etouffement des enfants ne
sont pas un probleme du passe. Les refrigerateurs jetes ou
abandonnes sont encore dangereux, m_me s'ils sont laisses
abandonnes pendant "quelques jours seulement'. Si vous vous
debarrassez de votre vieux refrigerateur, veuillez suivre les
instructions suivantes pour aider &eviter les accidents.
Avant de jeter votre vieux r_frig_rateur ou cong_lateur :
• Enlever les portes.
• Laisser les tablettes en place de sorte que les enfants ne
peuvent pas y penetrer facilement.
INSTRUCTIONSD'INSTALLATION
Risque du poids excessif
Utiiiser deux ou plus de personnes pour d_placer et
installer le r_frig_rateur.
Le non=respect de cette instruction peut causer
une blessure au dos ou d'autre blessure.
Enl_vement des mat_riaux d'emballage
• Enlever le ruban adhesif et la colle des surfaces du
refrigerateur avant de le mettre en marche. Frotter une petite
quantite de savon liquide pour la vaisselle sur I'adhesif avec
les doigts. Rincer a I'eau tiede et essuyer.
• Ne pas utiliser d'instruments coupants, d'alcool & friction, de
liquides inflammables ou de nettoyants abrasifs pour enlever
le ruban adhesif ou la colle. Ces produits peuvent
endommager la surface de votre refrigerateur. Pour plus de
renseignements, voir "Securite du refrigerateur".
• Sur certains modeles, des tablettes, bacs, glissieres de
tablettes dans la porte et autres pieces peuvent _tre emballes
dans la trousse FeaturePak. Suivre les instructions contenues
dans I'emballage pour le montage appropri&
• IIy a quatre boulons qui arriment le refrigerateur & la boite
d'expedition. Conserver ces boulons; ils servent de pieds de
nivellement pour le refrigerateur.
•€:liminer les materiaux d'emballage de la maniere appropriee.
IMPORTANT : Ne pas enlever I'encart en mousse blanche du
retour d'air situe derriere le panneau de reglage au plafond du
refrigerateur (sur certains modeles). L'encart fait partie du
refrigerateur et n'est pas un materiau d'emballage. Si I'encart est
enleve, de la glace peut se former en provenance du congelateur
et causer la formation de glagons.
D_pJacernent de votre r6frig6rateur :
Votre refrigerateur est Iourd. Lors du deplacement du
refrigerateur pour le nettoyage ou le service, veiller & proteger
le plancher. Toujours tirer le refrigerateur tout droit Iors du
deplacement. Ne pas incliner le refrigerateur d'un c6te ou de
I'autre nile "faire marcher" en essayant de le deplacer car le
plancher pourrait _tre endommag&
18

Nettoyage avant I'utilisation
Apres avoir enleve tousles materiaux d'emballage, nettoyer
I'interieur du refrigerateur avant de I'utiliser. Voir les instructions
de nettoyage dans "Entretien du refrigerateur".
Importants renseignements a savoir au sujet des tablettes
et des couvercles en verre :
Ne pas nettoyer les tablettes ou couvercles en verre avec de
I'eau tiede quand ils sont froids. Les tablettes et les
couvercles peuvent se briser s'ils sont expos6s &des
changements soudains de temp@ature ou a un impact tel
que coup brusque. Pour votre protection, le verre tremp_ est
con£u pour _clater en d'innombrables pieces minuscules.
Ceci est normal. Les tablettes et les couvercles en verre sont
Iourds. Un soin special s'impose Iors de leur d_placement
pour _viter I'impact d'une chute.
REMARQUE :II est recommande de ne pas installer la
refrigerateur pres d'un four, d'un radiateur ou de toute autre
source de chaleur. Ne pas installer le refrigerateur dans un endroit
oQ la temperature baissera au-dessous de 55°F (13°C).
/
/
2" (5,08 crn)
Risque d'explosion
Garder les mat_riaux et les vapeurs inflammables, telle
que J'essence, loin du r_frig_rateur.
Le non=respect de cette instruction peut causer
un d_c_s, une explosion ou un incendie.
Pour obtenir une aeration appropriee pour votre refrigerateur,
laisser un espace de 1/2"(12,70 mm) de chaque c6t& Laisser un
espace de 3" (7,5 cm) entre le dessus du refrigerateur et le
dessous des armoires. Laisser au moins 1" (25,40 mm) entre
I'arriere du refrigerateur et le mur. Si votre refrigerateur comporte
une machine & gla£;ons, s'assurer qu'un espace additionnel est
prevu & I'arriere pour permettre les connexions des conduits
d'eau.
• Si vous installez votre refrigerateur pres d'un mur fixe, laisser
un minimum de 2" (5,08 cm) du c6te des charnieres (selon le
modele) pour permettre a la porte de s'ouvrir sans
obstruction.
• 12tablir I'aplomb du refrigerateur. Voir "Fermeture des portes".
Risque de choc _lectrique
Brancher sur une prise a3aiv_oles reli_e a la terre.
Ne pas enlever la broche de liaison ala terre.
Ne pas utiliser un adaptateur.
Ne pas utiliser un c&ble de rallonge.
Le non=respect de ces instructions peut causer
un d_c_s, un incendie ou un choc _lectrique.
Avant de placer le refrigerateur &son emplacement final, il est
important de vous assurer d'avoir la connexion electrique
appropriee.
M_thode recommand_e de mise _la terre
Une source d'alimentation de 115 volts, 60 Hz, type 15- ou
20-amps CA seulement, protegee par fusibles et adequatement
mise & la terre est necessaire. II est recommande d'utiliser un
circuit distinct pour alimenter uniquement votre refrigerateur.
Utiliser une prise murale qui ne peut pas _tre mise hors circuit
I'aide d'un commutateur. Ne pas utiliser de c&ble de rallonge.
REMARQUE :Avant d'executer tout type d'installation,
nettoyage ou remplacement d'une ampoule d'eclairage, tourner
la commande (du thermostat, du refrigerateur ou du congelateur
selon le modele) OFF (arr_t) et debrancher ensuite le refrigerateur
de la source d'alimentation electrique. Lorsque vous avez
termine, reconnecter le refrigerateur a la source d'alimentation
electrique et mettre de nouveau la commande (du thermostat, du
refrigerateur ou du congelateur selon le modele) au reglage
desire.
19

Rassembler les outils et pi@cesn@cessaires avant de commencer
I'installation. Lire et suivre les instructions fournies avec les outils
indiqu@s ici.
IMPORTANT:
•Si on doit utiliser le refrig6rateur avant qu'il soit raccorde & la
canalisation d'eau, placer la commande de la machine
glagons a la position OFF (arr_t).
• Toutes les installations doivent _tre conformes aux exigences
des codes Iocaux de plomberie.
• Utiliser un tube en cuivre et verifier s'il y a des fuites. Installer
les tubes en cuivre seulement a des endroits oQ la
temperature se maintient au-dessus du point de congelation.
OUTILLAGE REQUlS :Tournevis & lame plate, cles plates de 7Ae"
et _/2"ou 2 cles & molette reglables, tourne-ecrou et foret de V4",
perceuse manuelle ou electrique (convenablement reliee &la
terre).
REMARQUE • Votre marchand de refrig6rateurs propose une
trousse disponible avec un robinet d'arr_t & etrier de %"
(6,35 mm), un raccord et un tube en cuivre. Avant I'achat,
s'assurer que le robinet d'arr_t &etrier est conforme & vos codes
Iocaux de plomberie. Ne pas employer de robinet d'arr_t & etrier
de 3Ad'(4,76 mm) ou de type &percer, ce qui reduit le debit d'eau
et cause une obstruction plus facilement.
Pression de I'eau
Une alimentation en eau froide avec une pression entre 30 et
120 Ib/po _(207 - 827 kPa) est necessaire pour faire fonctionner le
distributeur d'eau et la machine & glagons. Si vous avez des
questions au sujet de la pression de votre eau, appeler un
plombier qualifie agre6.
Alimentation en eau par osmose inverse
IMPORTANT • La pression de I'alimentation en eau entre le
systeme d'osmose inverse et la valve d'arrivee d'eau du
refrig6rateur doit _tre entre 30 et 120 Ib/po 2 (207 - 827 kPa).
Si un systeme de purification de I'eau par osmose inverse est
raccorde & votre alimentation en eau froide, la pression de I'eau
au systeme doit _tre d'un minimum de 40 a 60 Ib/po 2(276 -
414 kPa).
Si la pression de I'eau au systeme d'osmose inverse est
inferieure a 40 - 60 Ib/po _(276 - 414 kPa) :
• Verifier pour voir si le filtre & sediments du systeme d'osmose
inverse est bloqu_ et le remplacer si necessaire.
• Laisser le reservoir du systeme d'osmose inverse se remplir
apr_s une utilisation intense.
• Si votre refrigerateur a une cartouche de filtre & eau, celle-ci
peut reduire encore plus la pression de I'eau Iorsqu'elle est
utilisee avec un systeme d'osmose inverse. Retirer la
cartouche du filtre a eau. Voir "Systeme de filtration d'eau".
Si vous avez des questions au sujet de la pression de votre eau,
appeler un plombier qualifie agree.
Liretouteslesinstructionsavantde commencer.
IMPORTANT :Sion met en marche lerefrigerateuravantson
raccordementa lacanaIisationd'eau,placerlacommande de la
machine a glagonsa lapositionOFF (arr@t).
Raccordement &une canalisation d'eau :
1=
2=
3=
Debrancher le refrigerateur ou deconnecter la source de
courant electrique.
FERMER le robinet principal d'arrivee d'eau. OUVRIR le
robinet de puisage le plus proche pendant une periode
suffisante pour que la canalisation d'eau se vide.
Trouver une canalisation d'eau FROIDE verticale de W' & 1V4"
(1,27 & 3,18 cm) pres du refrigerateur.
REMARQUE • Un conduit horizontal fonctionnera, mais le
procede suivant doit _tre suivi : percer par le dessus de la
canalisation et non pas par le dessous. Ainsi, I'eau ne
risquera pas d'arroser la perceuse. Ceci emp_che egalement
les sediments qu'on trouve normalement dans I'eau de
s'accumuler dans le robinet d'arr_t.
4. Pour determiner la Iongueur du tube en cuivre, il faut mesurer
la distance entre le point de connexion & gauche au bas &
I'arriere du refrigerateur et le tuyau d'arrivee d'eau. Ajouter
une Iongueur de 7 pi (2,1 m) pour permettre le deplacement
du refrigerateur pour le nettoyage. Utiliser un tube en cuivre
de V4"(6,35 mm) de diametre exterieur. Veiller & ce que le
tube soit coupe d'equerre aux deux extremites.
5. A I'aide d'une perceuse electrique reliee & la terre, percer un
trou de V4"(6,35 mm) dans le tuyau de canalisation d'eau
froide choisie.
6=
A. Canafisation d' eau
froide
B. Bride de tuyau
C. Tube en cuivre
D.12crou de
E.Bague de compression
F. Robinet d'arr_t
G. E-crou de serrage
compression
Fixer le robinet sur la canalisation d'eau froide avec la bride
de prise en charge. Verifier que le raccord du robinet est bien
engage dans le trou de V4"(6,35 mm) perce dans la
canalisation et que la rondelle d'etancheite est placee sous la
bride de prise en charge. Serrer I'ecrou de serrage sur latige
du robinet. Serrer soigneusement et uniformement les vis
fixant la bride de prise en charge sur la tuyauterie afin que la
rondelle forme une jonction etanche. Ne pas serrer
excessivement car ceci pourrait provoquer I'ecrasement du
tube en cuivre, particulierement s'il s'agit d'un tube en cuivre
malleable. On est maintenant pr_t & connecter le tube de
raccordement en cuivre.
7. Enfiler I'ecrou et la bague de compression du raccord sur le
tube en cuivre comme on le voit sur I'illustration. Inserer
I'extremite du tube aussi loin que possible dans I'ouverture
de sortie du robinet. Visser I'ecrou du raccord de
compression sur le raccord de sortie avec une cle a molette
reglable. Ne pas serrer excessivement.
8. Placer le bout libre du tube dans un recipient ou I'evier et
OUVRIR le robinet principal d'arrivee d'eau et laisser I'eau
s'ecouler par le tube jusqu'& ce que I'eau soit limpide.
FERMER le robinet principal d'arrivee d'eau. Enrouler le tube
en cuivre en spirale.
20
