IKEA LUFTIG User manual

LUFTIG

SAFETY INFORMATION
For your safety and correct operation of the appliance, read this manual carefully before
installation and use. Always keep these instructions with the appliance even if you move or
sell it. Users must fully know the operation and safety features of the appliance.
Recommendations and suggestions
ŸThe manufacturer will not be held liable for any damages resulting from incorrect or
improper installation.
ŸThe minimum safety distance between the cooker top and the extractor hood is 500mm
for Electric hob & 700mm for Gas hob.
ŸIf the instructions for installation for the gas hob specify a greater distance, this must be
respected.
ŸCheck that the mains voltage (220-240V) corresponds to that indicated on the rating
plate fixed to the inside of the hood.
ŸFor appliances, check that the domestic power supply guarantees adequate earthing.
ŸConnect the extractor to the exhaust flue through a pipe of minimum diameter 120
mm. The route of the flue must be as short as possible.
ŸDo not connect the extractor hood to exhaust ducts carrying combustion fumes
(boilers, fireplaces, etc.).
ŸIf the extractor is used in conjunction with non-electrical appliances (e.g. gas burning
appliances), a sufficient degree of aeration must be guaranteed in the room in order
to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction
with appliances supplied with energy other than electric, the negative pressure in the
room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by
the cooker hood.
ŸIf the supply cord is damaged, it must be replaced from the manufacturer or its service
agent.
ŸConnect the plug to a socket complying with current regulations, located in an accessible
place.
ŸWith regards to the technical and safety measures to be adopted for fume discharging it
is important to closely follow the regulations provided by the local authorities.
1
CONTENTS
1
4
4
6
7
8
8
IKEA Guarantee
AA-2037577-3

WARNING:
Before installing the Hood, remove the protective films (white and transparent).
Use only screws and small parts in support of the hood.
WARNING:
Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards.
Connect the hood to the power net by using a bipolar switch having a contact gap of at least
3 mm. Do not flambè under the range hood; risk of fire.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.
WARNING:
Accessible parts may become hot when used with cooking appliances.
Clean and/or replace the Filters after the specified time period (Fire hazard).
2
WARNING:
Disconnect power before servicing. Any ground circuit disconnected during service must
be reconnected before further use. Please do not use an extension to operate machine.

Use
ŸSwitch off or unplug the appliance
from the mains supply before
carrying out any maintenance work.
ŸThe extrac tor hood has been
designed exclusively for domestic use
to eliminate kitchen smells.
ŸNever use the hood for purposes
other than for which it has been
designed.
ŸNever leave high naked flames under
the hood when it is in operation.
ŸAdjust the flame intensity to direct it
onto the bottom of the pan only,
making sure that it does not engulf the
sides.
ŸDeep fat fryers must be continuously
monitored during use: overheated oil
can burst into flames.
Care and cleaning
ŸActivated charcoal filter these filters
are not washable and cannot be
regenerated, and must be replaced
approximately every 4 months of
operation, or more frequently with
heavy usage.
ŸGrease filters the filters must be
cleaned every 2 months of operation,
or more frequently for particularly
heavy usage, and can be washed in a
dishwasher.
ŸClean the hood using a damp cloth
and a neutral liquid detergent.
3
AA-2037577-3

CARE AND CLEANING
Switch off or unplug the appliance from the
mains supply before carrying out any
maintenance work.
Clean the hood using a damp cloth and a
neutral liquid detergent.
Charcoal Filter
(Optional for Re circulation Mode)
These filters are not washable and cannot
be regenerated, and must be replaced
approximately every 4 months of
operation, or more frequently with heavy
usage.
Lower Chimney
Hood body
Lighting
Filters
Control Pannel
1
2
34
5
4

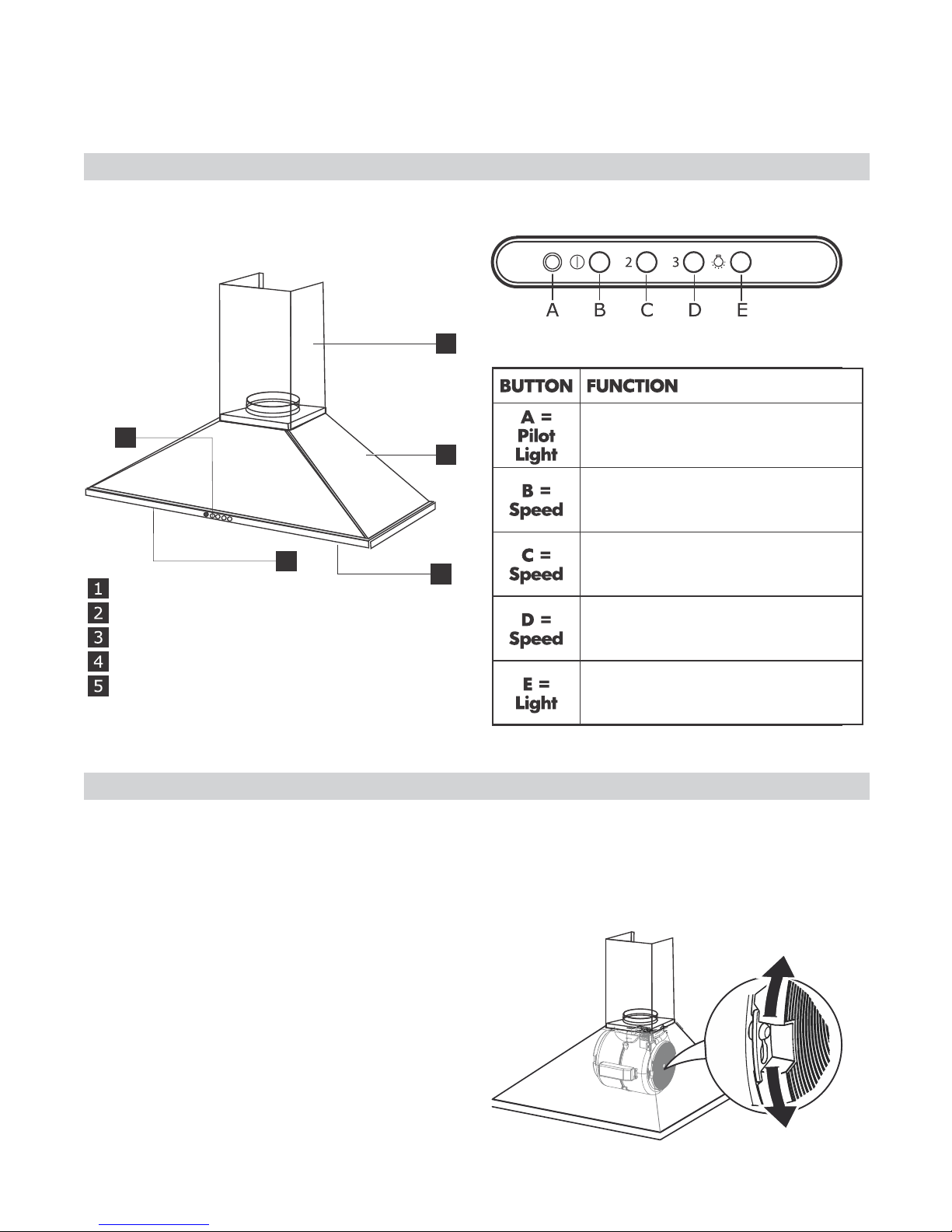

PRODUCT DESCRIPTION
ON if the motor is working.
Turns the Motor ON at Speed
one. Turns the Motor OFF.
Set the Motor at Speed two.
Set the Motor at speed three.
Turns the Lighting System ON
and OFF.

5
Grease Filters
Clean or replace the filters continuously
according to below time intervals, to
maintain good performance of the hood and
to prevent a potential fire hazard, caused by
excessive grease build-up.
The grease filters must be cleaned every 2
months of operation, or more frequently for
particularly heavy usage, and can be
washed in a dishwasher.
Replacing the lamps
Call Service guy.
Changing of lamps by opening LD panel.
Unscrew the bulbs, by using the gloves, and
replace them with new ones having the
same characteristics 2W (Connection type:
E14).
HSGSB/C/UB-28-220/240-E14104 x 35220-240E 142W
Hold, Pull and Turn
AA-2037577-3
Before removing the filter, put your hand
below it for support.

Appliance not stable.
Appliance is not in horizontal
position.
Performance in terms of oil capture
aren't satisfying.
Appliance doesn't work.
The lamp is not working.
The lamp is not working.
The appliance is not correctly installed.
The appliance is not correctly installed.
Oil and grease on metal filters.
The appliance is not correctly
connected.
The lamp is not correctly fixed.
The lamp is faulty.
Respect the Installation instruction enclosed to
the appliance.
Respect the Installation instruction enclosed to
the appliance.
Respect the cleaning frequency of filters as
described in the user manual.
Verify that the main cable is connected to the
motor group or the plug is connected to the
socket.
Call Customer Care
Call Customer Care
POSSIBLE CAUSE SOLUTIONPROBLEM
6
If there is a fault, first try to find a solution
to the problem yourself. If you cannot find
a solution to the problem yourself,
contact an authorized service center.
If you operated the appliance
wrongly, or the installation was not
carried out according to the Assembly
instructions, the visit from the After Sales
Service technician may not take place
free of charge, even during the warranty
period.
WHAT TO DO IF...
NOTE: If above problem is not solved by given solution then call customer care.

7
TECHNICAL DATA
Filament LED
2x2W
620/995
390
650
AA-2037577-3
700
700
490
740
254
500
9.7
600

Maintenance
The symbol on t h e p ro d u c t o r o n i t s
packaging indicates that this product may not be
treated as household waste. Instead it shall be
handed over to the applicable collection point for the
recycling of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product, please
contact your local city office, your household waste
disposal service or the shop where you purchased the
product.
Packaging materials
The materials with the symbol are recyclable.
Dispose the packaging in suitable collection
containers to recycle it.
ENVIRONMENT CONCERNS
8
IKEA WARRANTY
How long is the IKEA warranty valid?
This warranty is valid for five (5) years from
the original date of purchase of your
appliance at IKEA. Proof of purchase is
required. If service work is carried out under
warranty, this will not extend the warranty
period for the appliance.
Who will execute the service?
IKEA Service Provider will provide the service
through its own service operations or
authorized service partner network.
What does this warranty cover?
The warranty covers faults of the appliance,
which have be en ca used by faulty
construction or material faults from the date
of purchase from IKEA. This warranty applies
to domestic use only. The exceptions are
specified under the headline “What is not
covered under this warranty?” Within the
warranty period, the costs to remedy the
fault e.g. repairs, parts, labour and travel will
be covered, provided that the appliance is
accessible for repair without special
expenditure. Replaced parts or appliance
become the property of IKEA.
What will IKEA do to correct the
problem?
IKEA will examine the product and decide, at
its sole discretion, if it is covered under this
warranty. If considered covered, IKEA will
then, at its sole discretion, either repair the
defective product or if the product is found to
be not repairable in its sole discretion (a)
IKEA will replace it with the same or a
comparable product or (b) refund it as per
the prevailing depreciation rules of IKEA.

9
Wh a t is no t cove re d u n d er th i s
warranty?
Normal wear and tear.
Deliberate or negligent damage, damage
caused by failure to observe operating
instructions, incorrect installation or by
connection to the wrong voltage, fluctuating
voltage, improper electrical circuit, blown
fuse, damage caused by chemical or
electrochemical reaction, rust, corrosion or
water damage including but not limited to
damage caused by excessive lime in the
water supply, damage caused by abnormal
environmental conditions, damage caused by
rodents/insects, water, lightening, pest
infestation or other acts of god.
Consumable parts including batteries and
lamps.
Non-functional and decorative parts which
do not affect normal use of the appliance,
including any scratches and possible colour
differences.
Accidental damage caused by foreign
objects or substances and cleaning or
unblocking of filters, drainage systems or
soap drawers.
Damage to the following parts: ceramic glass,
plastic parts accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been caused
by production faults.
Repairs or any alteration not carried out by
our appointed service providers and/or an
authorized service contractual partner or
where non-original parts have been used.
The use of the appliance in a non-domestic
environment i.e. professional use or any
alteration, abuse or misuse of the appliance.
· the Serial number or barcode label of the
appliance is tampered with, defaced, missing
or altered
· Transportation damages. If a customer
transports the product to his home or another
address, IKEA is not liable for any damage
that may occur during transport. However, if
IKEA delivers the product to the customer's
delivery address, then damage to the product
that occurs during this delivery will be covered
by IKEA.
In cases the above conditions are observed at
the time of visit by the Authorized Service
Center service partner then the Purchaser
shall be liable to bear the repair charges
incurred during the process and price of other
parts /consumables/spares not covered in
Warranty and/or repair charges for the parts
covered under warranty if the same is
damaged by the Customer or otherwise gets
damaged due to non adherence to User
manual or warranty terms.
How country law applies
The IKEA warranty gives you specific legal
rights, which cover or exceed all the local
legal demands. However these conditions do
not limit in any way consumer rights described
in the local legislation.
The courts at Delhi have exclusive jurisdiction
for settling the claims or disputes or matters
arising out of present Warranty.
Area of validity
This IKEA warranty applies only to products
purchased in India. This Warranty shall be
restricted to and valid in India.
An obligation to carry out services in the
AA-2037577-3

10
1800-419-4532
Opening time
10.00-22.00
framework of the warranty exists only if the
appliance complies with:
── The technical specifications of the
country in which the warranty claim is
made;
── The Assembly Instructions and User
Manual Safety Information.
AFTER SALES for IKEA appliances
Please don't hesitate to contact IKEA to:
· make a service request under this
warranty;
· ask for clarification on functions of IKEA
appliances
To ensure that we provide you with the best
assistance, please read carefully the
Assembly Instructions and/or the User
Manual before contacting us.
How to reach us if you need our service
The IKEA after sales customer service centre
will assist you on the phone with basic
trouble shooting for your appliance at the
time of service call request.
In order to provide you a quicker
service, please also always refer to
the IKEA article number (8 digit code)
placed on the rating plate of your
appliance.
While IKEA will make every effort to carry
out repairs/ replacement of parts under
this Warranty as soon as possible; it is
expressly made clear that IKEA or its
authorised service partner shall not be
liable to do so within specified period of
time.
It is entirely left to IKEA's discretion to
effect repairs/replacements of parts at the
site of installation or at any service station
of its Authorized Service Center(s).
SAVE THE PROOF OF PURCHASE!
It requires for the warranty to apply. The
proof of purchase also reports the IKEA
name and article number (8 digit code) for
each of the appliances you have
purchased.
Do you need extra help?
For any additional questions not related to
After Sales of your appliances please
contact your nearest IKEA store call centre.
We recommend you read the appliance
documentation carefully before contacting
us.
IKEA reserves the right to alter the terms
and conditions of the present Warranty at
any time with its sole discretion without
any prior notice.
AA-2037577-323221
© Inter IKEA Systems UI 2017 2017-09-13
